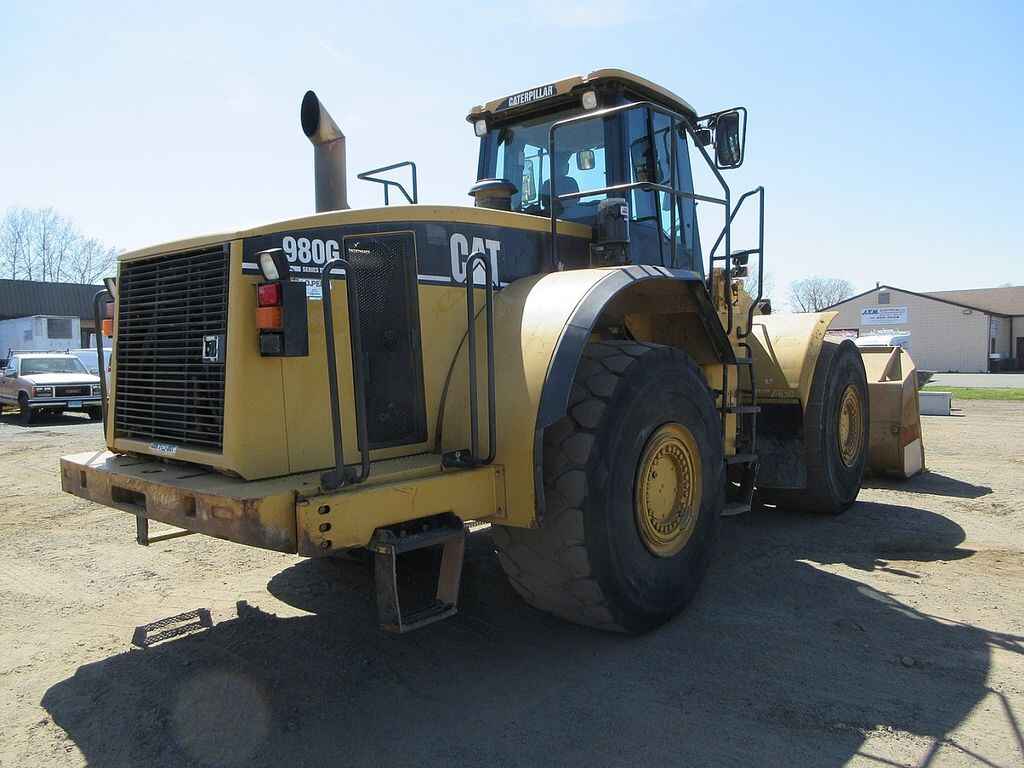

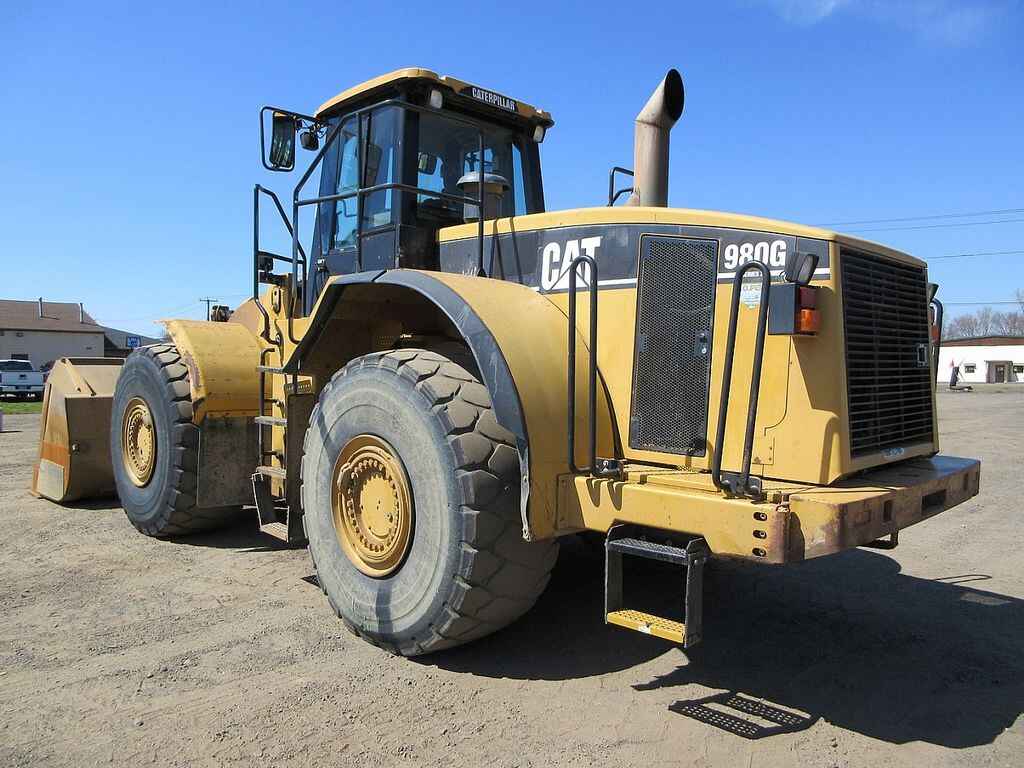

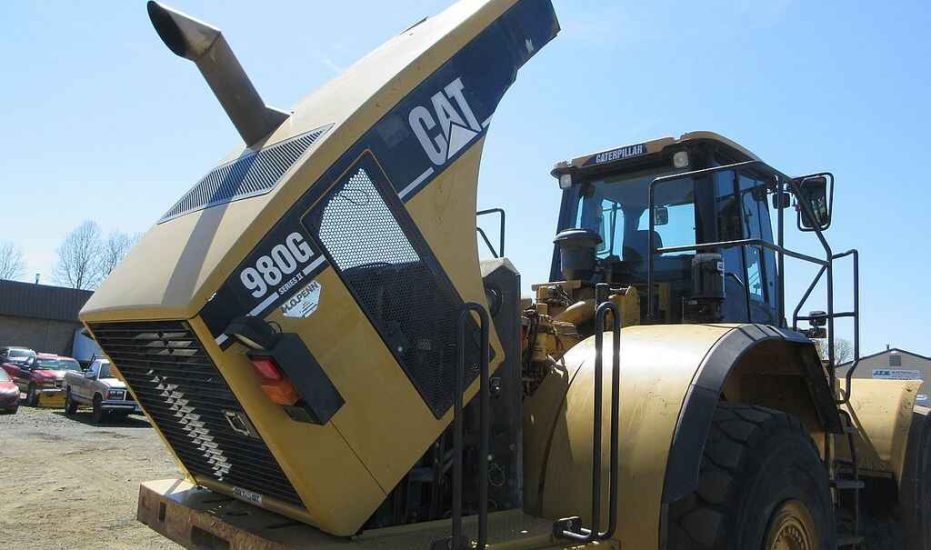

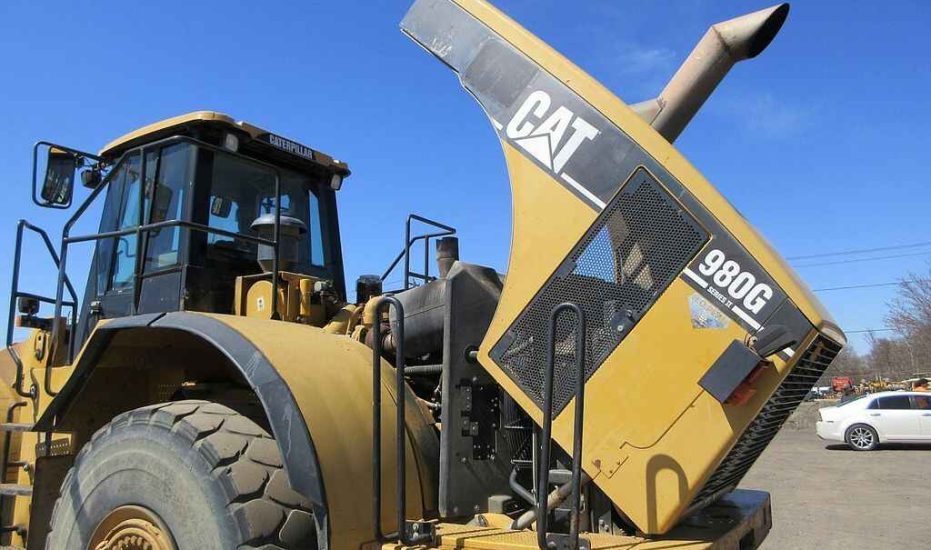

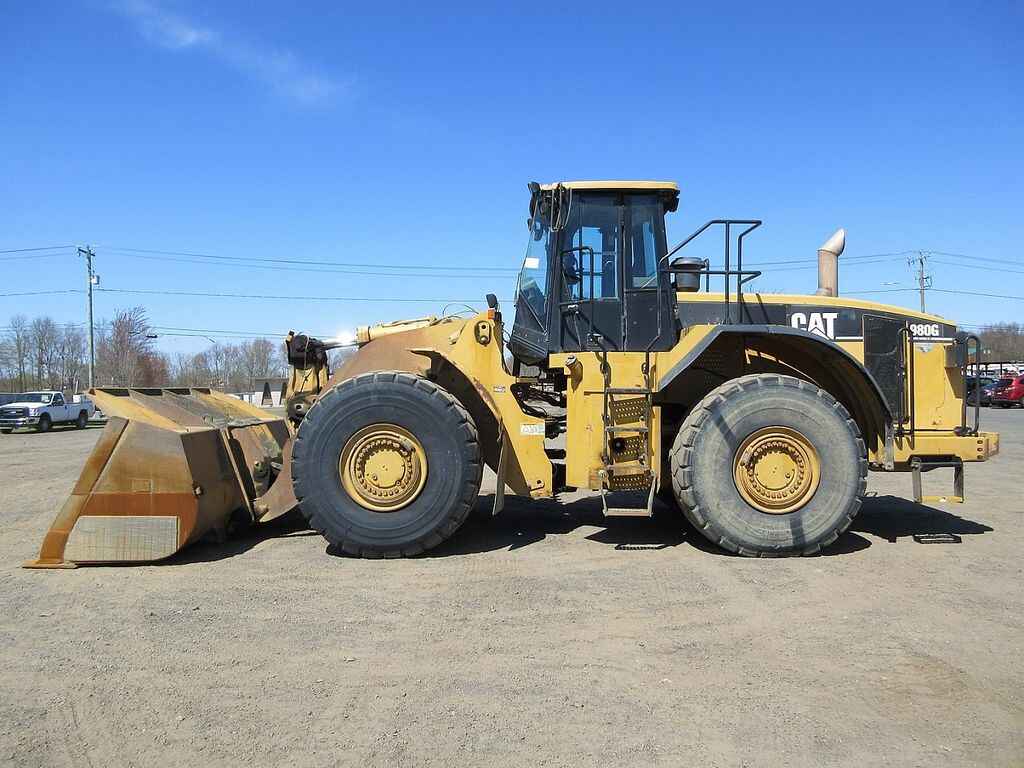

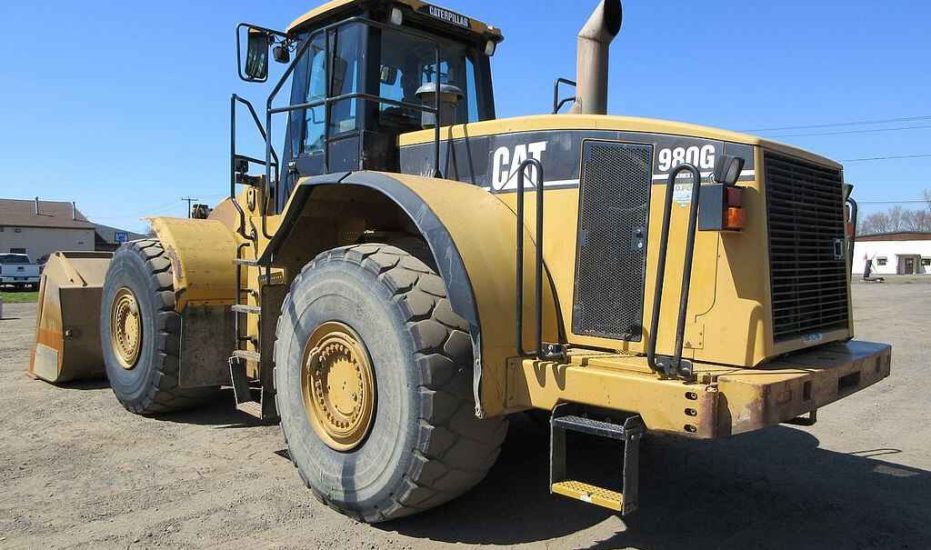

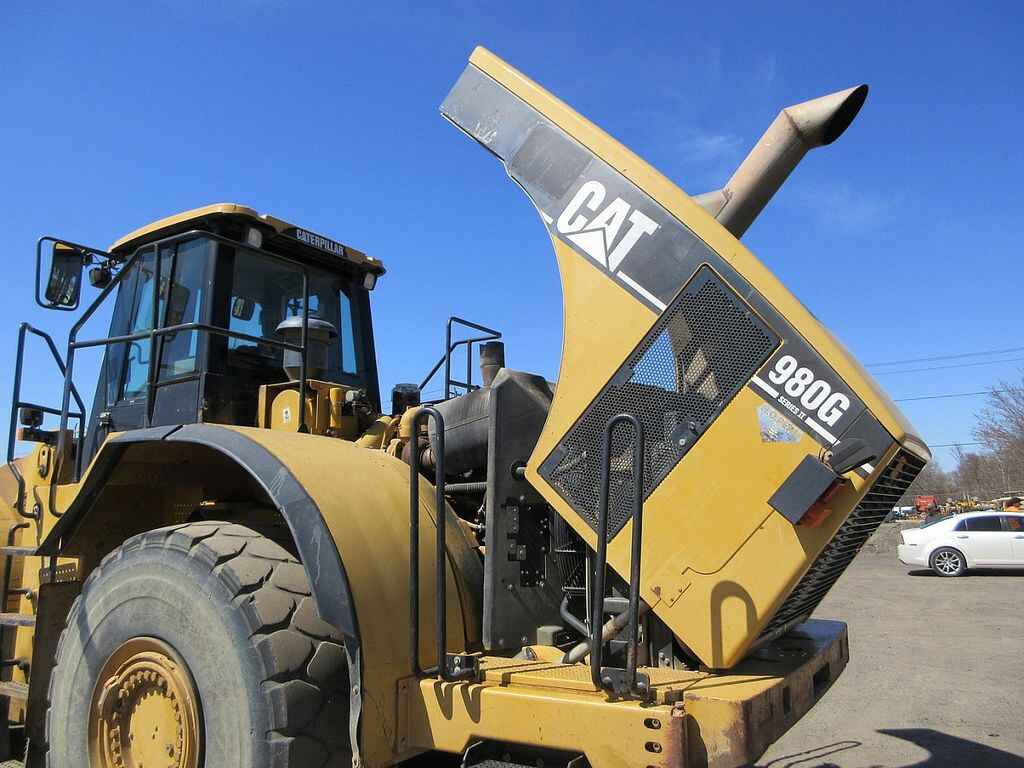

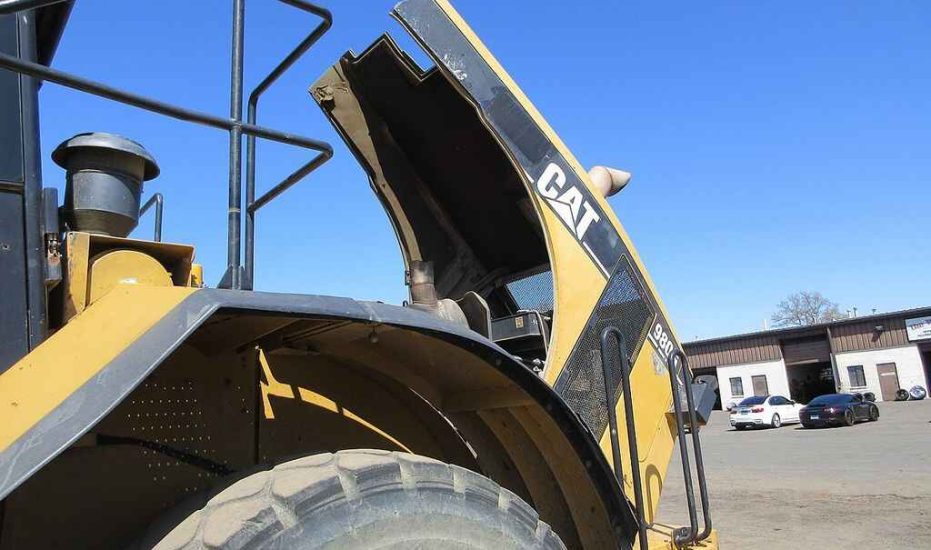

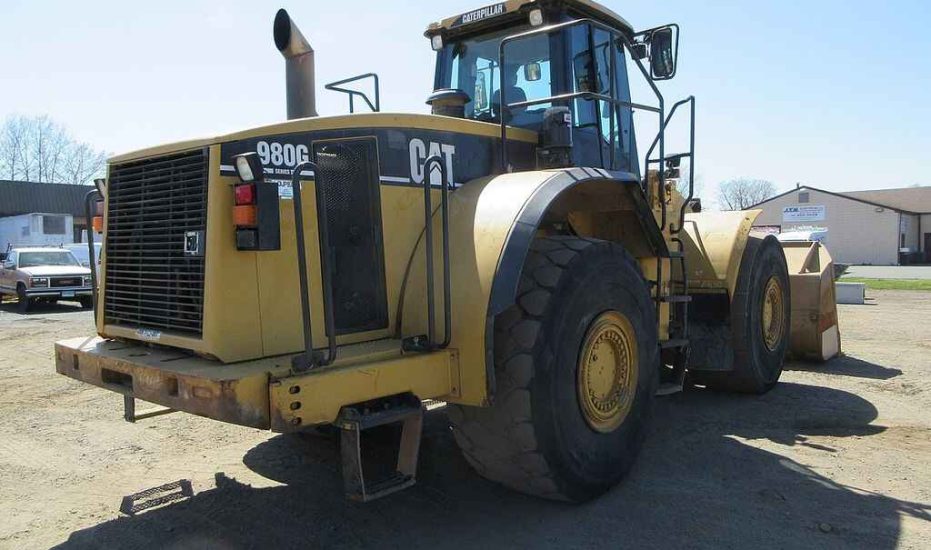

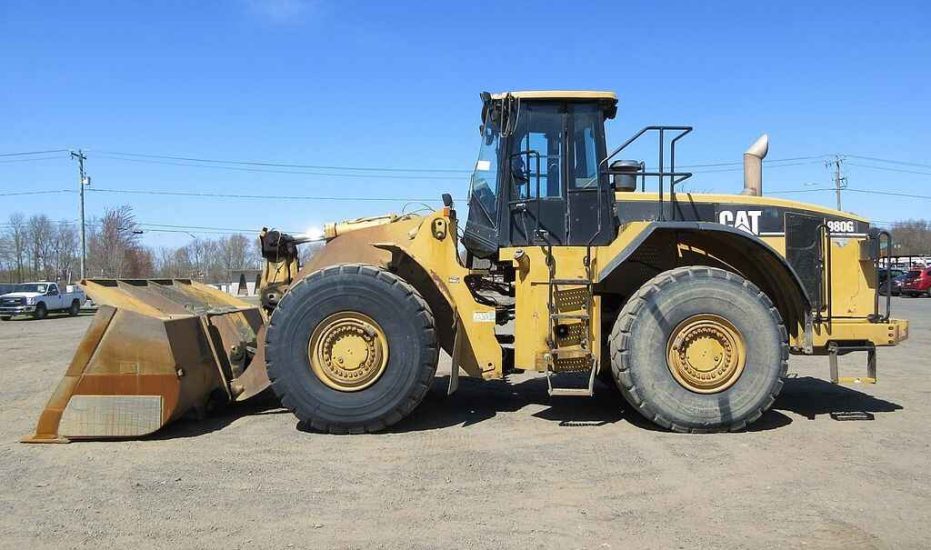

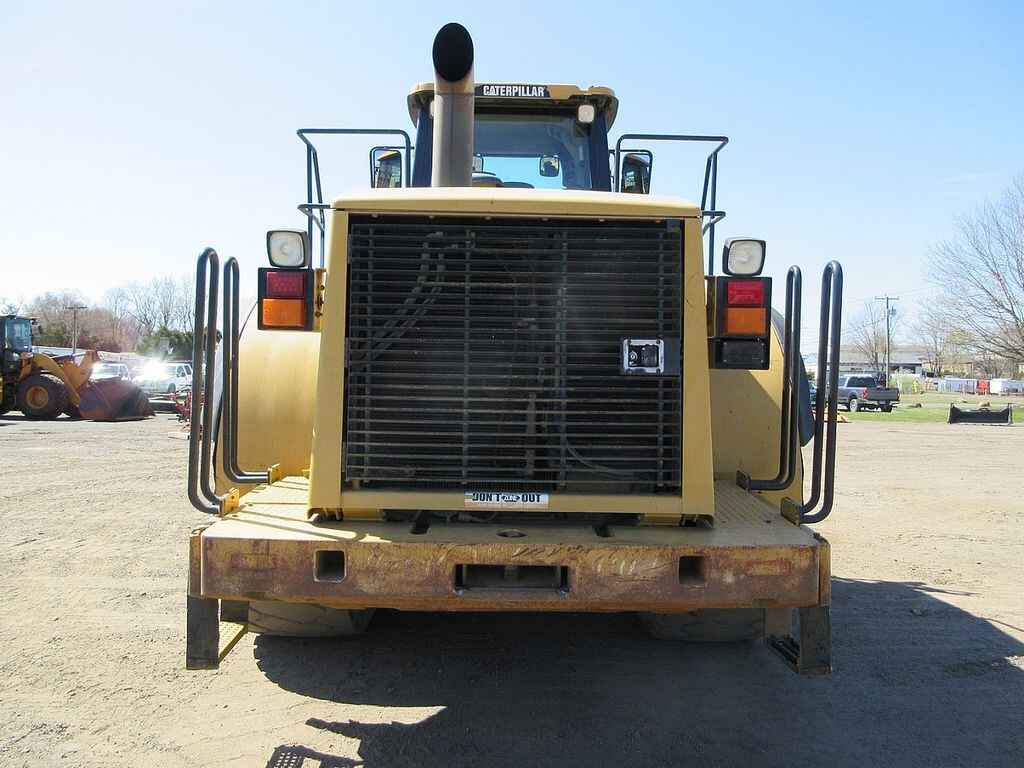

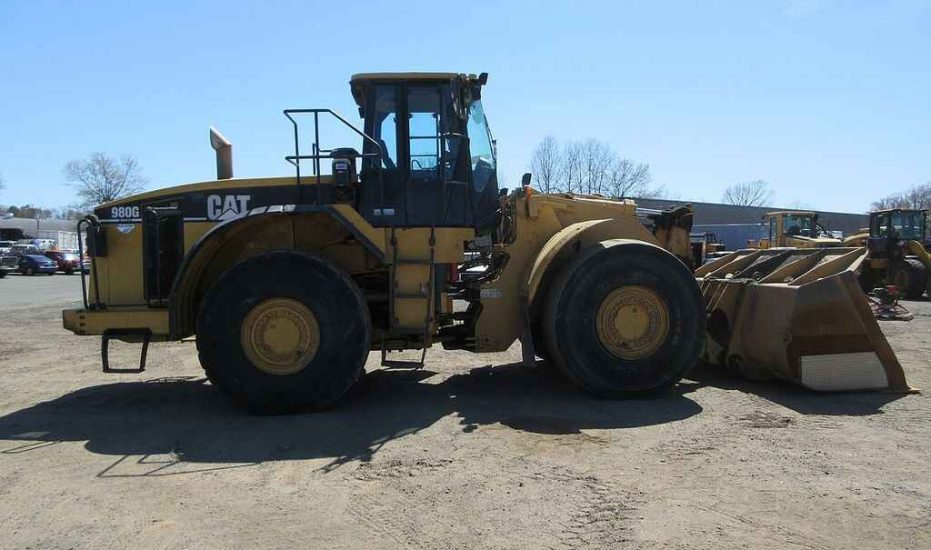

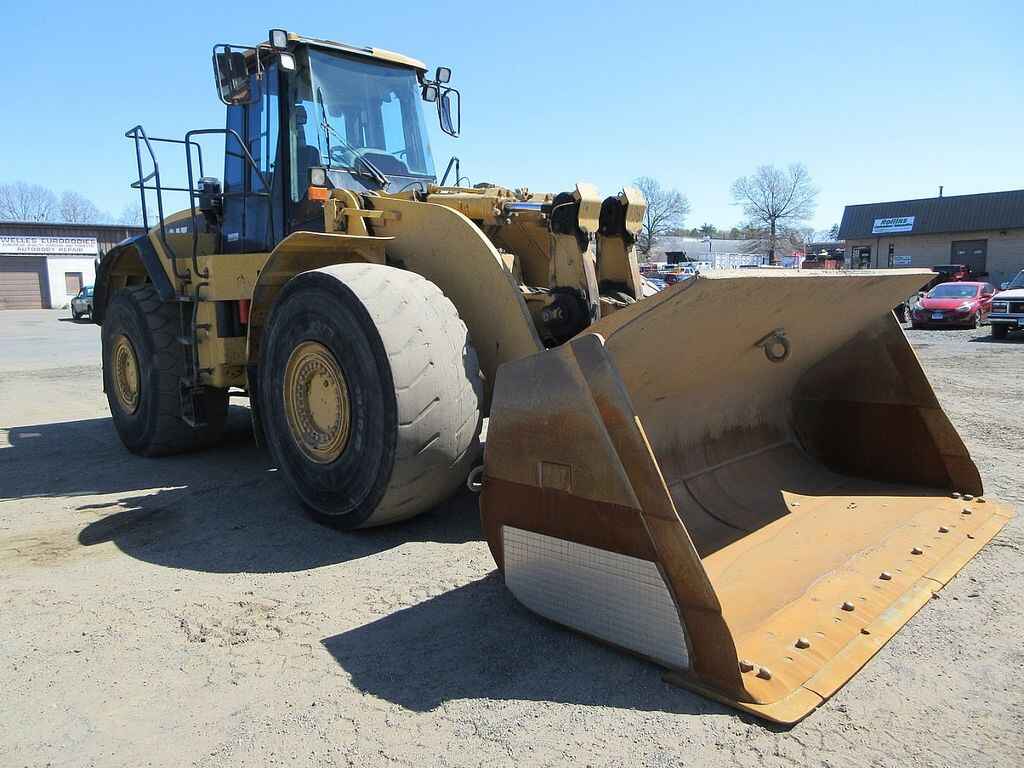

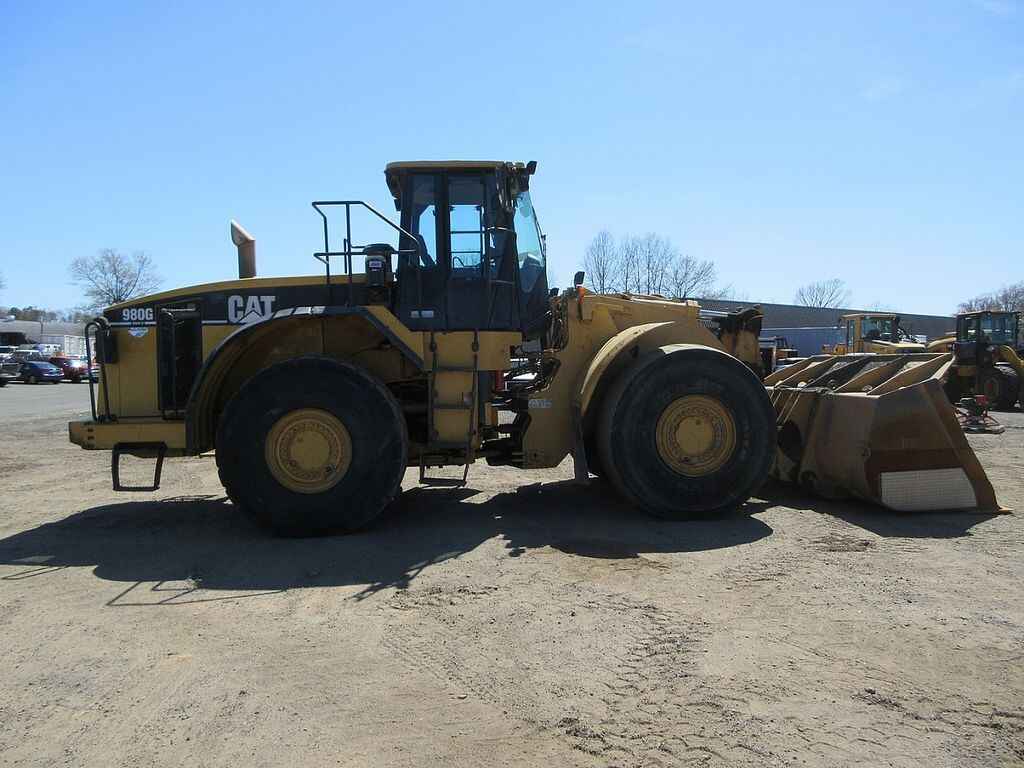

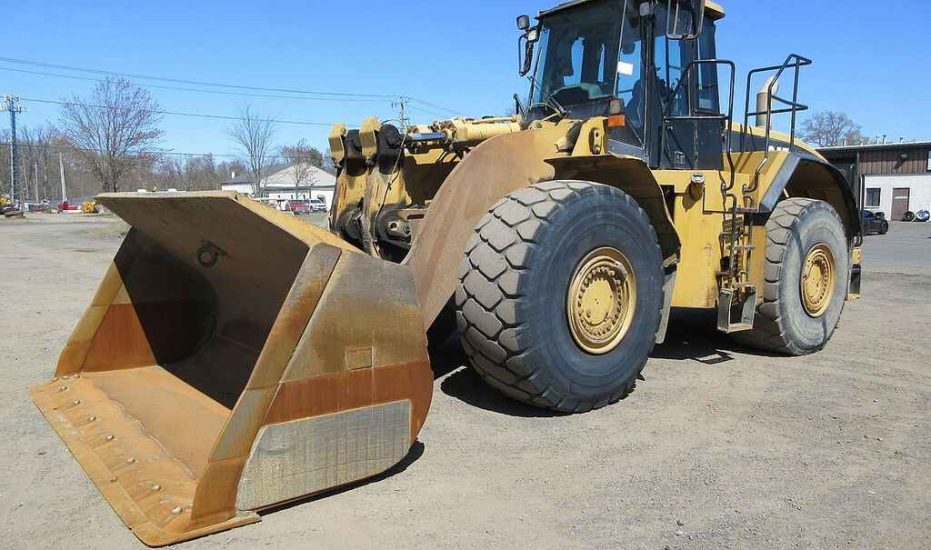

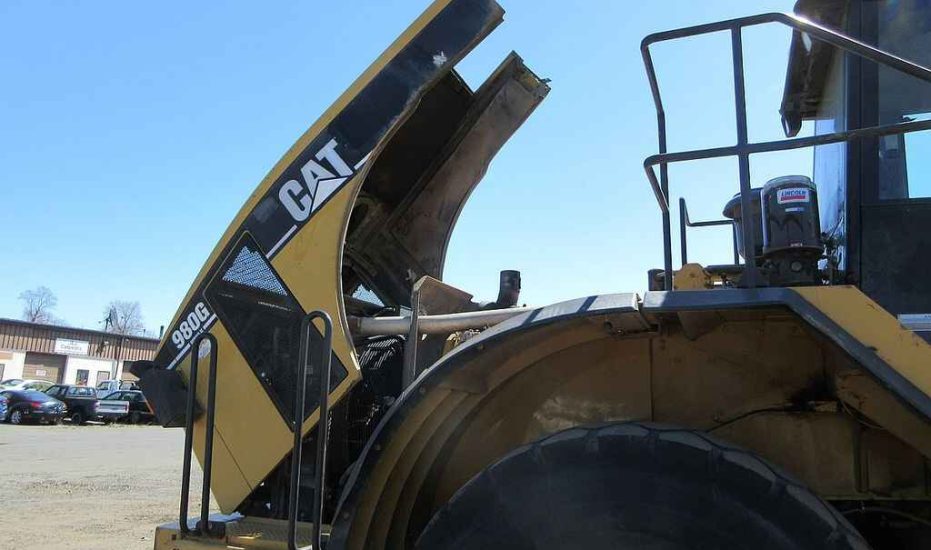

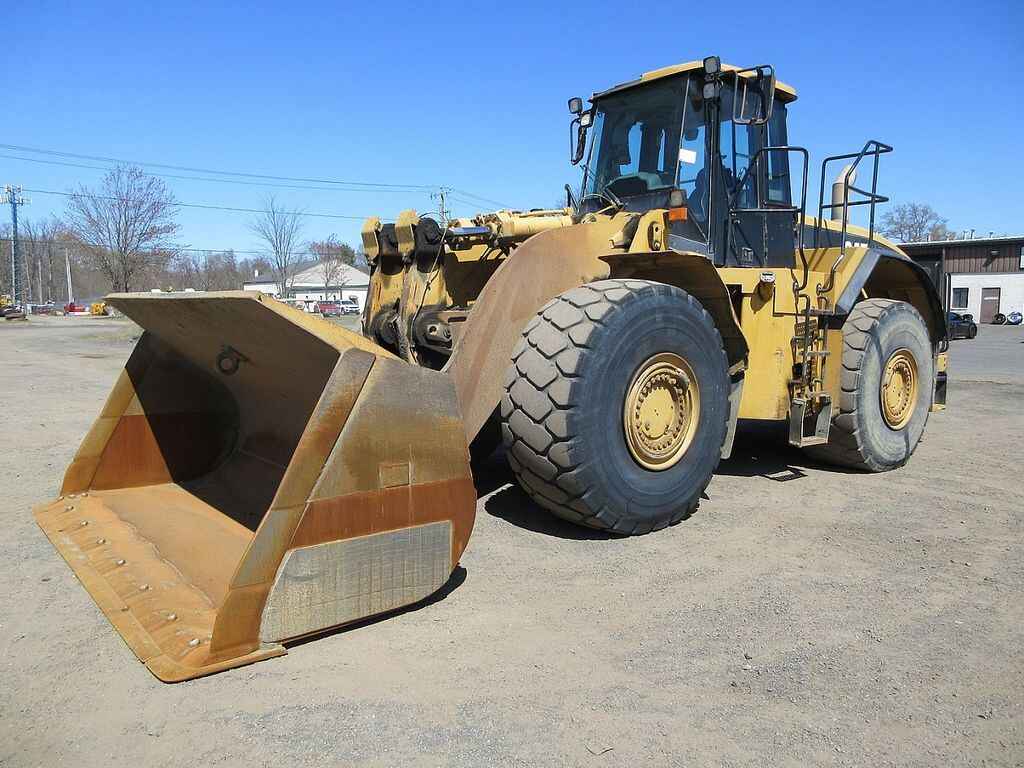

2003 Caterpillar 980G

2003
20563 hours
Diesel
Save
Compare
Featured Great Price
Video

Overview

  • Engine
    Cat 3406C DITA
  • Category
    Wheel Loaders
  • Color
    Yellow

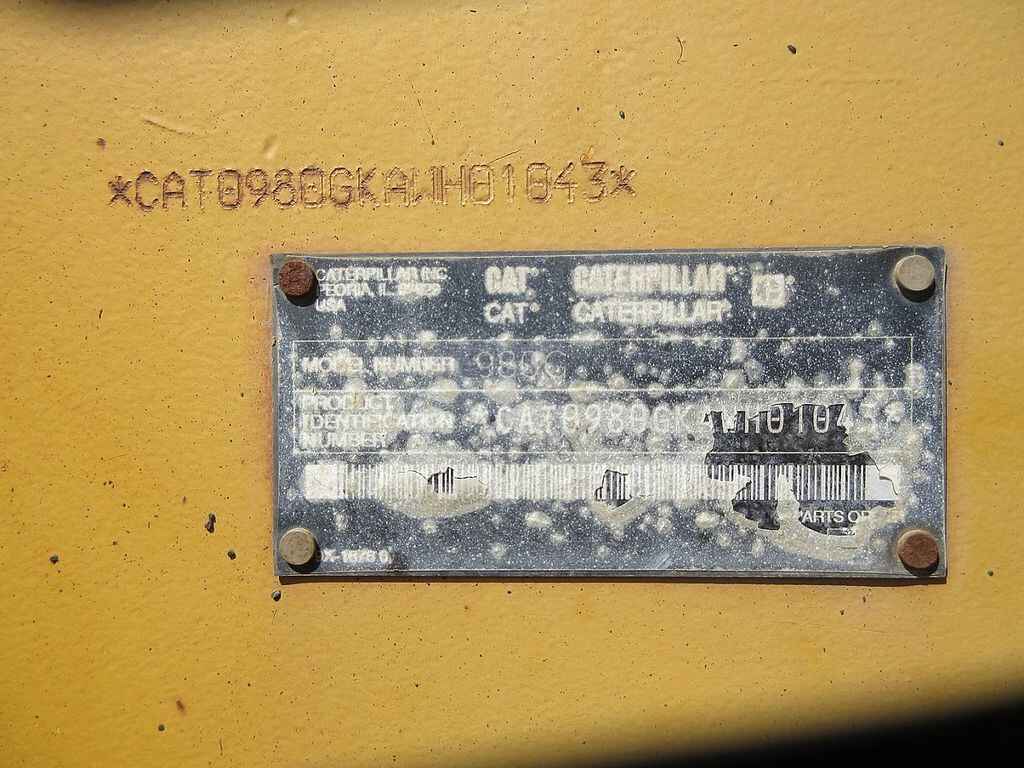

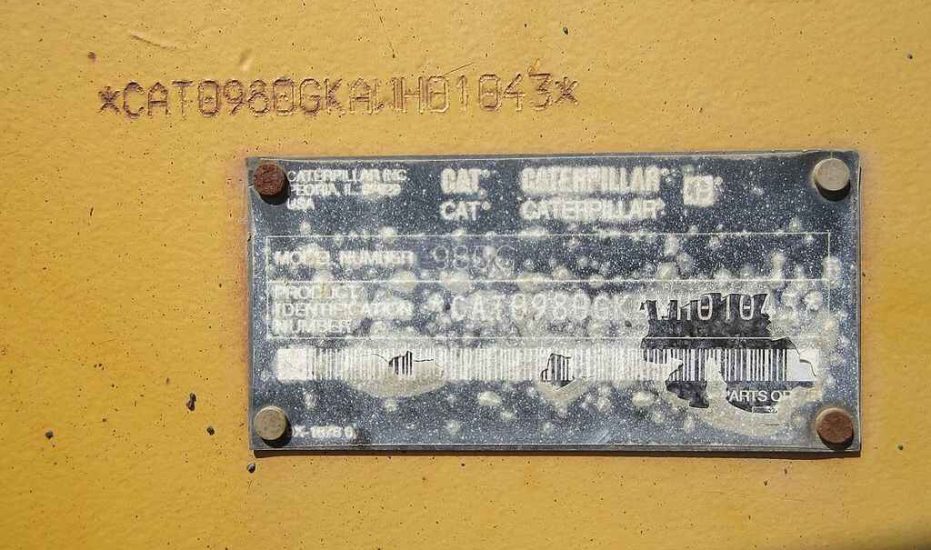

  • Serial
    KAWH01043
  • Stock#
    211318
  • Inspection
    Inspected
  • Cylinder
    6

Description

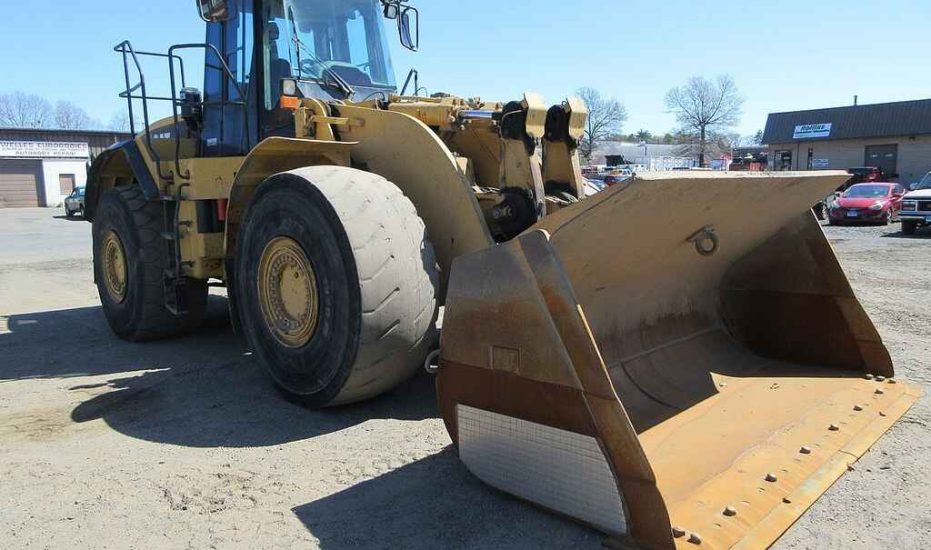

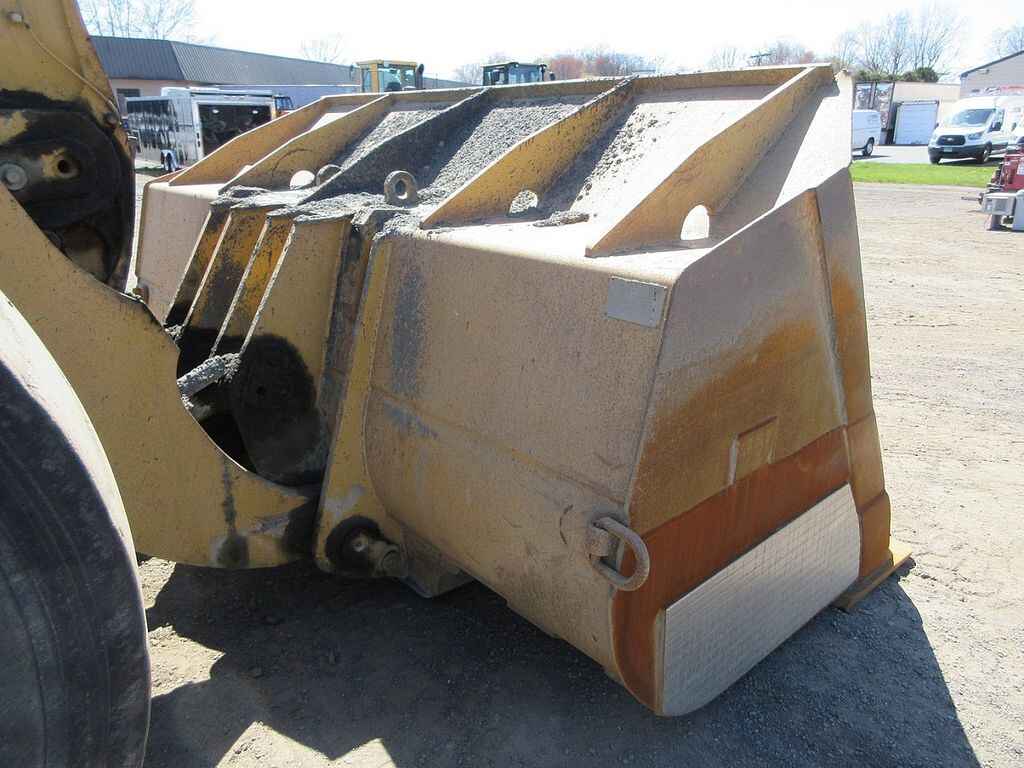

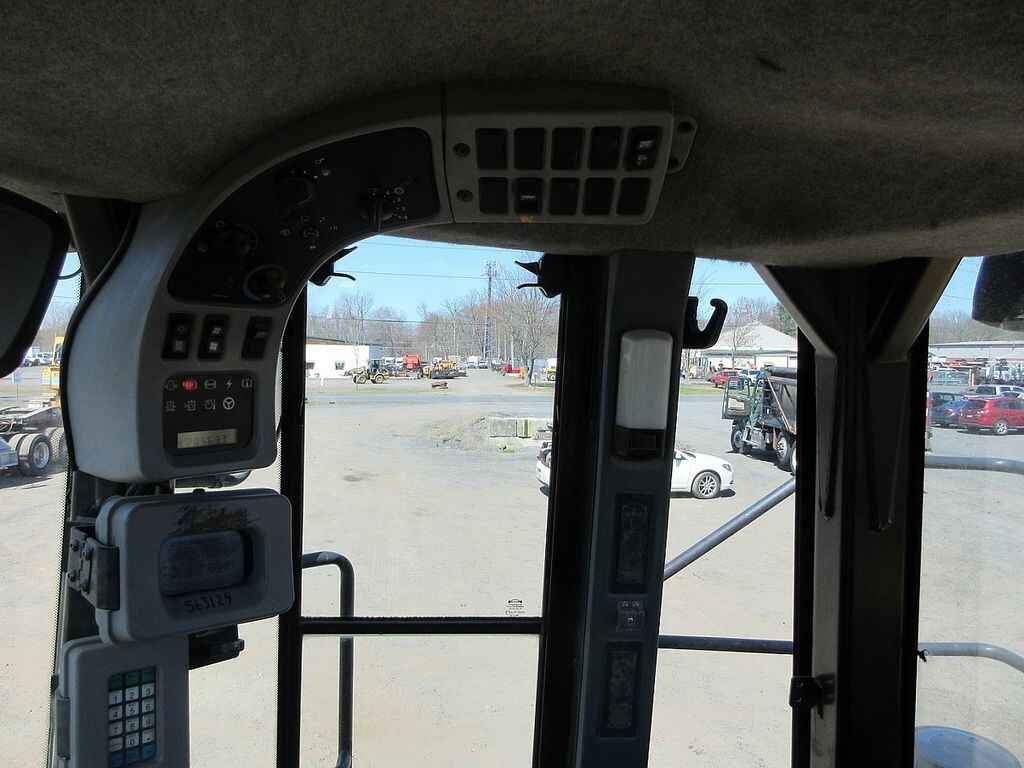

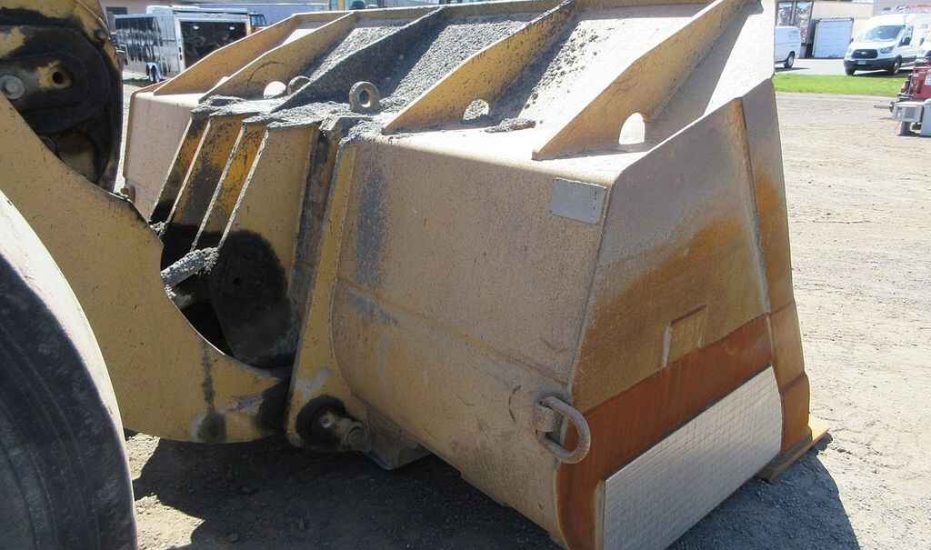

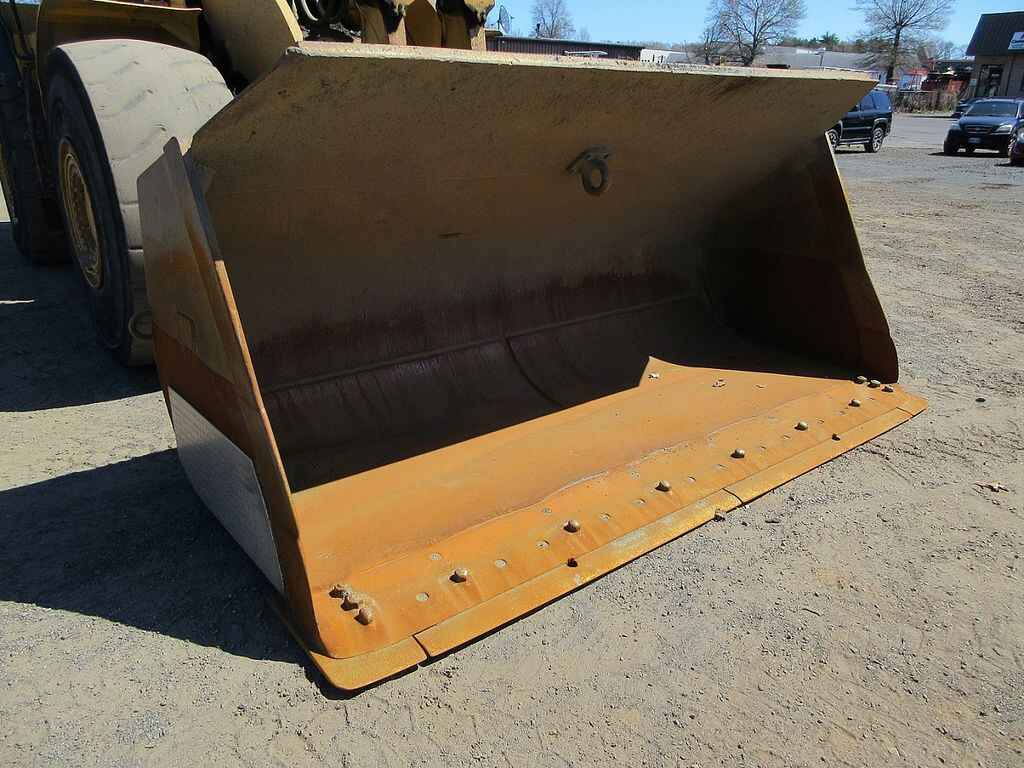

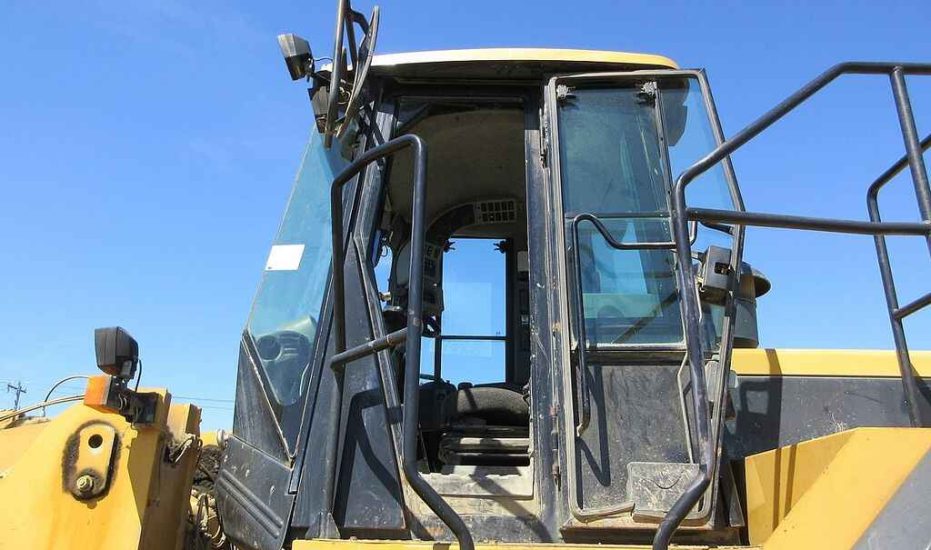

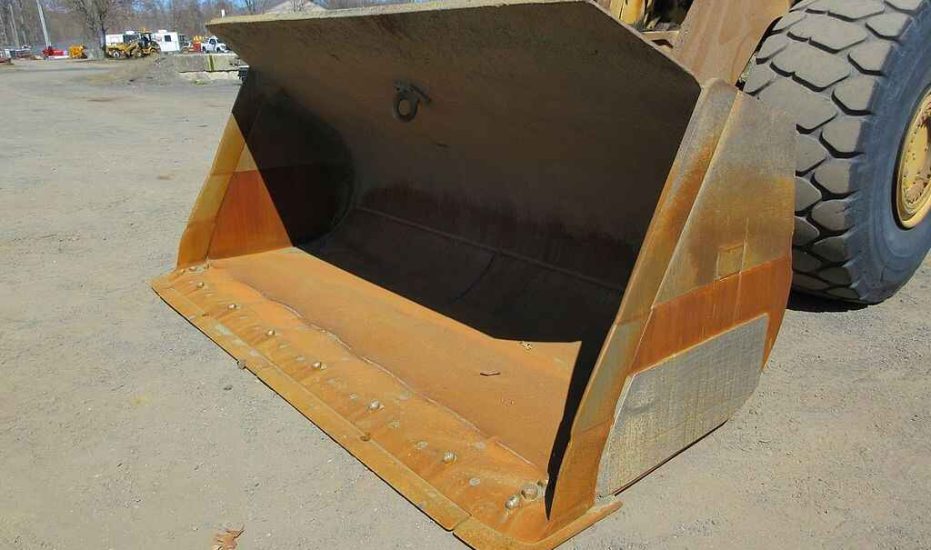

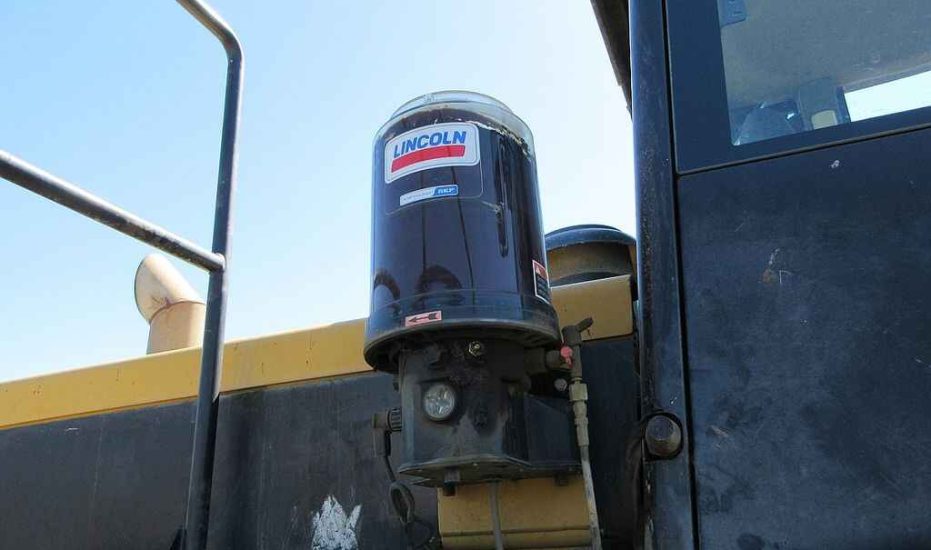

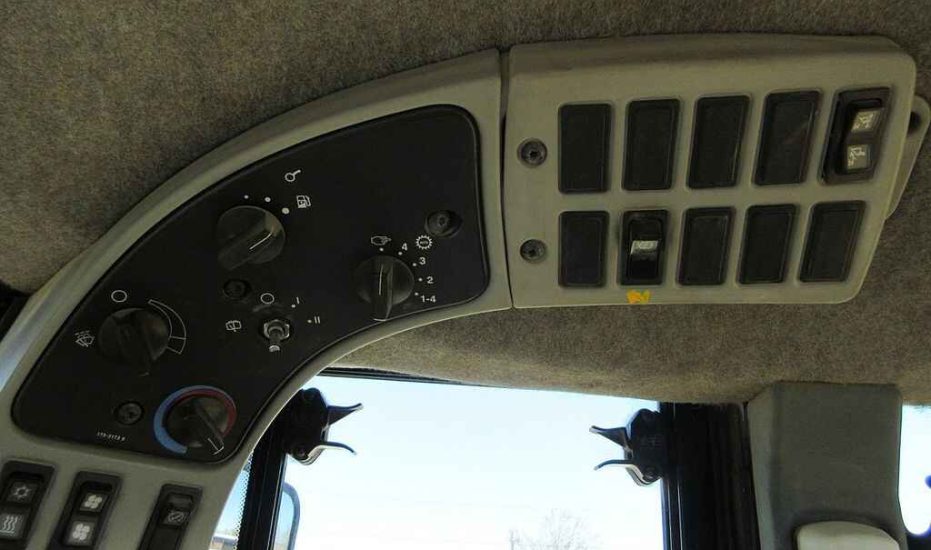

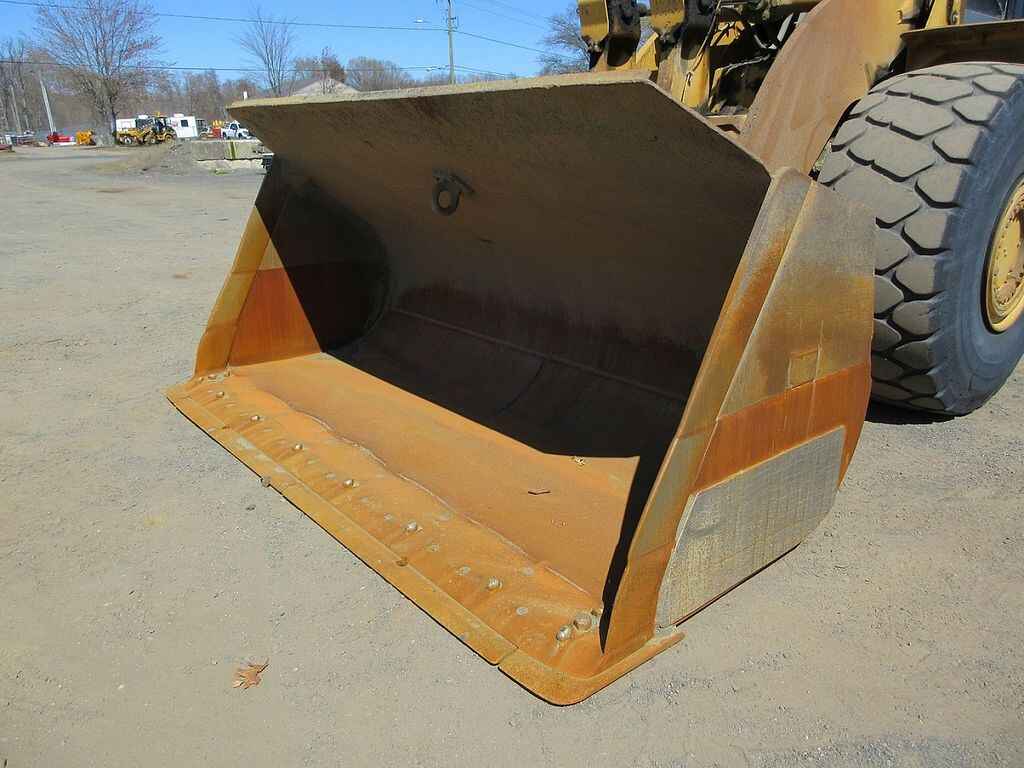

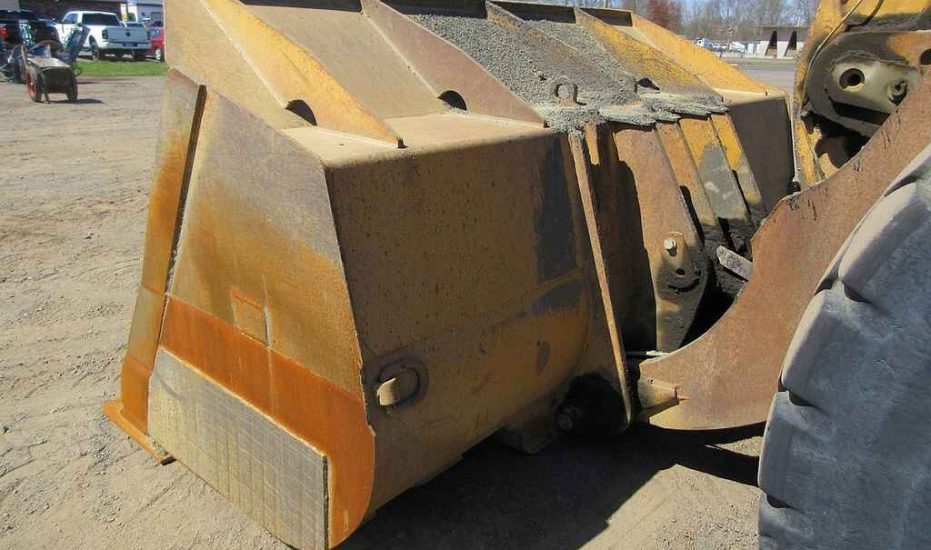

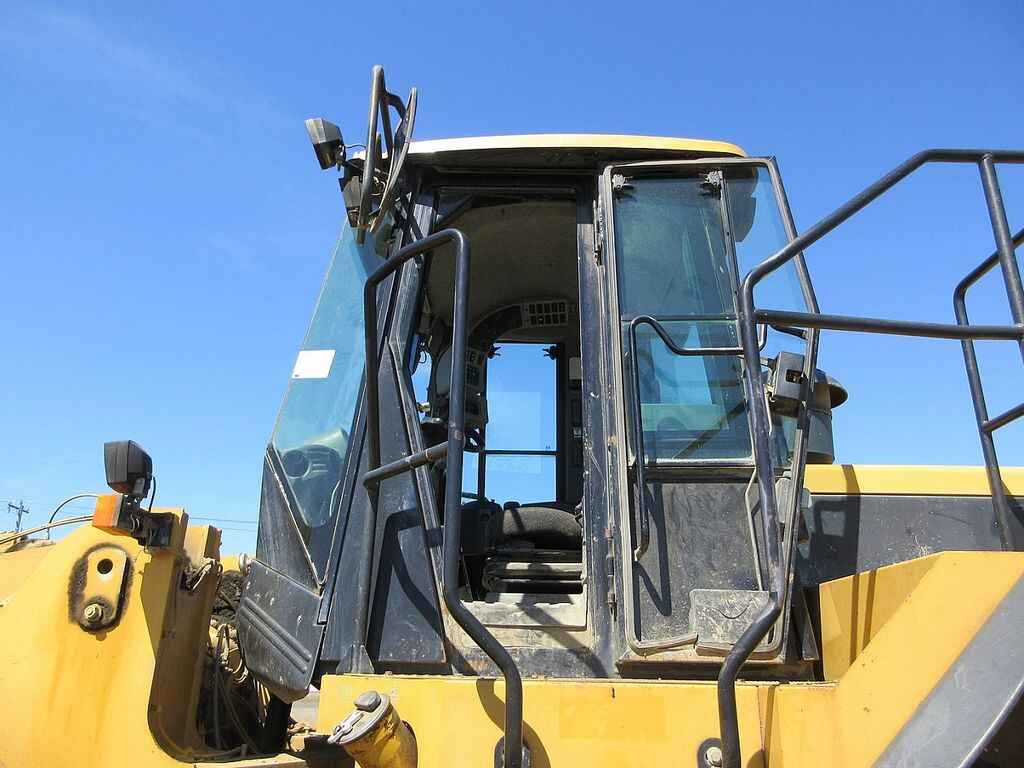

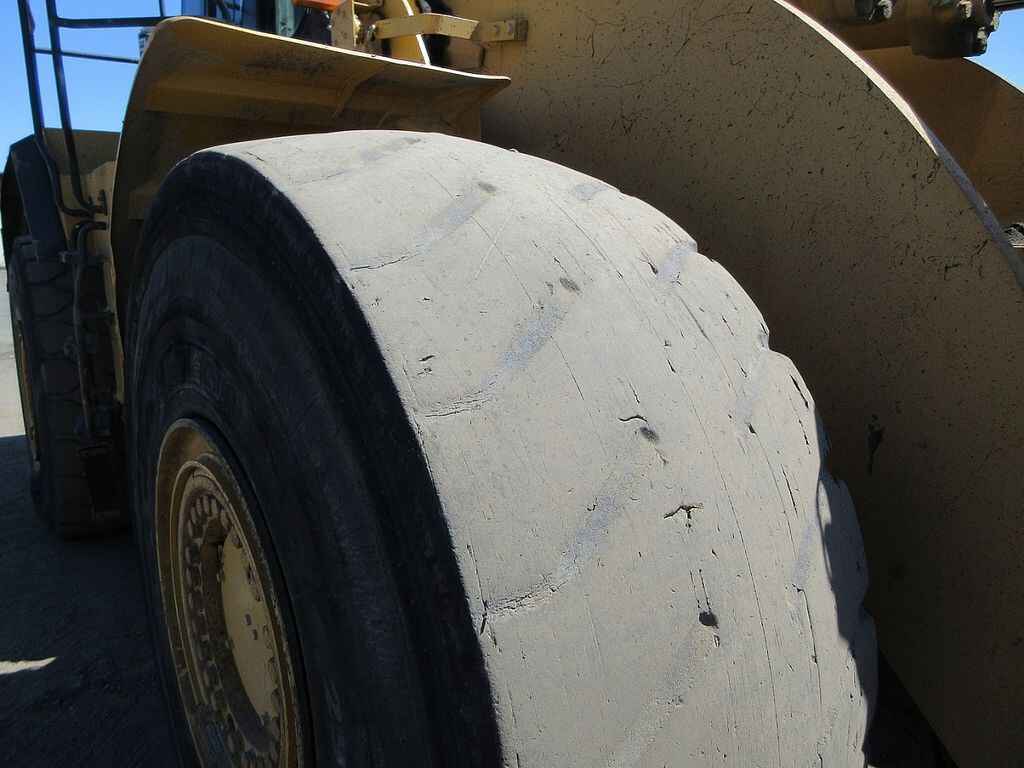

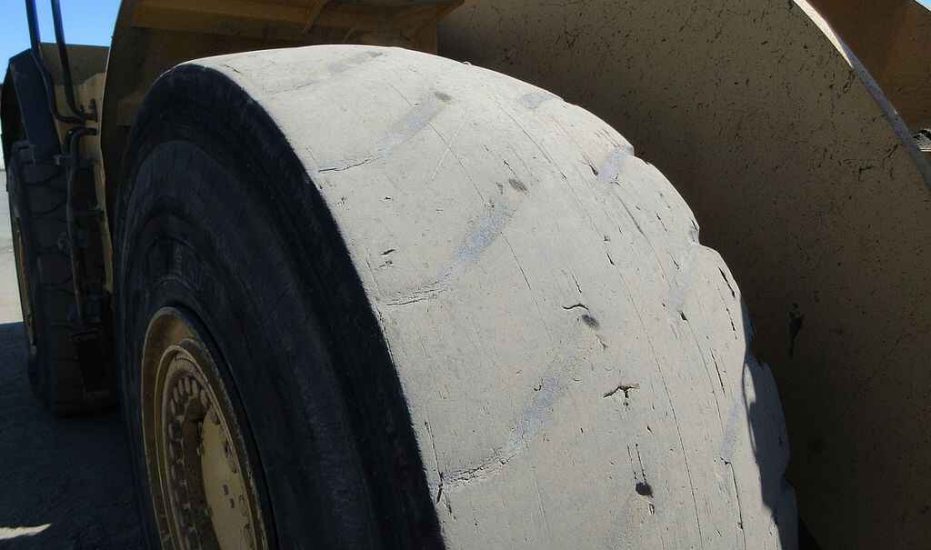

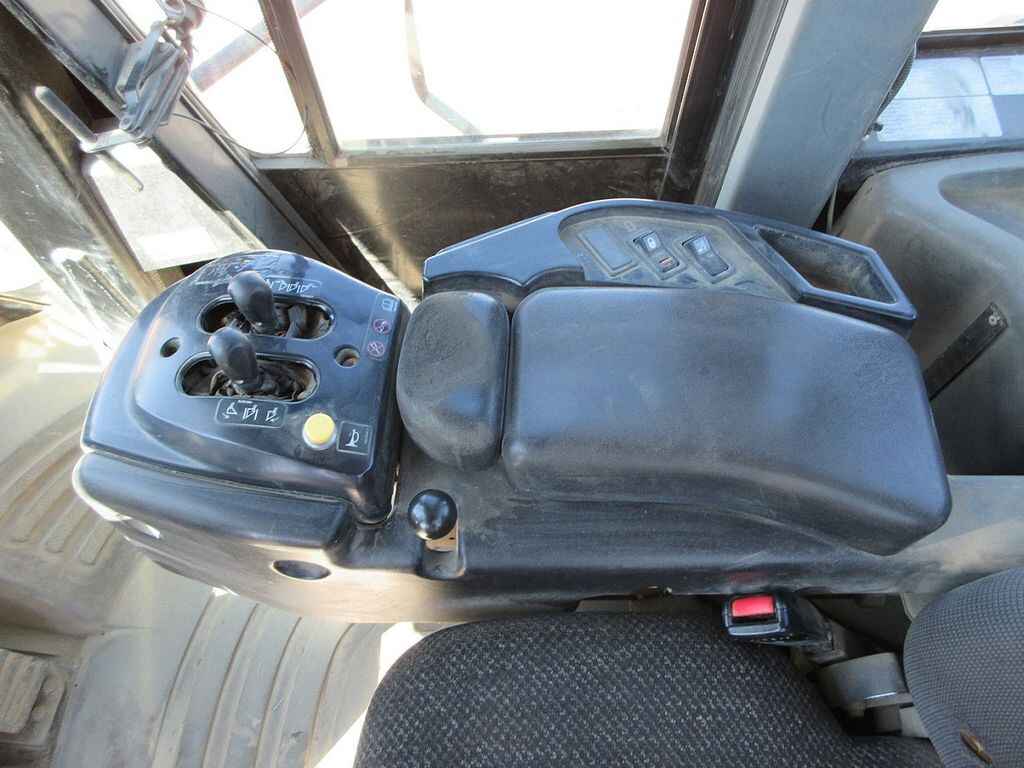

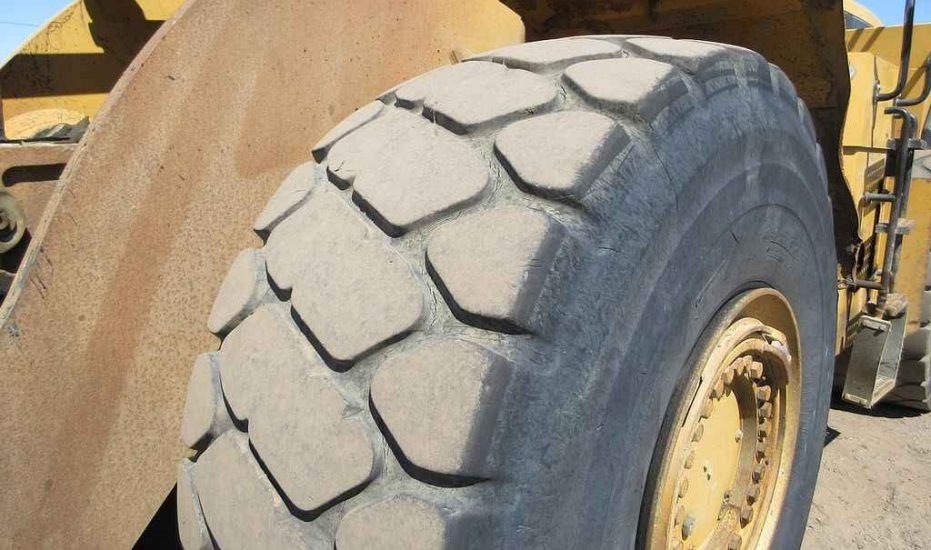

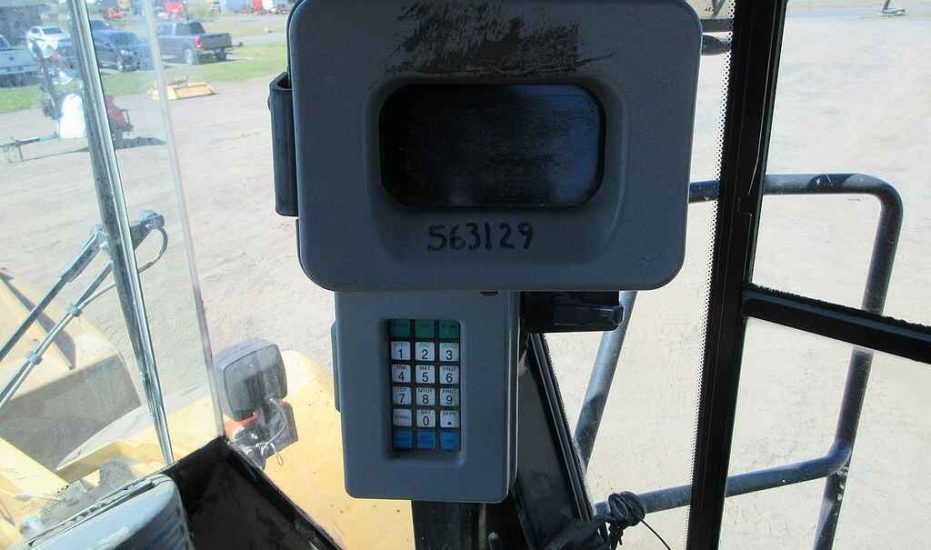

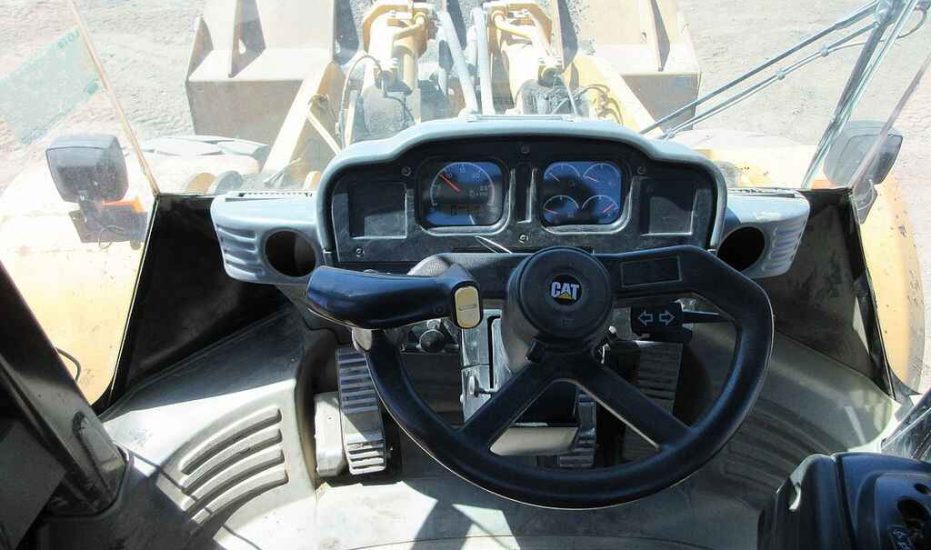

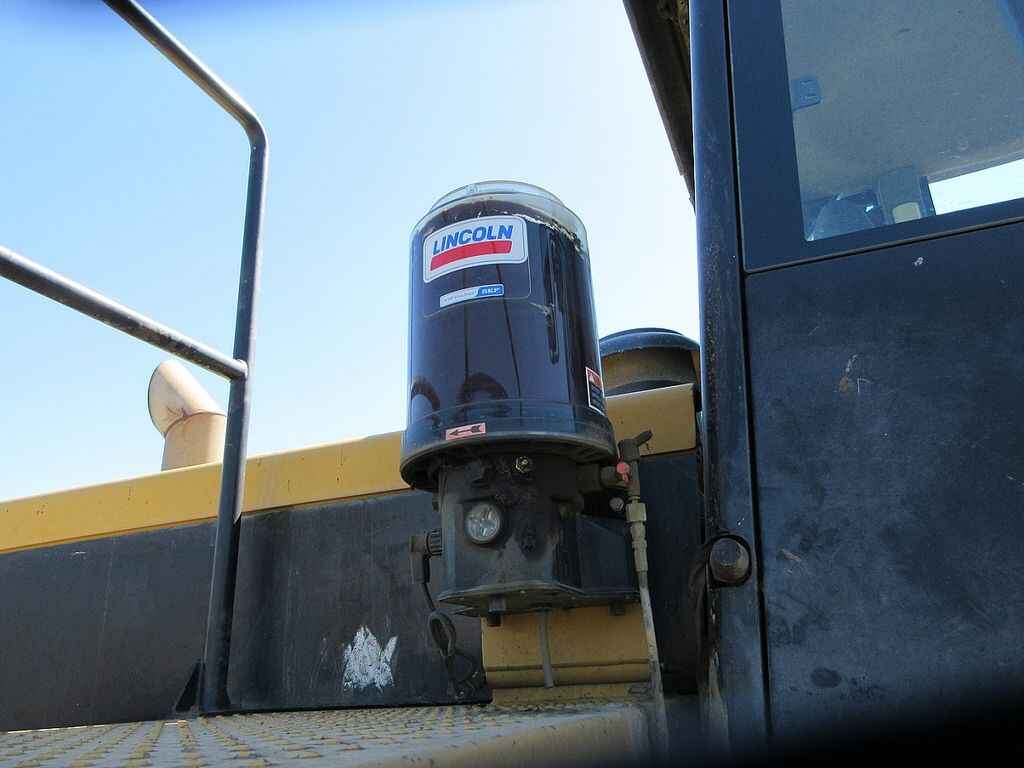

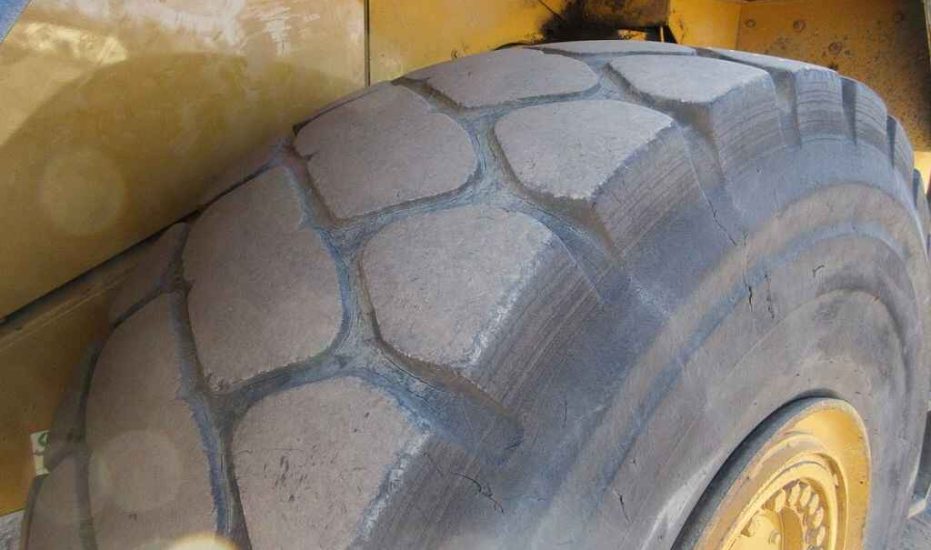

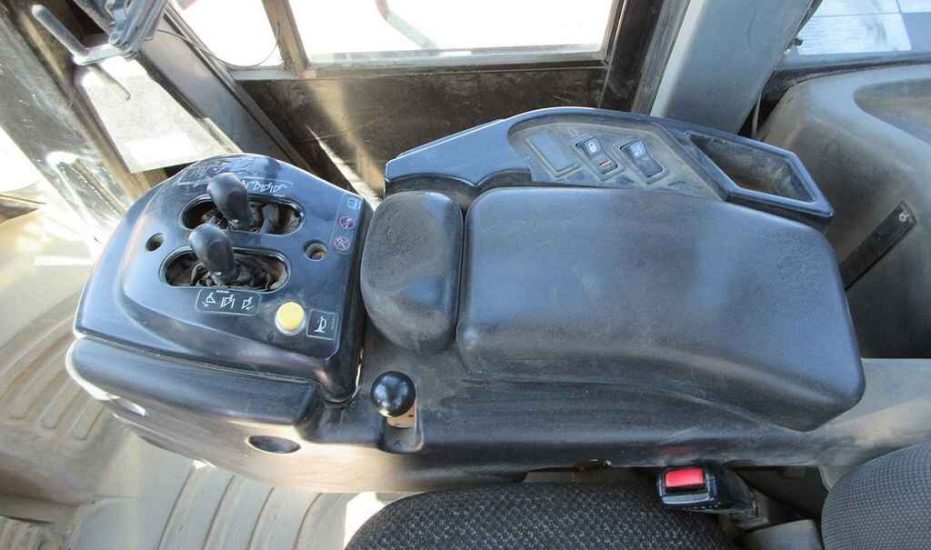

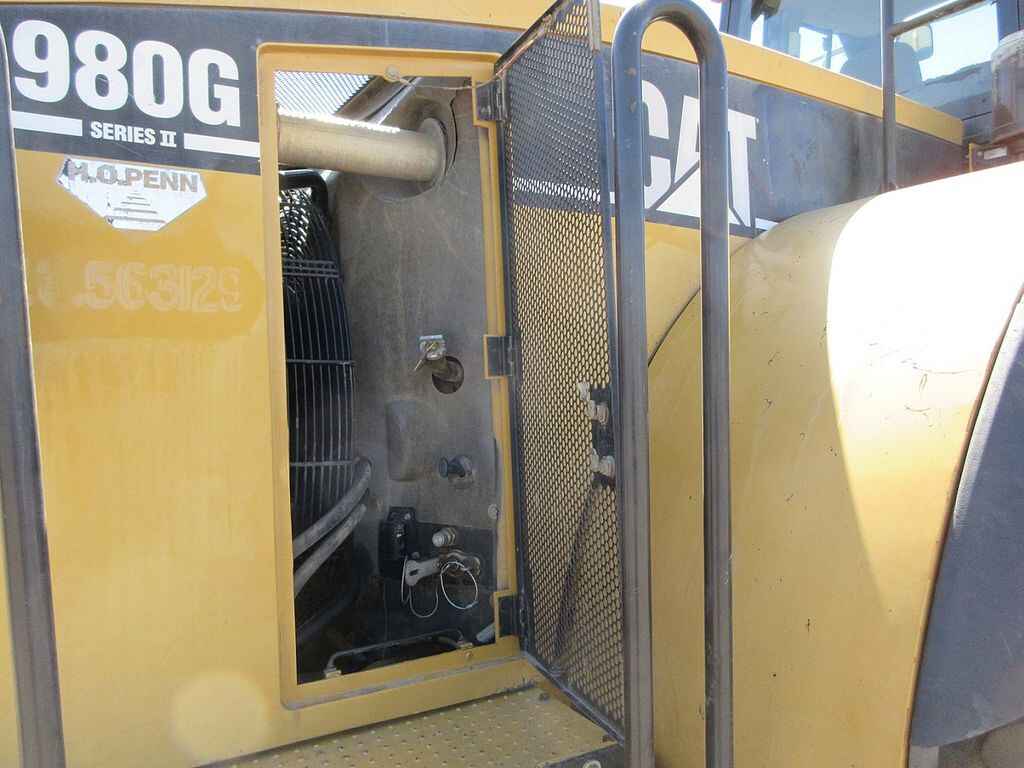

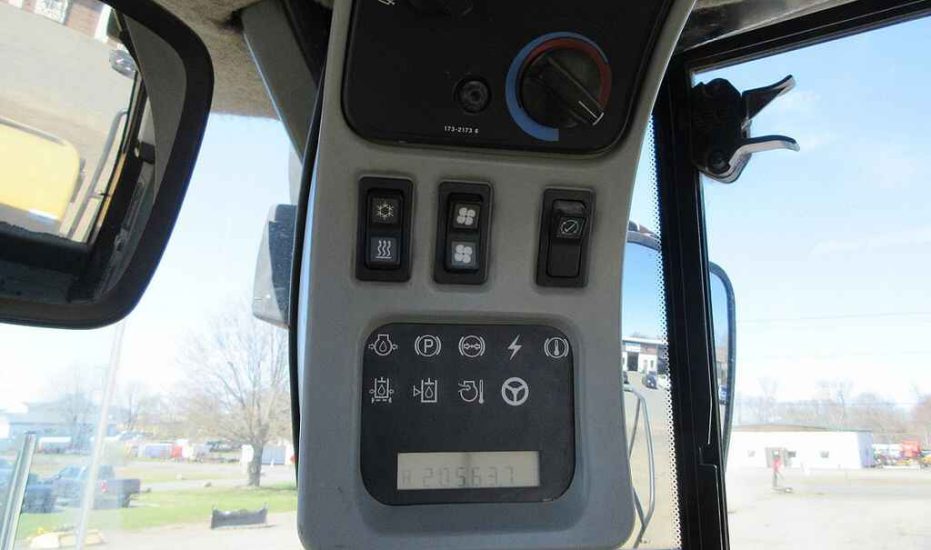

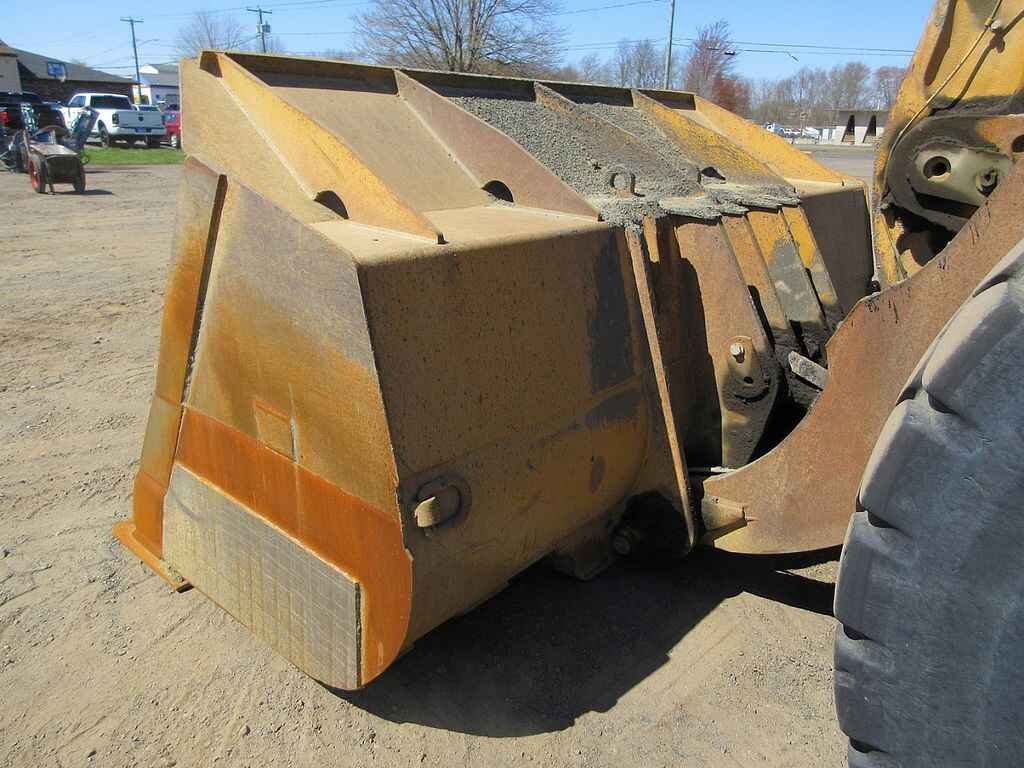

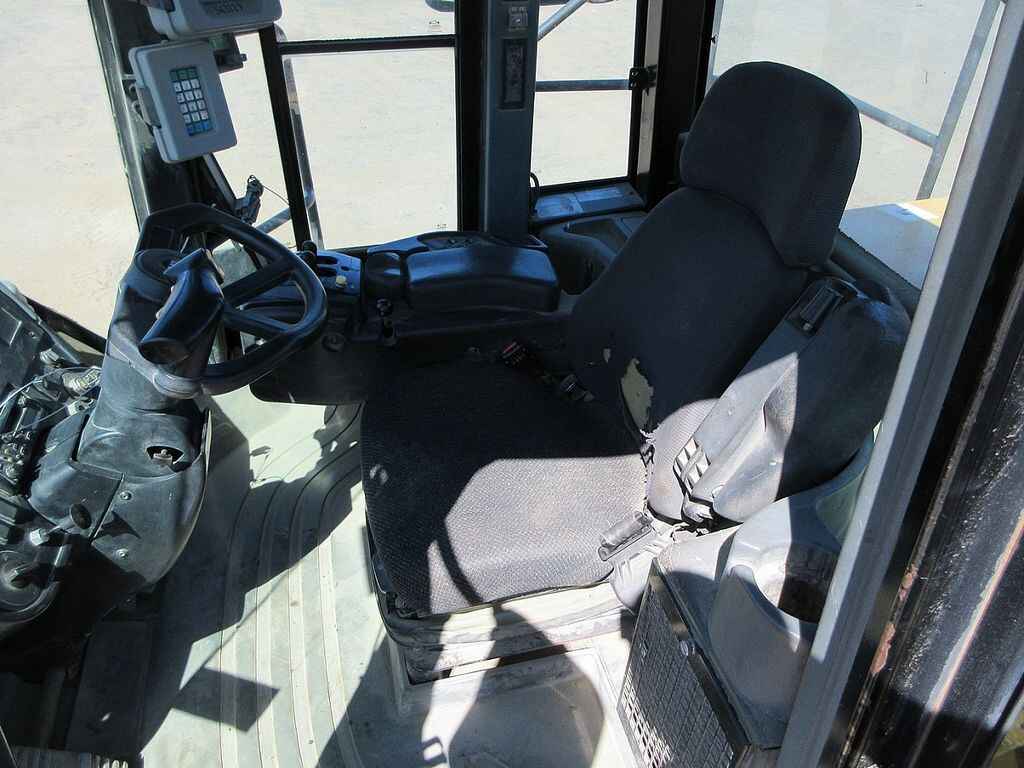

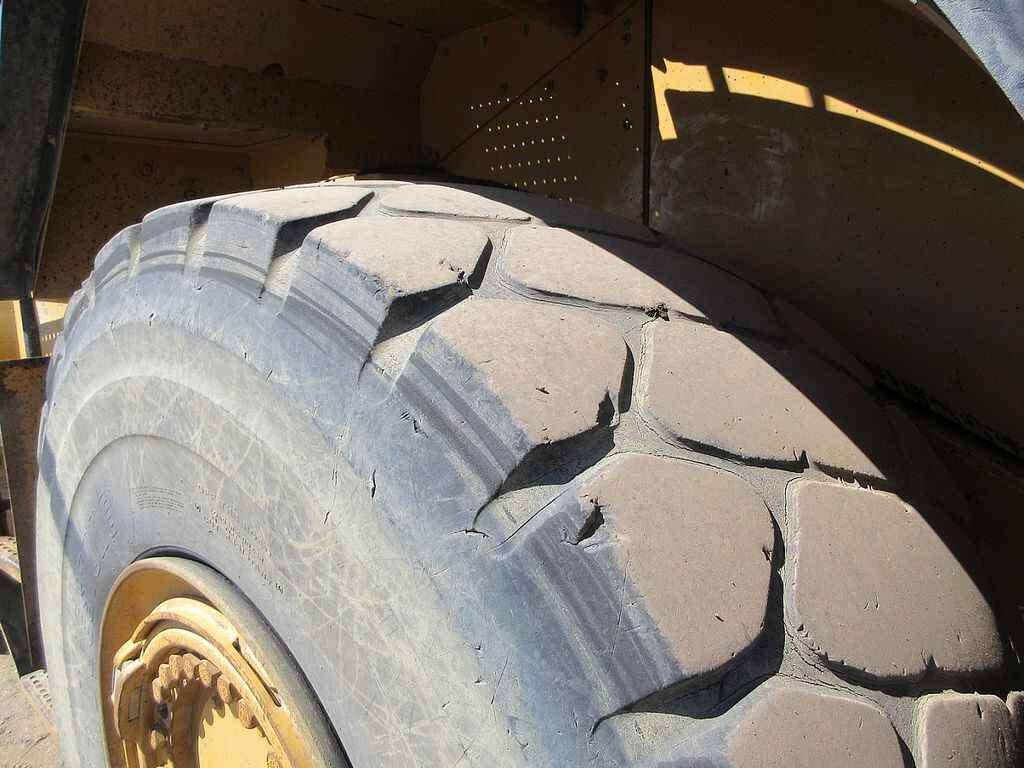

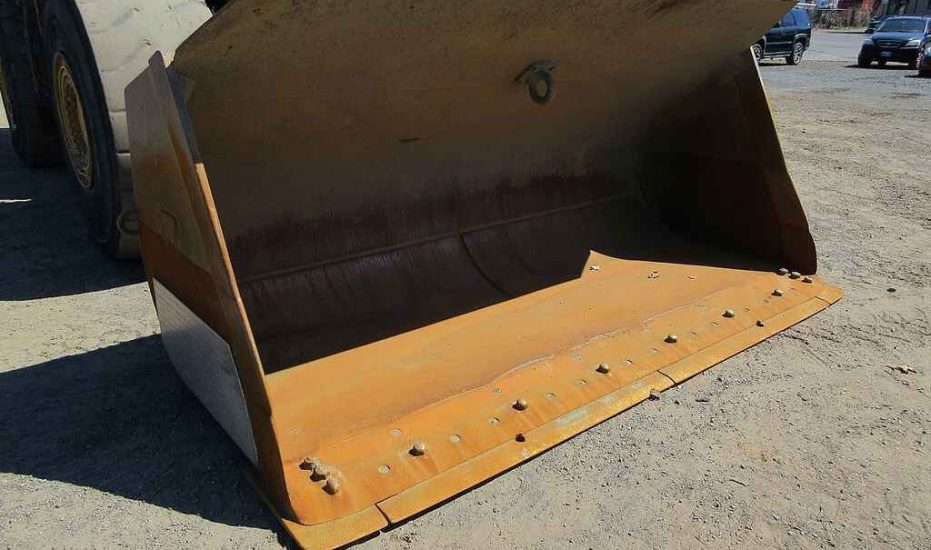

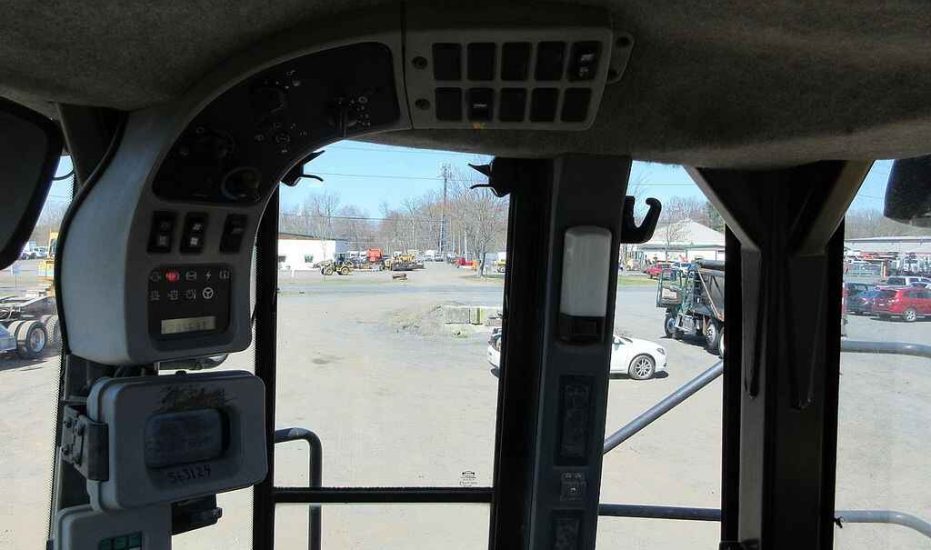

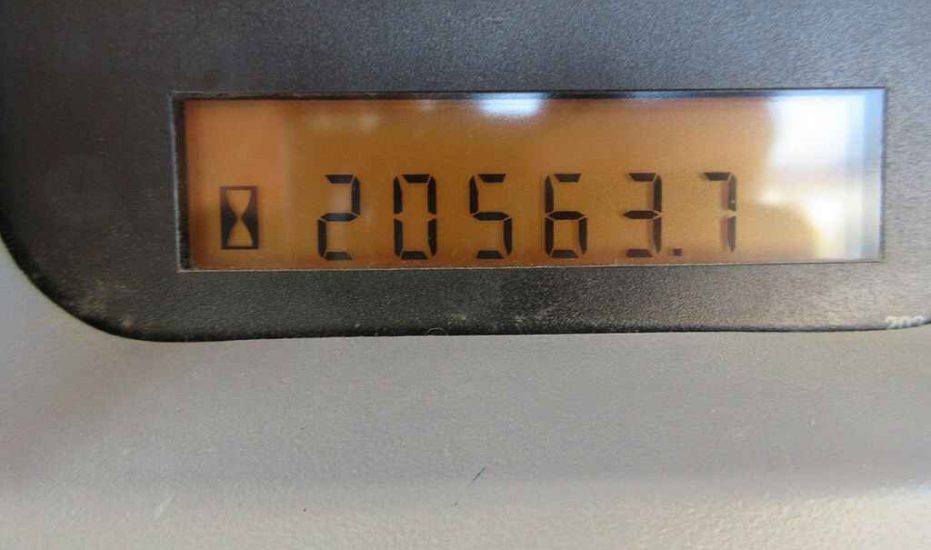

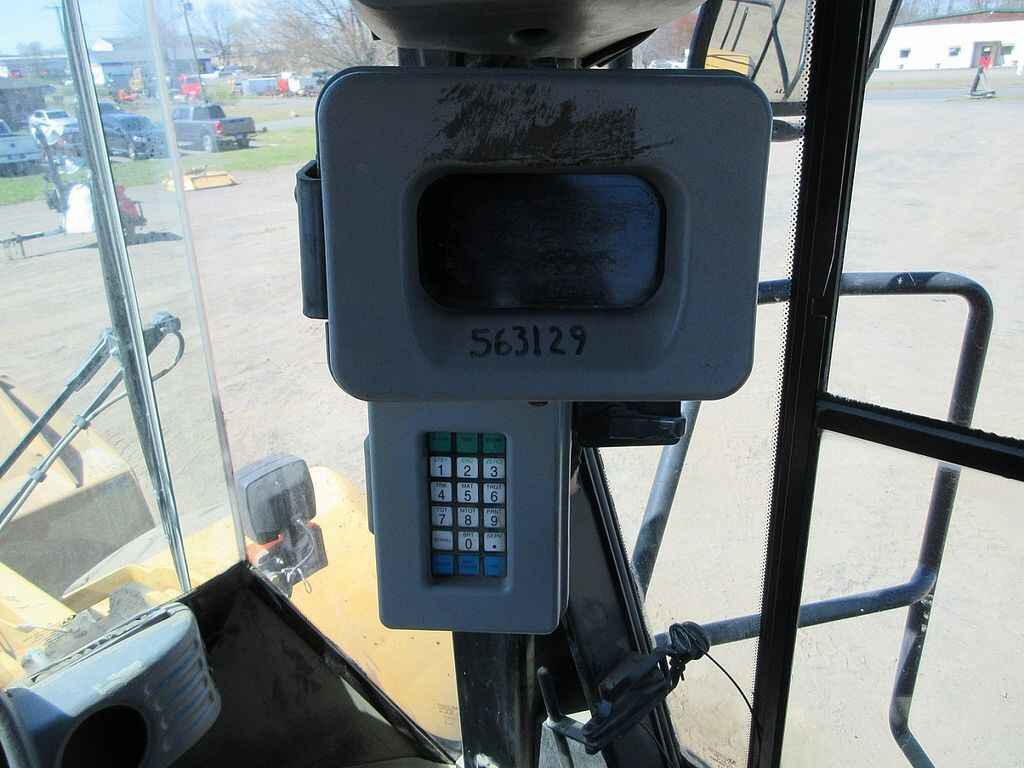

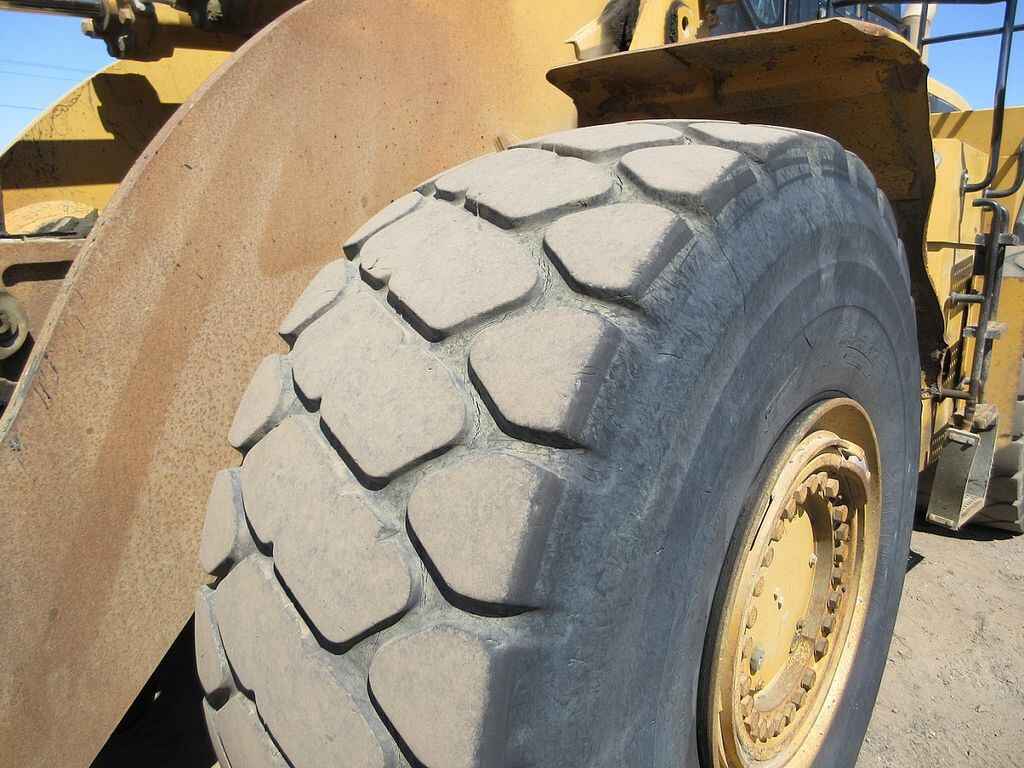

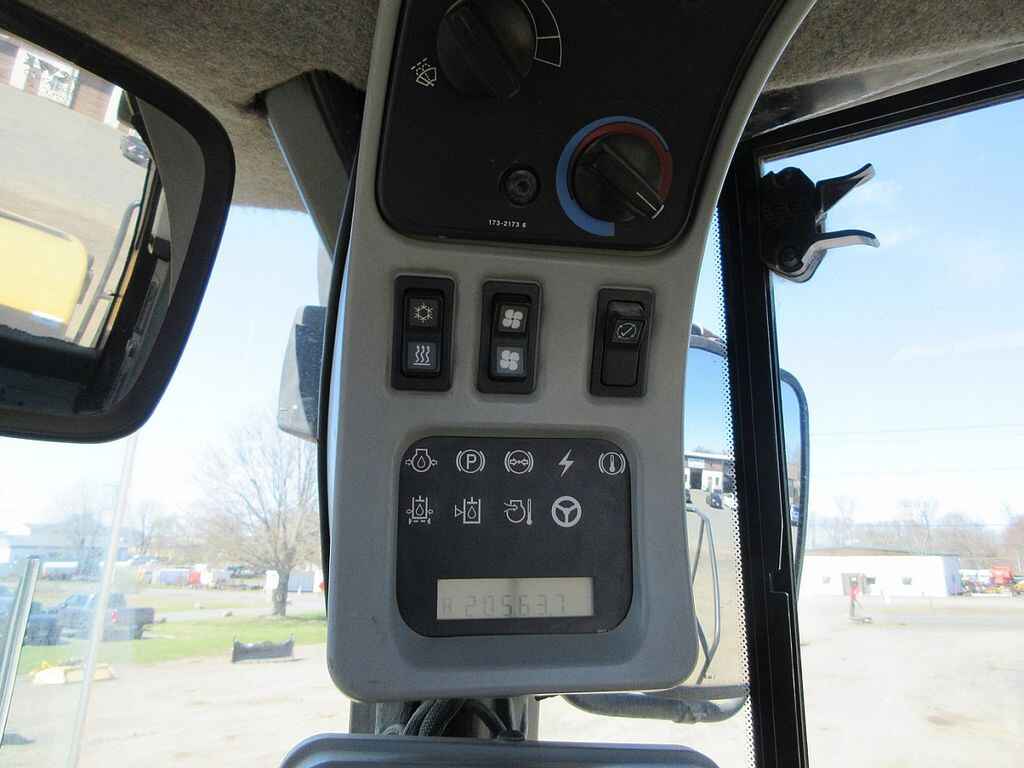

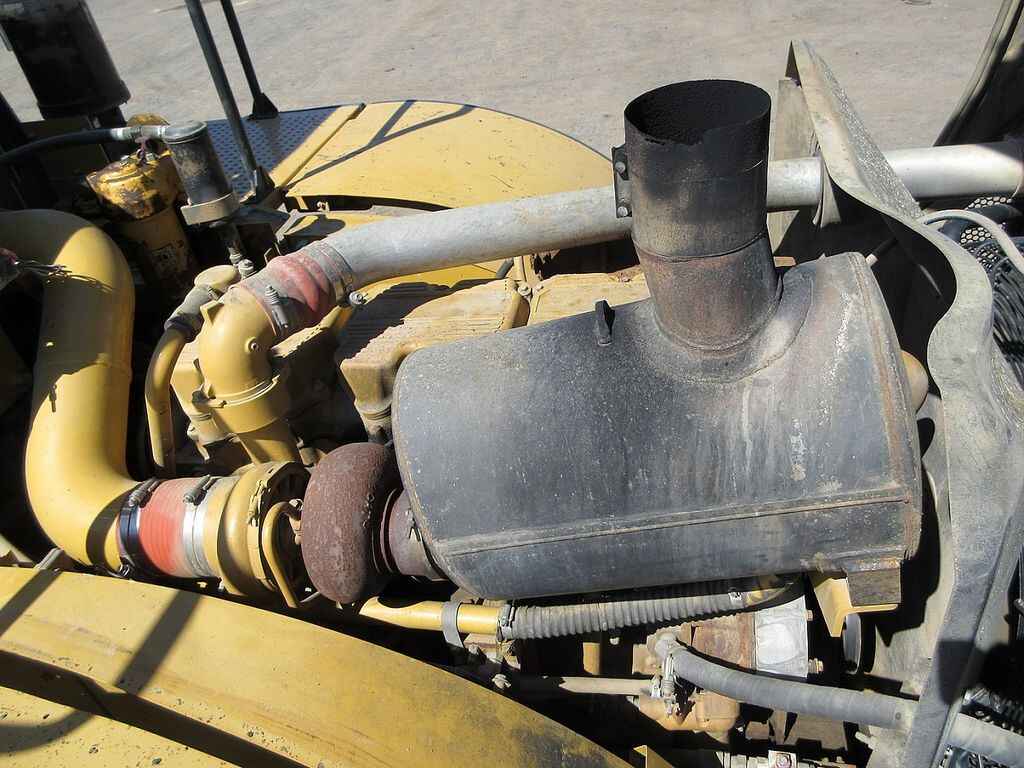

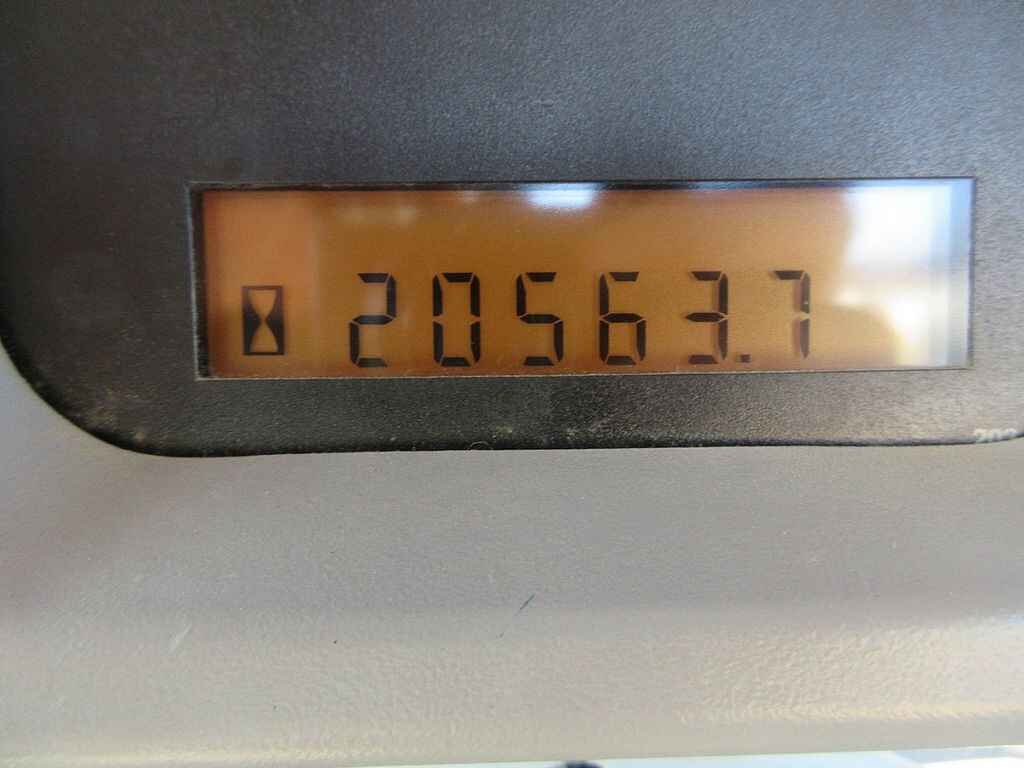

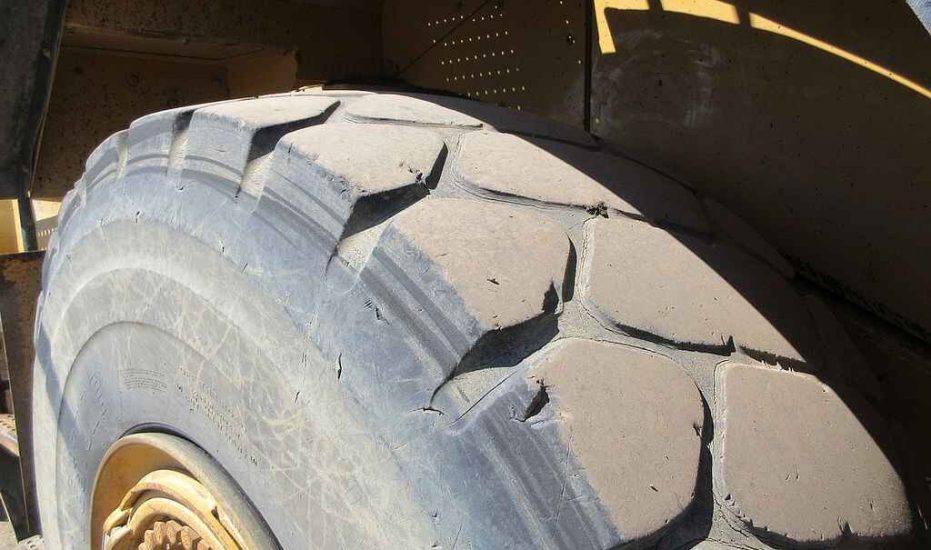

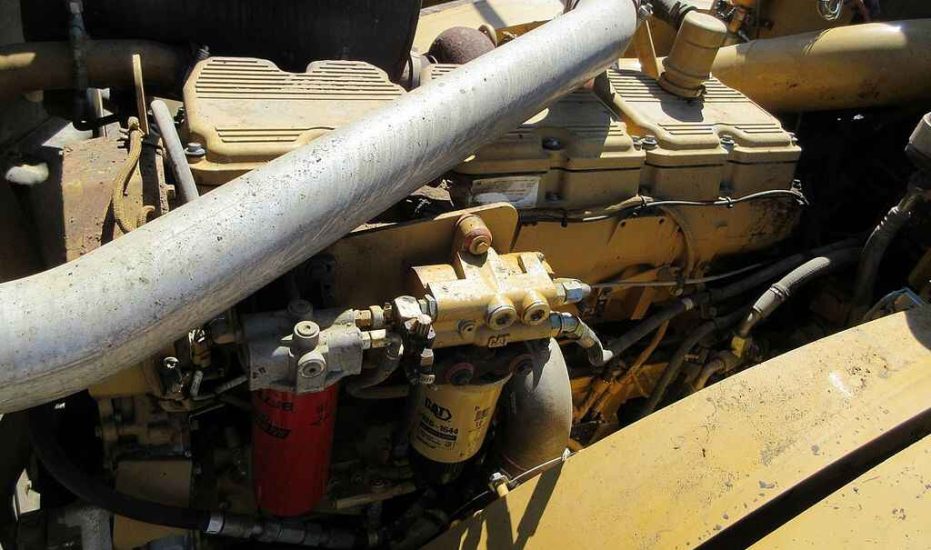

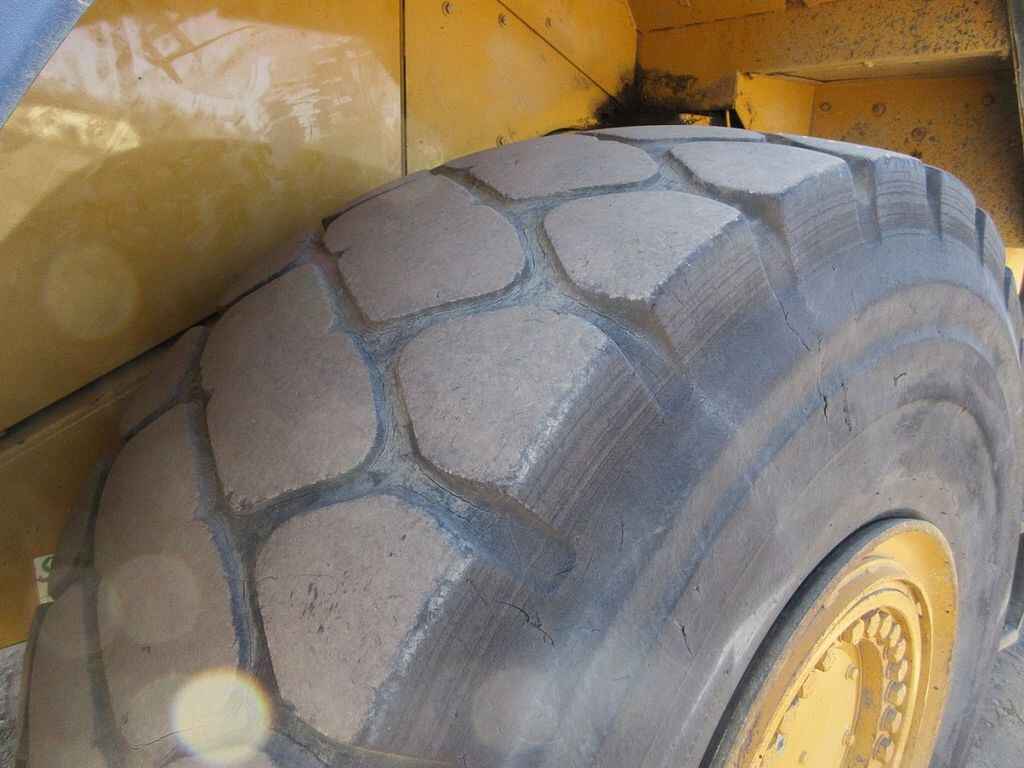

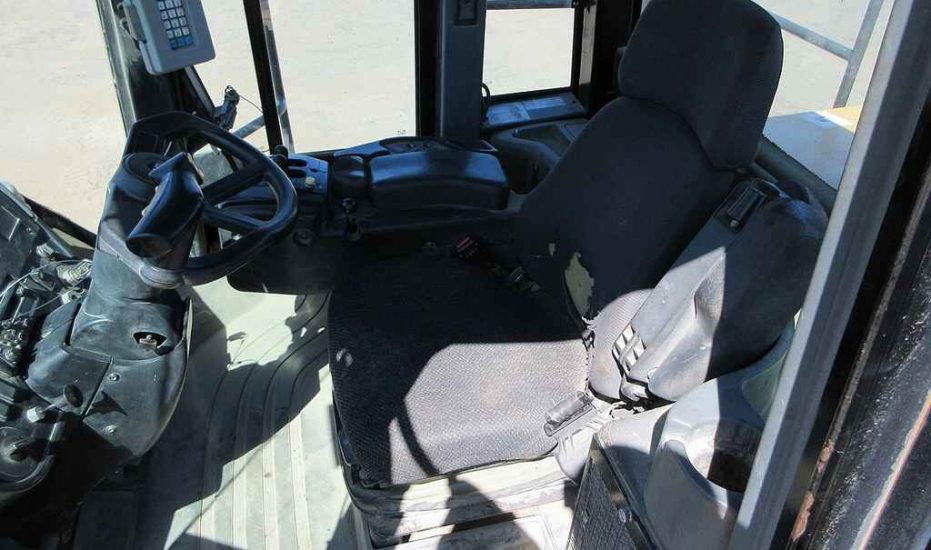

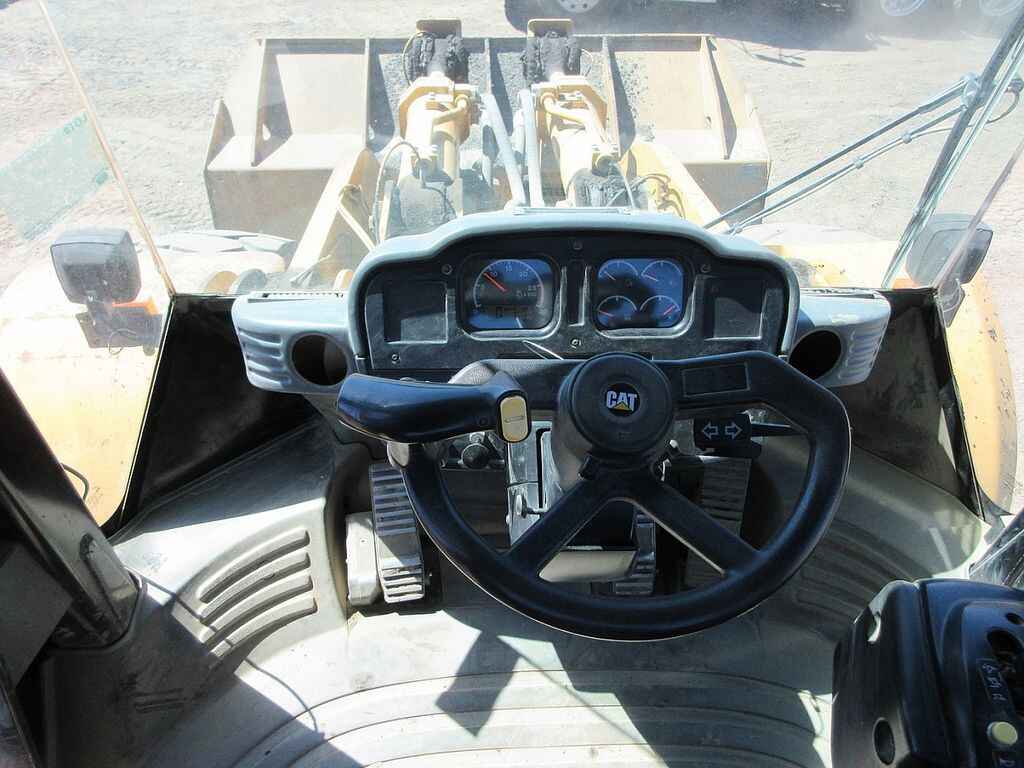

Series II, Caterpillar 3406 6 cyl turbo diesel, cab with heat, A/C, stereo, autoshift, scale, command steer, 29.5R25 radial rubber, autolube, GP bucket with BOCE, meter reads 20563 hours, S/N CAT0980GKAWH01043



Specifications

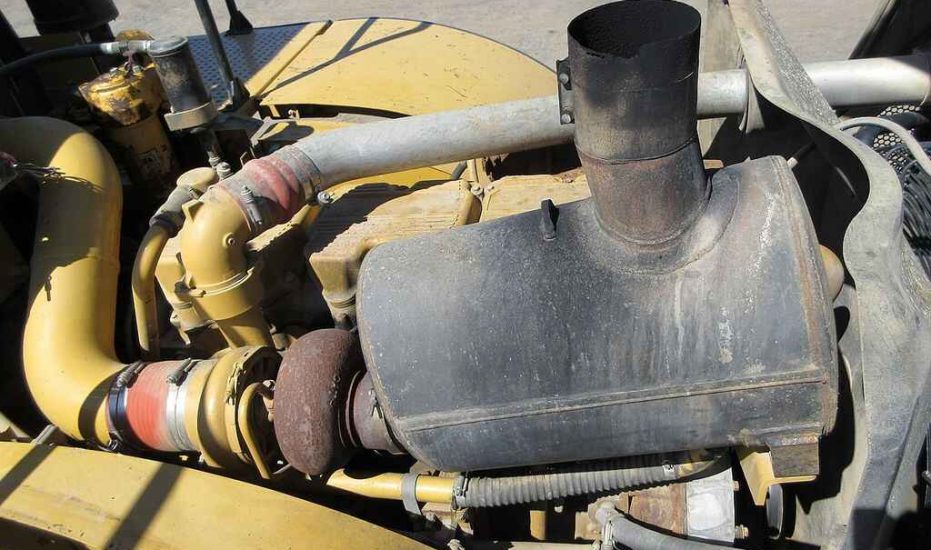

Engine

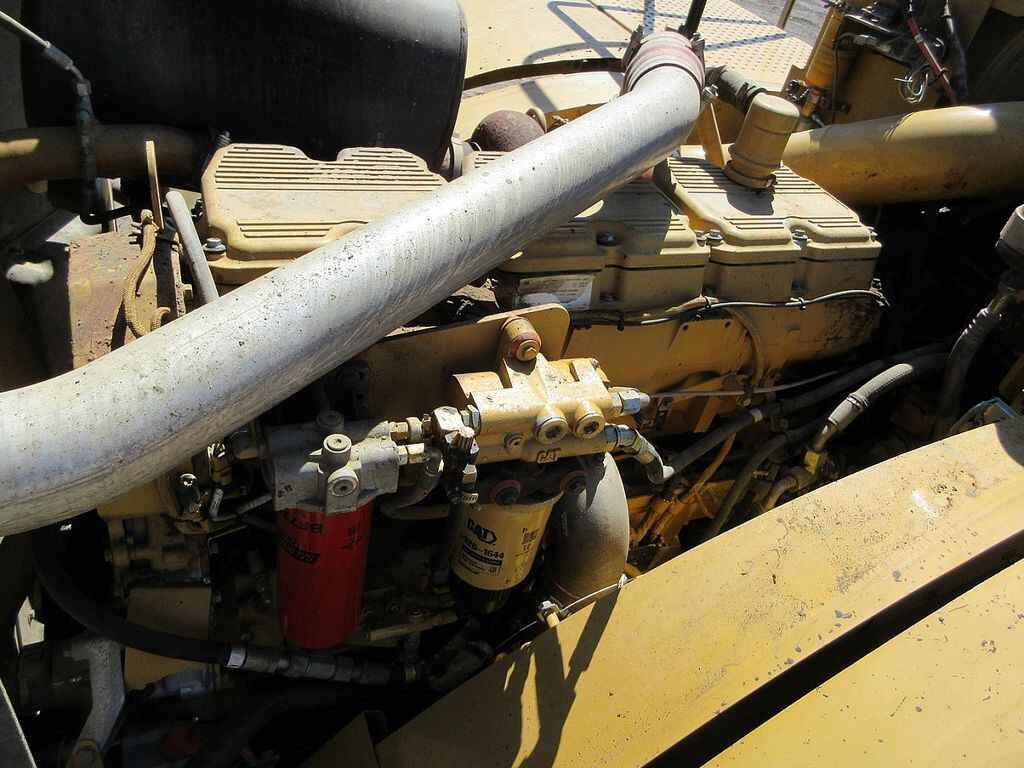

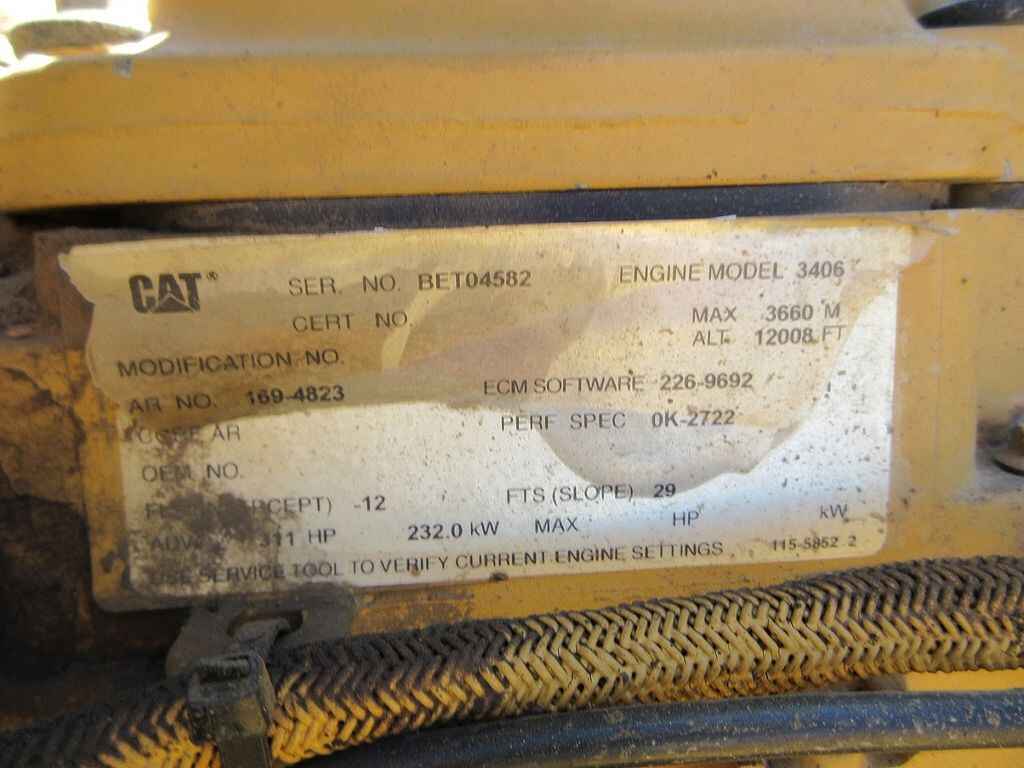

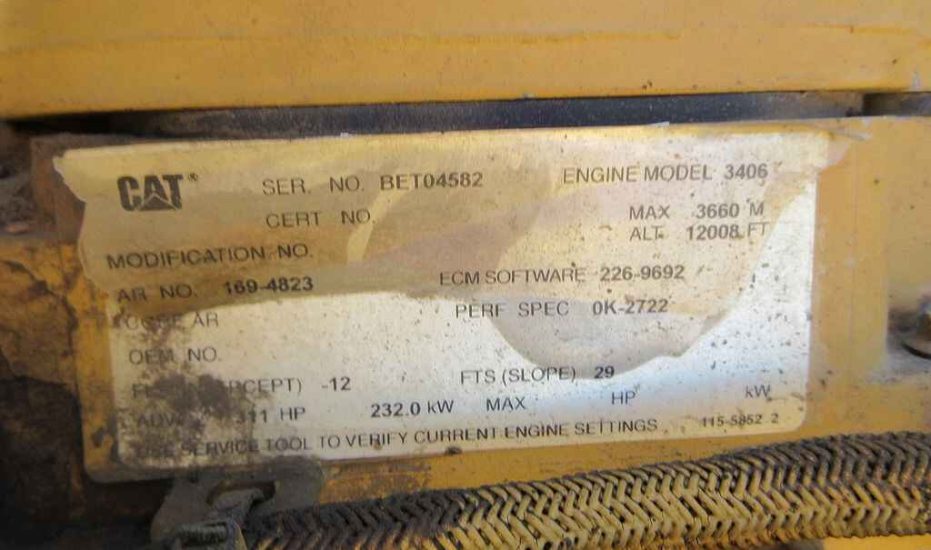

  • Model: Cat 3406C DITA
  • Net Power: 323 hp (241 kW)
  • Gross Power: 300 hp (224 kW)
  • Displacement: 14.6 L (891 in³)

Weights

  • Operating Weight: 65,638 lbs (29,773 kg)
  • Static Tipping Load (Full Turn): 40,005 lbs (18,146 kg)

Performance

  • Bucket Capacity (Heaped): 5.5 yd³ (4.2 m³)
  • Breakout Force: 47,277 lbs (21,445 kg)
  • Dump Clearance at Max Raise: 10.74 ft (3.27 m)
  • Top Forward Speed: 23.3 mph (37.5 km/h)
  • Top Reverse Speed: 26.6 mph (42.8 km/h)

Hydraulics

  • Hydraulic Cycle Time (Total): 12.2 seconds
  • Raise Time: 6.8 seconds
  • Dump Time: 2.0 seconds
  • Lowering Time (Empty, Float Down): 3.4 seconds

Dimensions

  • Length with Bucket on Ground: 31.06 ft (9.46 m)
  • Width over Tires: 10.67 ft (3.25 m)
  • Height to Top of Cab: 12.31 ft (3.75 m)
  • Ground Clearance: 1.54 ft (0.47 m)
  • Bucket Width: 11.31 ft (3.45 m)
  • Reach at Max Lift and Dump: 5.07 ft (1.55 m)

Capacities

  • Fuel Tank: 124 gal (469 L)
  • Hydraulic System (Including Tank): 55 gal (208 L)
  • Hydraulic Tank: 33.1 gal (125 L)
  • Cooling System: 20.9 gal (79 L)
  • Crankcase: 10.1 gal (38 L)
  • Transmission: 16.4 gal (62 L)
  • Differential - Final Drives (Front): 23 gal (87 L)
  • Differential - Final Drives (Rear): 21.4 gal (81 L)

Transmission

  • Number of Forward Gears: 4
  • Number of Reverse Gears: 4
  • Forward - 1: 4.4 mph (7.1 km/h)
  • Forward - 2: 7.7 mph (12.4 km/h)
  • Forward - 3: 13.5 mph (21.7 km/h)
  • Forward - 4: 23.3 mph (37.5 km/h)
  • Reverse - 1: 5.0 mph (8.0 km/h)
  • Reverse - 2: 8.7 mph (14.0 km/h)
  • Reverse - 3: 15.3 mph (24.6 km/h)
  • Reverse - 4: 26.6 mph (42.8 km/h)

Features

Interior
  • Air Conditioner
  • Heater
Comfort & Convenience
  • Radio
Our Price
$49,500
$30,100
Instant Saving: $19,400
Message Us
Buy It Now
Transportation Cost: $0.80 per Mile
Get a Quote
