Specifications

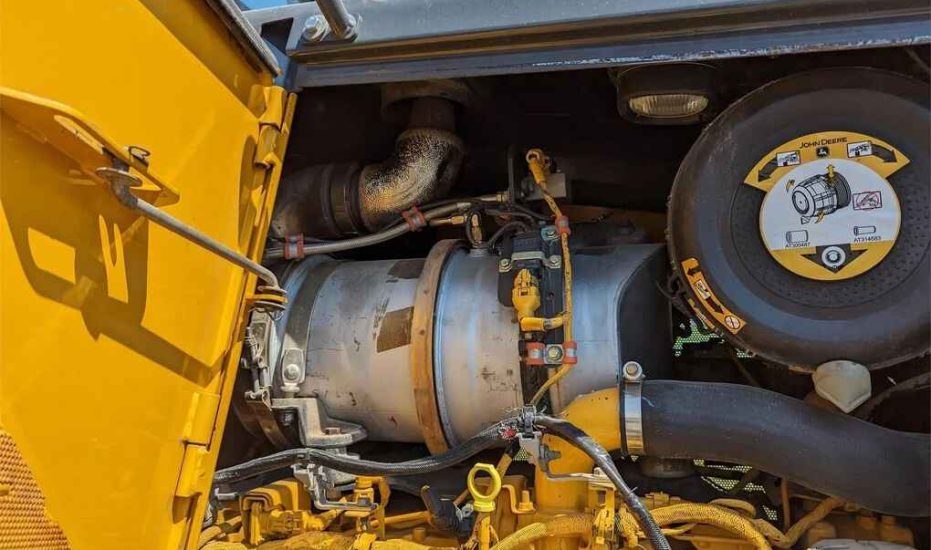

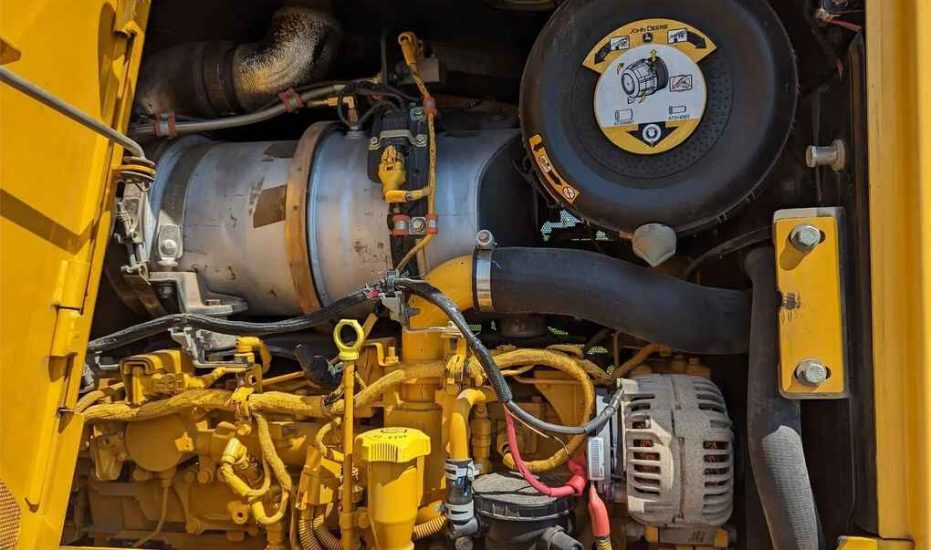

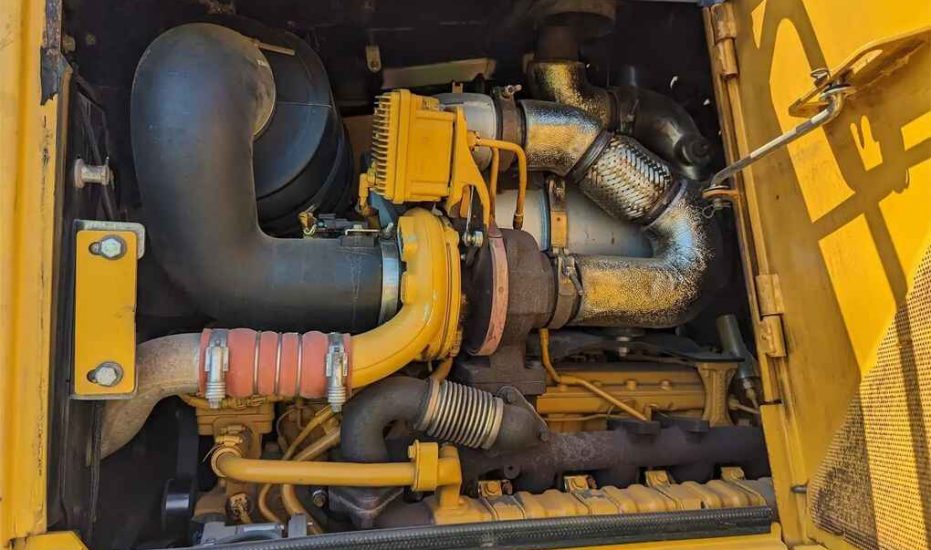

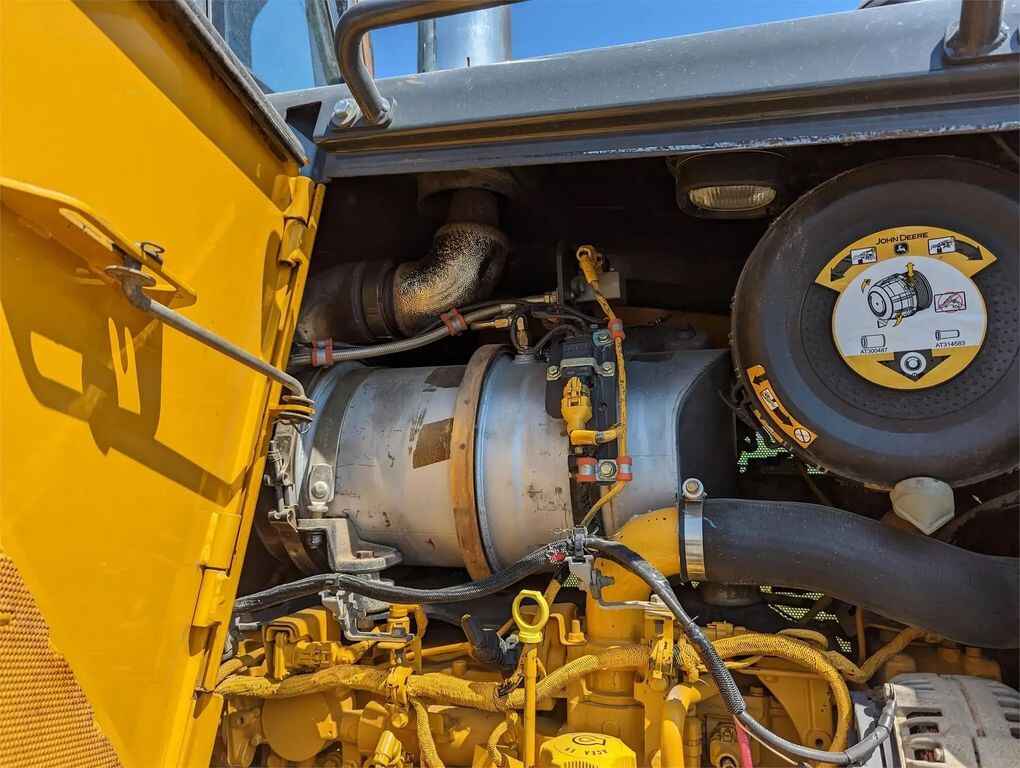

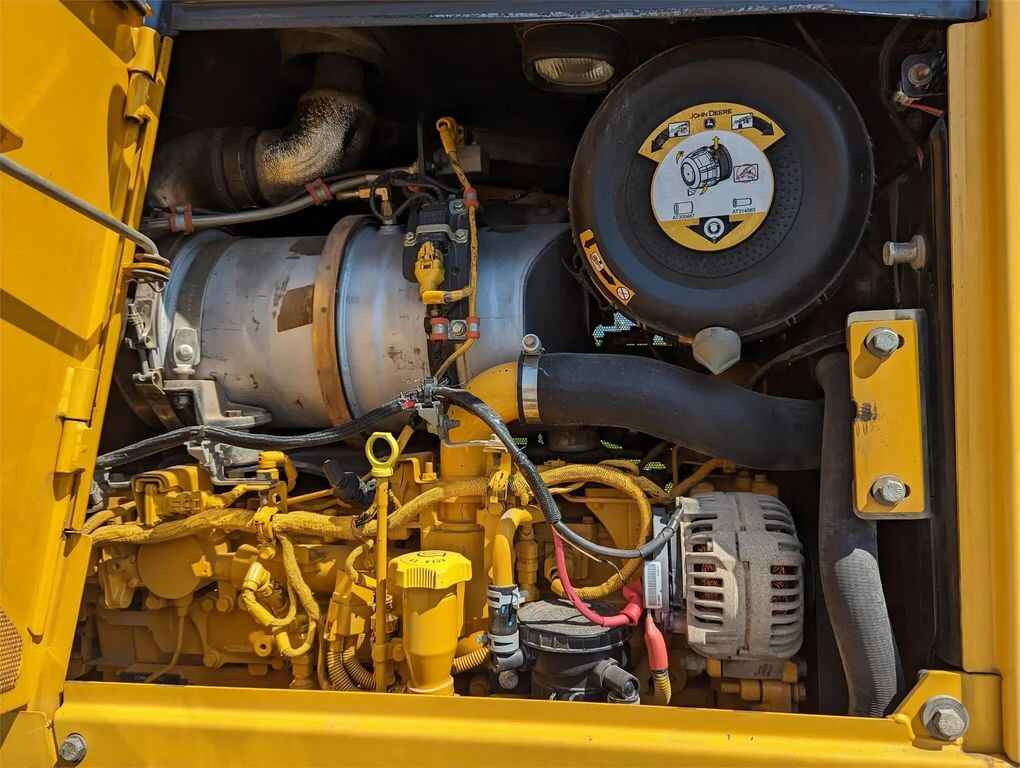

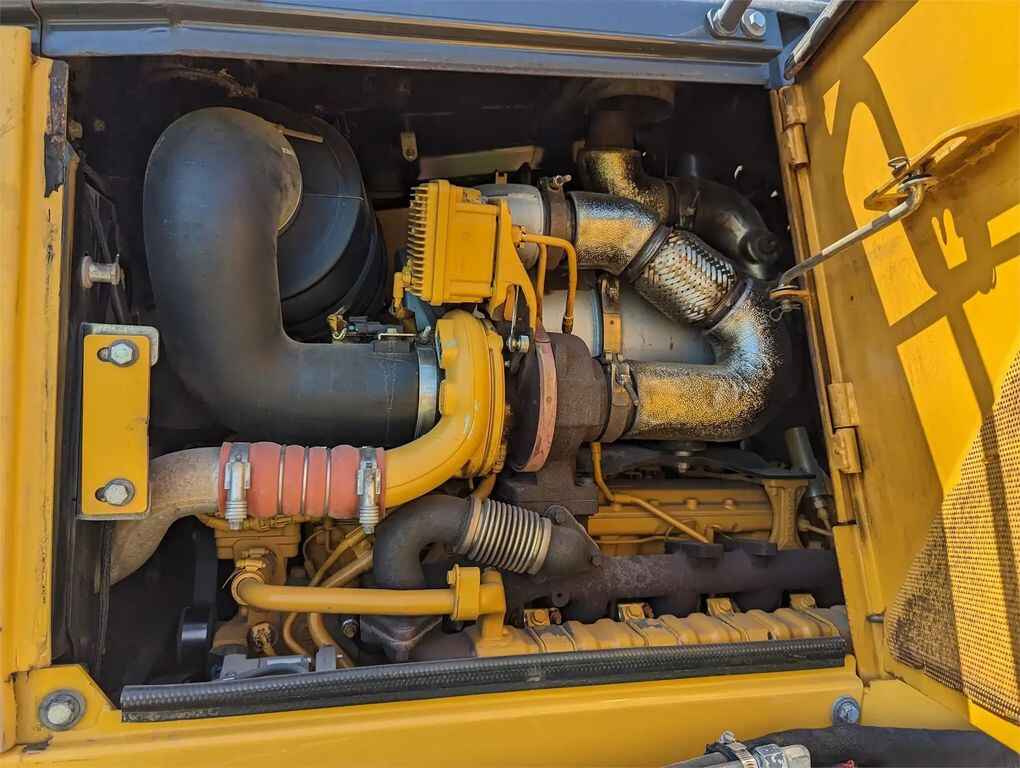

Engine

• Model: John Deere PowerTech™ PVX 6068
• Emissions Certification: EPA Interim Tier 4/EU Stage IIIB
• Displacement: 6.8 L (414 cu. in.)
• Net Power: 93 kW (125 hp) at 1,800 rpm
• Peak Torque: 563 Nm (416 lb.-ft.) at 1,300 rpm
• Air Cleaner: Dual-stage dry tube with tangential unloader

Powertrain

• Transmission: Dual-path hydrostatic drive with load-sensing feature

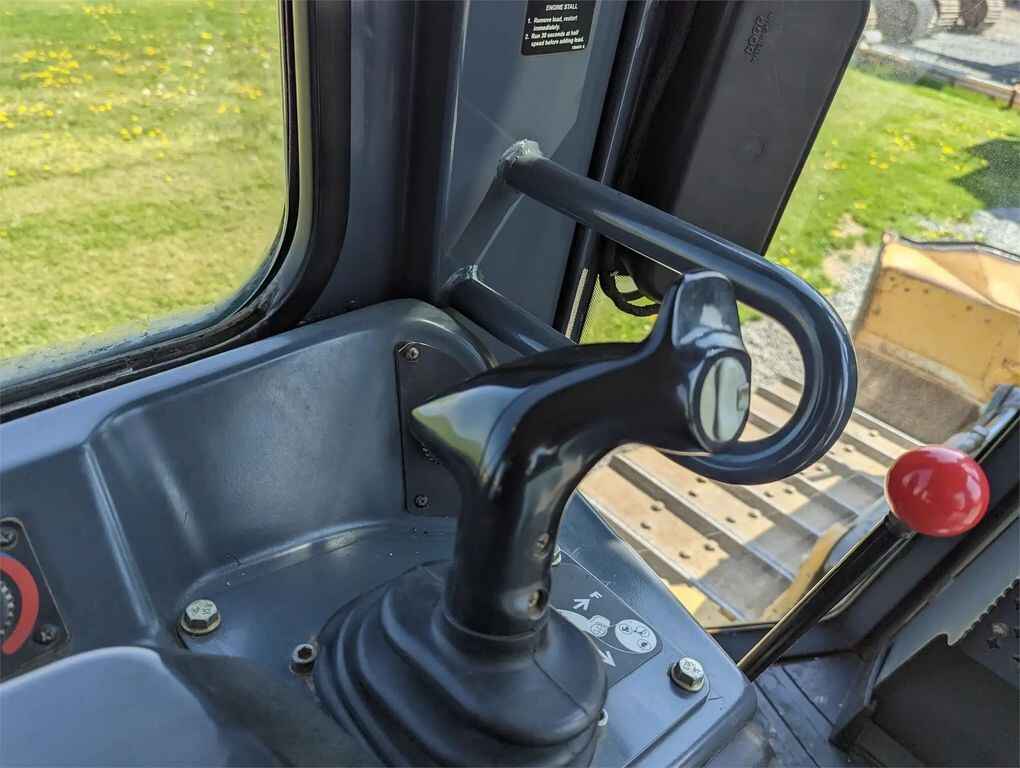

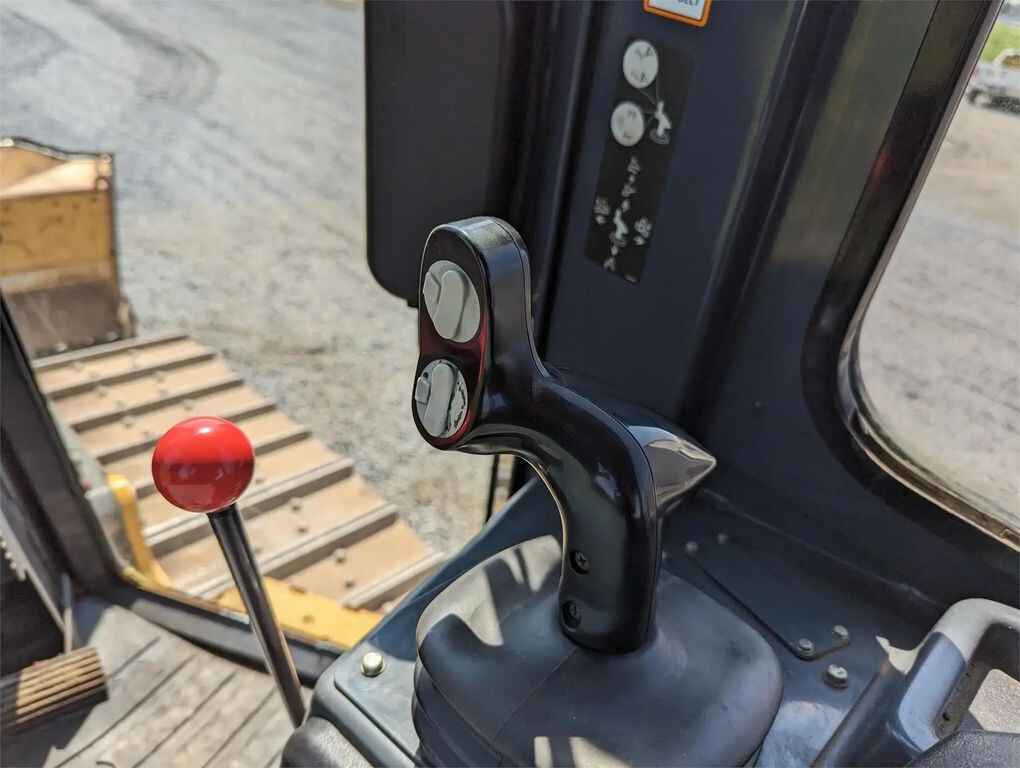

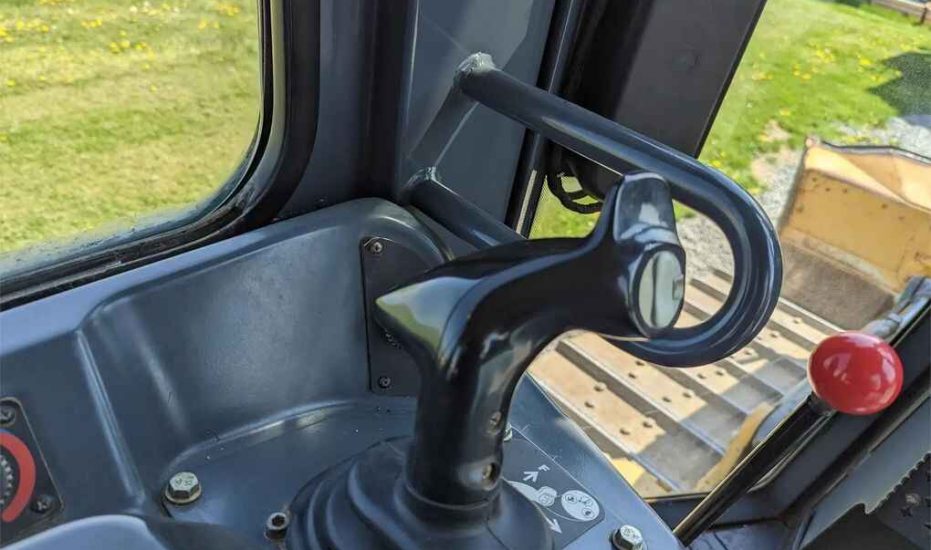

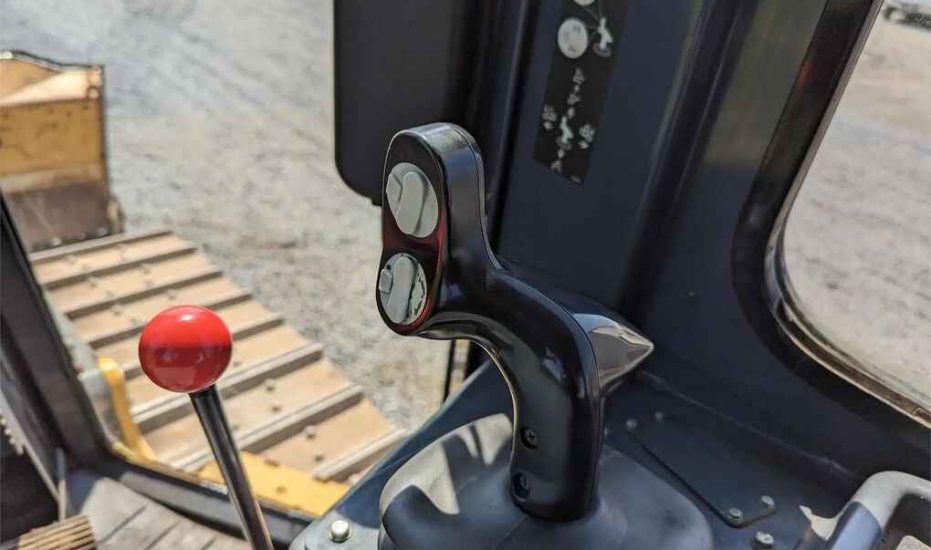

• Steering: Single-lever steering with full power turns and counter-rotation

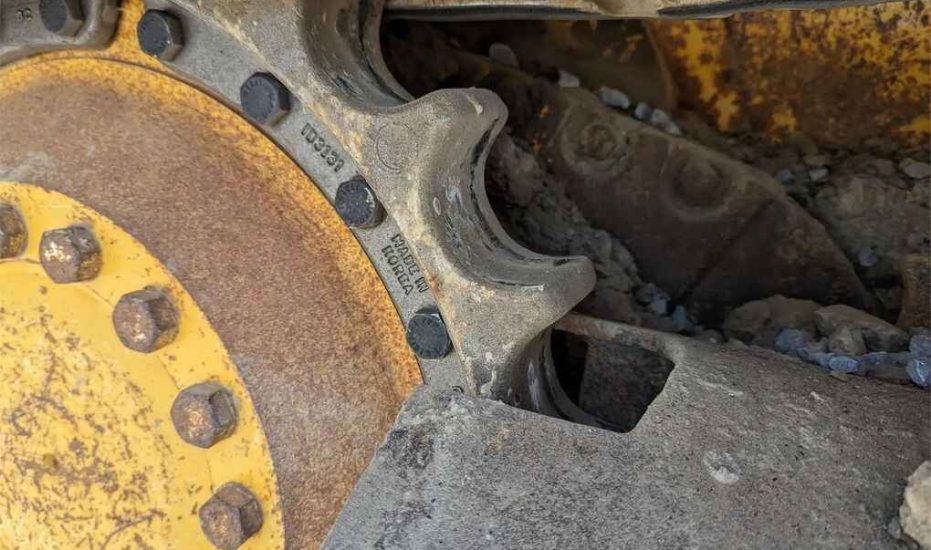

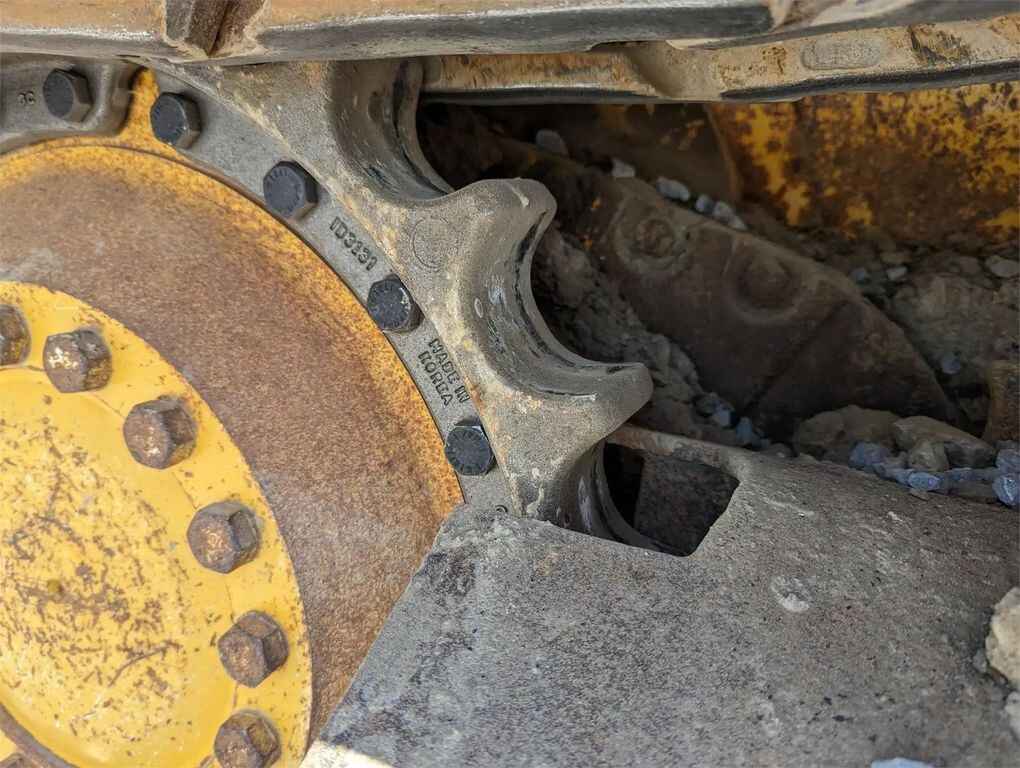

• Final Drives: Triple-reduction, mounted independently of track frames
• Travel Speeds (Forward/Reverse): 8.9 km/h (5.5 mph)

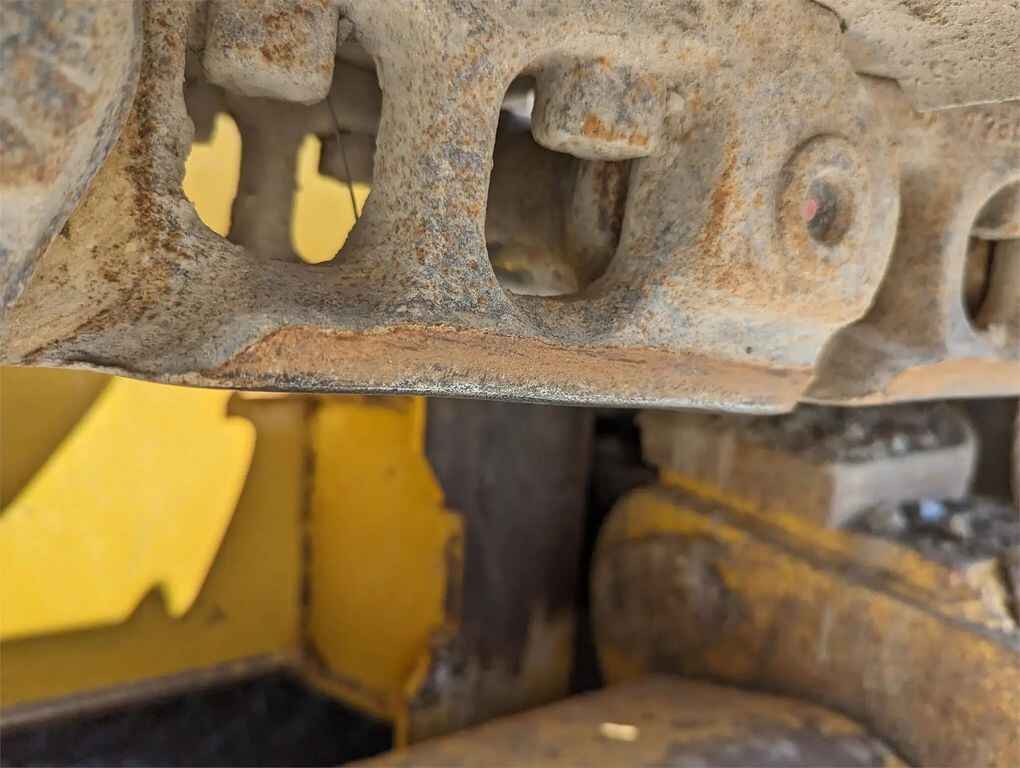

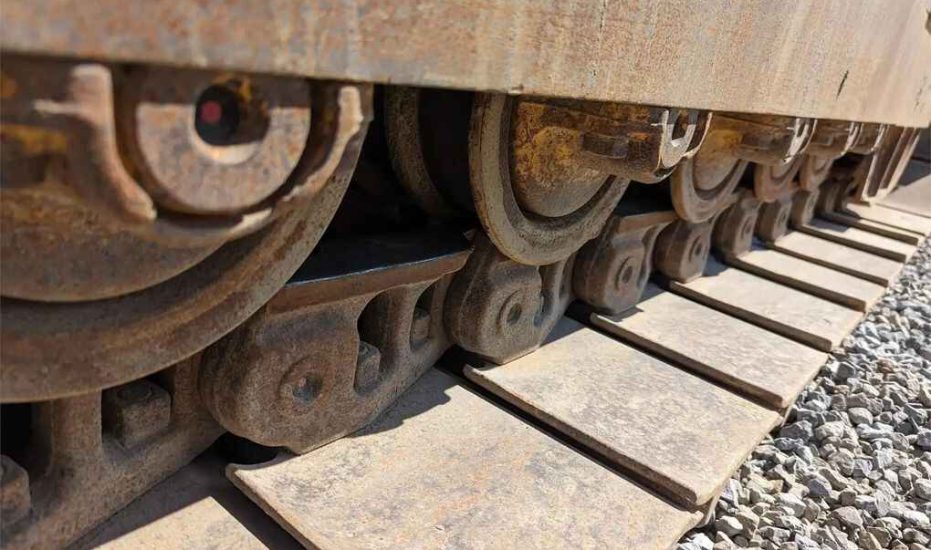

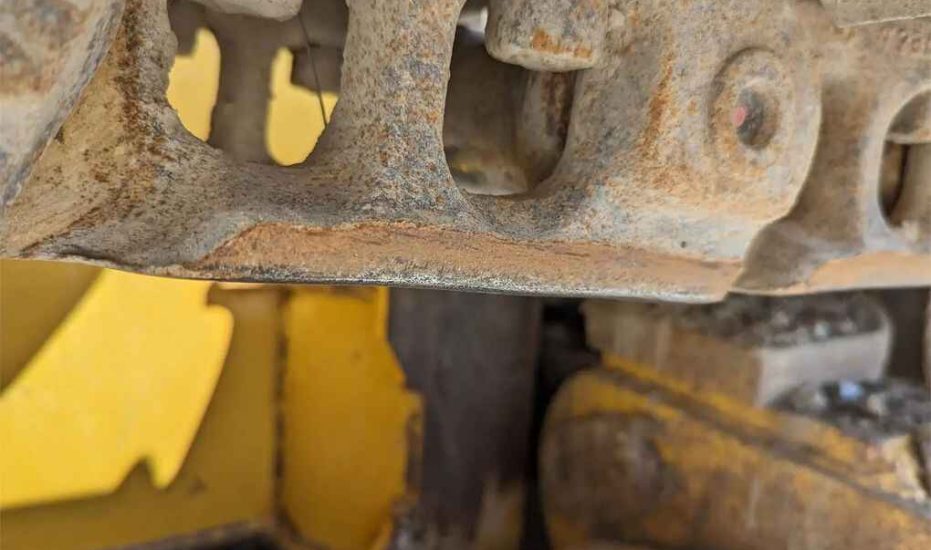

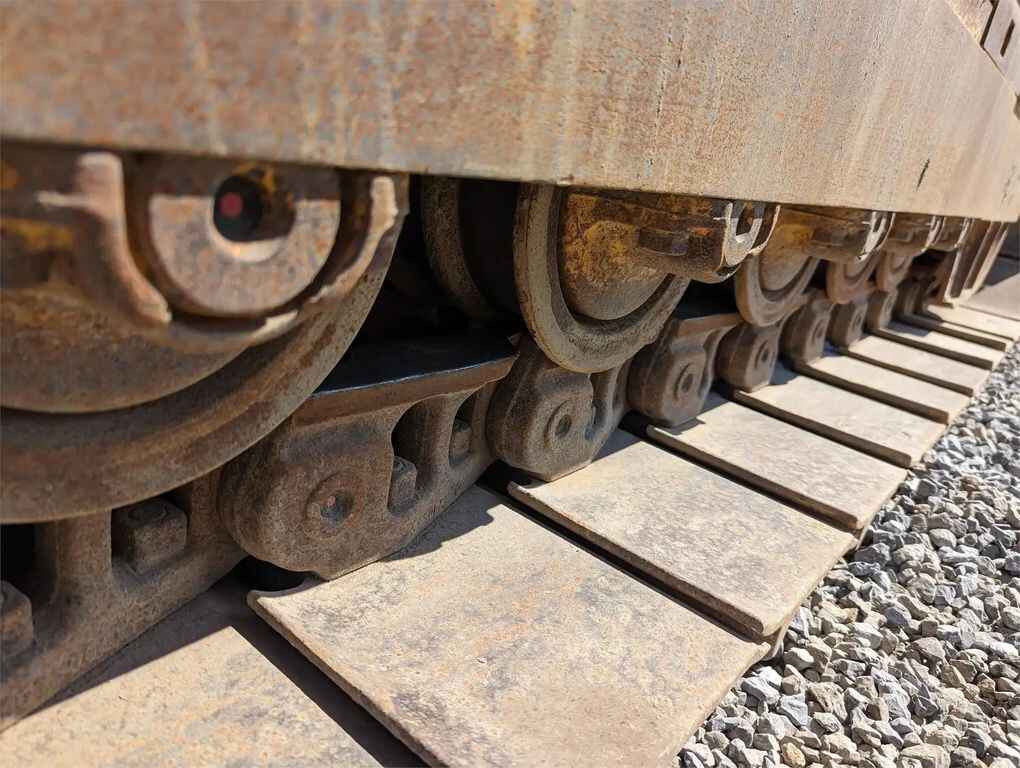

Undercarriage

• Track Gauge: 1,778 mm (70 in.)

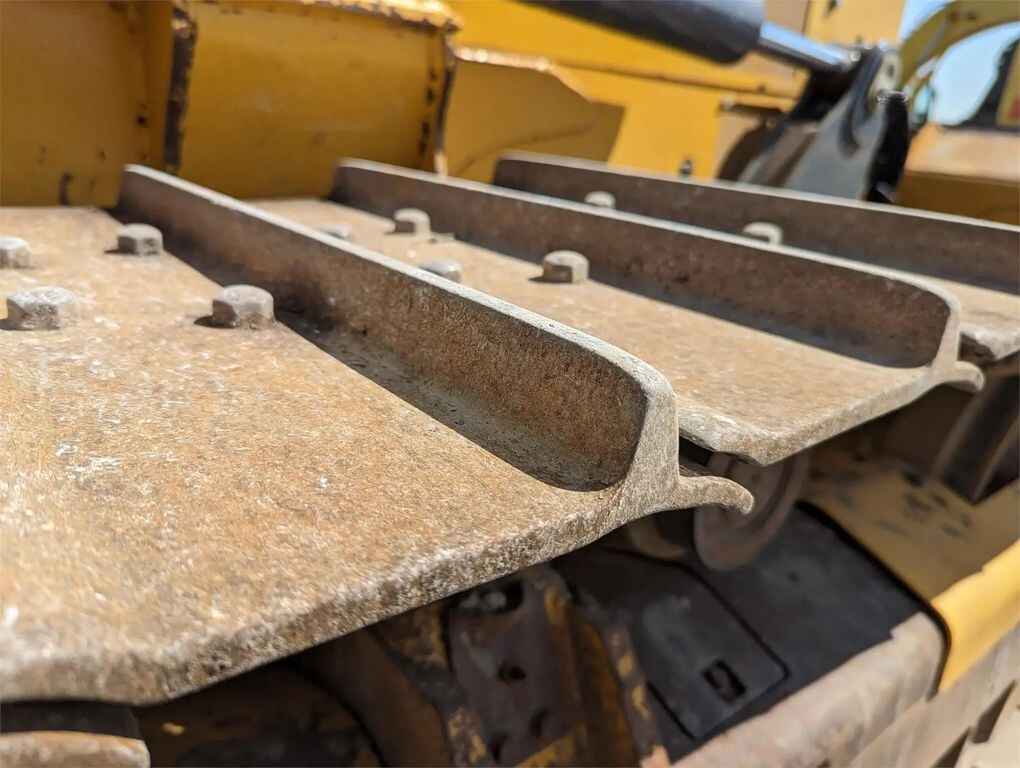

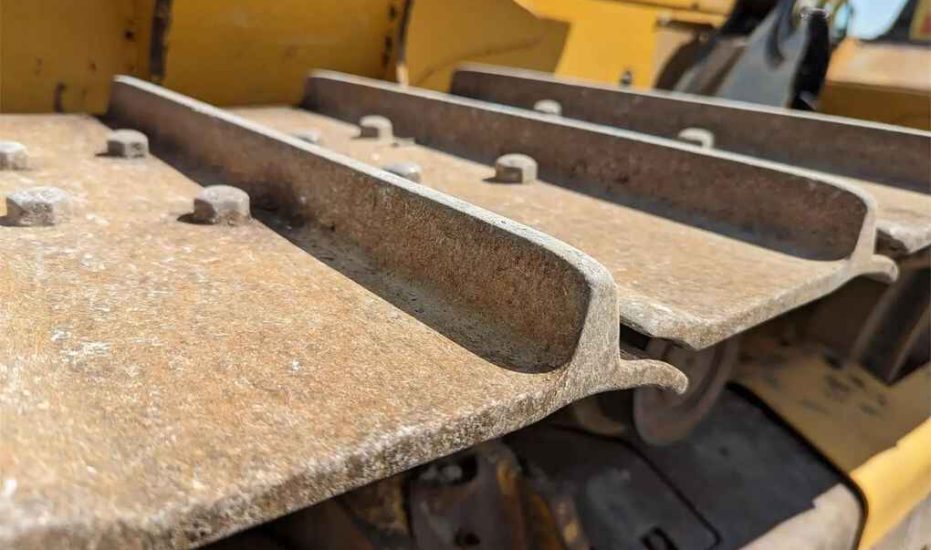

• Grouser Width: 560 mm (22 in.)
• Track Length on Ground: 2,590 mm (102 in.)
• Ground Contact Area: 29,946 cm² (4,487 sq. in.)
• Ground Pressure: 46.4 kPa (6.74 psi)
• Number of Shoes (each side): 39
• Number of Track Rollers (each side): 7

Hydraulics

• Type: Open-center system with fixed-displacement gear pump
• Pump Flow: 95 L/min (25 gpm)
• System Relief Pressure: 22,063 kPa (3,200 psi)

Capacities

• Fuel Tank: 284 L (75 gal.)
• Cooling System: 33.4 L (8.8 gal.)
• Engine Oil with Filter: 24.6 L (6.5 gal.)
• Transmission Reservoir with Filter: 68.9 L (18.2 gal.)
• Hydraulic Reservoir and Filter: 53.8 L (14.2 gal.)

Operating Weights

• Base Weight (with ROPS, full fuel, and 79-kg operator): 13,710 kg (30,225 lb.)

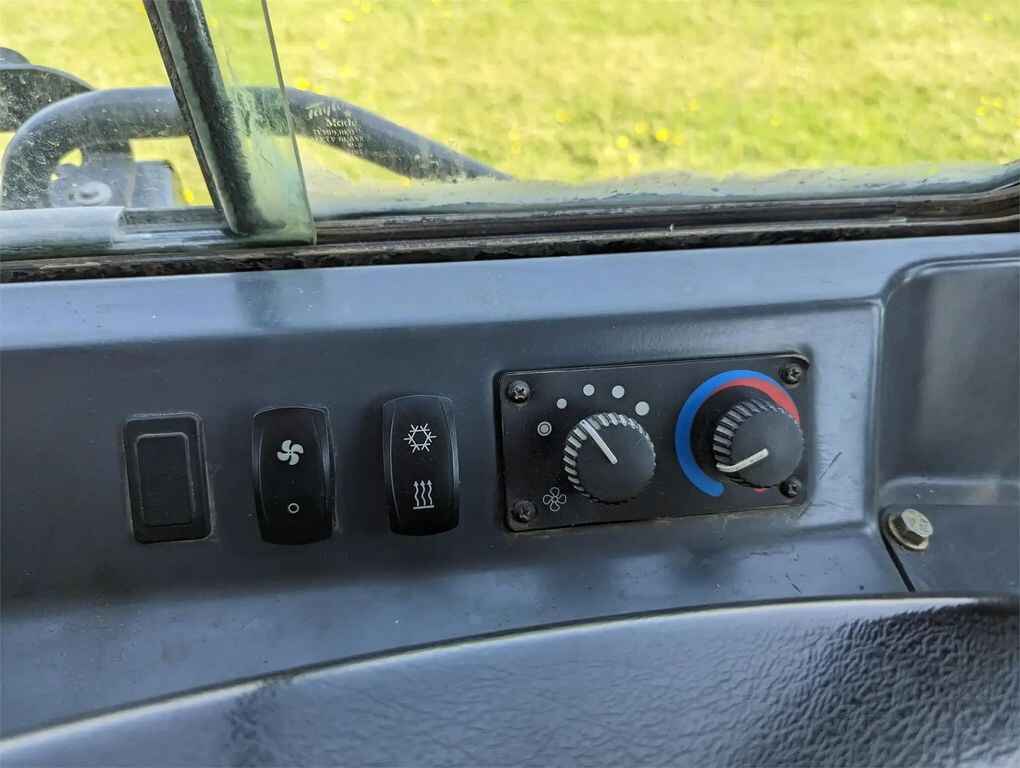

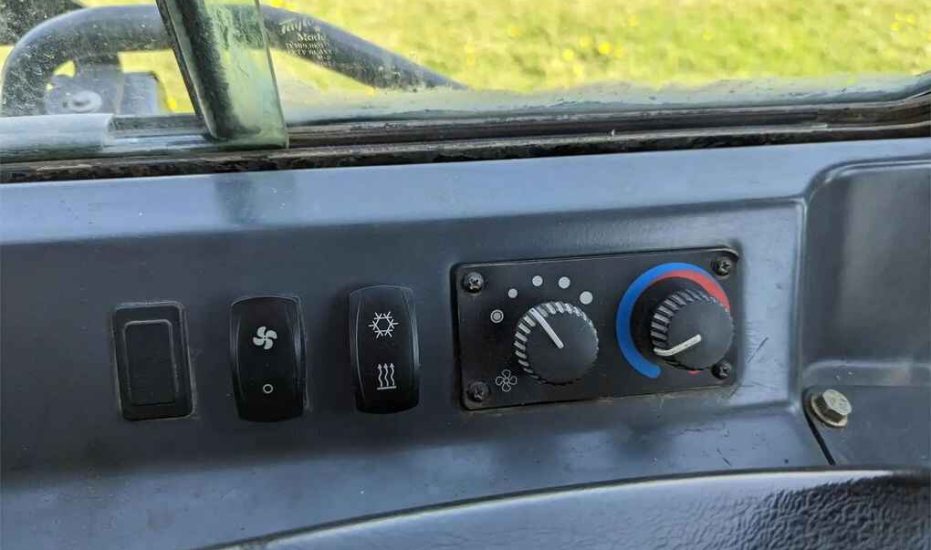

• Cab with Pressurizer and HVAC: Adds 288 kg (635 lb.)

Dimensions

• Overall Height to Roof: 2,936 mm (9 ft. 8 in.)
• Ground Clearance: 393 mm (15.5 in.)
• Overall Length (without attachments): 4,815 mm (15 ft. 9 in.)
