Specifications

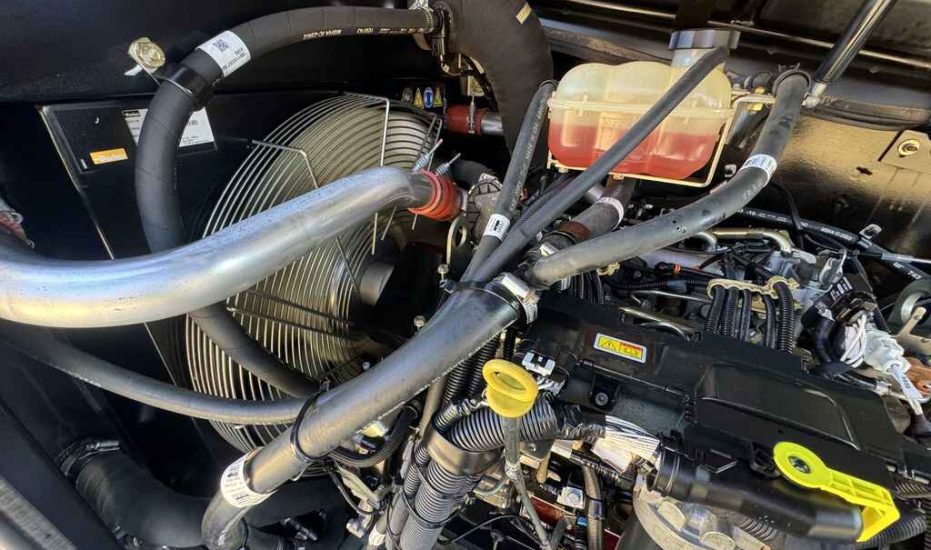

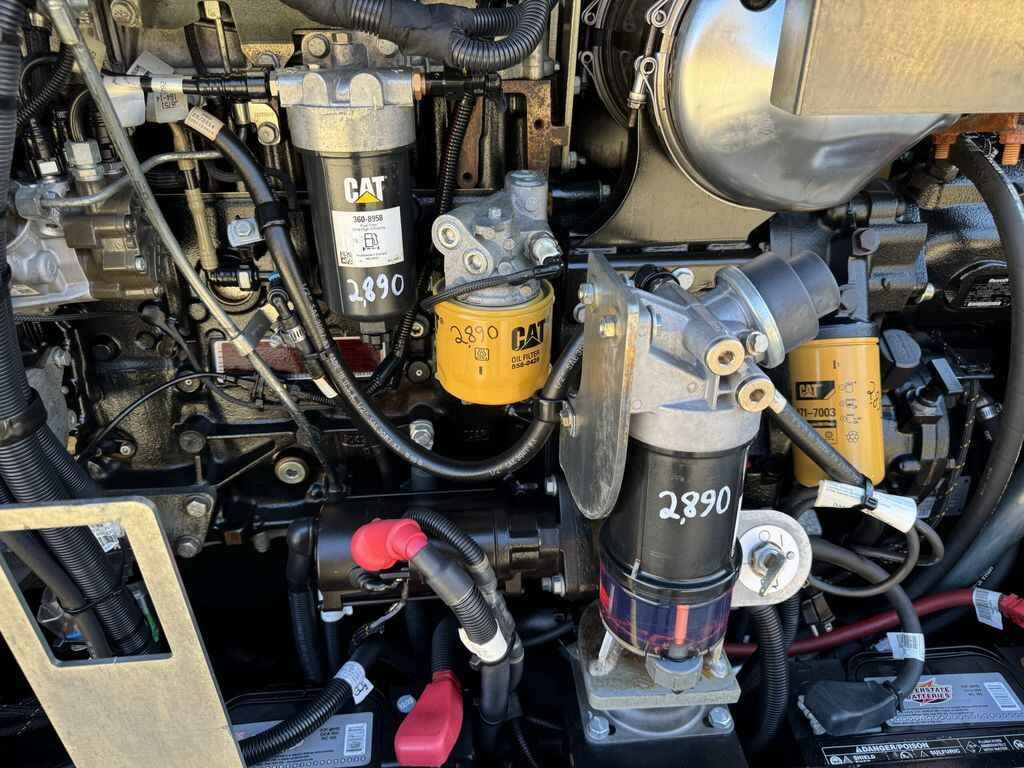

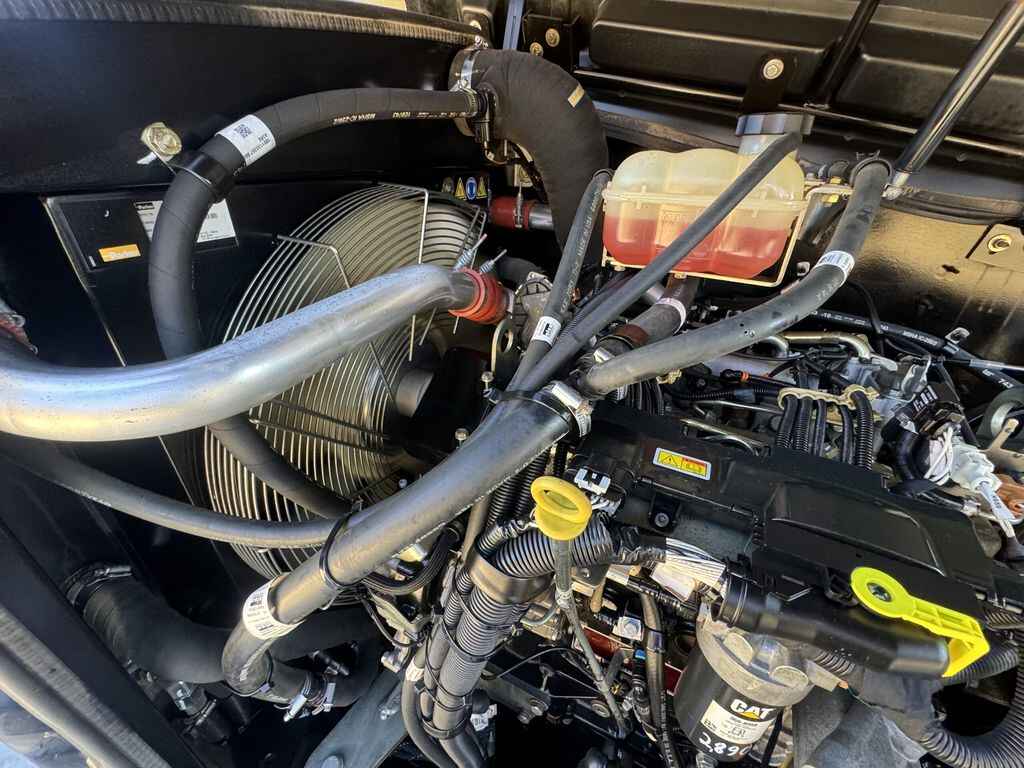

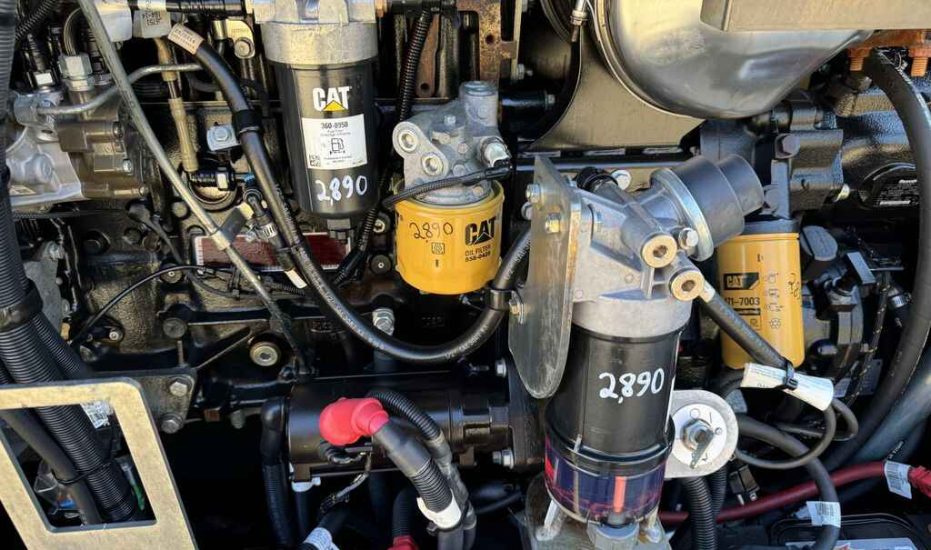

Engine

• Model: Cat C3.4B
• Gross Power: 101 hp (75 kW)
• Maximum Torque: 420 Nm @ 1,400 rpm
• Displacement: 207.5 in³ (3.4 L)

Weights

• Operating Weight: 19,246 lbs (8,730 kg)

Performance

• Rated Load Capacity: 8,150 lbs (3,700 kg)
• Maximum Lift Height: 24 ft (7.3 m)
• Maximum Forward Reach: 12.3 ft (3.76 m)
• Load at Maximum Height: 4,000 lbs (1,814 kg)
• Load at Maximum Reach: 3,300 lbs (1,497 kg)
• Top Travel Speed: 25 mph (40 km/h)

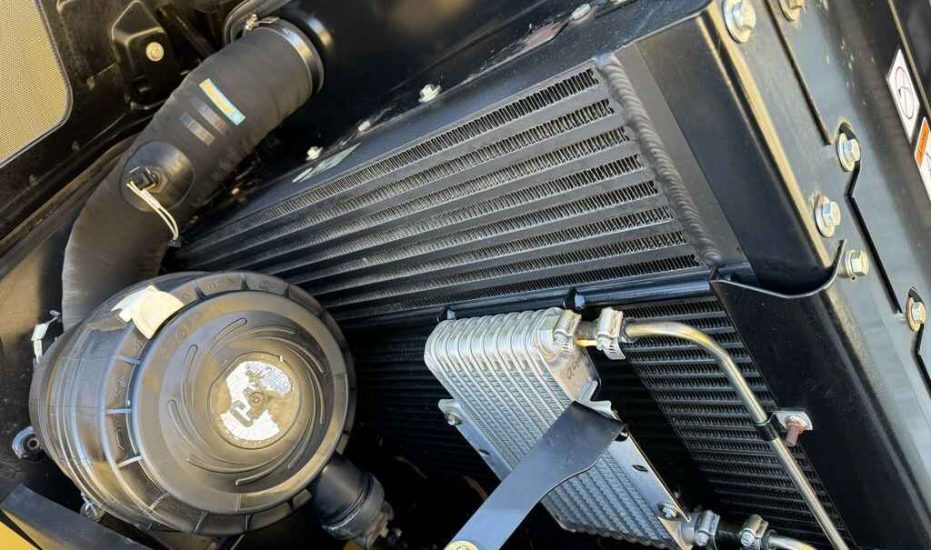

Hydraulics

• Pump Type: Variable displacement load sensing axial piston pump
• Maximum Pump Flow: 39.63 gal/min (150 L/min)
• Maximum System Pressure: 3,625 psi (25 MPa)

Dimensions

• Length to Fork Face: 16.91 ft (5.15 m)
• Width over Tires: 7.88 ft (2.4 m)
• Overall Height: 7.83 ft (2.39 m)
• Wheelbase: 10.01 ft (3.05 m)
• Ground Clearance: 1.35 ft (0.41 m)

Transmission

• Type: Powersyncro
• Number of Forward Gears: 4
• Number of Reverse Gears: 3
• Max Speed - Forward: 19.9 mph (32 km/h)
• Max Speed - Reverse: 13.1 mph (21 km/h)

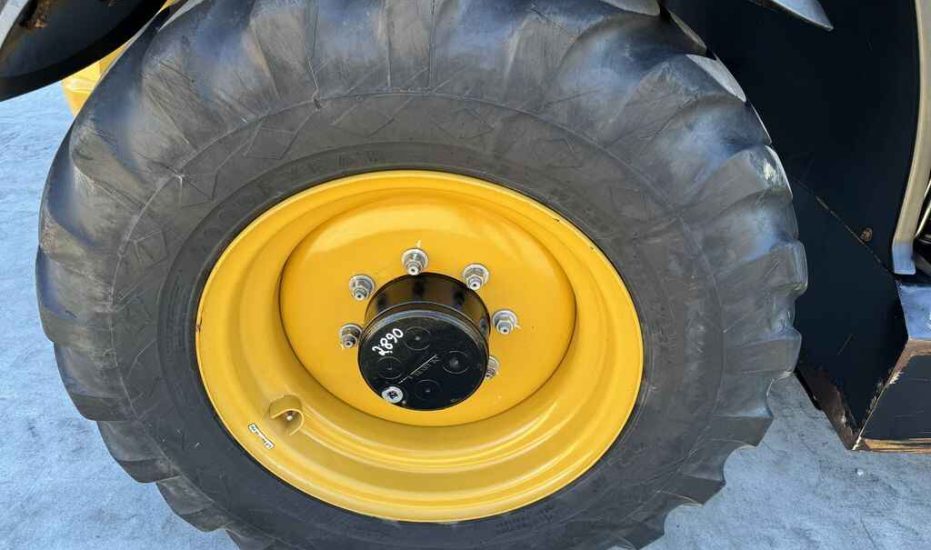

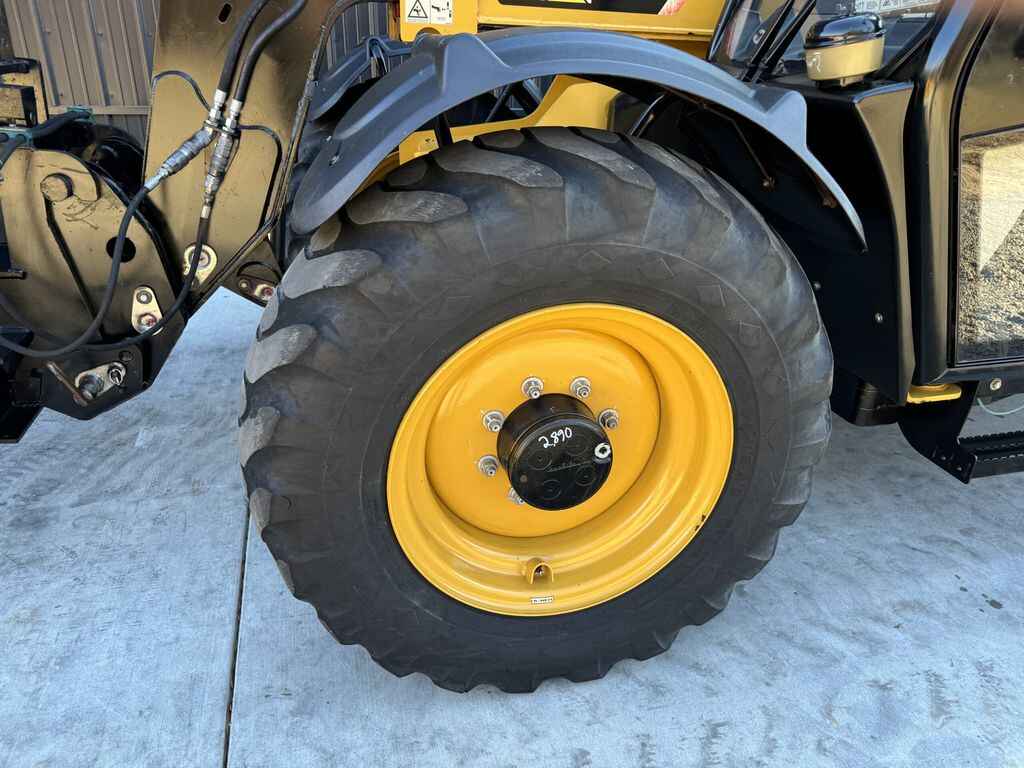

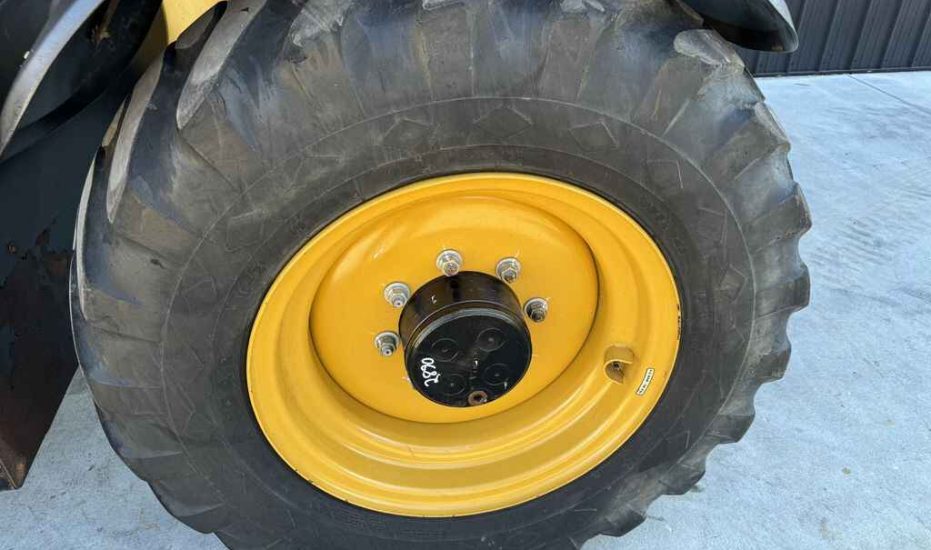

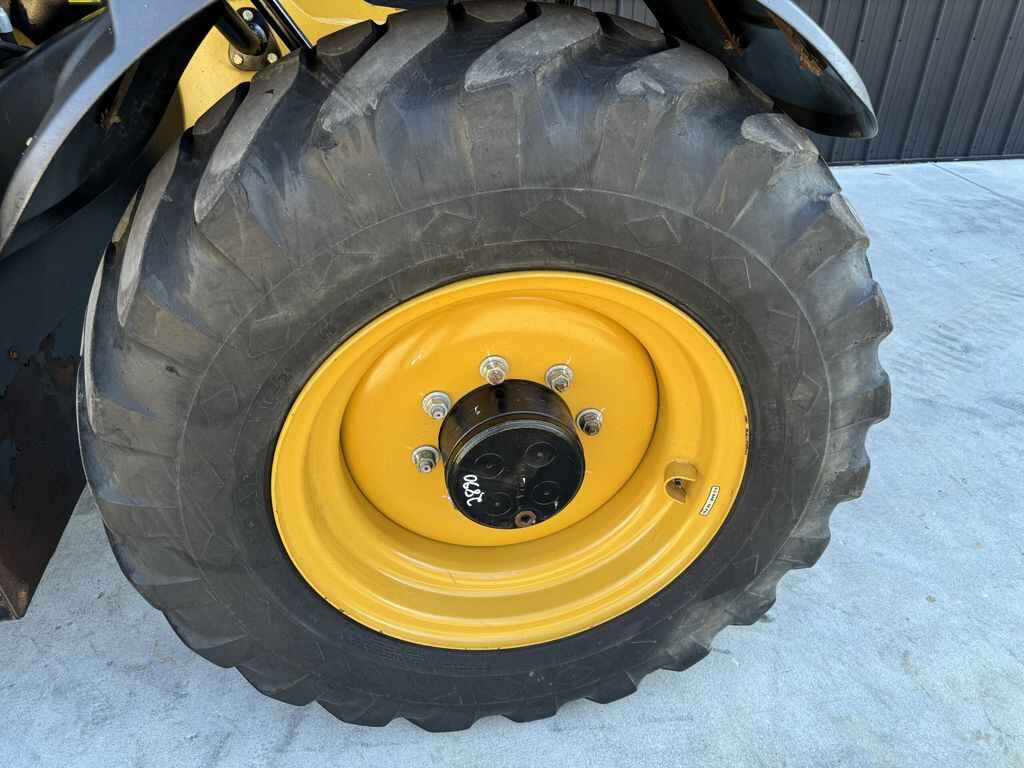

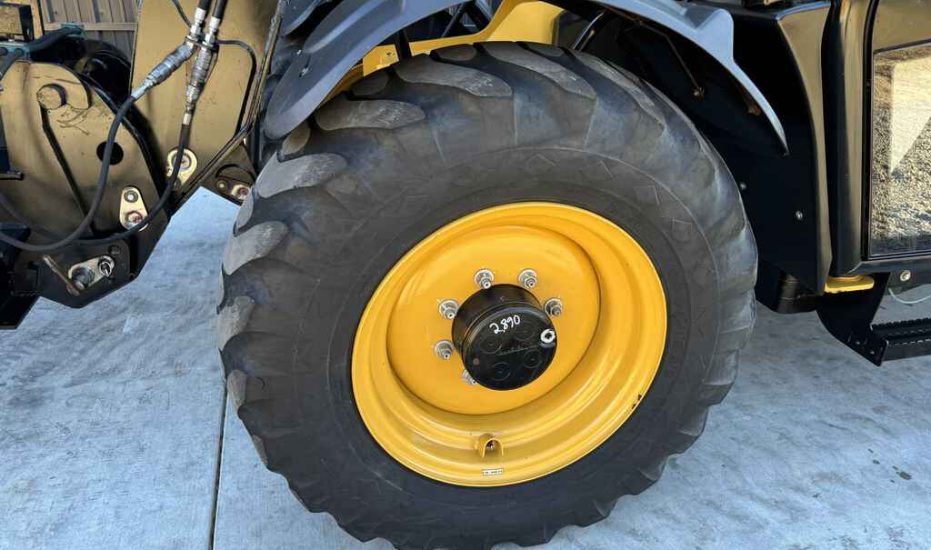

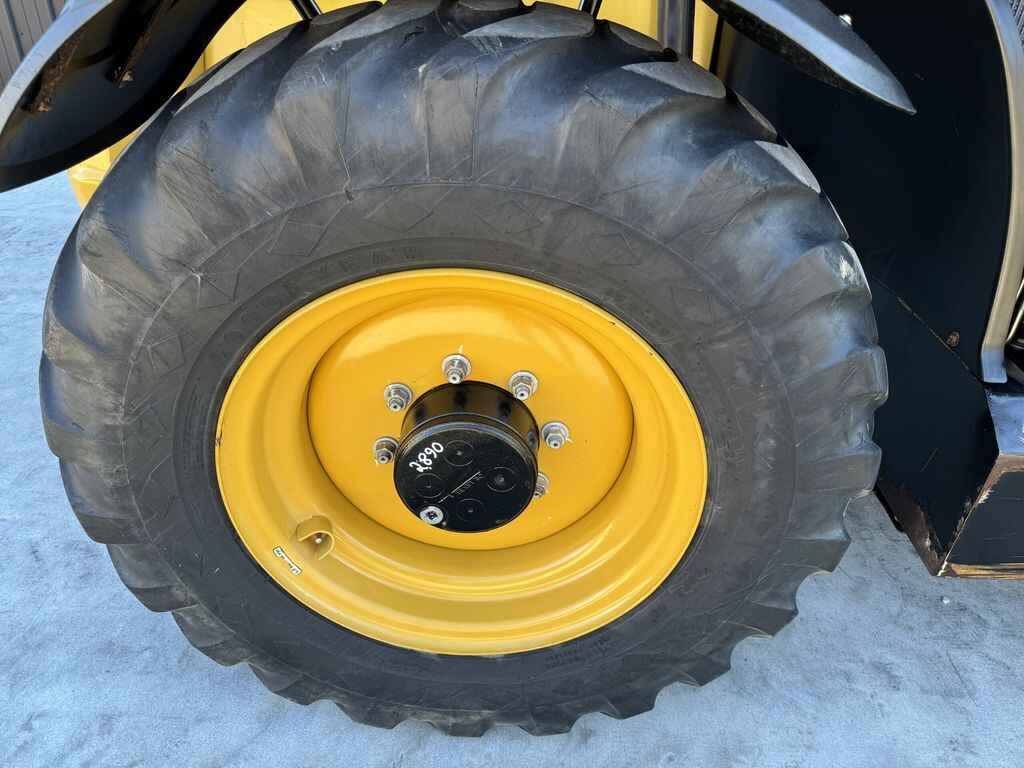

Tires

• Standard: 15.5/80-24 16PR
• Optional Construction: 400/80 R24 Power CL, 440/80 R24 Power CL, 15.50 x 25 SGL
• Optional Agriculture: 460/70 R24 XMCL Radial, 500/70 R24 XMCL
