Specifications

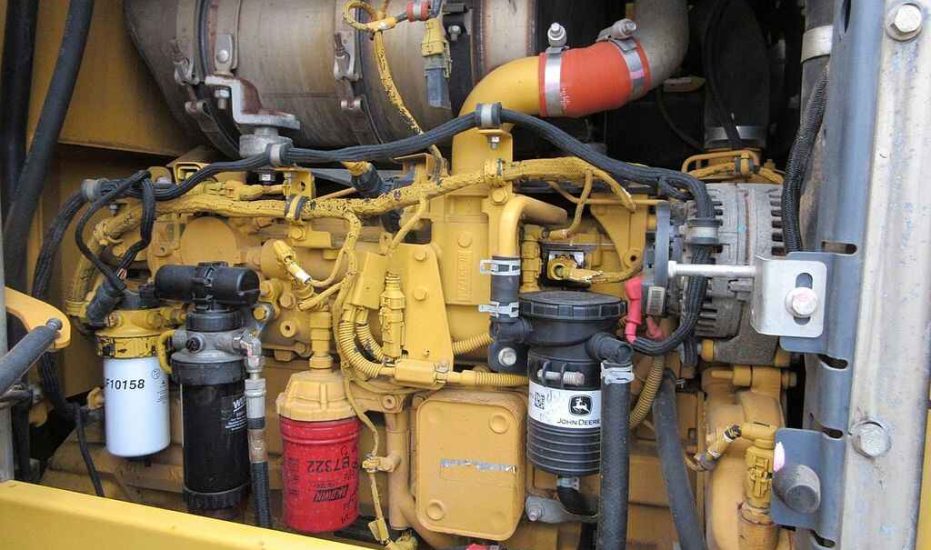

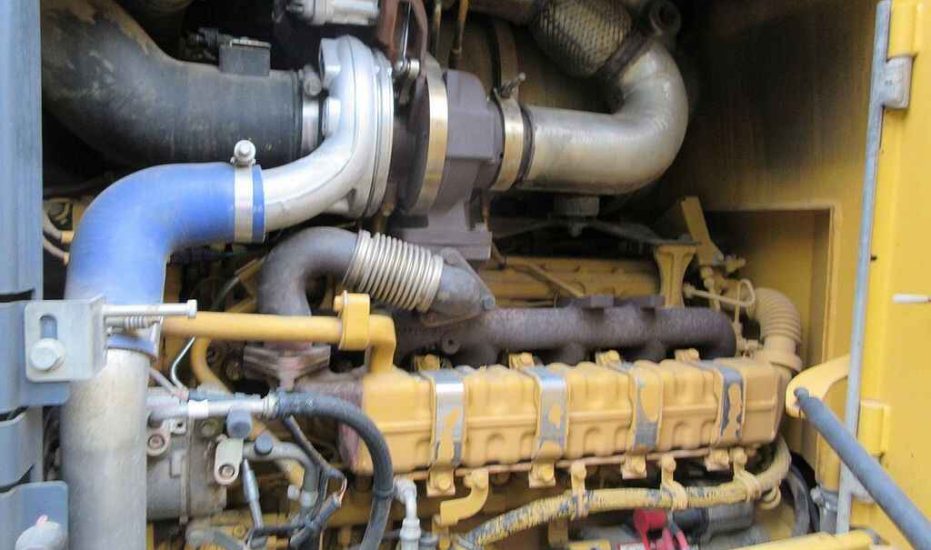

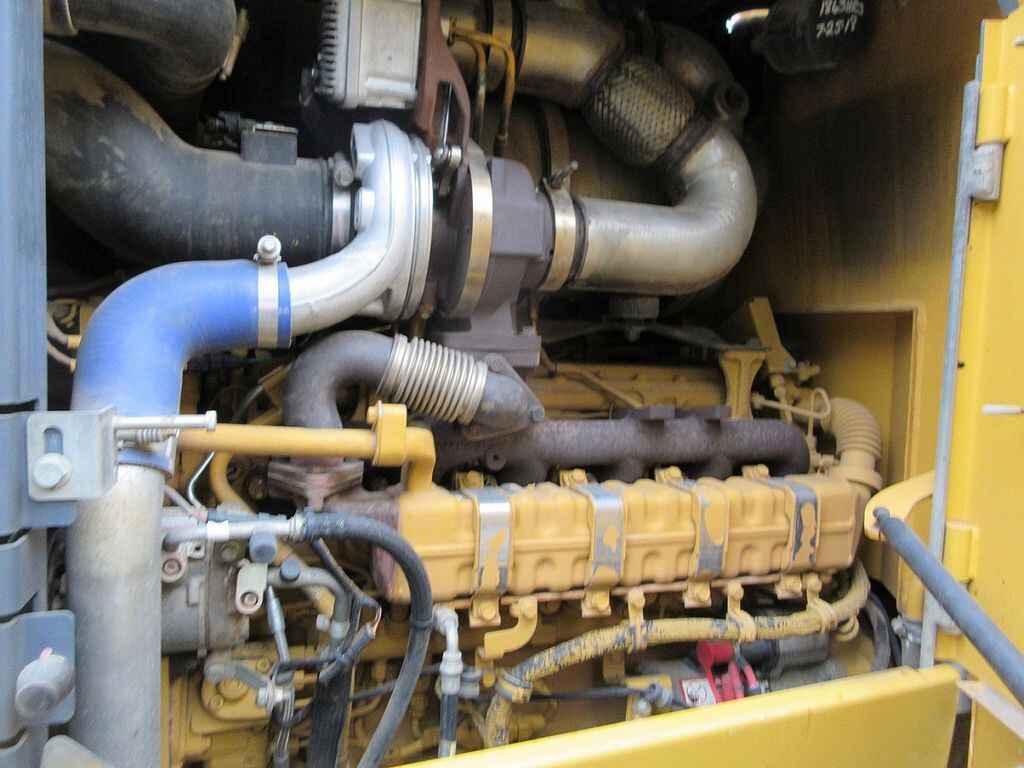

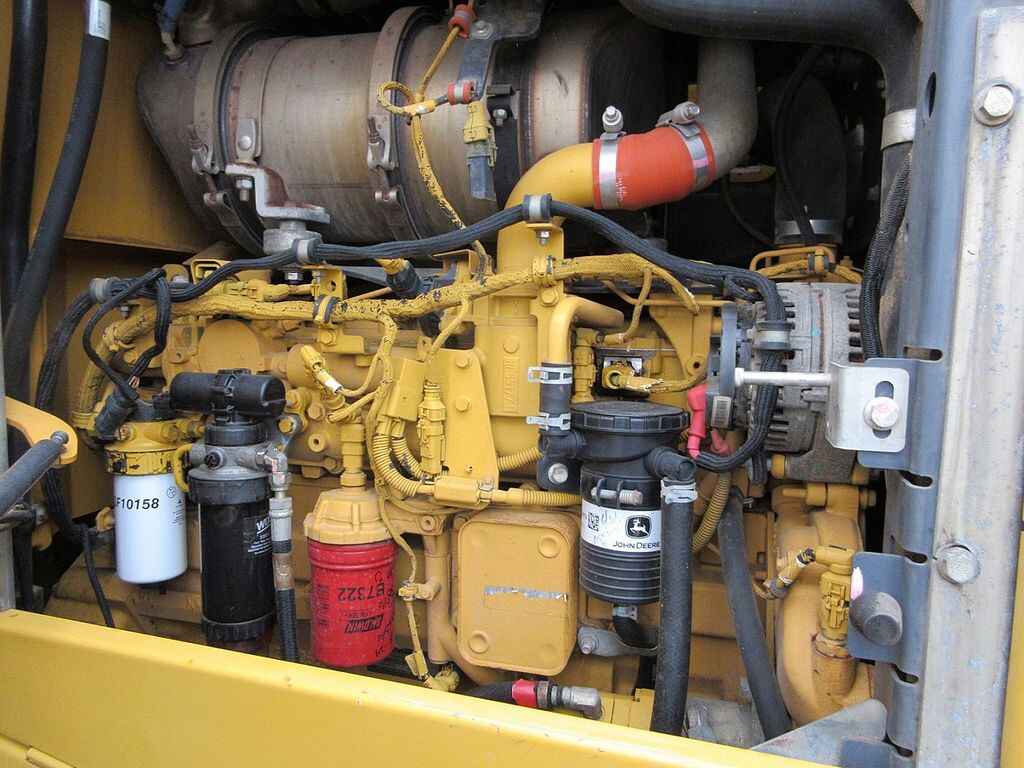

Engine

• Model: John Deere PowerTech™ E 6068H
• Net Power: 146 hp (109 kW) at 2,000 rpm
• Displacement: 414 cu in (6.8 L)
• Number of Cylinders: 6
• Torque Rise: 47%
• Aspiration: Turbocharged, charge air cooled

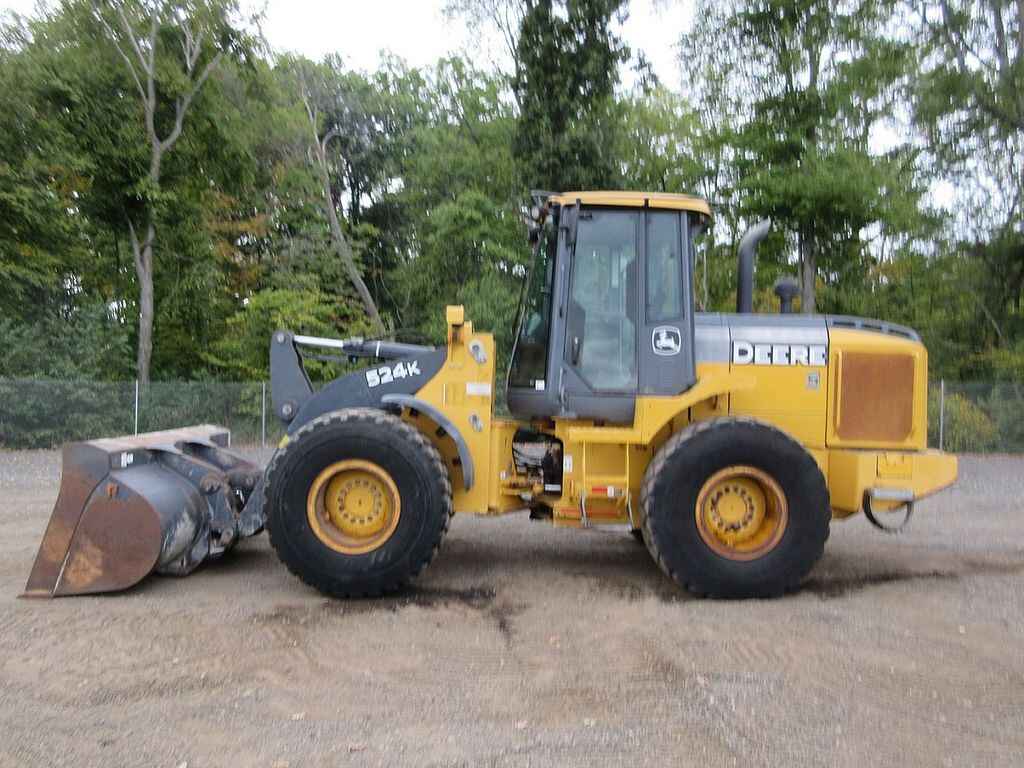

Dimensions

• Length with Bucket on Ground: 25 ft 2 in (7.67 m)
• Width over Tires: 8 ft 4 in (2.54 m)
• Height to Top of Cab: 10 ft 8 in (3.25 m)
• Ground Clearance: 1 ft 4 in (0.40 m)
• Wheelbase: 9 ft 7 in (2.92 m)
• Turning Radius: 16 ft 6 in (5.03 m)

Operational

• Operating Weight: 27,500 lbs (12,474 kg)
• Fuel Capacity: 85.9 gal (325 L)
• Hydraulic System Fluid Capacity: 24.1 gal (91 L)
• Engine Oil Capacity: 5.1 gal (19 L)
• Cooling System Fluid Capacity: 6.1 gal (23 L)
• Transmission Fluid Capacity: 4.9 gal (19 L)
• Front Axle/Diff Fluid Capacity: 4.5 gal (17 L)
• Rear Axle/Diff Fluid Capacity: 4.5 gal (17 L)

Performance

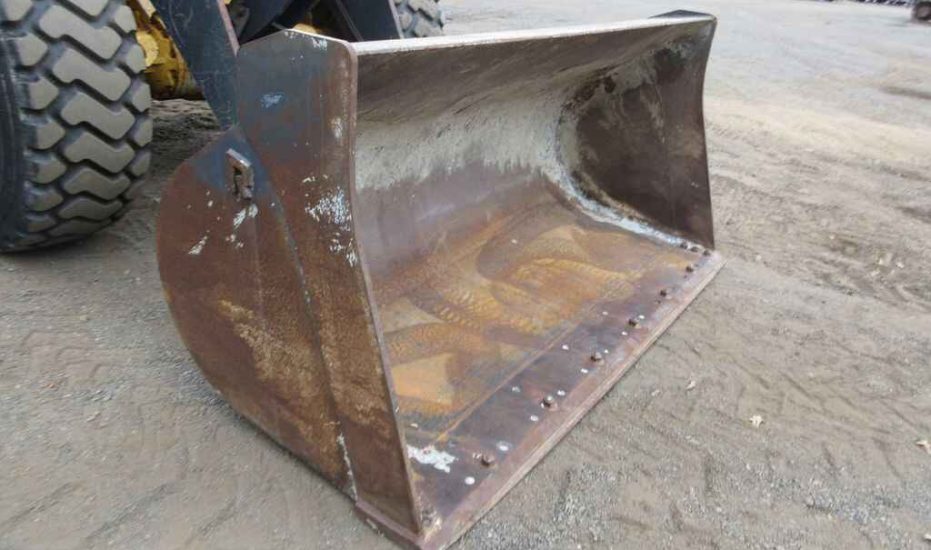

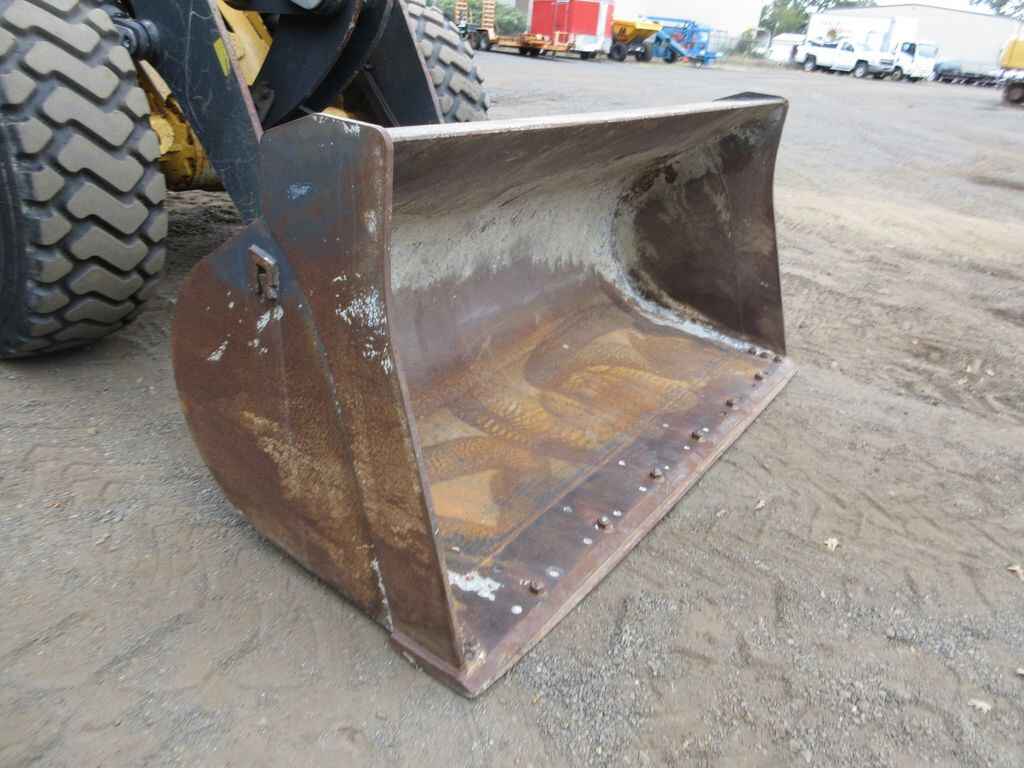

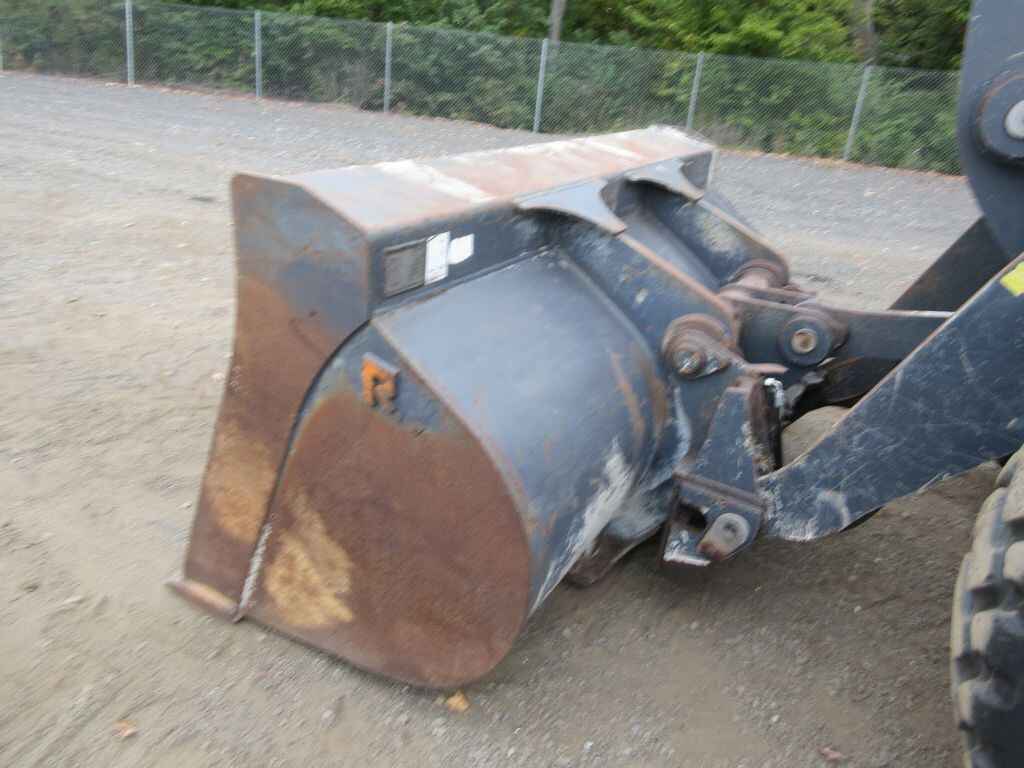

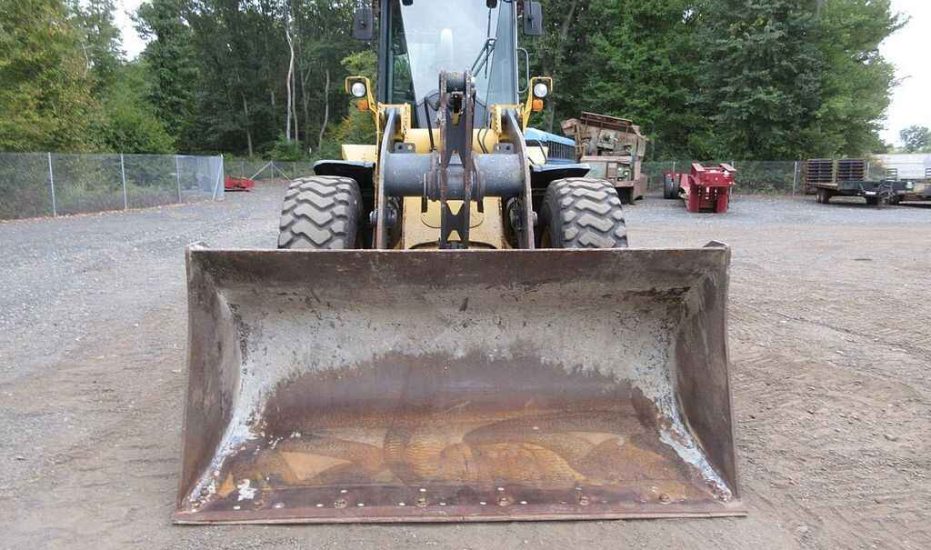

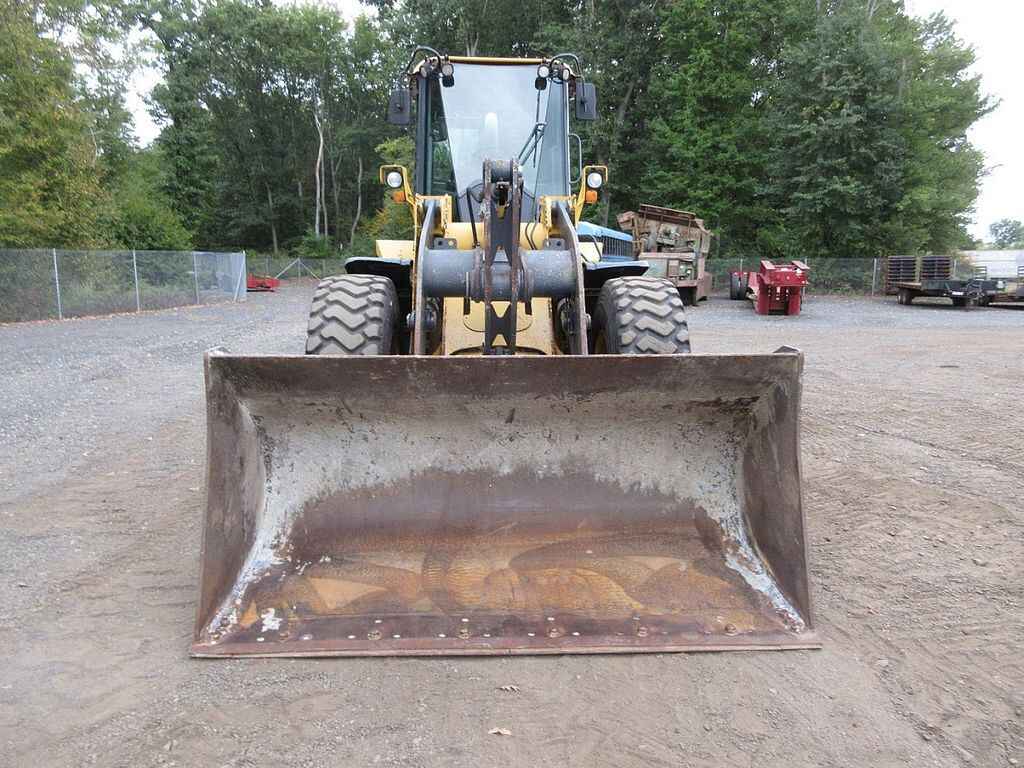

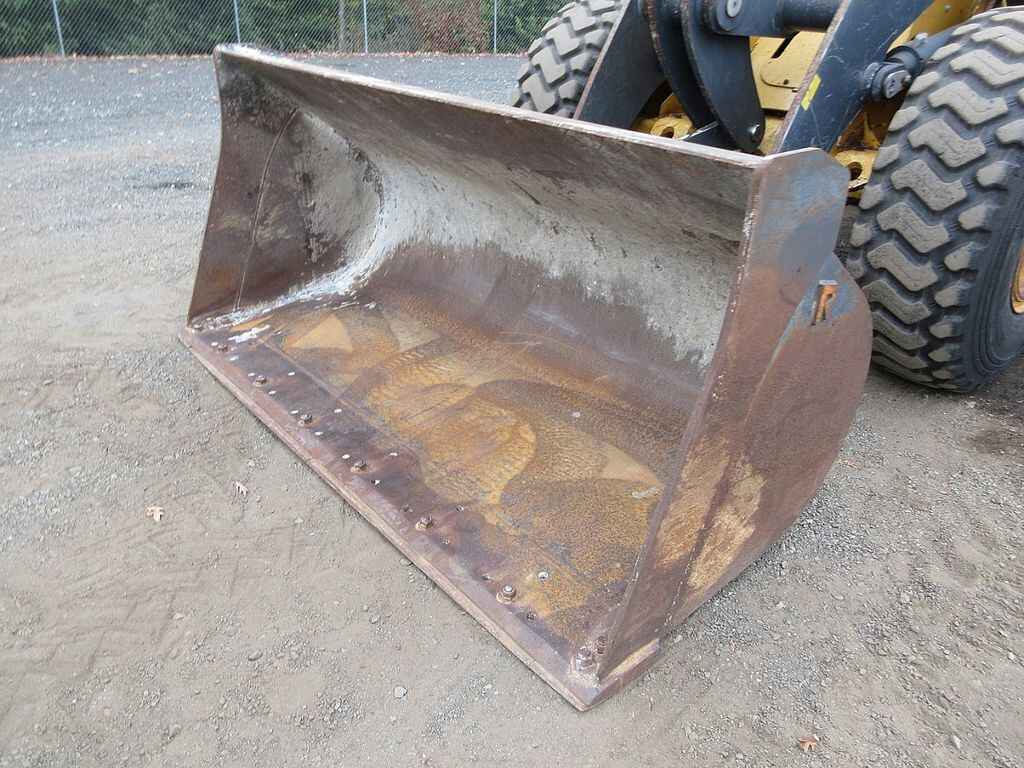

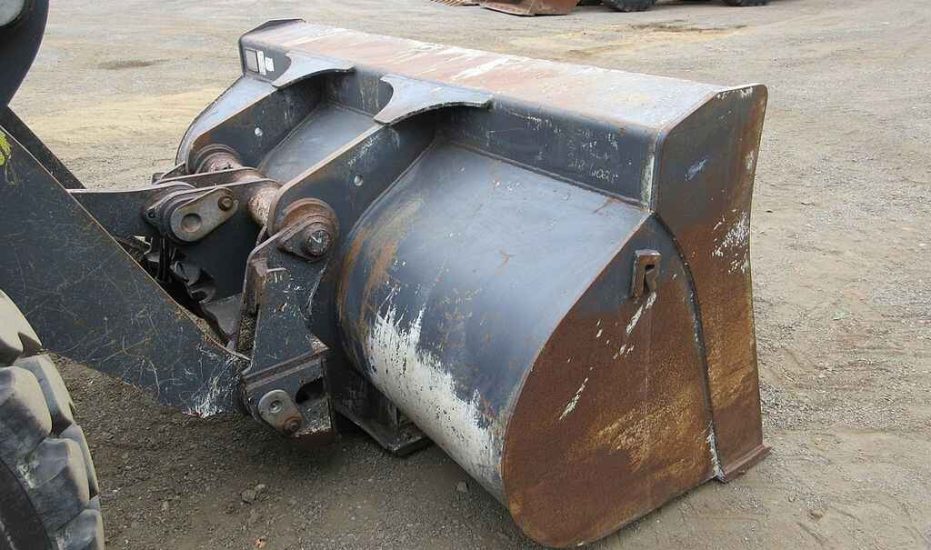

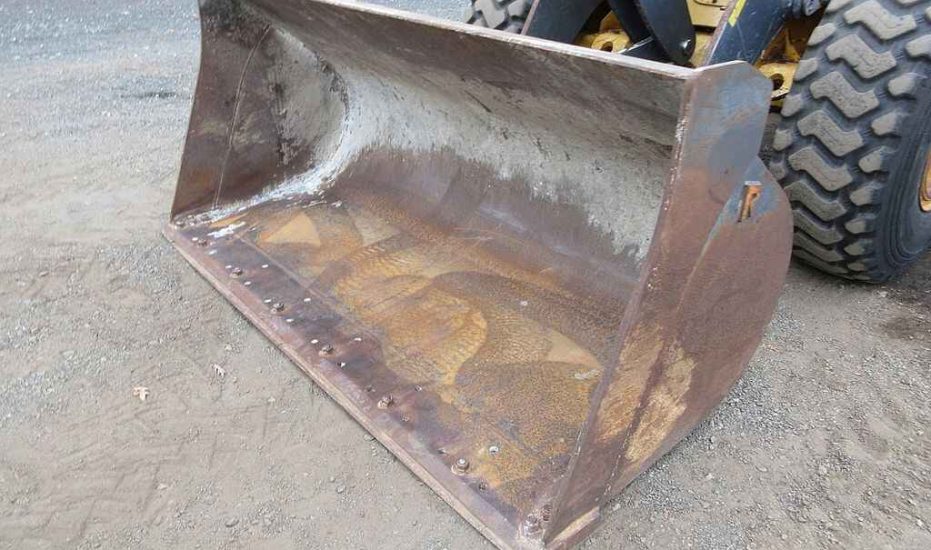

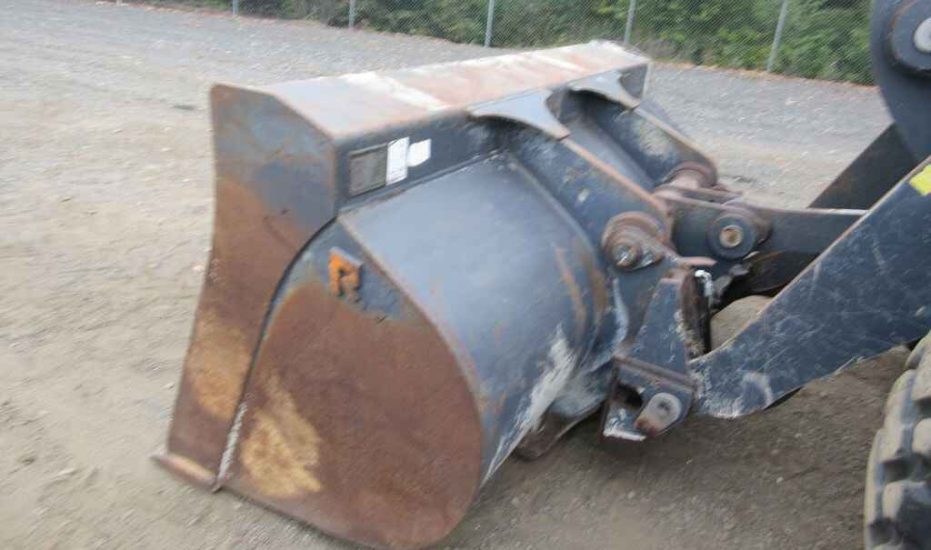

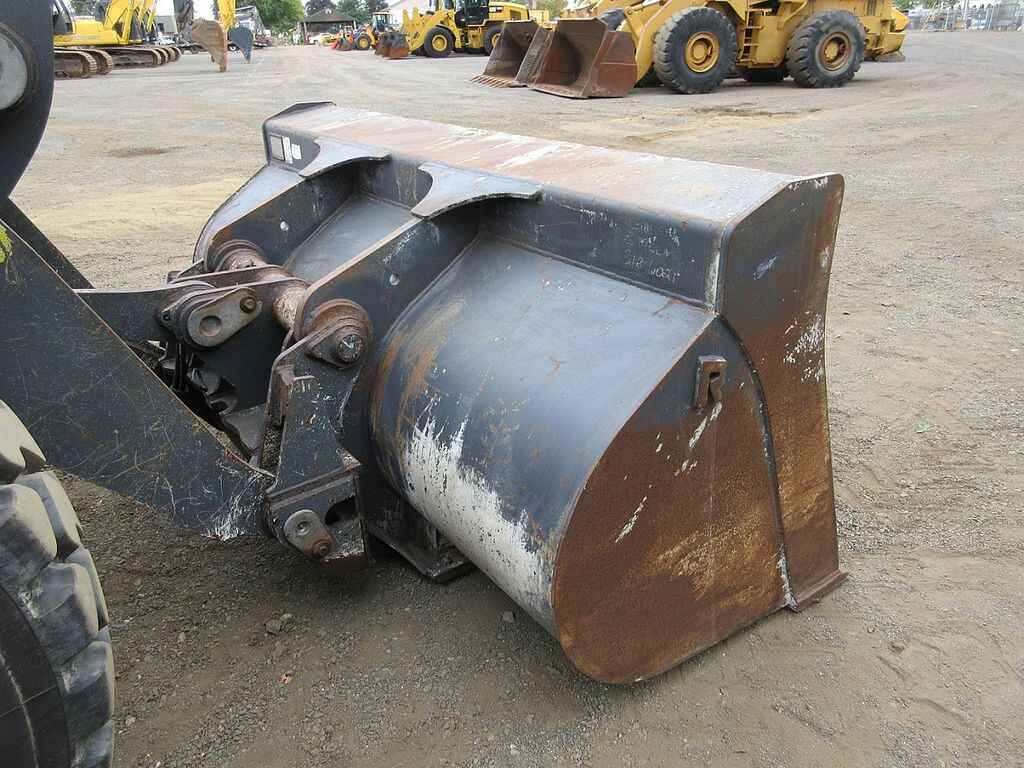

• Bucket Capacity - Heaped: 2.75 yd³ (2.10 m³)
• Bucket Capacity - Struck: 2.23 yd³ (1.71 m³)
• Bucket Width: 8 ft 4 in (2.54 m)
• Dump Clearance at Max Raise: 10 ft 3 in (3.12 m)
• Hinge Pin Height at Max Raise: 13 ft 6 in (4.11 m)
• Reach at Max Lift and Dump: 3 ft 3 in (0.99 m)
• Breakout Force: 22,394 lbs (10,158 kg)
• Static Tipping Weight: 19,291 lbs (8,750 kg)

Hydraulic System

• Relief Valve Setting: 3,625 psi (25 MPa)
• Pump Flow Capacity: 43.6 gal/min (165 L/min)
• Raise Time: 6.1 seconds
• Dump Time: 1.4 seconds
• Lower Time: 3.0 seconds
• Pump Type: Variable displacement, axial piston

Transmission

• Transmission Type: Countershaft, powershift
• Number of Forward Gears: 4
• Number of Reverse Gears: 3
• Max Speed - Forward: 22.4 mph (36 km/h)
• Max Speed - Reverse: 15 mph (24 km/h)

Electrical System

• Operating Voltage: 24 V
• Alternator Supplied Amperage: 80 amps

Other Specifications

• Rear Axle Oscillation: 24 degrees

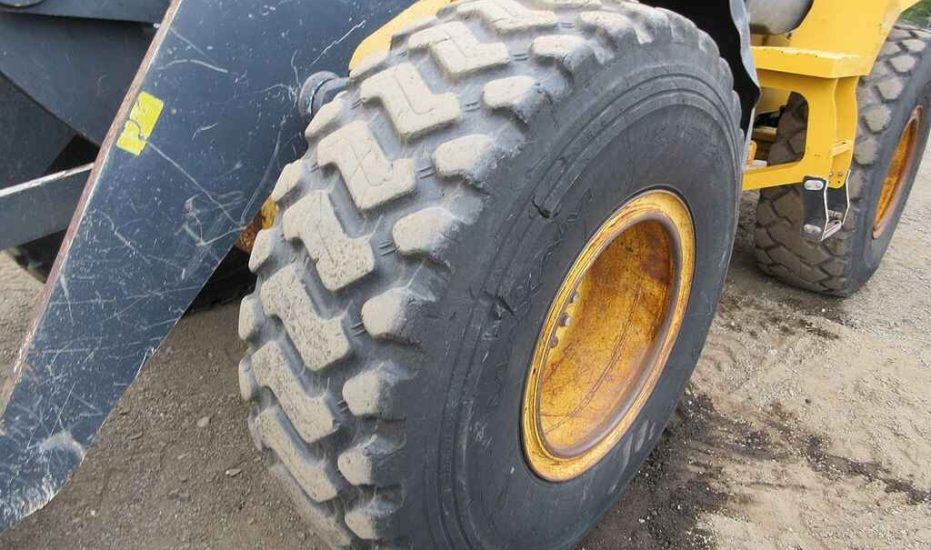

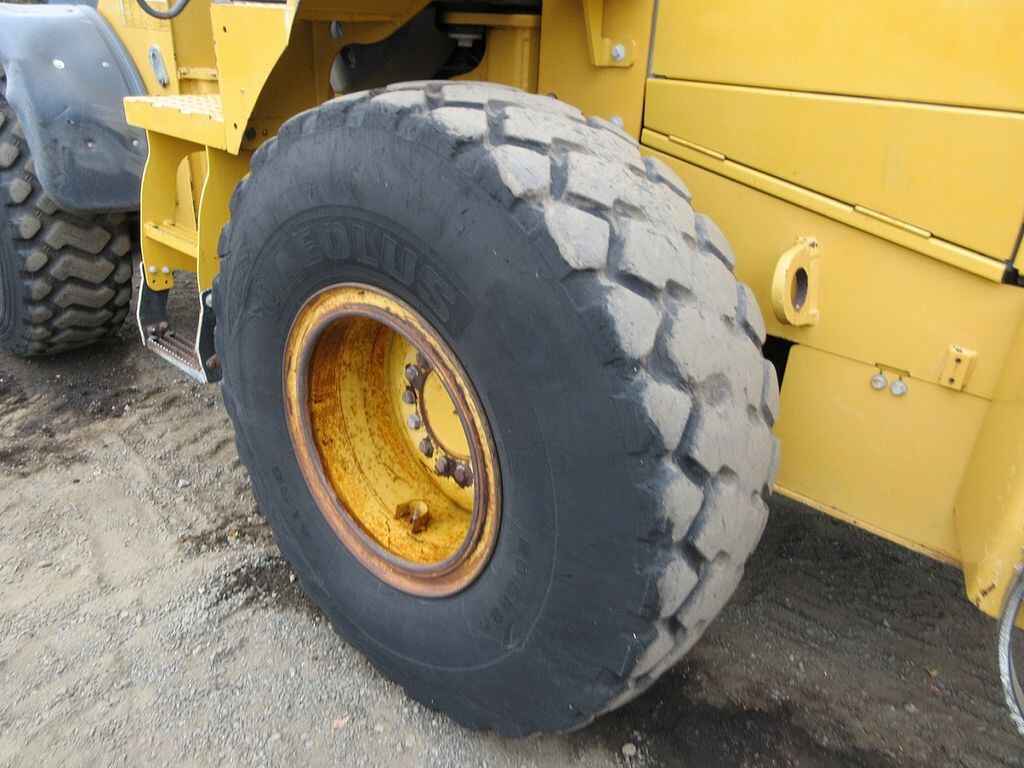

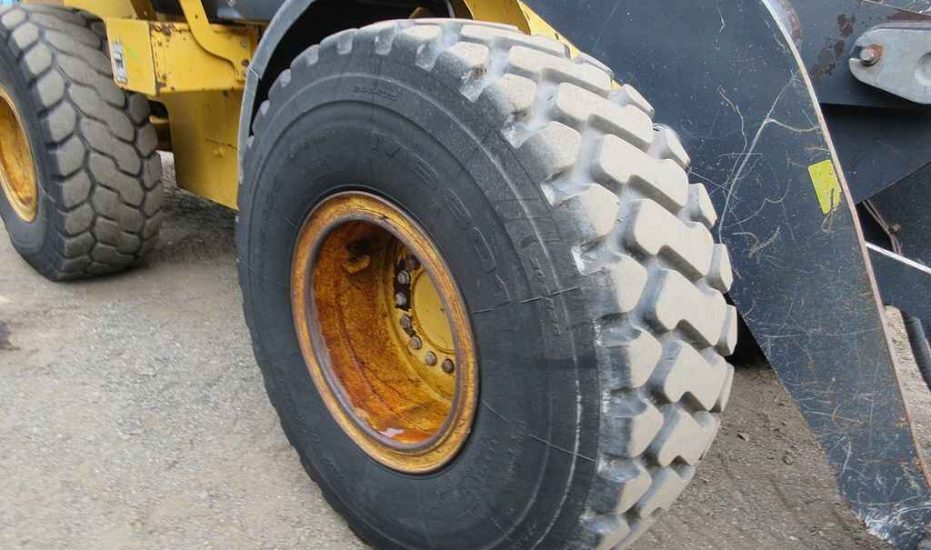

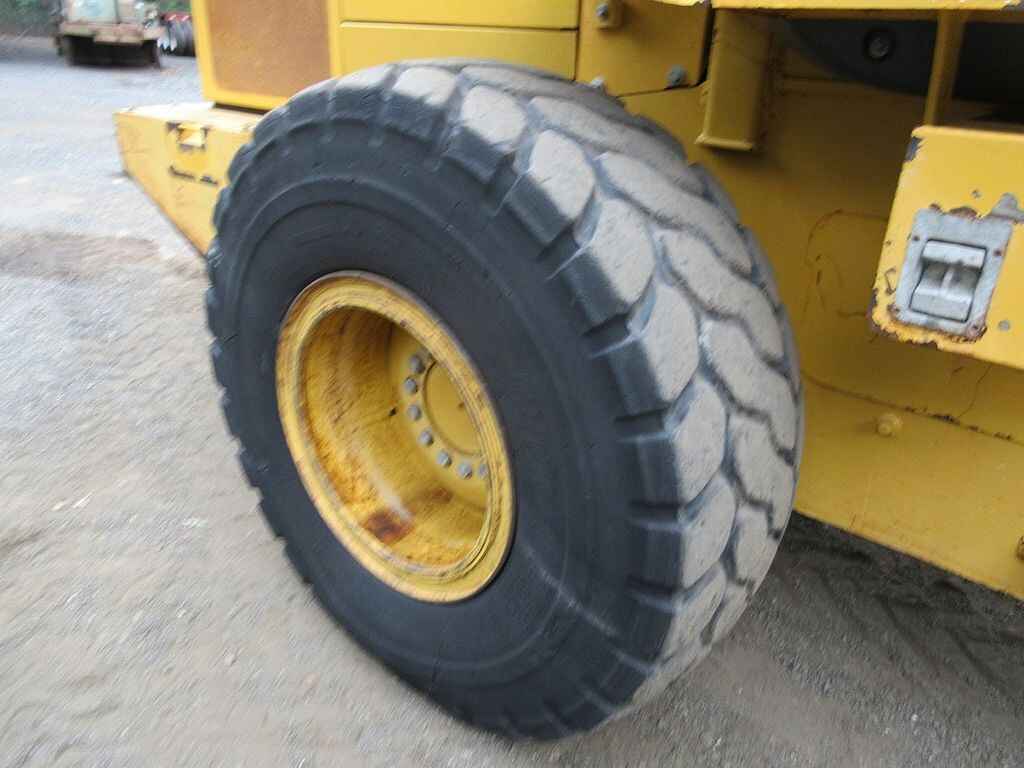

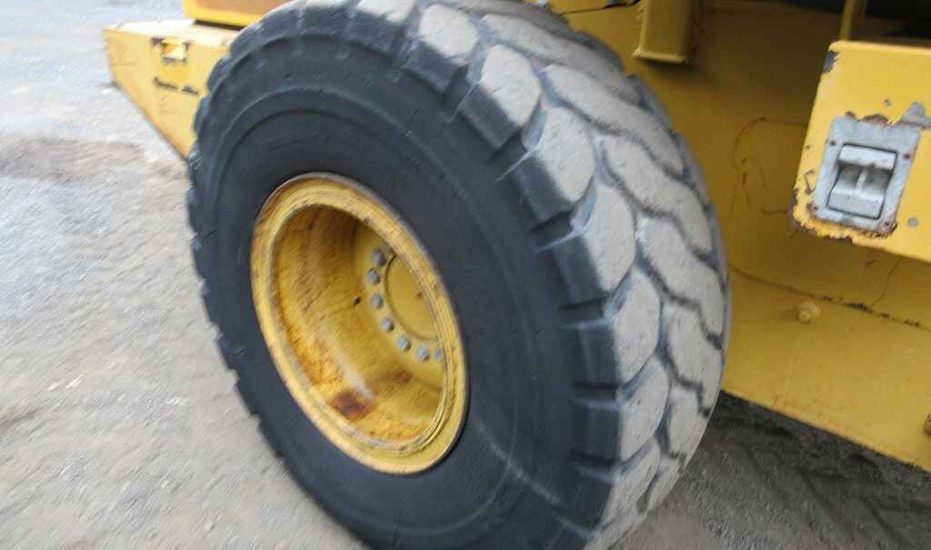

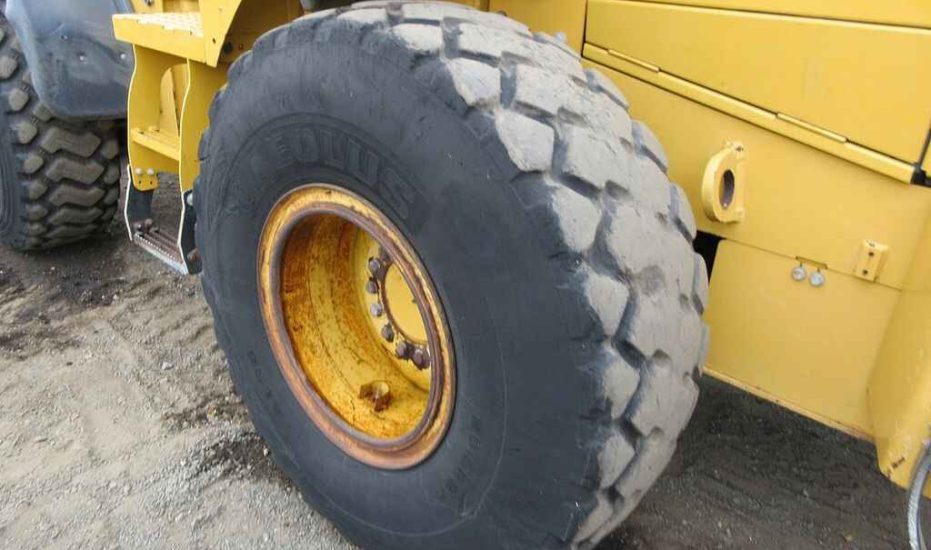

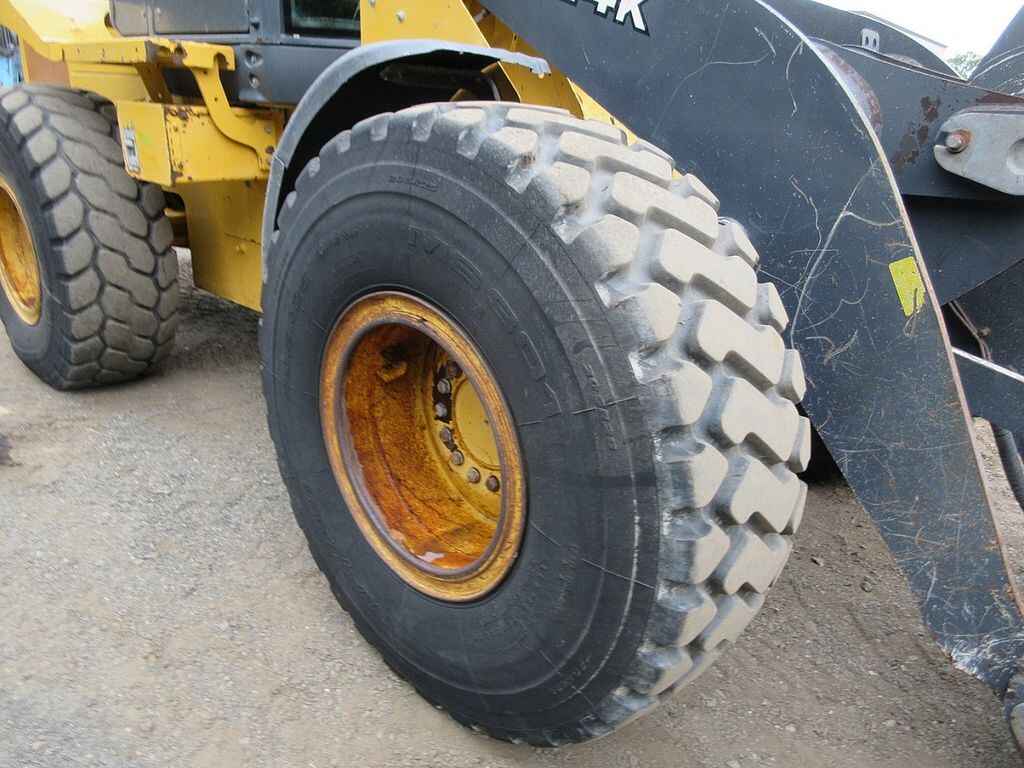

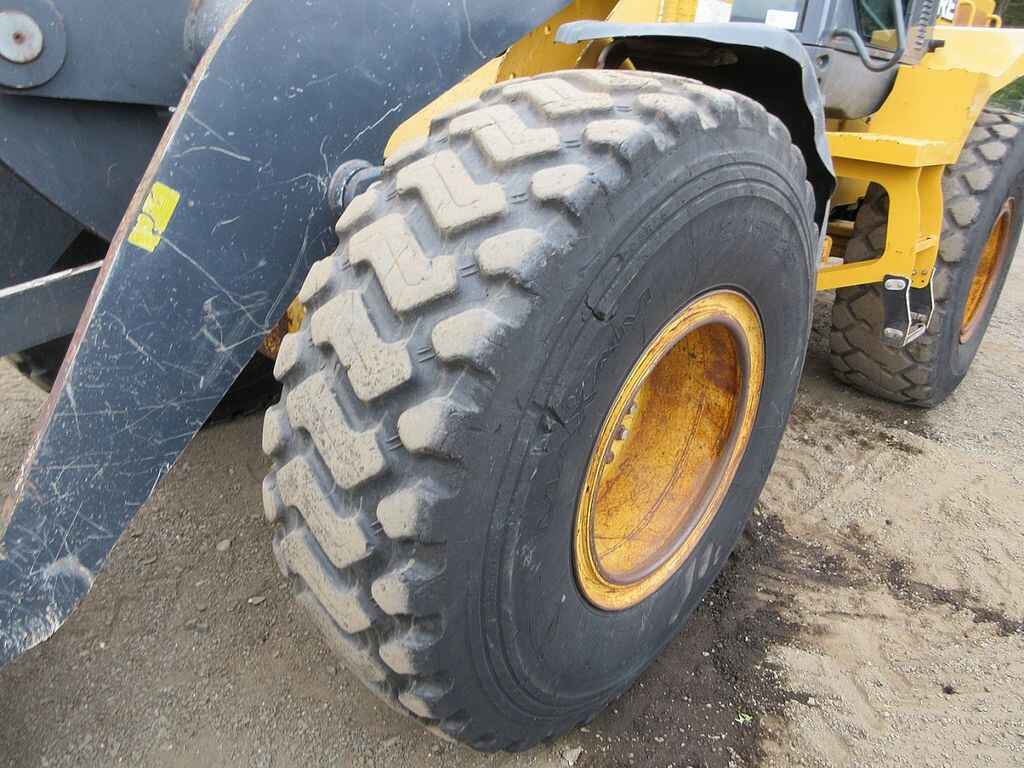

• Tire Size: 20.5 R 25
