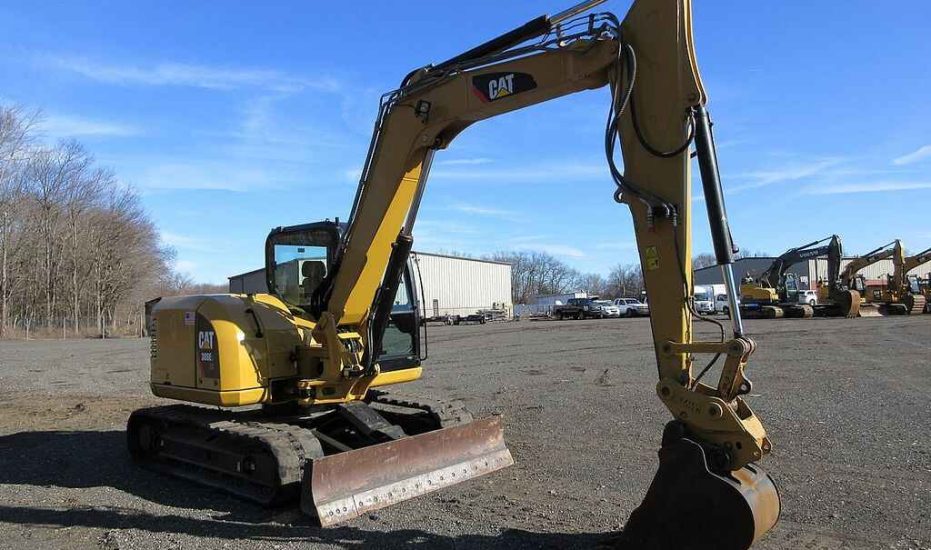

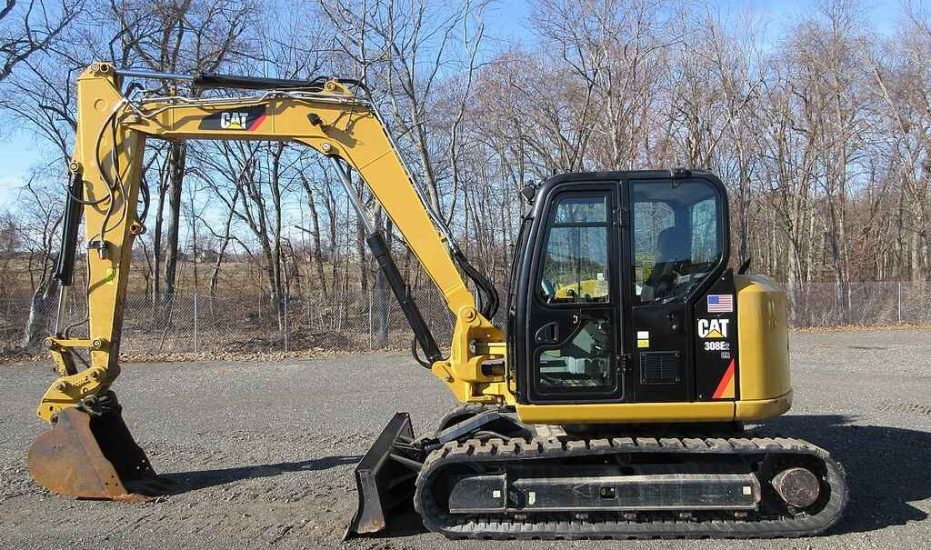

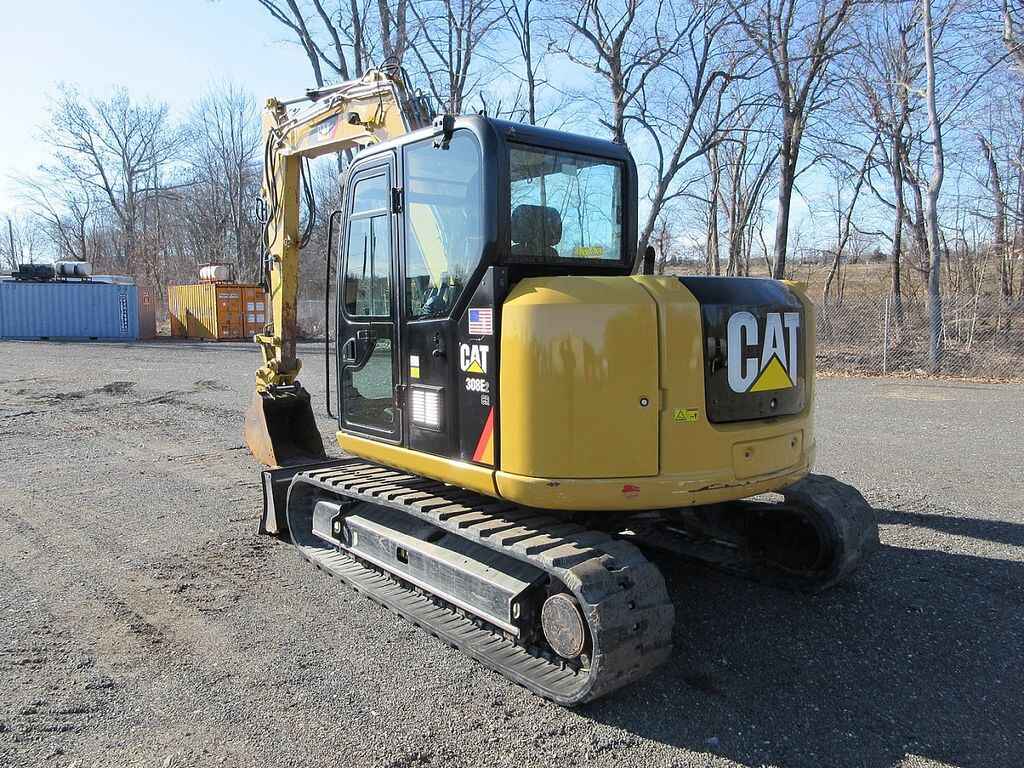

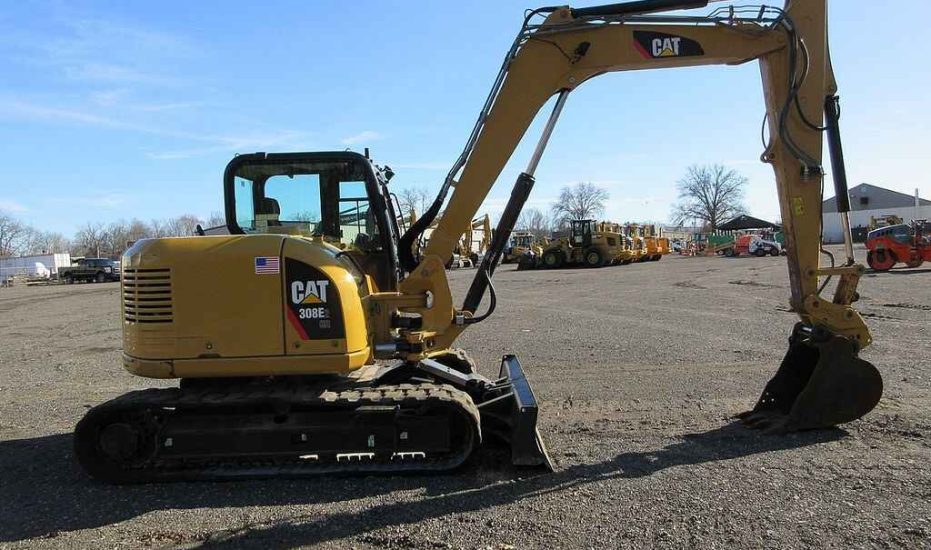

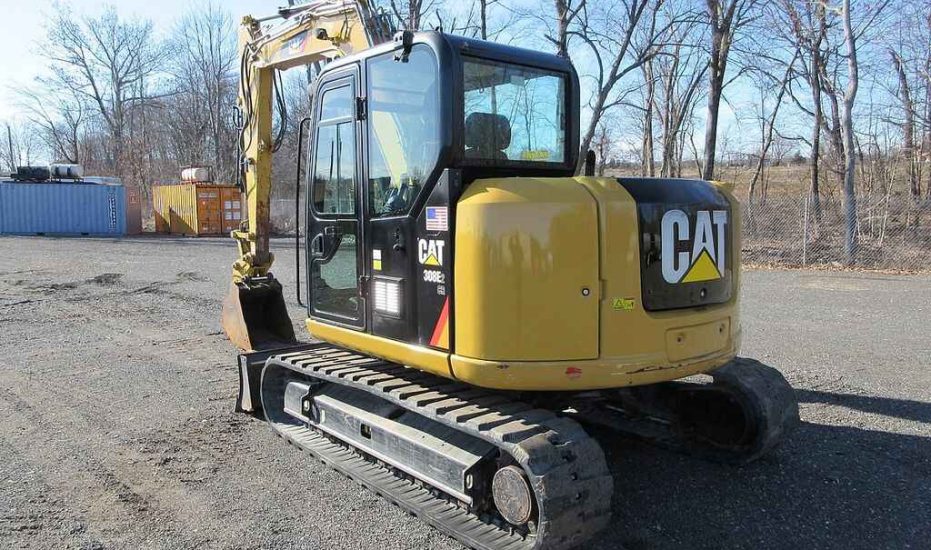

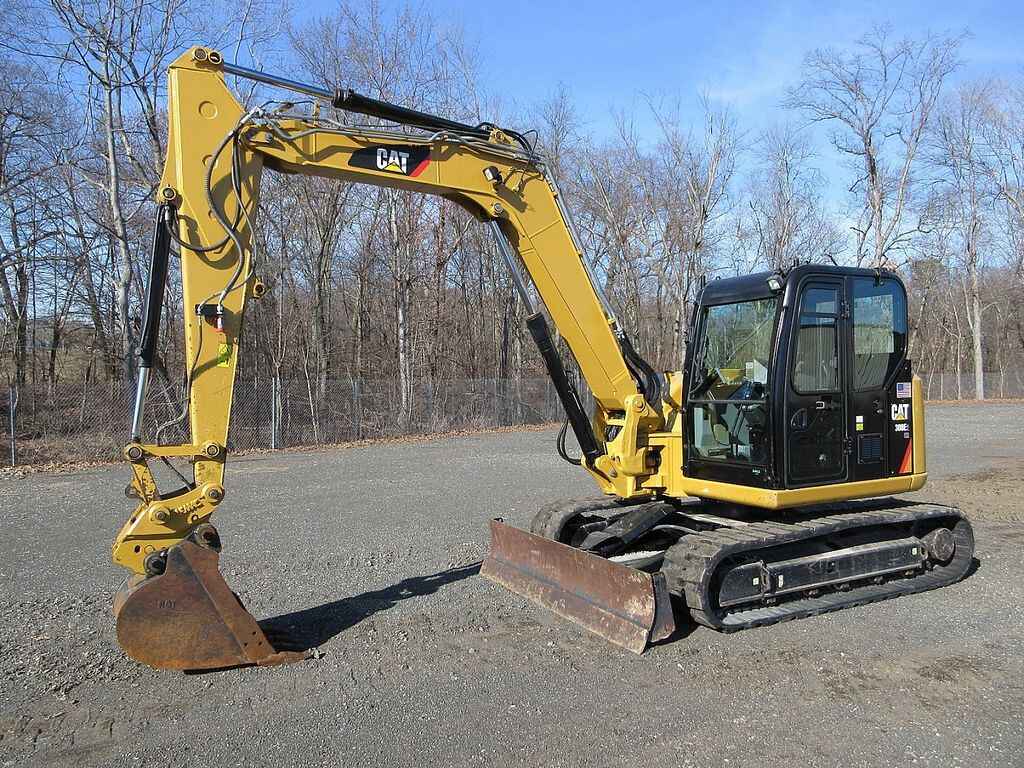

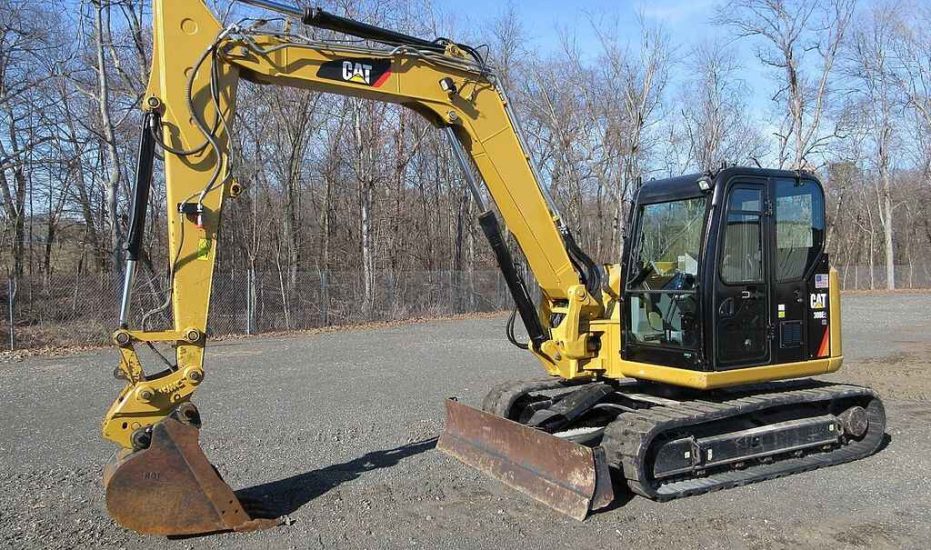

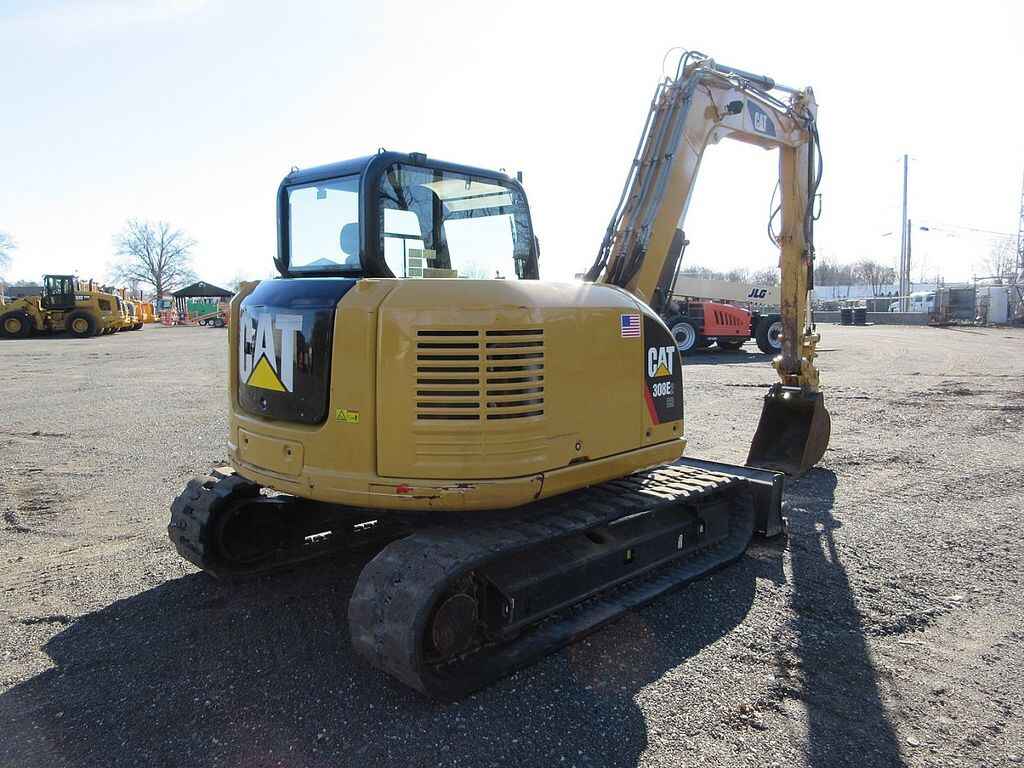

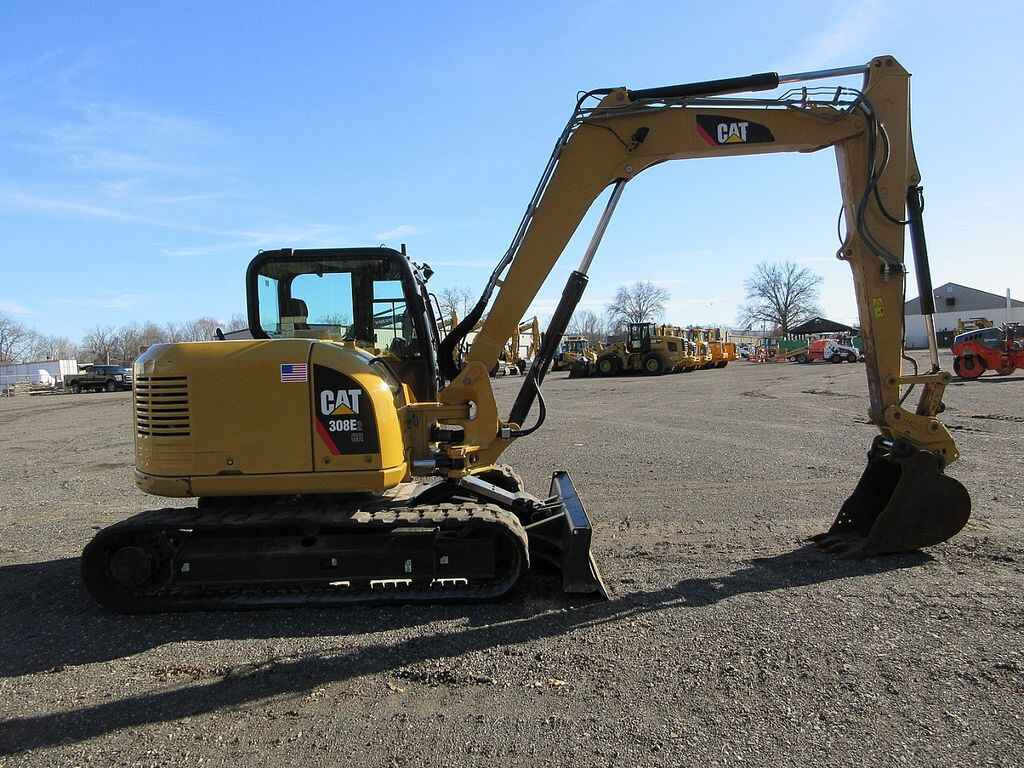

2019 Caterpillar 320
$76,800
$65,500
Overview
Description

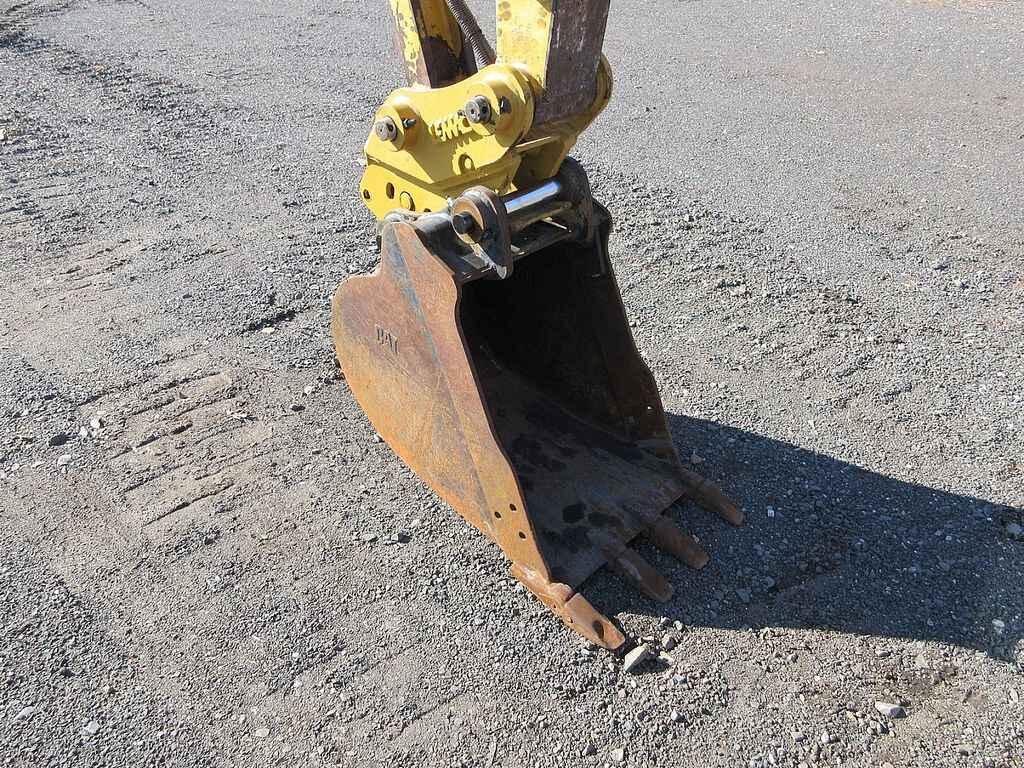

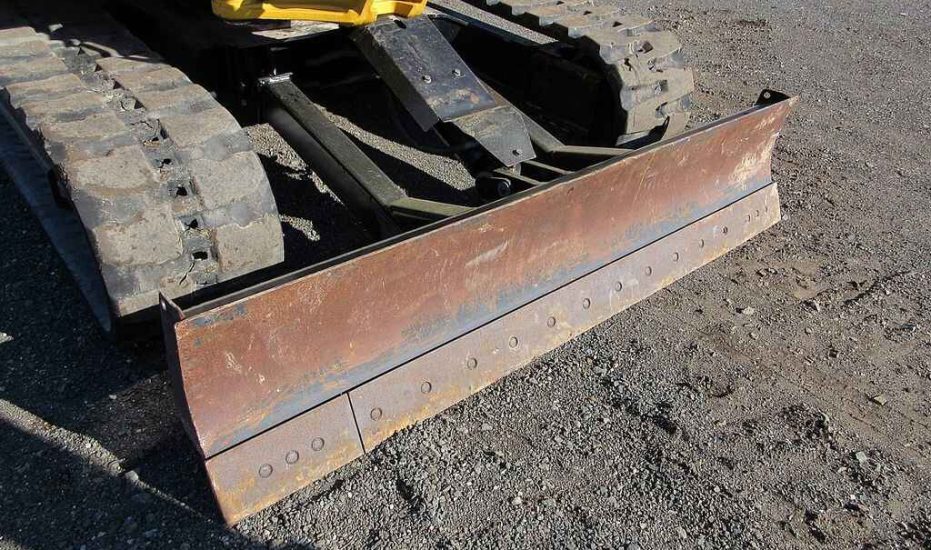

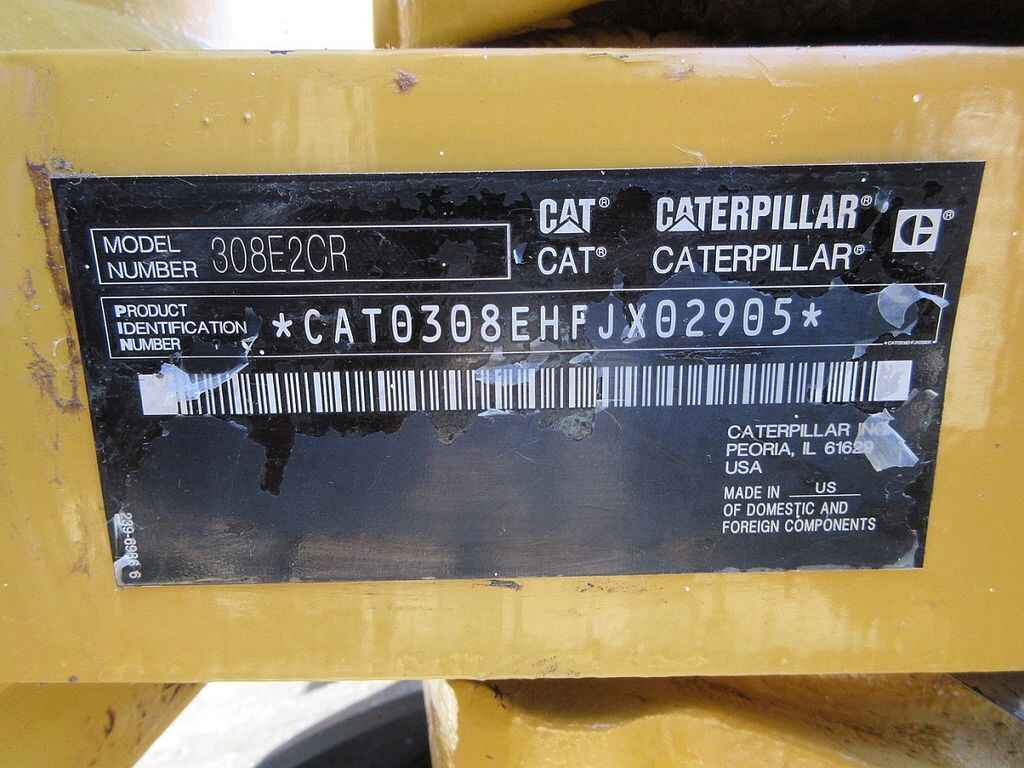

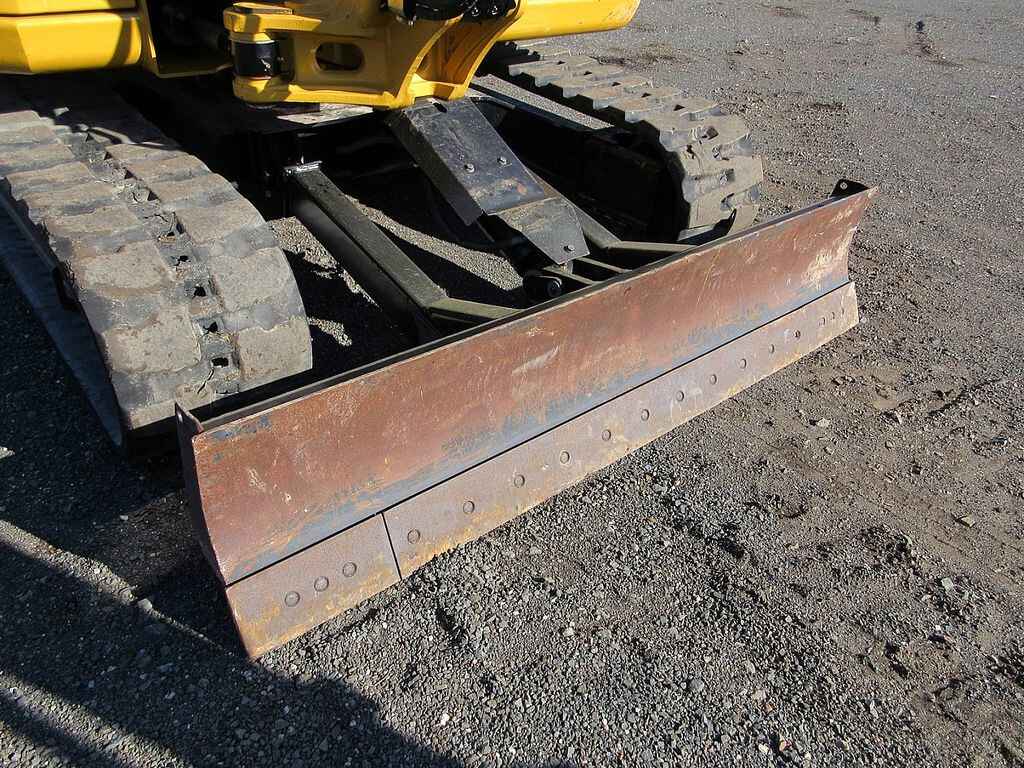

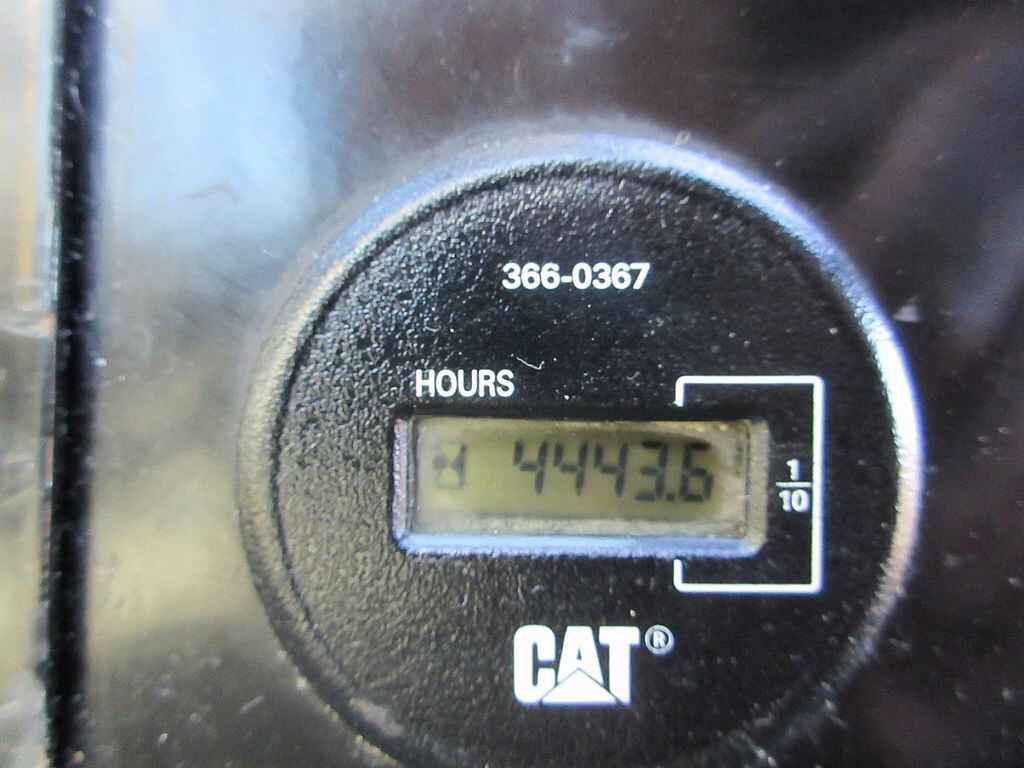

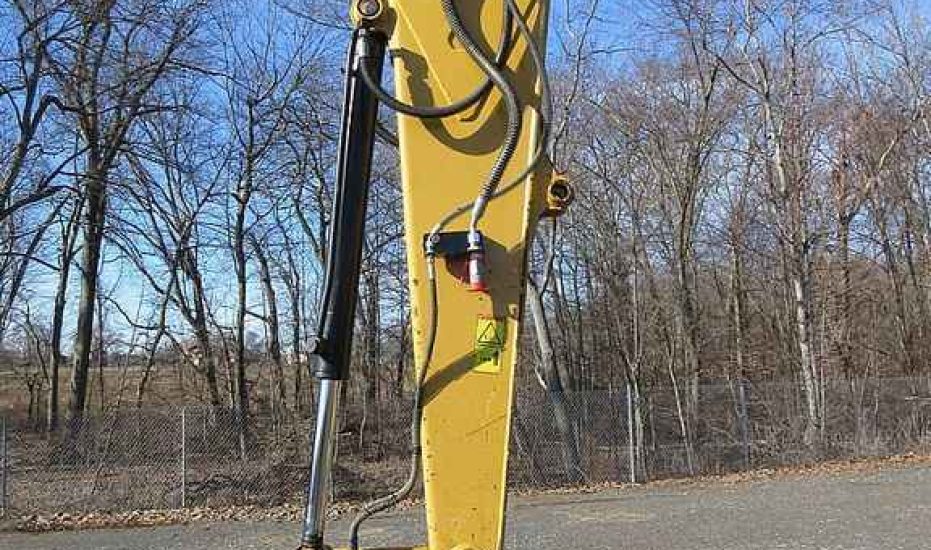

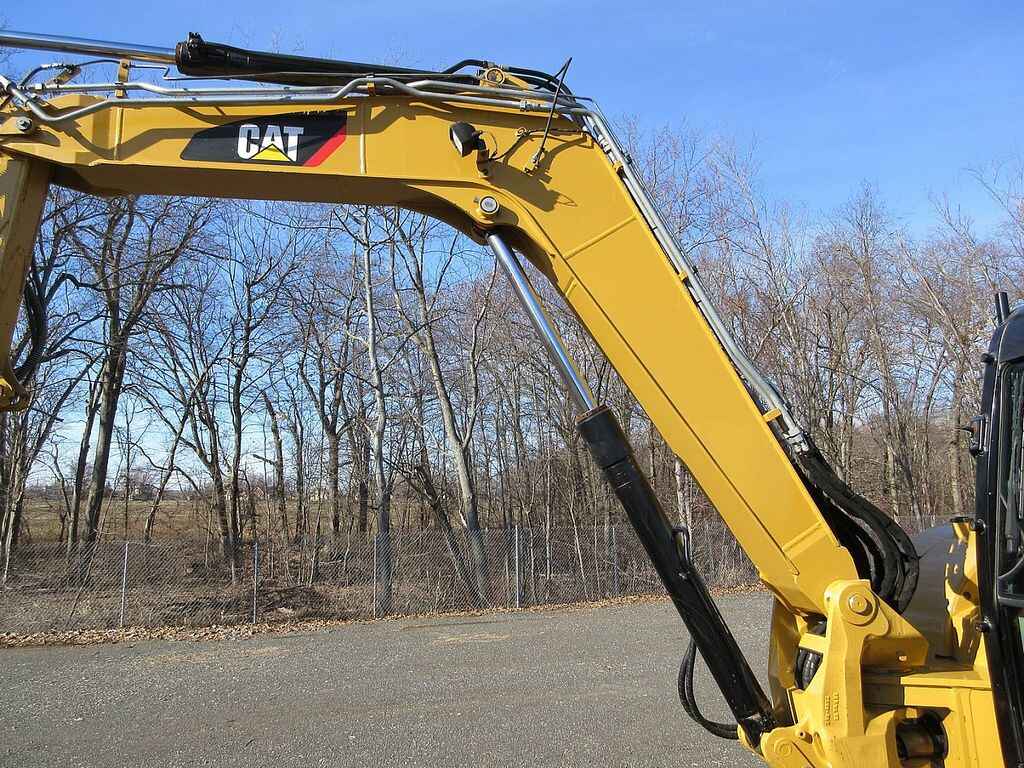

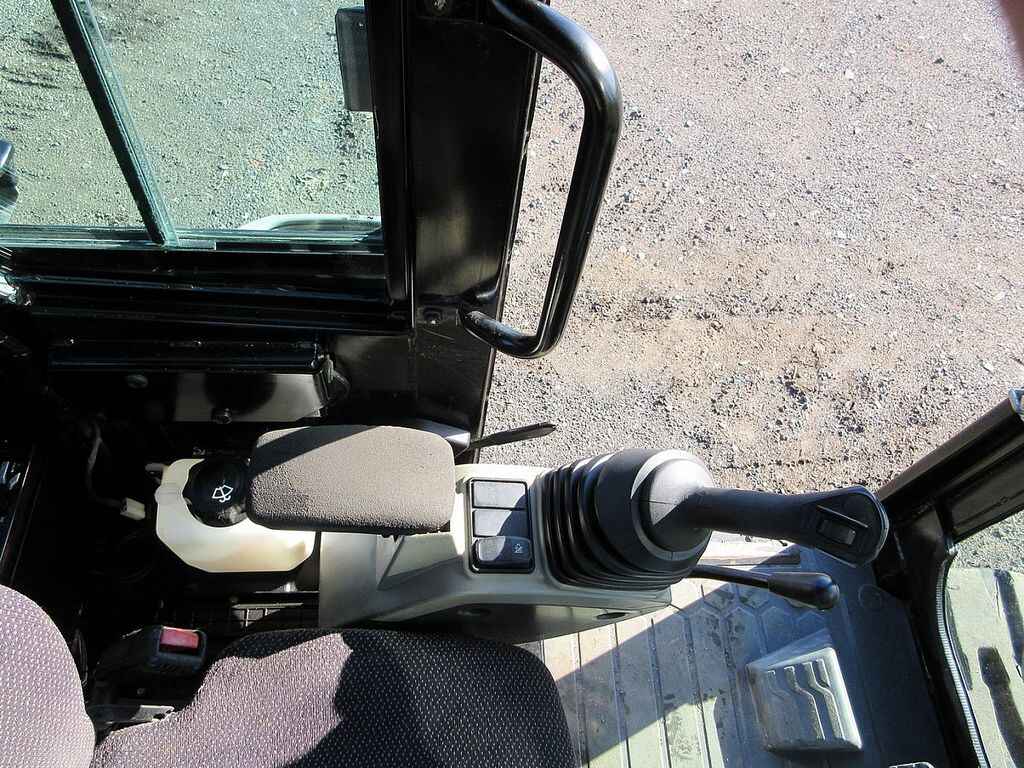

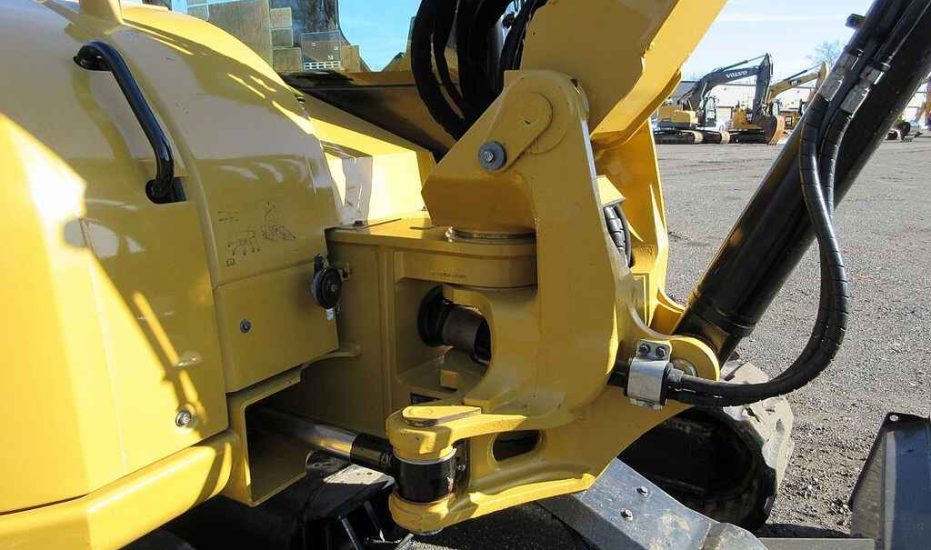

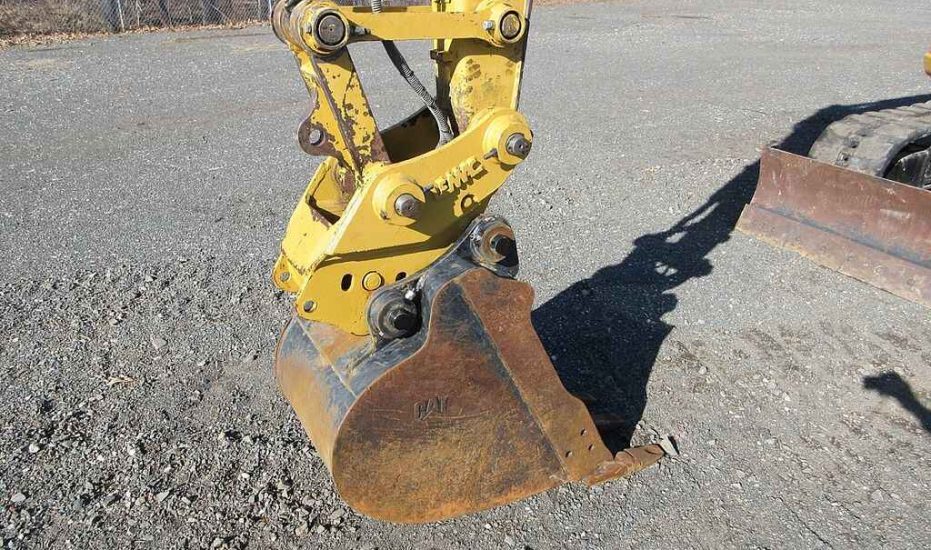

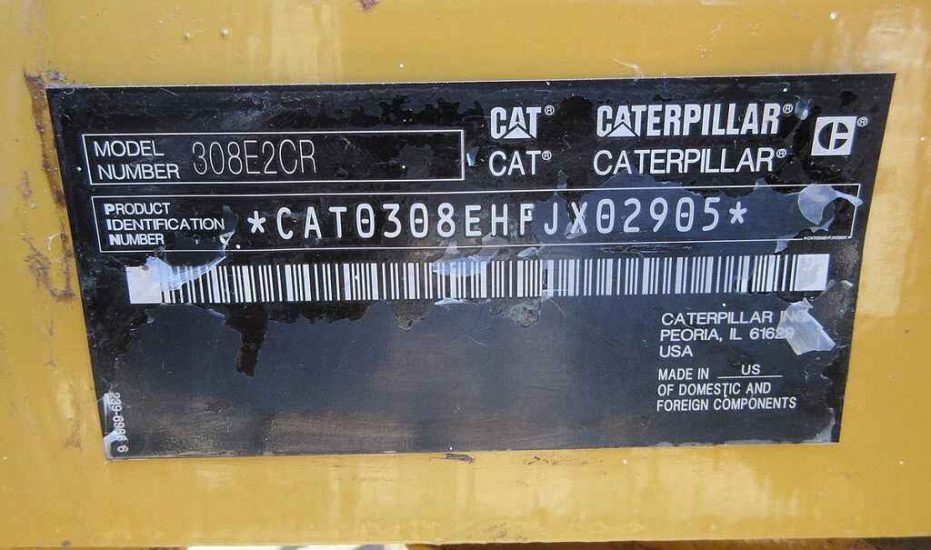

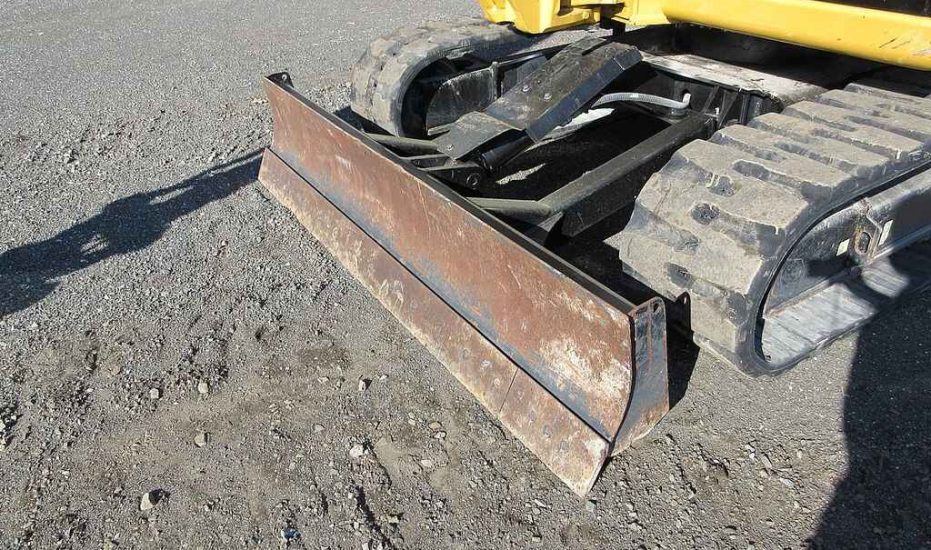

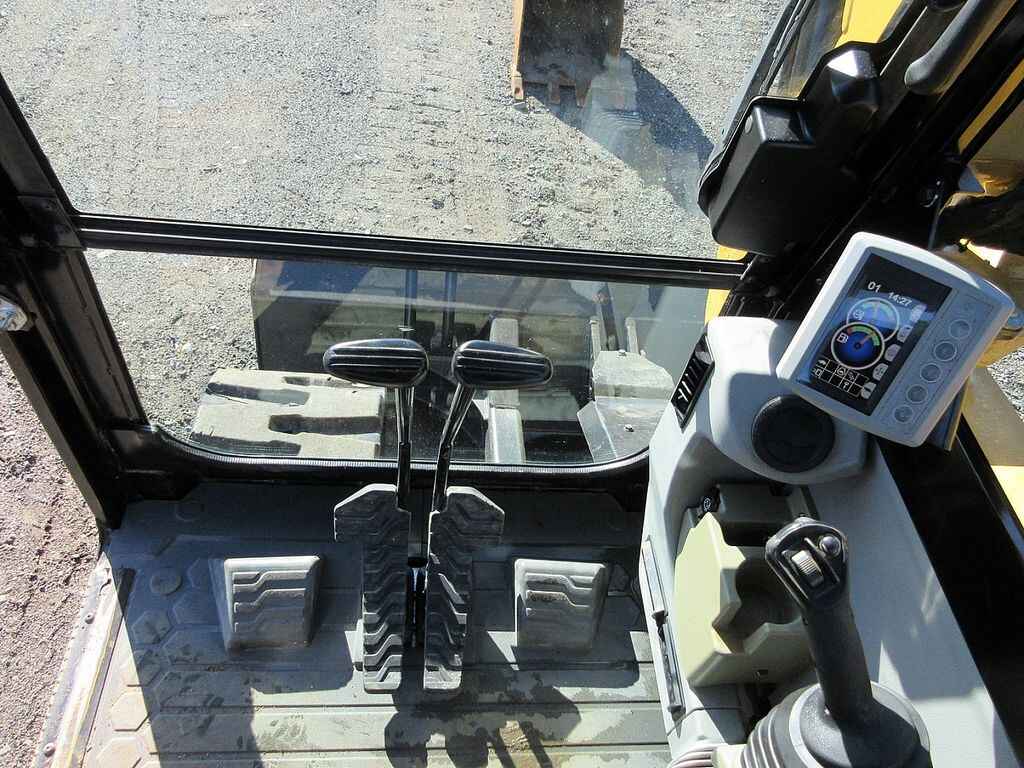

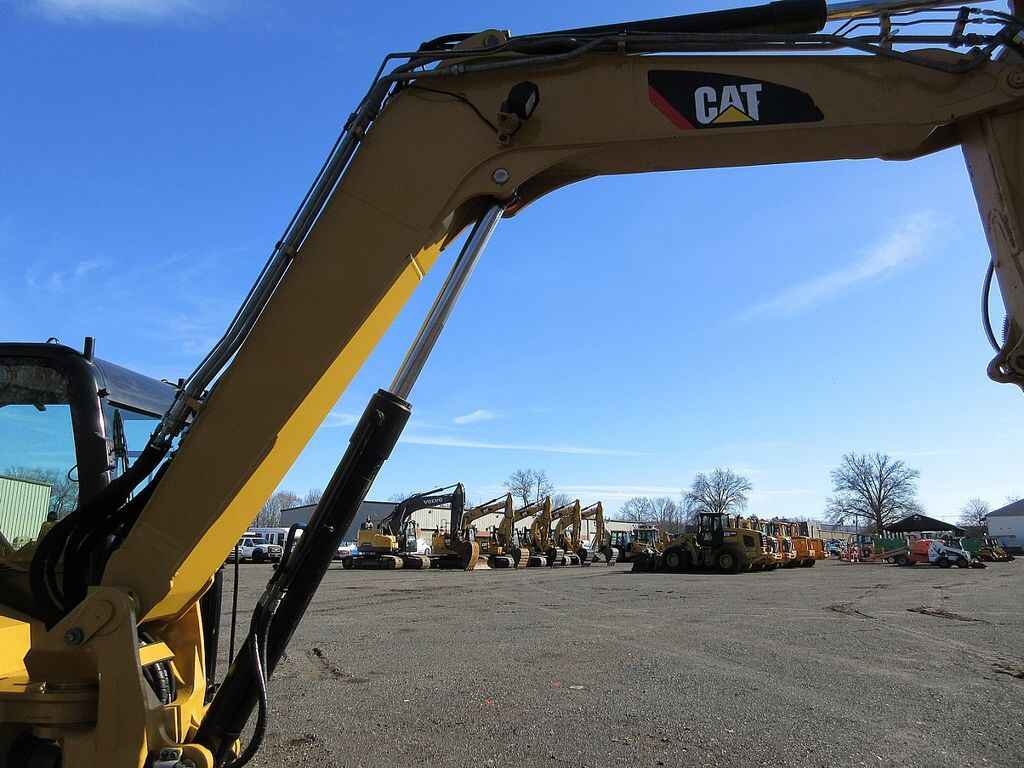

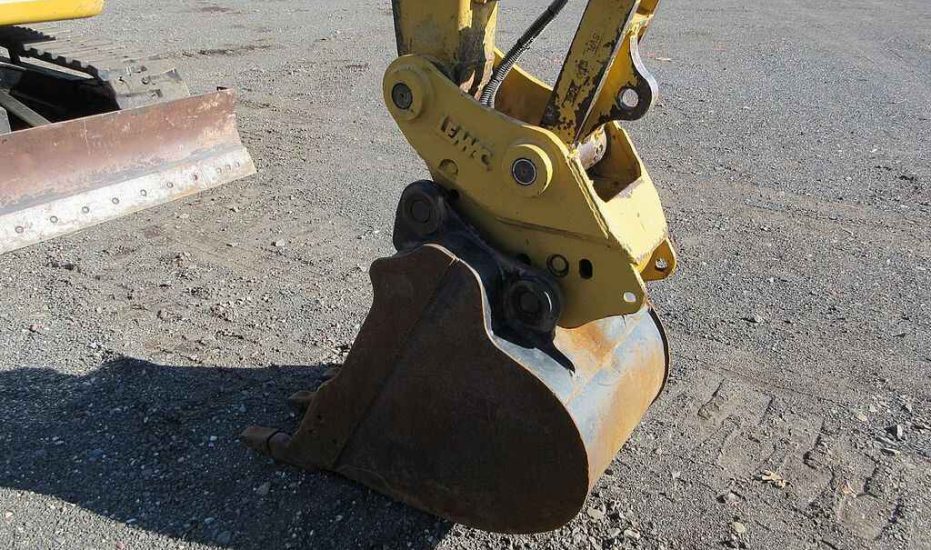

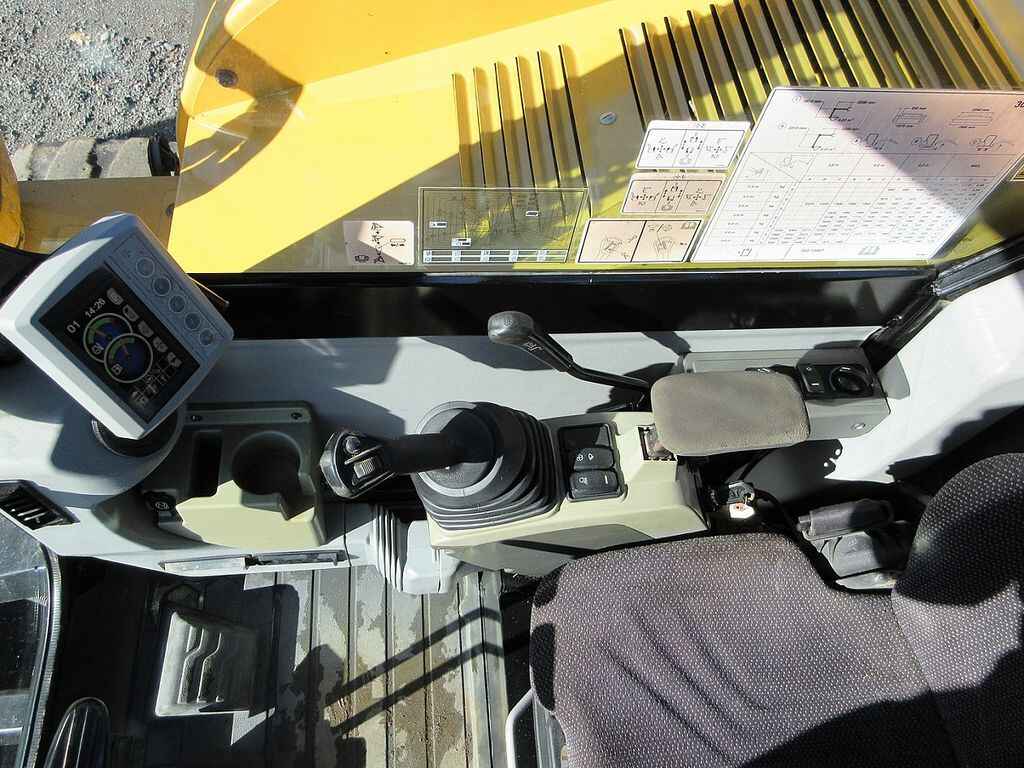

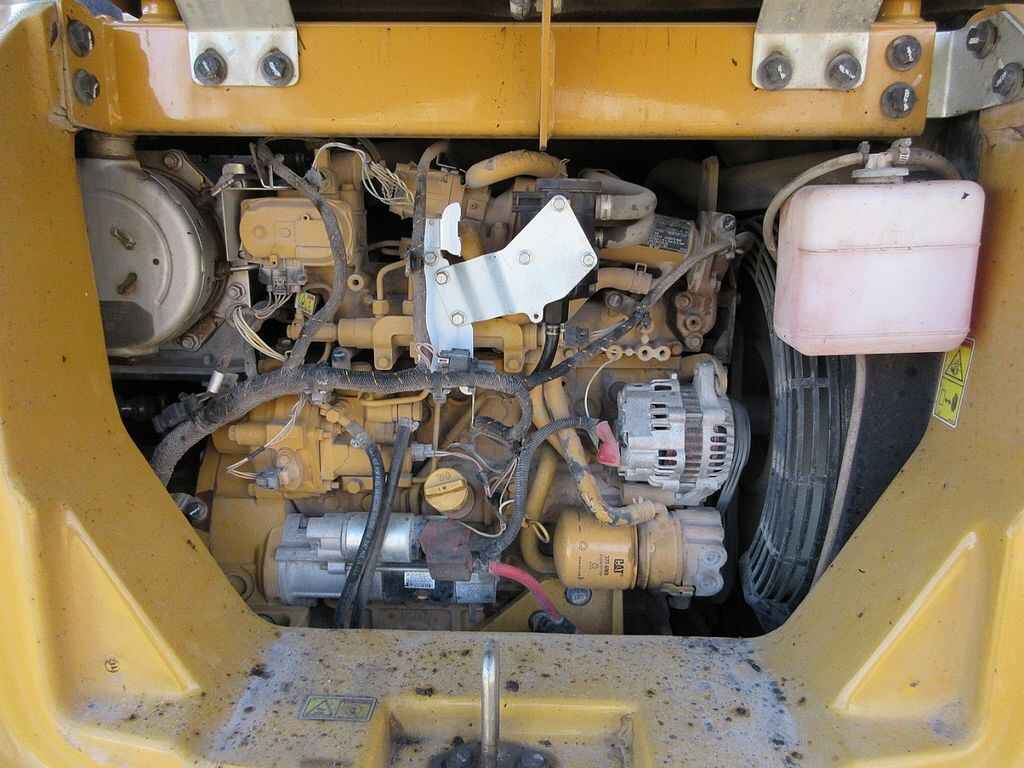

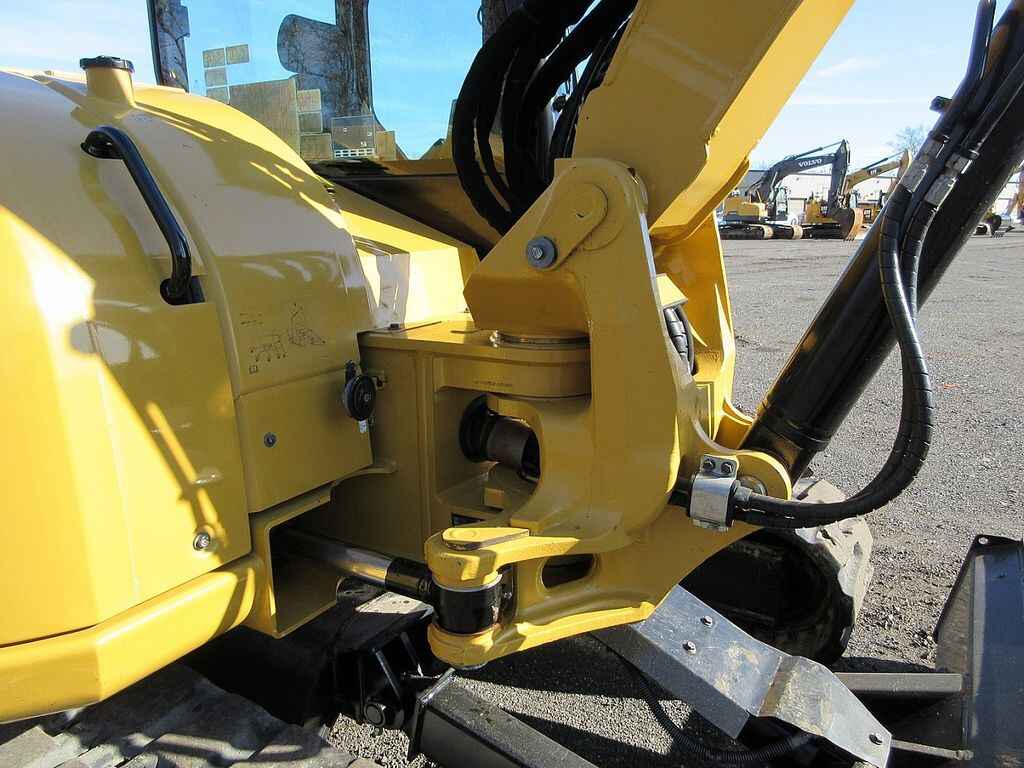

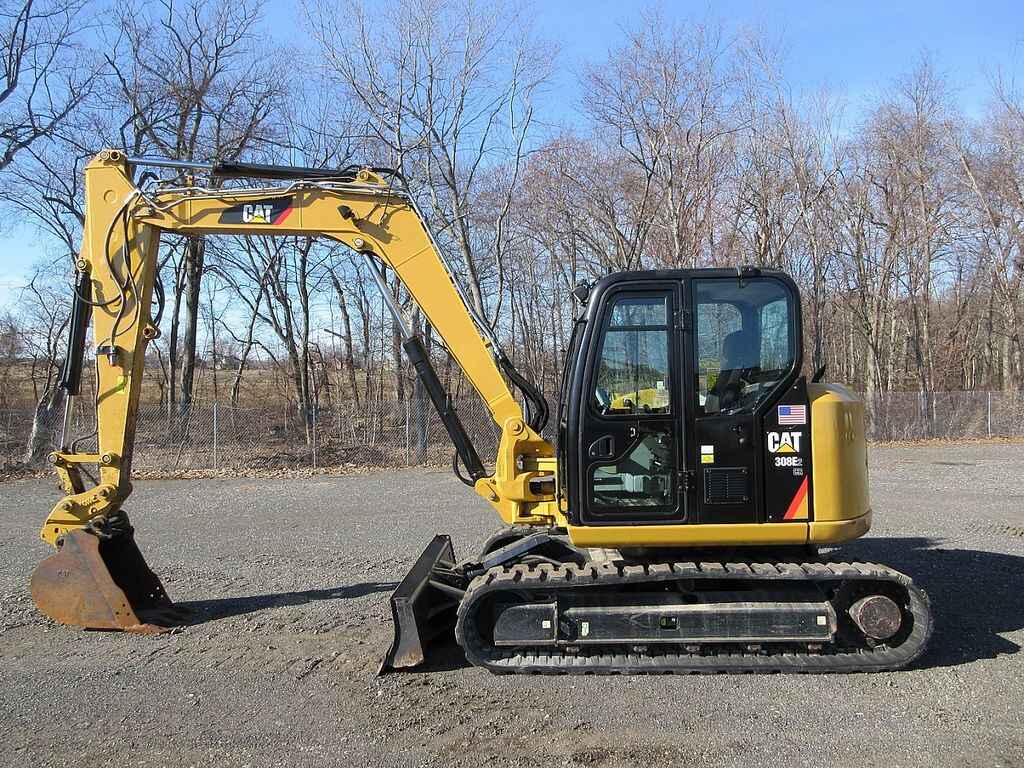

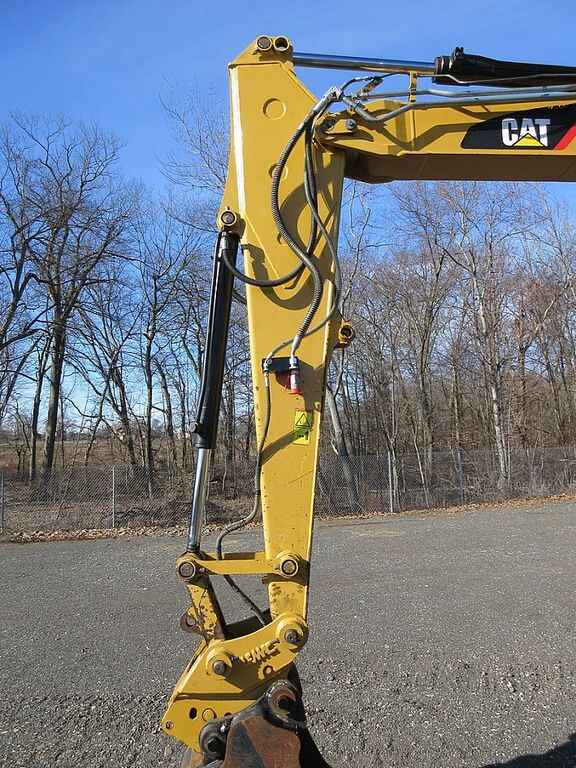

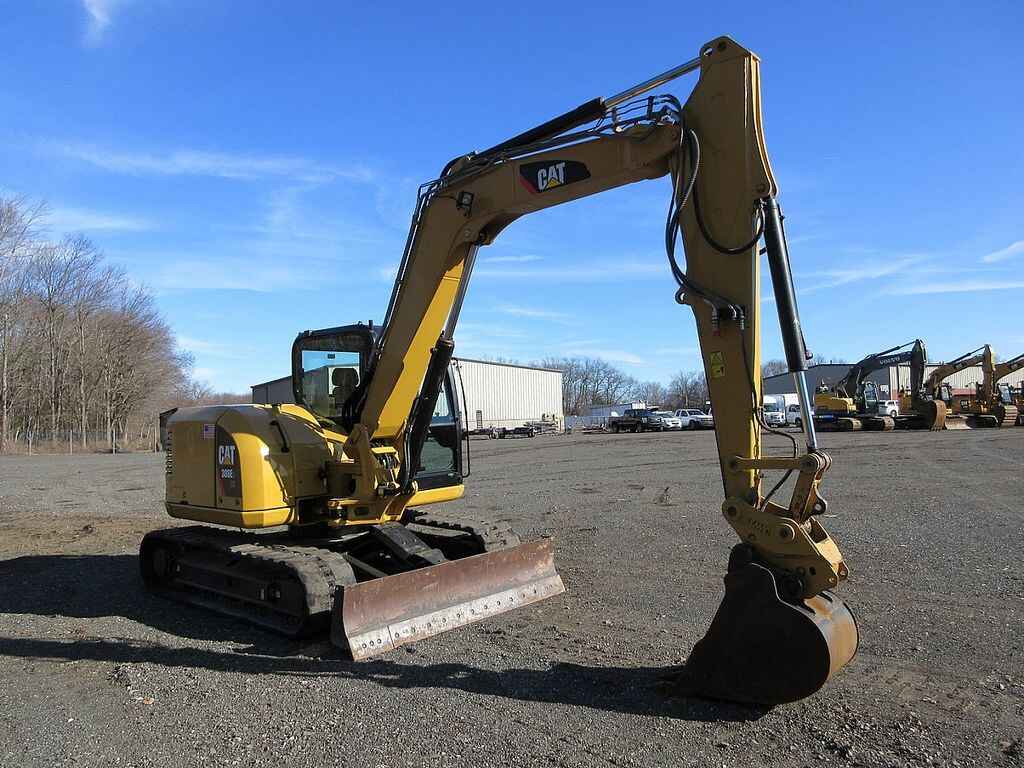

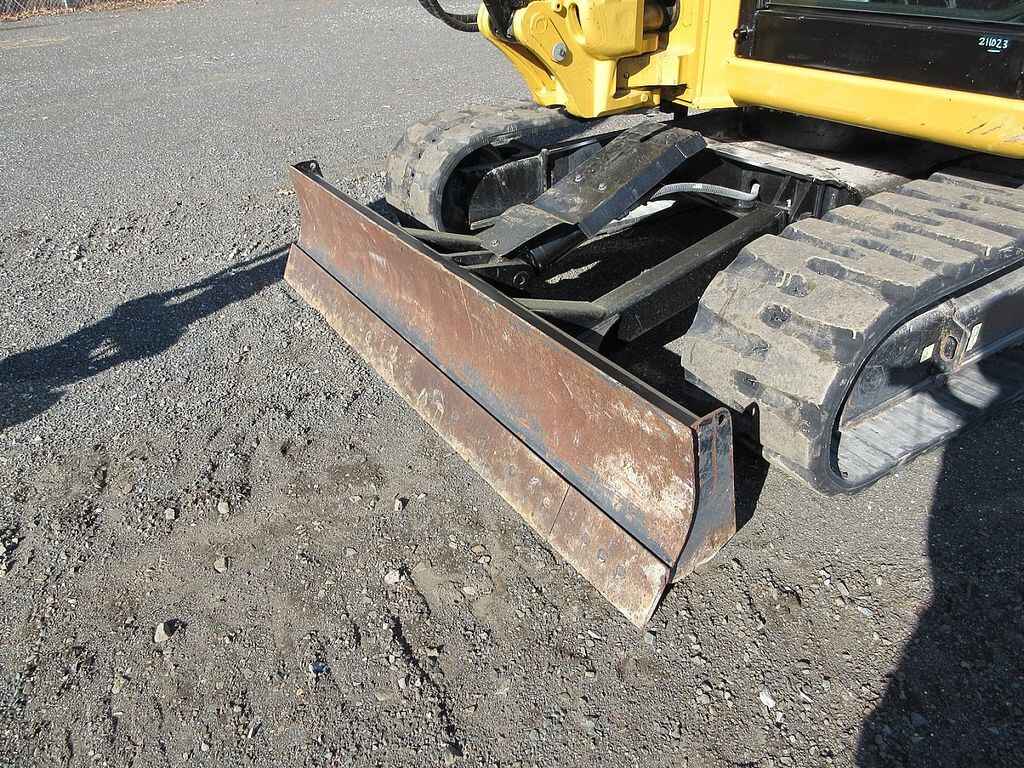

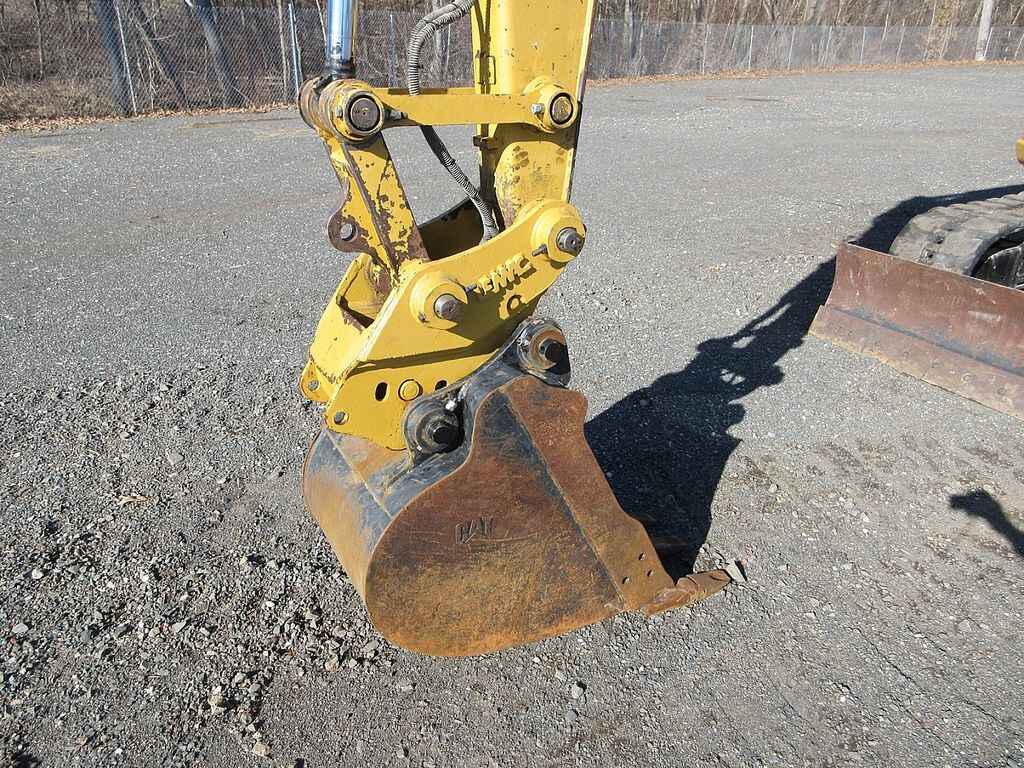

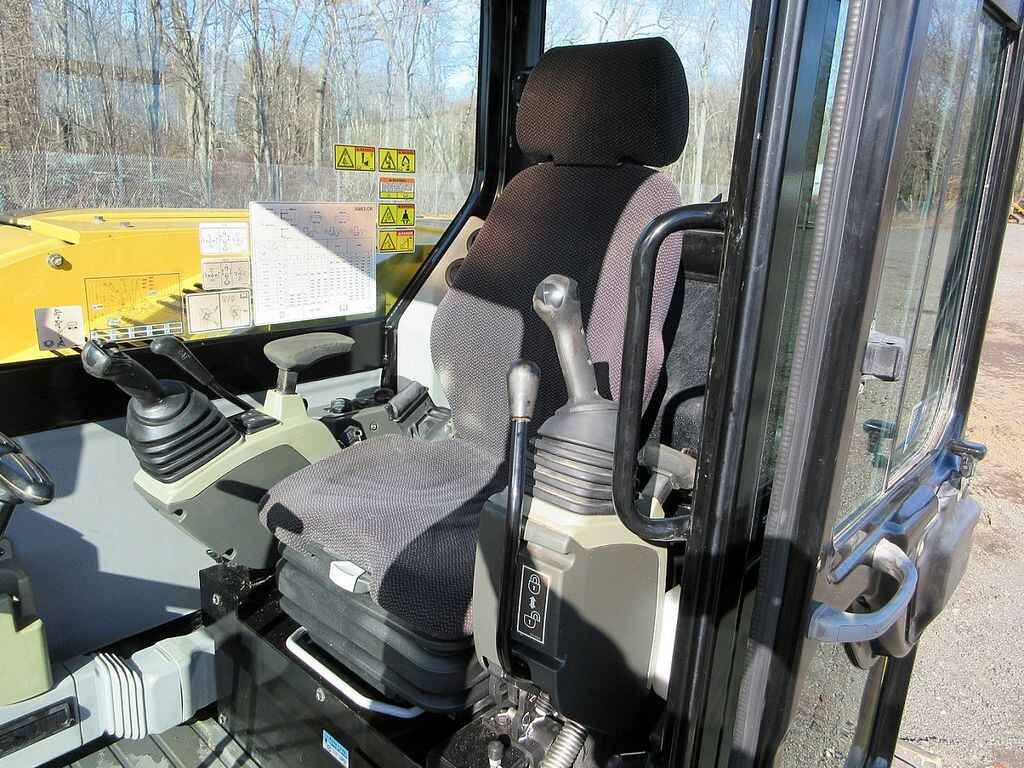

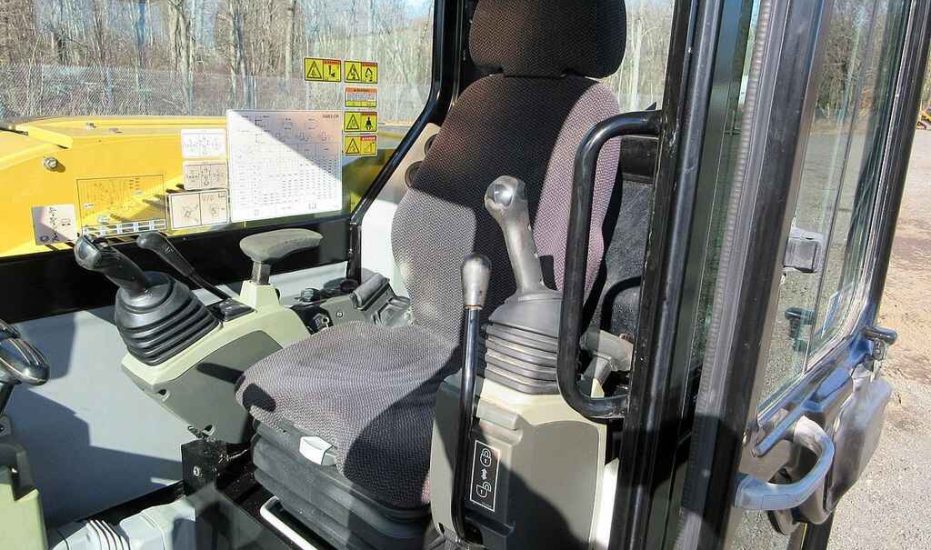

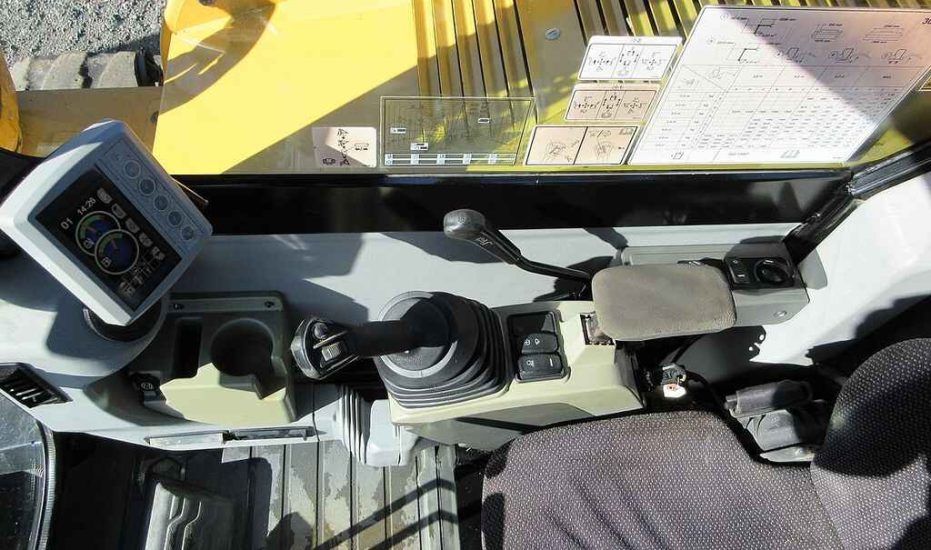

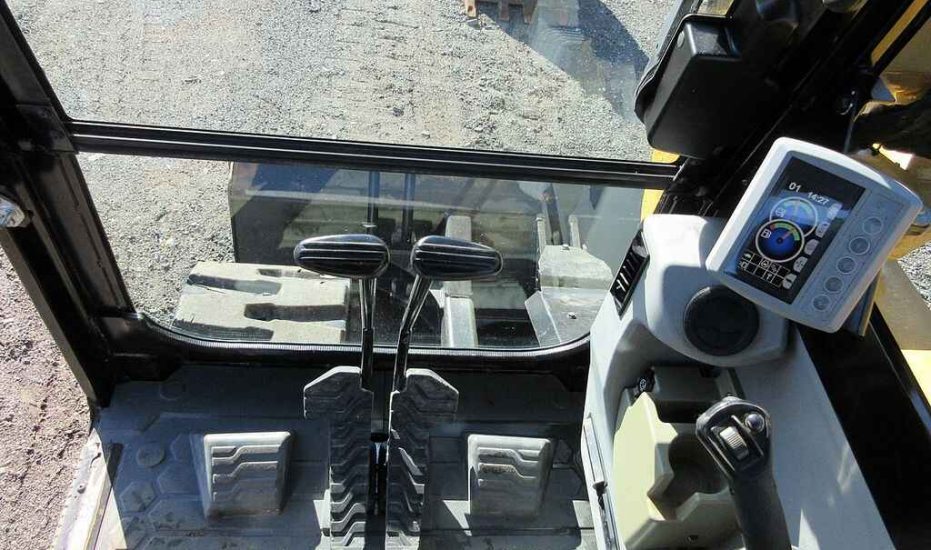

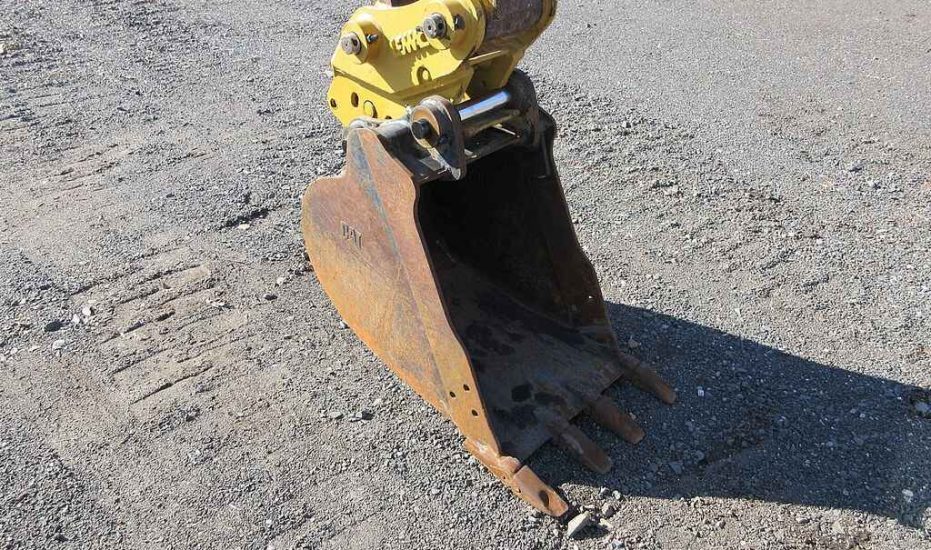

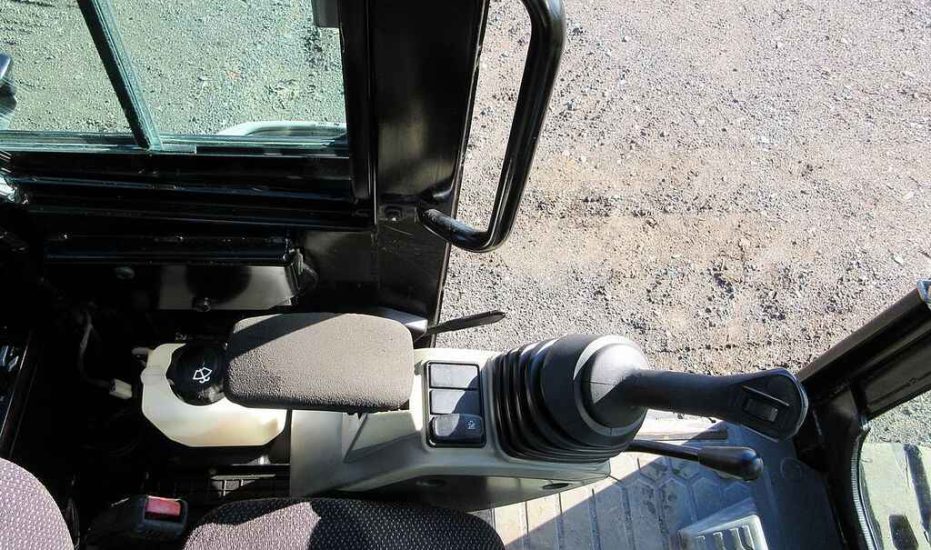

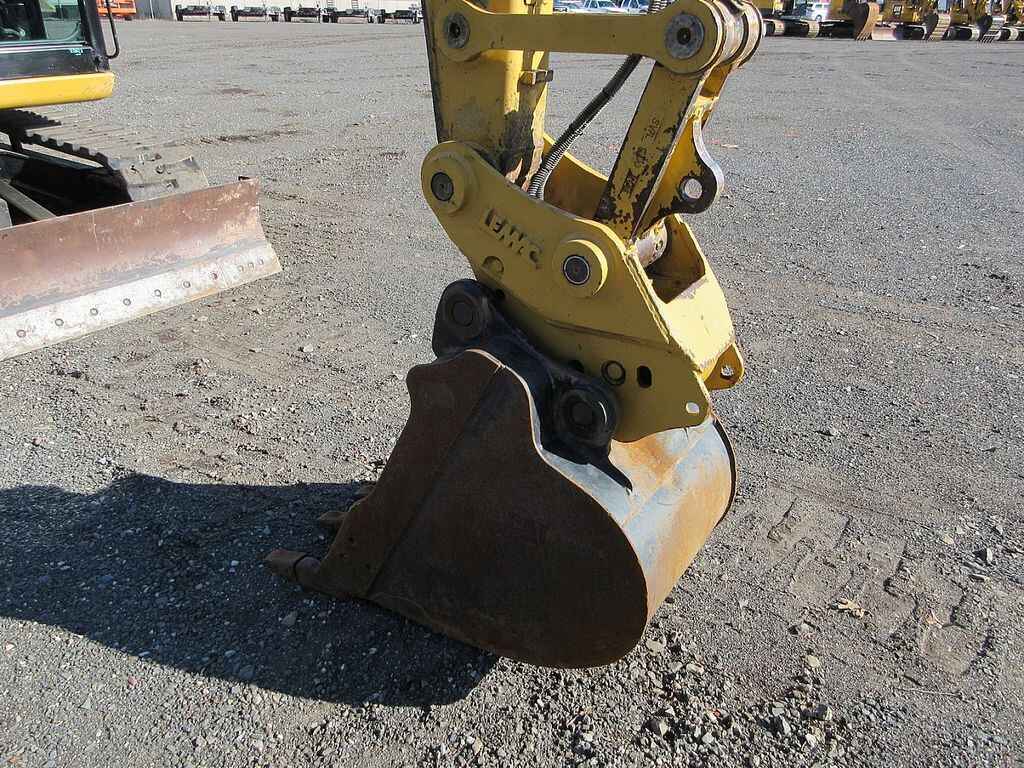

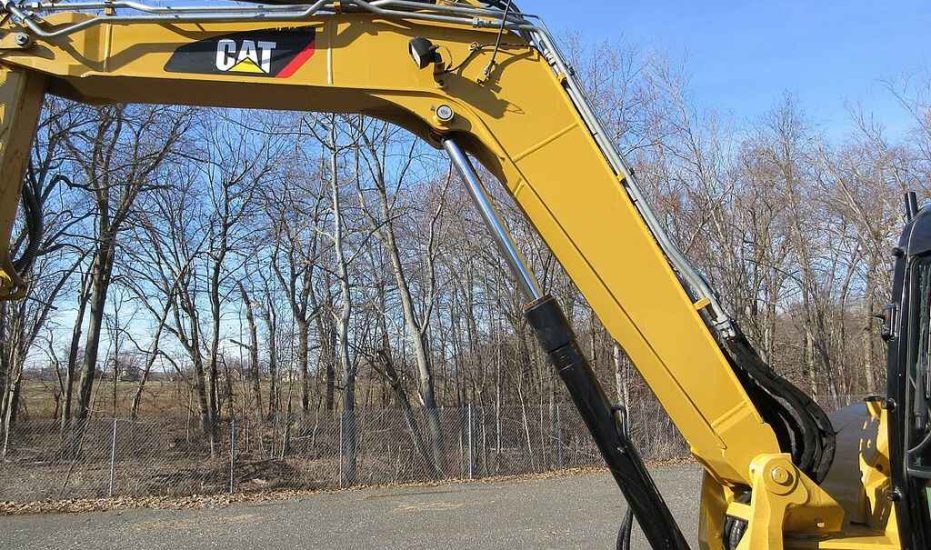

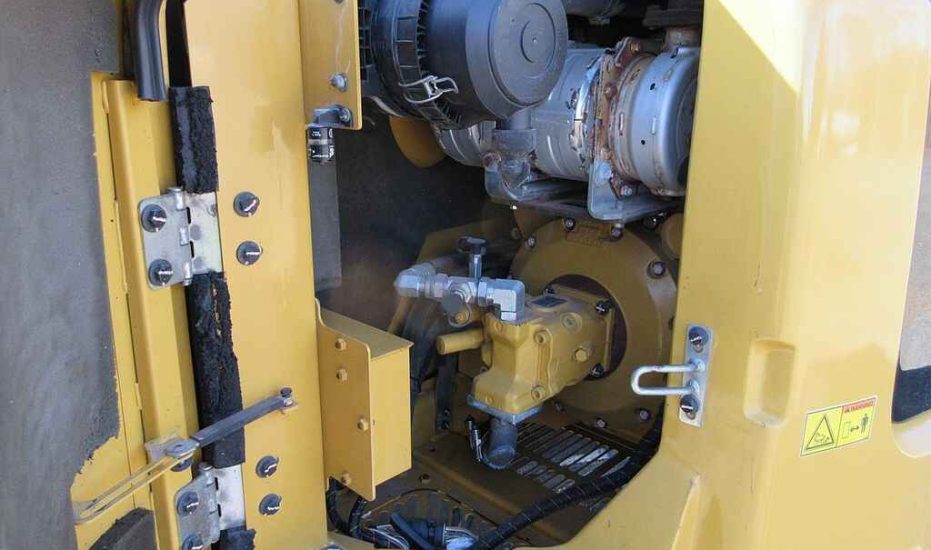

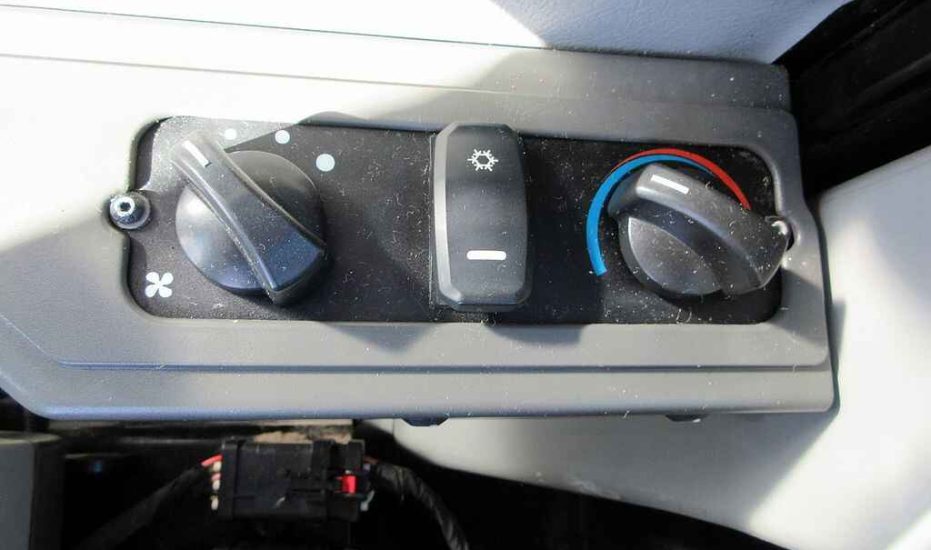

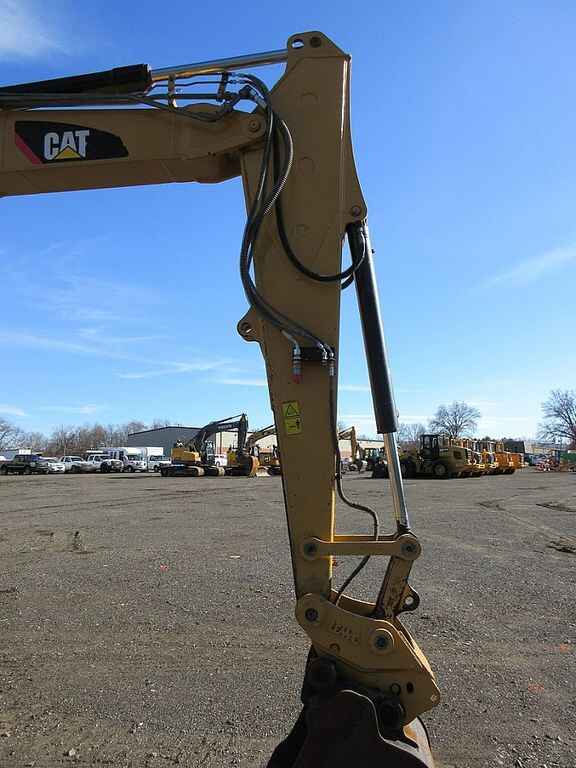

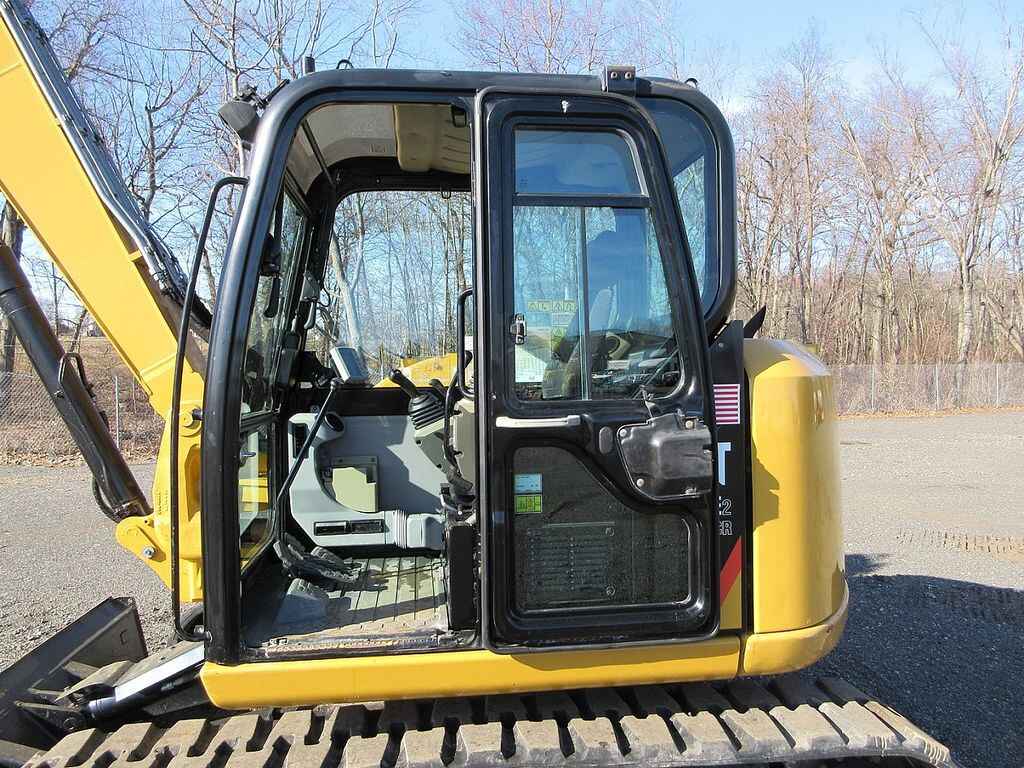

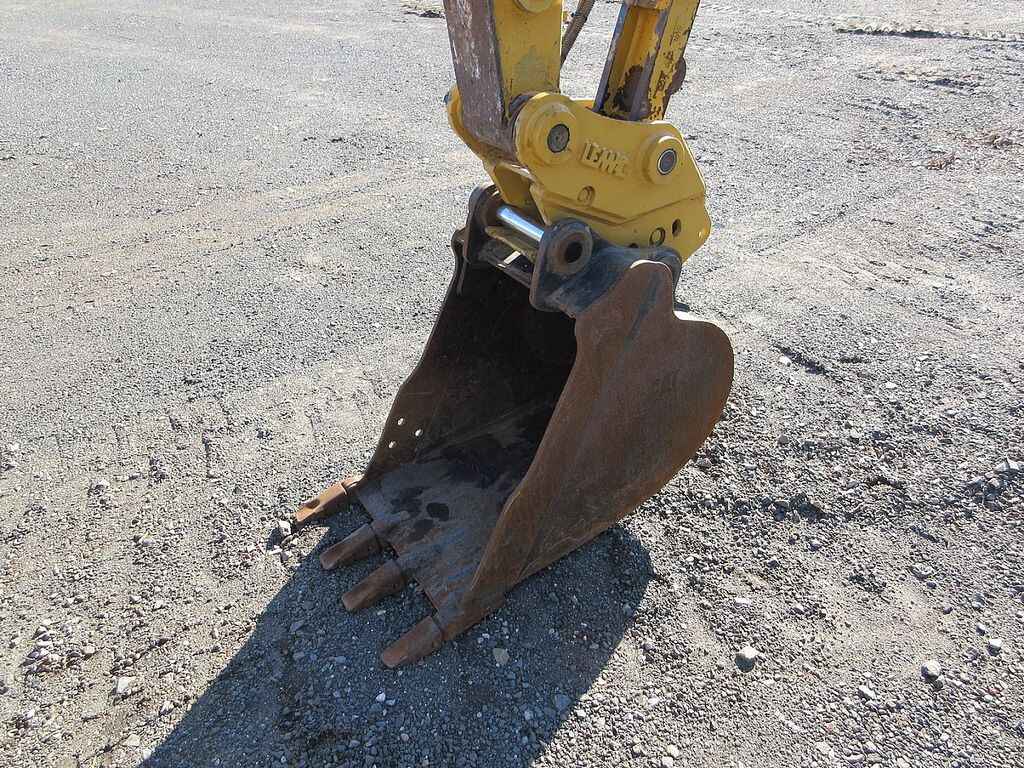

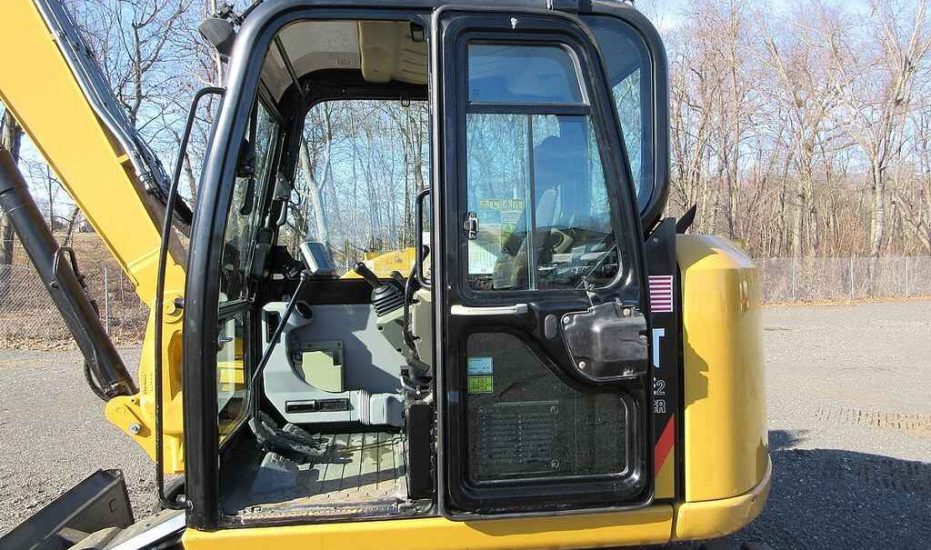

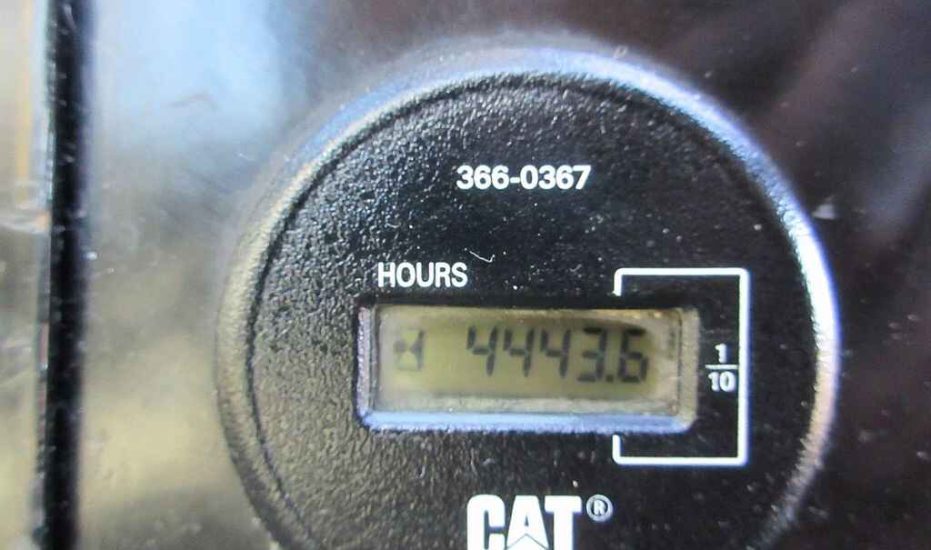

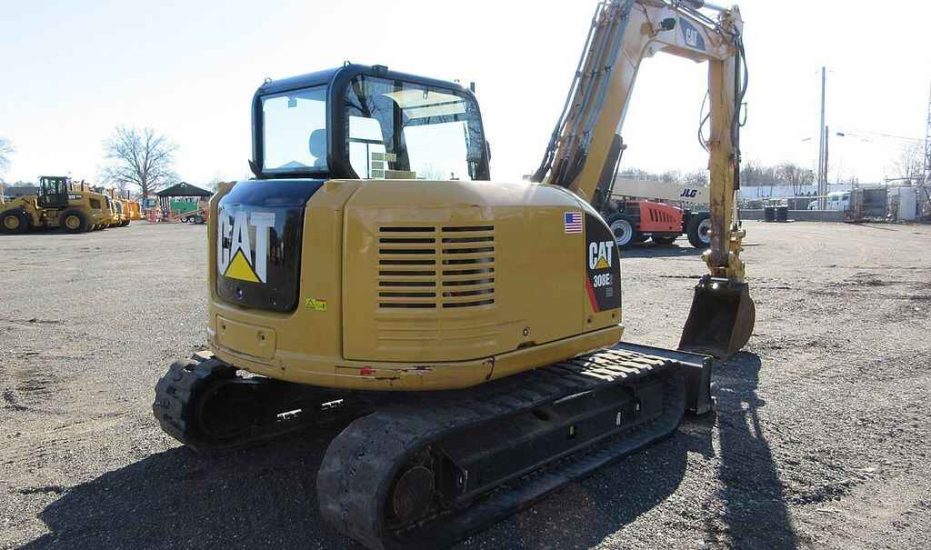

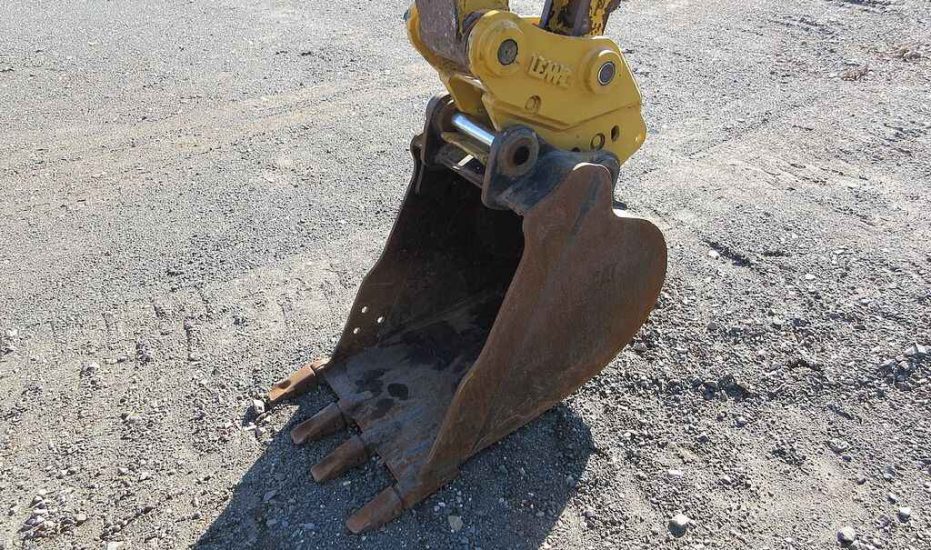

4 cyl Caterpillar turbo diesel, cab with heat, A/C, stereo, auto idle, 2 speed travel, backfill blade, swing boom, aux hyd, 7' 4" stick, hyd coupler, bucket with teeth, meter reads 4443 hours, S/N CAT0308EHFJX02905.
Specifications

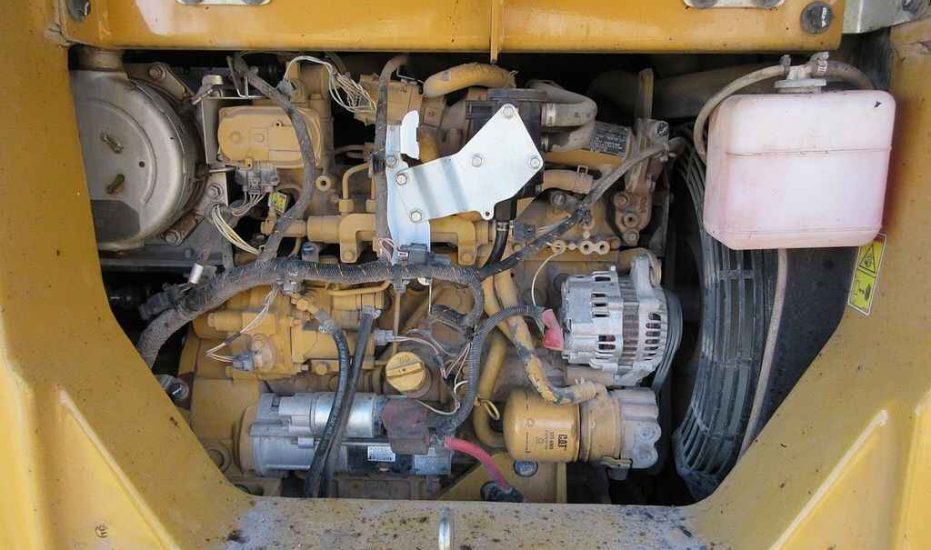

Engine
- Model: Cat C3.3B
- Net Power: 65 hp (48.5 kW)
- Gross Power: 66.6 hp (49.7 kW)
- Displacement: 203.2 in³ (3.33 L)
- Emissions: Meets U.S. EPA Tier 4 Final and EU Stage IIIB standards
Weights
- Operating Weight: 18,519 lbs (8,400 kg)
Performance
- Maximum Dig Depth: 13 ft 7 in (4,150 mm)
- Stick Length (Standard): 5 ft 6 in (1,670 mm)
- Stick Length (Long): 7 ft 3 in (2,210 mm)
- Machine Overhang: 11 in (279.4 mm)
- Machine Overhang with Counterweight: 16 in (406 mm)
- Counterweight: 551 lbs (251 kg)

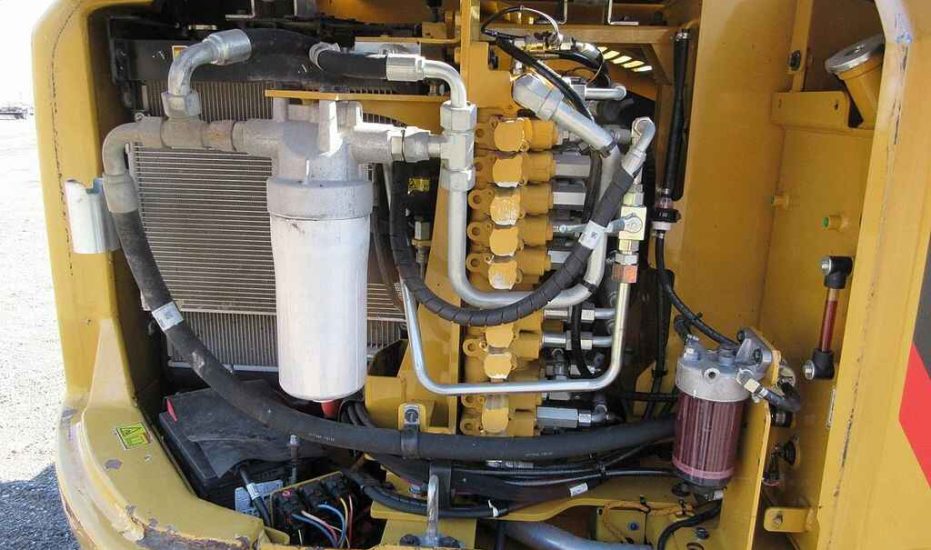

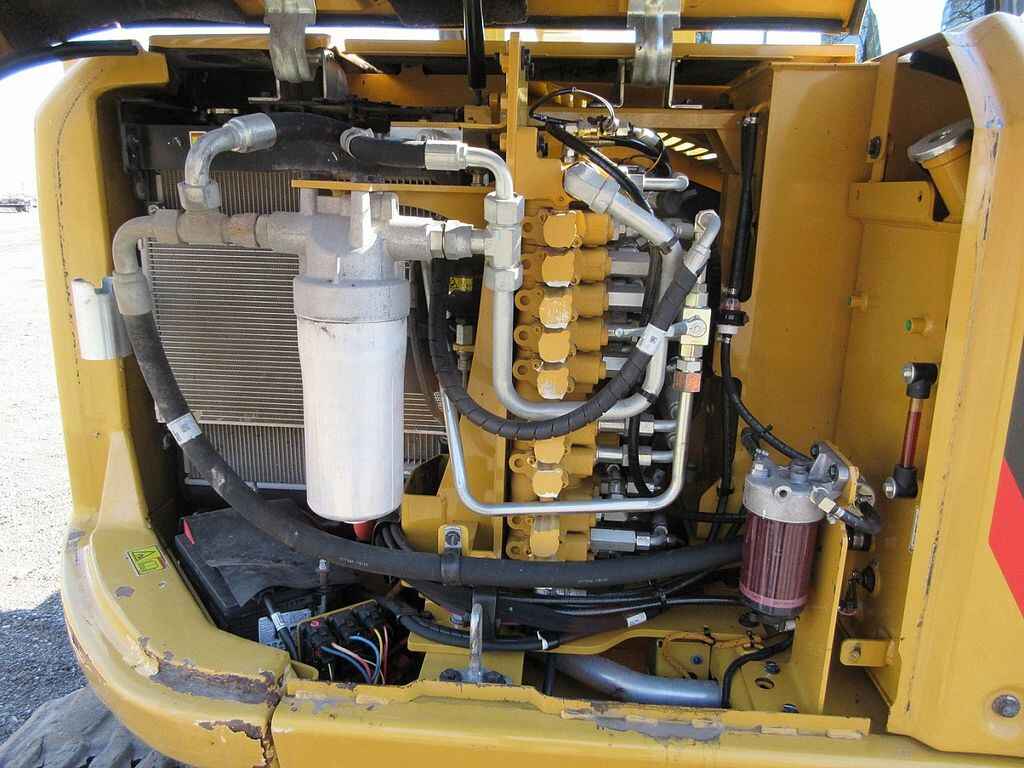

Hydraulics
- Operating Pressure (Equipment): 4,061 psi (28,000 kPa)
- Operating Pressure (Swing): 3,481 psi (24,000 kPa)
- Operating Pressure (Travel): 4,061 psi (28,000 kPa)
- Pump Flow at 2,000 rpm: 39.6 gal/min (150 L/min)
- Auxiliary Circuit - Primary: 33.8 gal/min (128 L/min) at 2,734 psi (186 bar)
- Auxiliary Circuit - Secondary: 16.9 gal/min (64 L/min) at 2,524 psi (174 bar)
- Digging Force - Stick (Standard): 9,015 lbs (40.1 kN)
- Digging Force - Stick (Long): 7,891 lbs (35.1 kN)
- Digging Force - Bucket: 13,534 lbs (60.2 kN)
Dimensions
- Track Gauge: 6 ft 6.4 in (2,000 mm)
- Ground Pressure: 5.26 psi (36.3 kPa)
- Maximum Travel Speed: 3.17 mph (5.1 km/h)
- Blade Width: 7 ft 7.3 in (2,320 mm)
- Blade Height: 17.7 in (450 mm)
- Blade Dig Depth: 14.2 in (360 mm)
- Blade Lift Height: 15.0 in (380 mm)
Service Refill Capacities
- Fuel Tank: 33 gal (125 L)
- Cooling System: 3.7 gal (14 L)
- Engine Oil: 3.0 gal (11.2 L)
- Hydraulic Tank: 21.7 gal (82 L)
- Hydraulic System: 24.8 gal (94 L)
Features
Interior

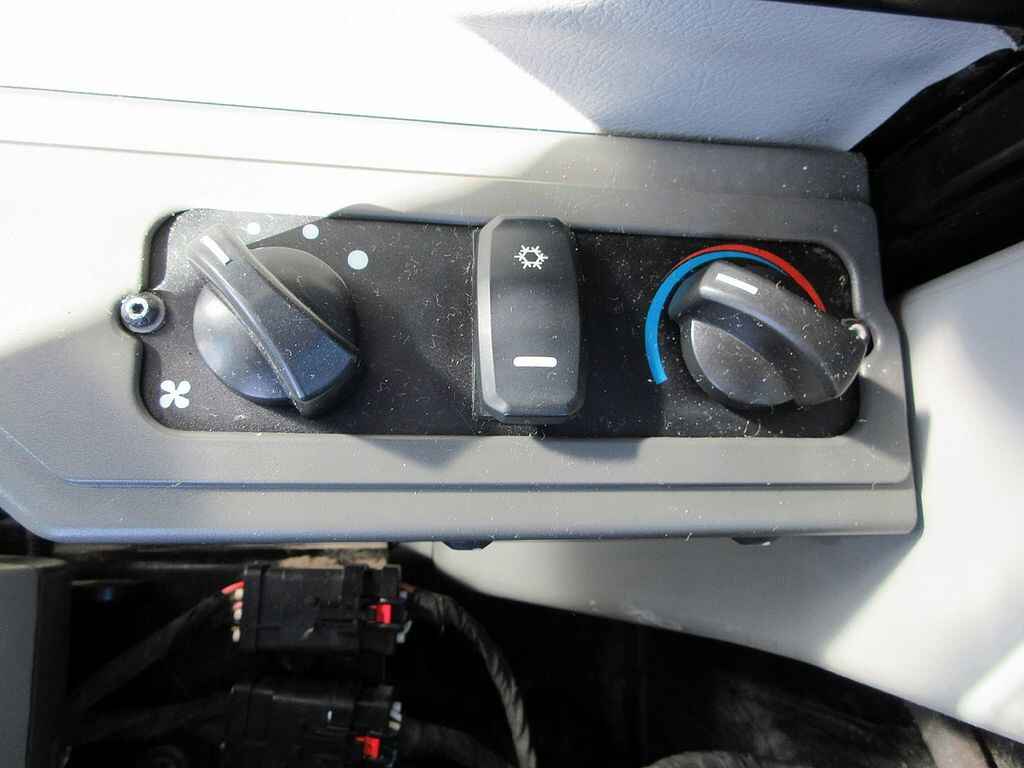

- Air Conditioner
- Heater
Comfort & Convenience

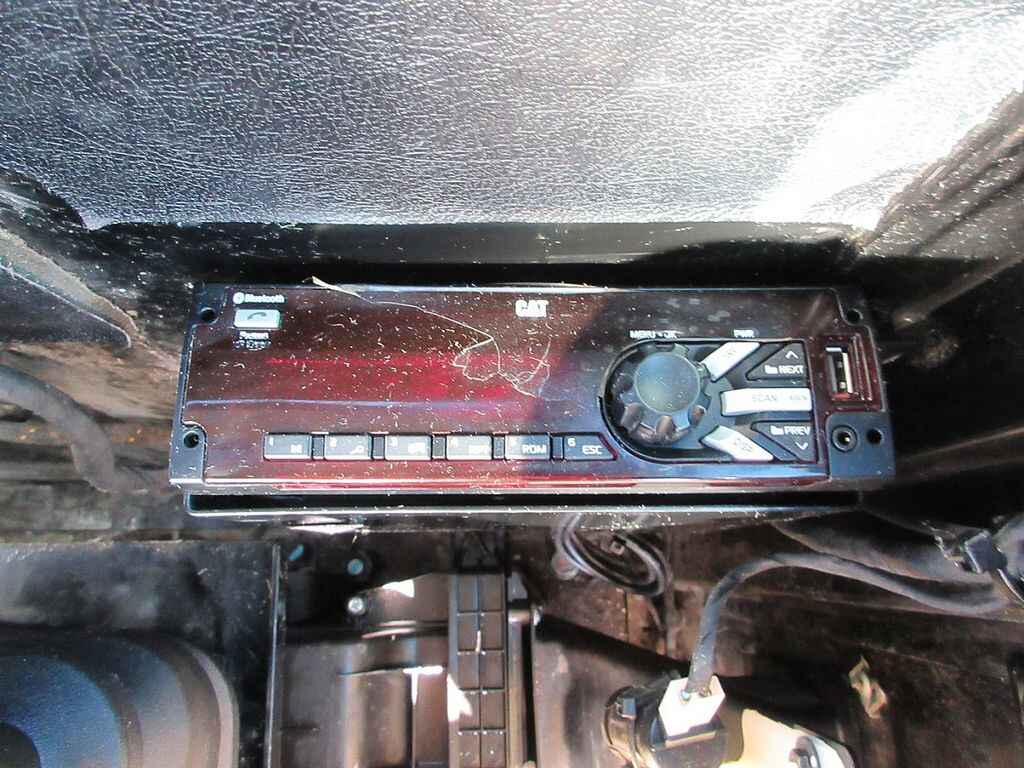

- Radio
Transportation Cost: $0.80 per Mile
