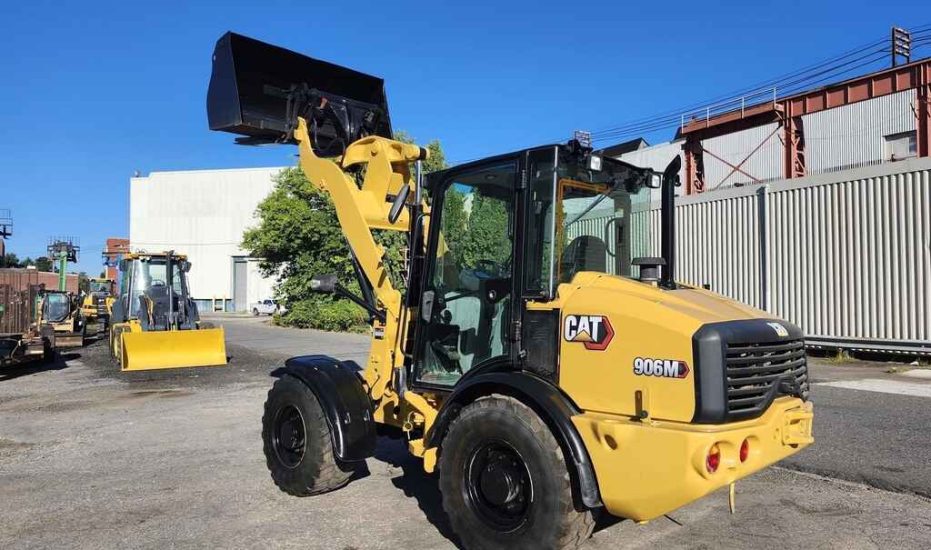

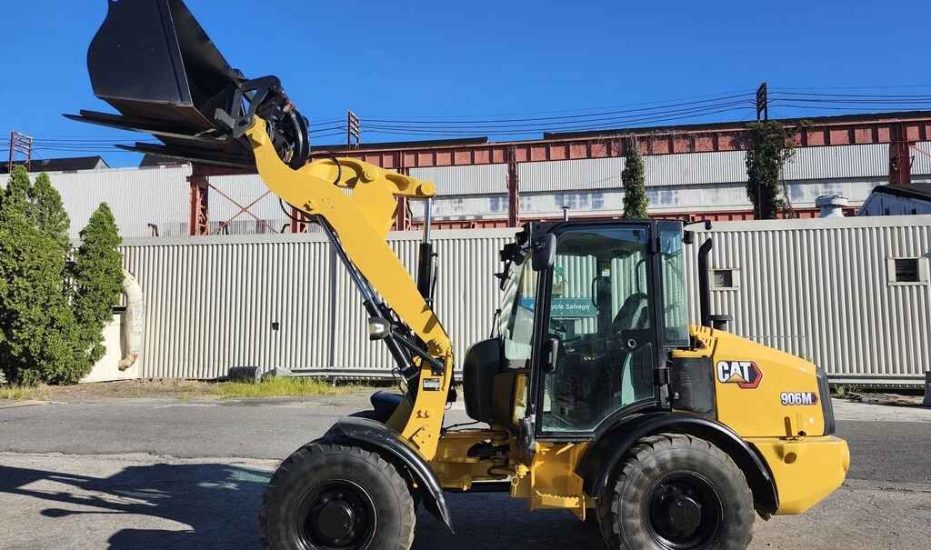

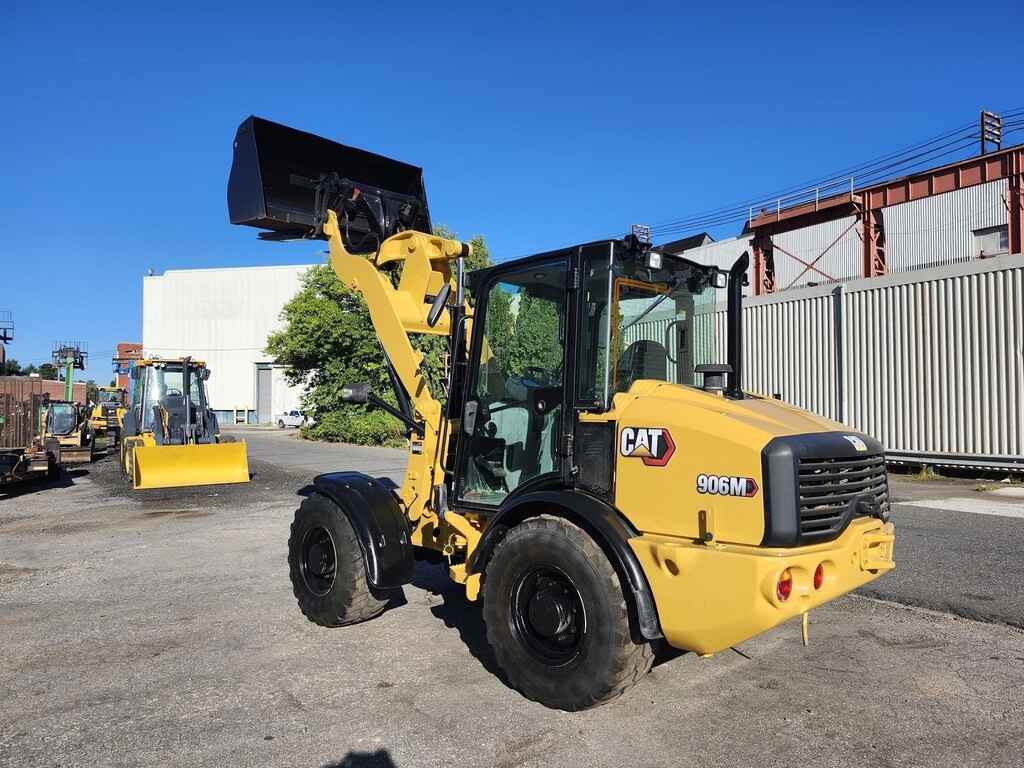

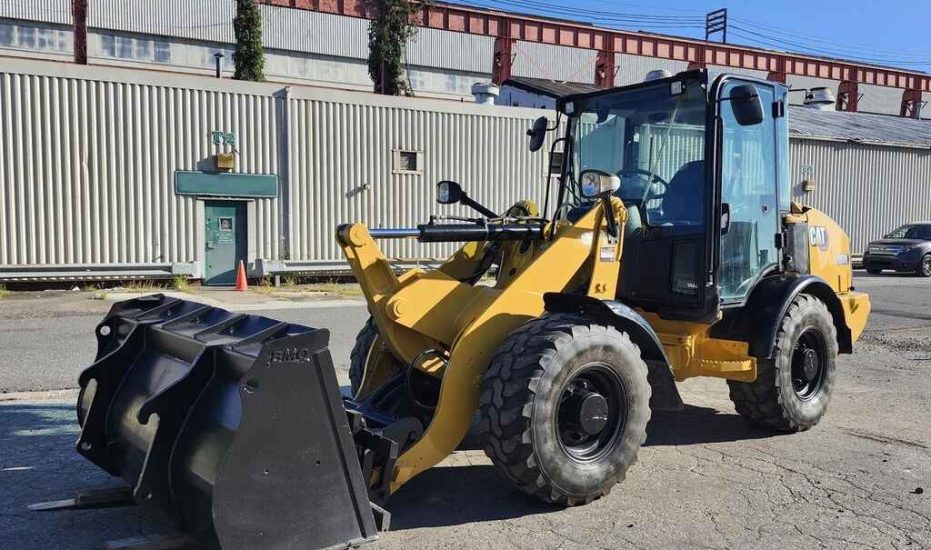

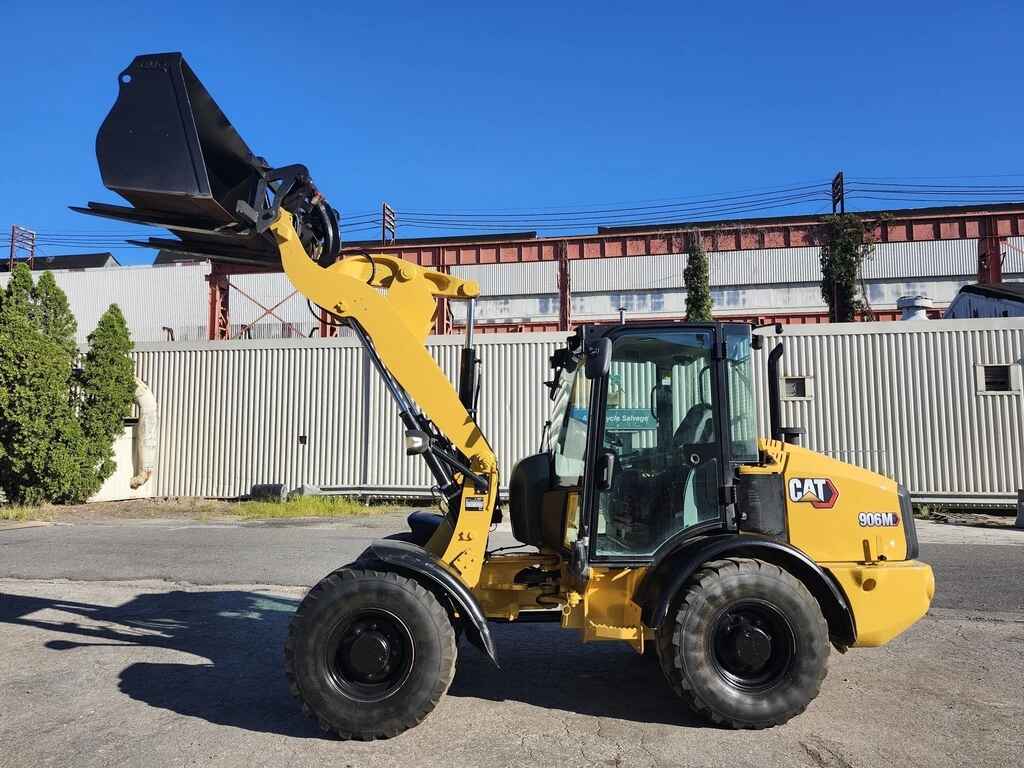

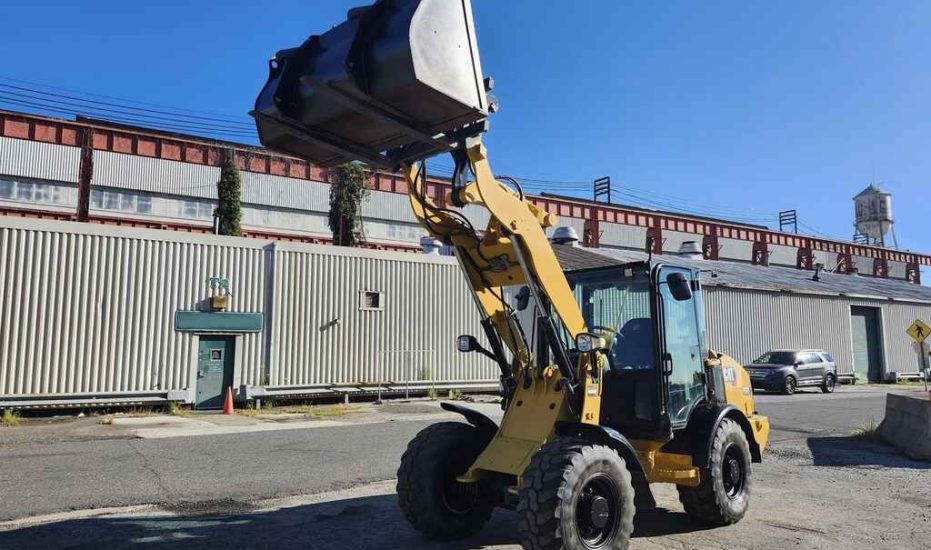

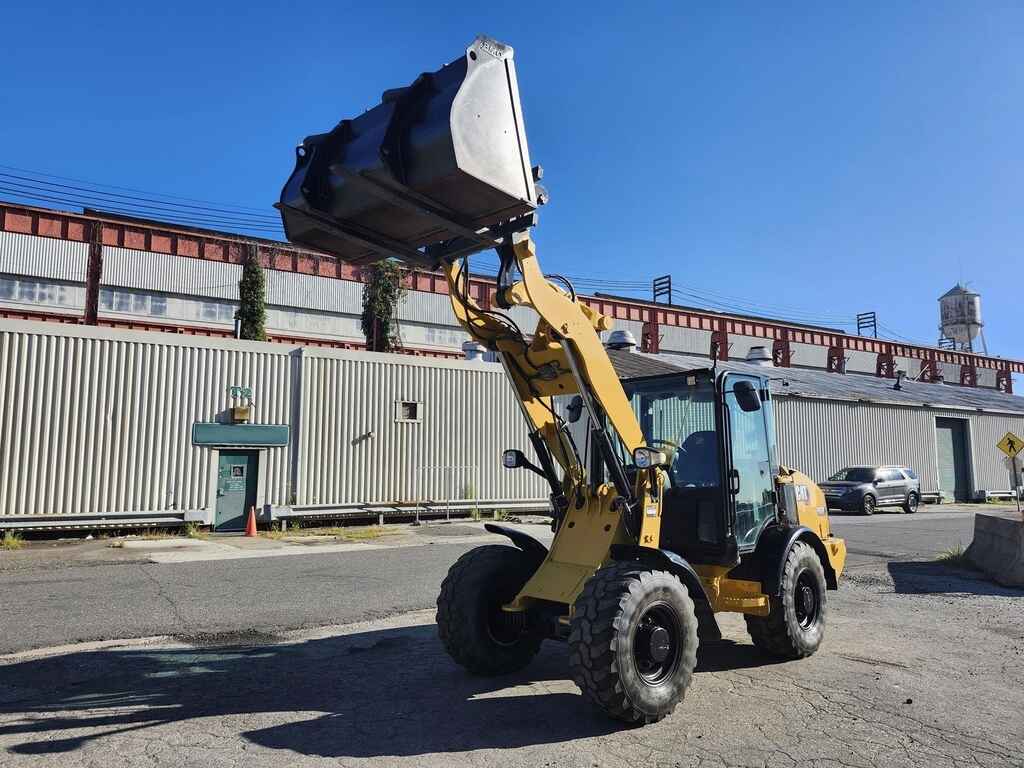

Make: Caterpillar
Model: 906M

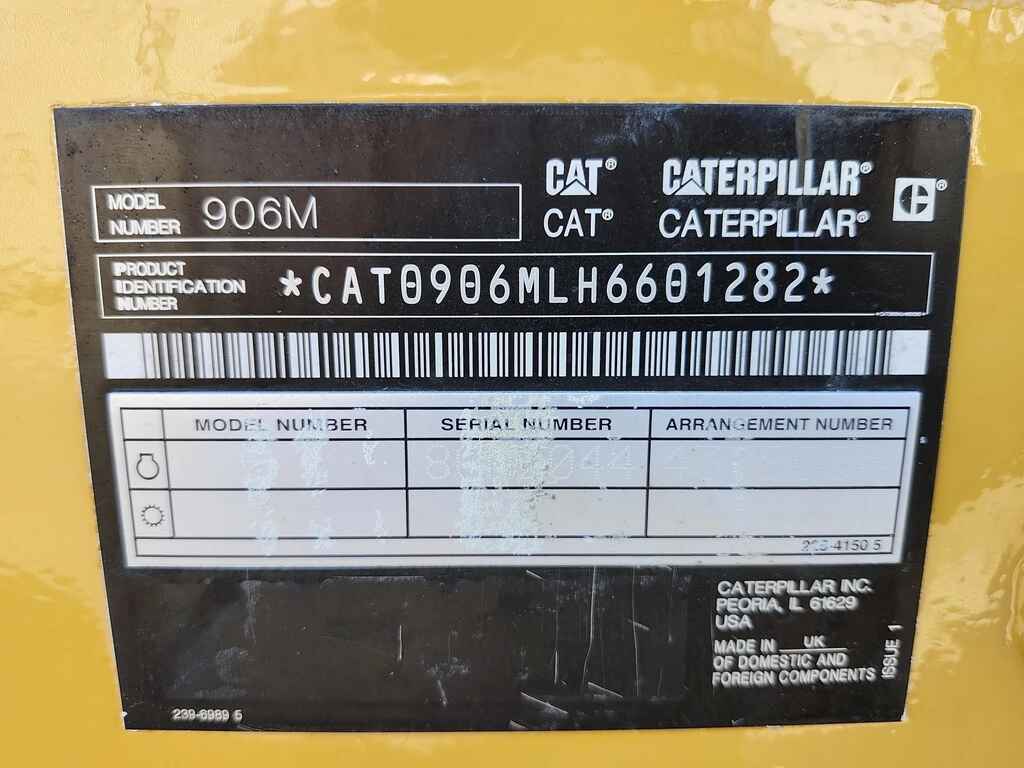

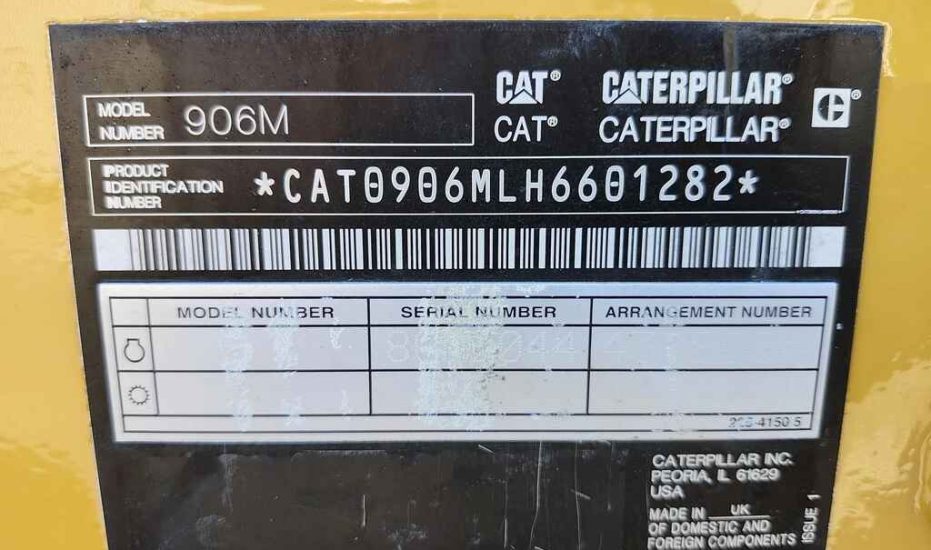

SN: CAT0906MLH6601282

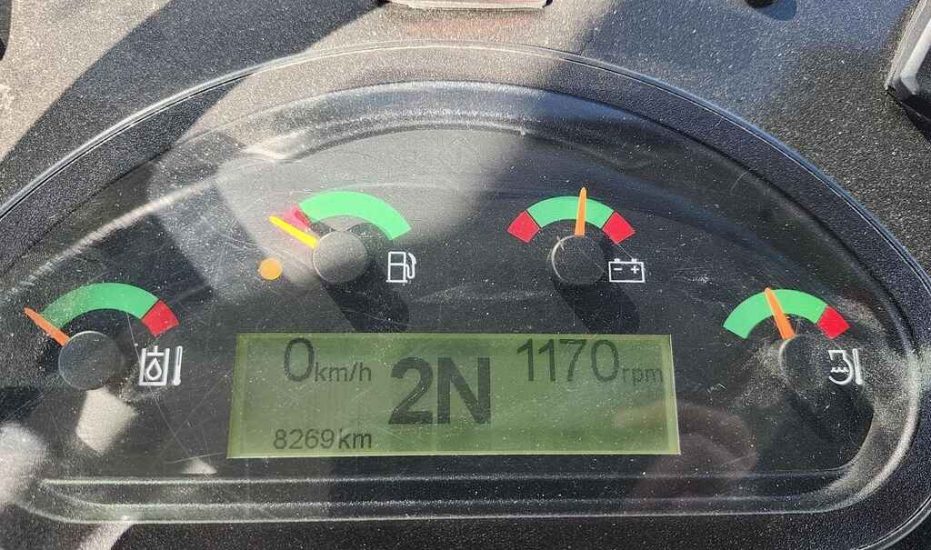

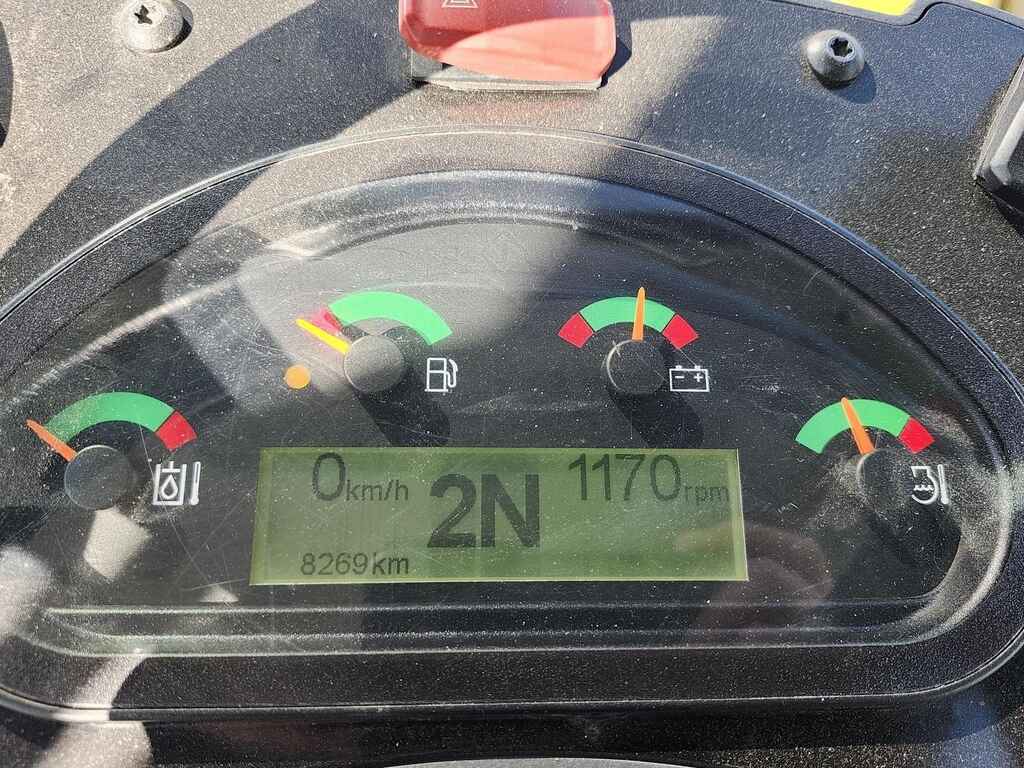

Hour Meter Reading: 3515
Year: 2016
Cab: Enclosed
Fuel: Diesel

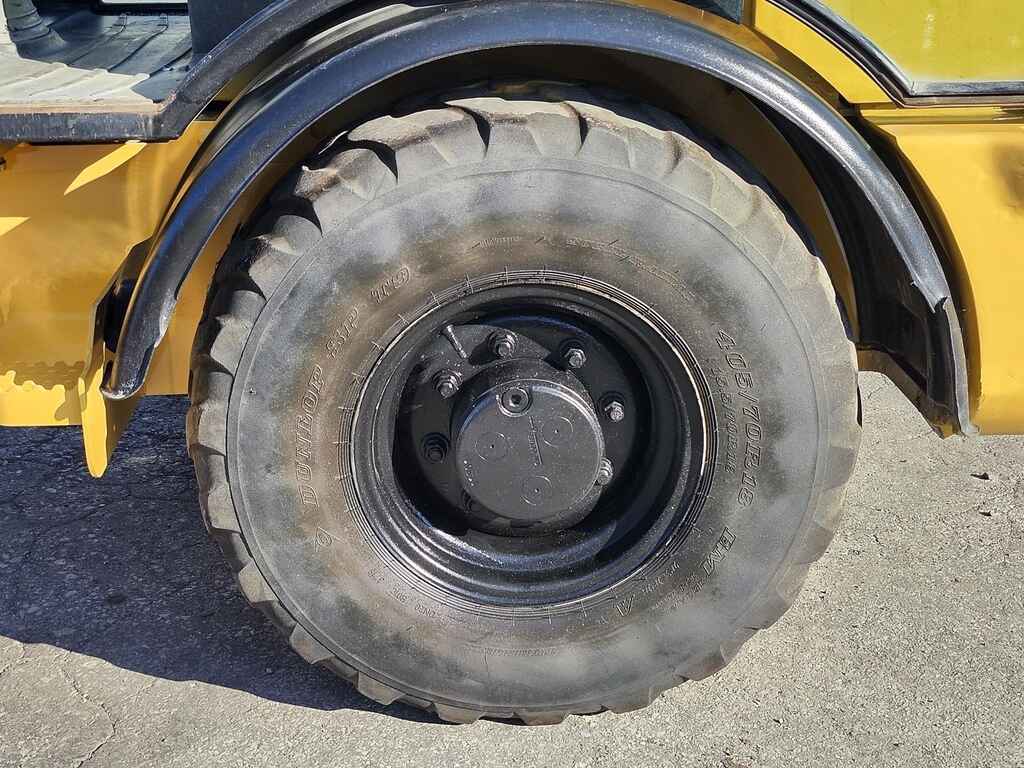

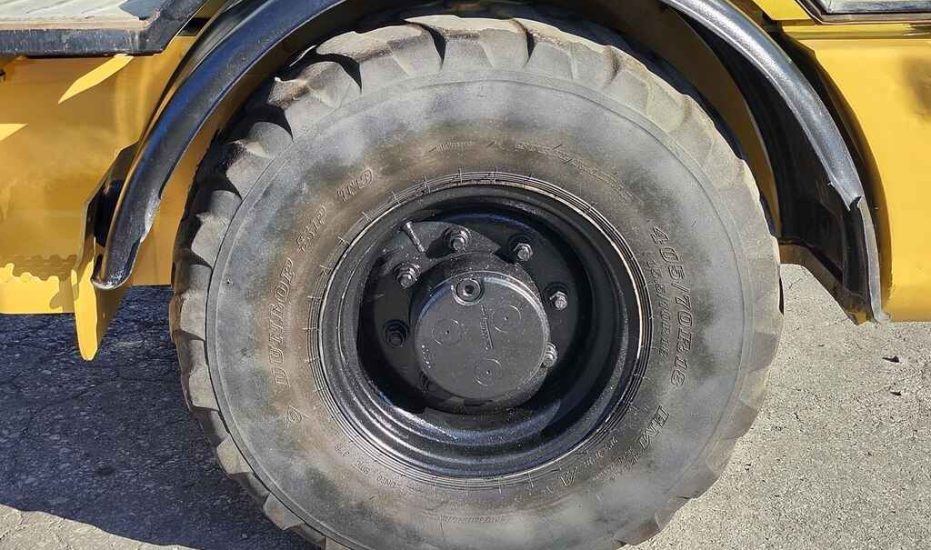

Tires: Pneumatic

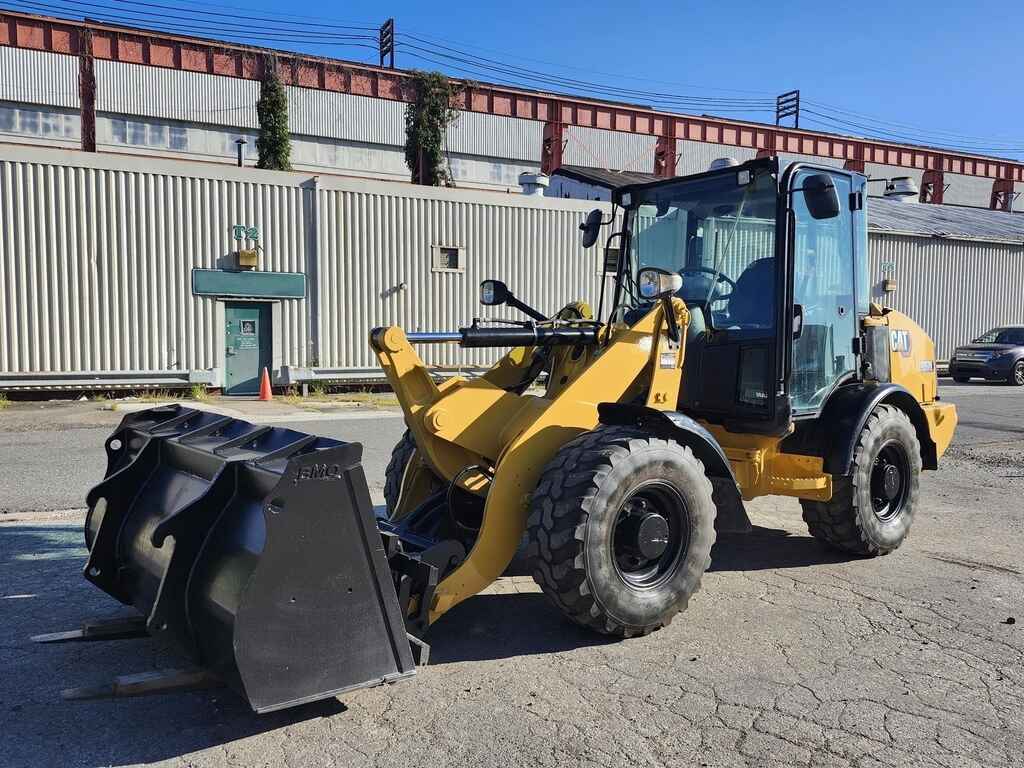

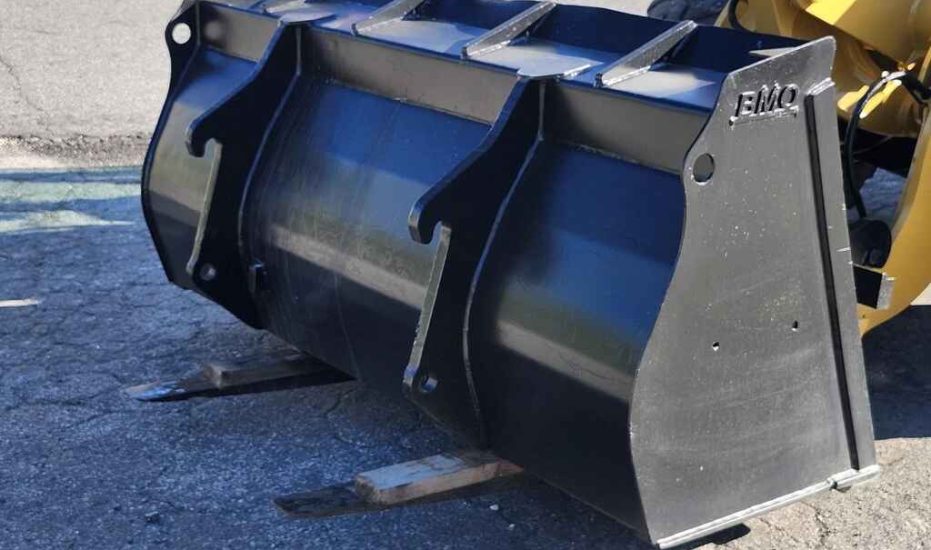

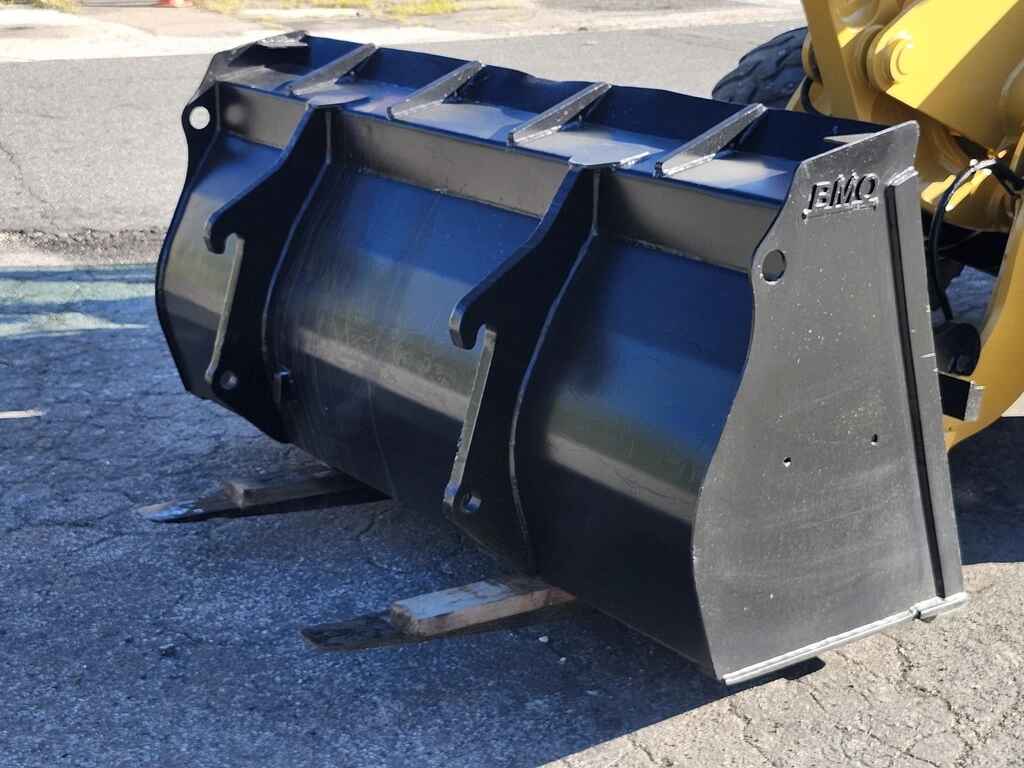

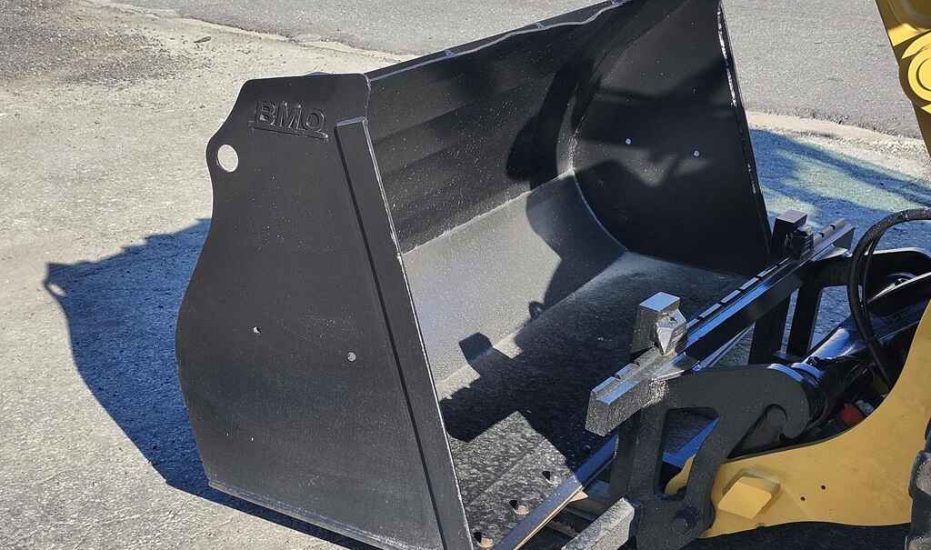

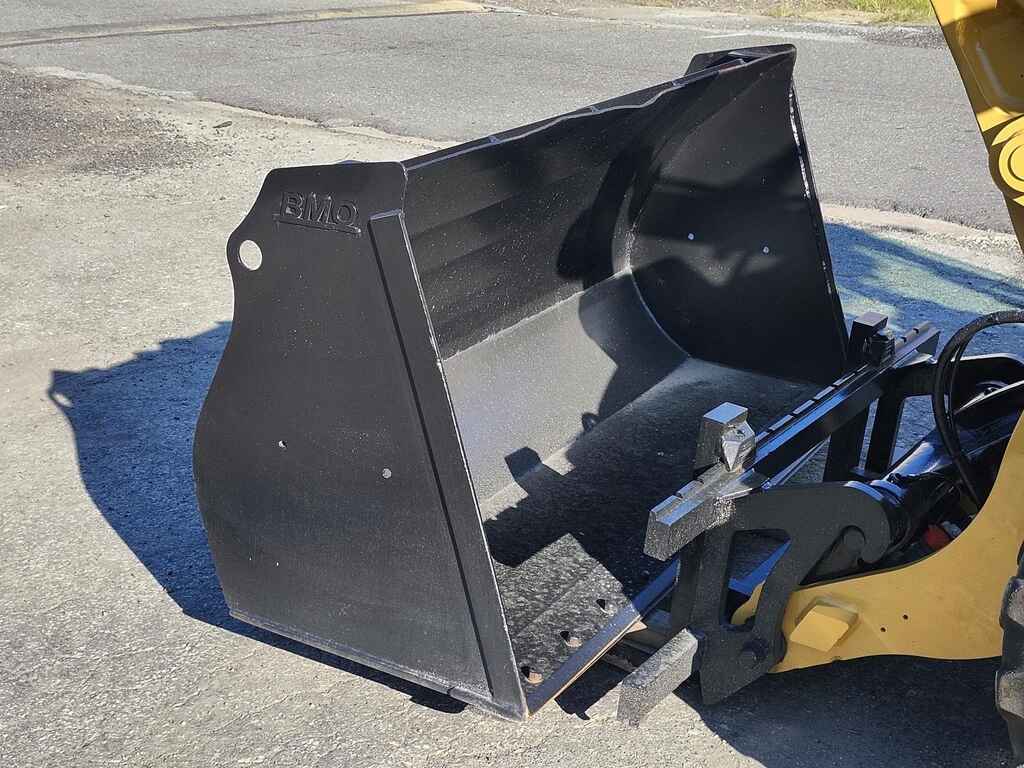

Additional Features: Bucket and fork attachments

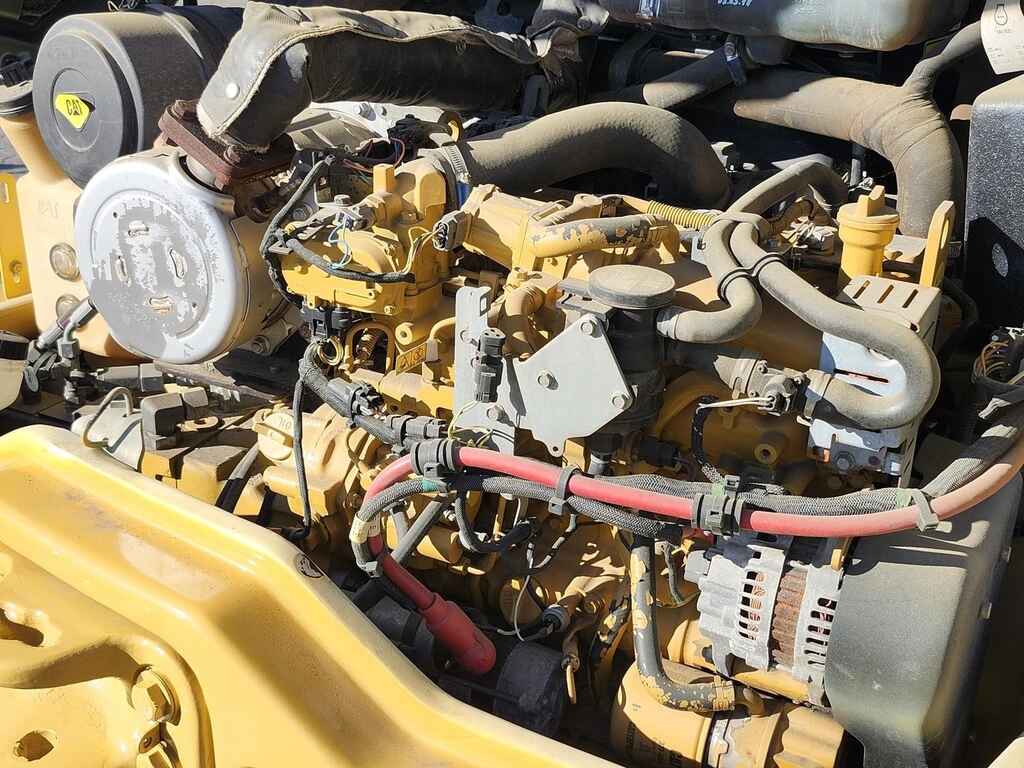

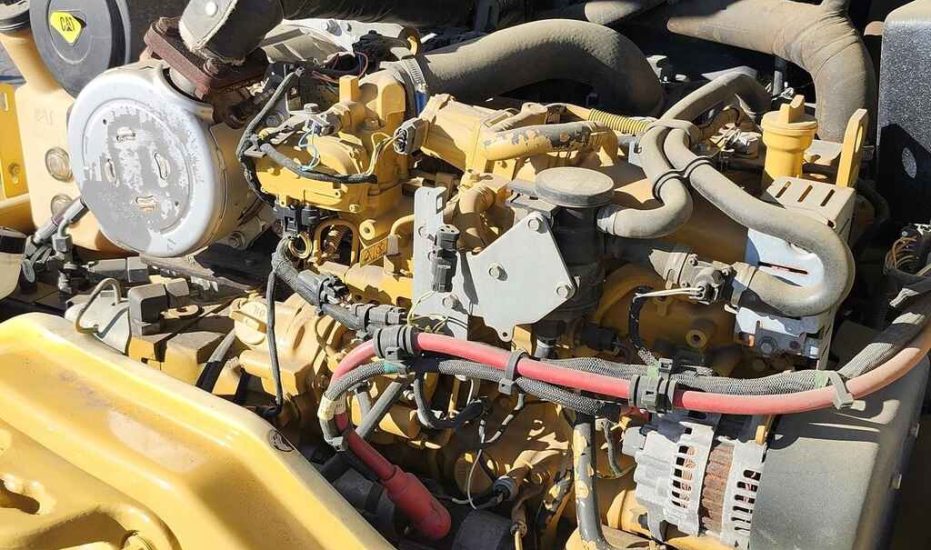

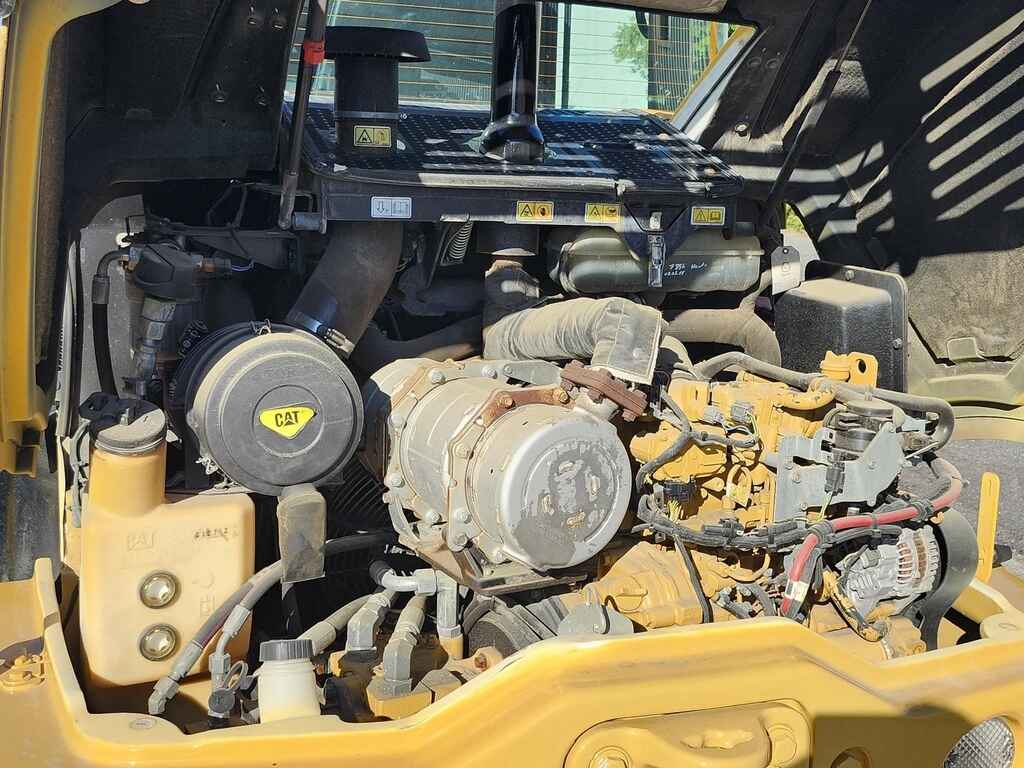

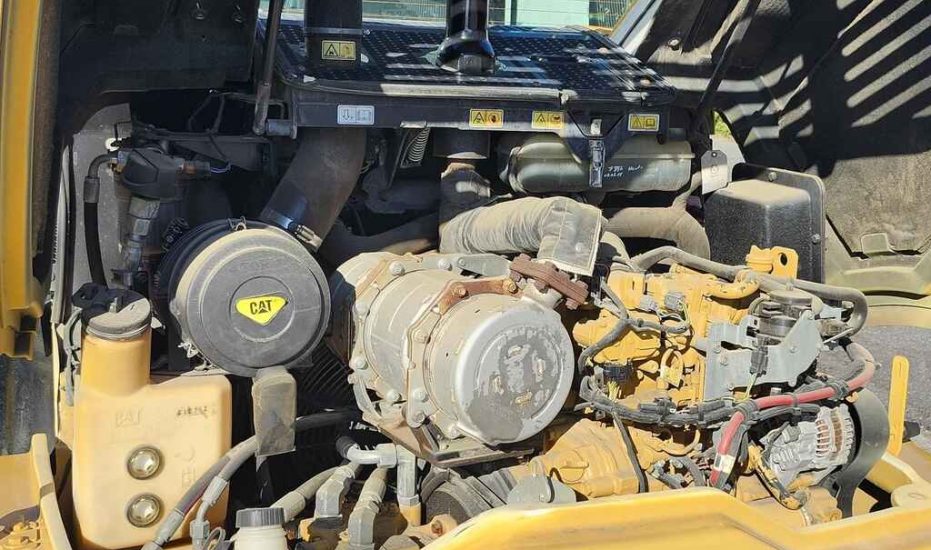

Engine

• Engine Model: Cat® C3.3B DIT (Direct Injection Turbocharged)
• Net Power: 74 HP (55 kW) at 2,400 rpm
• Gross Power: 75 HP (56 kW)
• Displacement: 203 in³ (3.3 L)
• Emissions: Tier 4 Final/Stage IV compliant
• Maximum Torque: 192 lb-ft (260 Nm) at 1,600 rpm

Operating Specifications

• Operating Weight: 12,346 lbs (5,600 kg)
• Rated Bucket Capacity: 1.3 – 1.6 yd³ (1.0 – 1.2 m³)
• Breakout Force: 9,414 lbf (41.9 kN)
• Tipping Load (Full Turn): 7,264 lbs (3,295 kg)
• Dump Clearance at Max Lift: 8.5 ft (2.59 m)

Transmission

• Transmission Type: Hydrostatic, 4-wheel drive
• Travel Speed – Forward: Up to 20 mph (33 km/h)
• Travel Speed – Reverse: Up to 20 mph (33 km/h)
• Differential: Limited slip front and rear

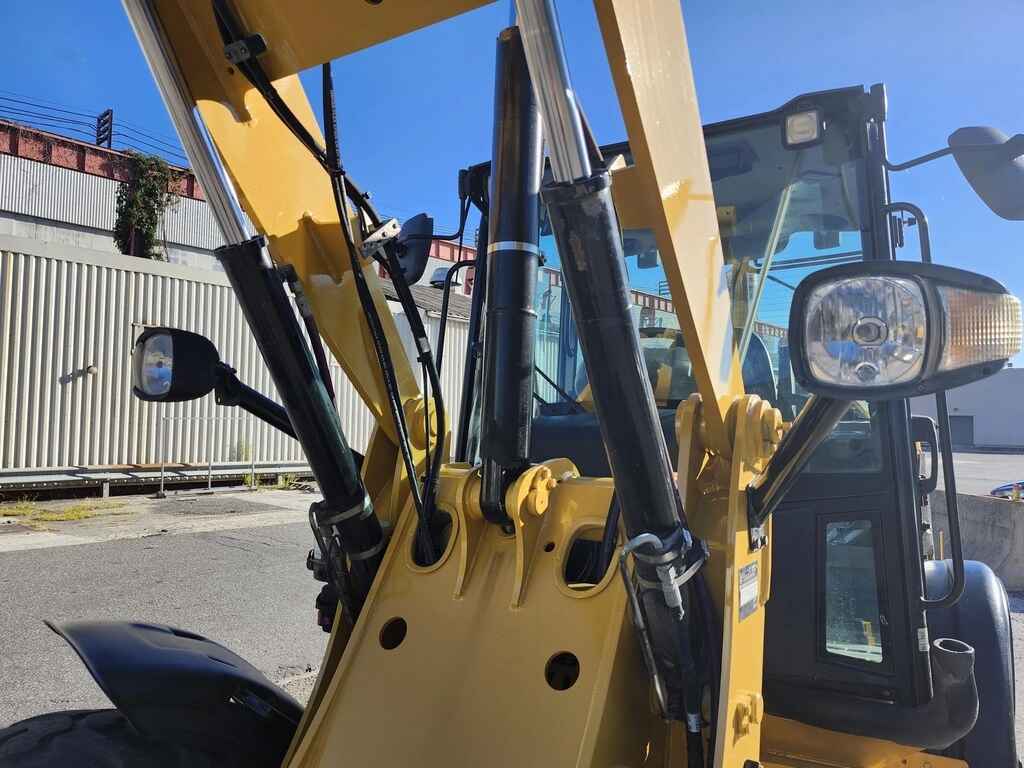

Hydraulic System

• Pump Type: Variable Displacement Piston Pump
• Hydraulic Flow – Standard: 21.7 gal/min (82 L/min)
• Hydraulic Flow – High Flow (optional): 32 gal/min (121 L/min)
• System Pressure: 3,626 psi (25,000 kPa)

Dimensions

• Overall Length (with bucket): 18.1 ft (5.52 m)
• Width Over Tires: 6 ft (1.8 m)
• Height to Top of Cab: 8.3 ft (2.52 m)
• Wheelbase: 6.3 ft (1.95 m)
• Ground Clearance: 13 in (0.33 m)
• Turning Radius (Outside of Tires): 12.5 ft (3.8 m)

Fuel and Fluid Capacities

• Fuel Tank Capacity: 27.7 gal (105 L)
• Hydraulic System: 14.5 gal (55 L)
• Engine Oil Capacity: 2.6 gal (10 L)
• Cooling System: 3.7 gal (14 L)

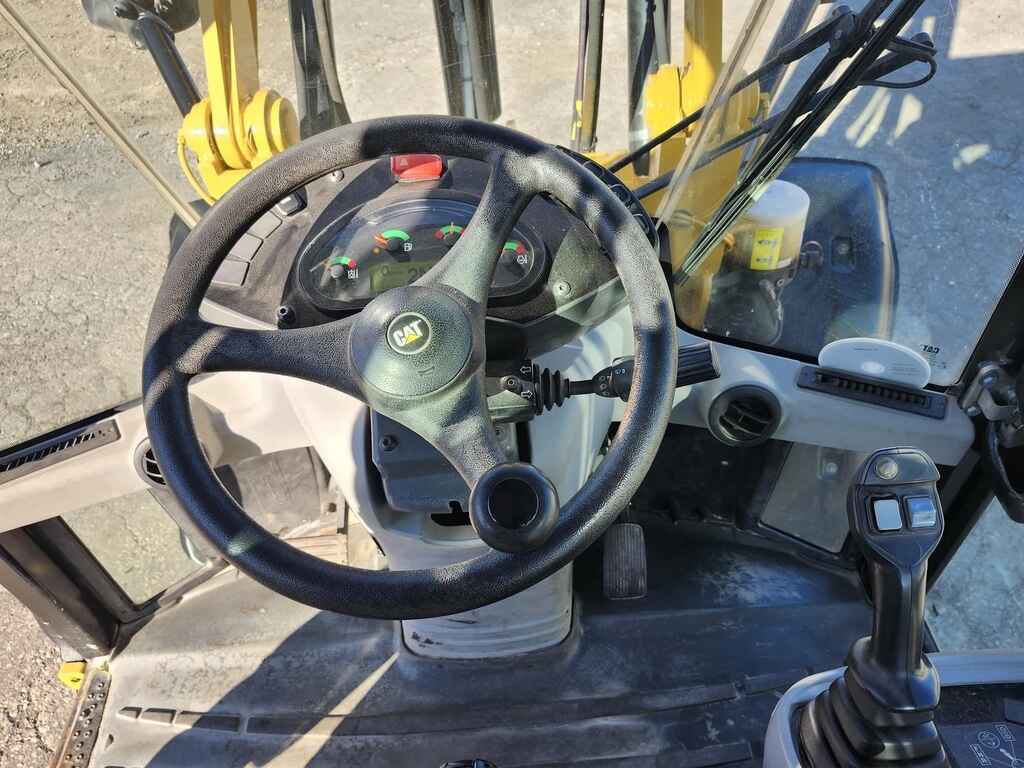

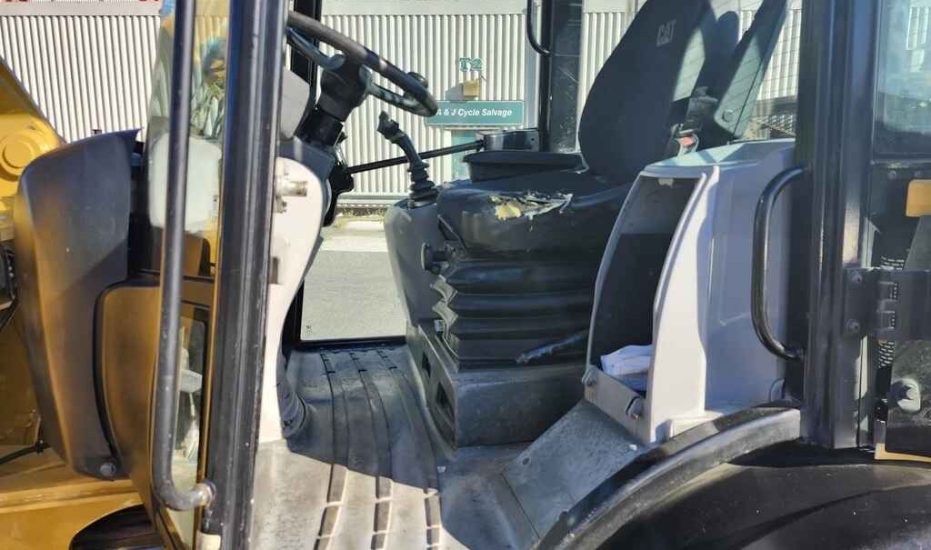

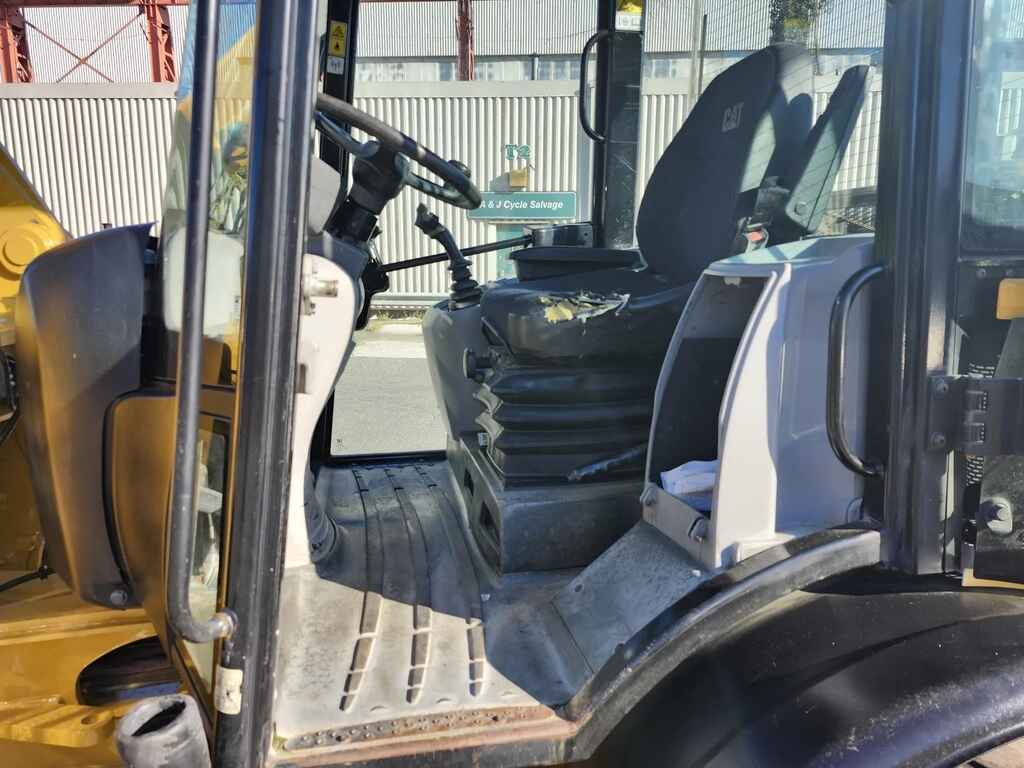

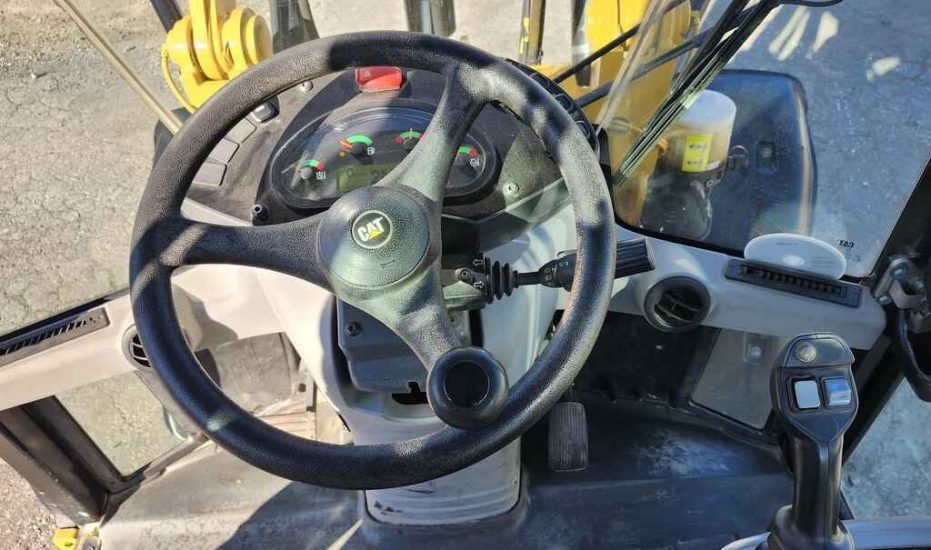

Cab and Features

• ROPS/FOPS Certified Enclosed Cab with optional Air Conditioning
• Adjustable Suspension Seat

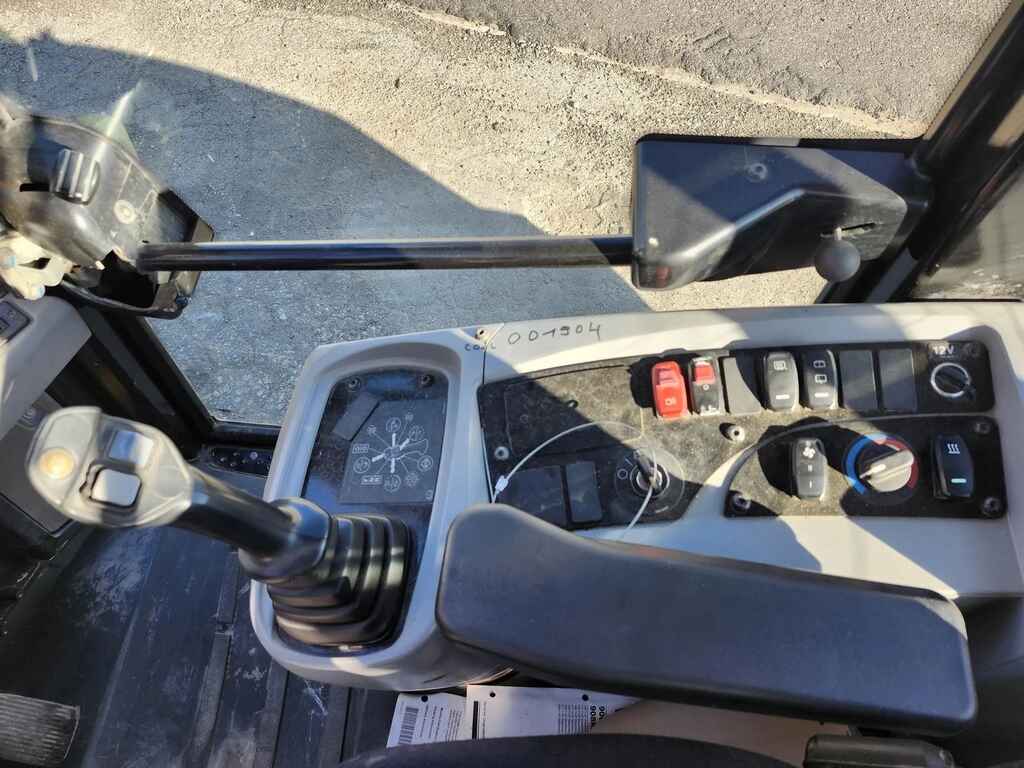

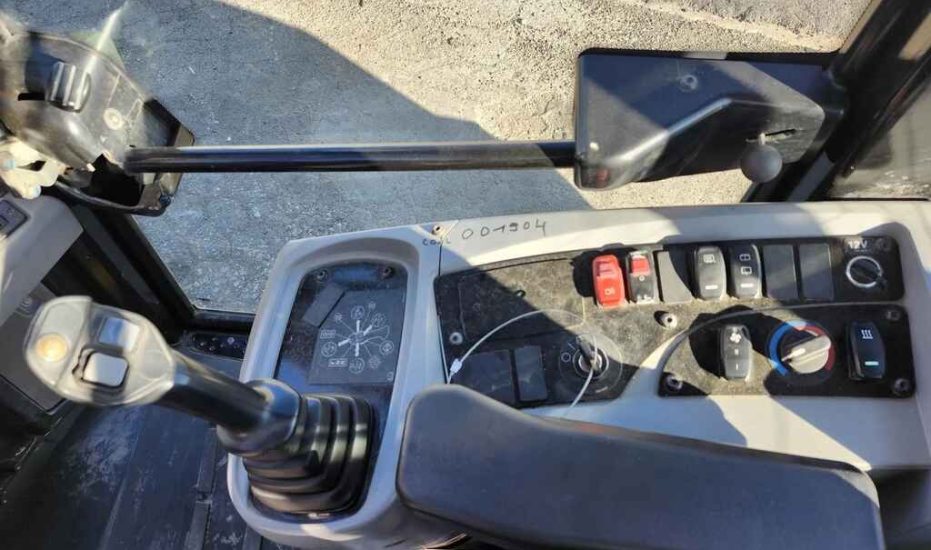

• Joystick Controls with Integrated Transmission Functions
• High Visibility Cab with Large Windows
• Quick Coupler for Attachments

Optional Features

• High-Flow Hydraulics
• Ride Control System
• Work Tool Attachments (buckets, forks, grapples, etc.)

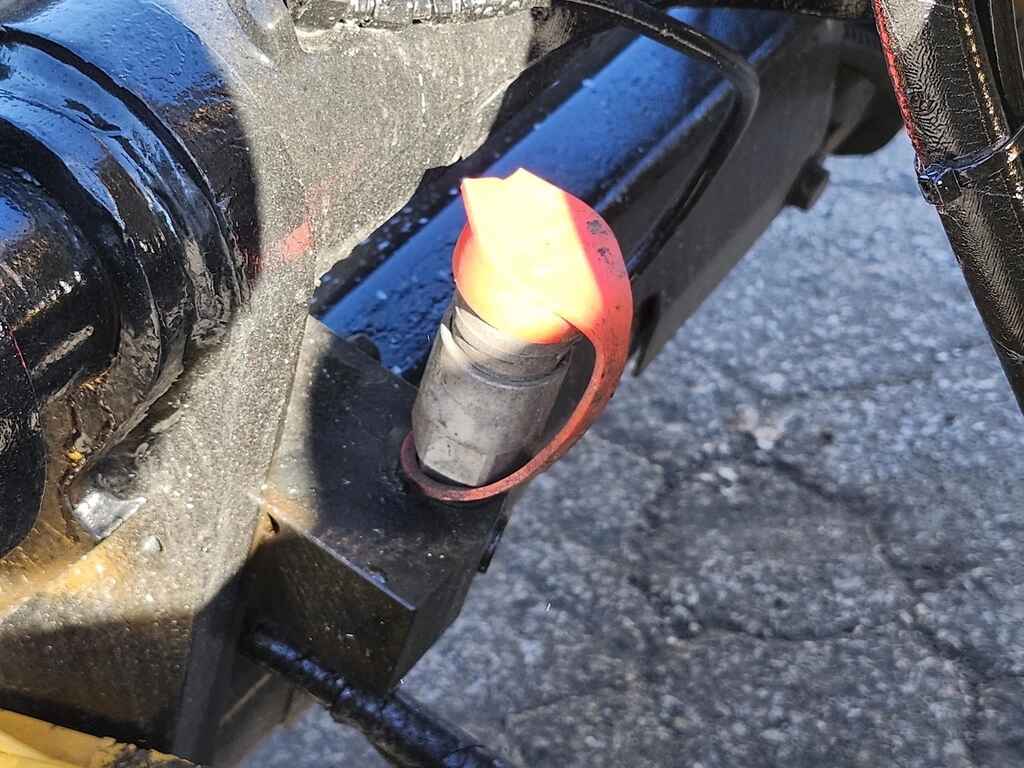

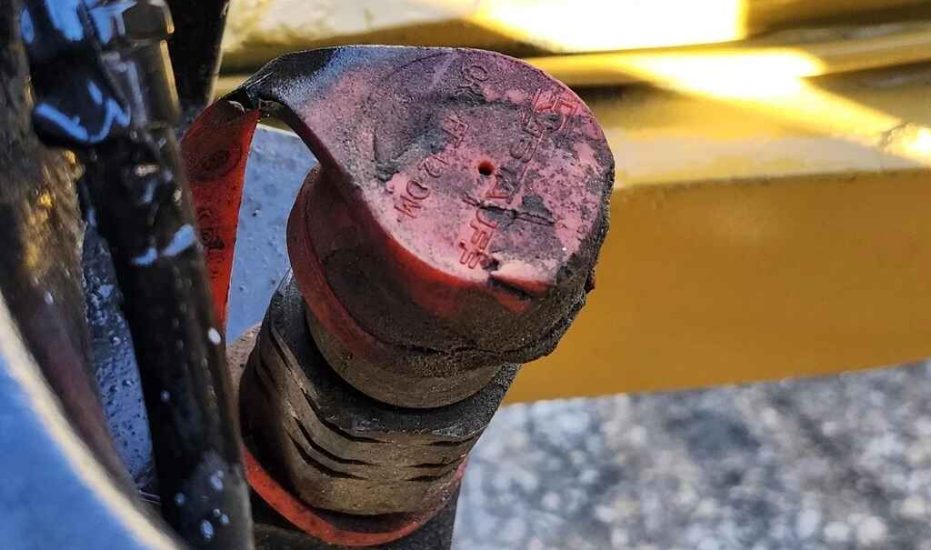

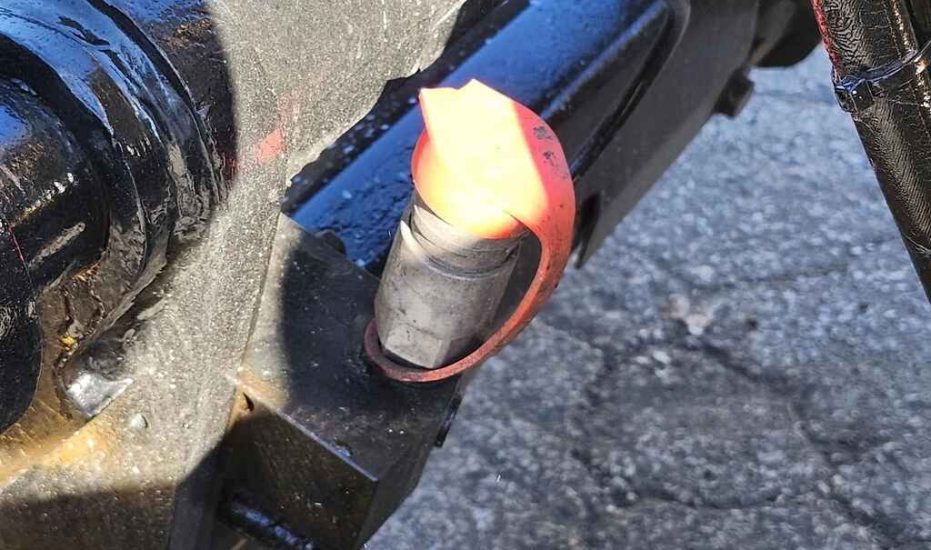

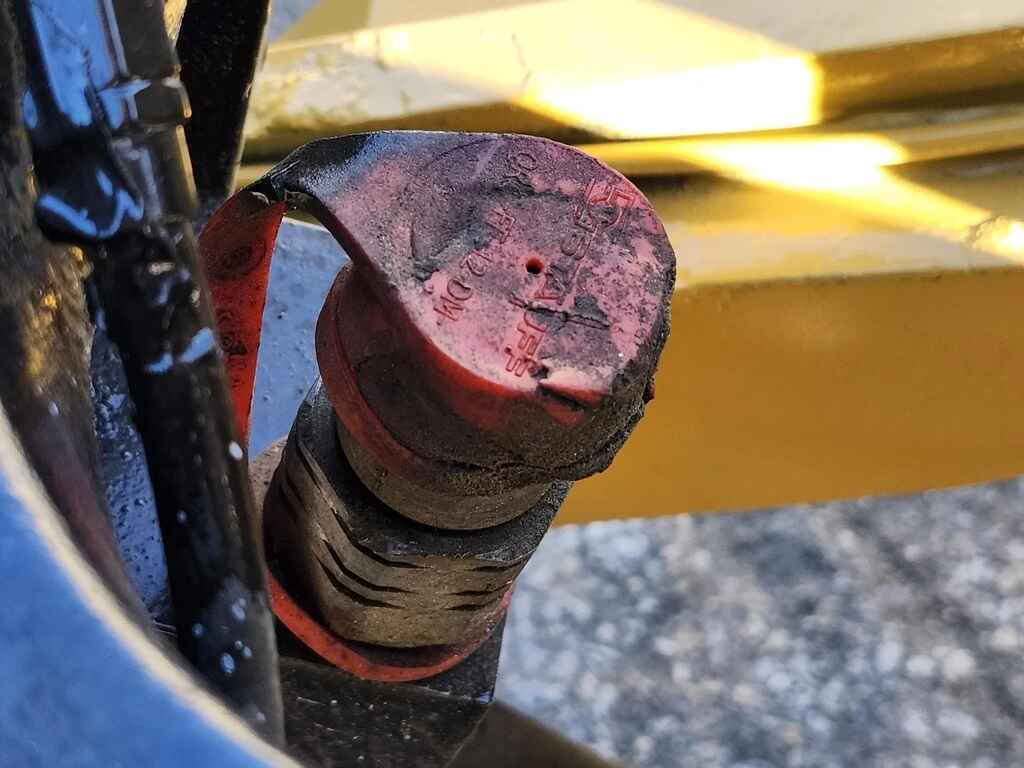

• Auxiliary Hydraulic Lines
• LED Work Lights
