Specifications

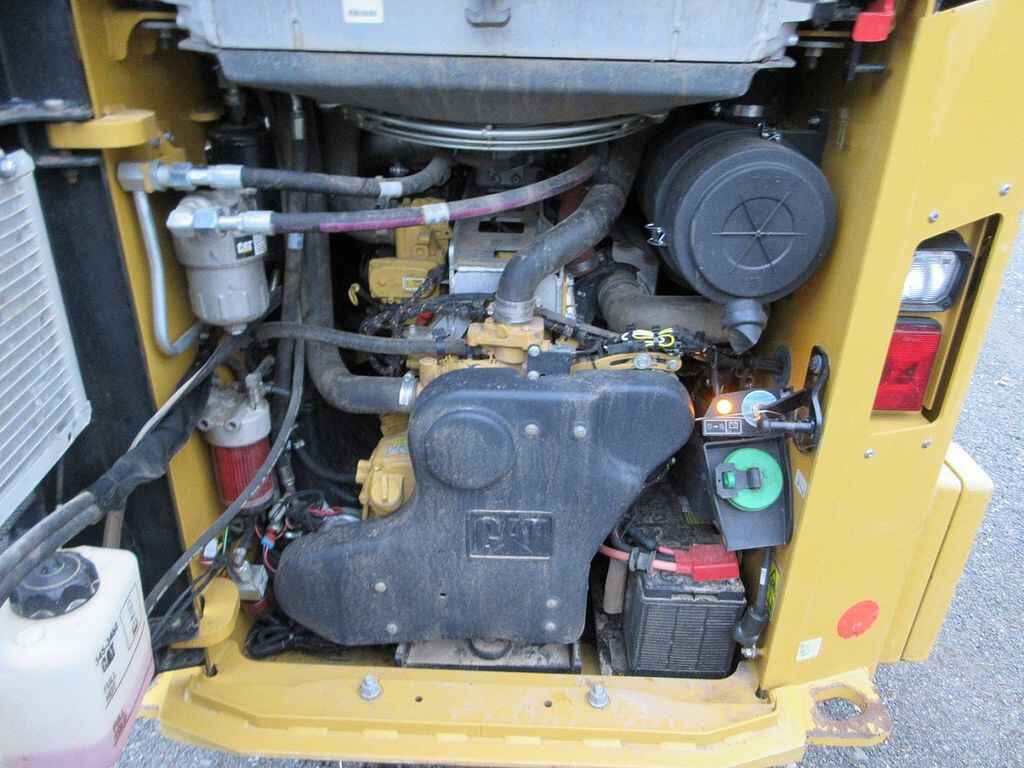

Engine

• Model: Cat C3.8 DIT (turbo)
• Net Power: 95 hp (71 kW)
• Gross Power: 98 hp (73 kW)
• Displacement: 232 in³ (3.8 L)
• Bore: 3.9 in (100 mm)
• Stroke: 4.7 in (120 mm)

Weights

• Operating Weight: 11,275 lbs (5,115 kg)

Performance

• Rated Operating Capacity (50% Tipping Load): 4,600 lbs (2,087 kg)
• Rated Operating Capacity (35% Tipping Load): 3,200 lbs (1,451 kg)
• Tipping Load: 9,200 lbs (4,173 kg)
• Breakout Force - Tilt Cylinder: 7,270 lbs (32.3 kN)
• Breakout Force - Lift Cylinder: 6,162 lbs (27.4 kN)

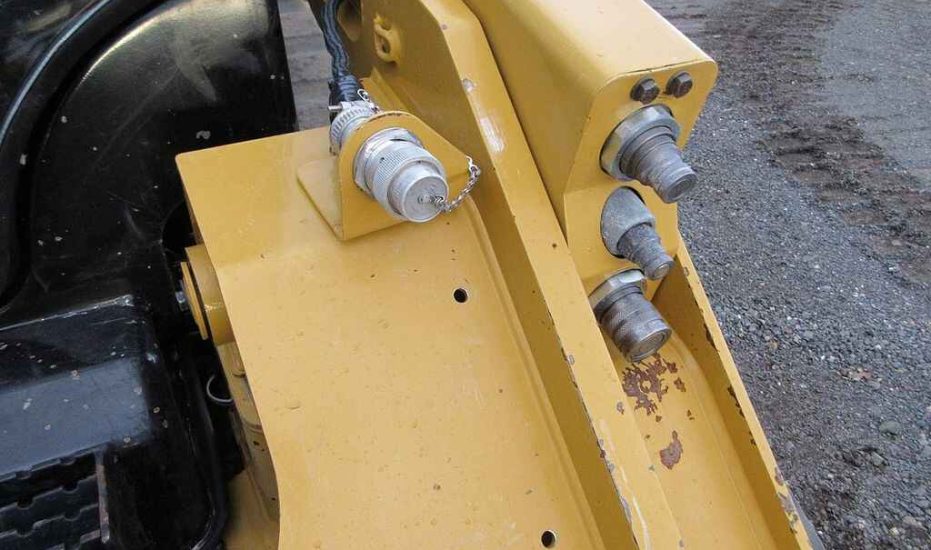

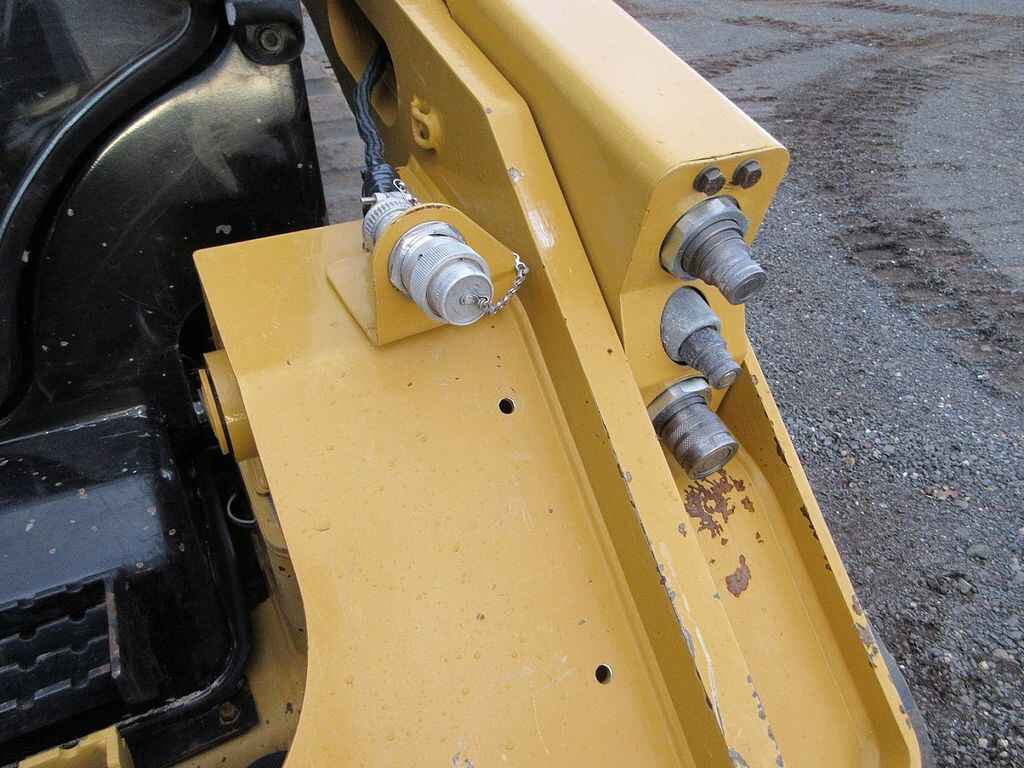

Hydraulics

• Standard Flow - Loader Hydraulic Flow: 23 gal/min (87 L/min)
• Standard Flow - Loader Hydraulic Pressure: 3,335 psi (23 MPa)
• High Flow XPS - Maximum Loader Hydraulic Flow: 32 gal/min (121 L/min)
• High Flow XPS - Maximum Loader Hydraulic Pressure: 4,061 psi (28 MPa)

Dimensions

• Length with Bucket on Ground: 154.7 in (3,930 mm)
• Length without Bucket: 125.5 in (3,190 mm)
• Height to Top of Cab: 83.6 in (2,125 mm)

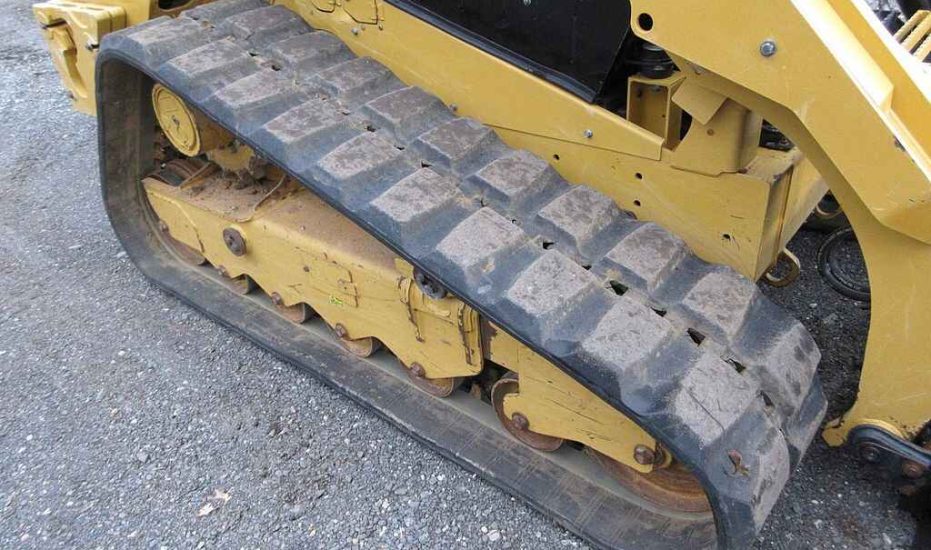

• Vehicle Width (400 mm tracks): 76 in (1,930 mm)
• Ground Clearance: 9.6 in (245 mm)
• Departure Angle: 33 degrees

Capacities

• Fuel Tank: 32.2 gal (122 L)
• Hydraulic System: 14.5 gal (55 L)
• Hydraulic Tank: 10.3 gal (39 L)
• Cooling System: 4.1 gal (15.5 L)
• Engine Crankcase: 3.5 gal (13.2 L)
• Diesel Exhaust Fluid (DEF) Tank: 5 gal (19 L)
