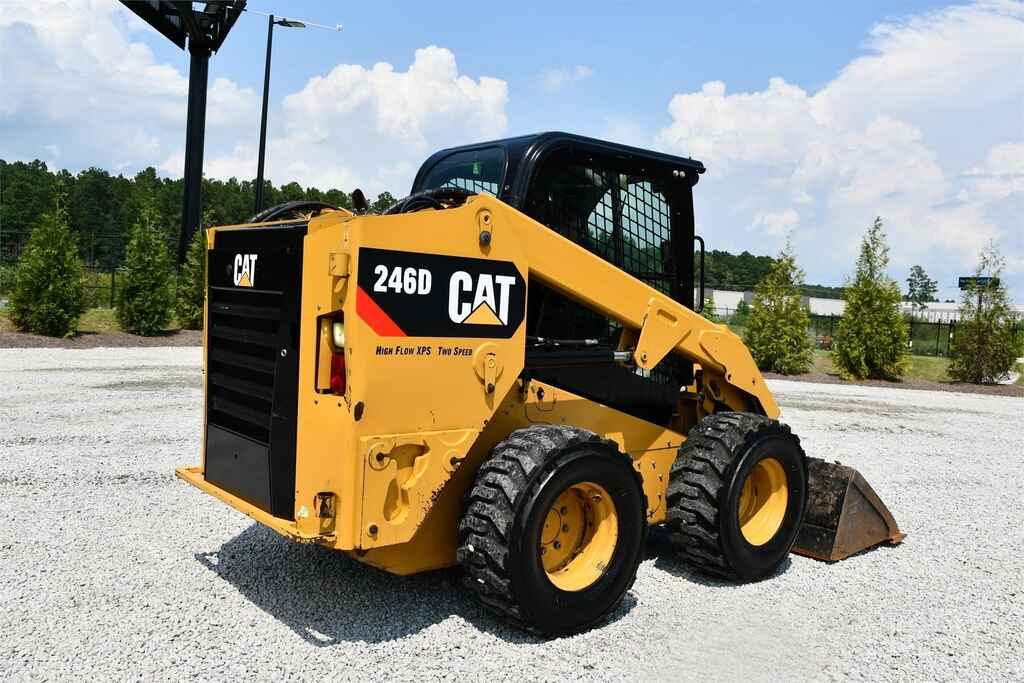

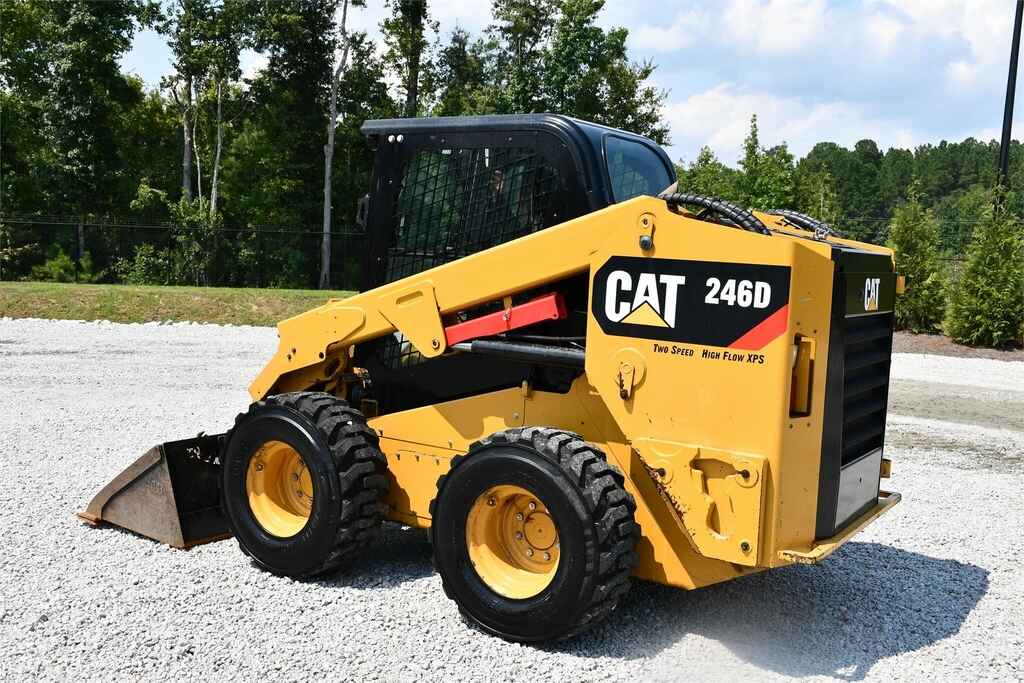

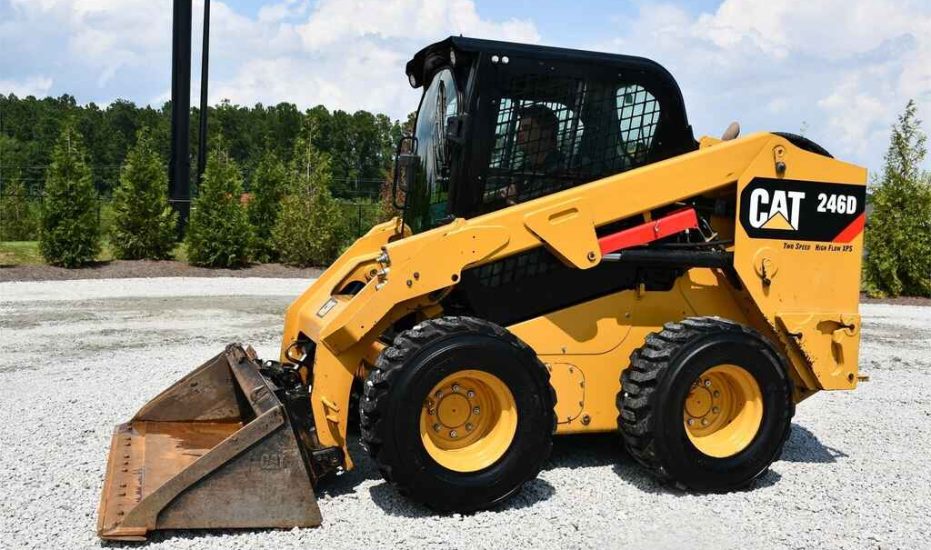

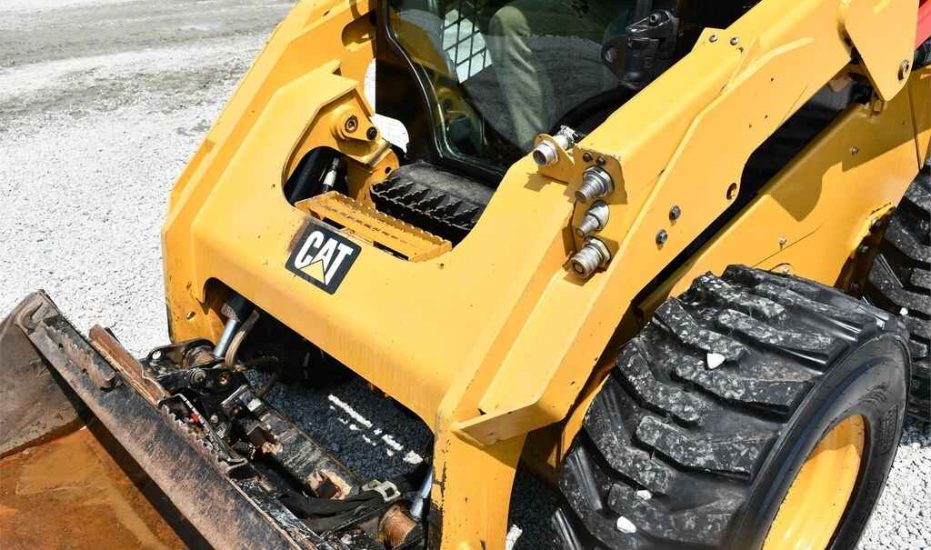

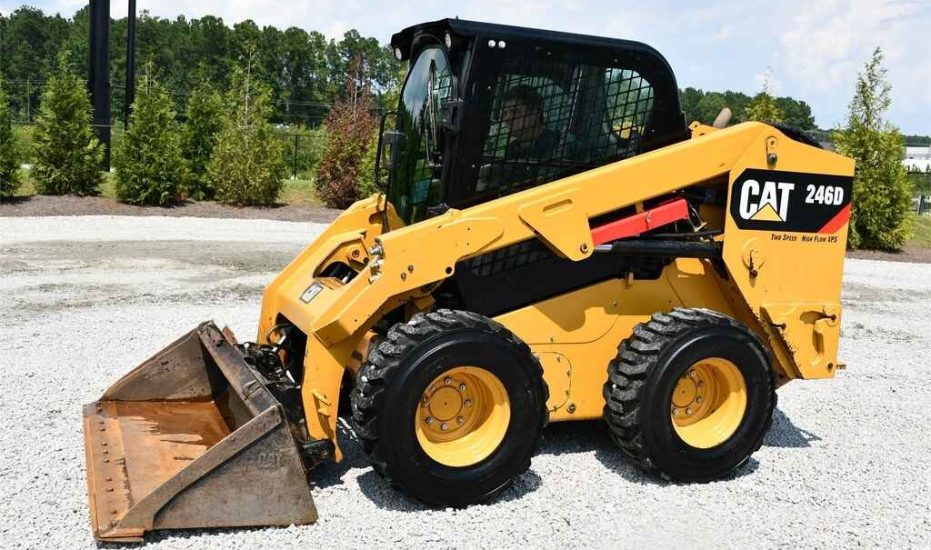

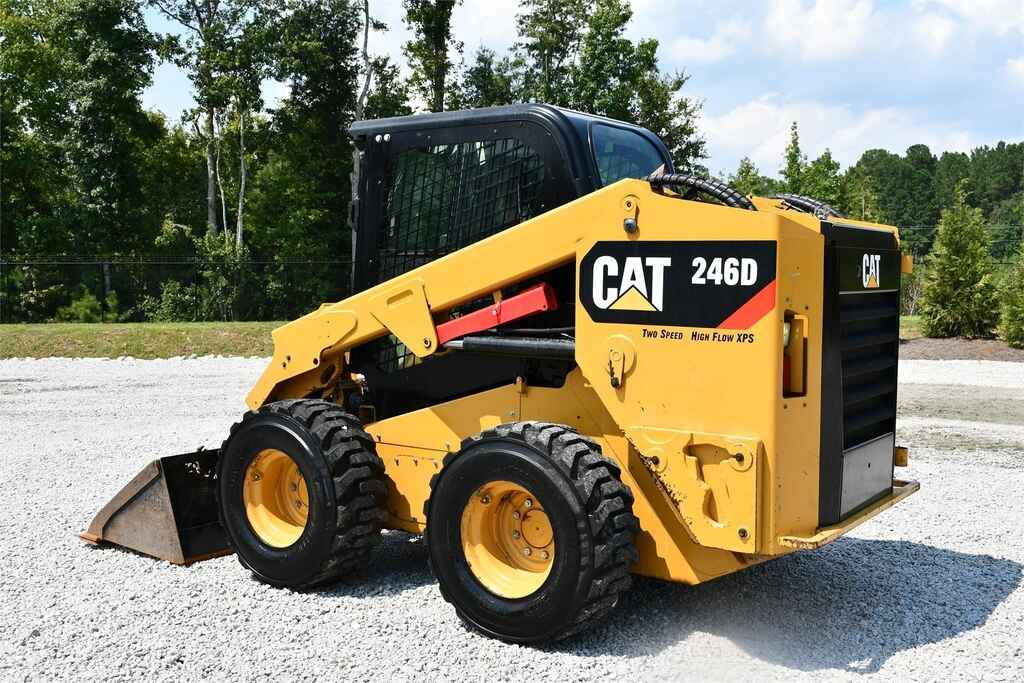

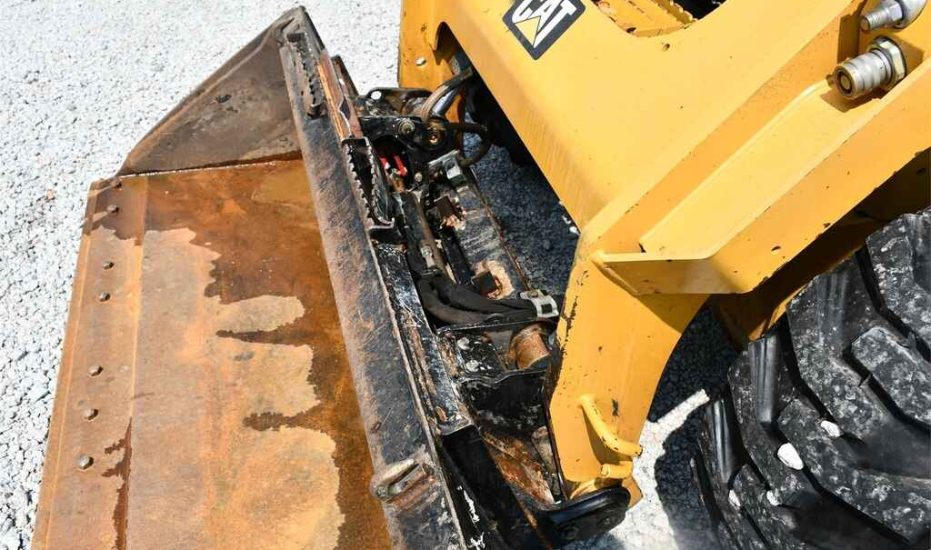

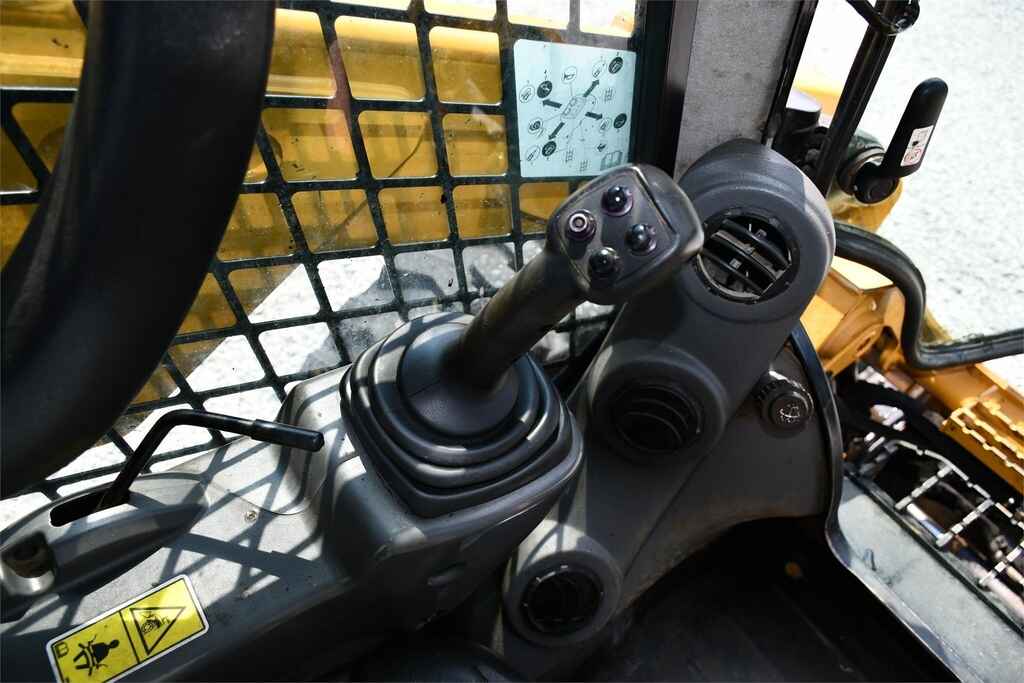

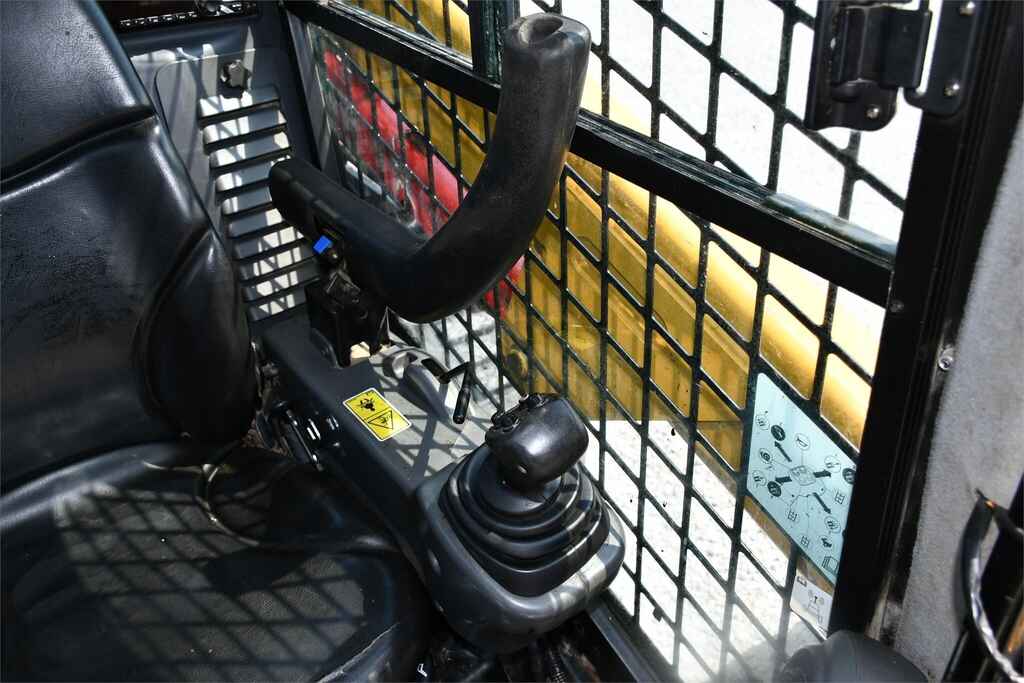

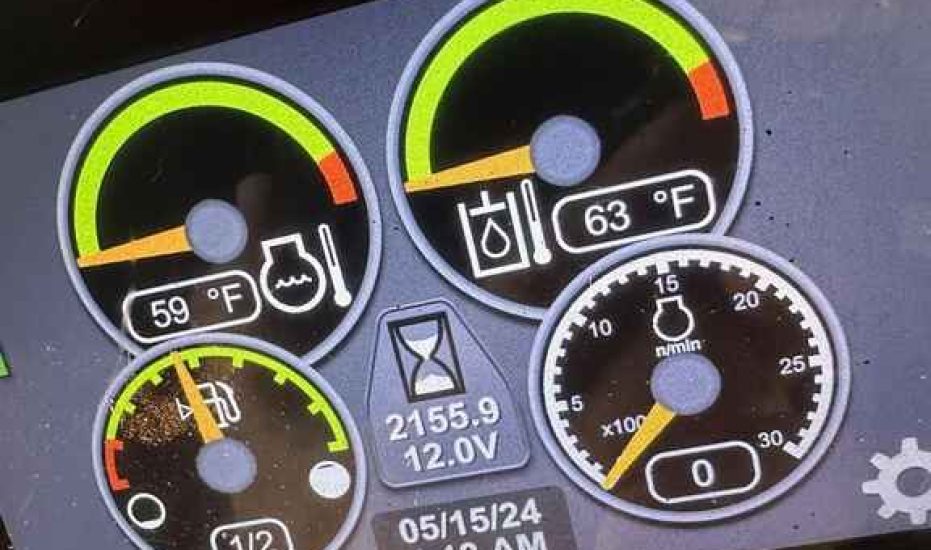

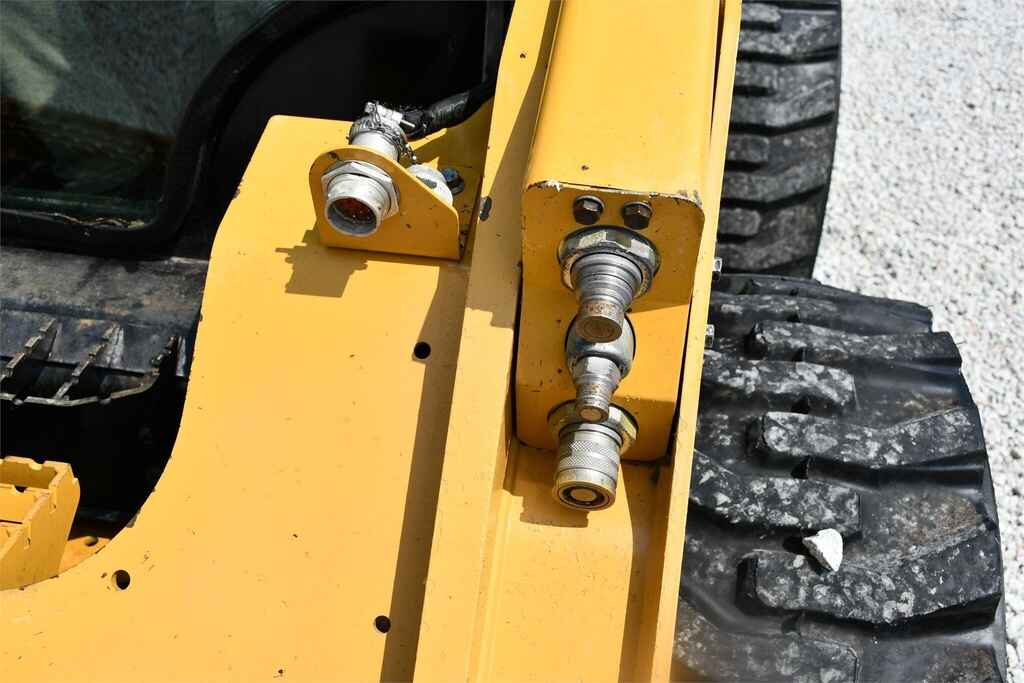

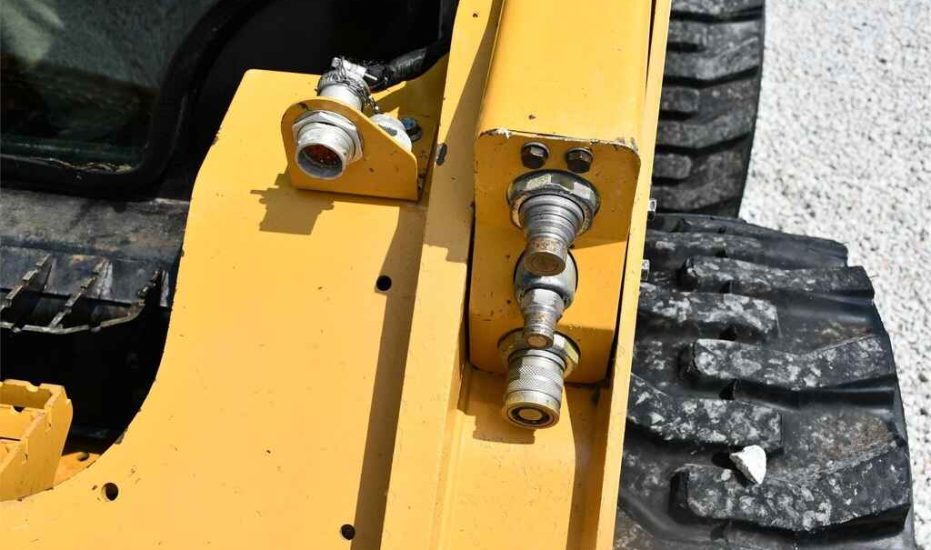

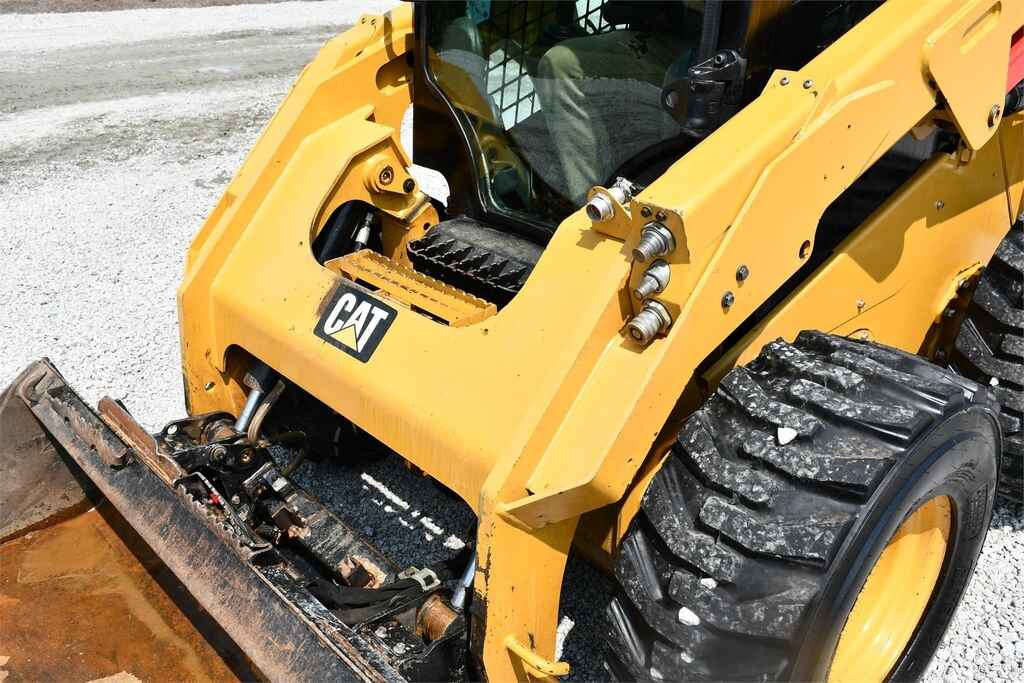

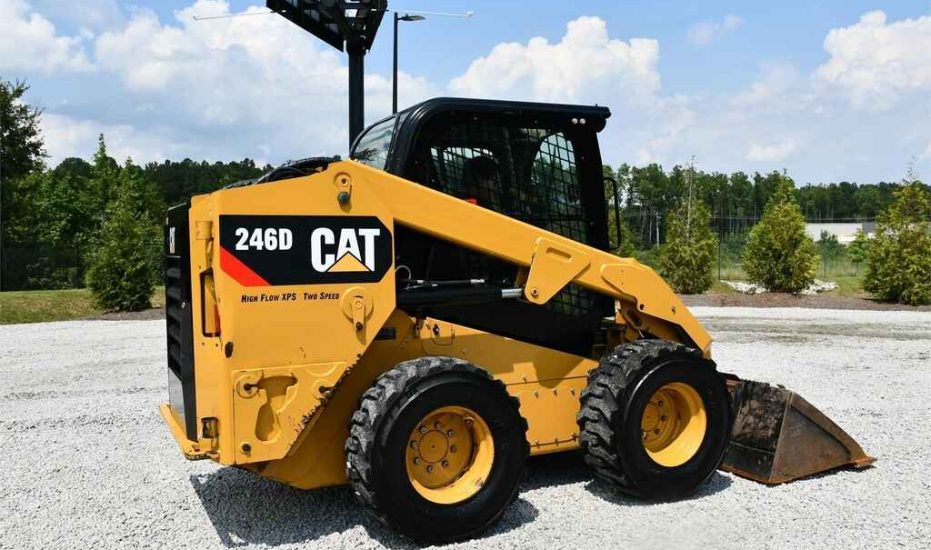

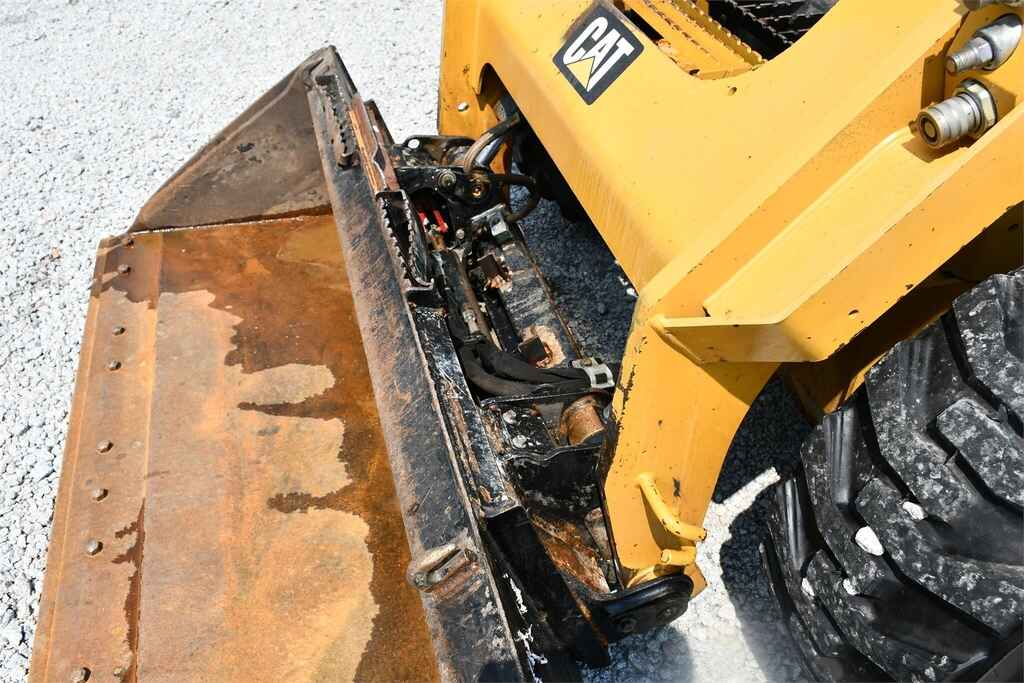

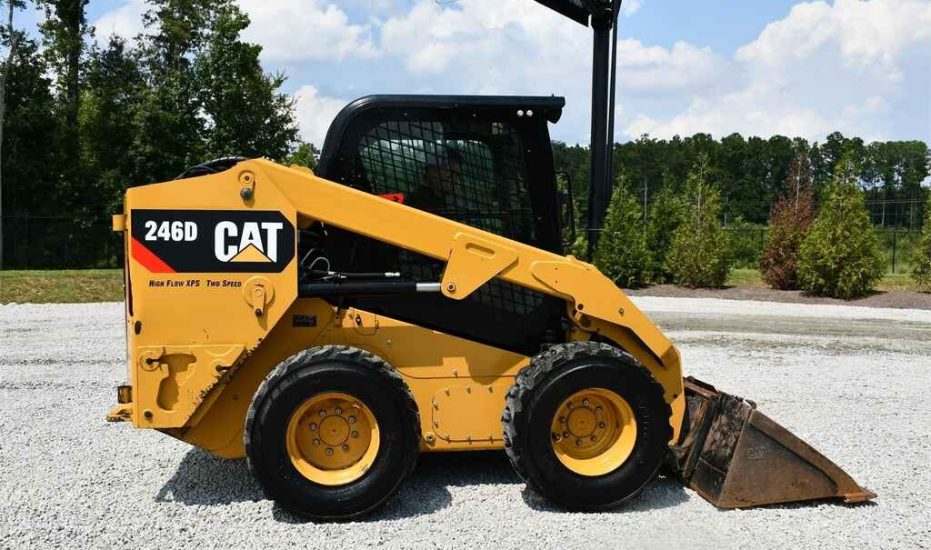

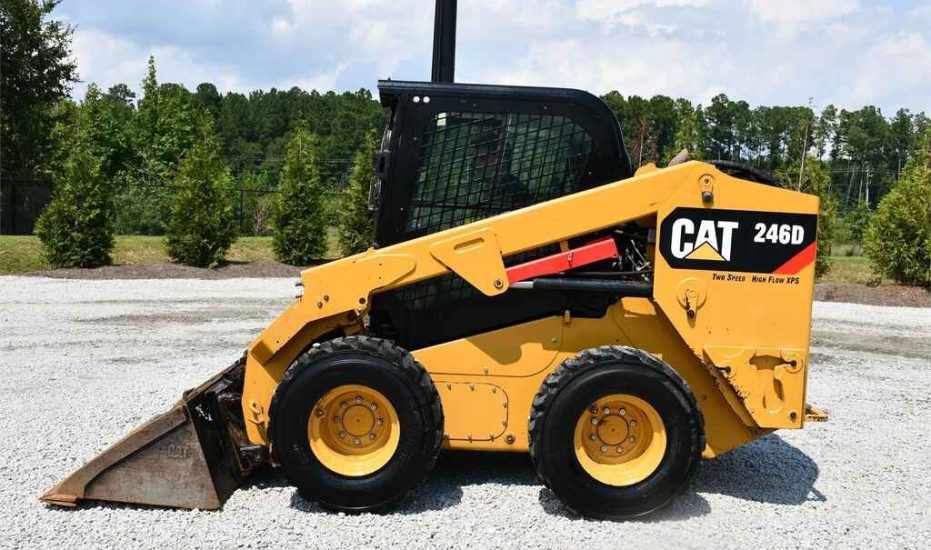

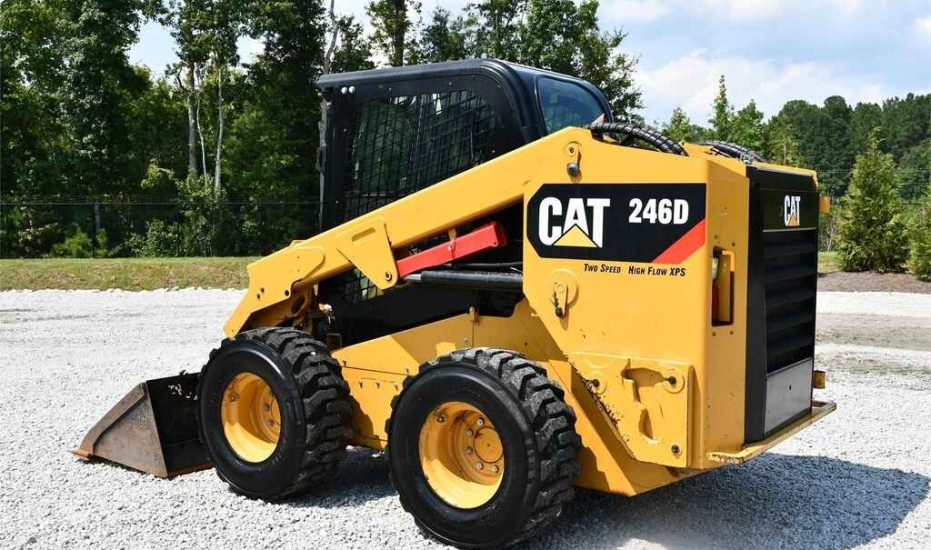

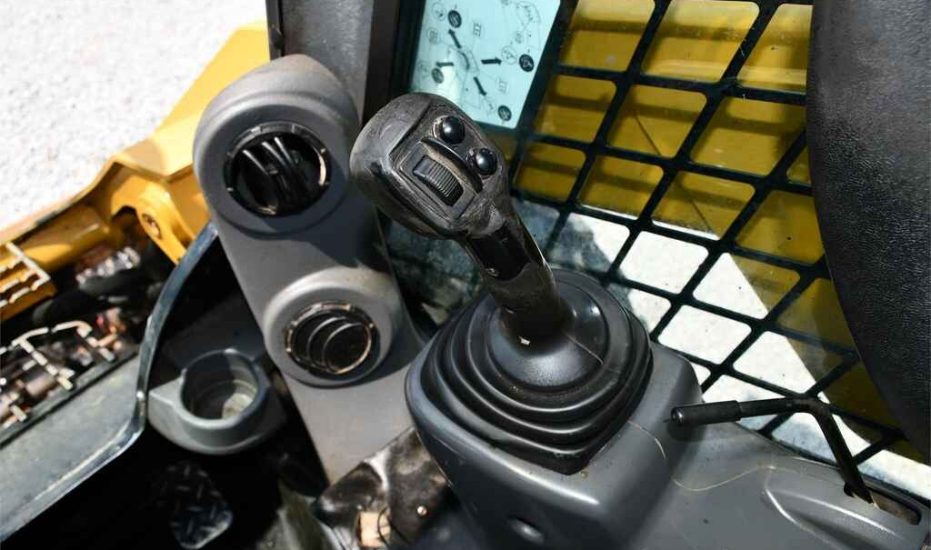

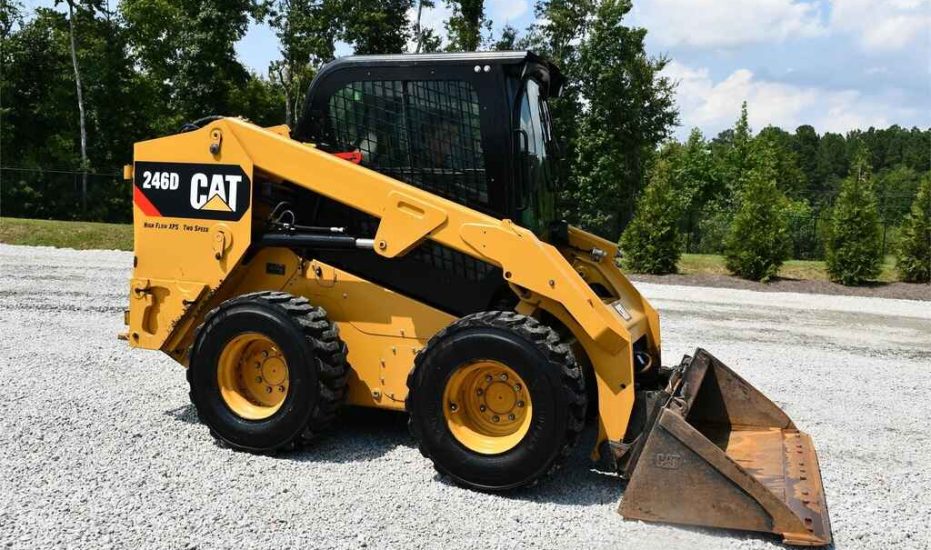

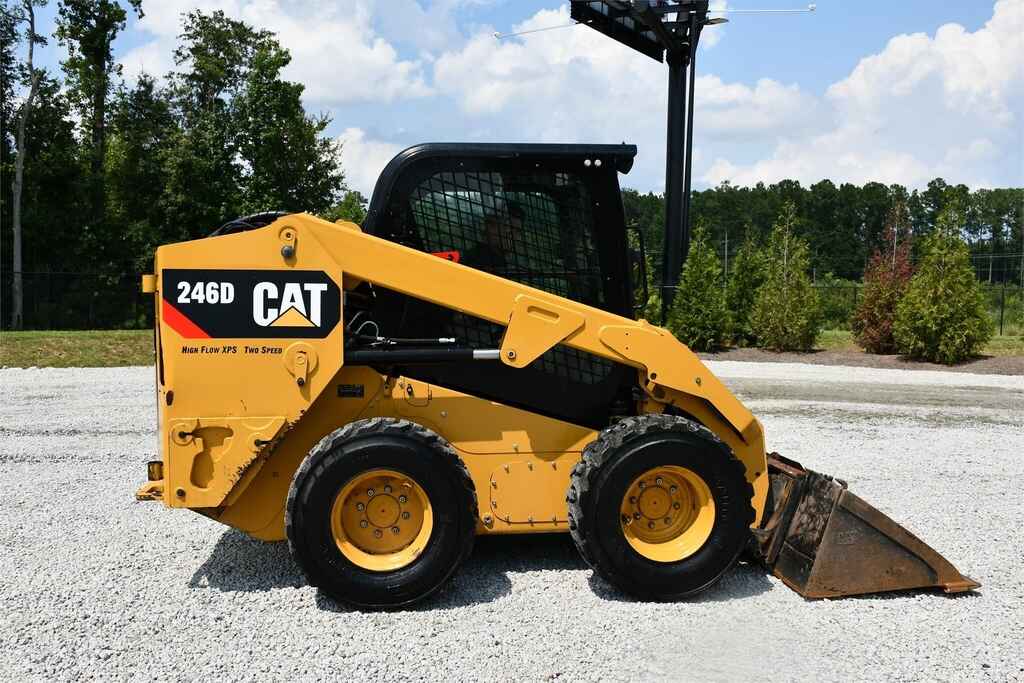

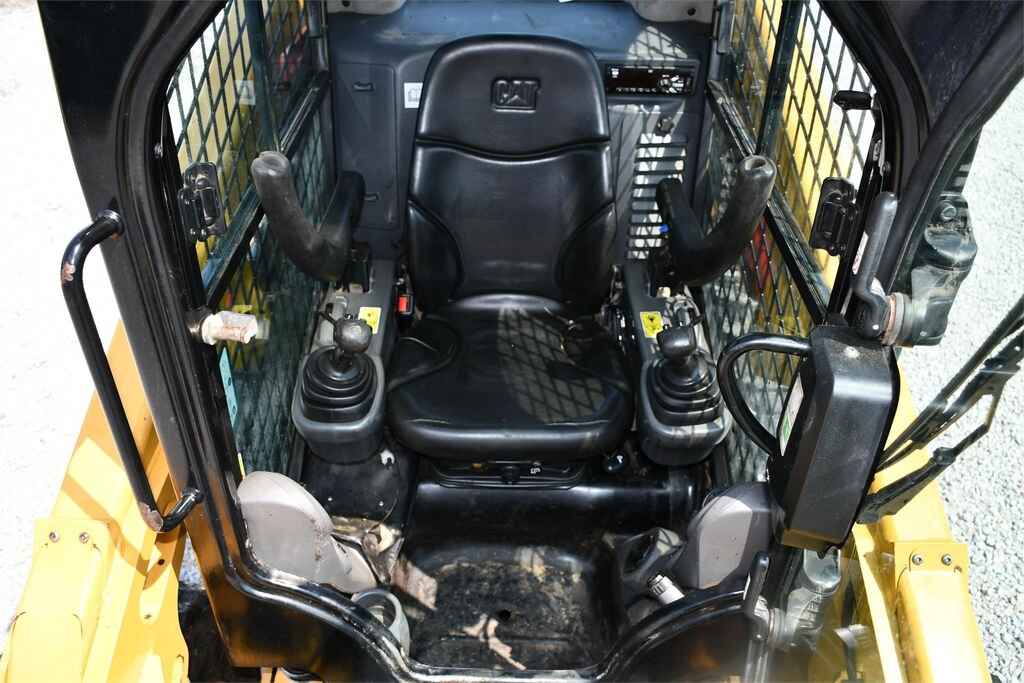

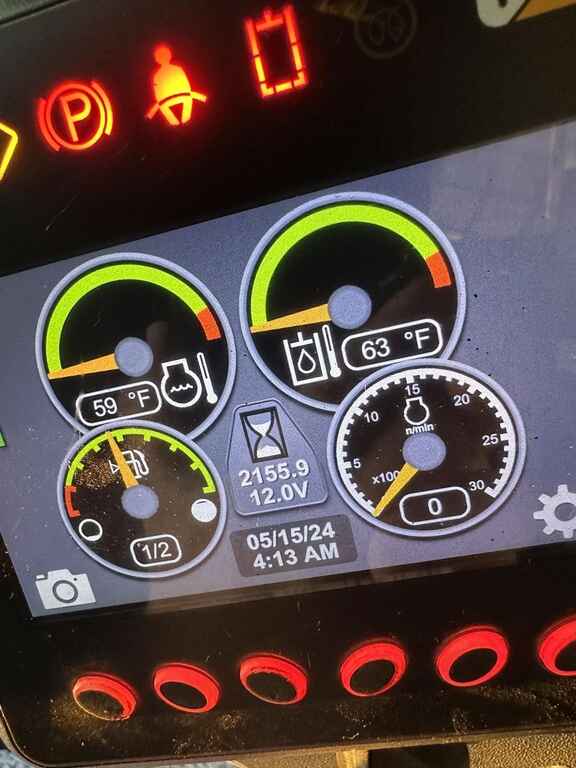

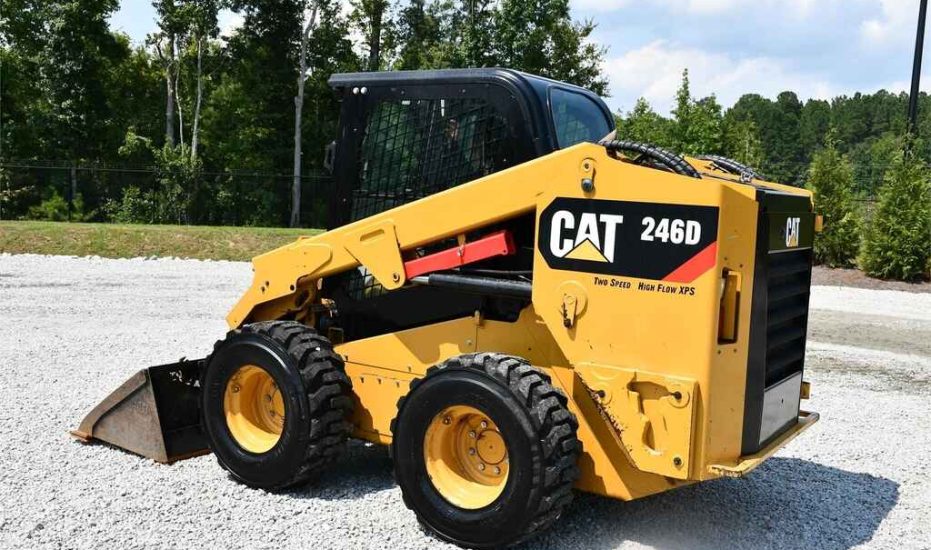

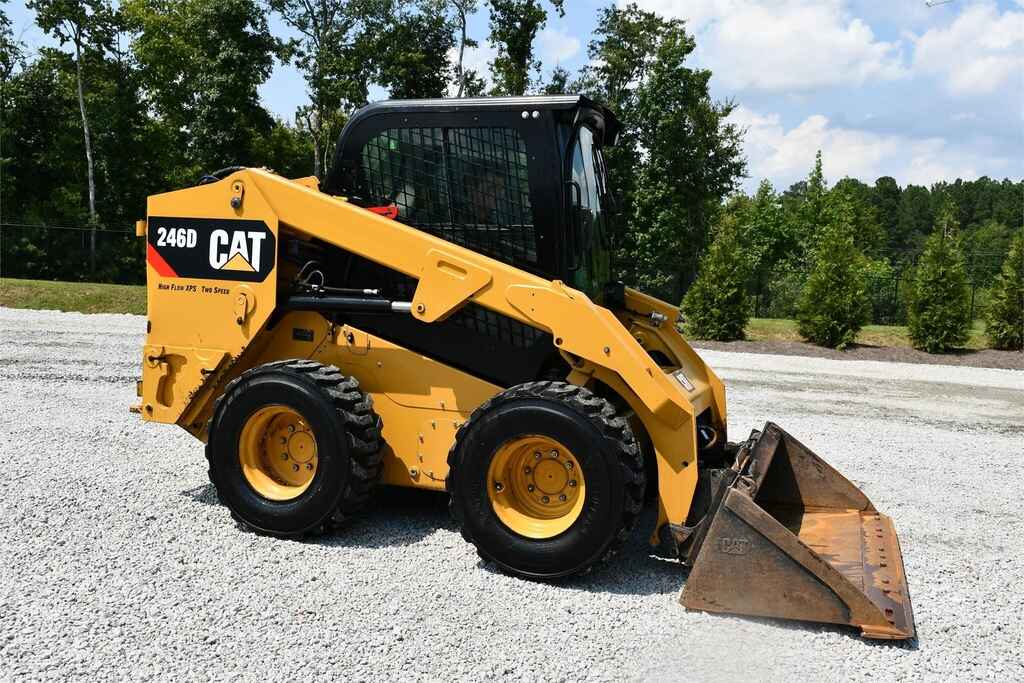

Cab, A/C, meter reads 2159 hours, GP bucket, coupler, Auxiliary hydraulics

Dimensions

• Length With Bucket: 11.8ft
• Width Over Tires: 6.01ft
• Ground Clearance: 9in
• Height To Top Of Cab: 6.87ft
• Wheelbase: 3.73ft
• Length Without Bucket: 9.19ft
• Clearance At Max Lift And Dump: 7.87ft
• Reach At Max Lift And Dump: 23.12in
• Bucket Pin Height – Carry Position: 10in
• Clearance At Maximum Lift And Dump: 94in
• Length – Without Bucket: 110in
• Bucket Pin Height – Maximum Lift: 10.17ft
• Maximum Overall Height: 156in
• Height – Top Of Cab: 6.84ft
• Bumper Overhang – Rear Axle: 41in
• Reach – Maximum Lift/Dump: 21in
• Turning Radius From Center – Inc Bucket: 86.5in
• Length – With Bucket On Ground: 138in
• Vehicle Width Over Tires: 66in

Operating Specifications

• Breakout Force – Tilt Cylinder: 5259lb
• Breakout Force – Lift Cylinder: 4339lb
• Rated Operating Capacity: 2000lb
• Rated Operating Capacity With Optional Counterweight: 2100lb
• Tipping Load: 4000lb

Specifications

• Engine:
  • Number Of Cylinders: 4
  • Engine Make: 2236
  • Engine Model: 3034T
  • Gross Power: 80hp
  • Net Power: 74hp
  • Power Measured @: 2600rpm
  • Aspiration: Turbocharged
  • Displacement: 183cu in
  • Bore: 3.9in
  • Stroke: 4in
  • Engine Model: Cat 3034C
  • Net Flywheel Power: 55hp

Operational

• Operational Weight: 7230lb
• Fuel Capacity: 23.8gal
• Max Speed: 6.9mph
• Hydraulic System Fluid Capacity: 13.8gal
• Operating Speed: 7.6mph

Loader

• Operating Load Rating: 2000lb
• Tipping Angle: 34°
• Bucket Capacity: 0.6yd³

Weights

• Operating Weight: 7087lb

Hydraulic

• Pump Flow Capacity: 22gal/min
• Loader Hydraulic Pressure: 3300 psi
• Loader Hydraulic Flow: 22 gal/min
• Hydraulic Flow: Standard flow

Service Refill Capacities

• Cooling System: 2.6gal
• Fuel Tank: 23.8gal
• Hydraulic Tank: 9.2gal
• Engine Crankcase: 1.8gal
• Hydraulic System: 13.7gal
• Chain Box – Each Side: 2gal

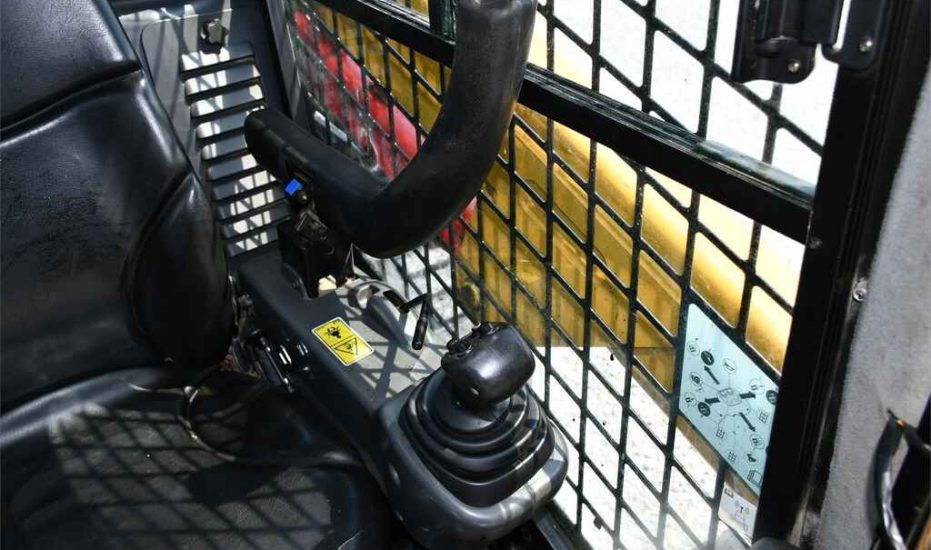

Cab

• ROPS: SAE J1040 MAY94 and ISO3471:1994
• FOPS: SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
• FOPS Level II: SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
