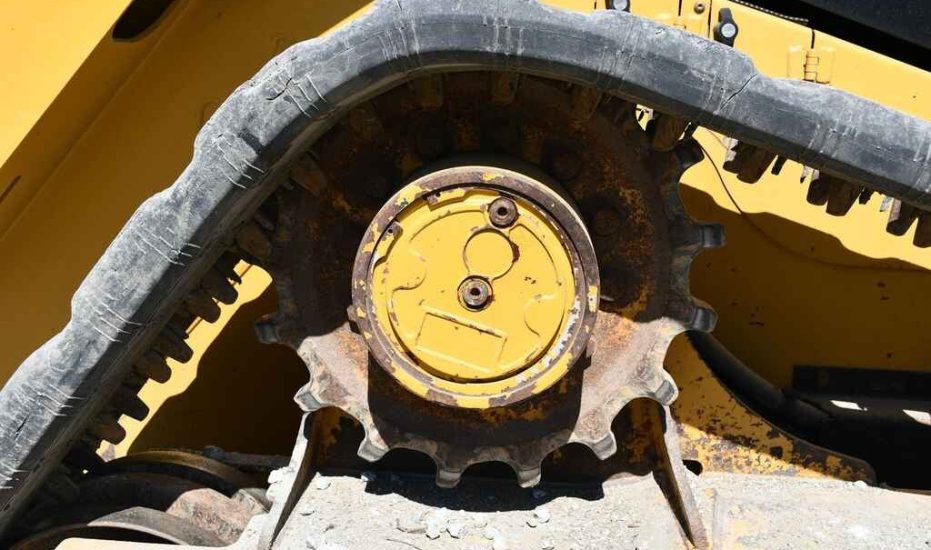

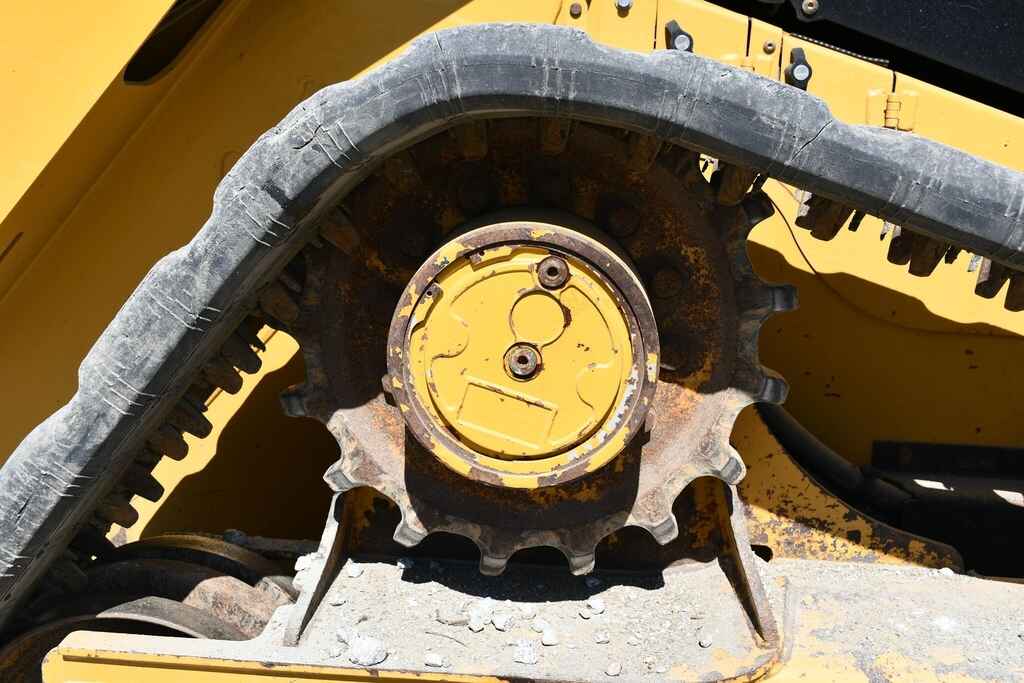

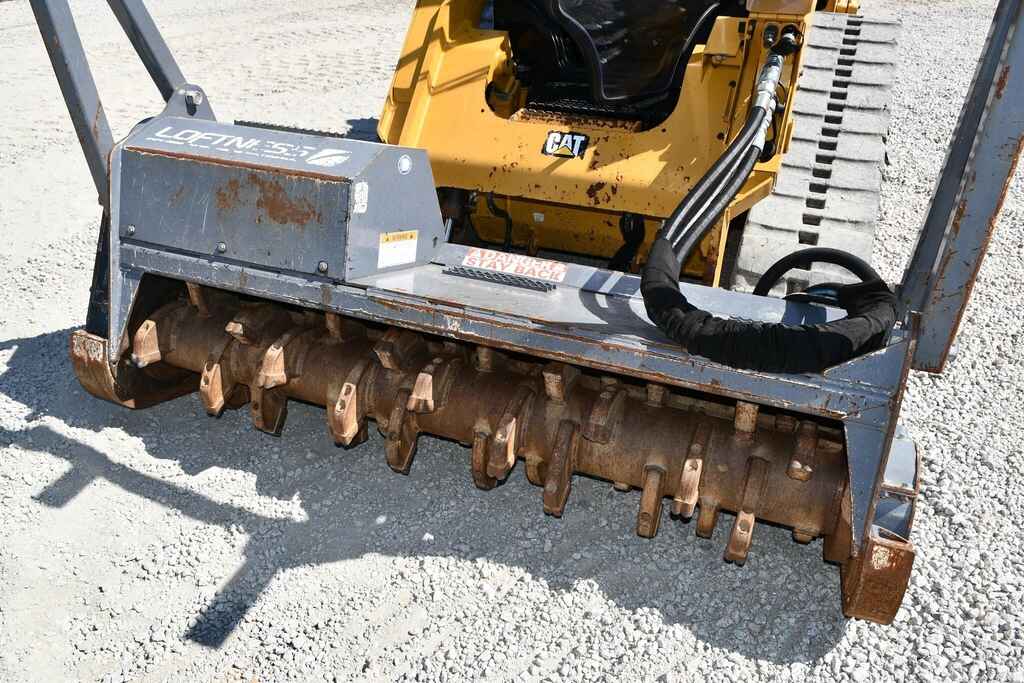

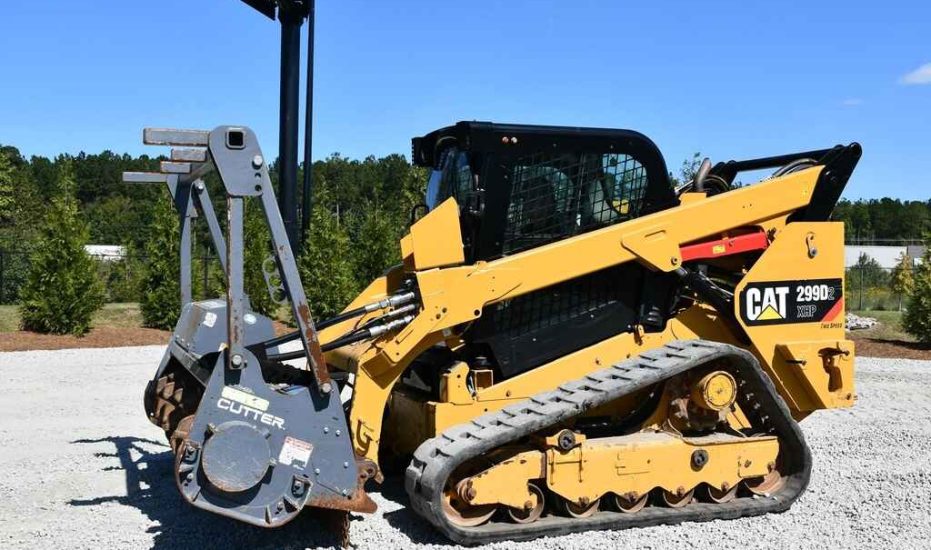

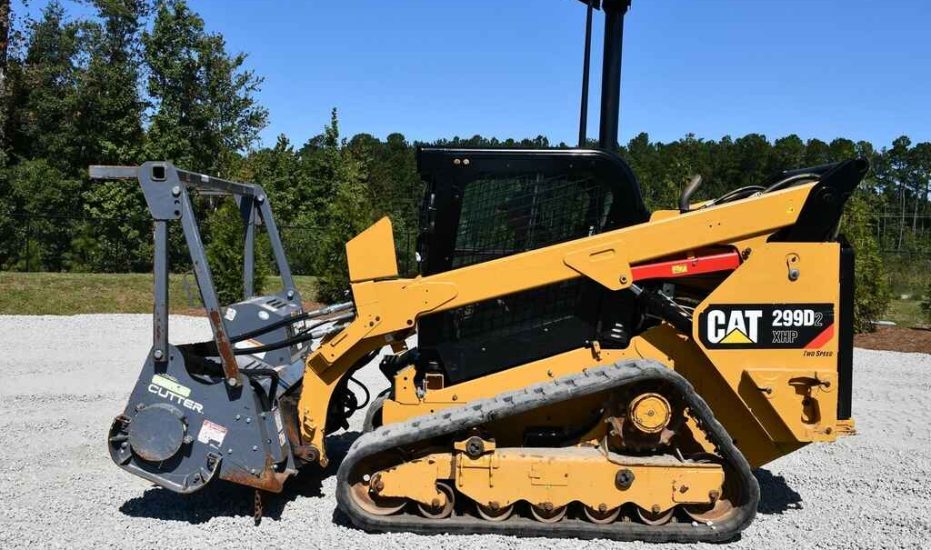

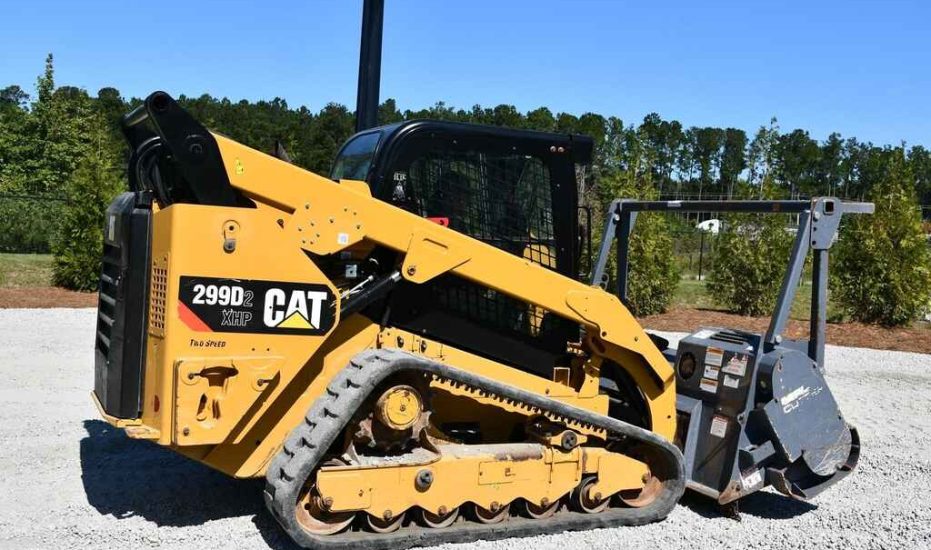

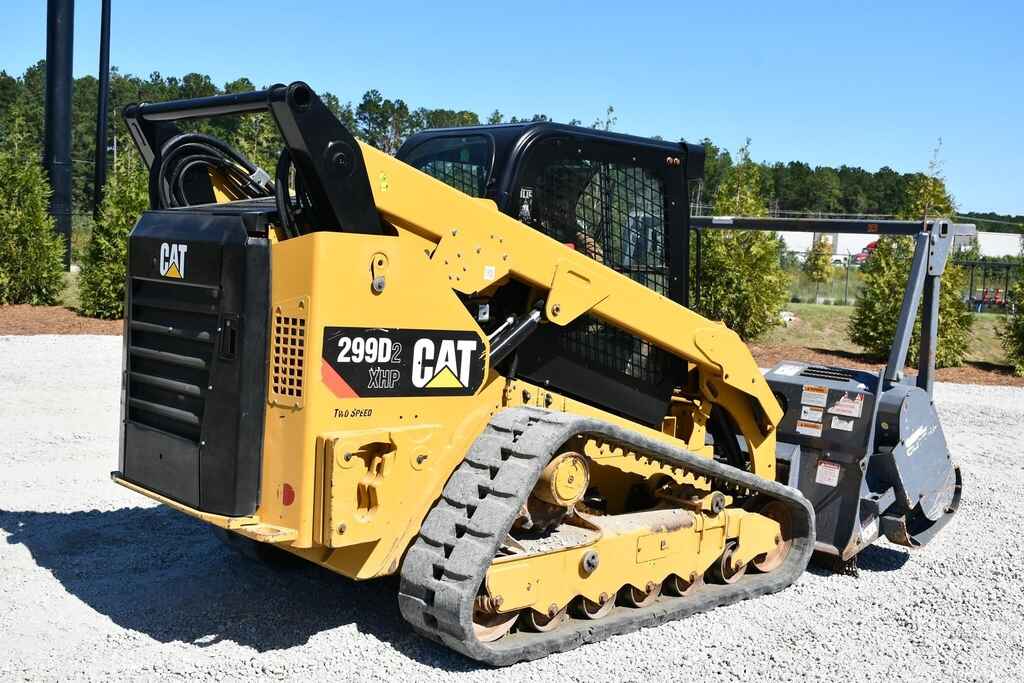

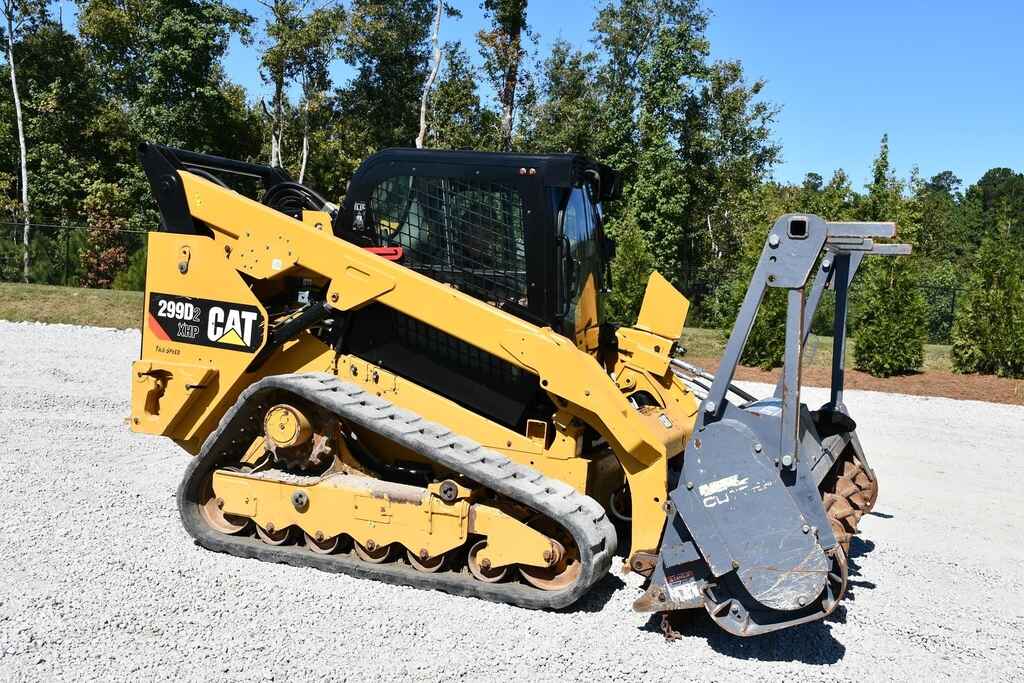

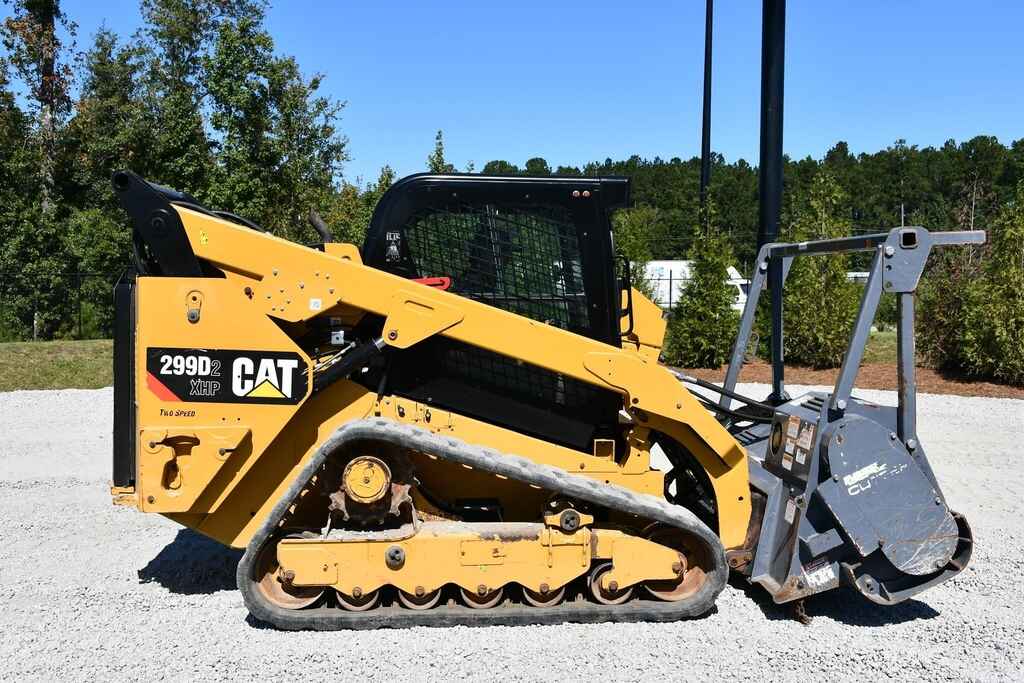

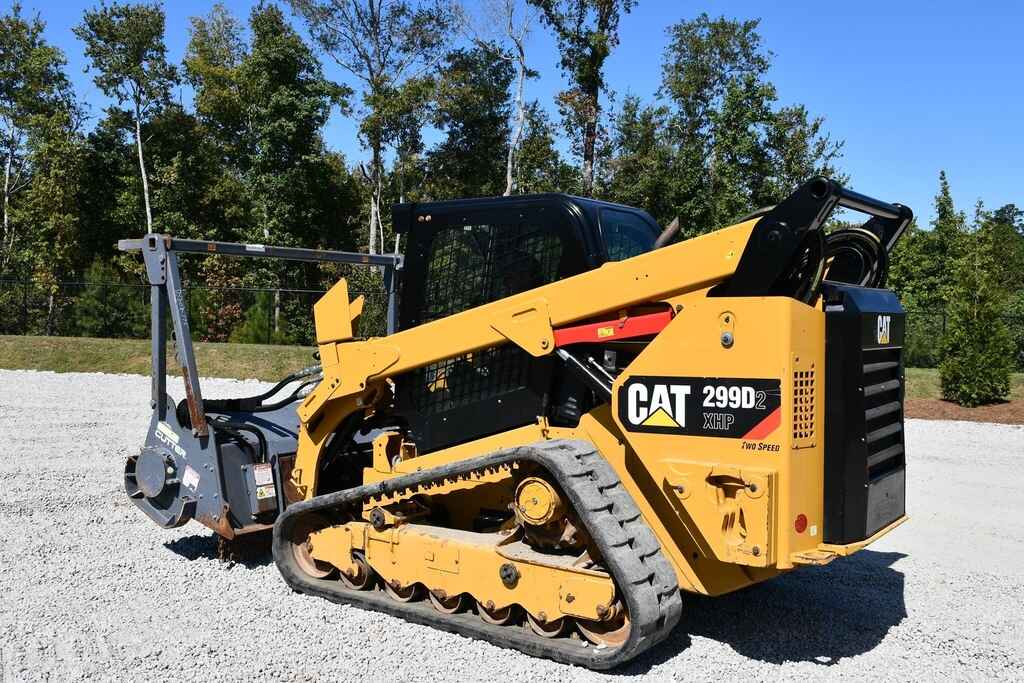

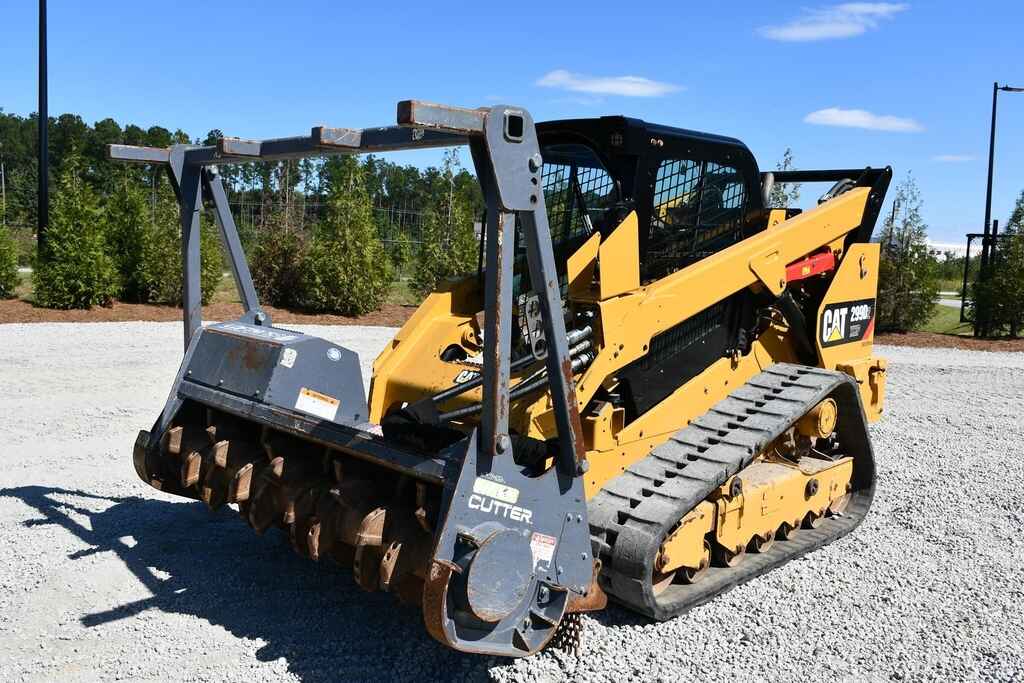

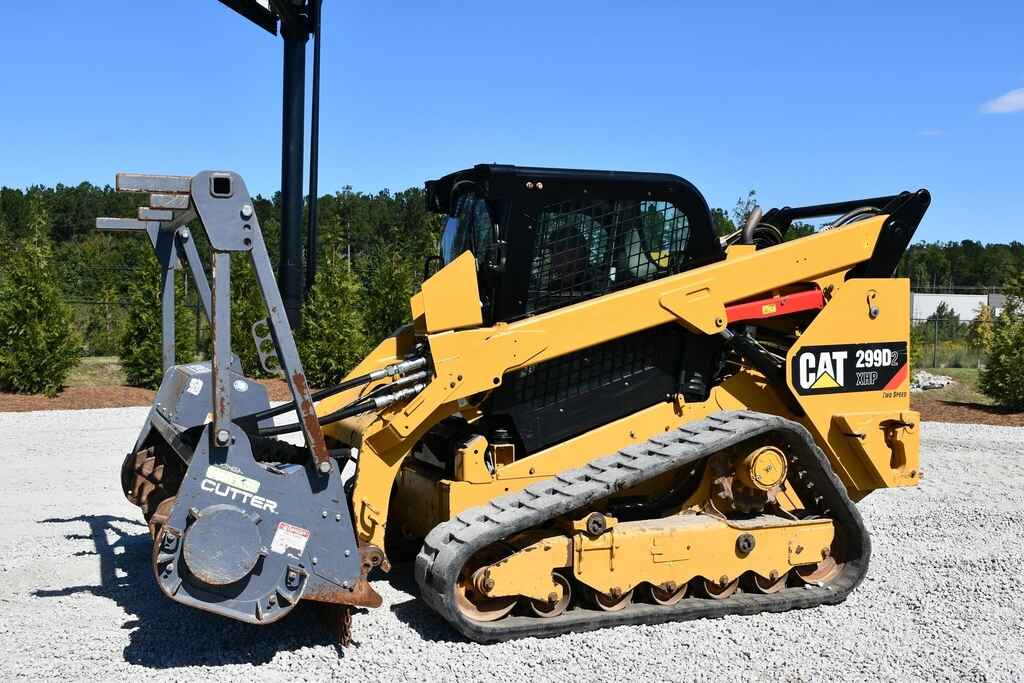

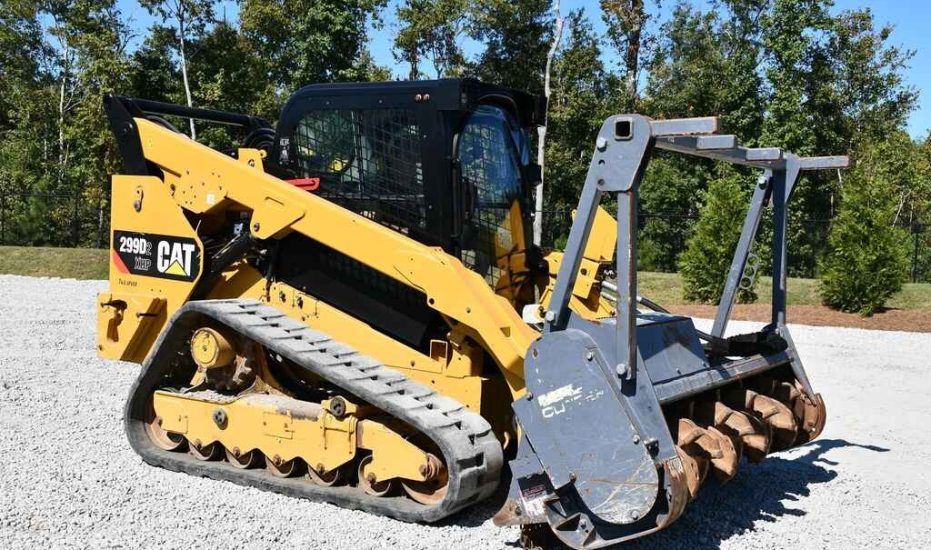

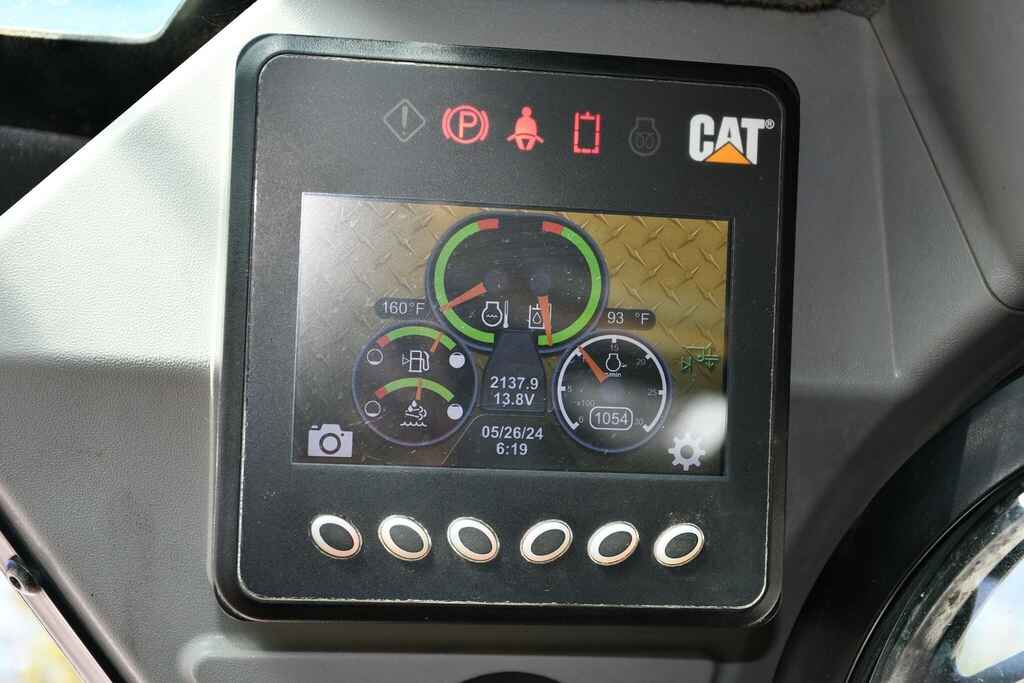

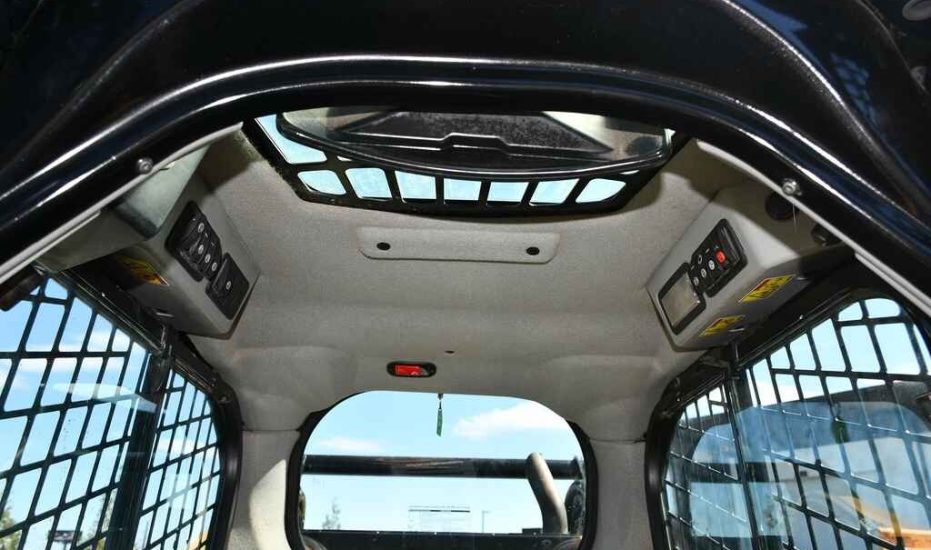

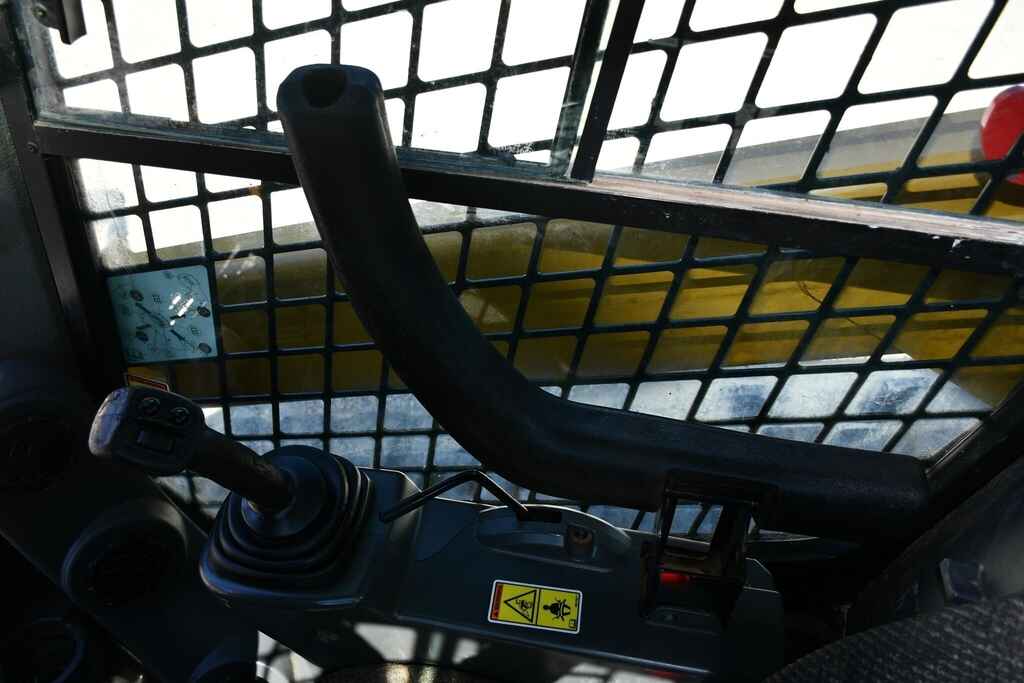

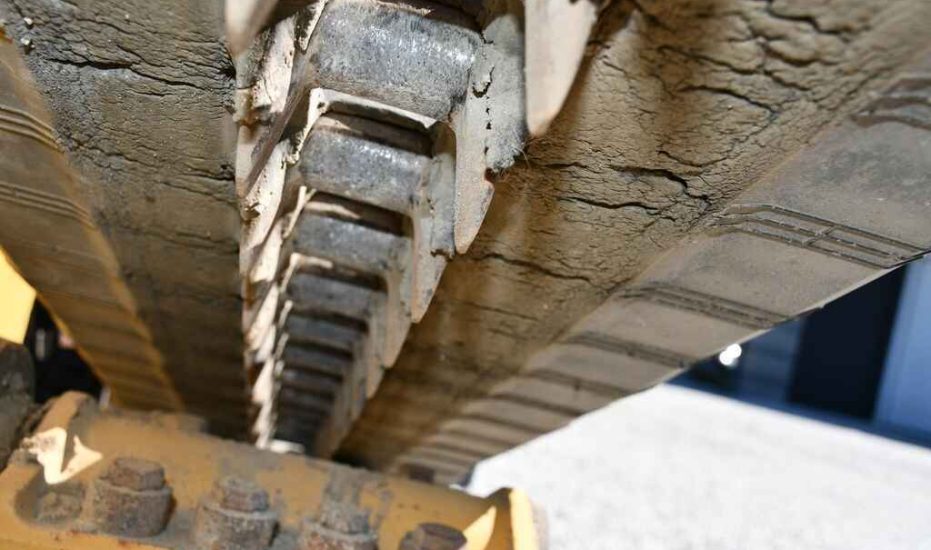

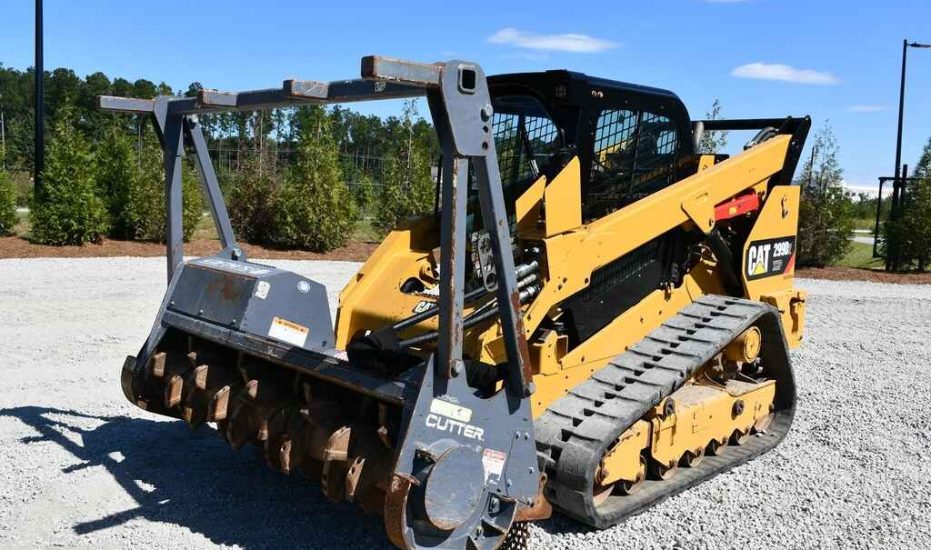

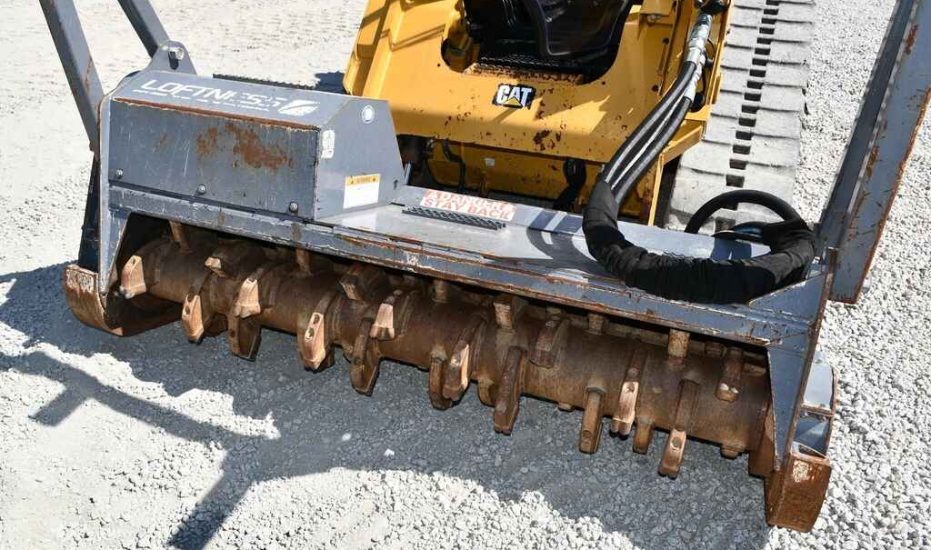

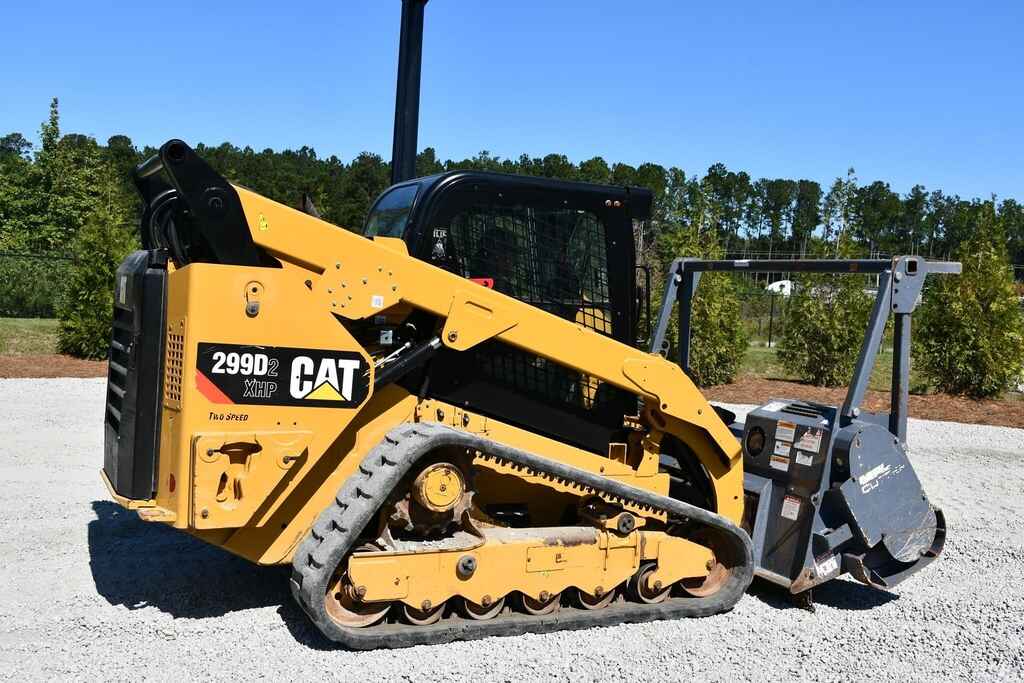

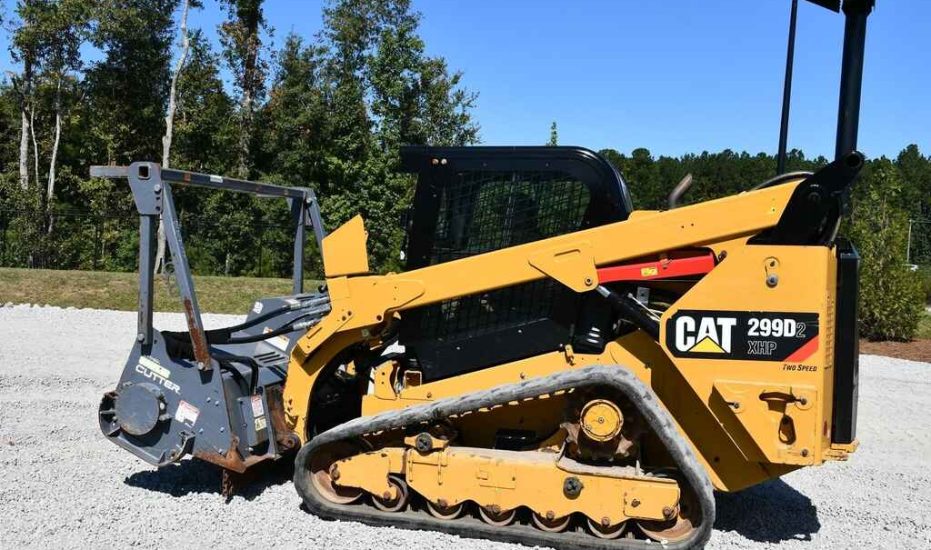

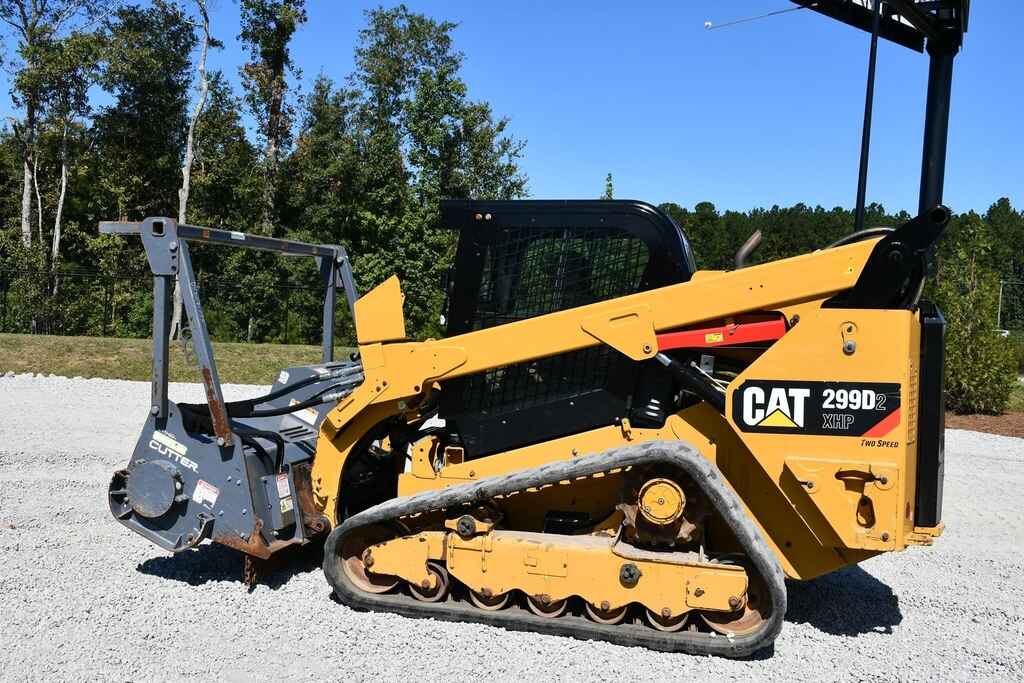

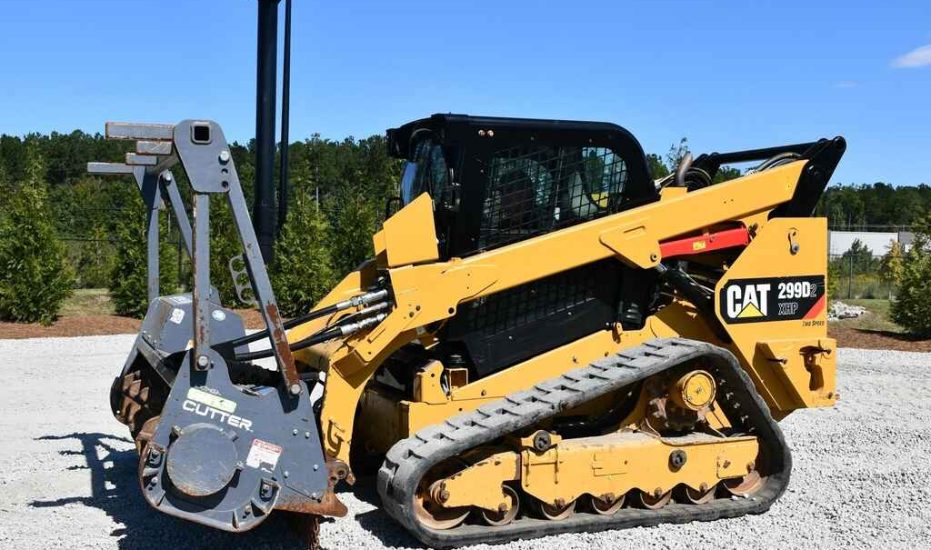

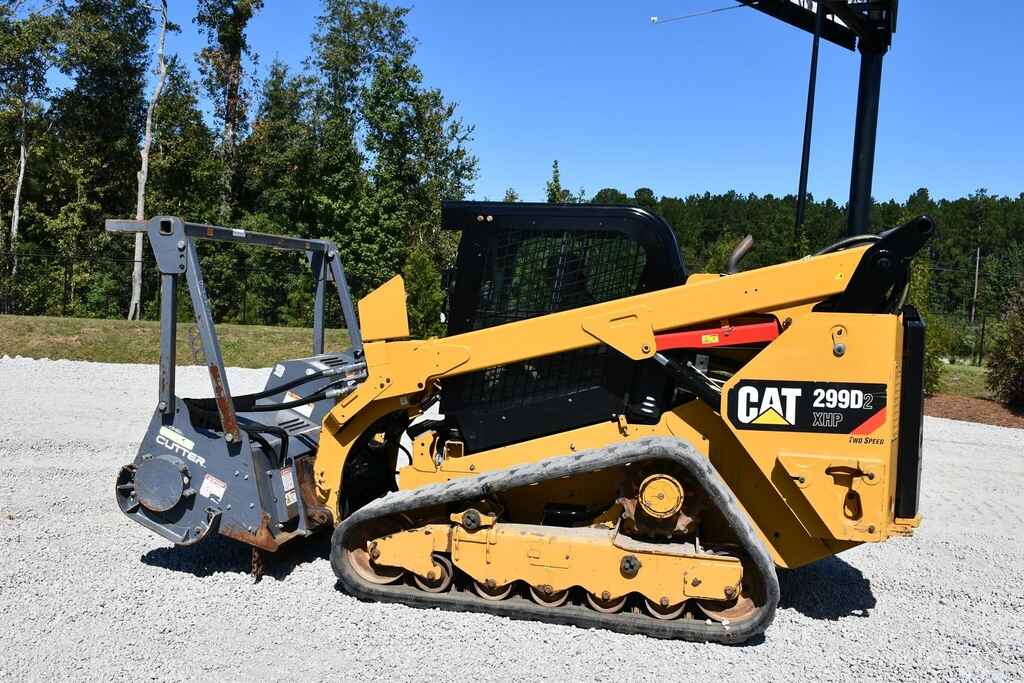

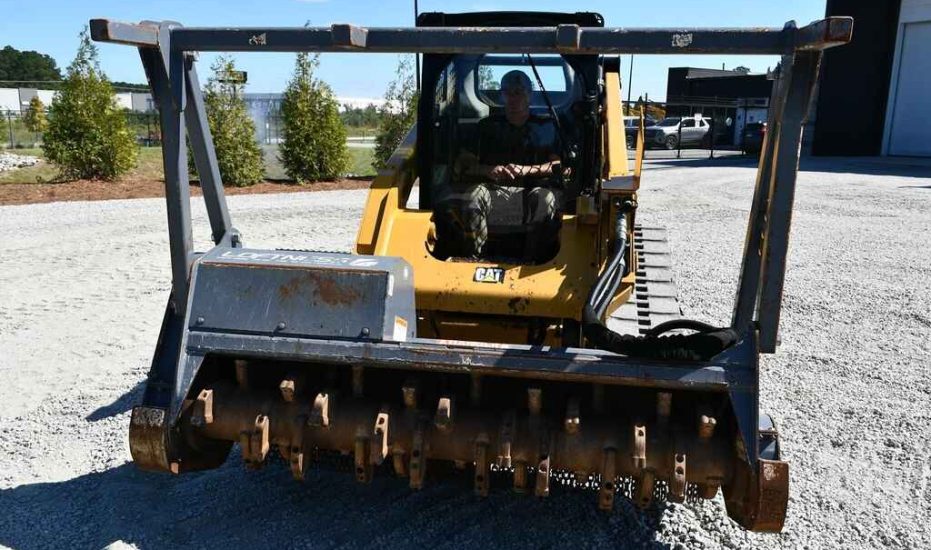

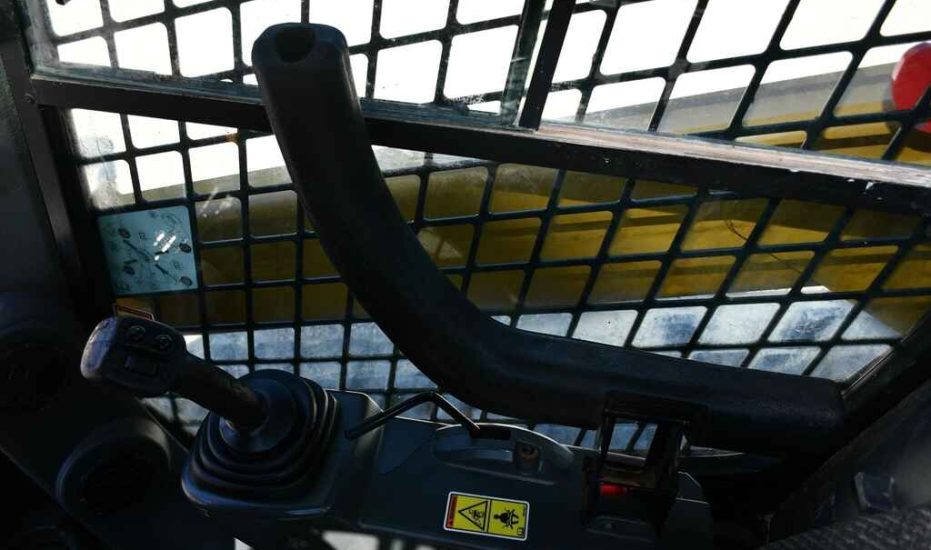

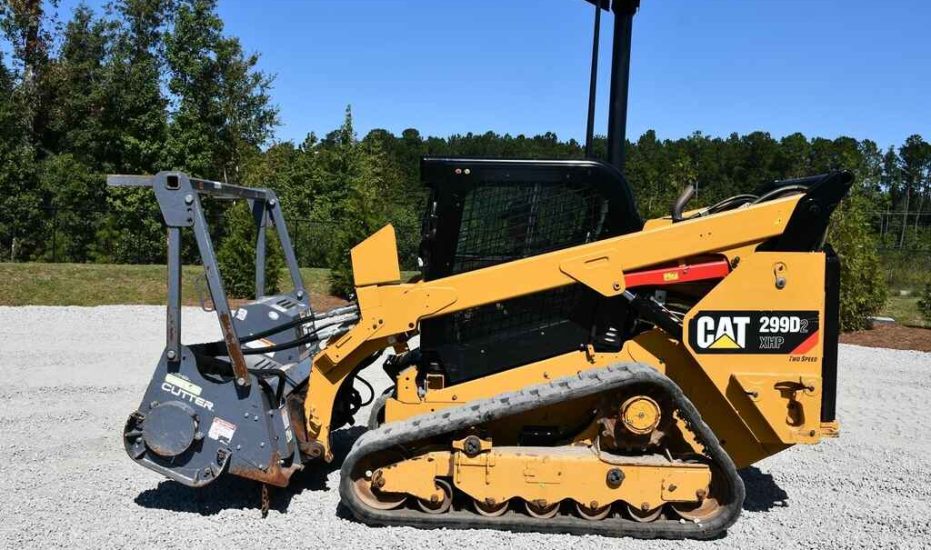

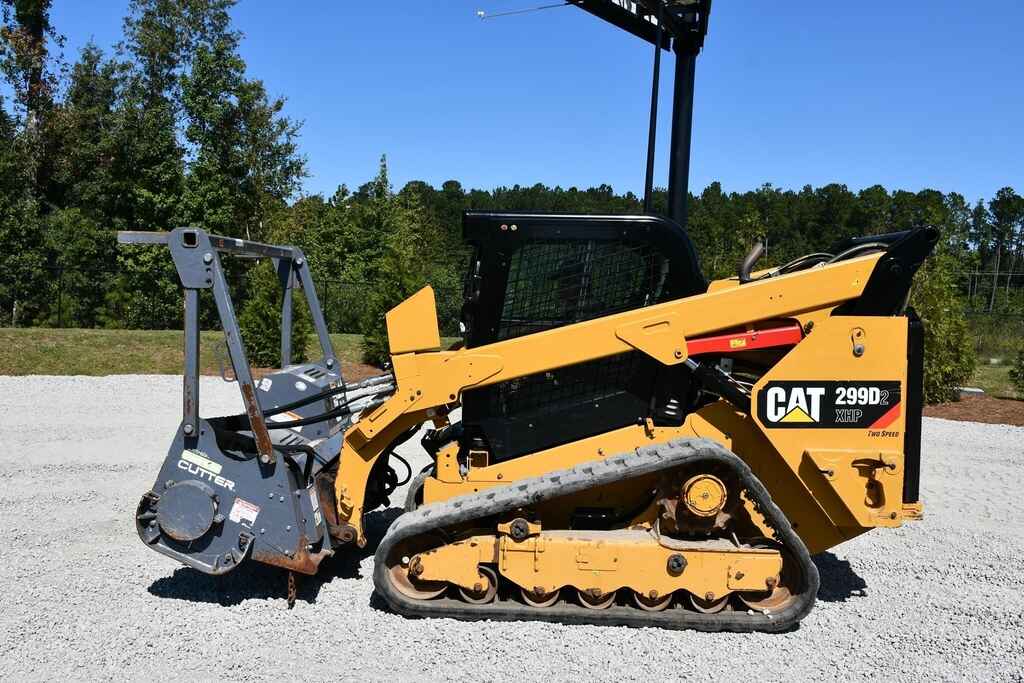

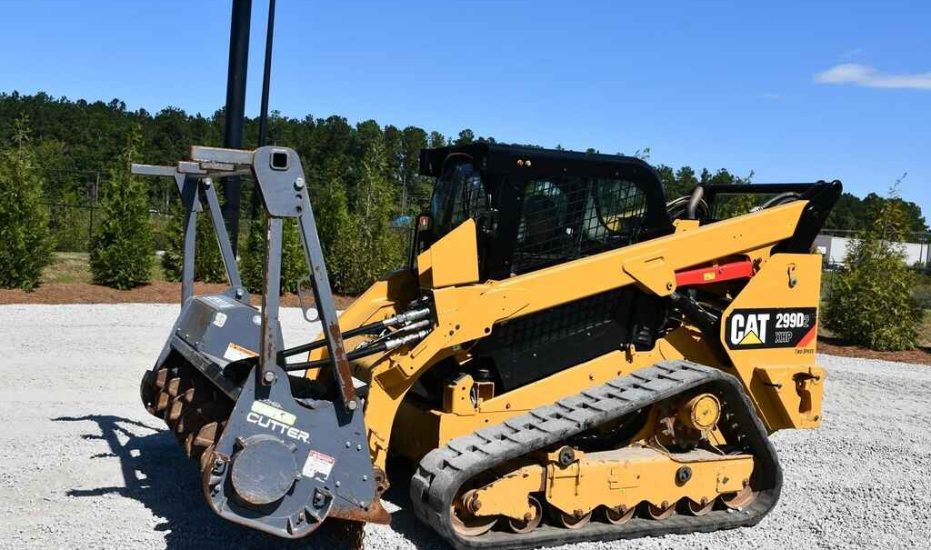

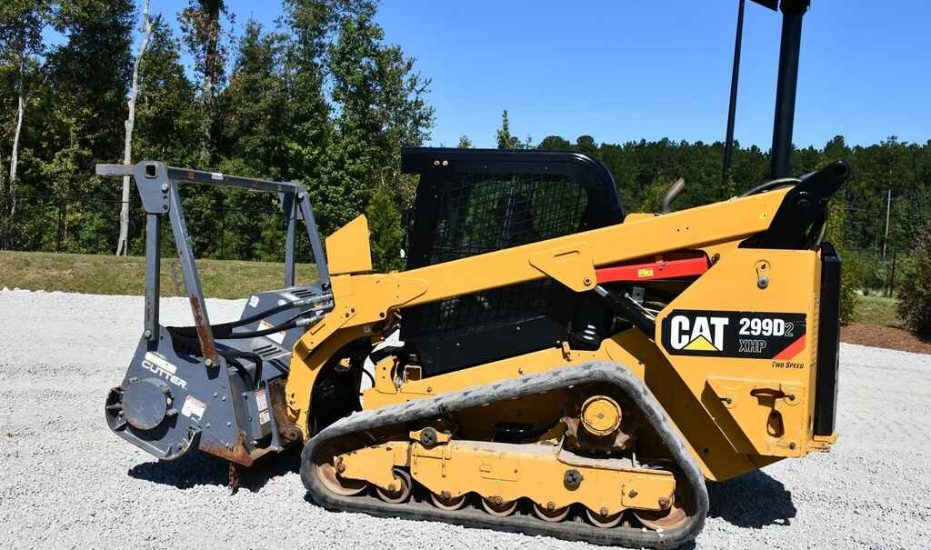

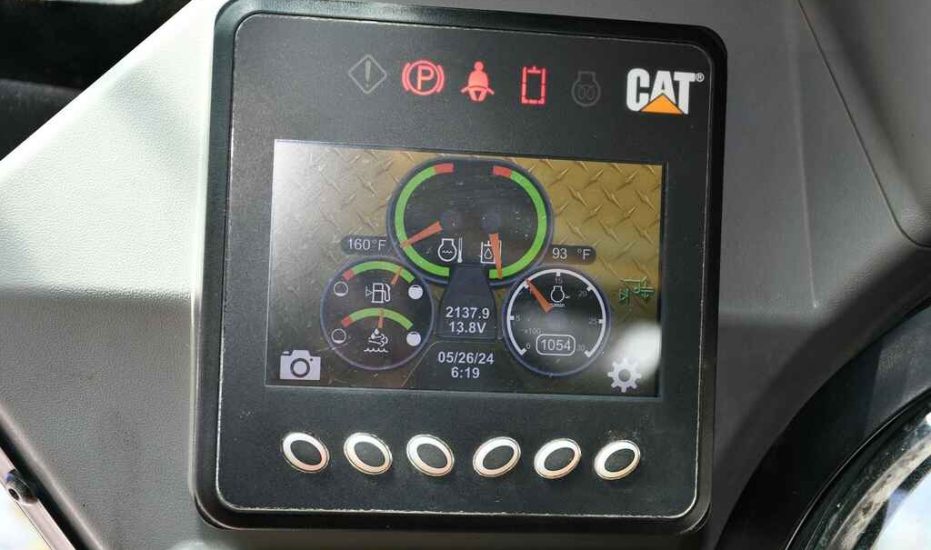

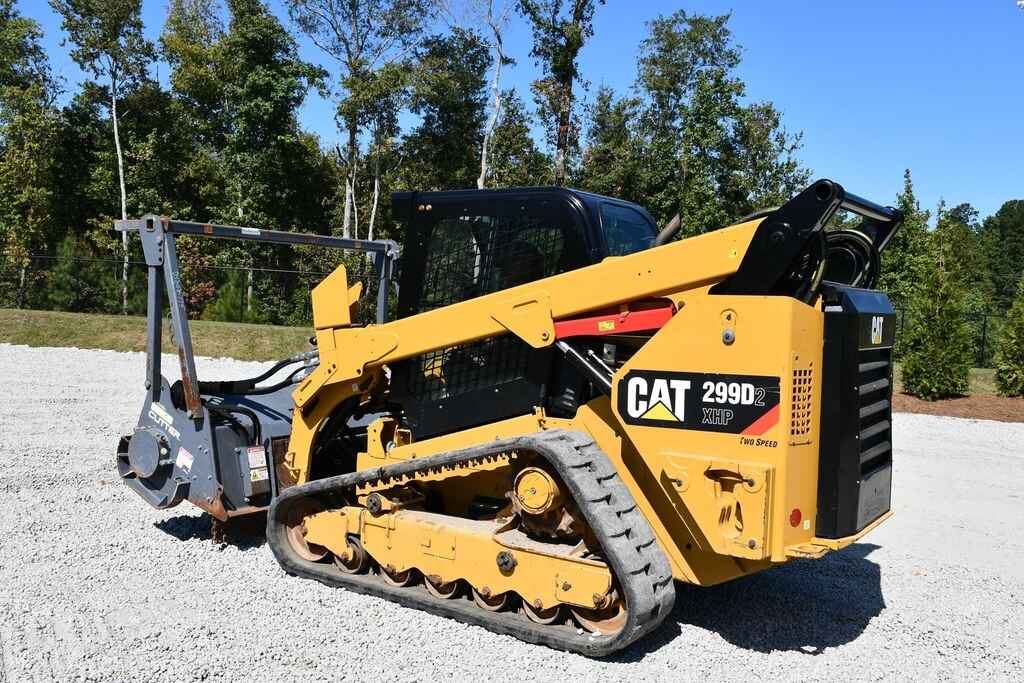

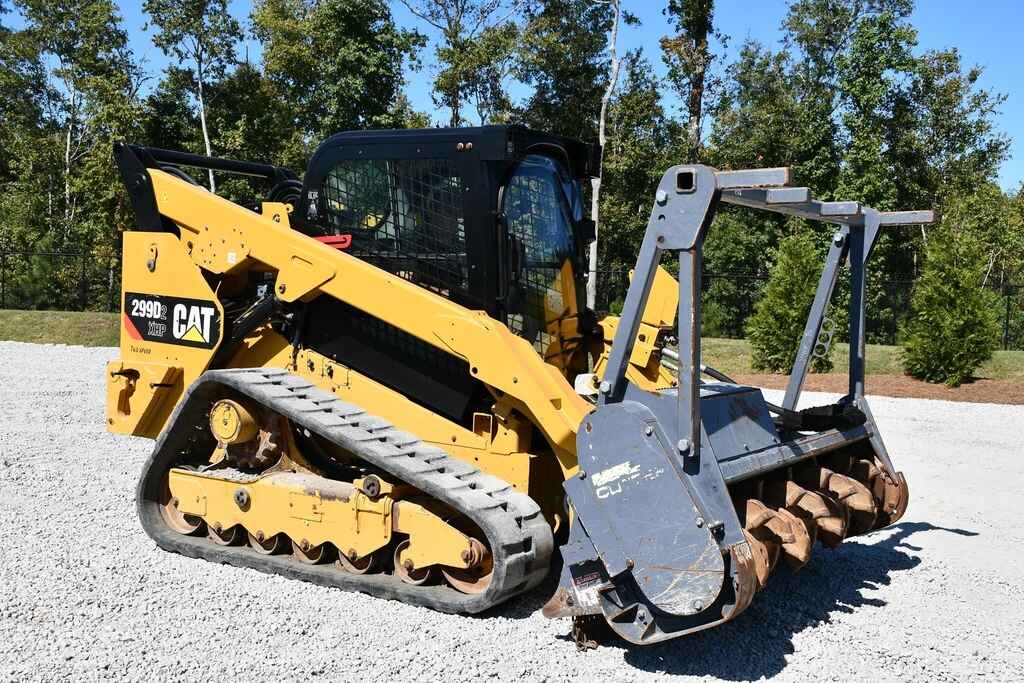

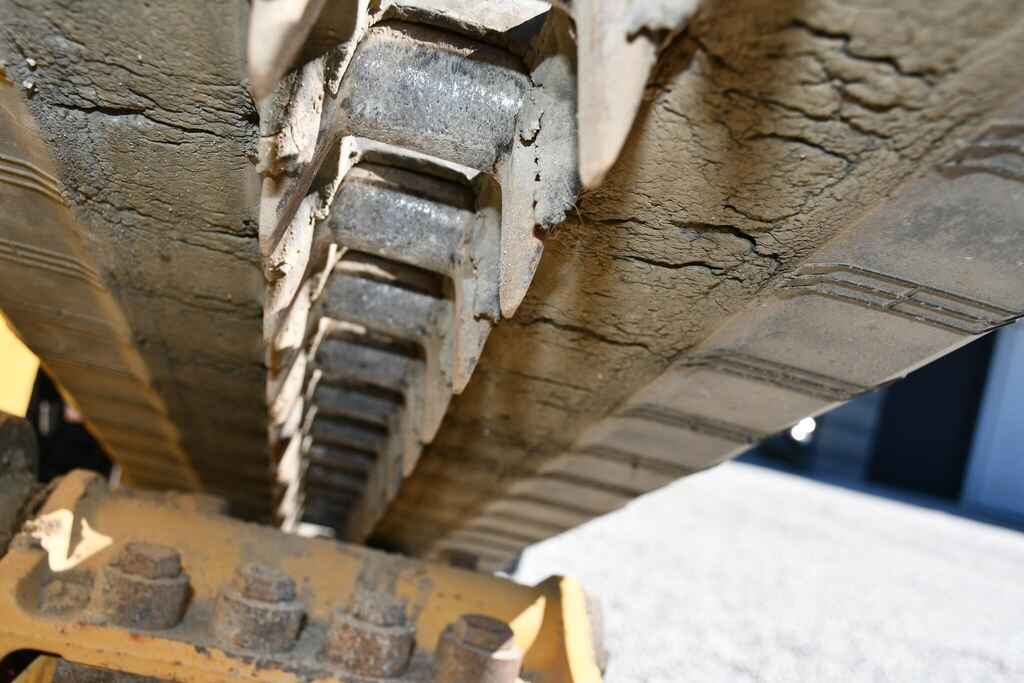

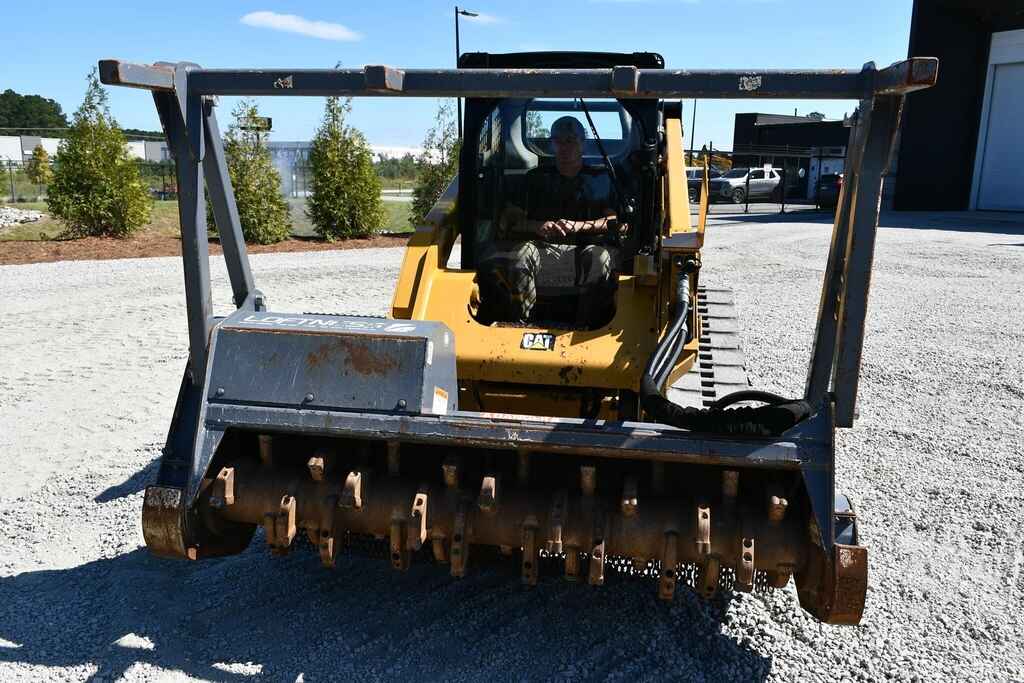

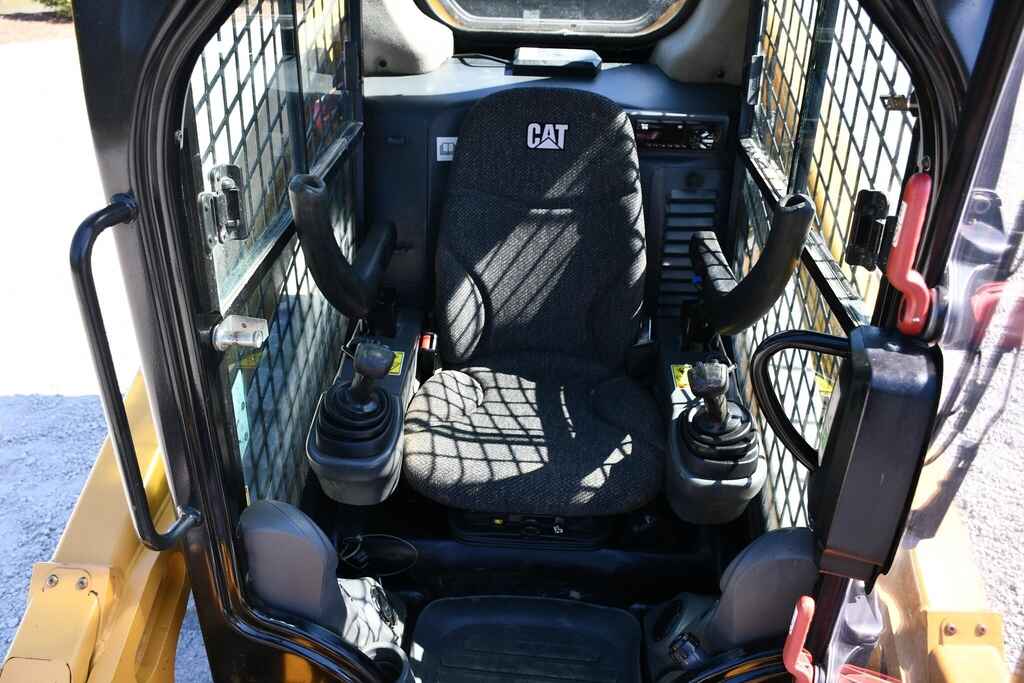

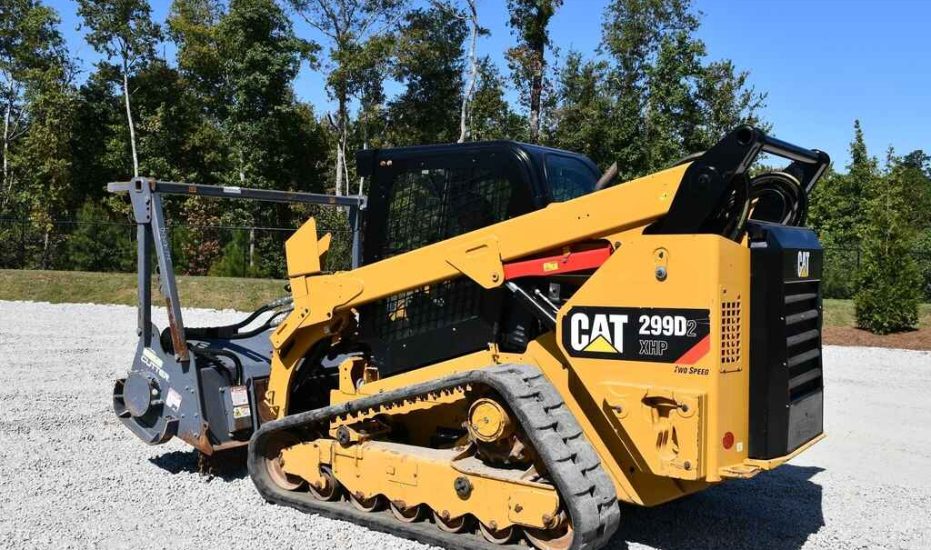

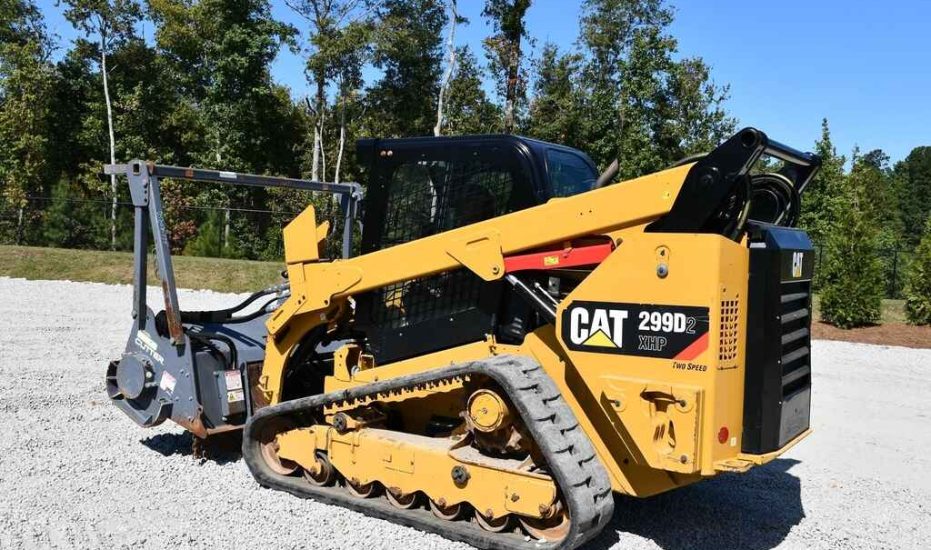

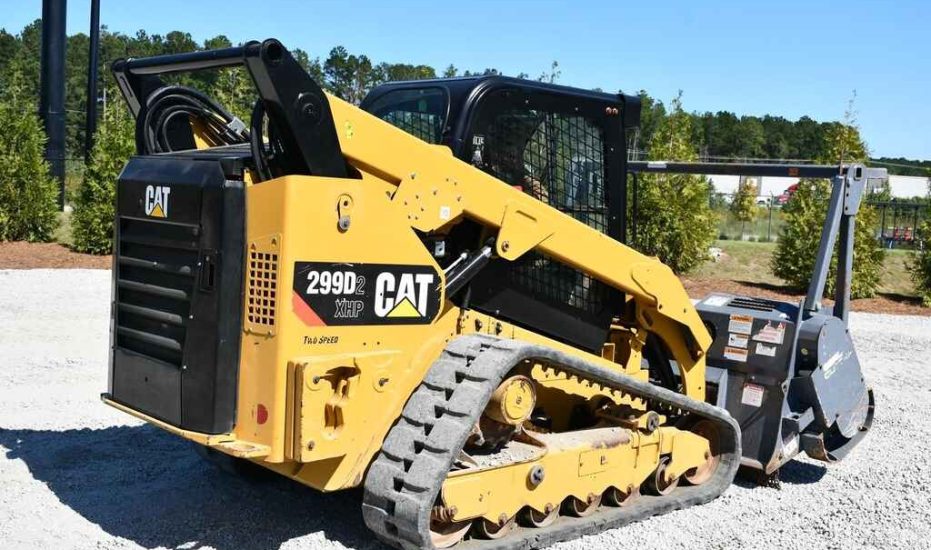

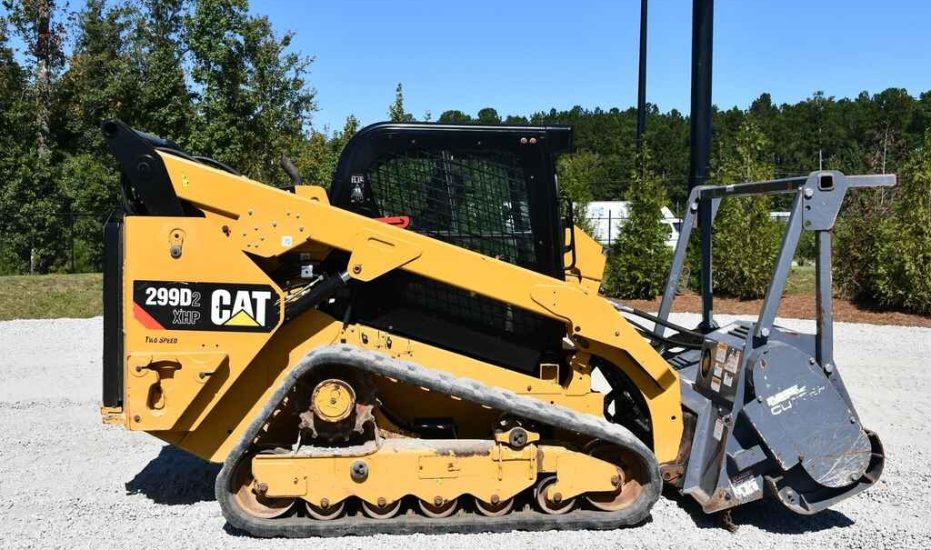

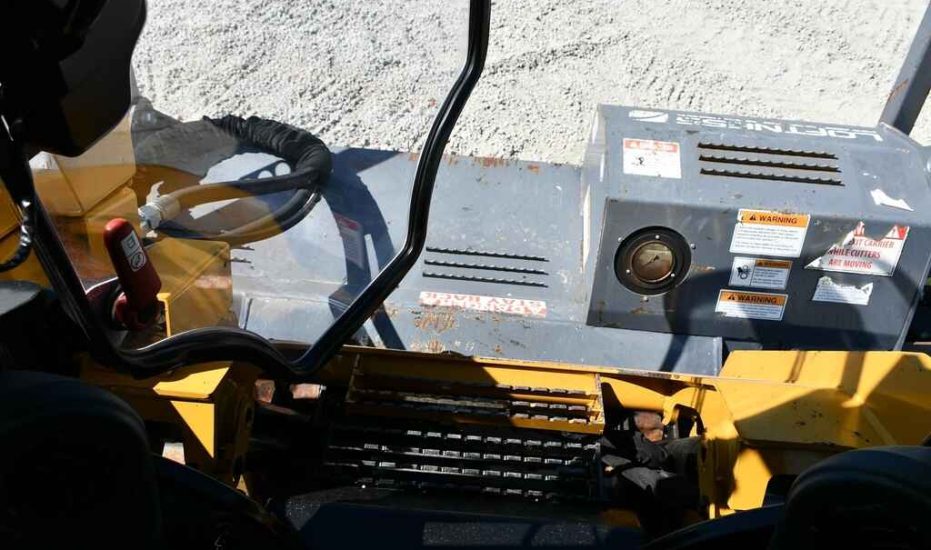

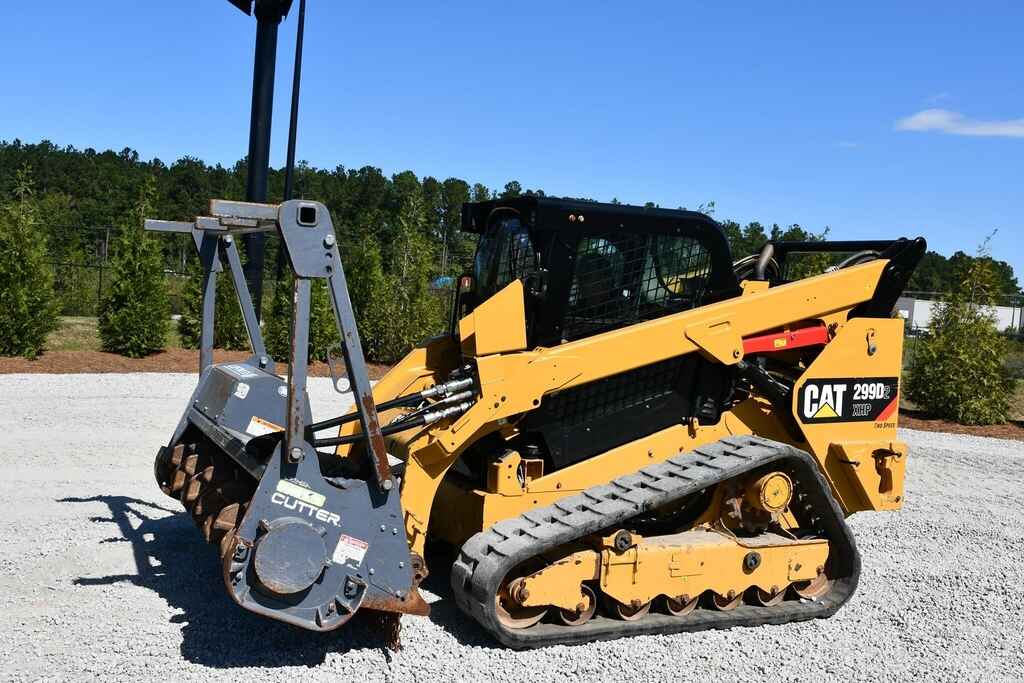

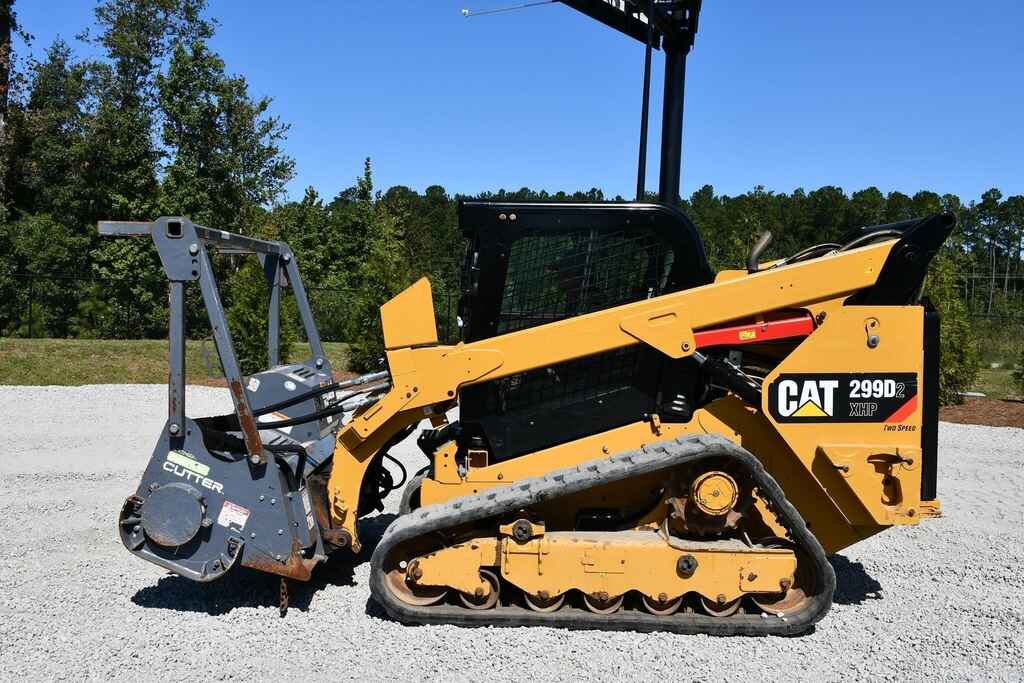

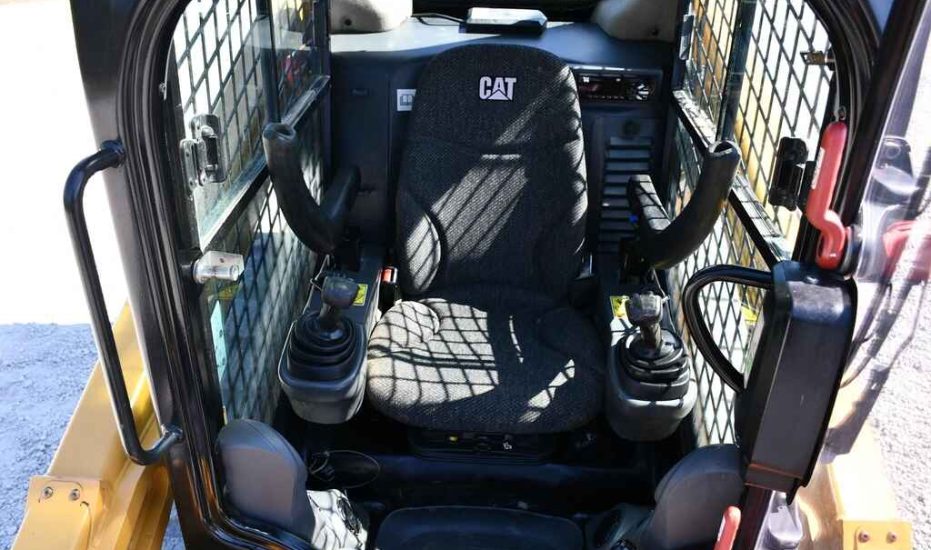

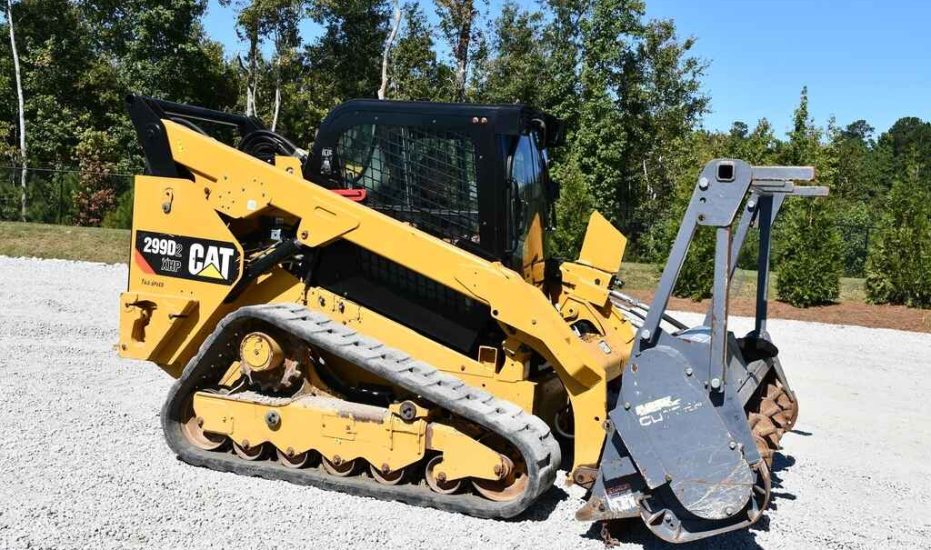

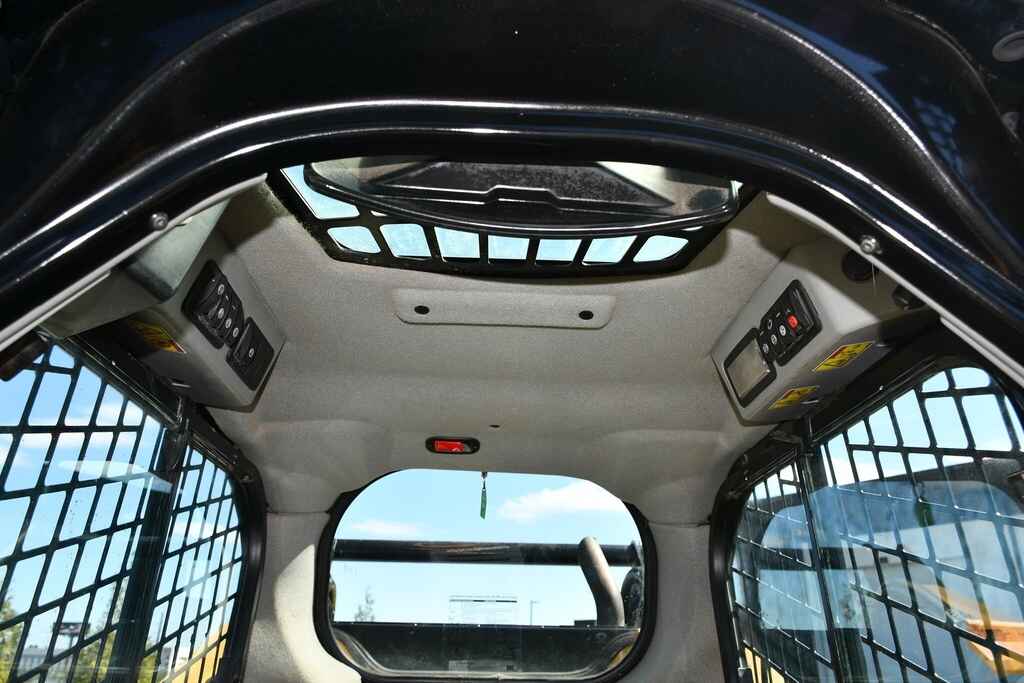

Enclosed Cab, Air Conditioner, Air Ride Seat, meter reads 2135 hours, Joystick Steering, Tier 4, 2017 US EPA Label, Requires Diesel Exhaust Fluid, 16 in Track Belts, 9 Pin Electric Kit, Hydraulic Coupler, 79 in Bucket, Mulcher, Counterweight Kit.

Machine Dimensions

• Ground Clearance: 0.8 ft
• Bucket Pin Height – Carry Position: 7.1 in
• Bucket Pin Height – Maximum Lift: 10.53 ft
• Bucket Pin Reach – Maximum Lift: 19.4 in
• Clearance At Maximum Lift And Dump: 94.5 in
• Departure Angle: 33 degrees
• Height – Top Of Cab: 6.97 ft
• Length – Track On Ground: 69.6 in
• Length – With Bucket On Ground: 154.7 in
• Length – Without Bucket: 125.5 in
• Maximum Dump Angle: 54 degrees
• Maximum Overall Height: 158.7 in
• Maximum Reach – With Arms Parallel To Ground: 51.9 in
• Overall Length – Track: 89.4 in
• Rack Back Angle – Maximum Height: 81 degrees
• Reach – Maximum Lift/Dump: 33.6 in
• Roll Back Angle: 25 degrees
• Turning Radius From Center – Bucket (Racked): 91.1 in
• Turning Radius From Center – Coupler: 58.1 in
• Turning Radius From Center – Machine Rear: 74 in

Note

Operating Weight, Operating Specifications, and Dimensions are based on the following conditions:

• 75 kg (165 lb) operator
• All fluids
• Two-speed system
• Ride control
• Enclosed cab with glass door and side windows
• Air conditioning
• Air ride seat
• Advanced display
• Rearview camera
• 1,000 CCA battery
• Dual direction self-leveling
• 1981 mm (78 in) dirt bucket
• 400 mm (15.7 in) tracks
• Triple flange front/rear idlers
• No optional counterweights
• Manual quick coupler (unless otherwise noted)

Vehicle Width (400 Mm / 15.7 In Tracks)

• Width: 76 in

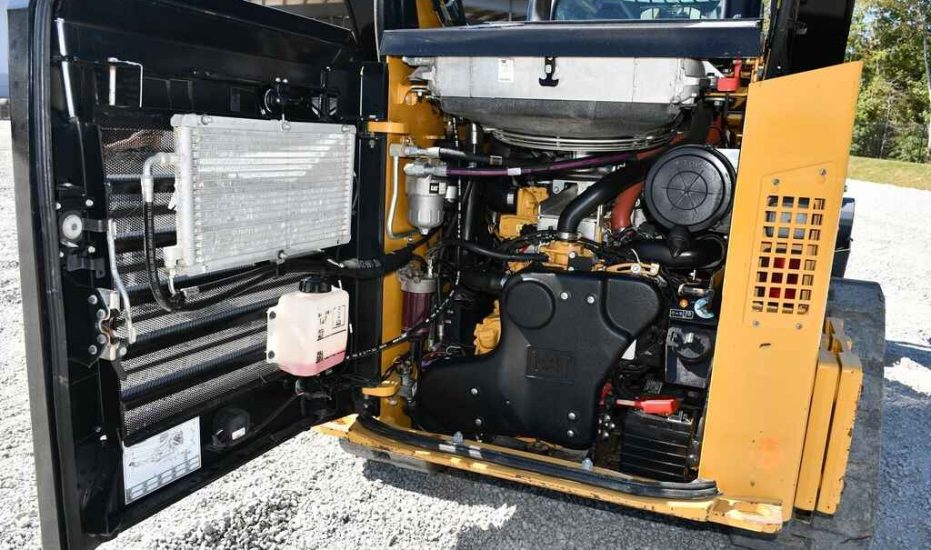

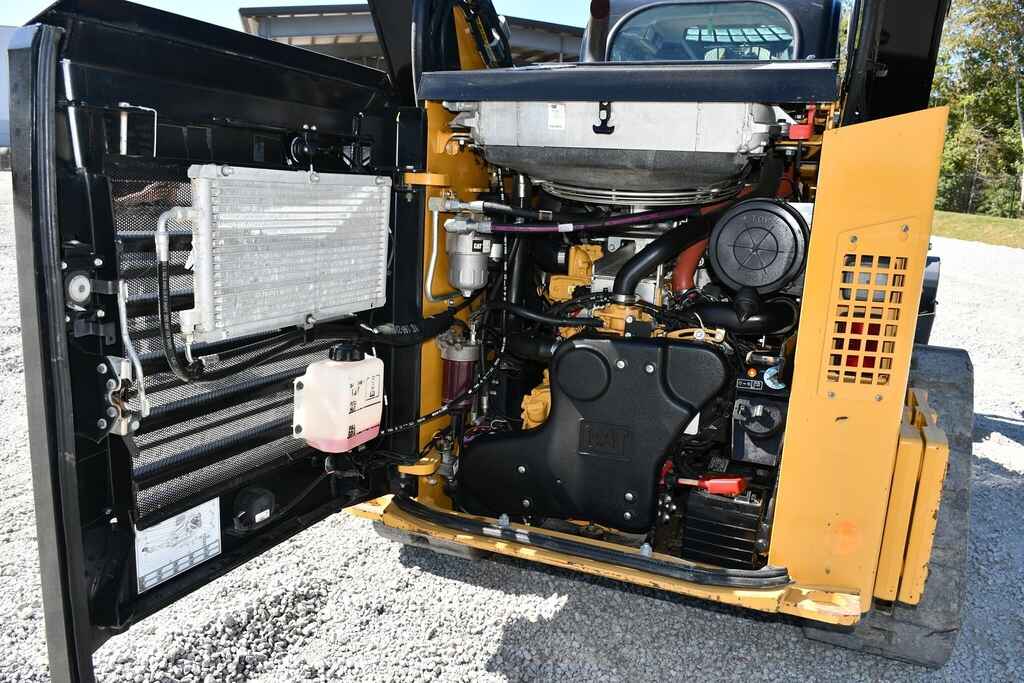

Engine Specifications

• Net Power: 106 hp
• Displacement: 232 cu in
• Bore: 3.9 in
• Stroke: 4.7 in
• Net Power – ISO 9249: 107 hp
• Gross Power – SAE J1995: 110 hp
• Engine Model: Cat C3.8 DIT (turbo)
• Net Power – SAE 1349: 106 hp
• Peak Torque – 1,500 RPM – SAE J1995: 276 lb-ft

Operational Specifications

• Operating Weight: 11,608 lb

Power Train Specifications

• Travel Speed – Forward Or Reverse (One Speed): 5.2 mph
• Travel Speed – Forward Or Reverse (Two Speed): 8.4 mph
