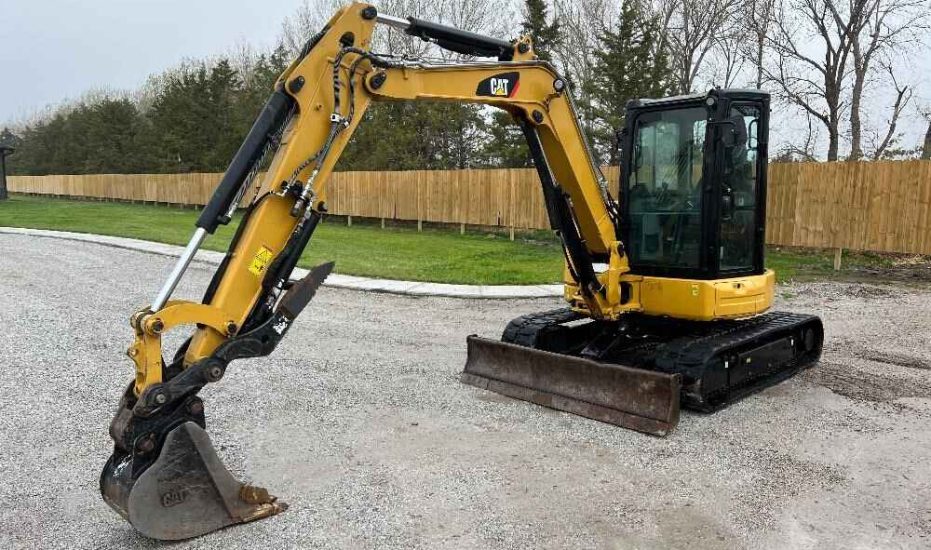

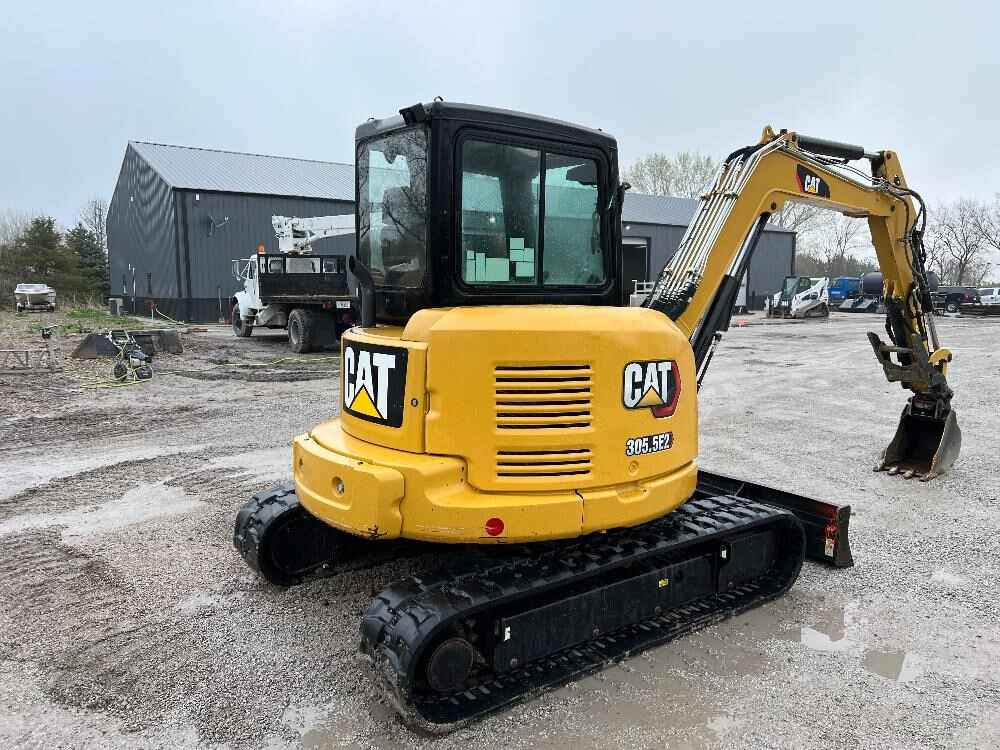

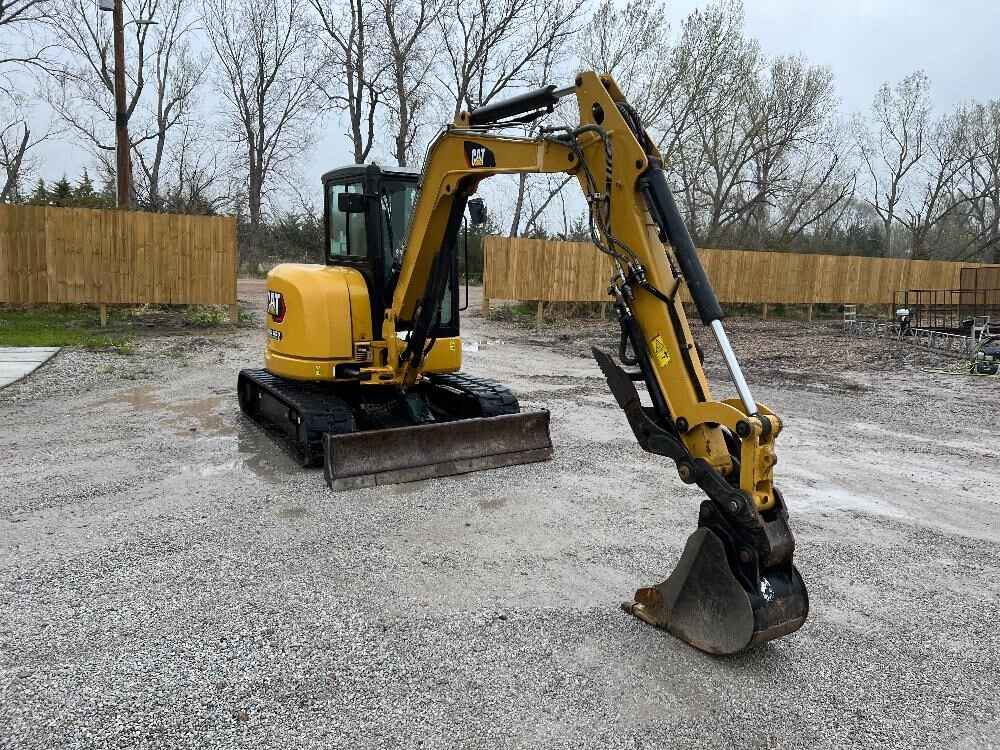

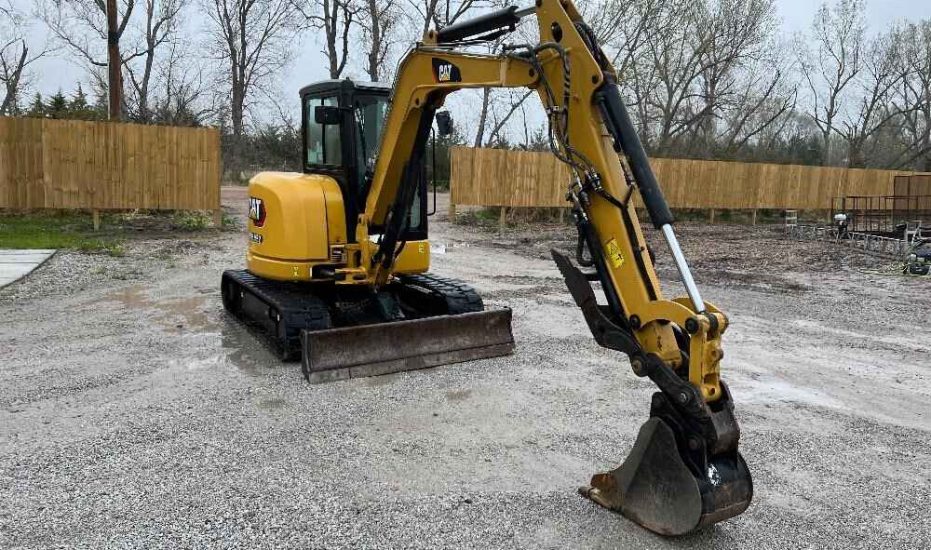

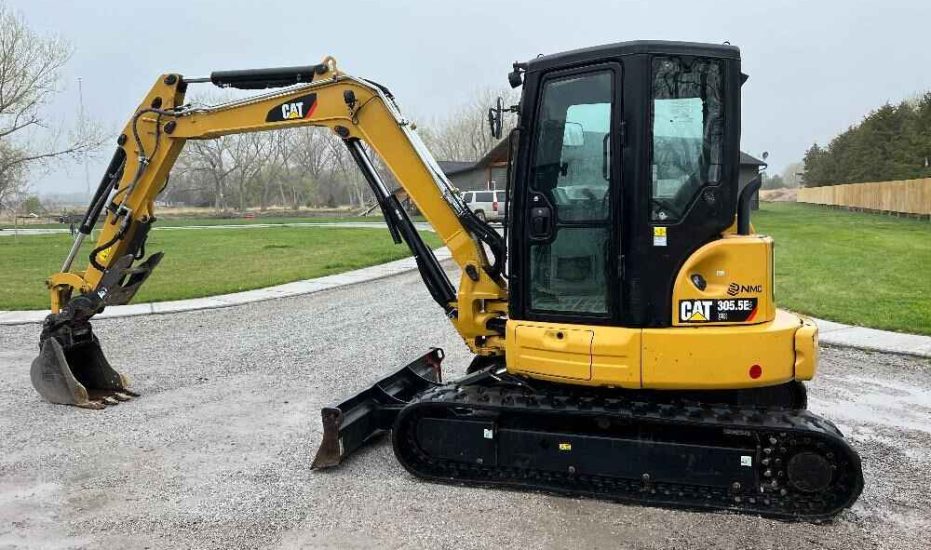

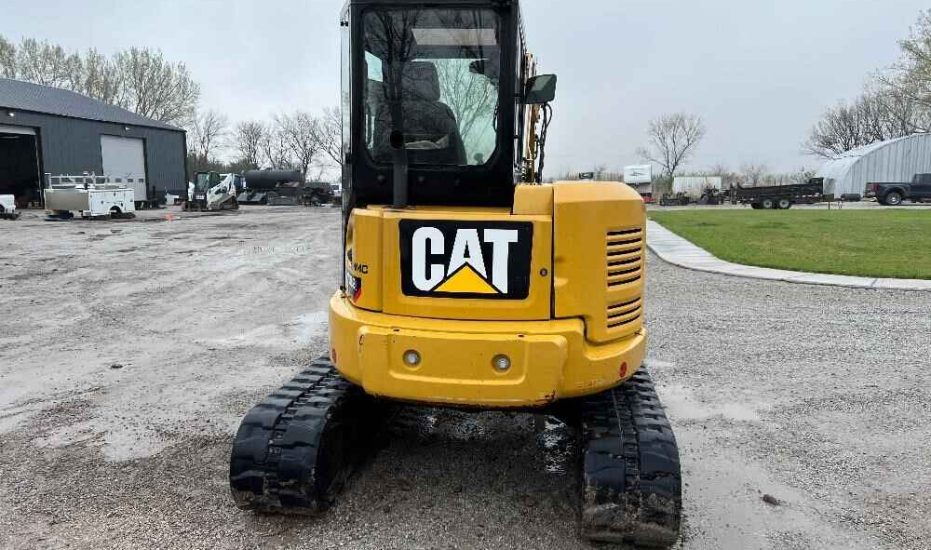

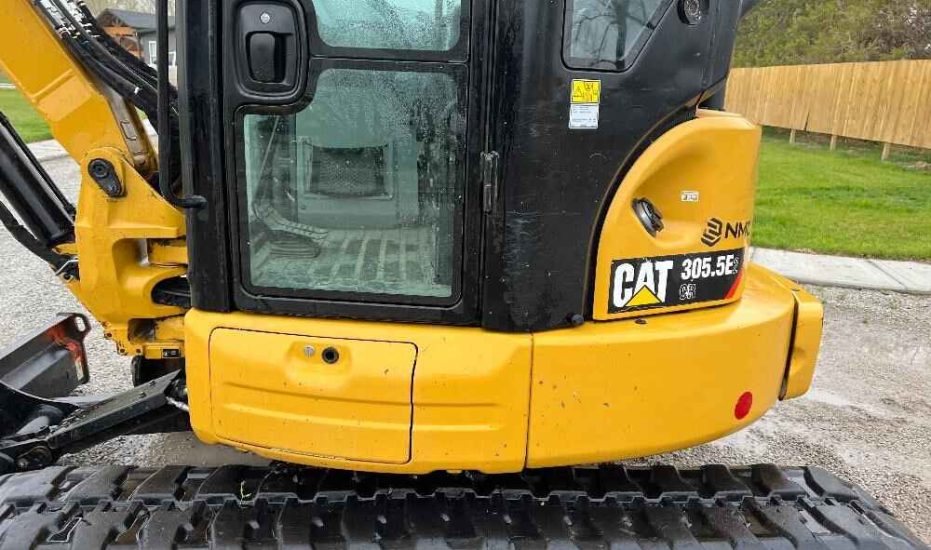

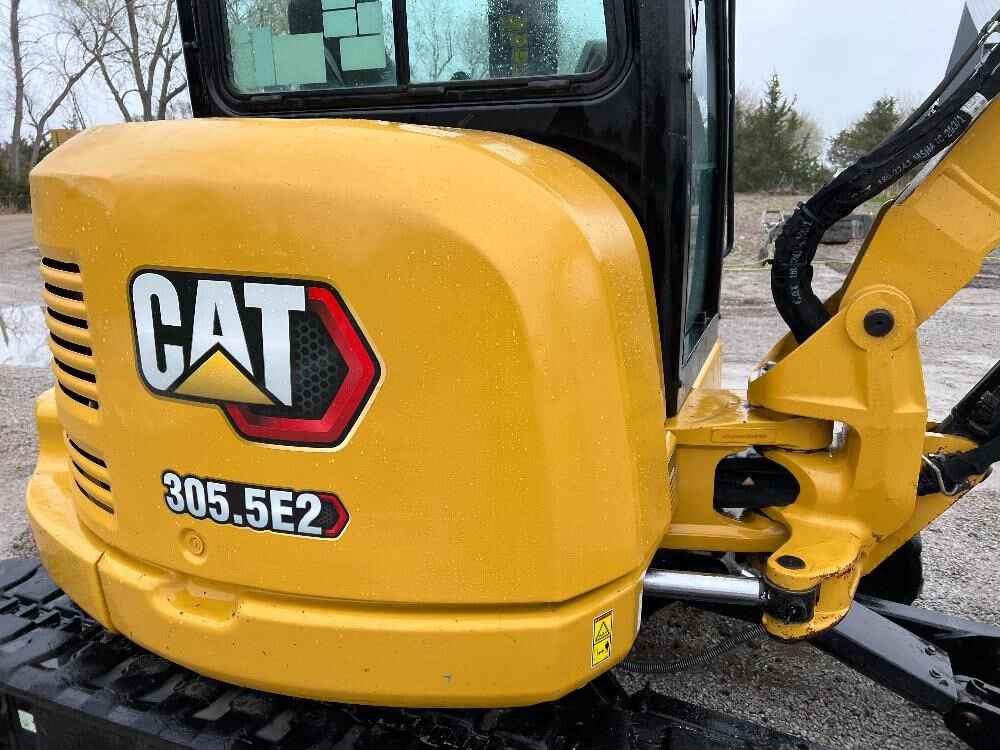

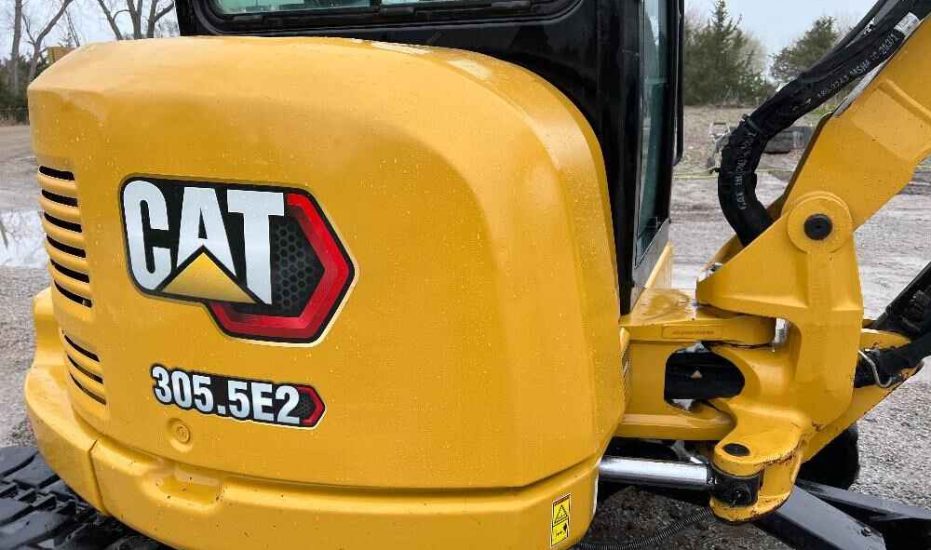

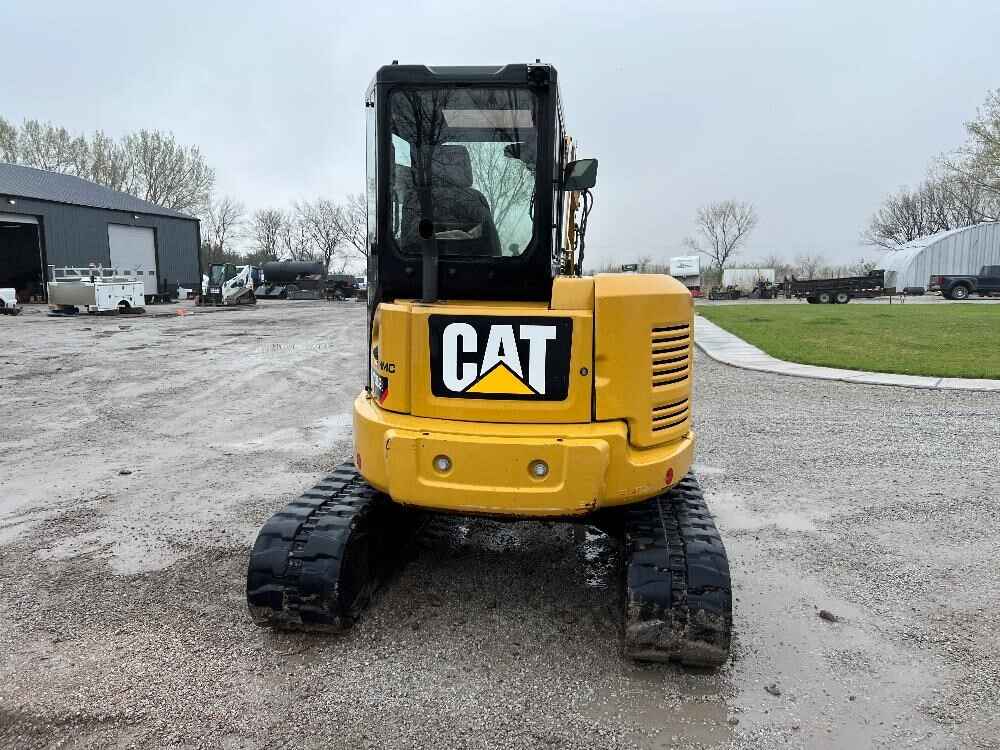

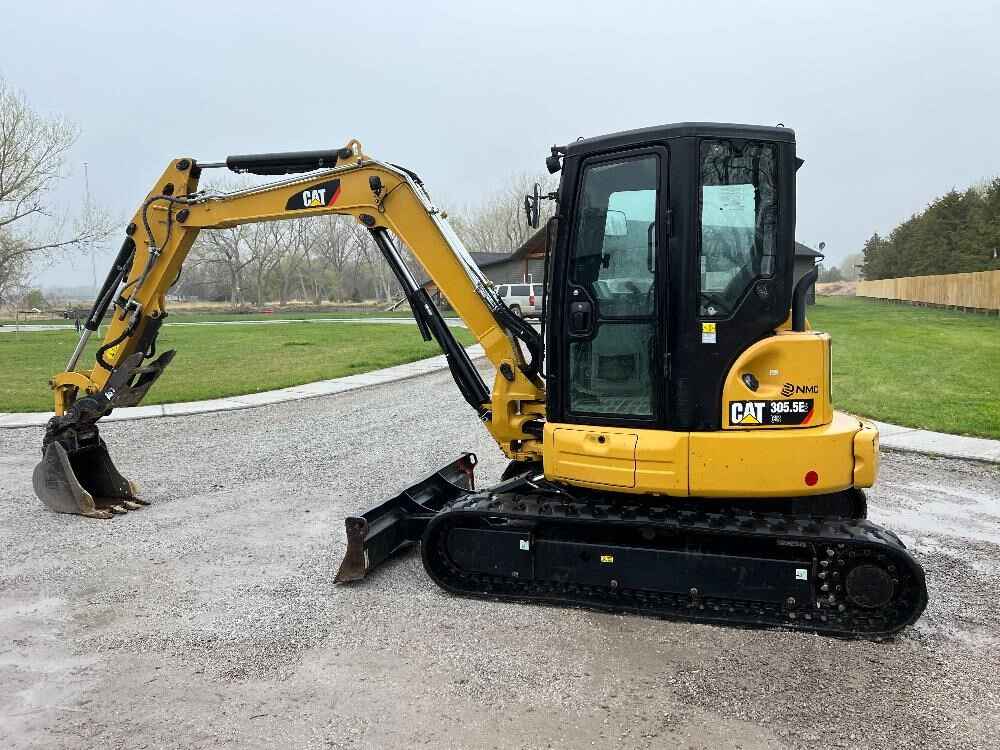

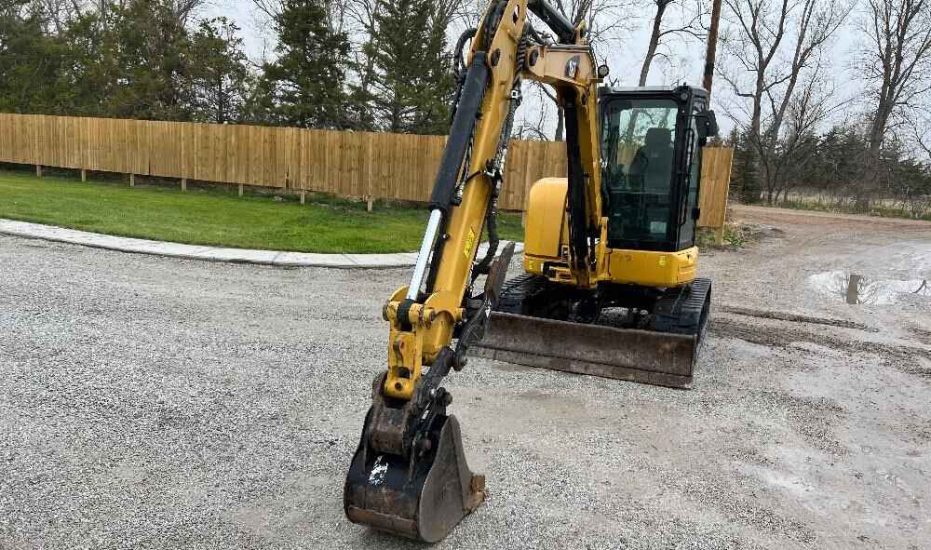

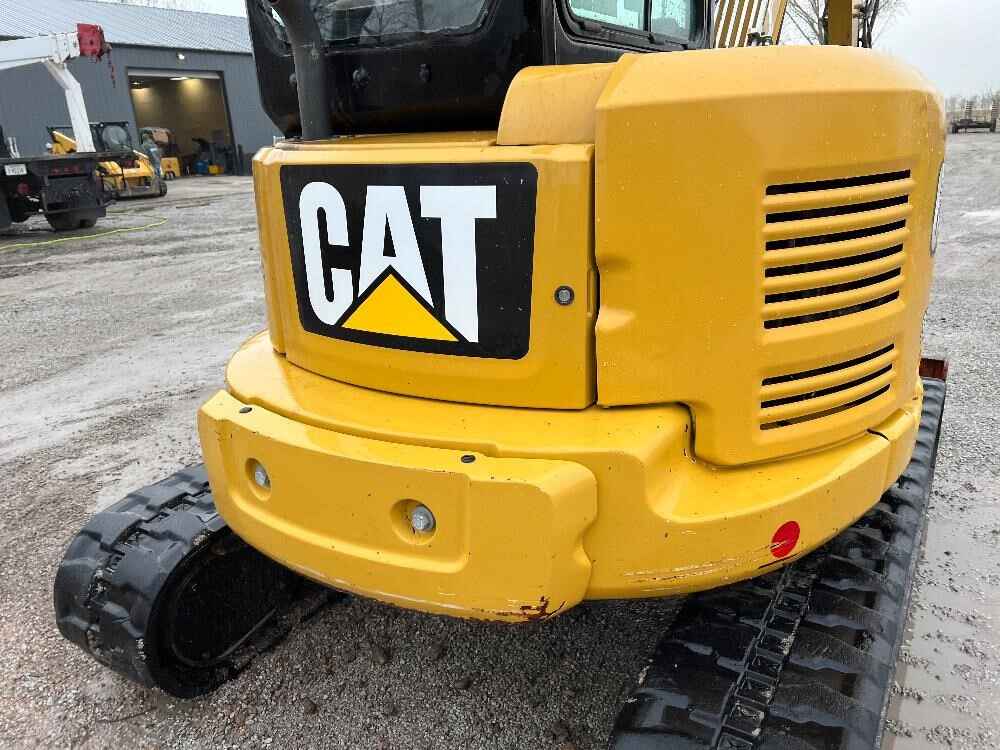

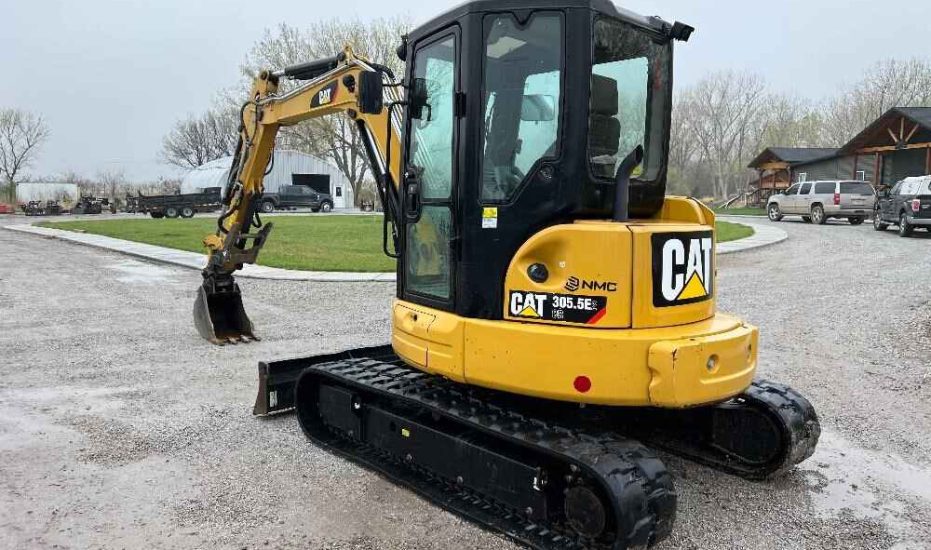

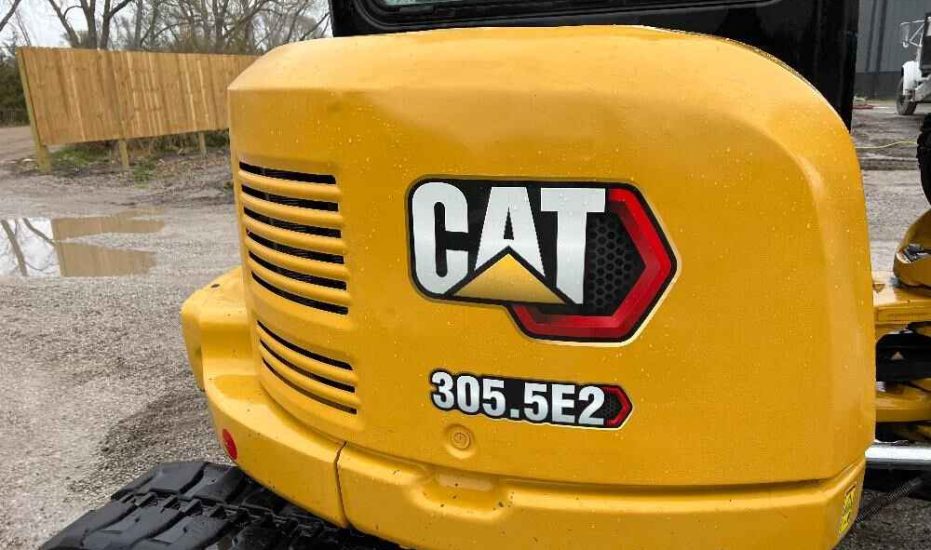

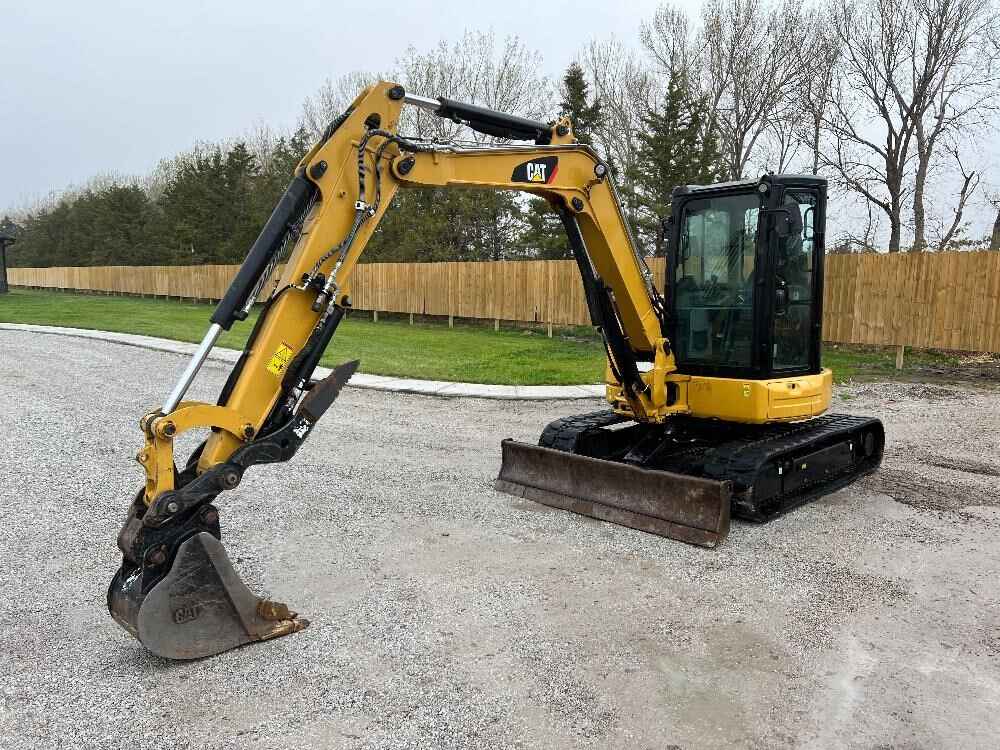

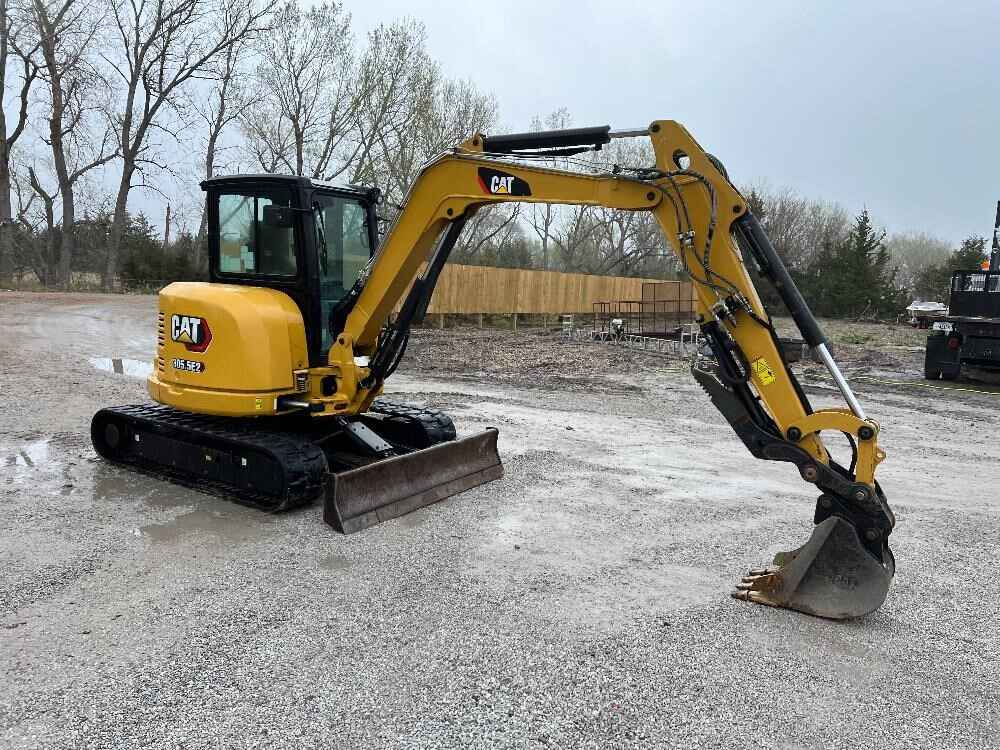

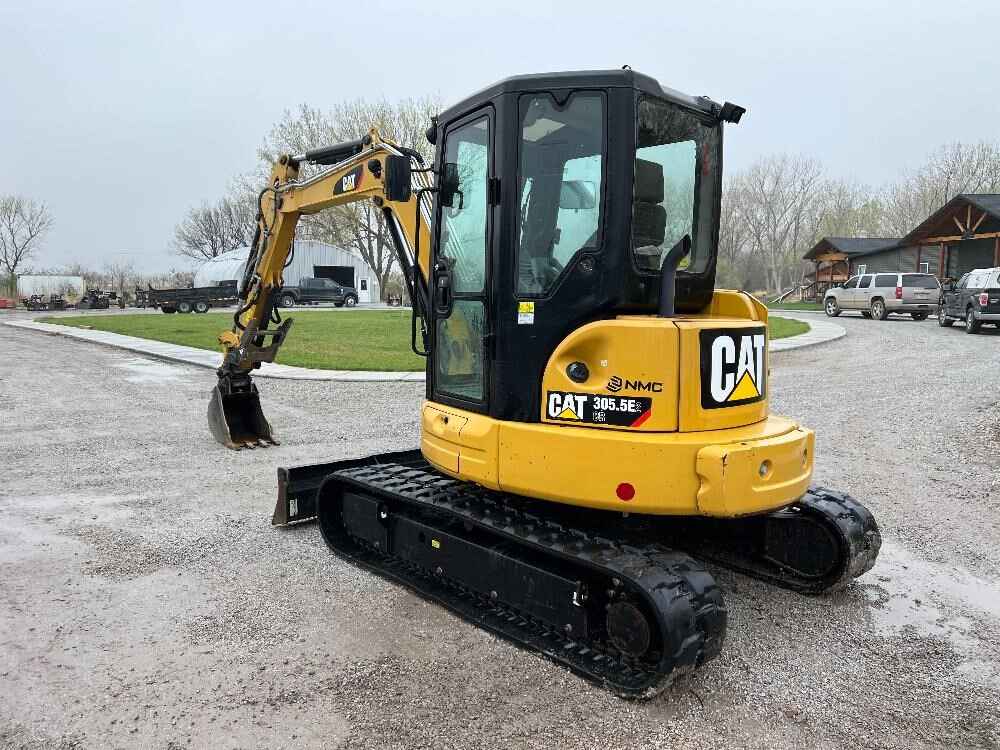

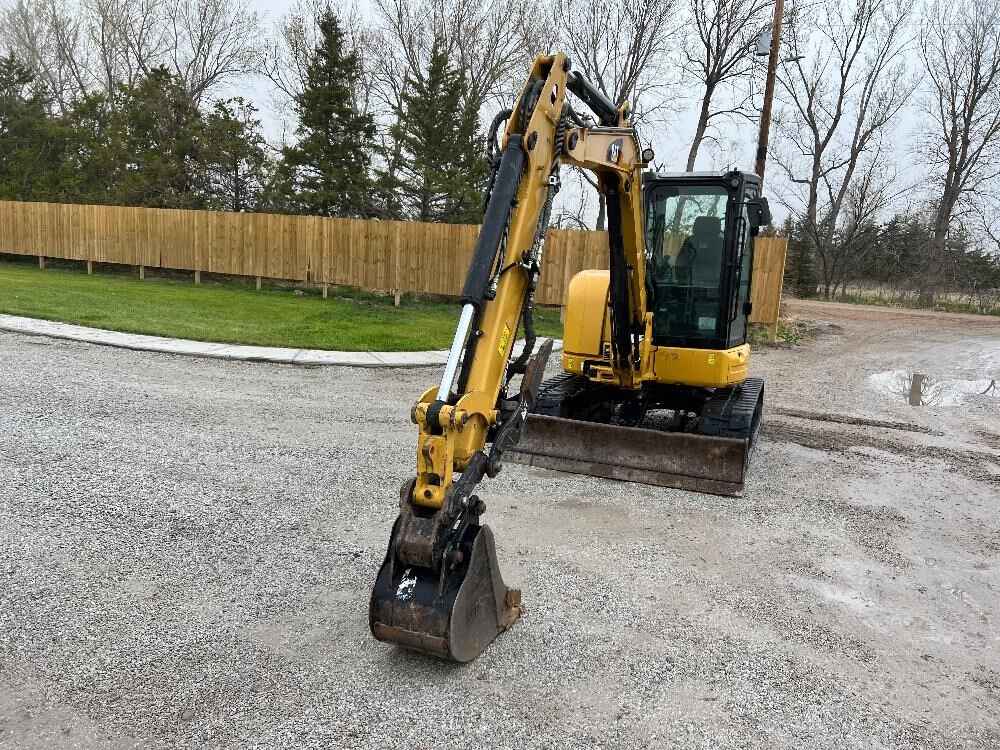

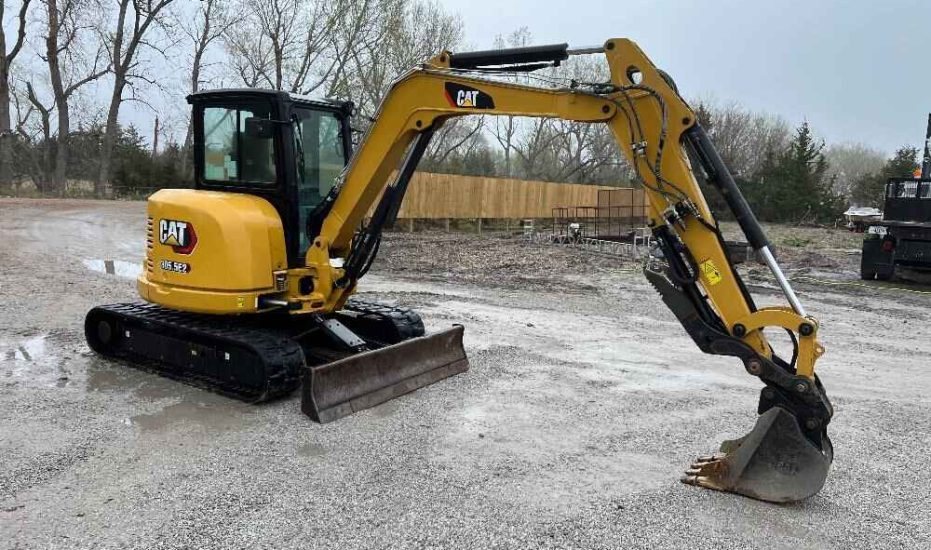

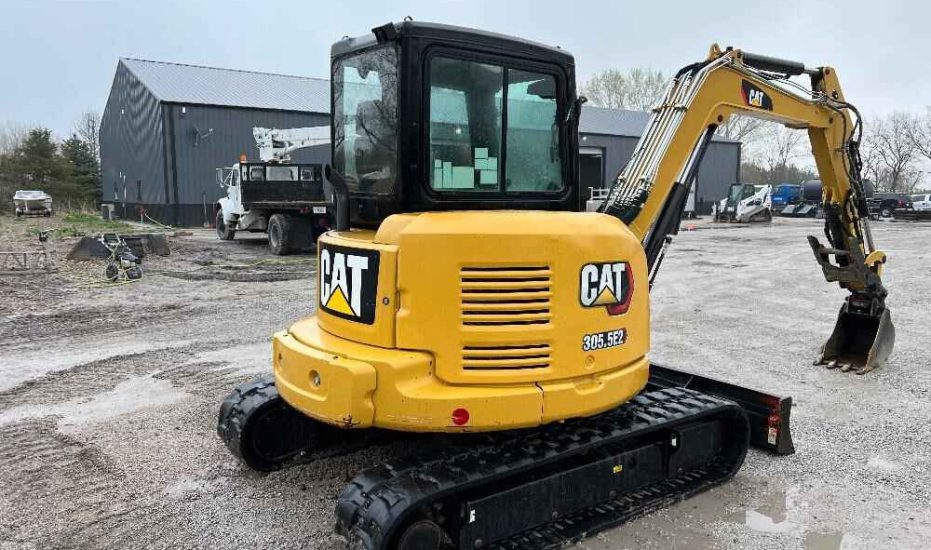

2018 Caterpillar 305.5E2 CR

2018

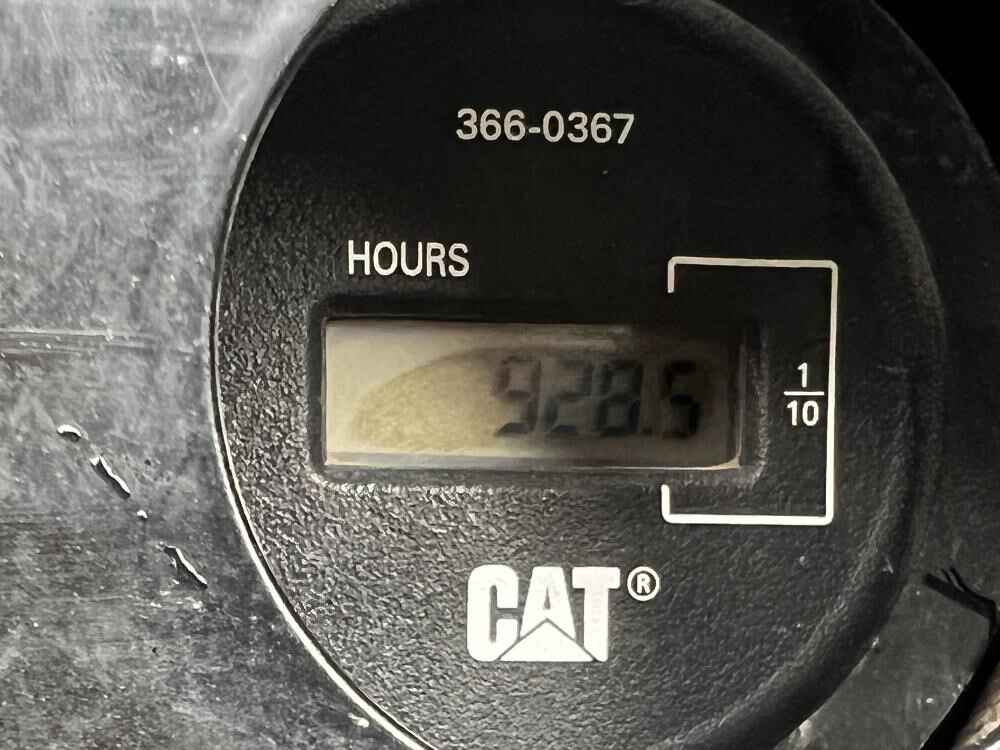

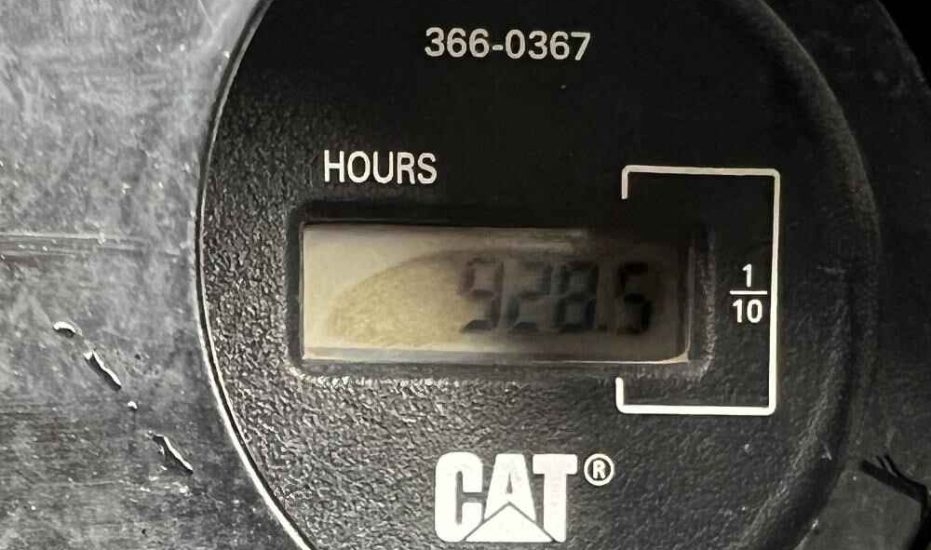

928 hours

Overview

  • Engine
    Cat C2.4 DI
  • Category
  • Color

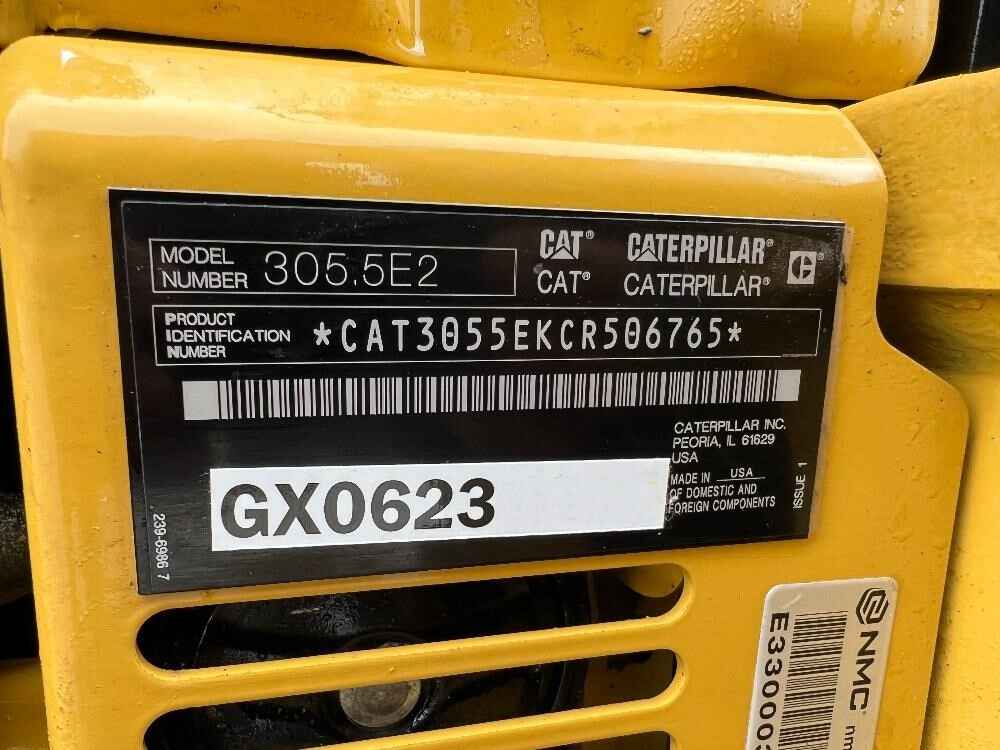

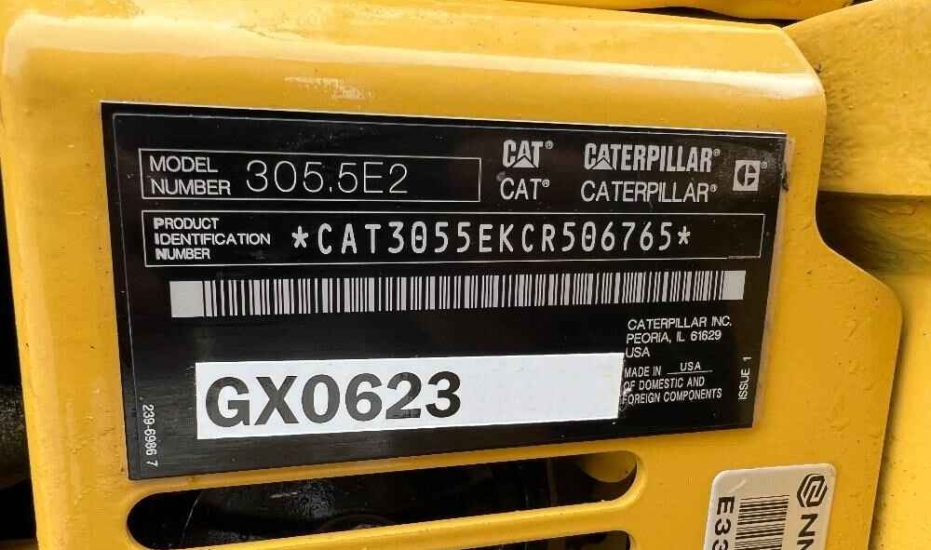

  • Serial
    KCR506765
  • Stock#
    GX0623
  • Inspection
    Inspected

Description

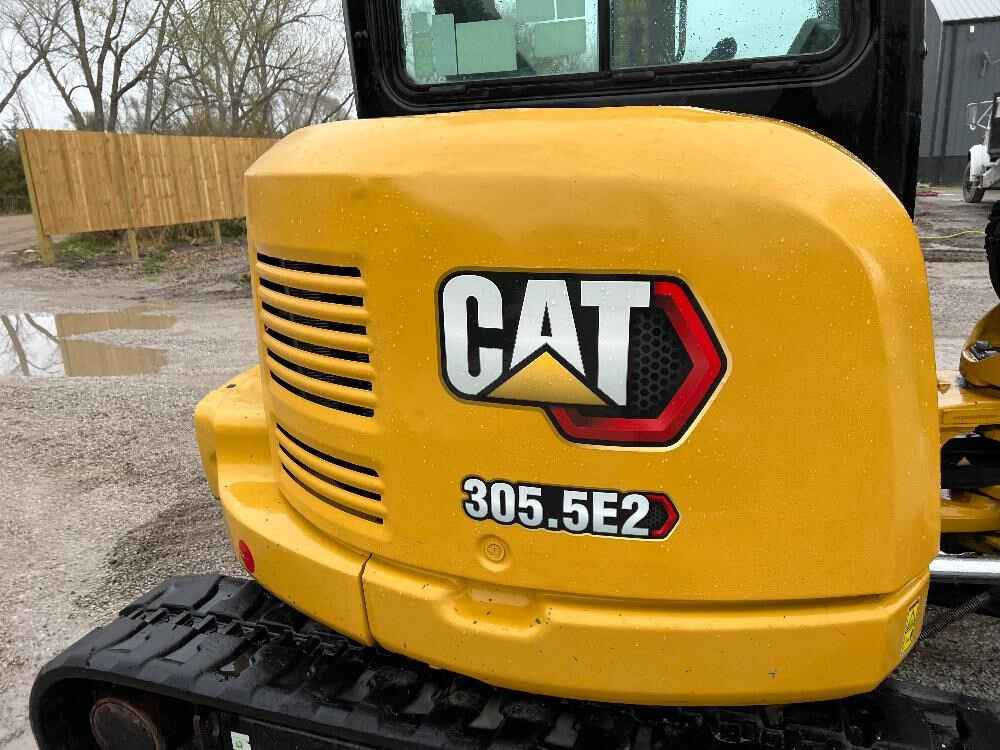

ALL ORIGINAL YELLOW PAINT & DECALS!

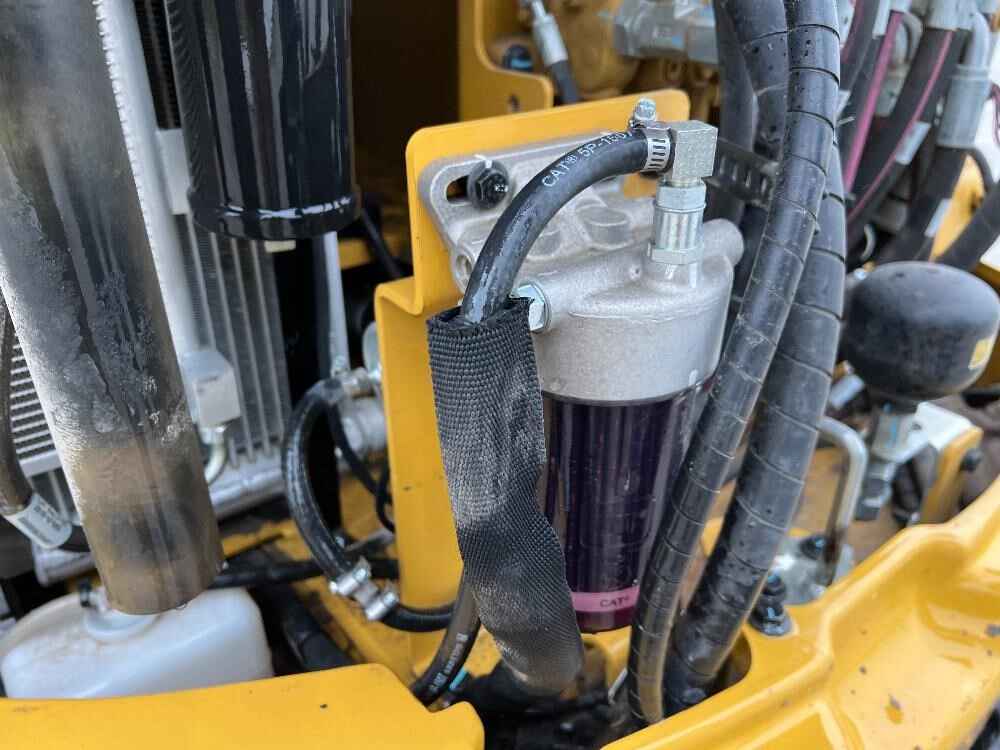

Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Video available. Delivery Available!
– Only 928 hours!

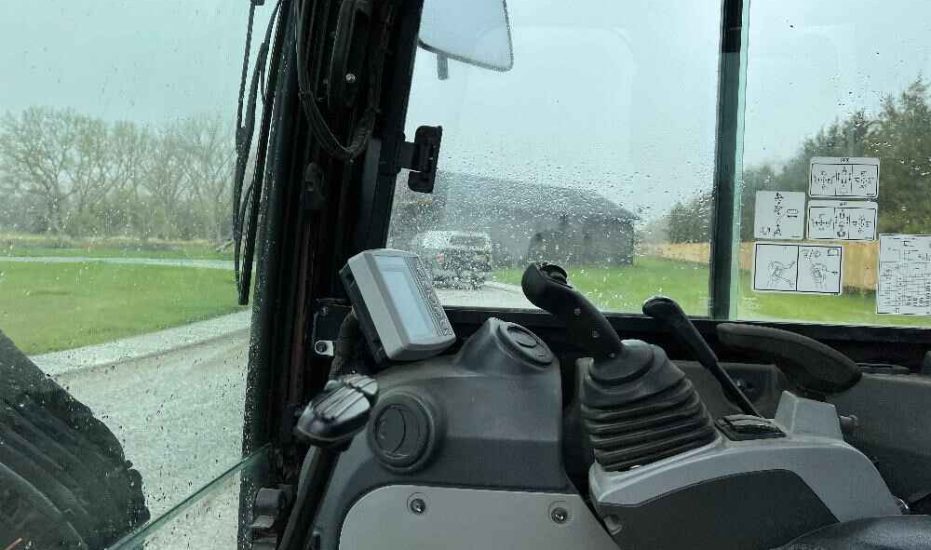

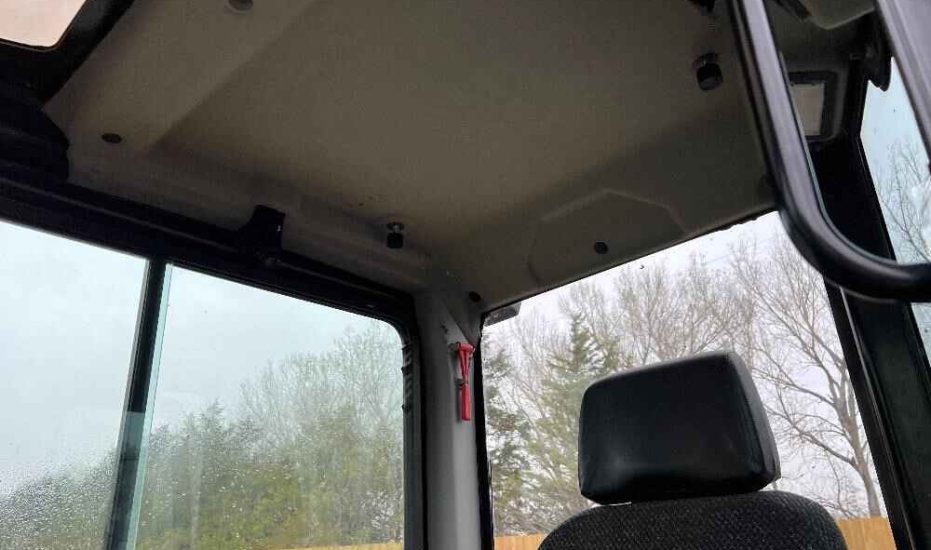

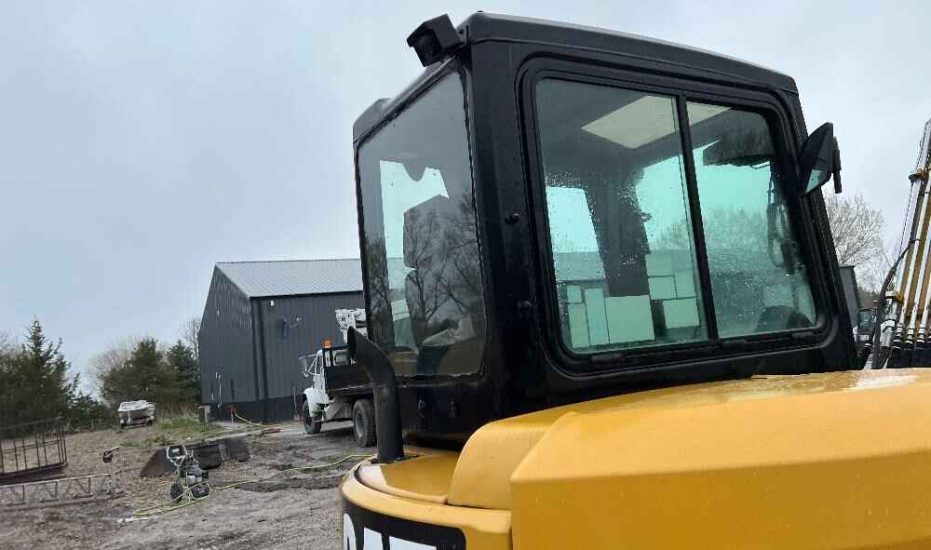

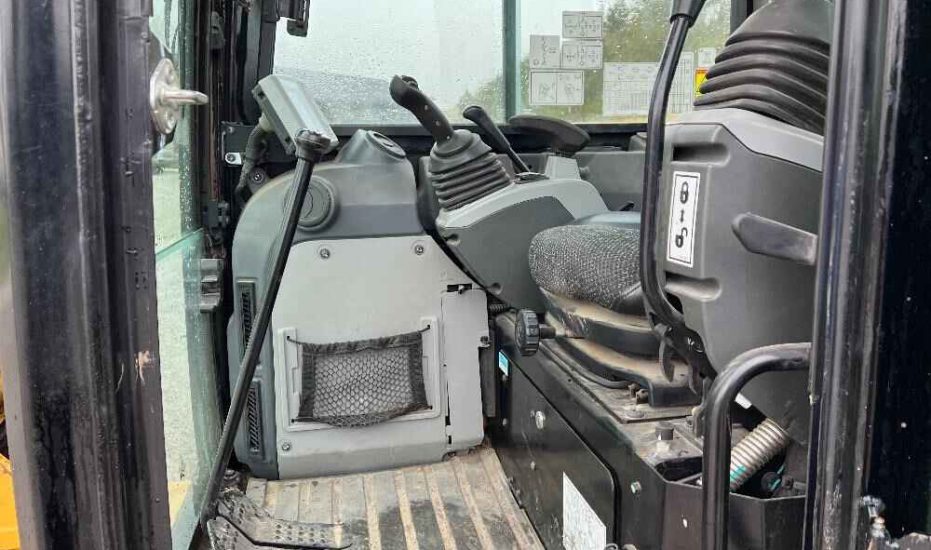

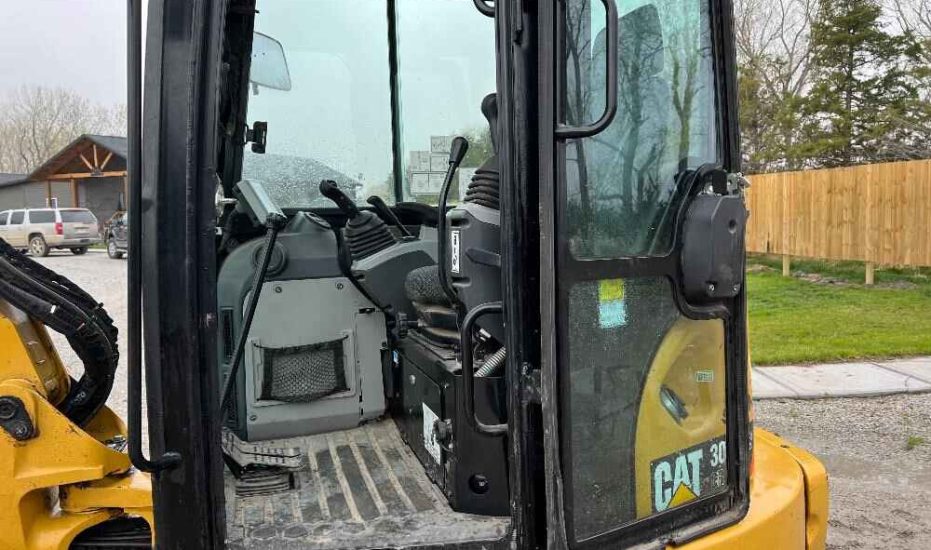

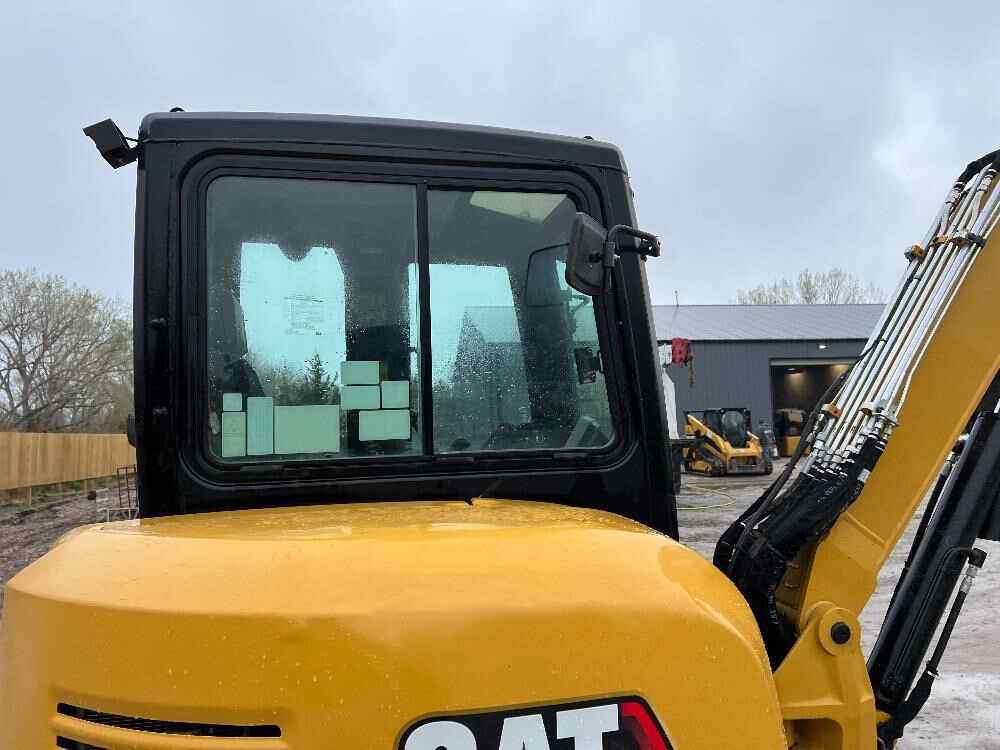

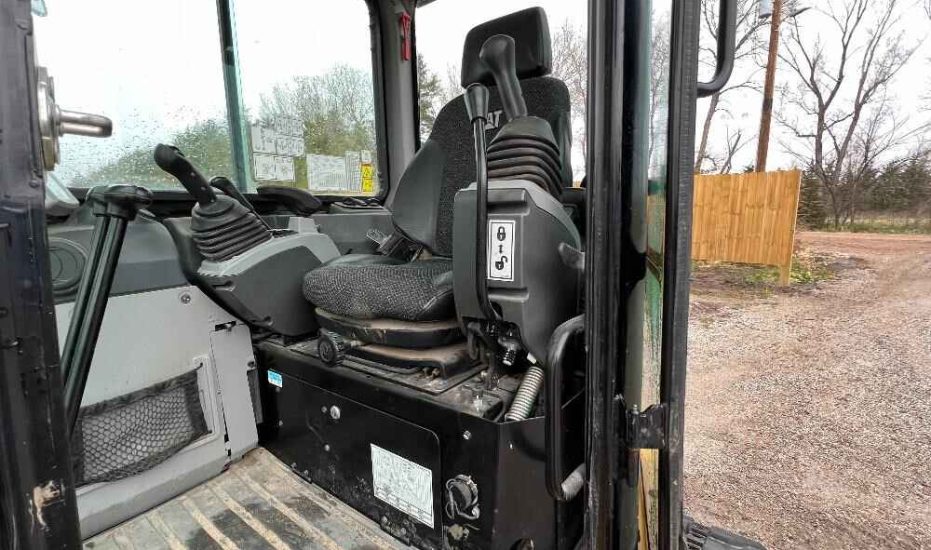

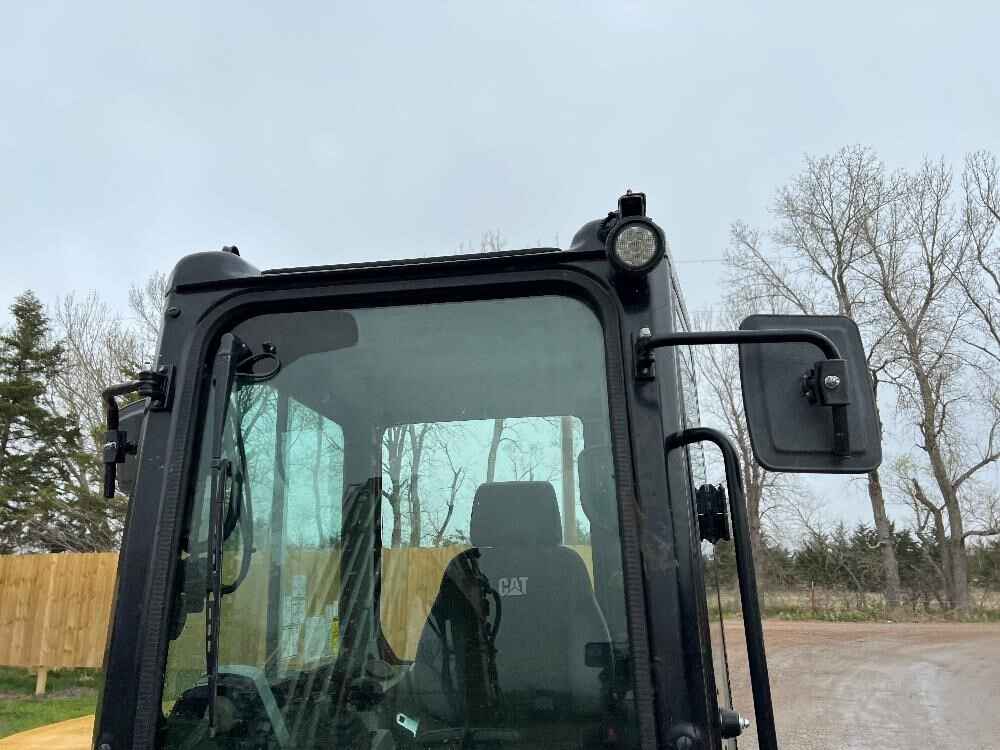

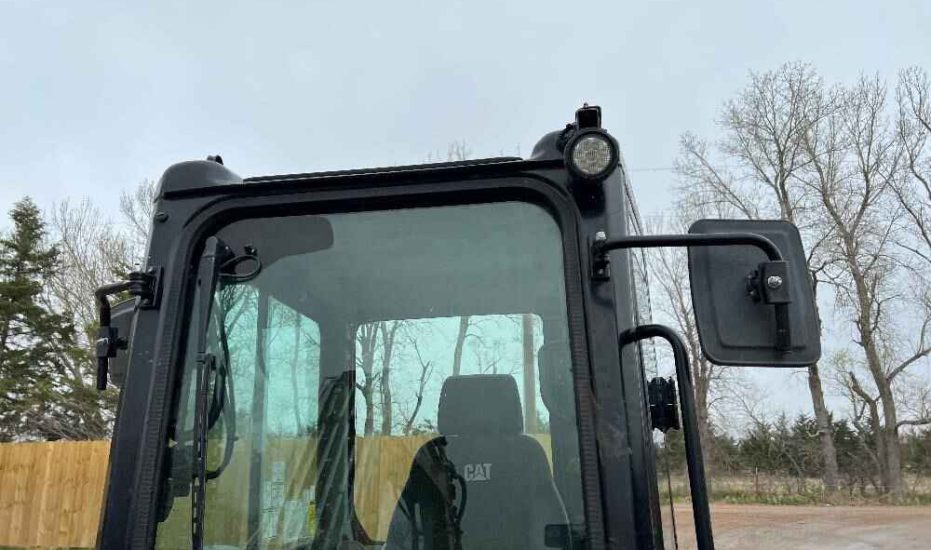

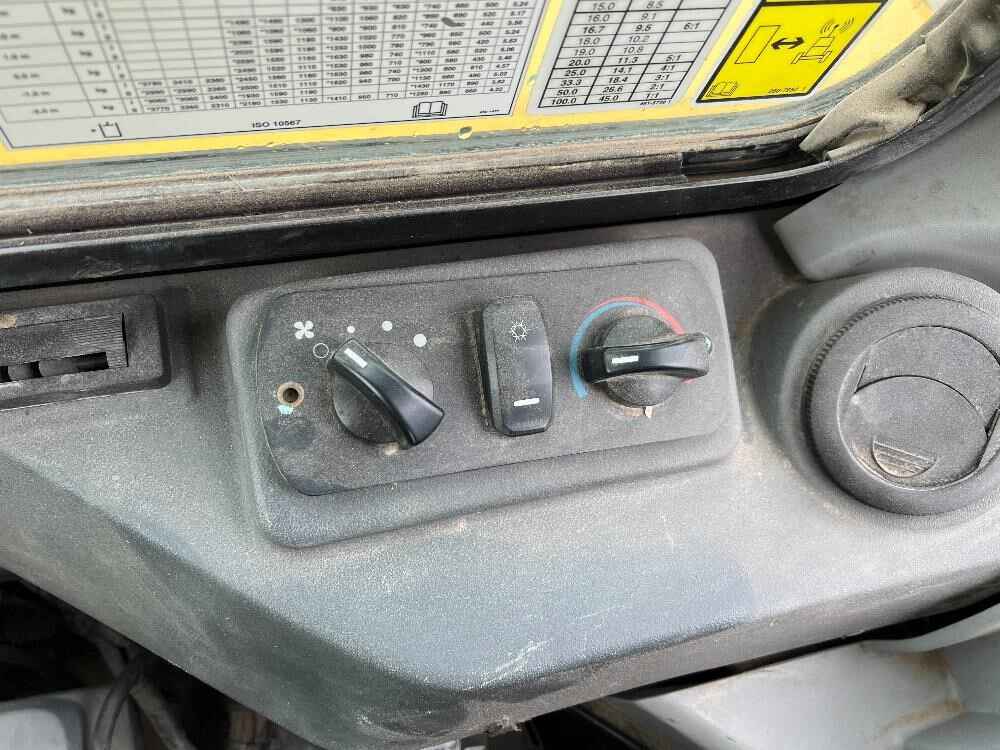

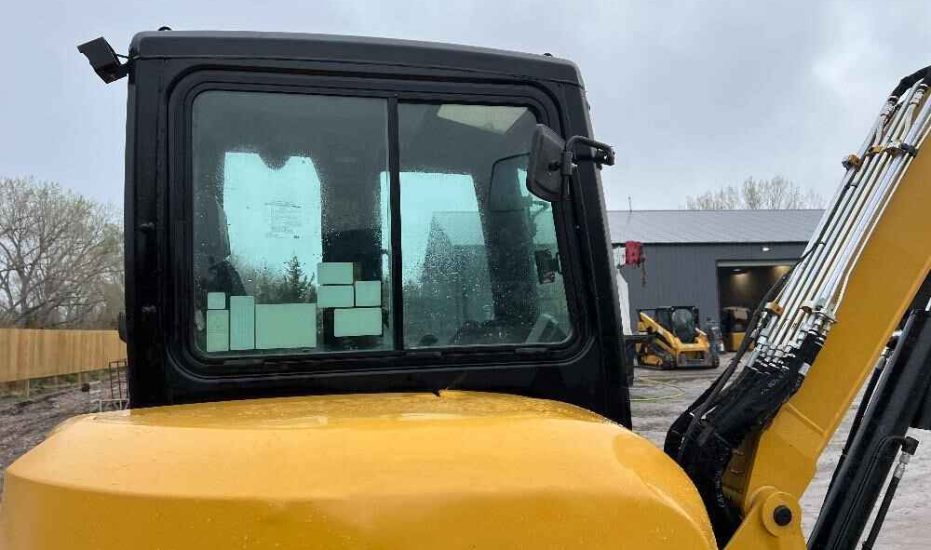

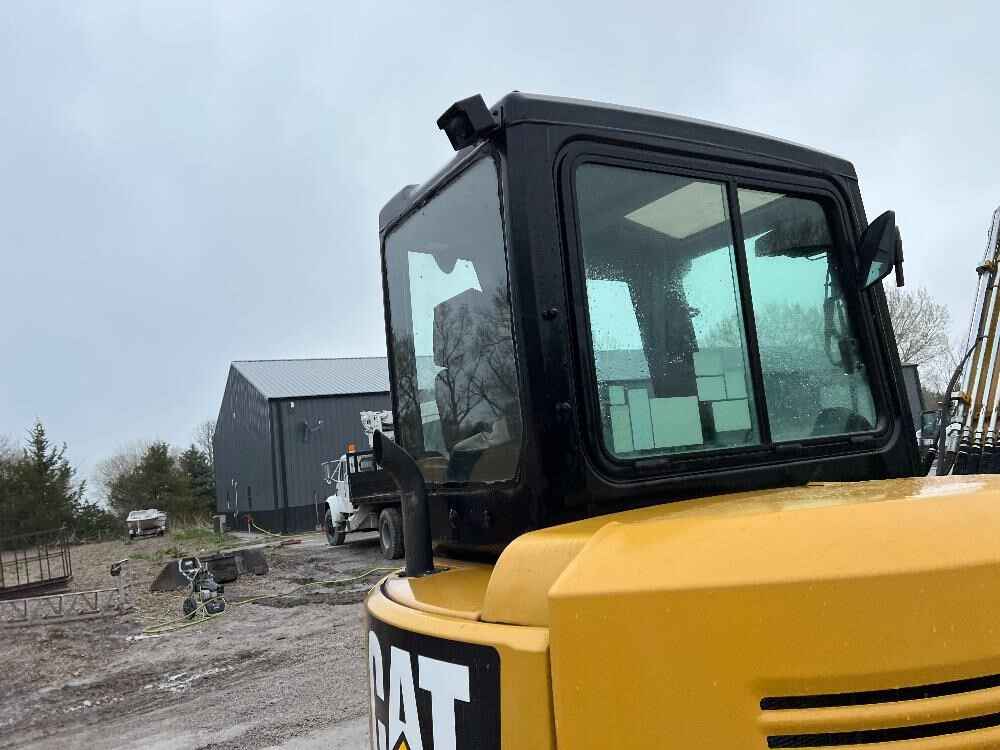

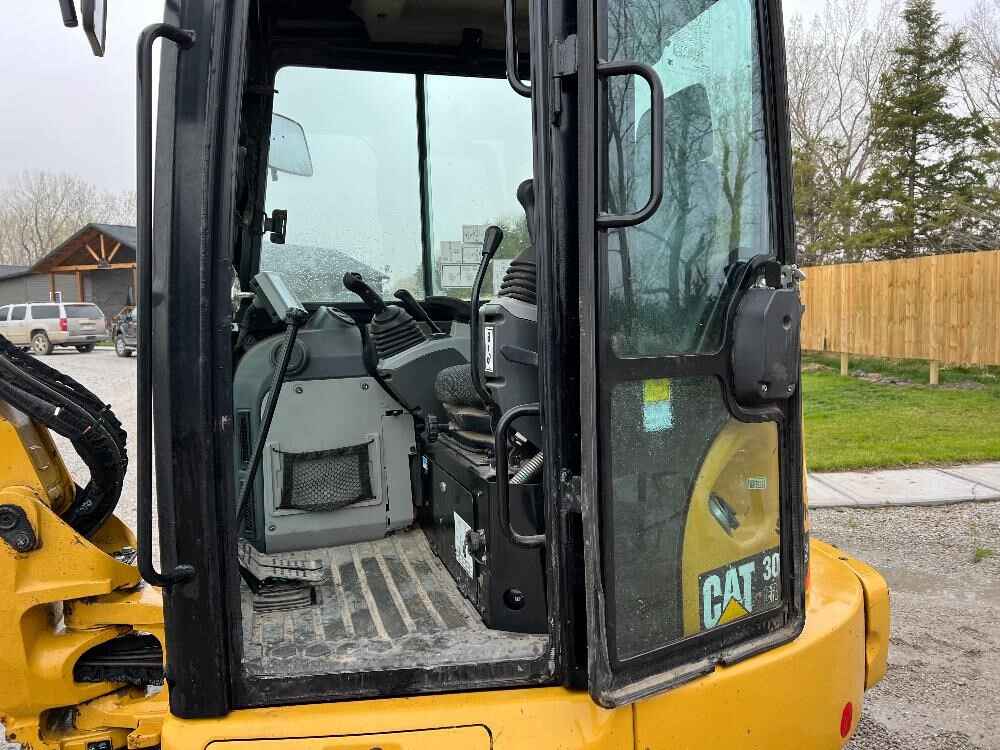

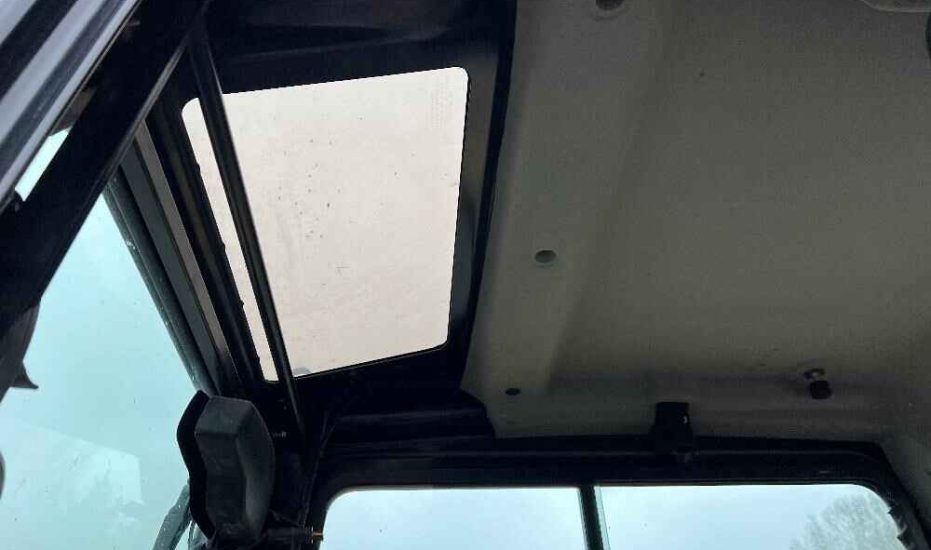

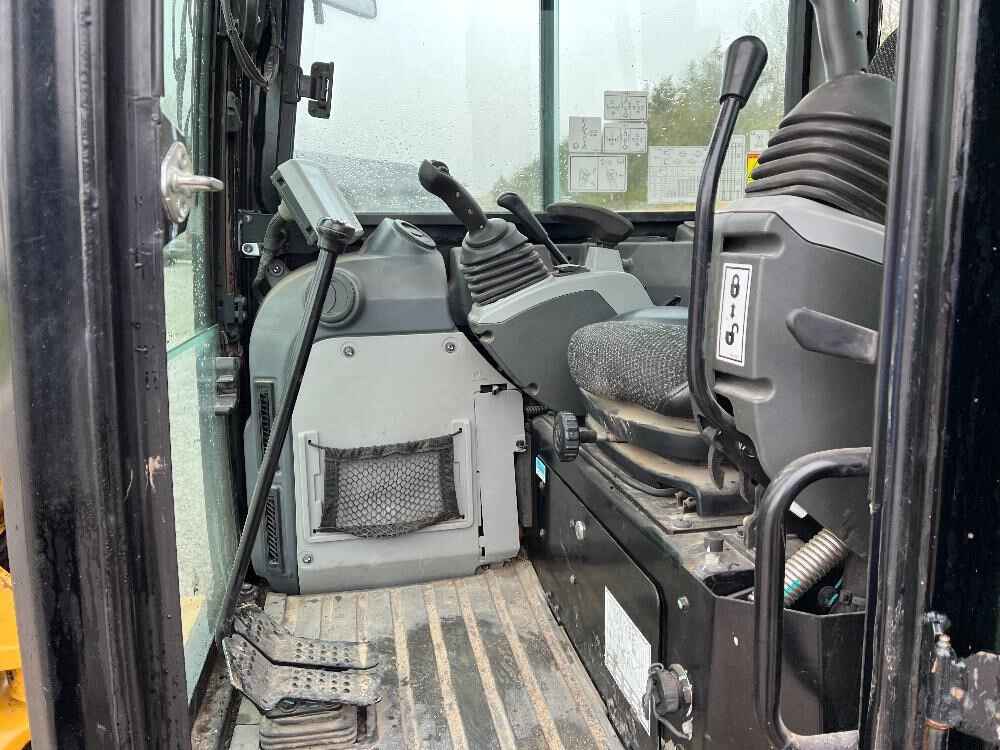

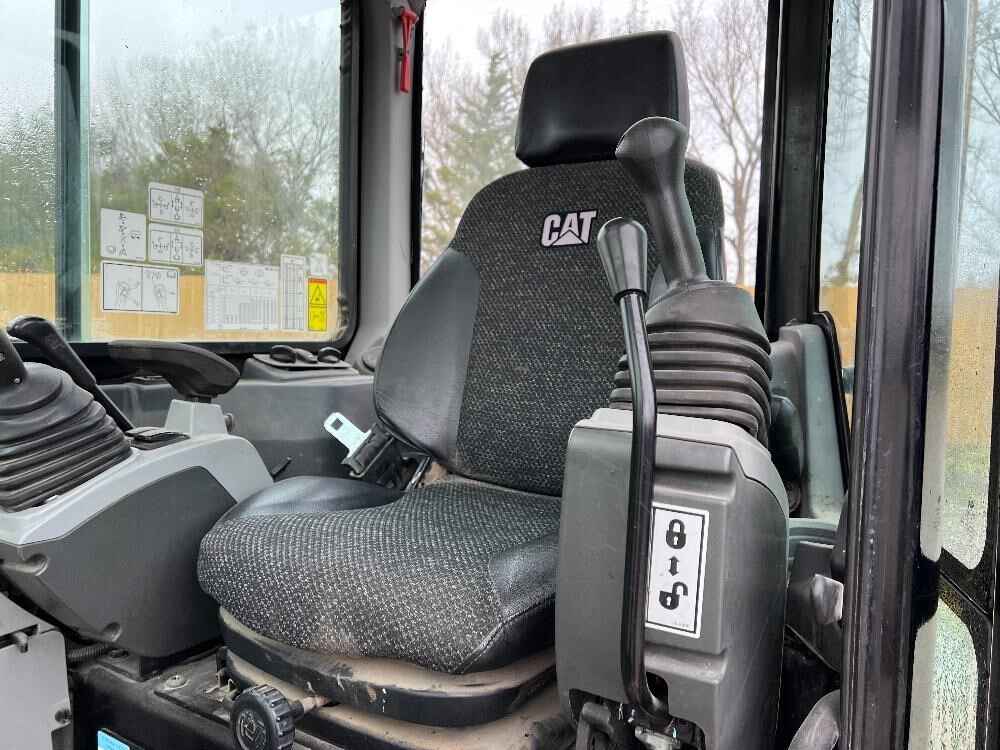

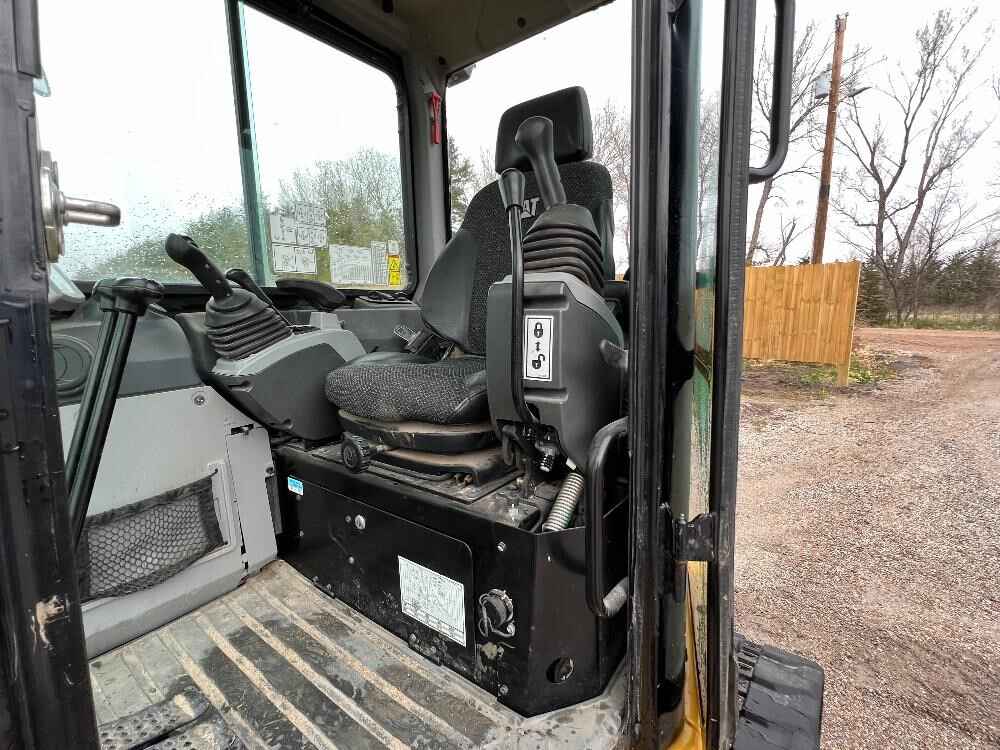

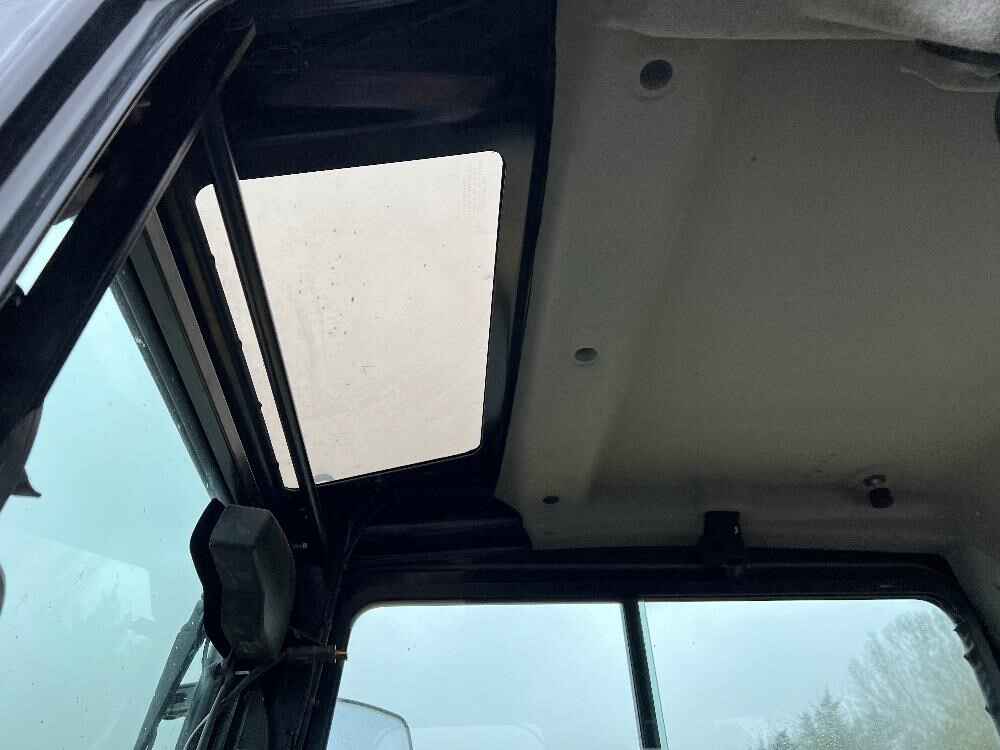

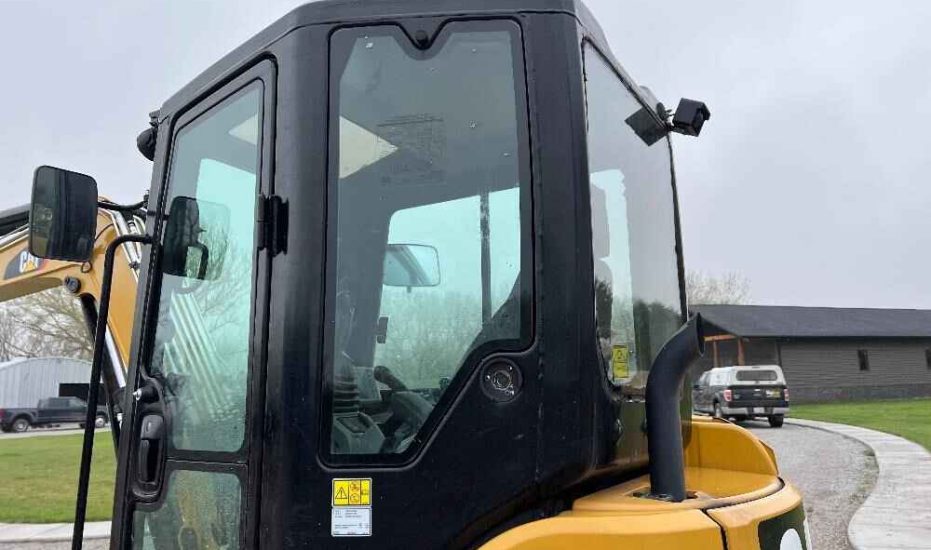

– Enclosed HEAT/AC/RADIO

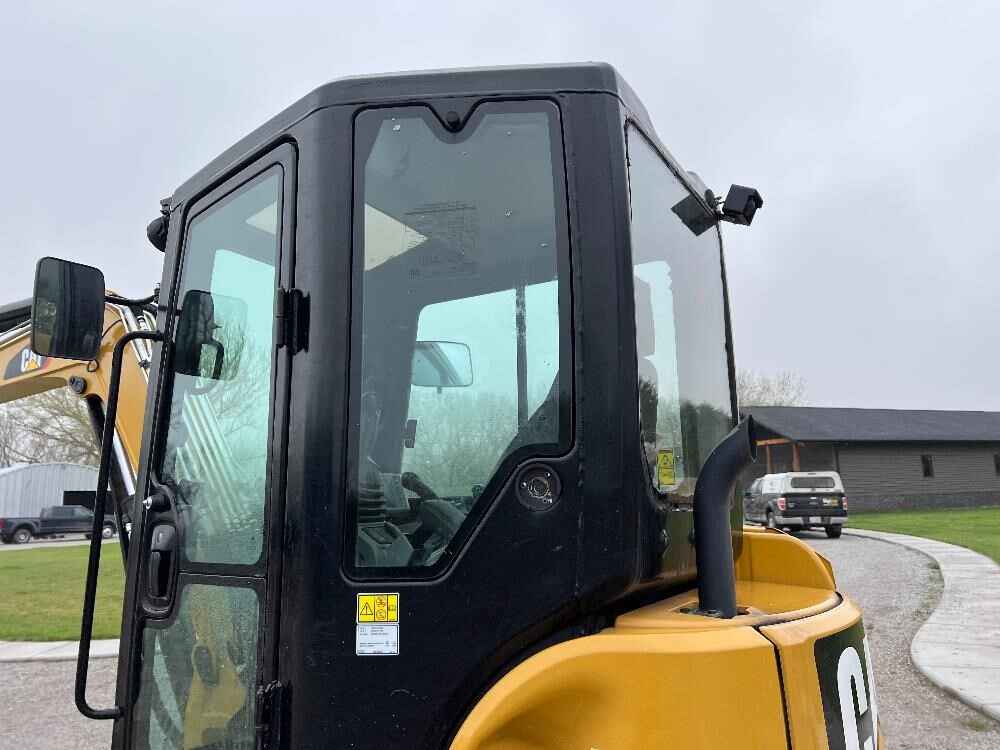

– Rear Camera

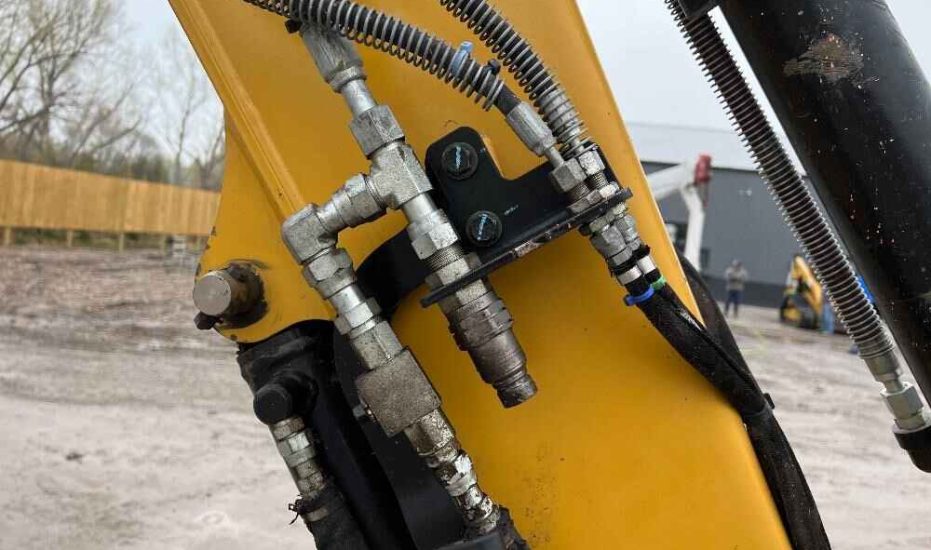

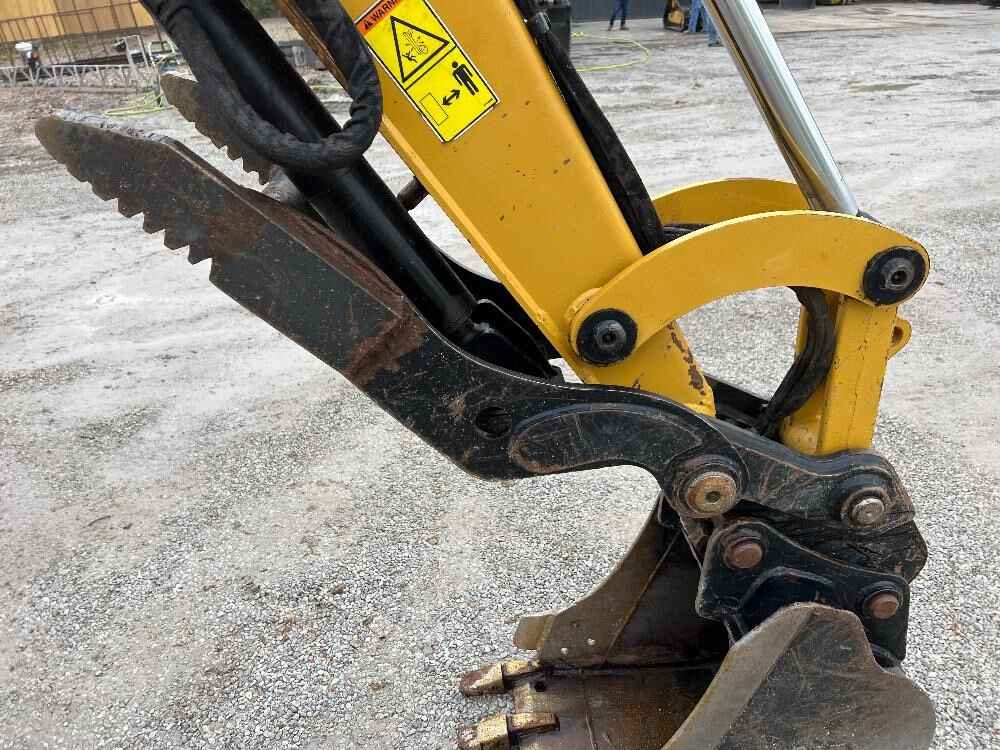

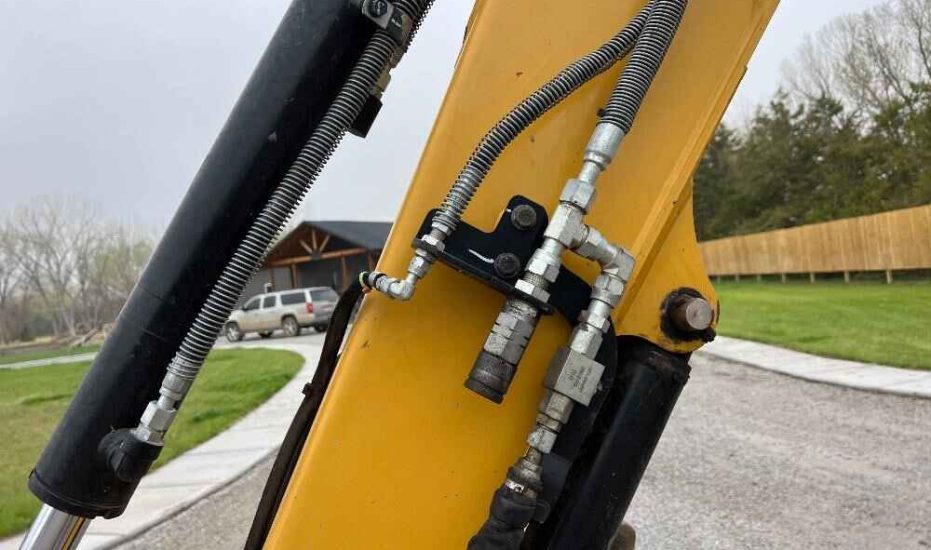

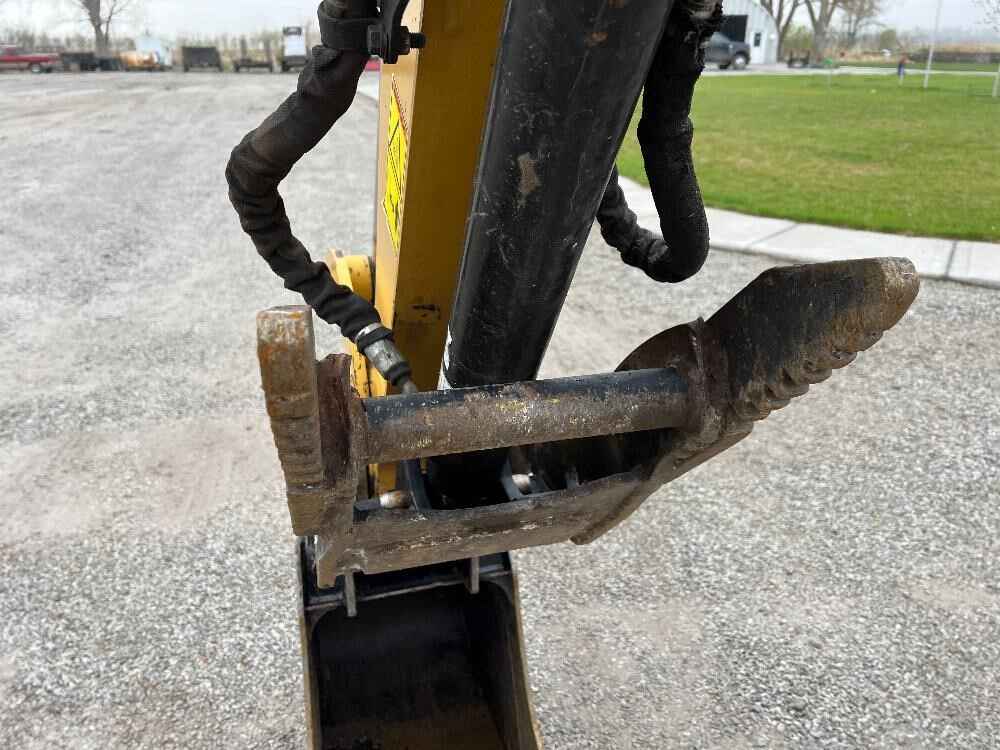

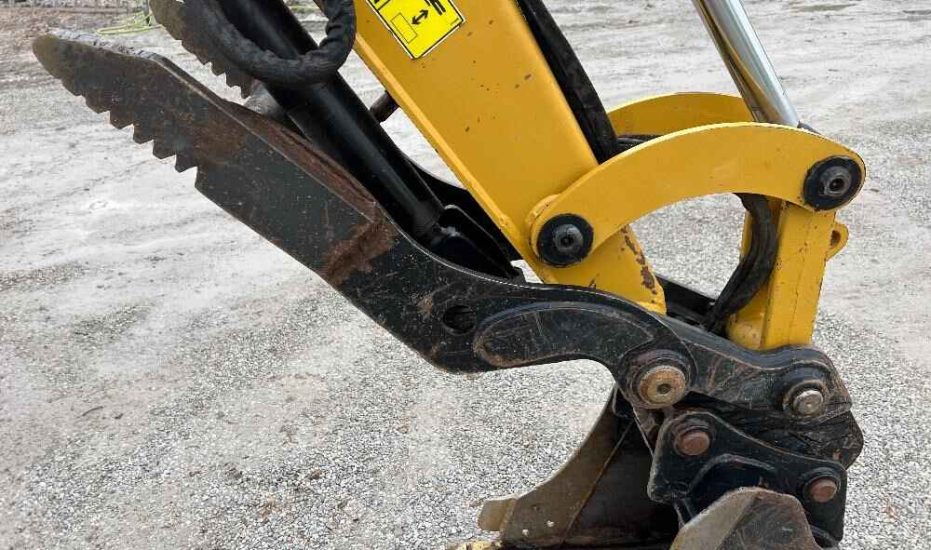

– Hydraulic Thumb

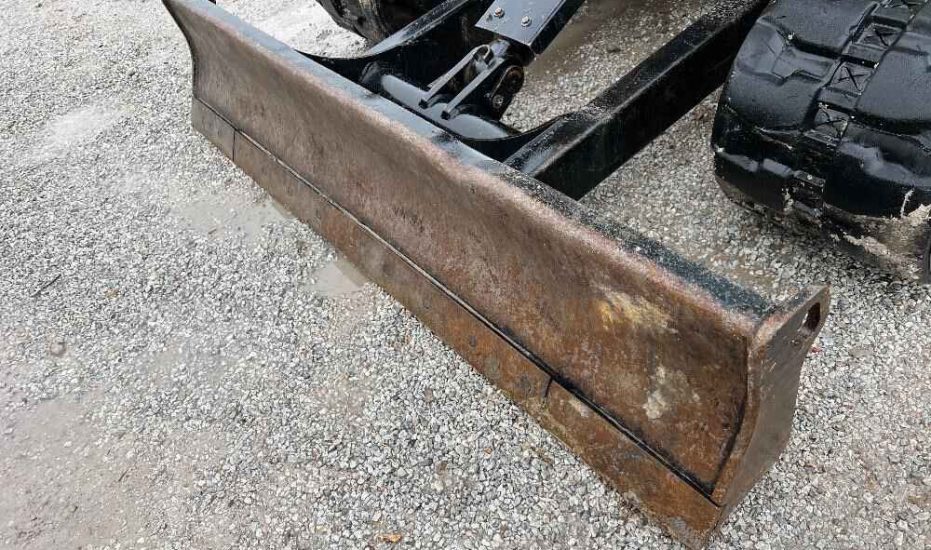

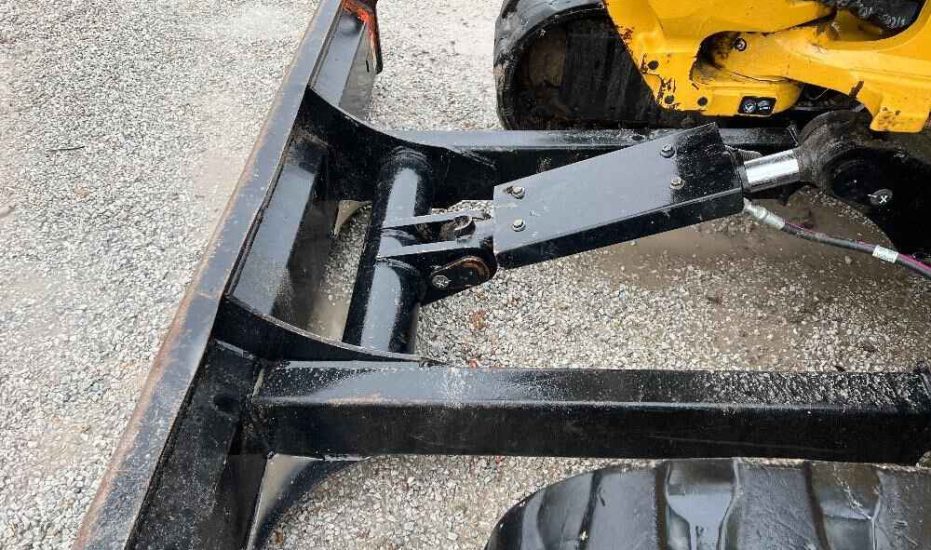

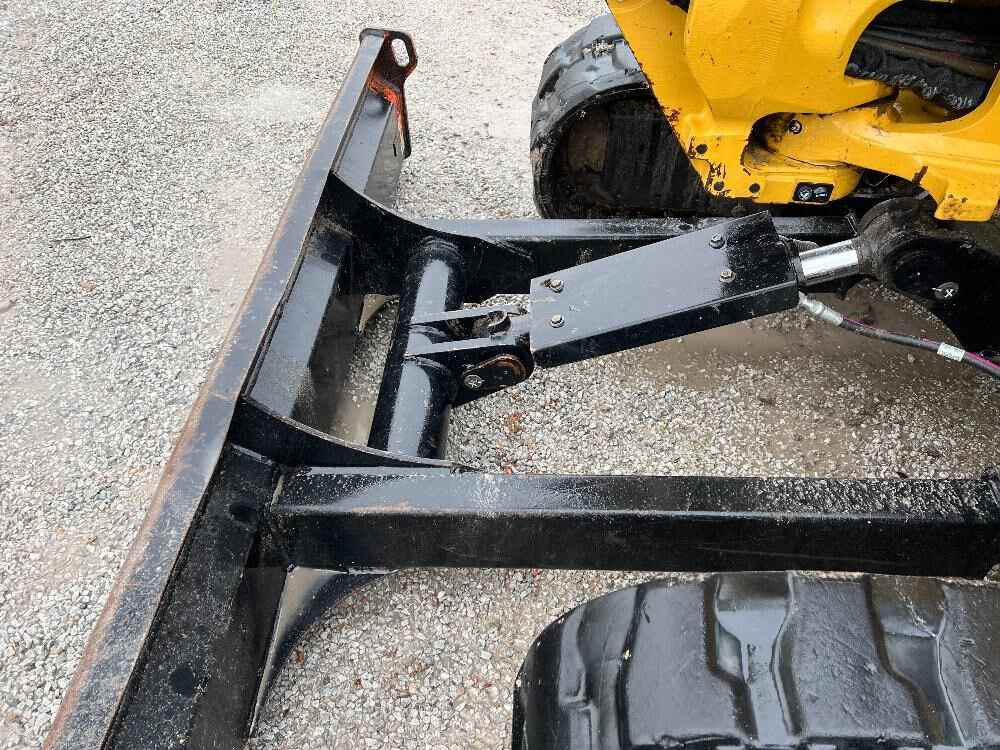

– Hydraulic Angle Blade
– 2 speed
– 24” & 36” buckets
– Manual Quick Coupler
– No leaks, No smoke, No issues
– 46 Hp
– 12k Lbs
Machine is TIGHT & READY TO WORK



Specifications

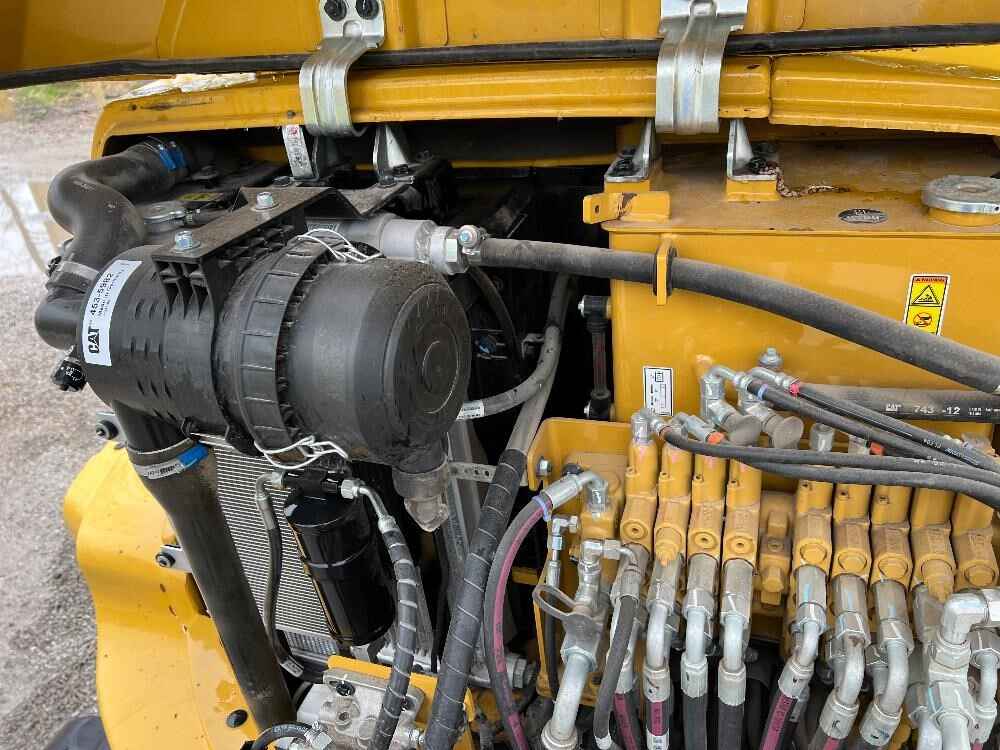

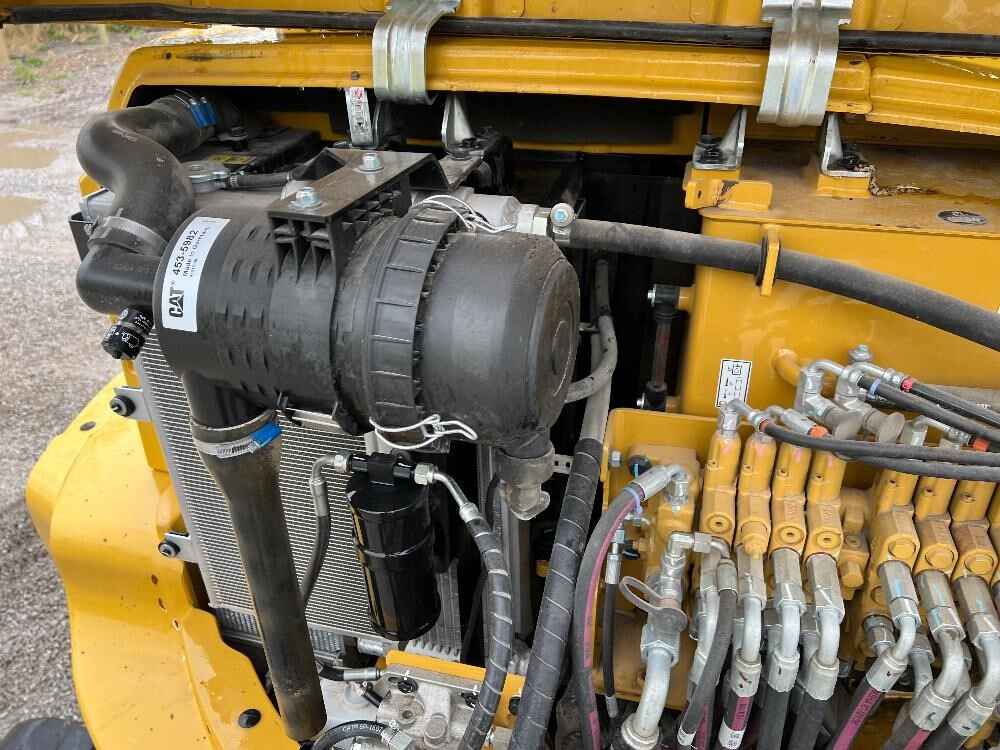

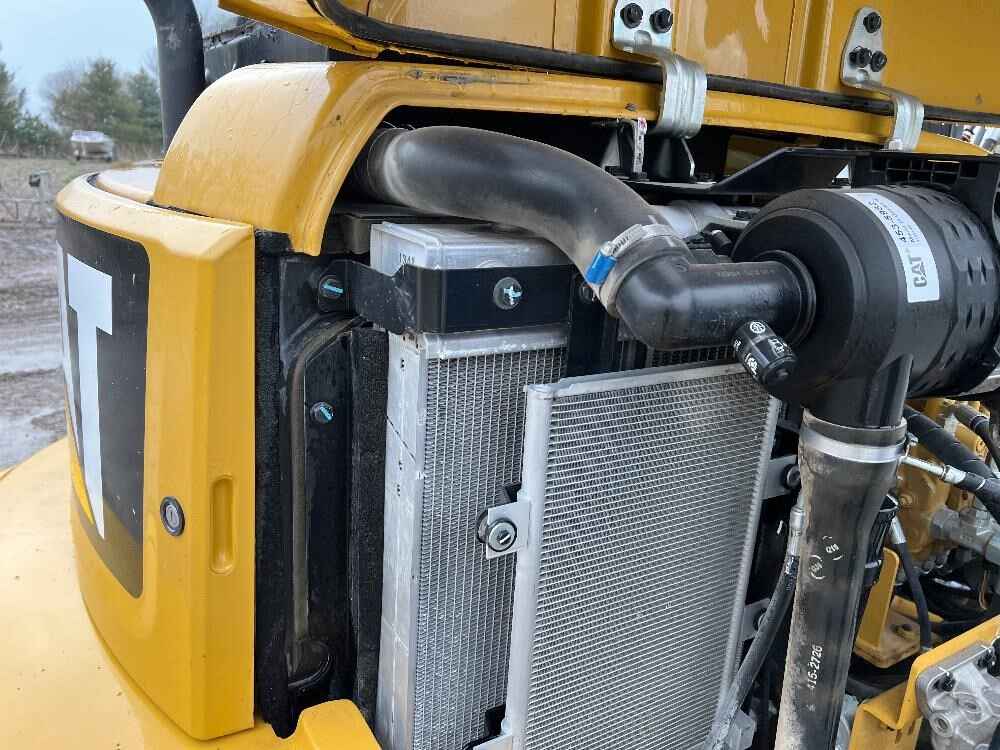

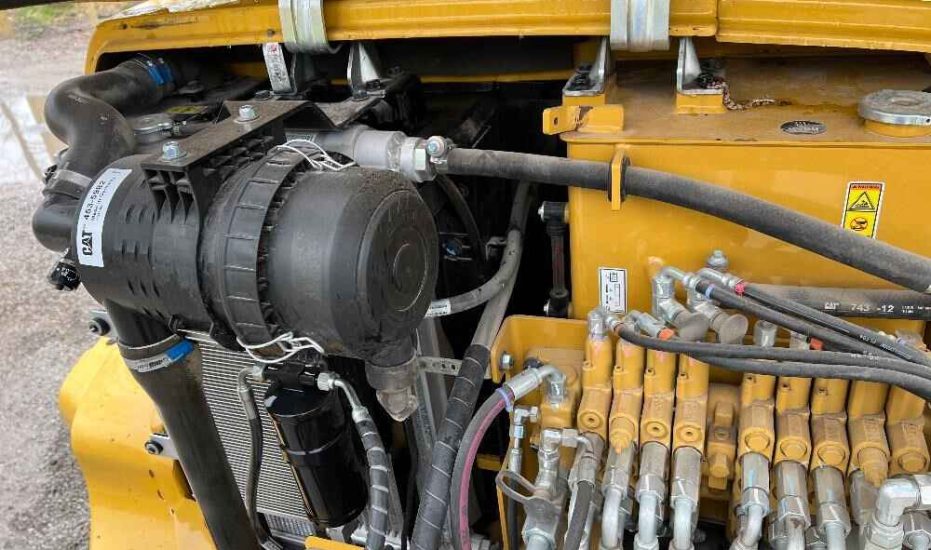

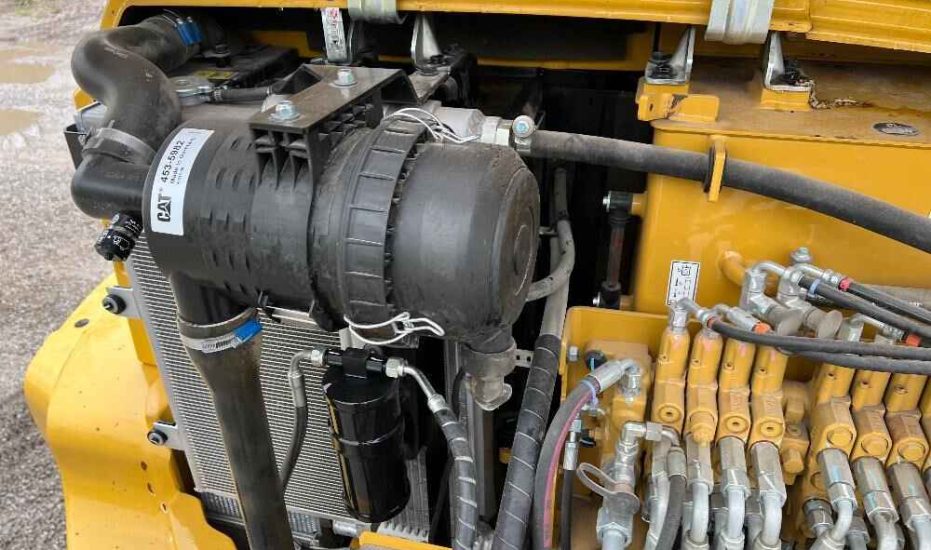

Engine

  • Model: Cat C2.4 DI
  • Net Power: 44.1 hp (32.9 kW)
  • Gross Power: 45.7 hp (34.1 kW)
  • Displacement: 146 in³ (2.4 L)
  • Fuel Capacity: 16.6 gal (63 L)

Weights

  • Operating Weight (Canopy, Standard Stick): 11,503 lbs (5,217 kg)
  • Operating Weight (Canopy, Long Stick): 11,596 lbs (5,259 kg)
  • Operating Weight (Cab, Standard Stick): 11,863 lbs (5,380 kg)
  • Operating Weight (Cab, Long Stick): 11,958 lbs (5,423 kg)

Performance

  • Maximum Dig Depth (Standard Stick): 11 ft 5 in (3,470 mm)
  • Maximum Dig Depth (Long Stick): 12 ft 8 in (3,870 mm)
  • Maximum Reach at Ground Level (Standard Stick): 18 ft 6 in (5,630 mm)
  • Maximum Reach at Ground Level (Long Stick): 19 ft 9 in (6,020 mm)
  • Bucket Digging Force: 11,445 lbf (50.9 kN)
  • Stick Digging Force (Standard): 6,500 lbf (28.9 kN)
  • Stick Digging Force (Long): 5,575 lbf (24.8 kN)

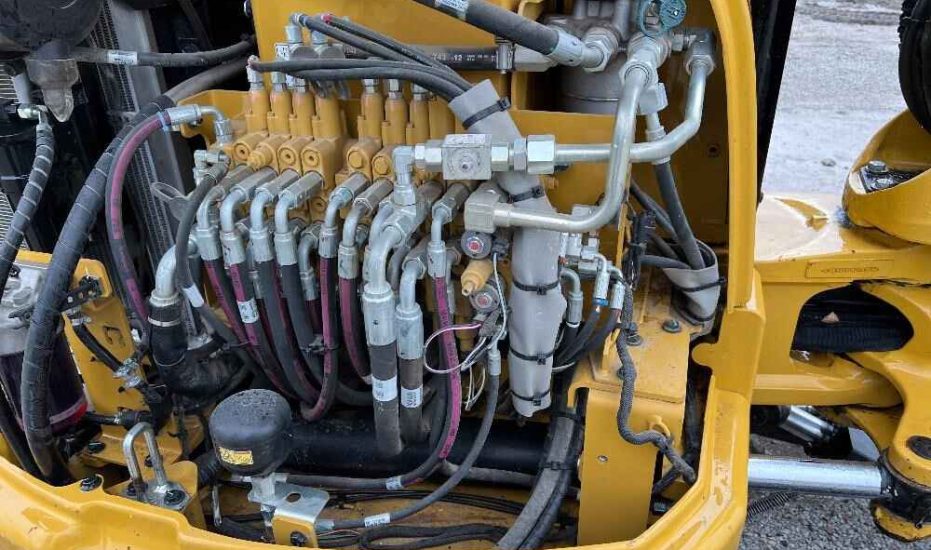

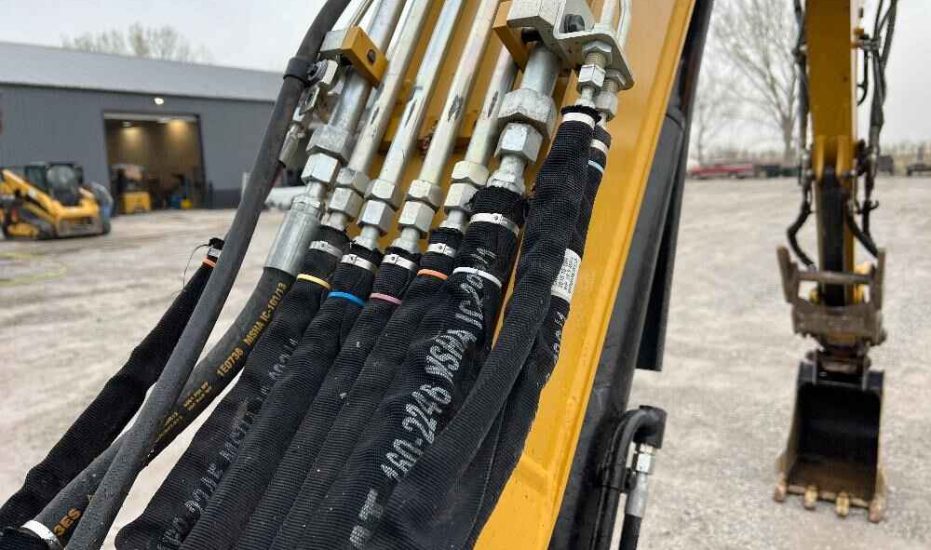

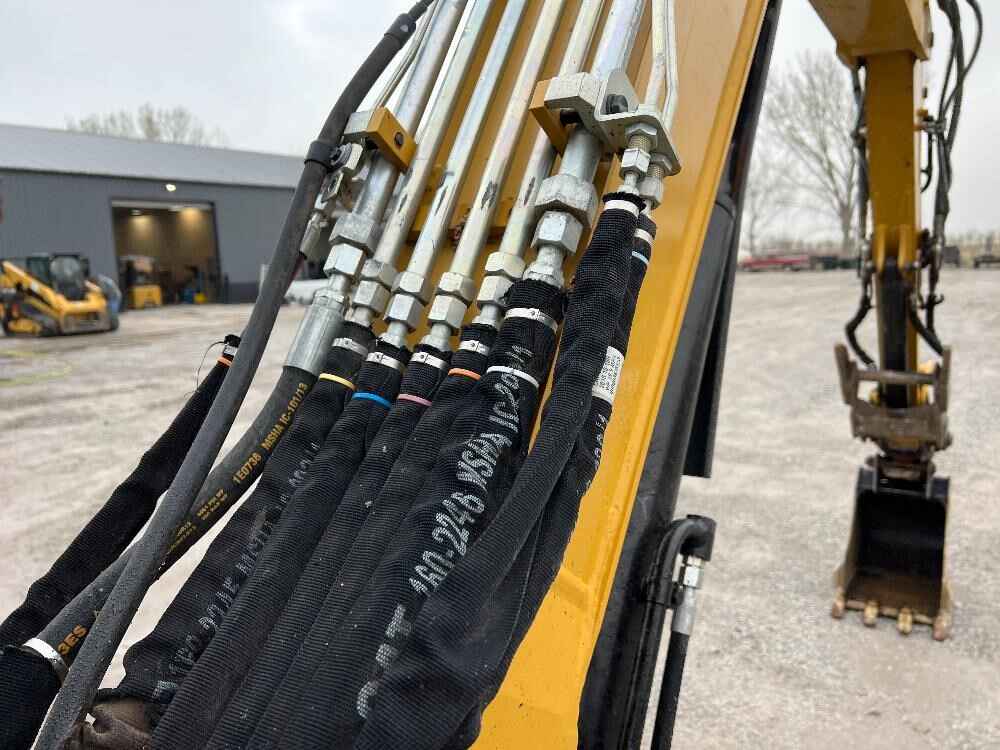

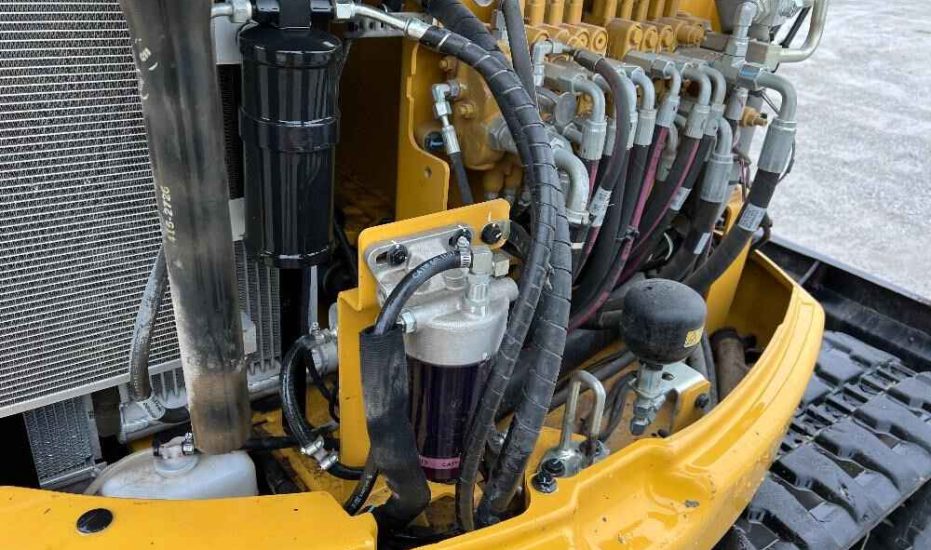

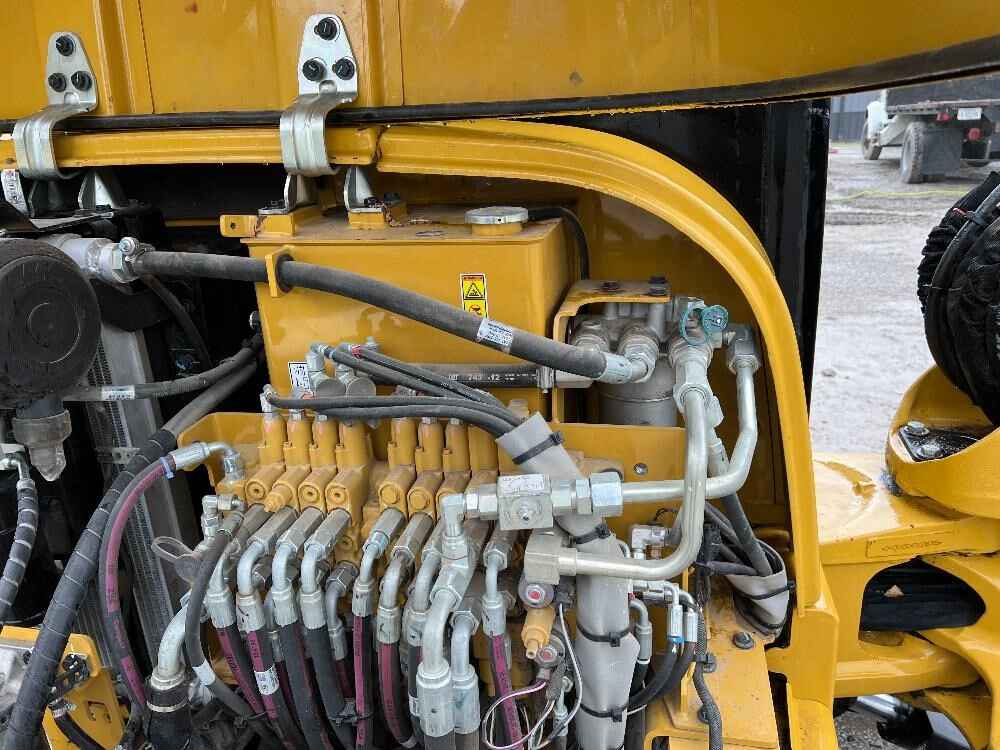

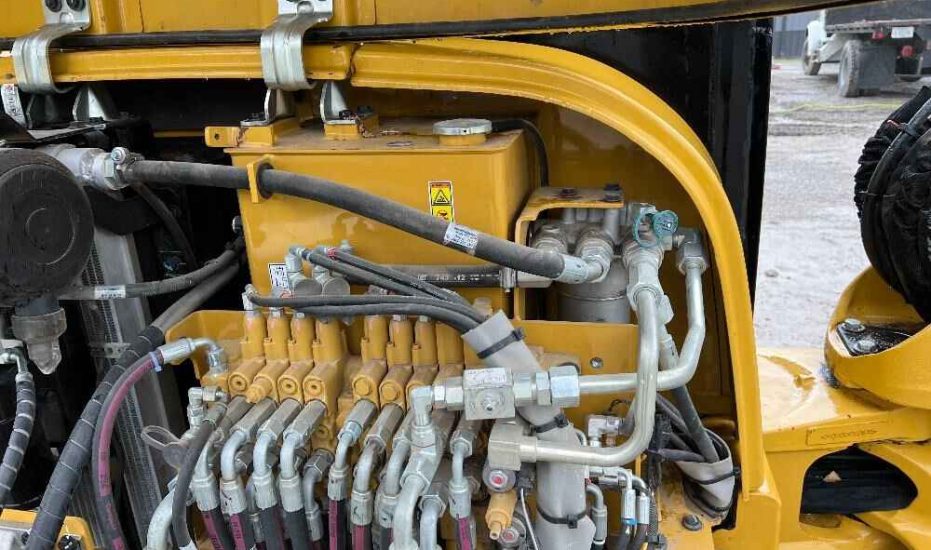

Hydraulics

  • Main Pump Flow: 39.6 gal/min (150 L/min)

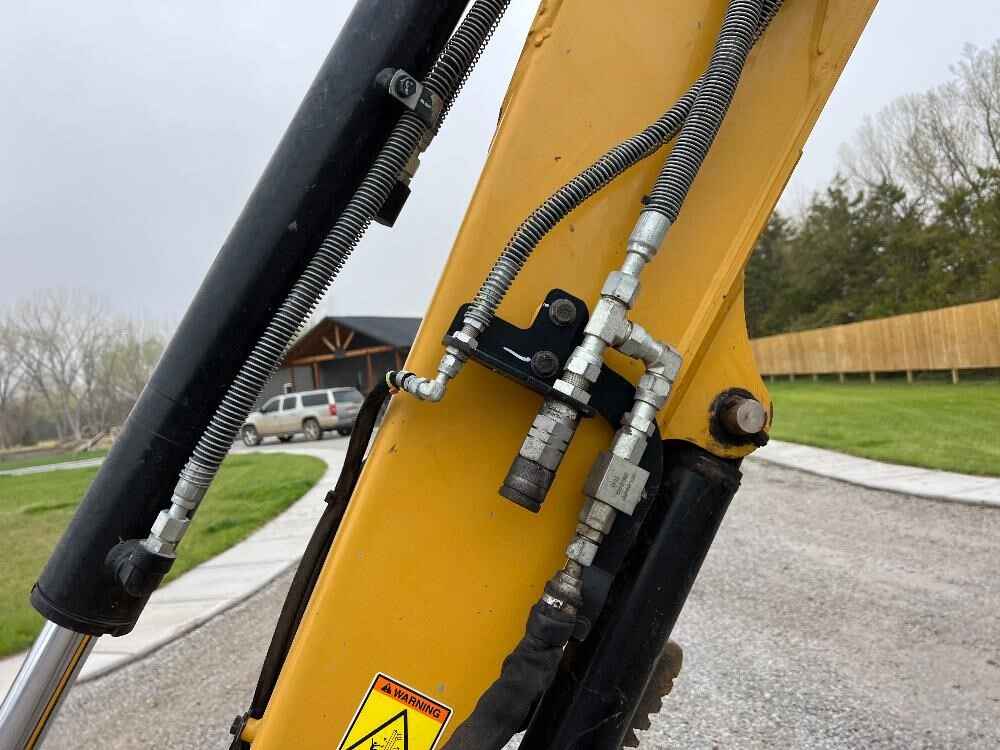

  • Auxiliary Circuit - Primary: 21.1 gal/min (80 L/min)
  • Auxiliary Circuit - Secondary: 6.6 gal/min (25 L/min)
  • Operating Pressure - Equipment: 3,553 psi (245 bar)
  • Operating Pressure - Travel: 3,553 psi (245 bar)
  • Operating Pressure - Swing: 3,132 psi (216 bar)

Dimensions

  • Overall Length (Standard Stick): 17 ft 6 in (5,330 mm)
  • Overall Length (Long Stick): 17 ft 11 in (5,460 mm)
  • Overall Width: 6 ft 6 in (1,980 mm)
  • Overall Height: 8 ft 4 in (2,550 mm)
  • Tail Swing Radius: 3 ft 8 in (1,130 mm)
  • Ground Clearance: 1 ft 3 in (375 mm)

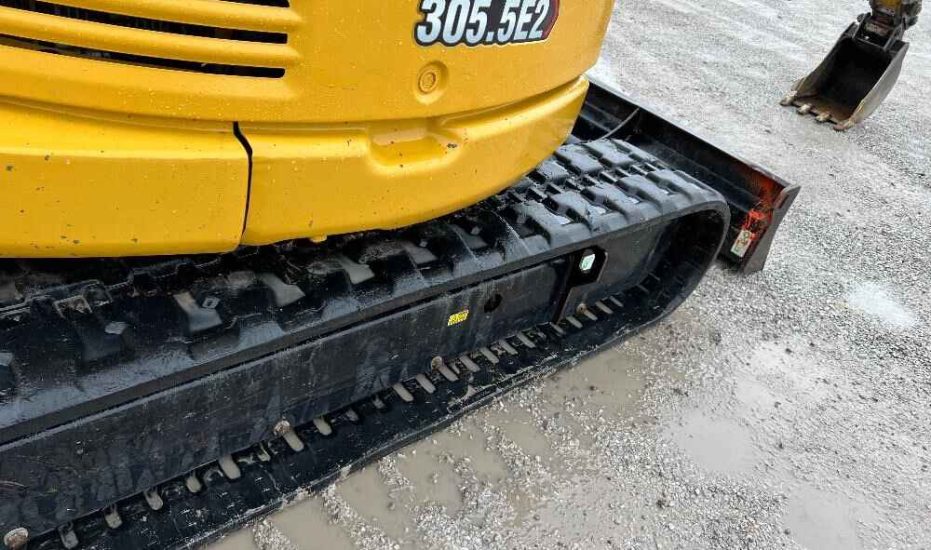

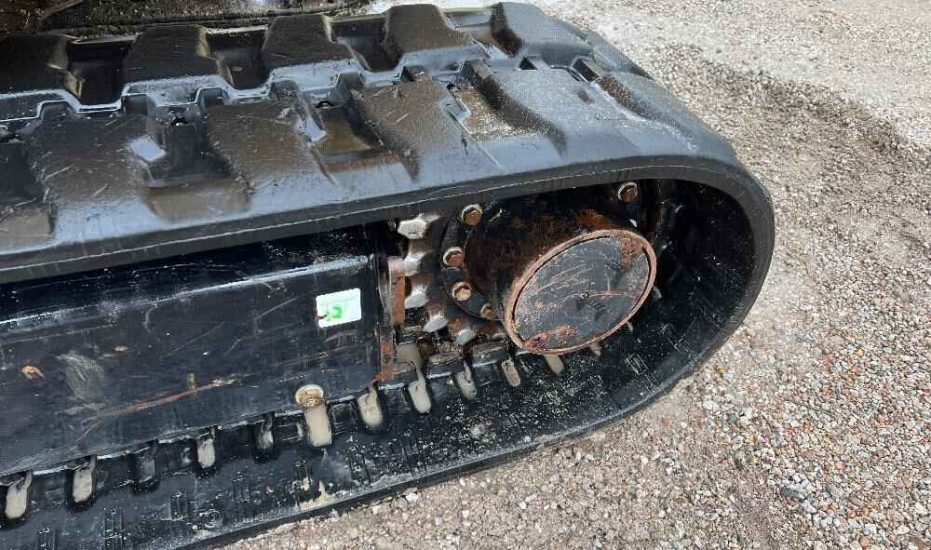

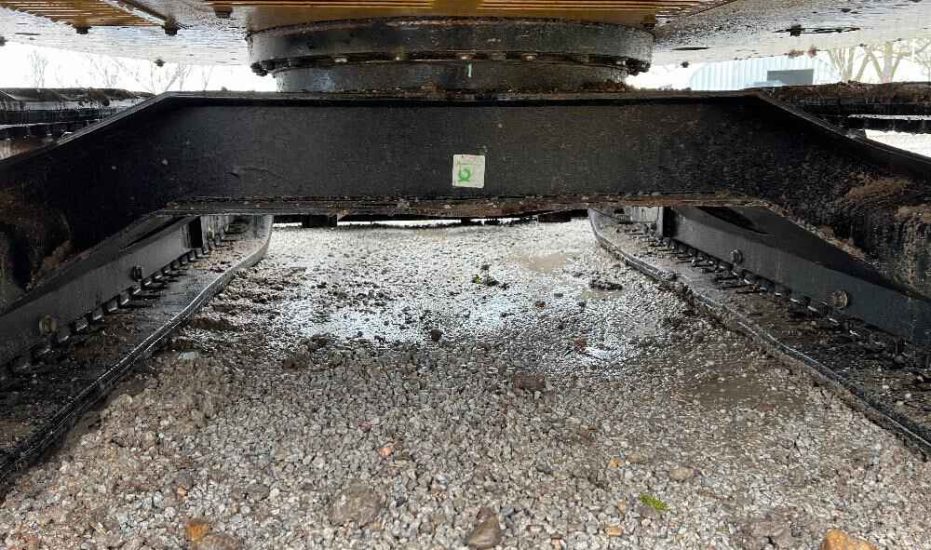

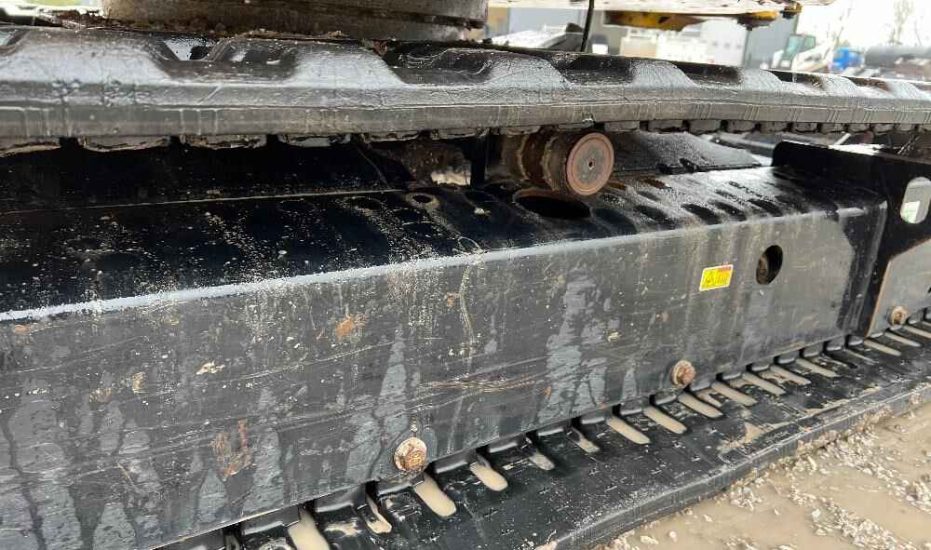

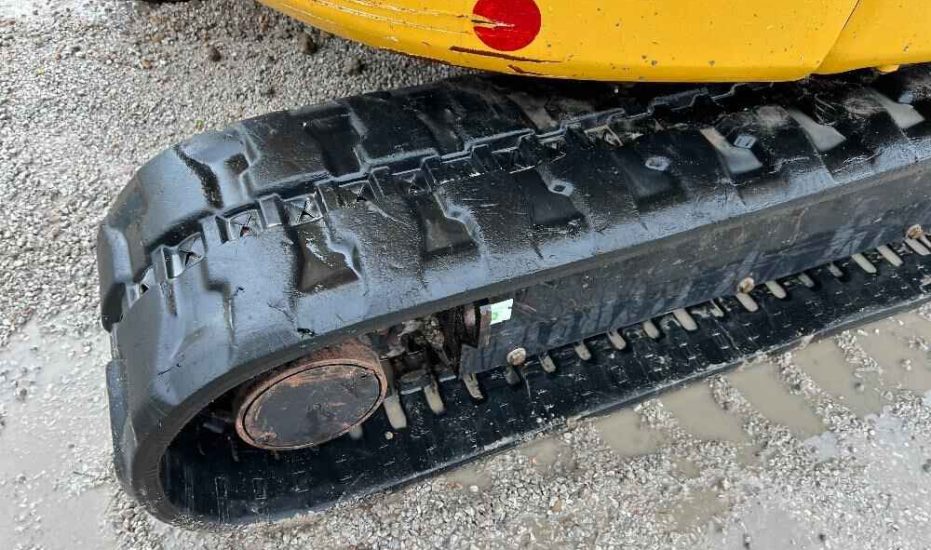

Travel System

  • Travel Speed - High: 2.8 mph (4.5 km/h)
  • Travel Speed - Low: 1.7 mph (2.8 km/h)
  • Maximum Traction Force - High Speed: 6,025 lbf (26.8 kN)
  • Maximum Traction Force - Low Speed: 10,746 lbf (47.8 kN)
  • Ground Pressure (Canopy): 4.5 psi (31 kPa)
  • Ground Pressure (Cab): 4.6 psi (31.9 kPa)

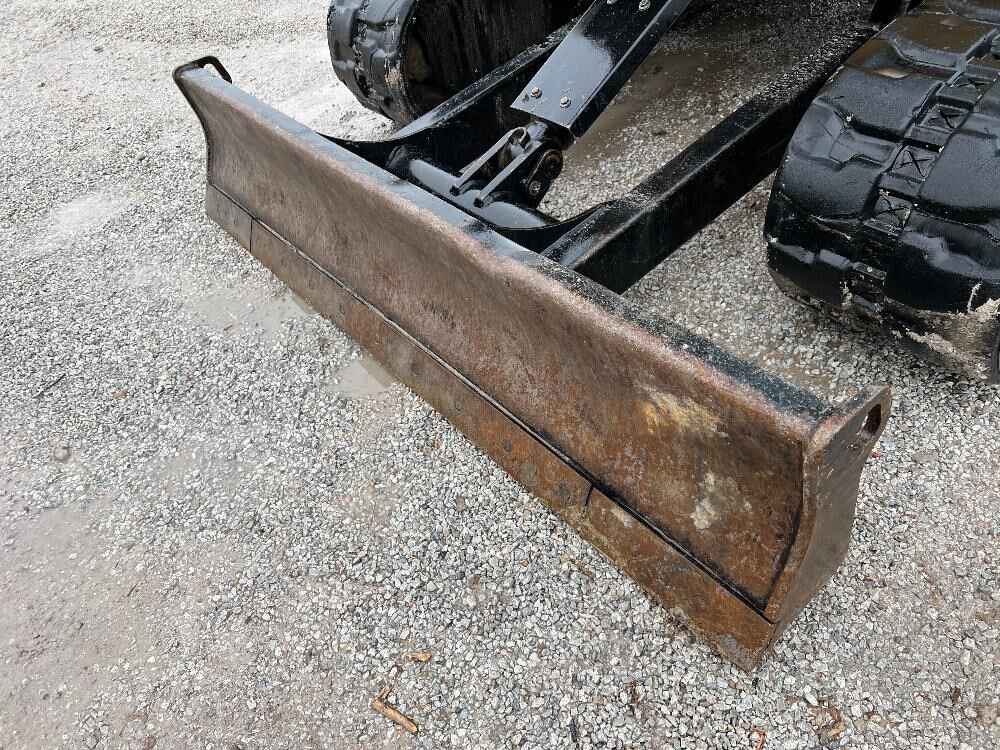

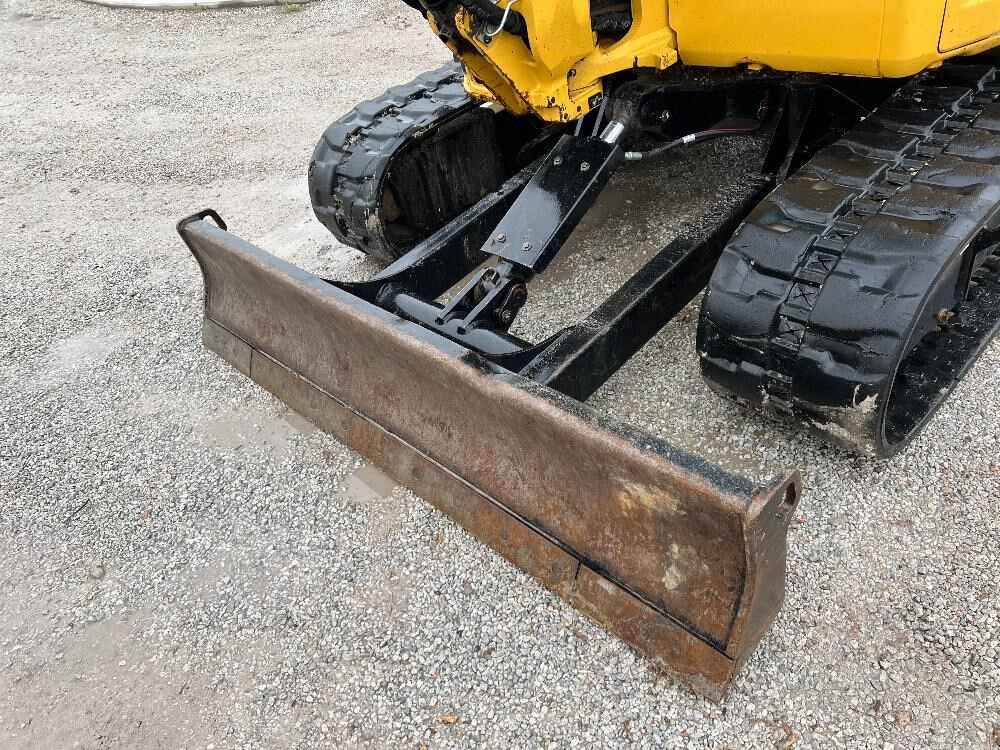

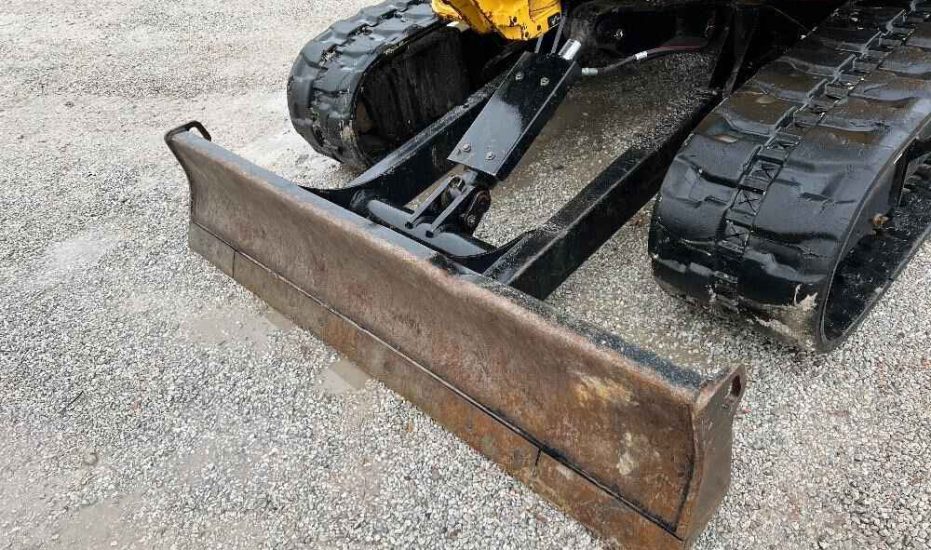

Blade

  • Width: 6 ft 6 in (1,980 mm)
  • Height: 1 ft 3 in (375 mm)
  • Dig Depth: 1 ft 10 in (555 mm)
  • Lift Height: 1 ft 4 in (405 mm)

Features

Interior

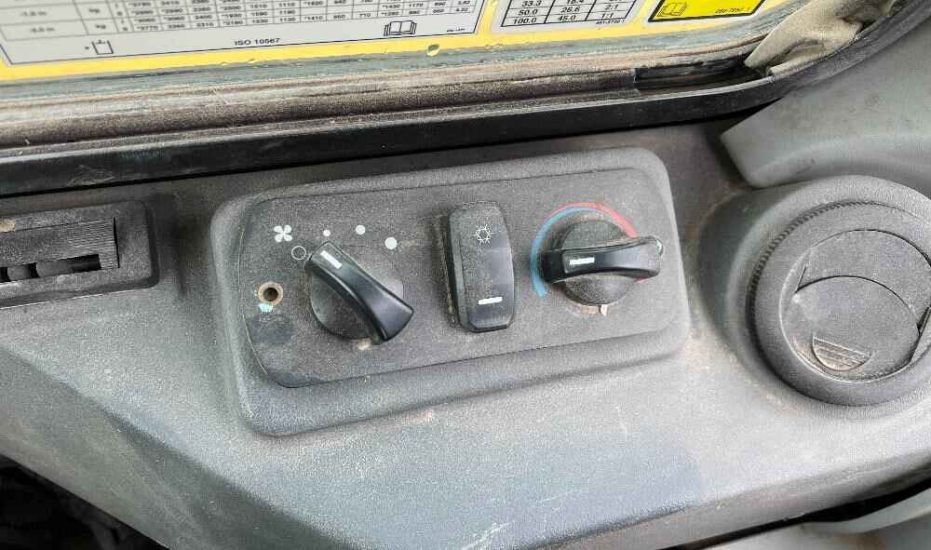

  • Air Conditioner
  • Heater
Comfort & Convenience
  • Radio
  • Rear Camera
Our Price
$33,490
$31,800
Instant Saving: $1,690
Message Us
Buy It Now
Transportation Cost: $0.80 per Mile
