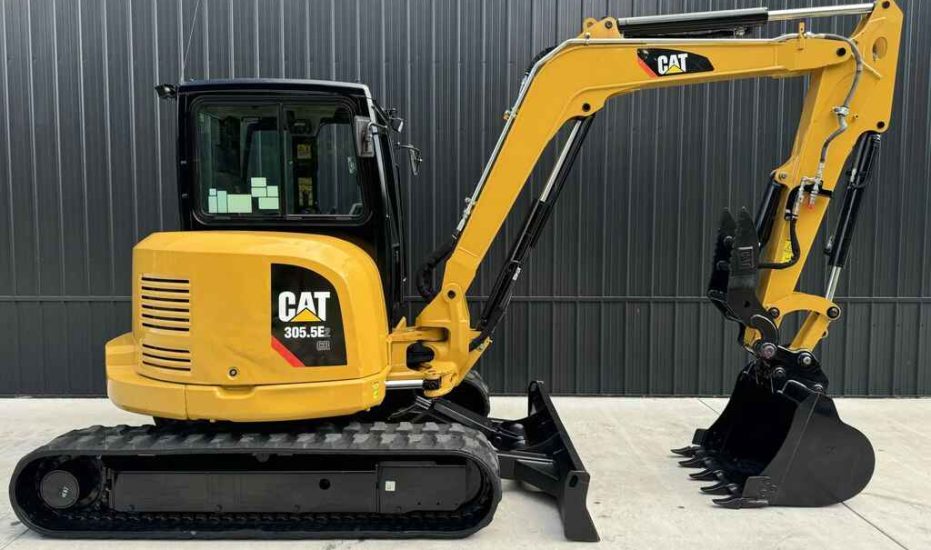

Specifications

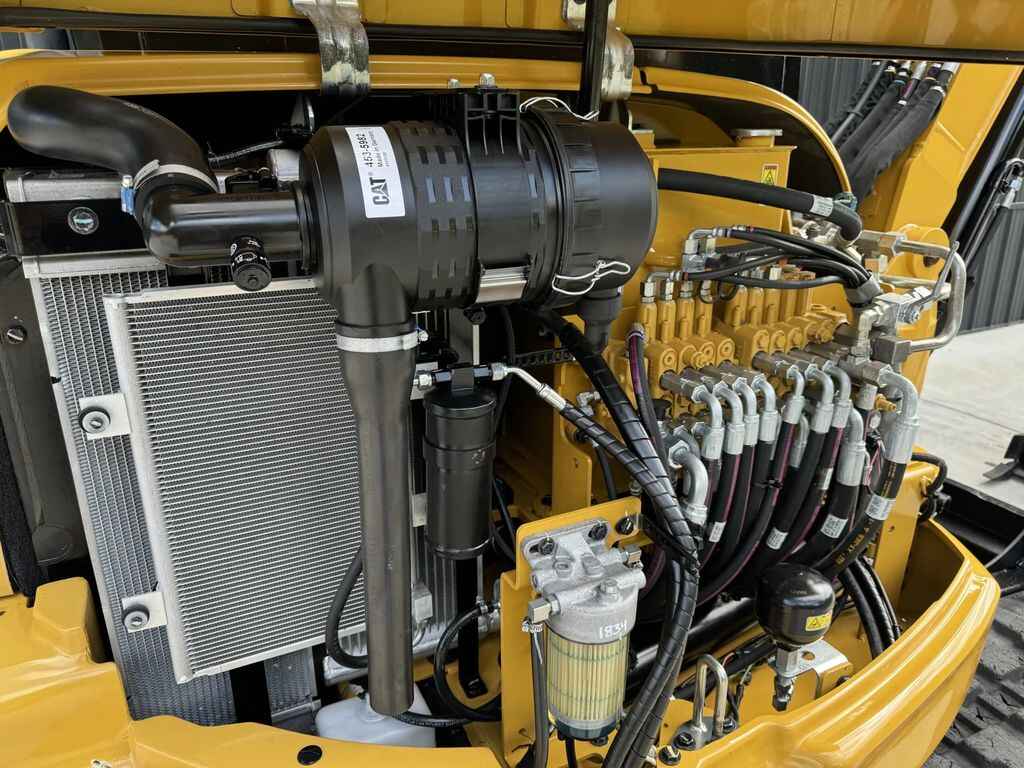

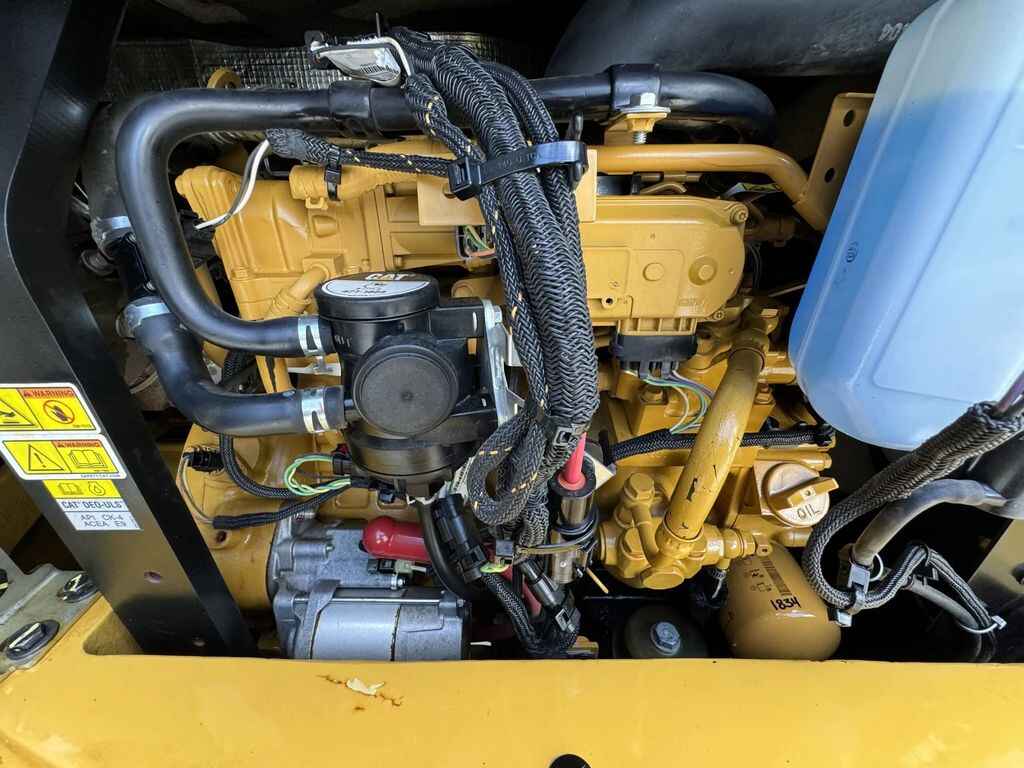

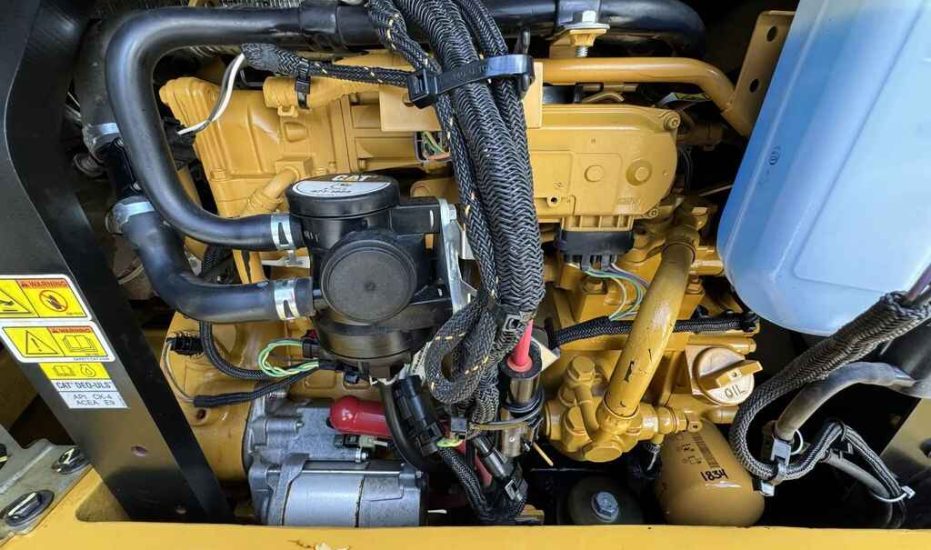

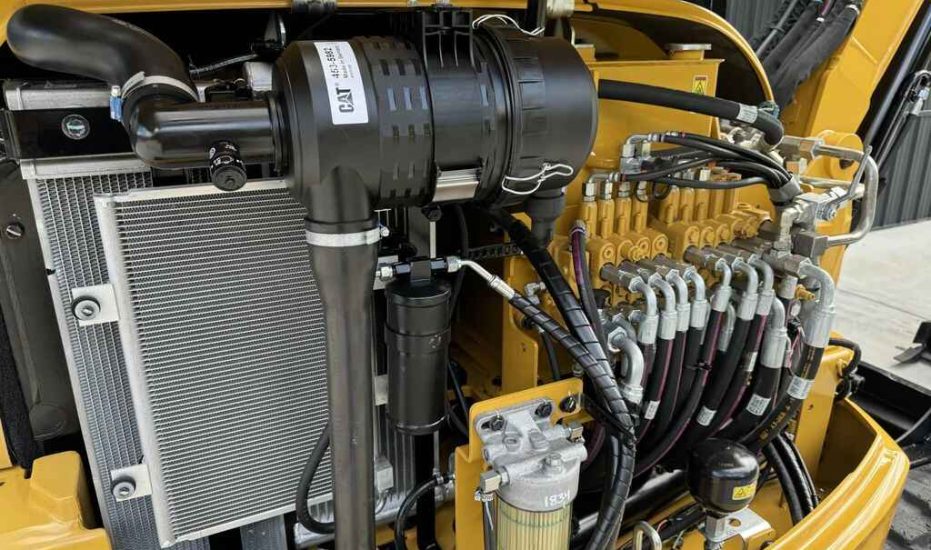

Engine

• Model: Cat® C2.4
• Net Power: 44.2 hp (32.9 kW)
• Gross Power: 45.7 hp (34.1 kW)
• Displacement: 146 in³ (2.4 L)
• Emissions: Meets U.S. EPA Tier 4 Interim/EU Stage IIIA emission standards

Weights

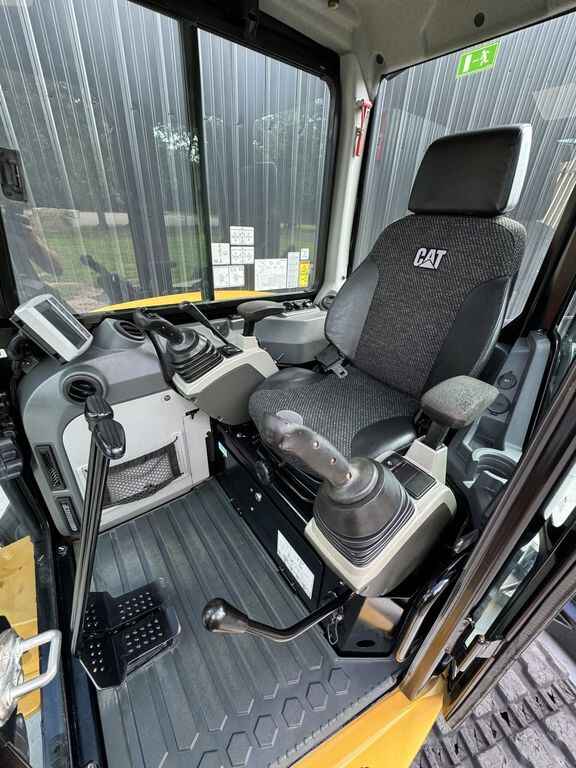

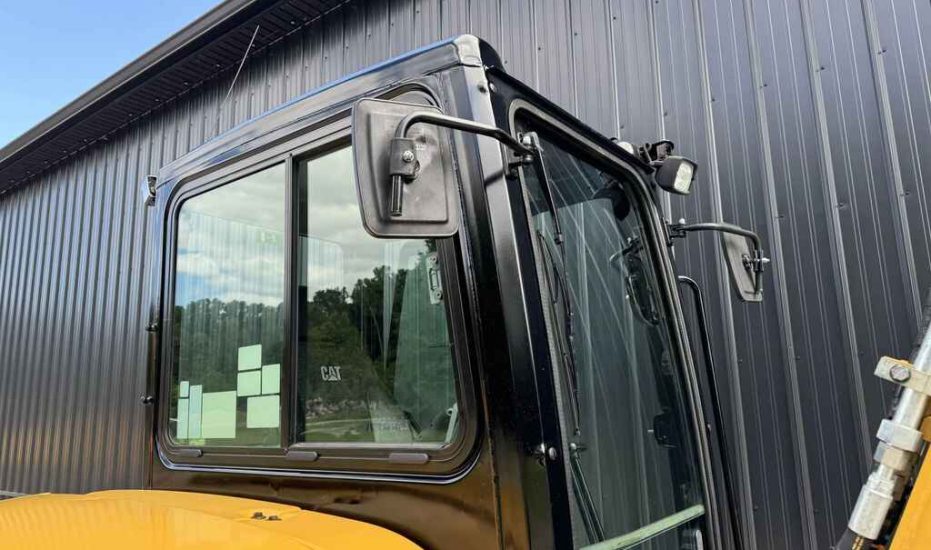

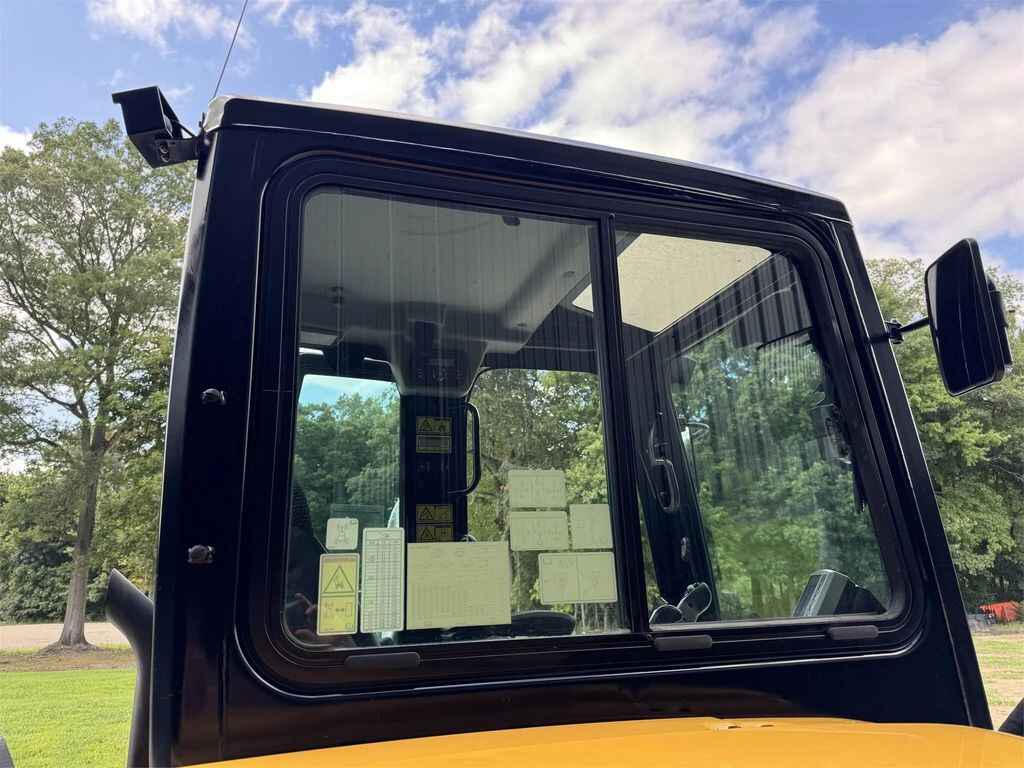

• Operating Weight with Cab: 11,958 lbs (5,423 kg)
• Operating Weight with Canopy: 11,596 lbs (5,259 kg)

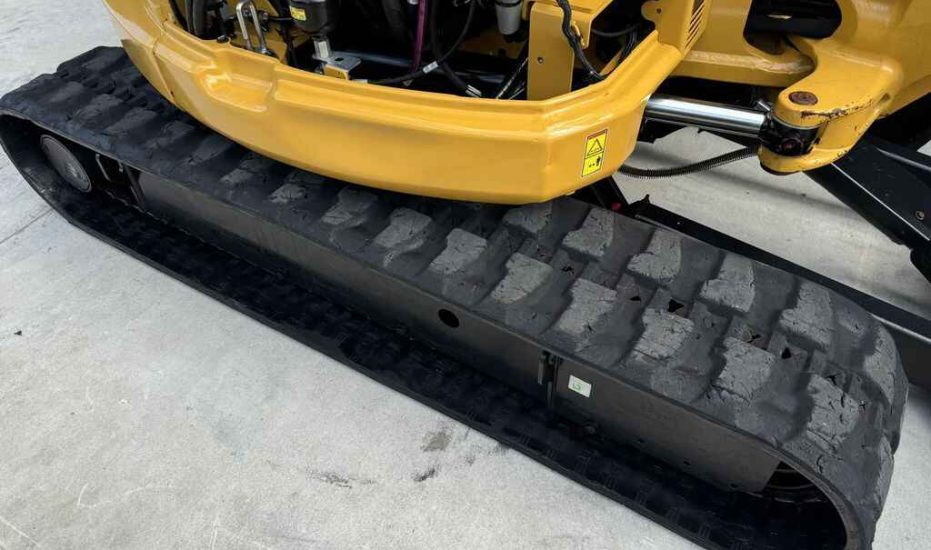

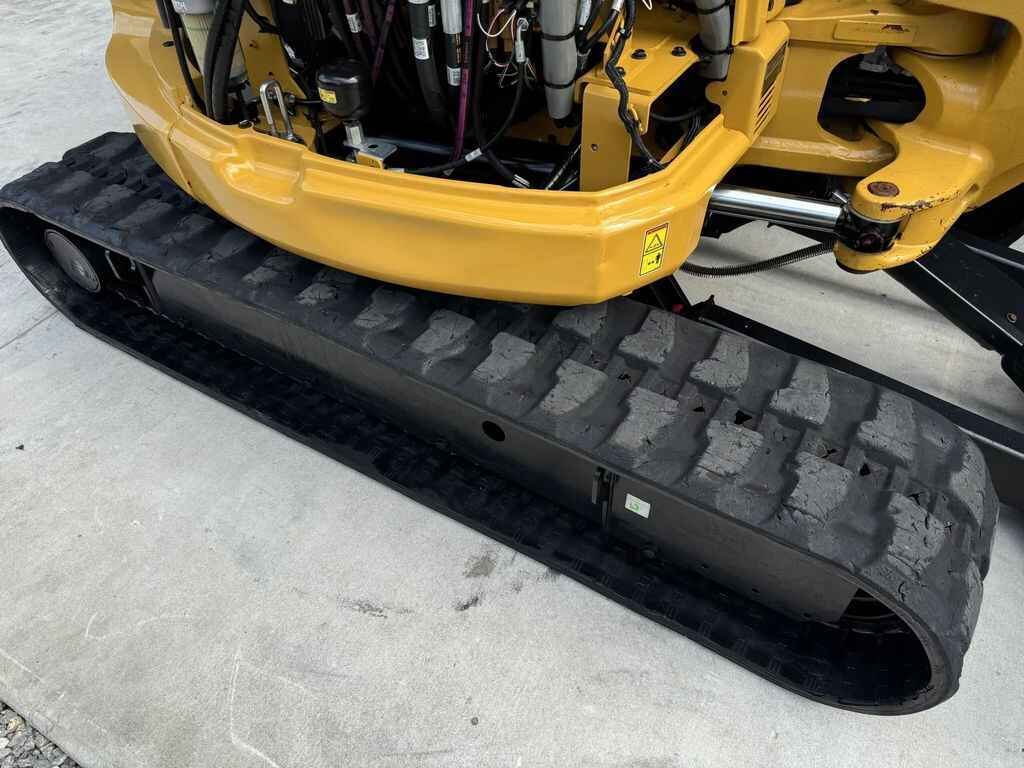

• Note: Weight includes rubber tracks, bucket, operator, full fuel, and auxiliary lines

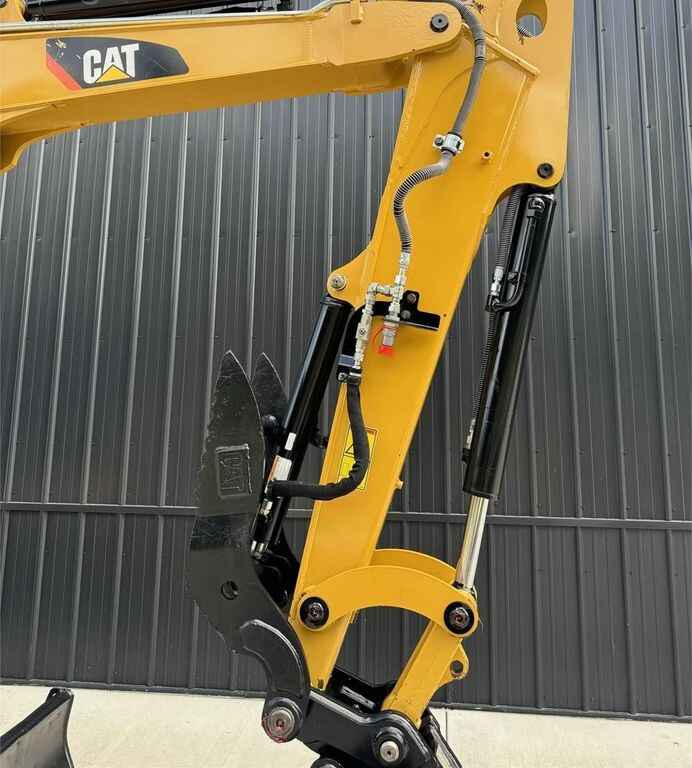

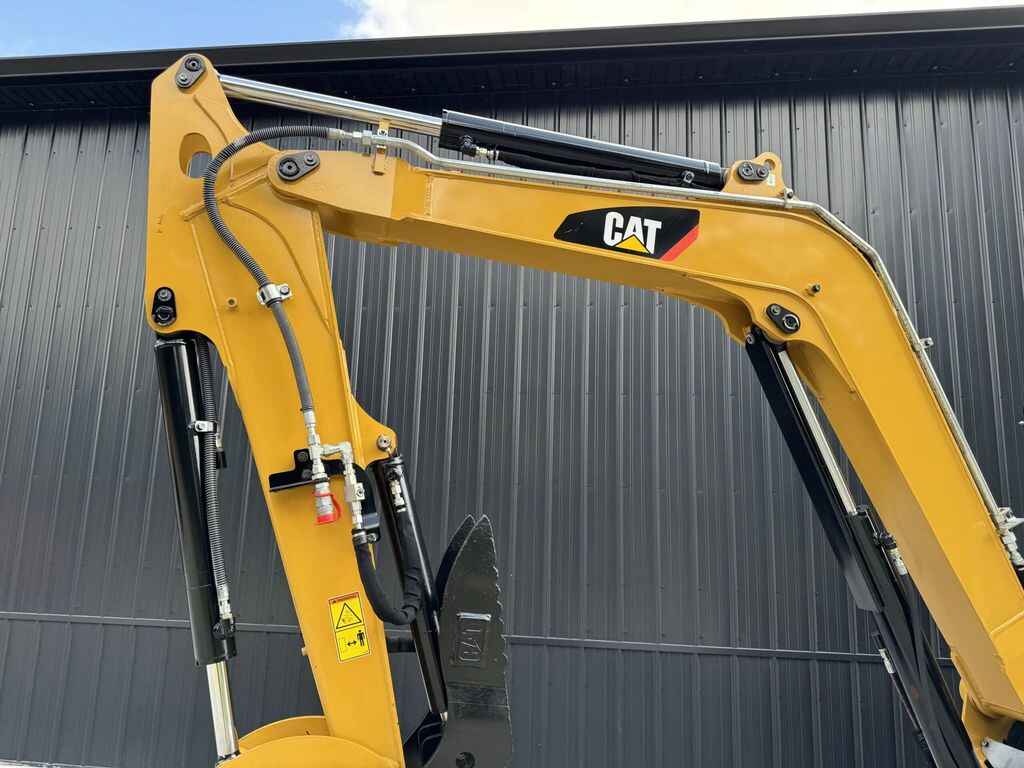

Performance

• Maximum Dig Depth: 12 ft 10 in (3,870 mm)
• Maximum Reach at Ground Level: 20 ft 4 in (6,200 mm)

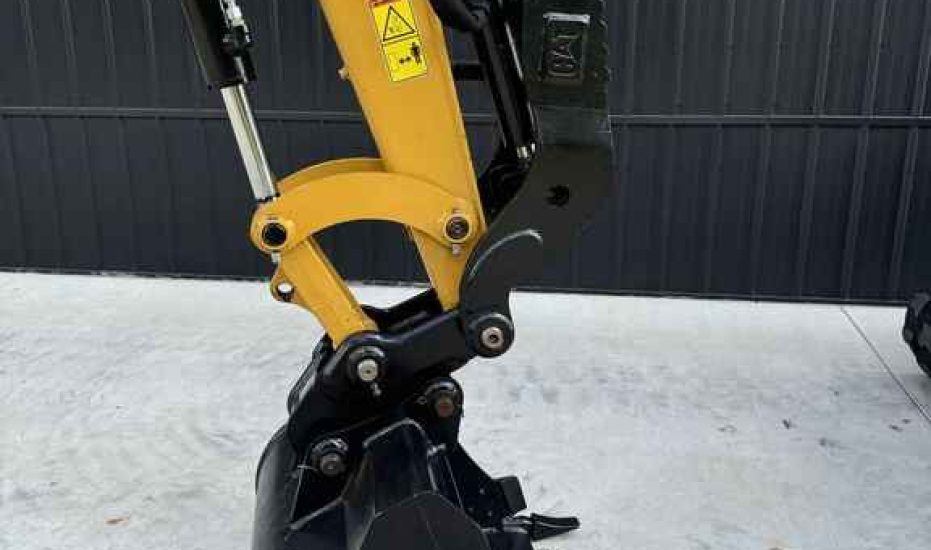

• Bucket Digging Force: 11,443 lbf (50.9 kN)
• Stick Digging Force (Standard): 6,497 lbf (28.9 kN)
• Stick Digging Force (Long): 5,575 lbf (24.8 kN)

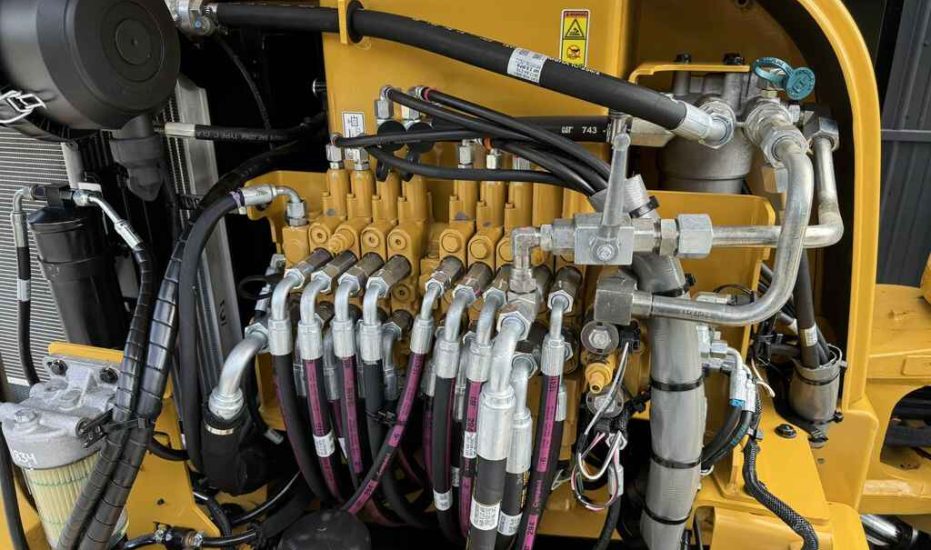

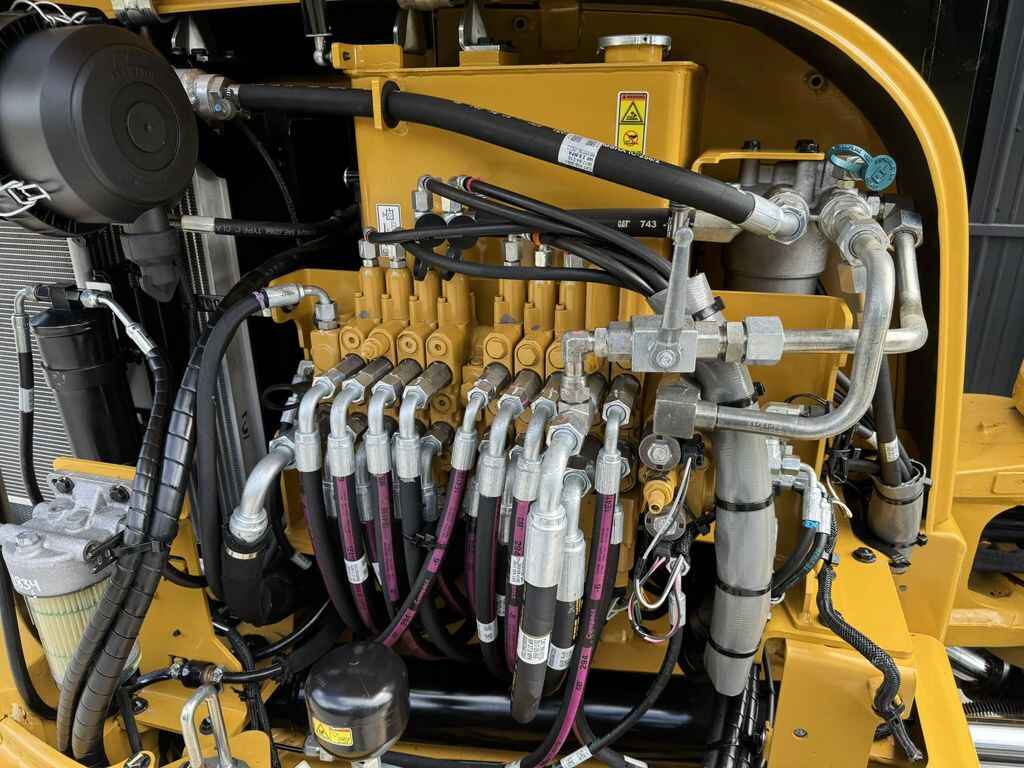

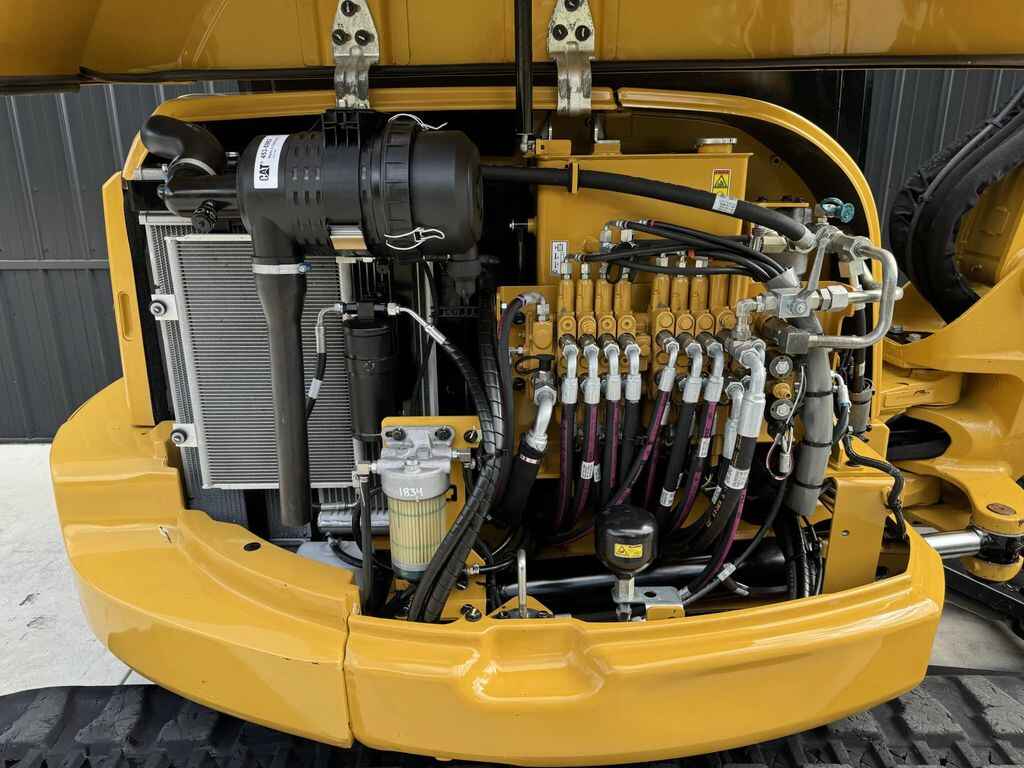

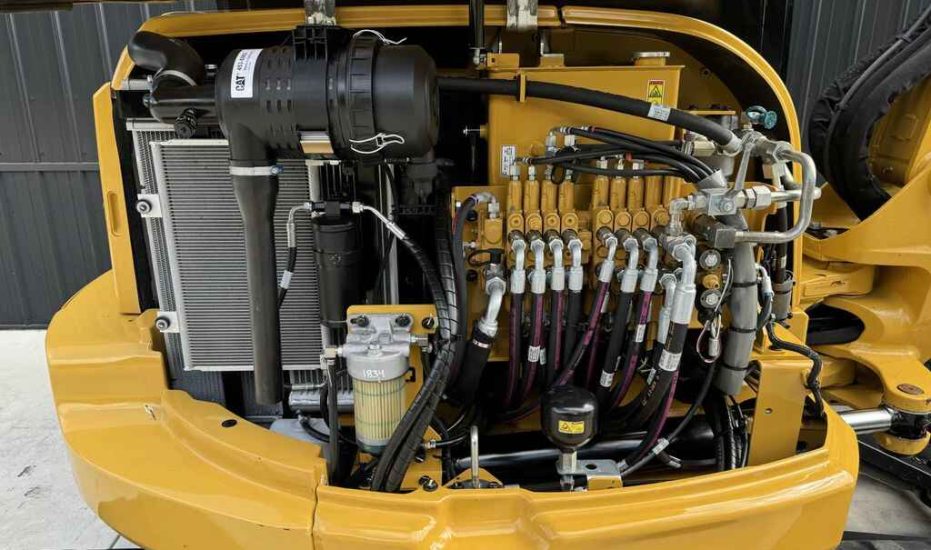

Hydraulics

• Main System – Maximum Flow: 43.1 gal/min (163 L/min)
• Auxiliary Circuit – Primary: 21.1 gal/min (80 L/min)
• Auxiliary Circuit – Secondary: 6.6 gal/min (25 L/min)
• Operating Pressure – Equipment: 3,553 psi (24.5 MPa)
• Operating Pressure – Travel: 3,553 psi (24.5 MPa)
• Operating Pressure – Swing: 3,132 psi (21.6 MPa)

Dimensions

• Maximum Reach: 20 ft 4 in (6,200 mm)
• Maximum Dig Height: 19 ft 8 in (5,990 mm)
• Maximum Dump Height: 13 ft 9 in (4,190 mm)
• Maximum Vertical Wall Dig Depth: 8 ft 4 in (2,540 mm)
• Tail Swing Radius: 3 ft 1 in (950 mm)
• Ground Clearance: 1 ft 1 in (335 mm)

Travel System

• Travel Speed – High: 2.8 mph (4.5 km/h)
• Travel Speed – Low: 1.7 mph (2.8 km/h)
• Maximum Traction Force – High Speed: 6,025 lbf (26.8 kN)
• Maximum Traction Force – Low Speed: 10,745 lbf (47.8 kN)
• Gradeability – Maximum: 30°

Service Refill Capacities

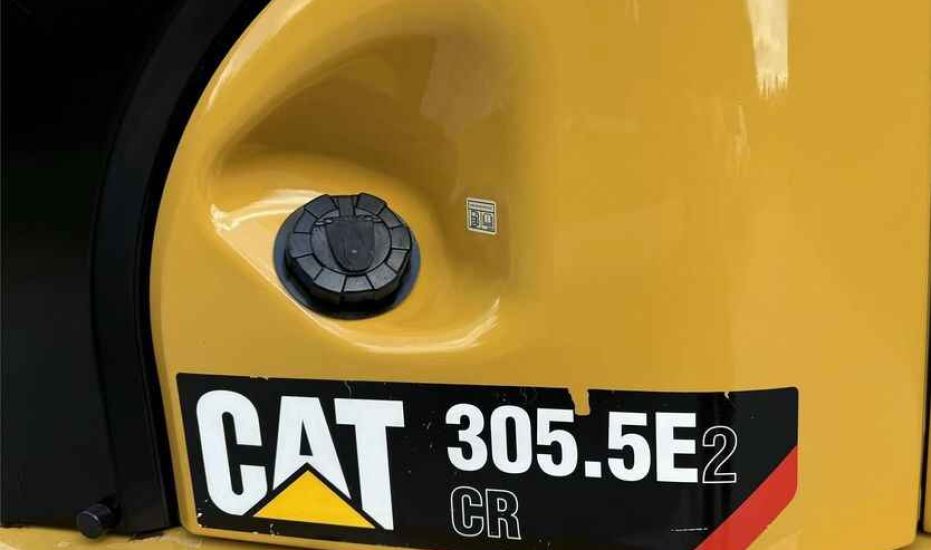

• Fuel Tank: 16.6 gal (63 L)
• Hydraulic Tank: 18 gal (68 L)
• Hydraulic System: 20.6 gal (78 L)
• Engine Oil: 2.5 gal (9.5 L)

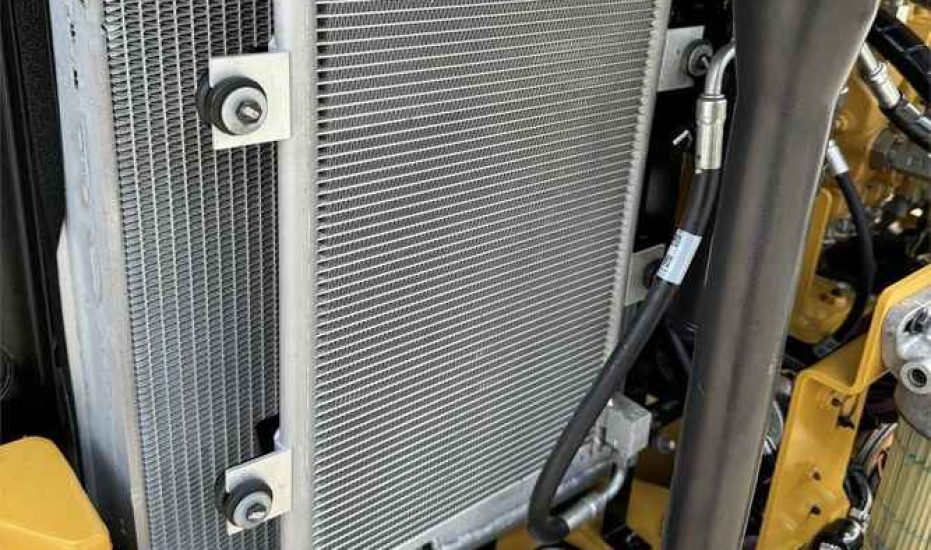

• Cooling System: 2.8 gal (10.5 L)
