Specifications

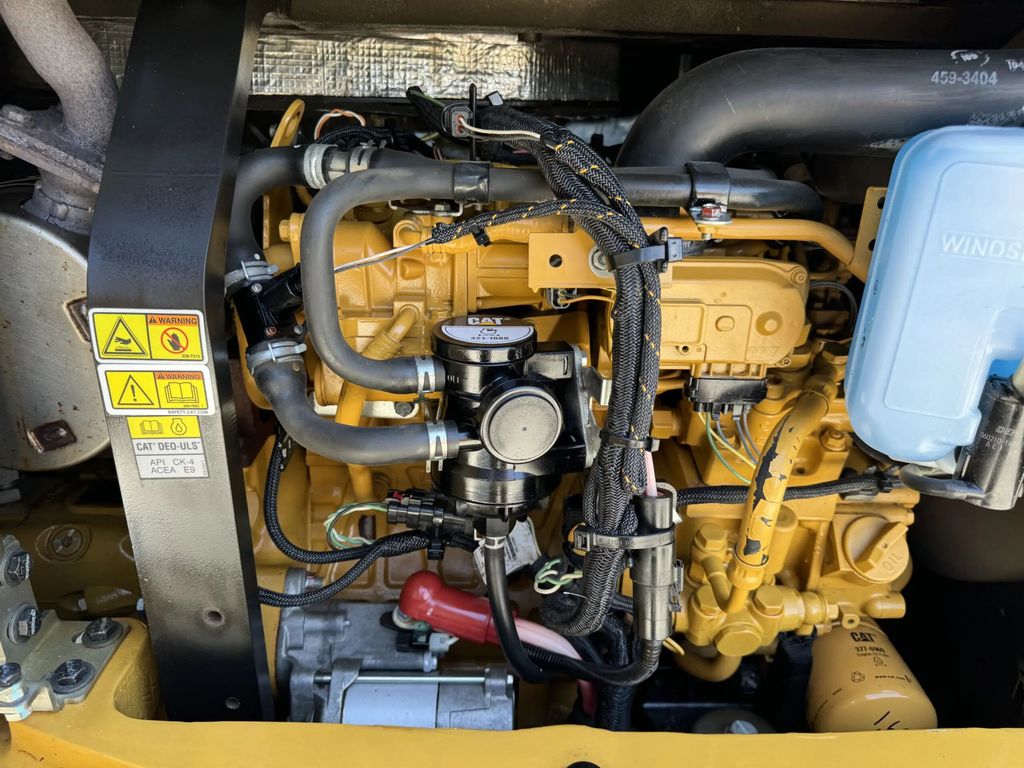

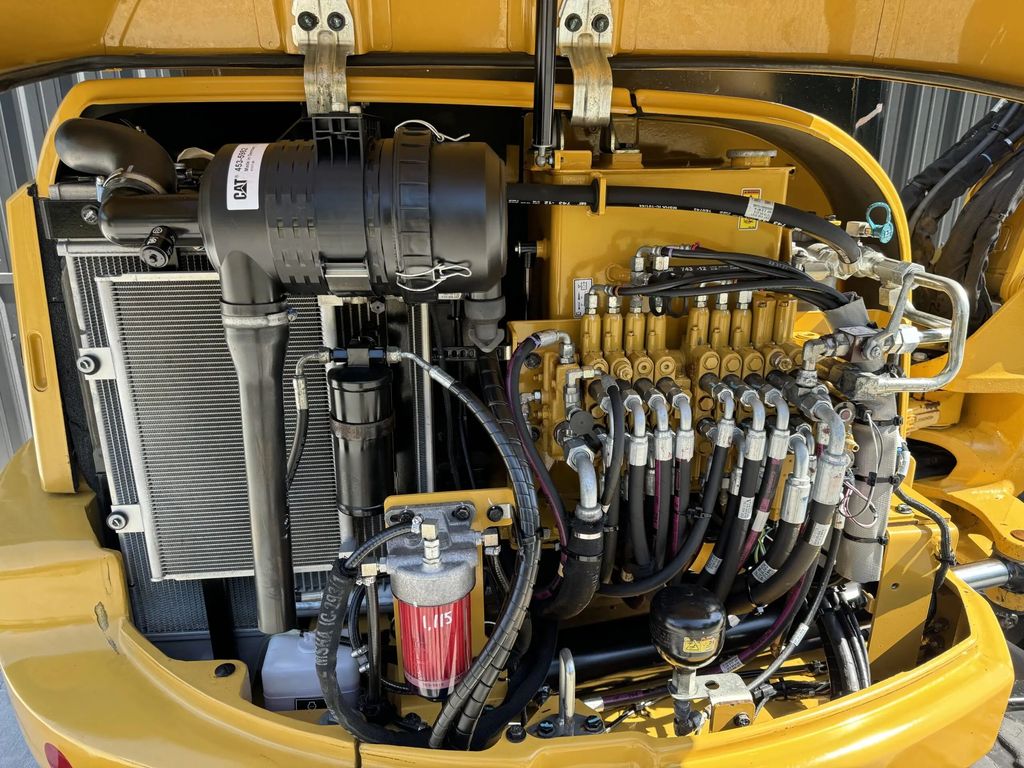

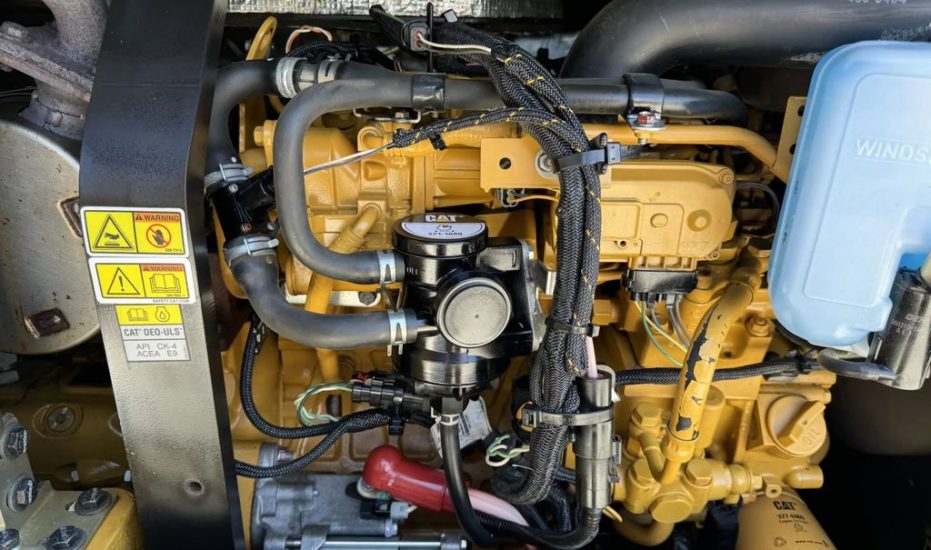

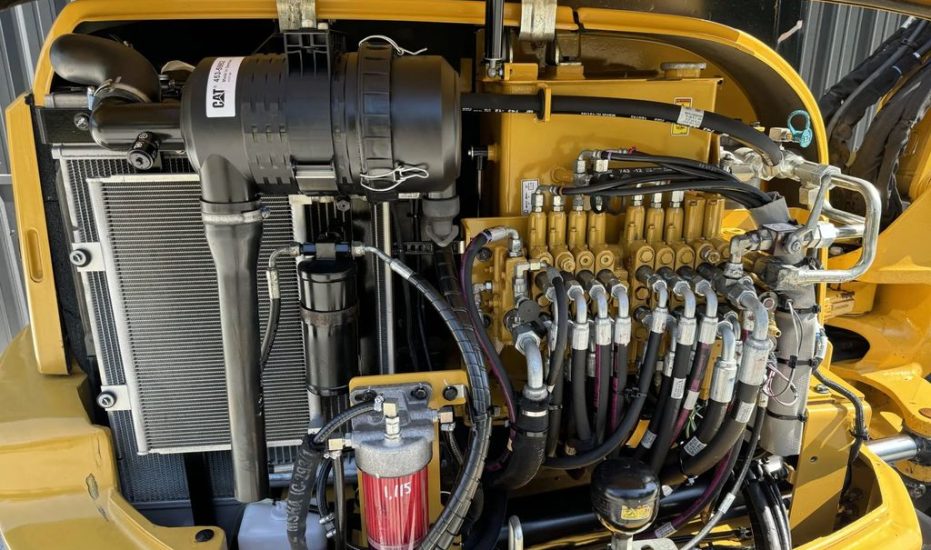

Engine

• Model: Cat C2.4 Turbo
• Net Power: 44.1 hp (32.9 kW)
• Gross Power: 45.7 hp (34.1 kW)
• Displacement: 146 in³ (2.4 L)
• Net Torque: Not typically listed in published spec sheets.
• Fuel Capacity: 16.6 gal (63 L)

Weights

• Operating Weight (with Cab): 12,161 lb (5,515 kg)
• Operating Weight (with Canopy): 11,958 lb (5,425 kg)

Performance

• Dig Depth: 12.83 ft (3.91 m)
• Max Dump Height: 13.58 ft (4.14 m)
• Max Reach at Ground Level: 20.1 ft (6.13 m)
• Maximum Travel Speed: 3.1 mph (5.0 km/h)
• Swing Speed: 9 RPM
• Bucket Breakout Force: 11,243 lbf (50 kN)
• Stick Breakout Force: 6,263 lbf (27.9 kN)

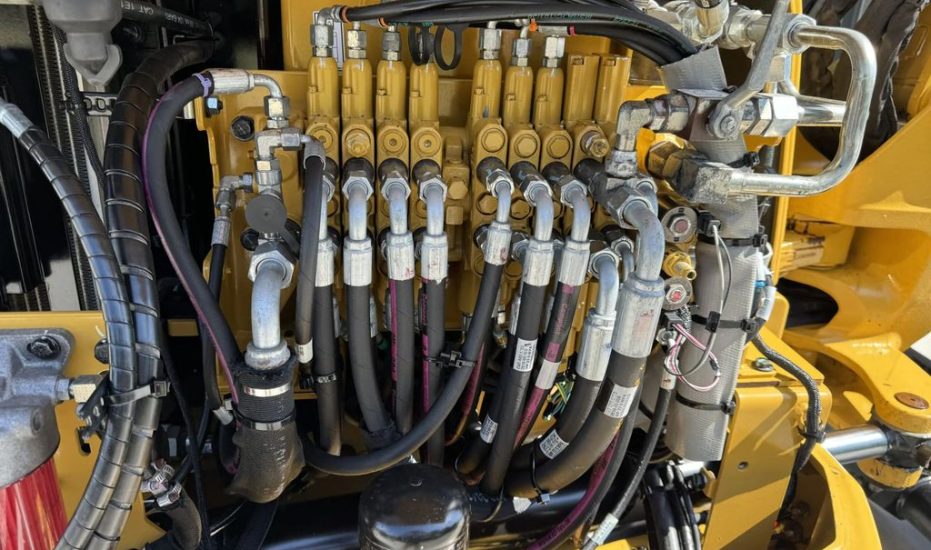

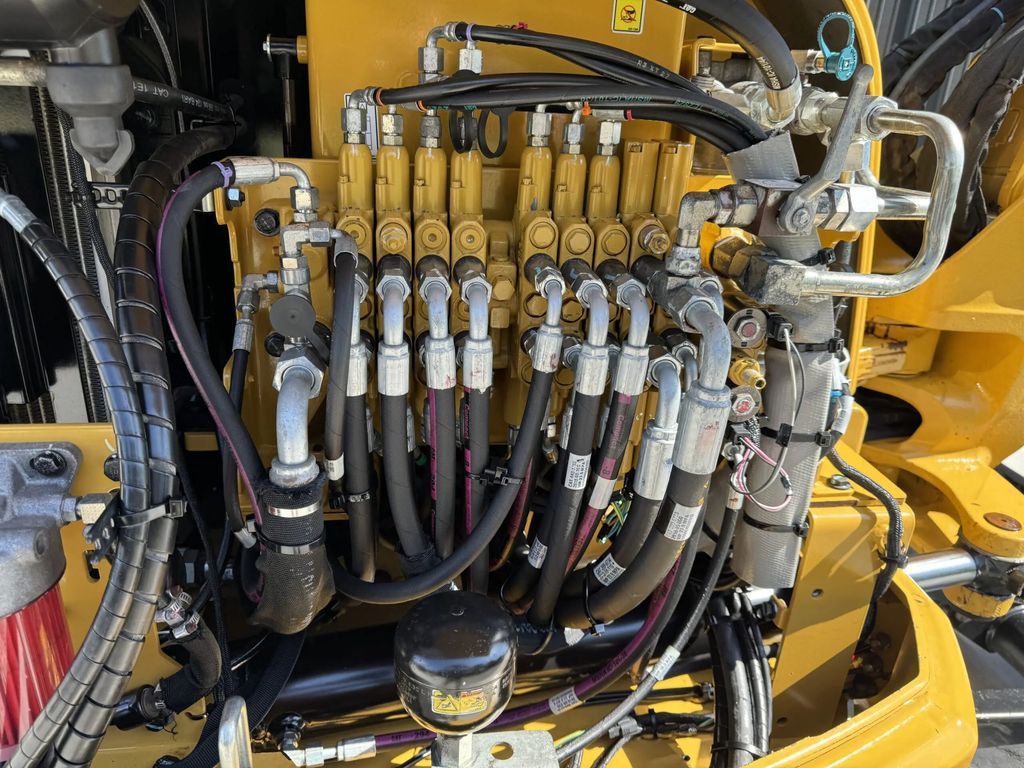

Hydraulics

• Main System - Maximum Flow: 36.2 gal/min (137 L/min)
• Hydraulic System Pressure (Standard): 3,553 psi (24,500 kPa)
• Auxiliary Hydraulics: Included, suitable for various attachments

Dimensions

• Overall Length: 18.1 ft (5.51 m)
• Overall Width: 6.5 ft (2.0 m)
• Height to Top of Cab: 8.5 ft (2.59 m)
• Tail Swing Radius: 3.0 ft (0.91 m)
• Ground Clearance: 1.3 ft (0.33 m)

Track System

• Track Width: 15.7 in (400 mm)
• Track Length: 7.9 ft (2.42 m)
