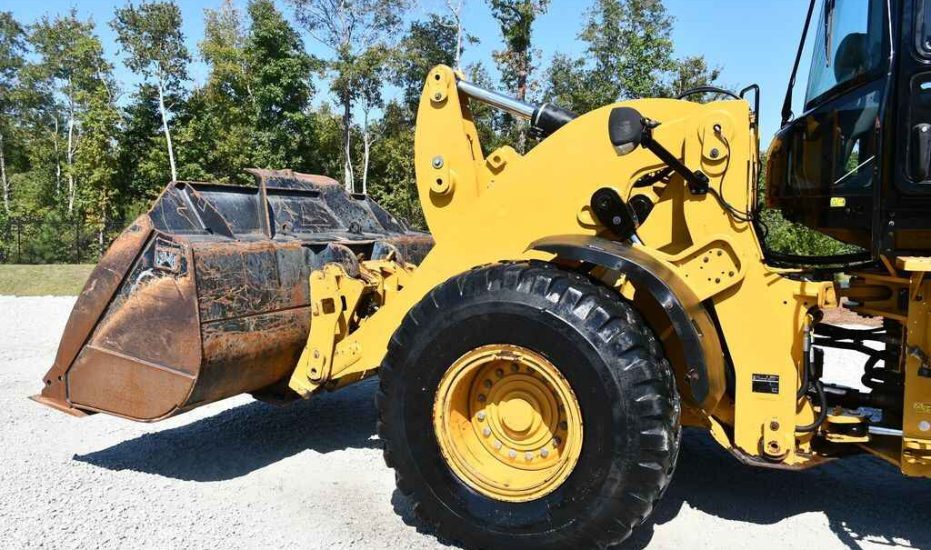

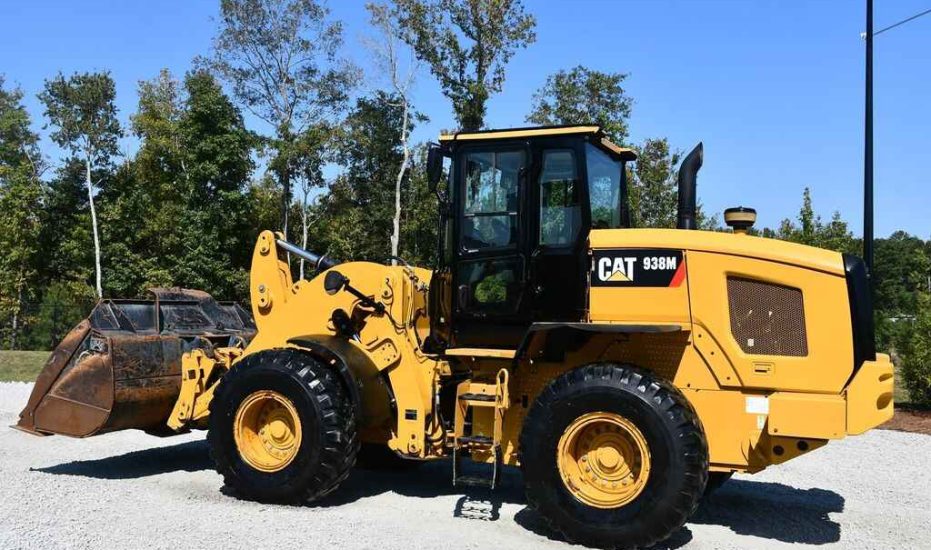

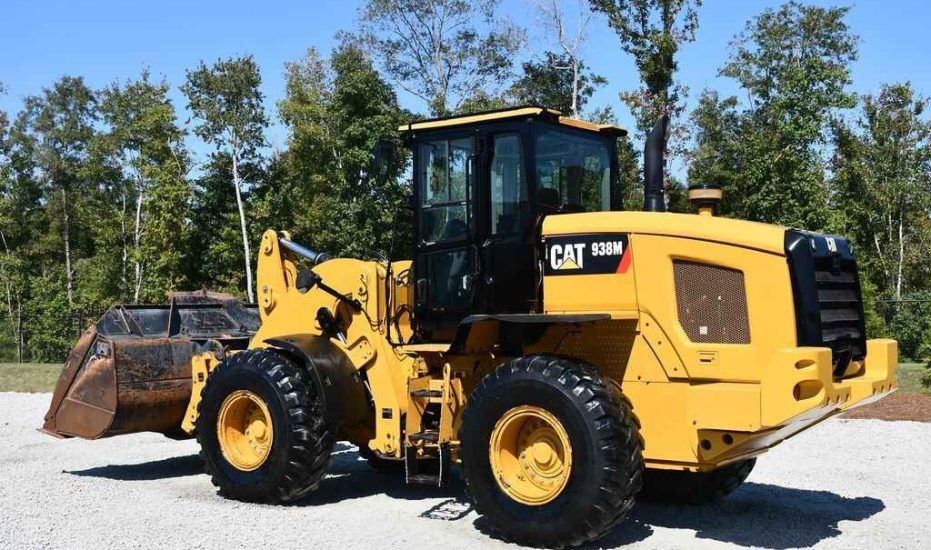

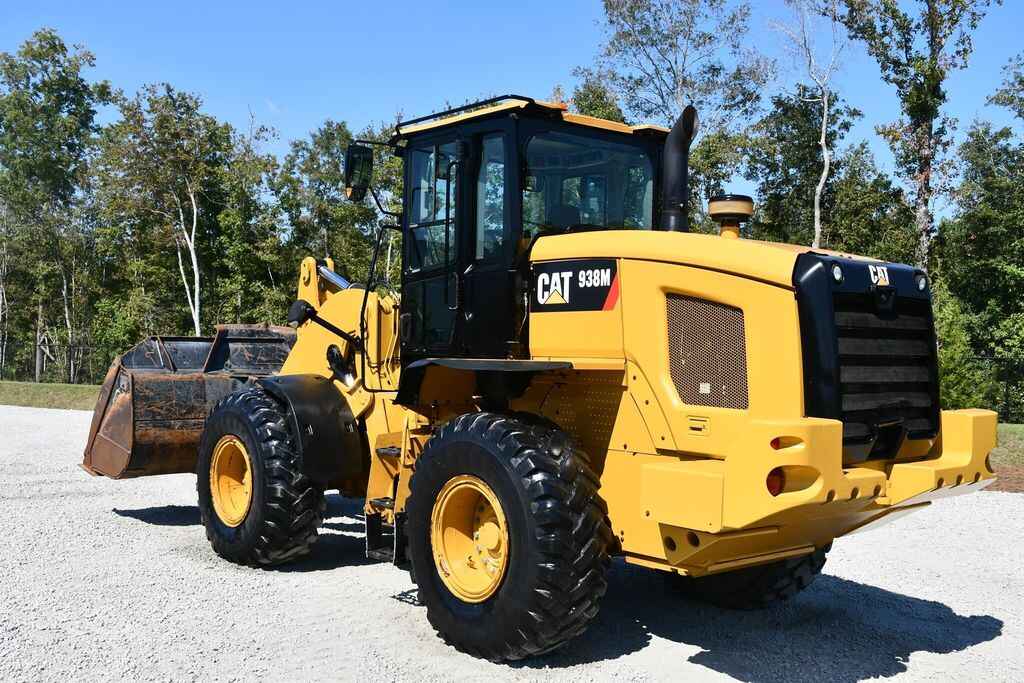

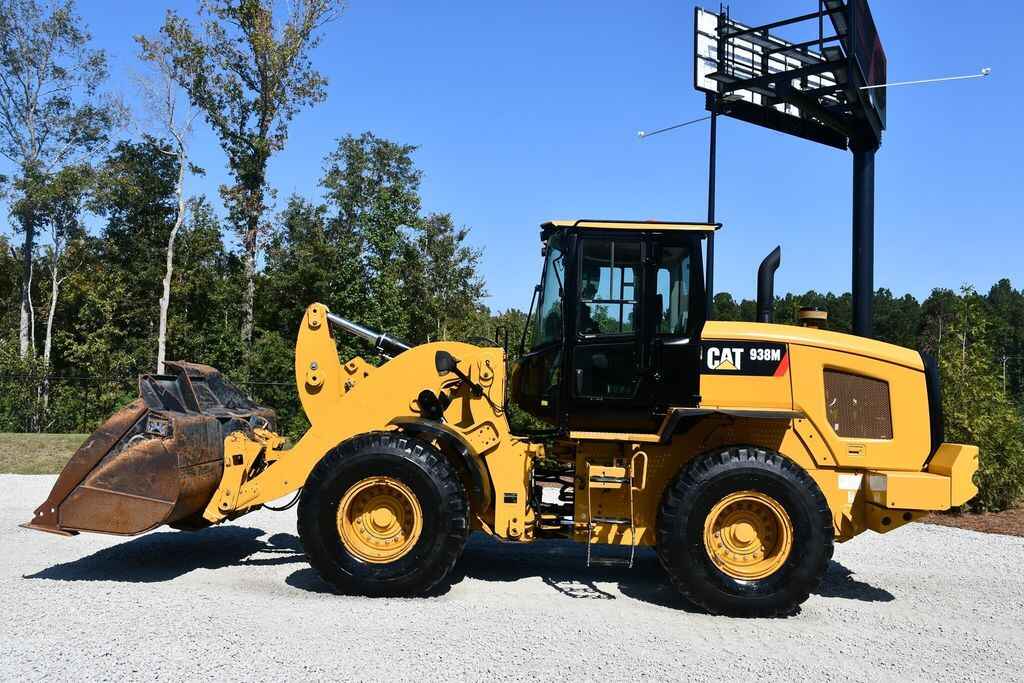

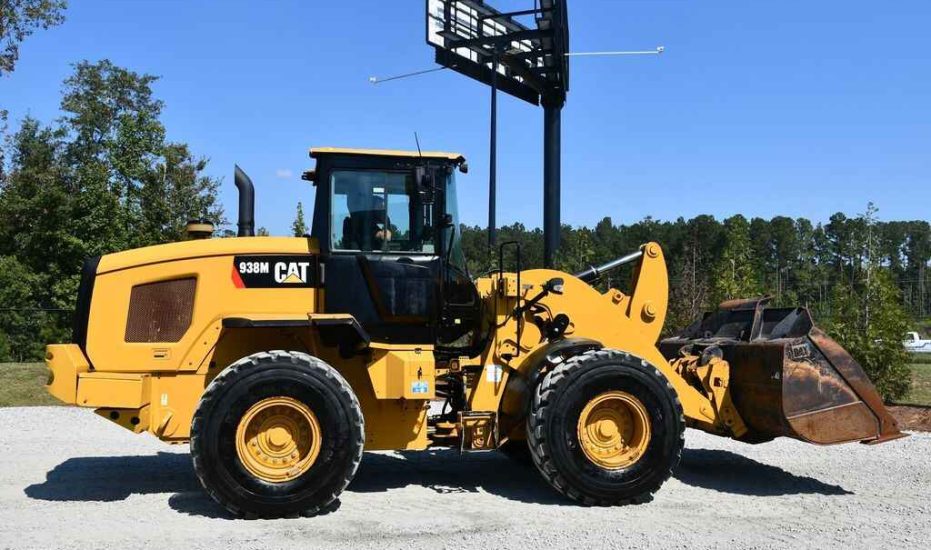

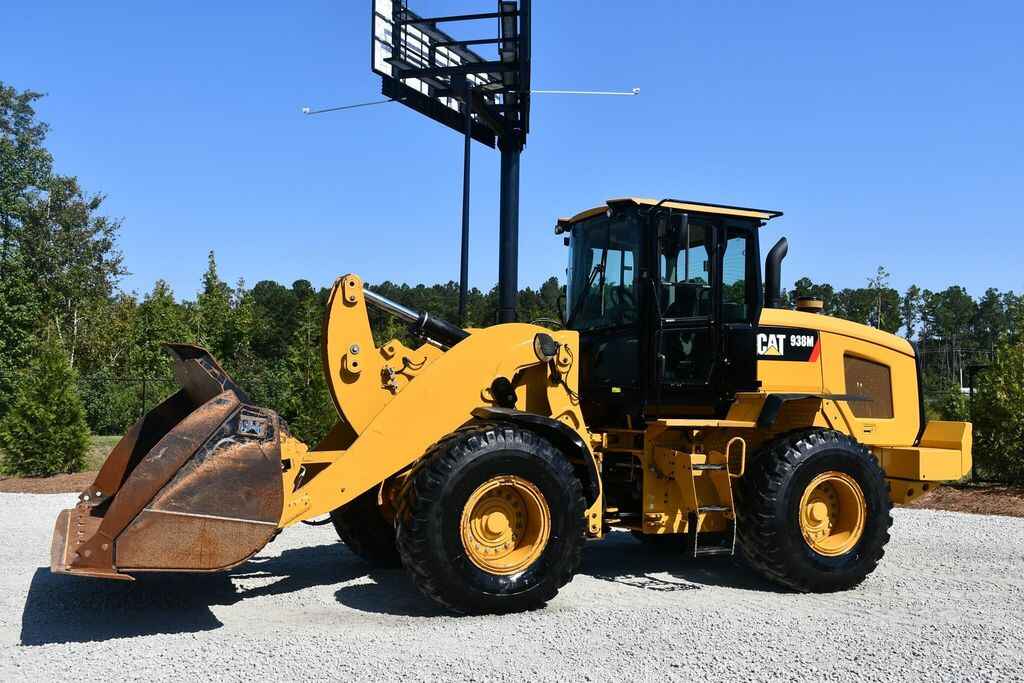

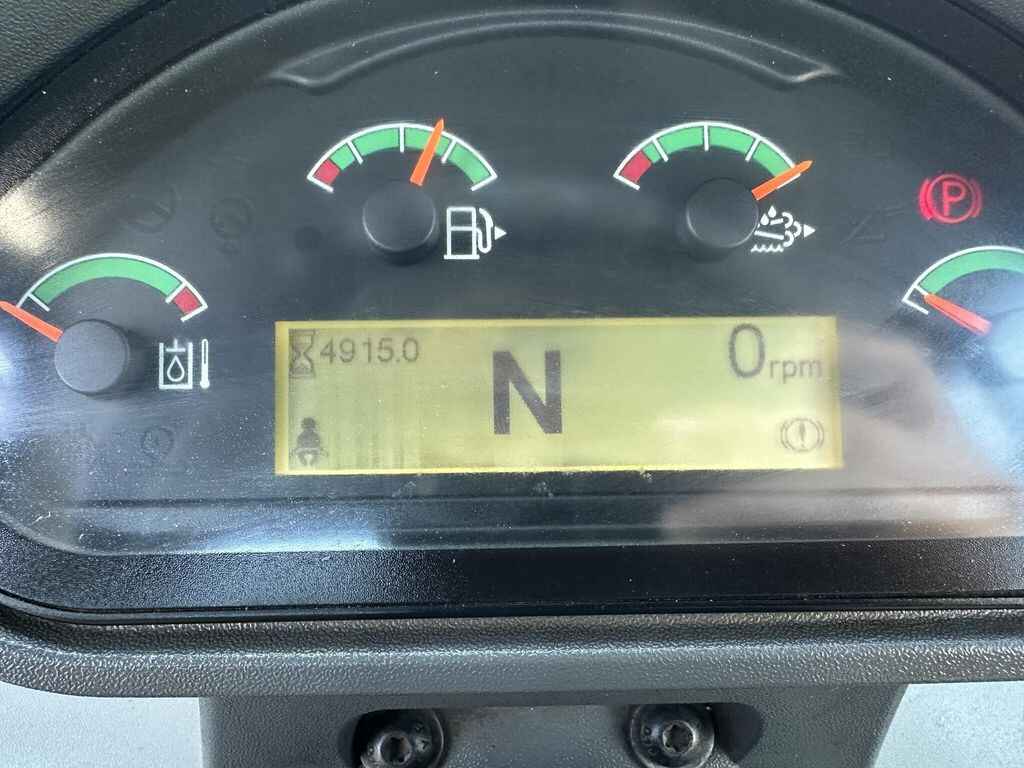

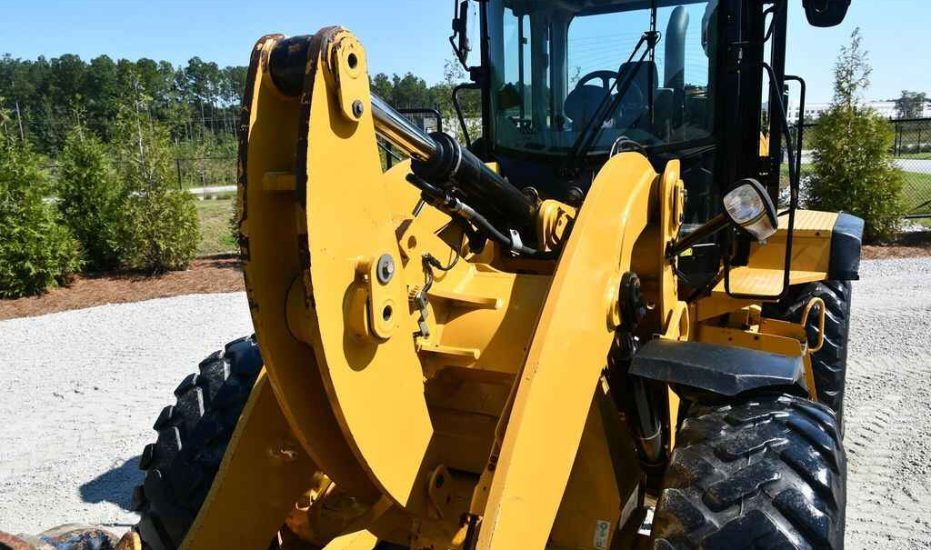

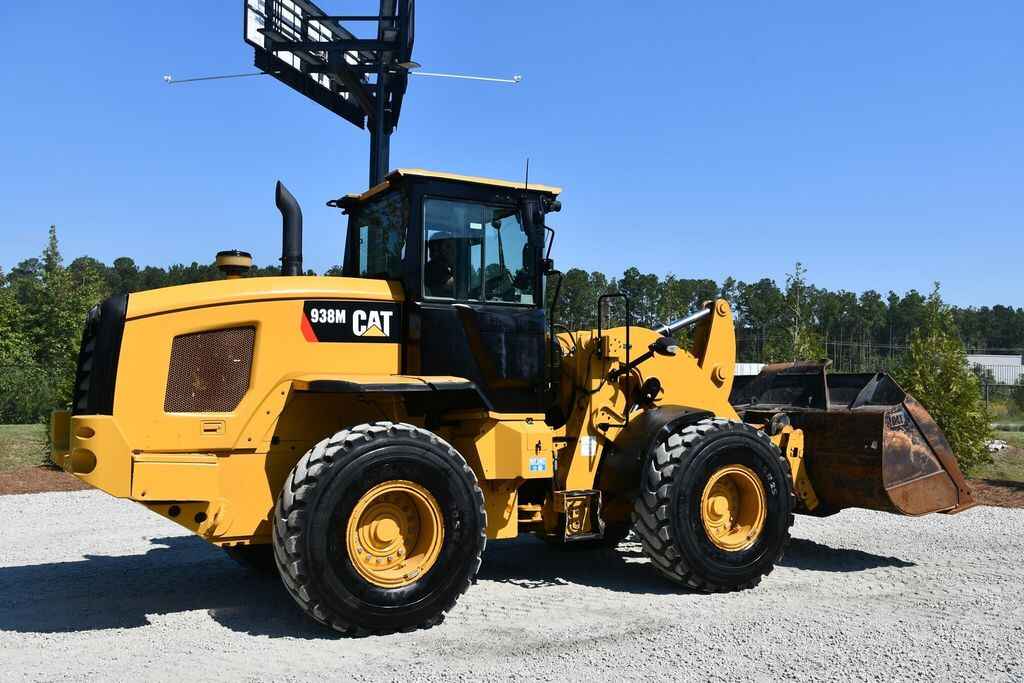

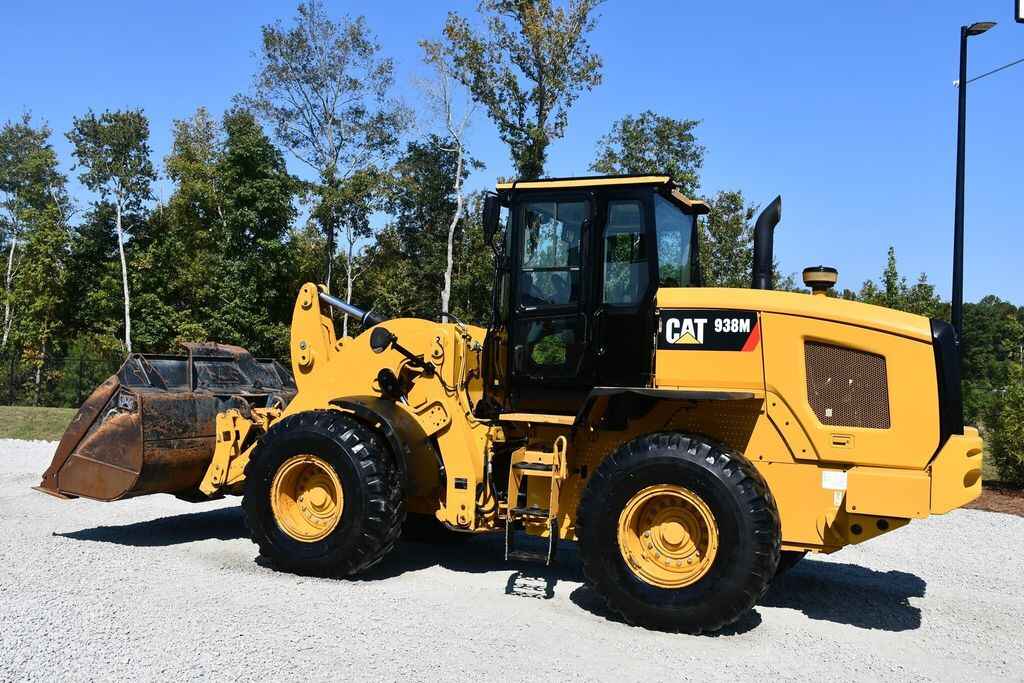

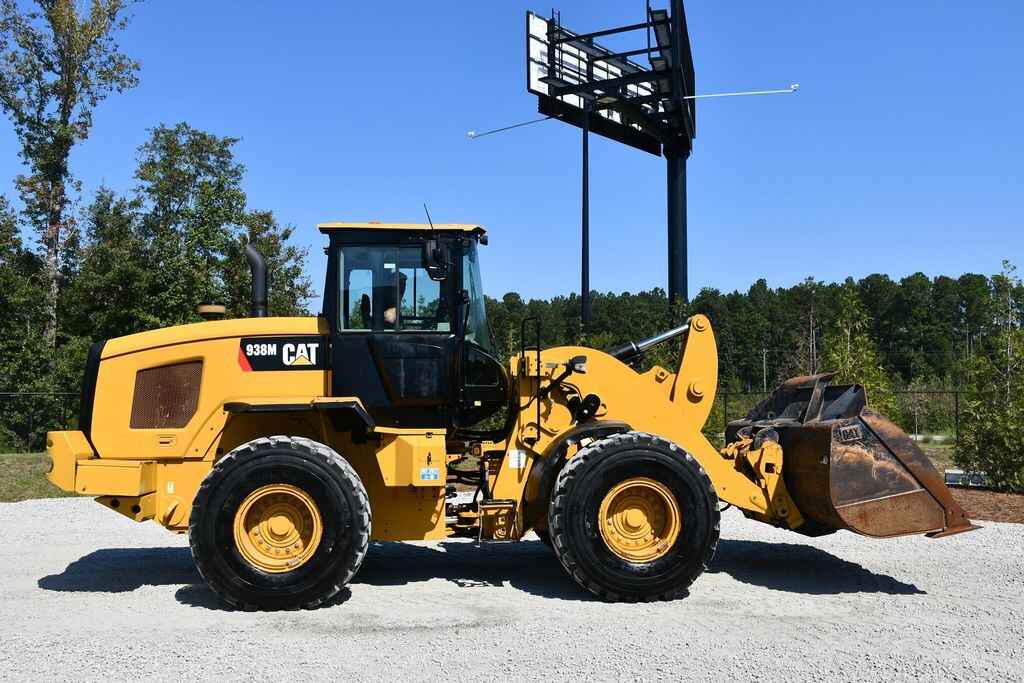

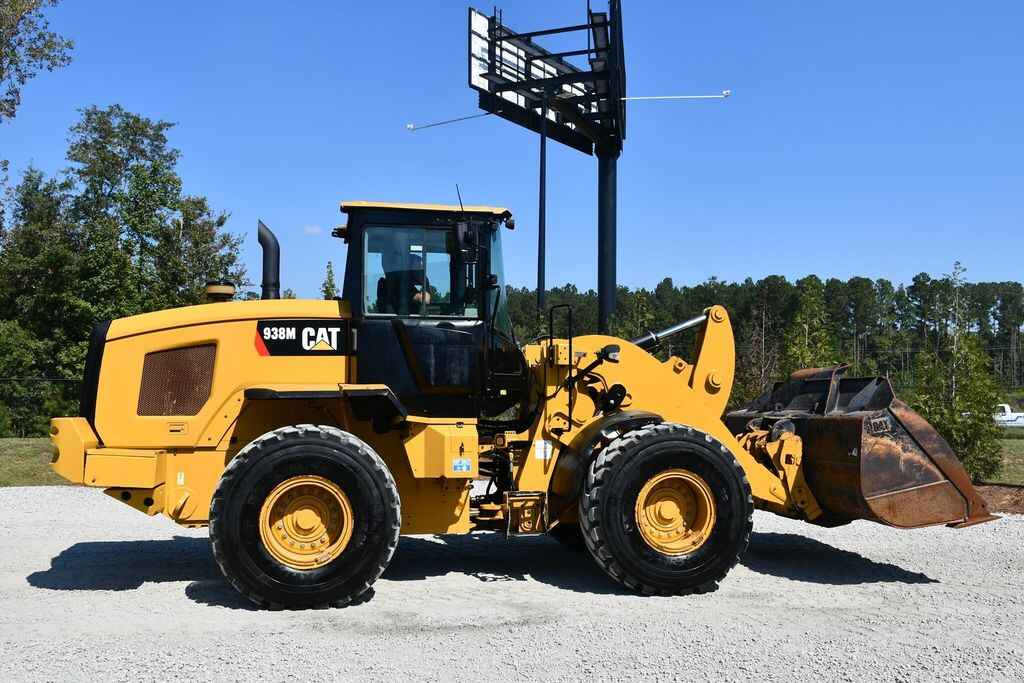

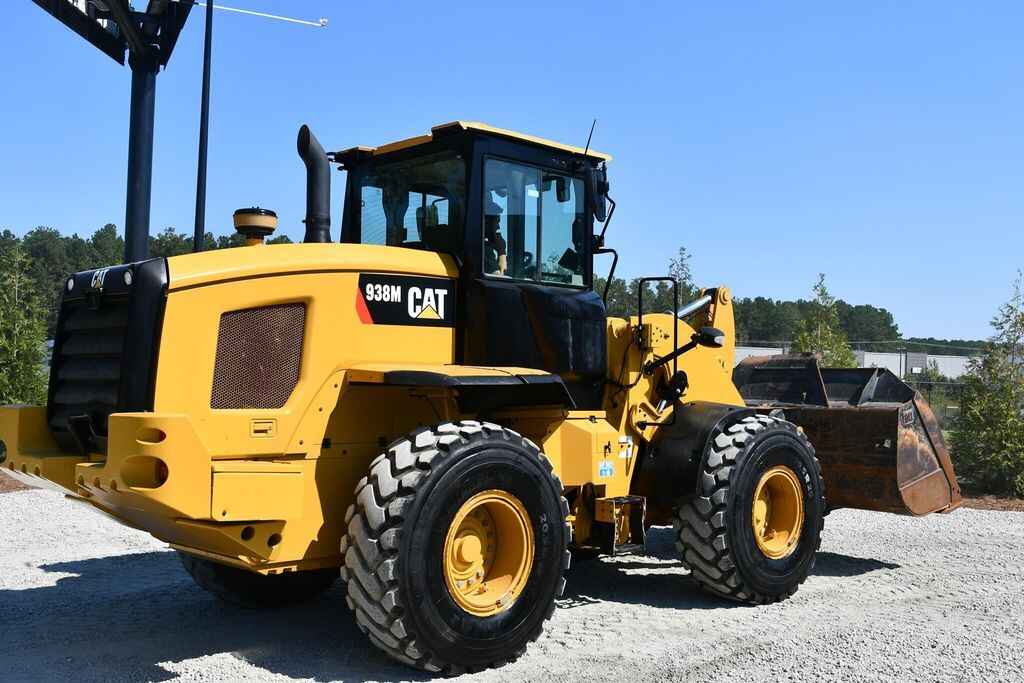

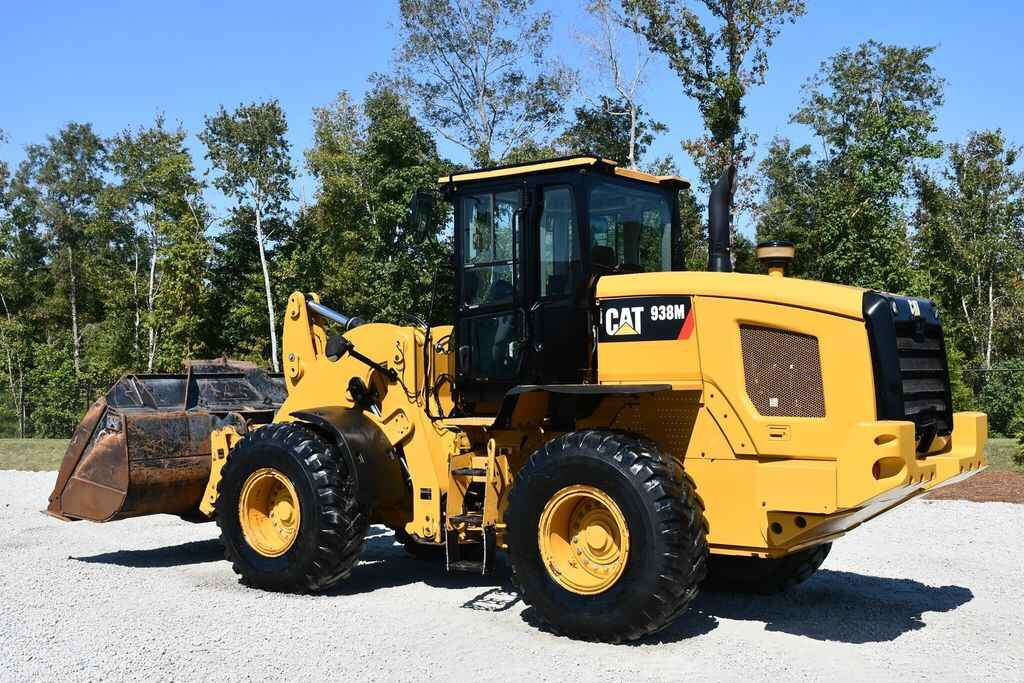

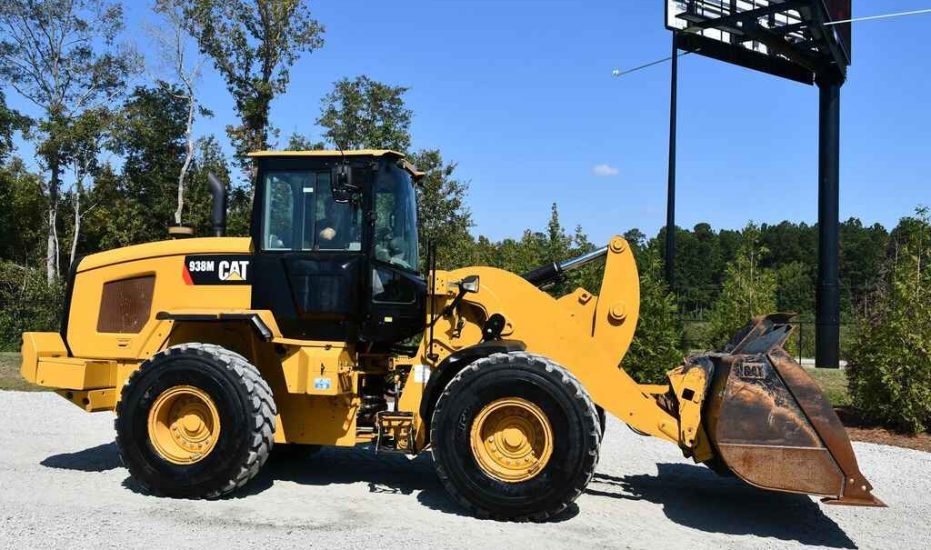

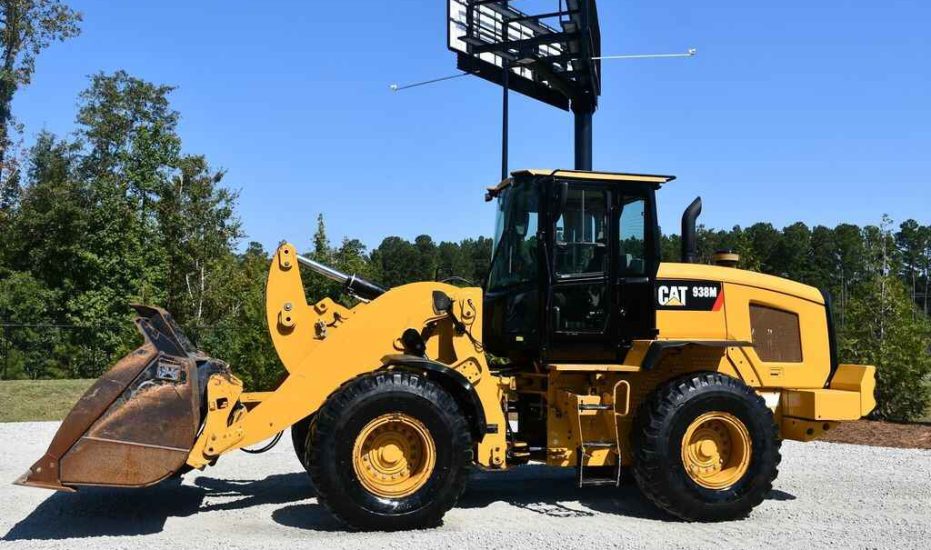

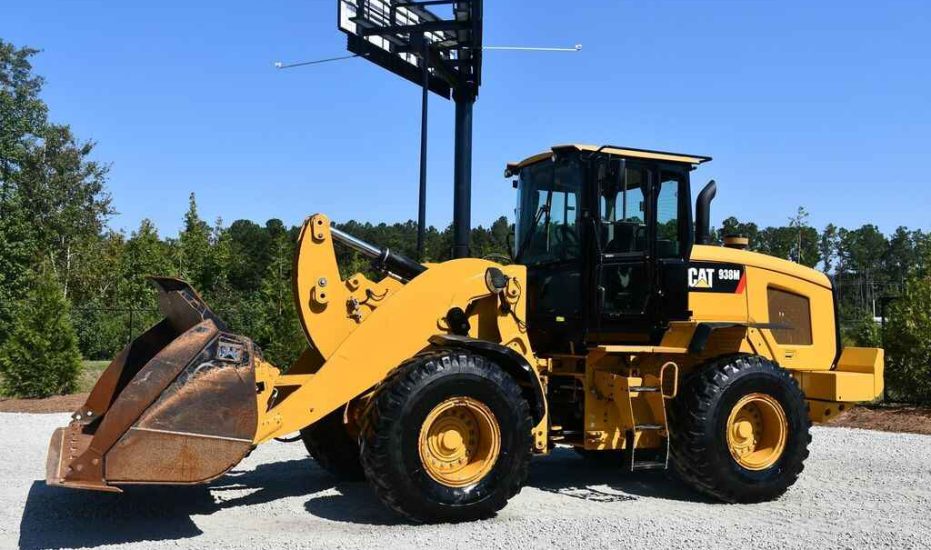

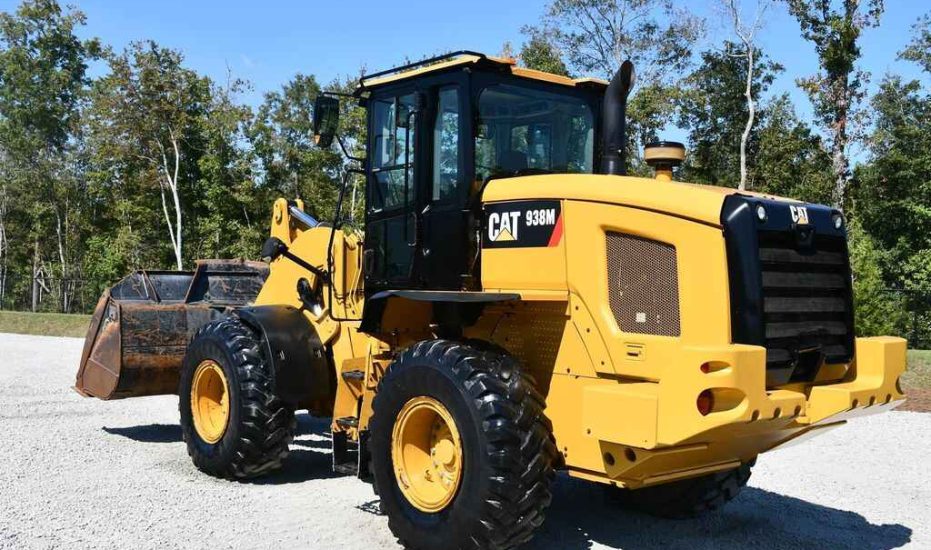

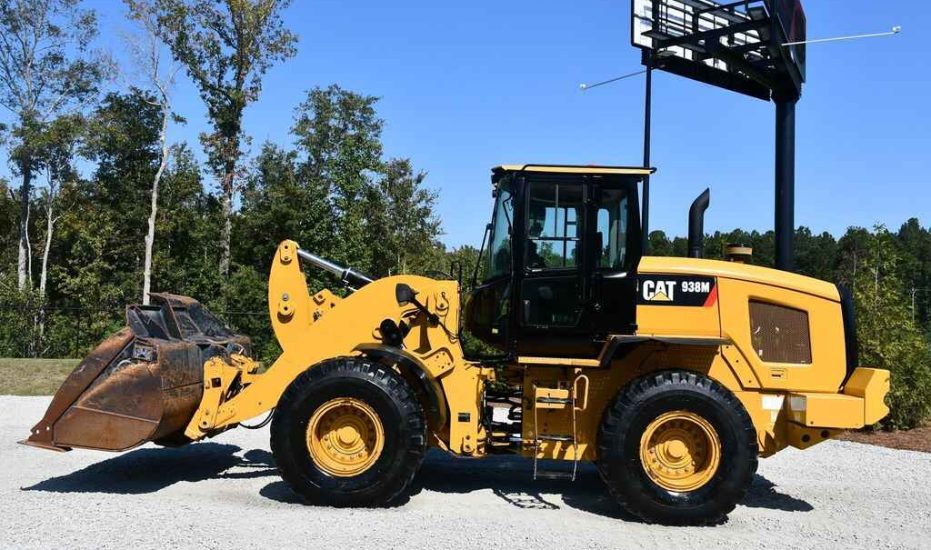

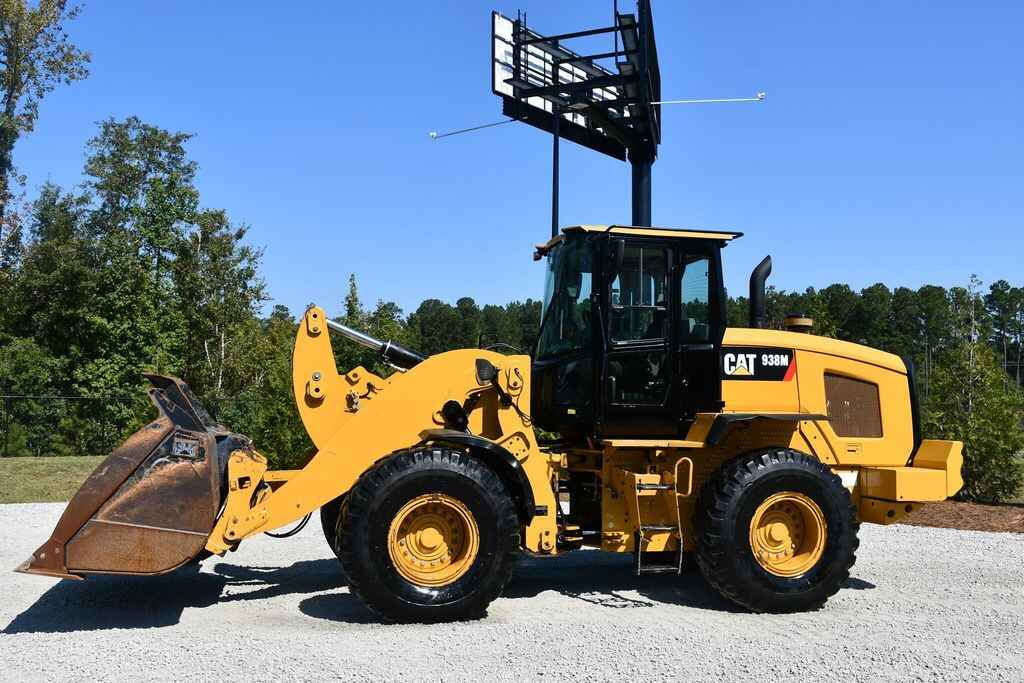

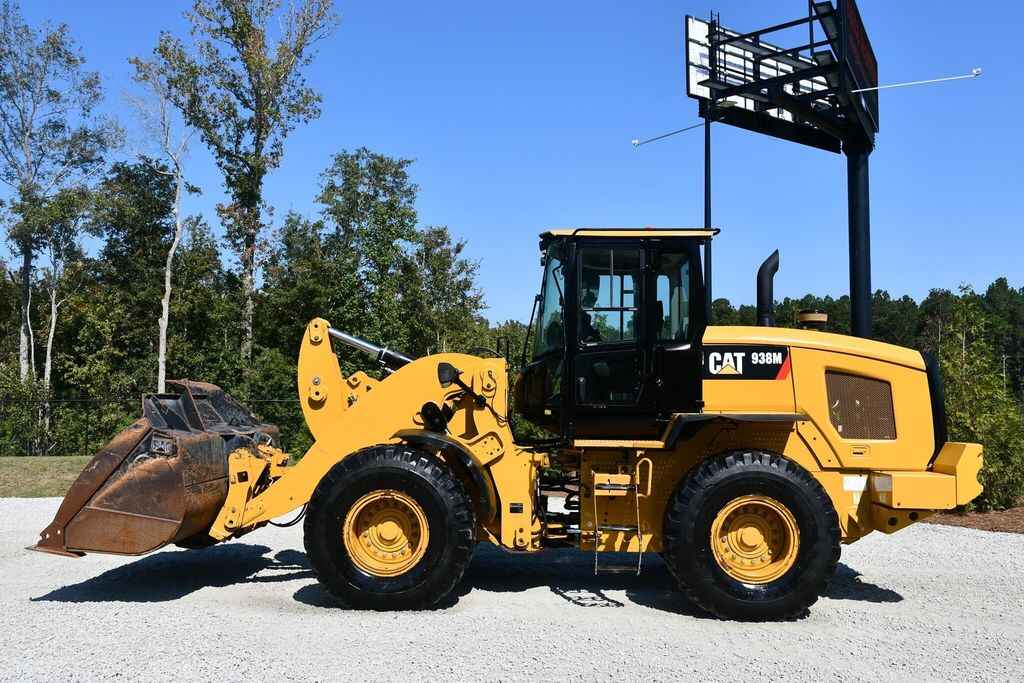

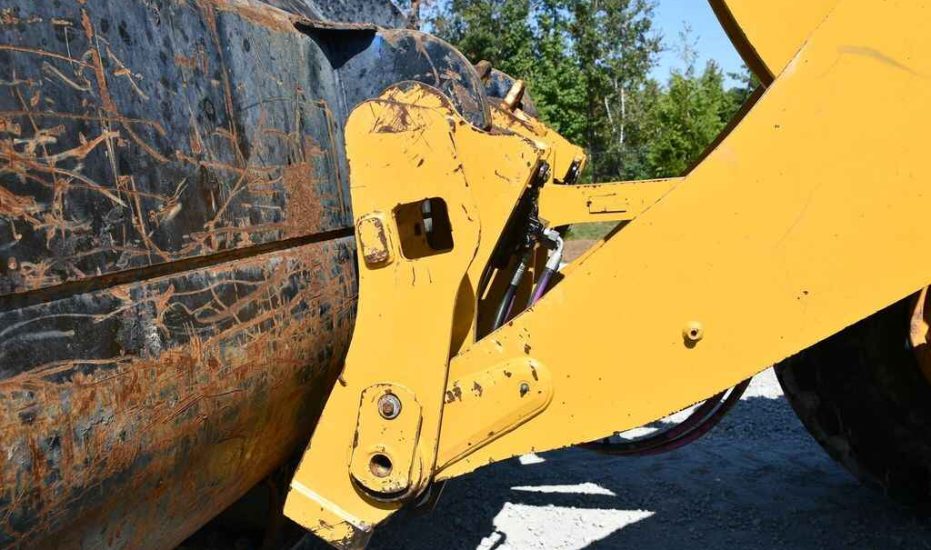

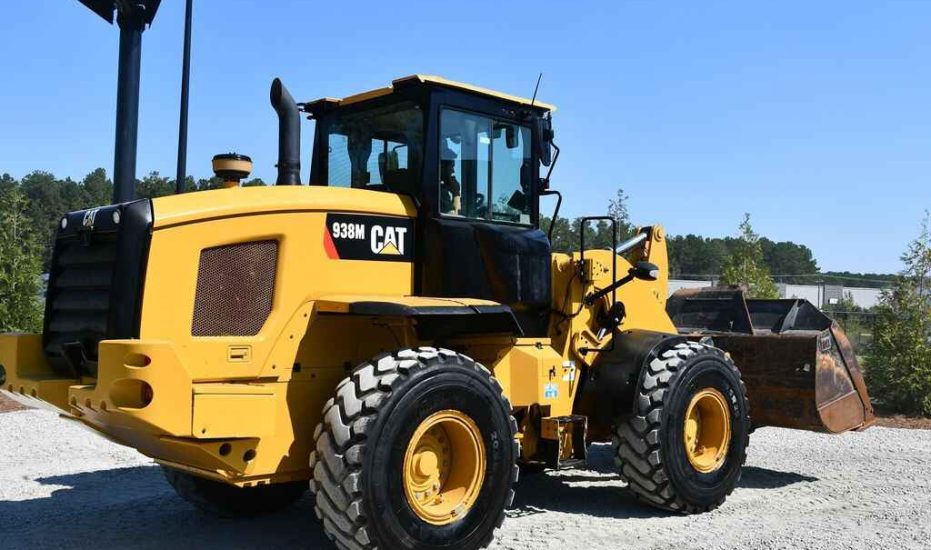

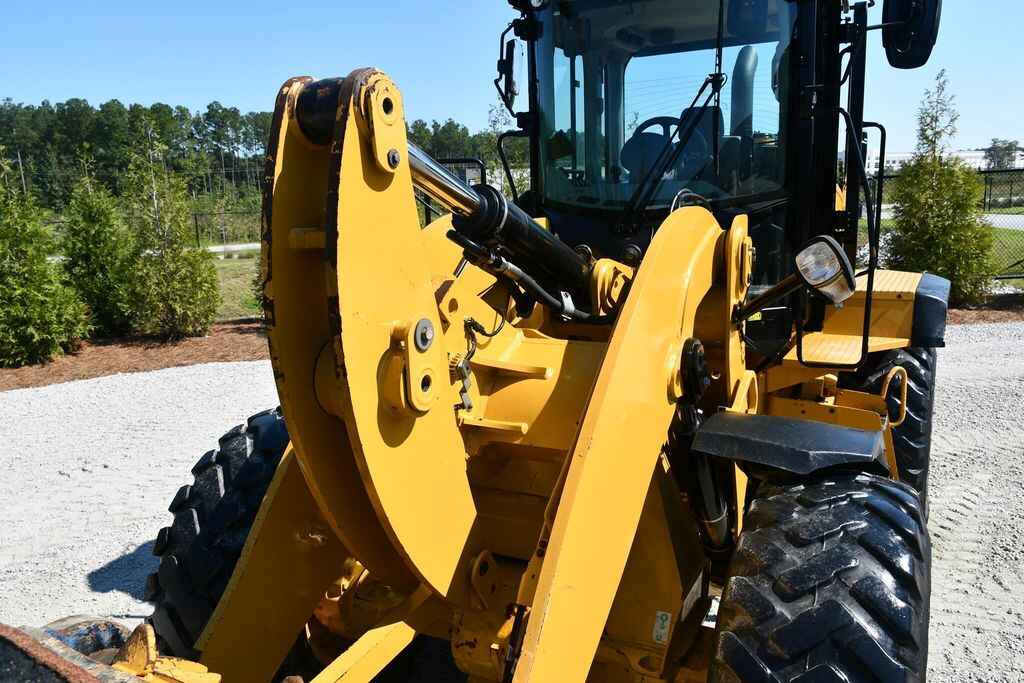

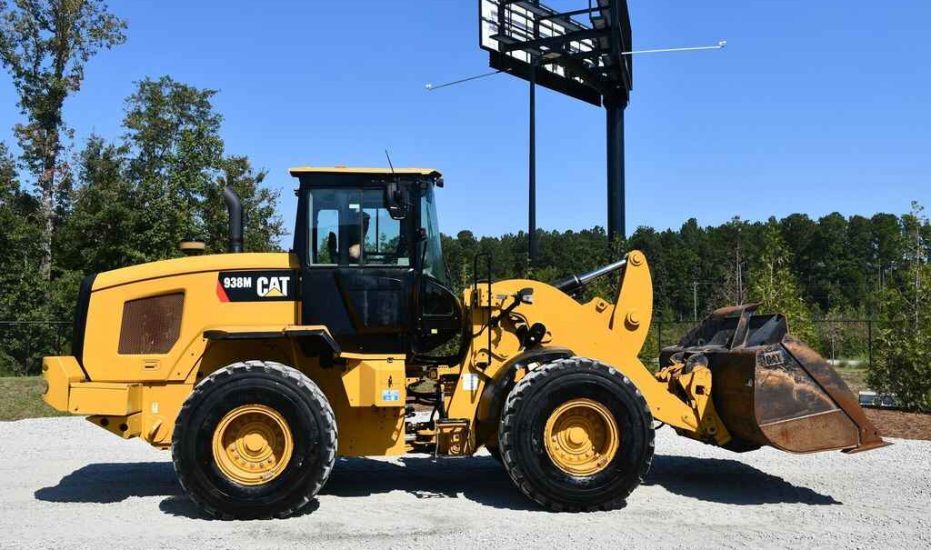

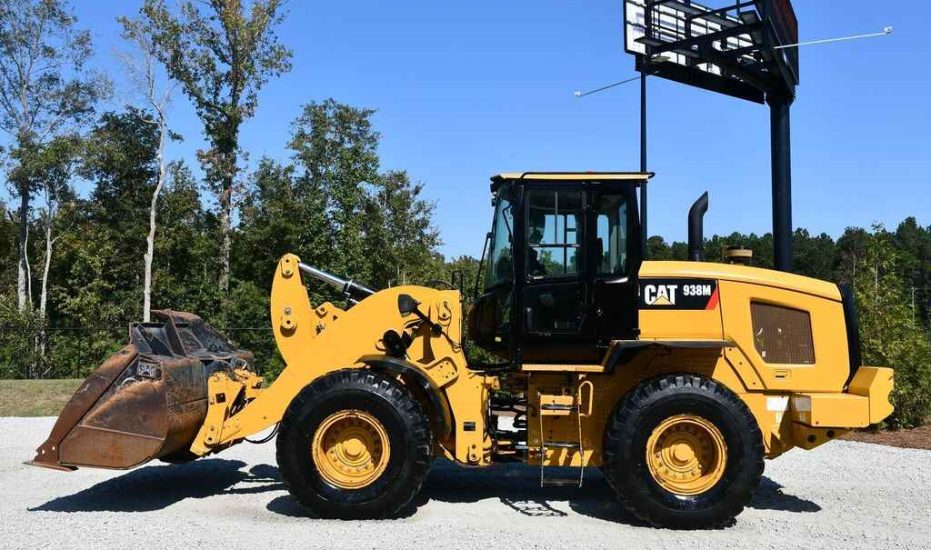

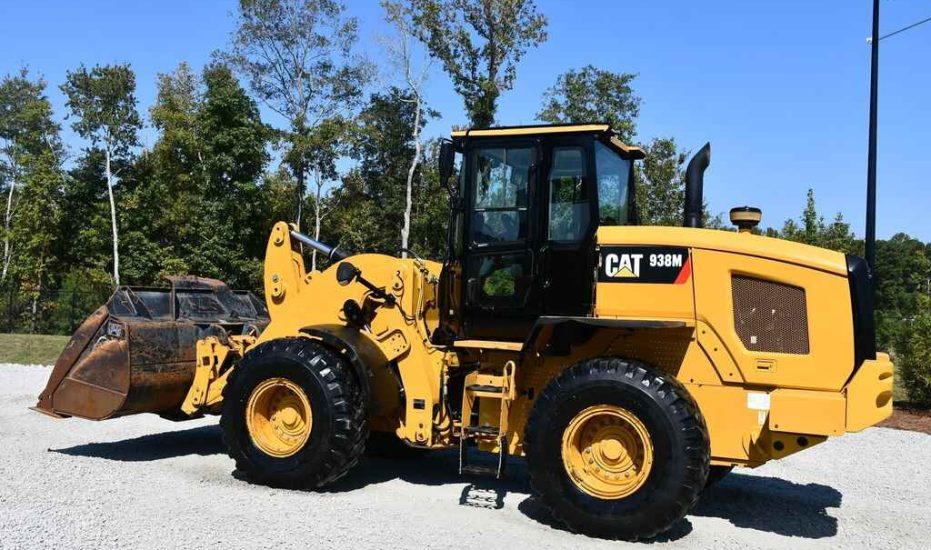

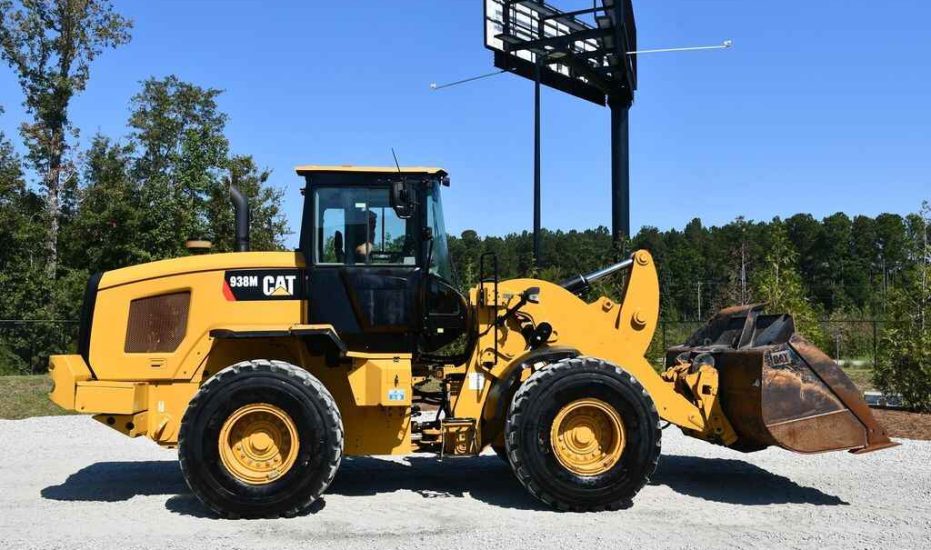

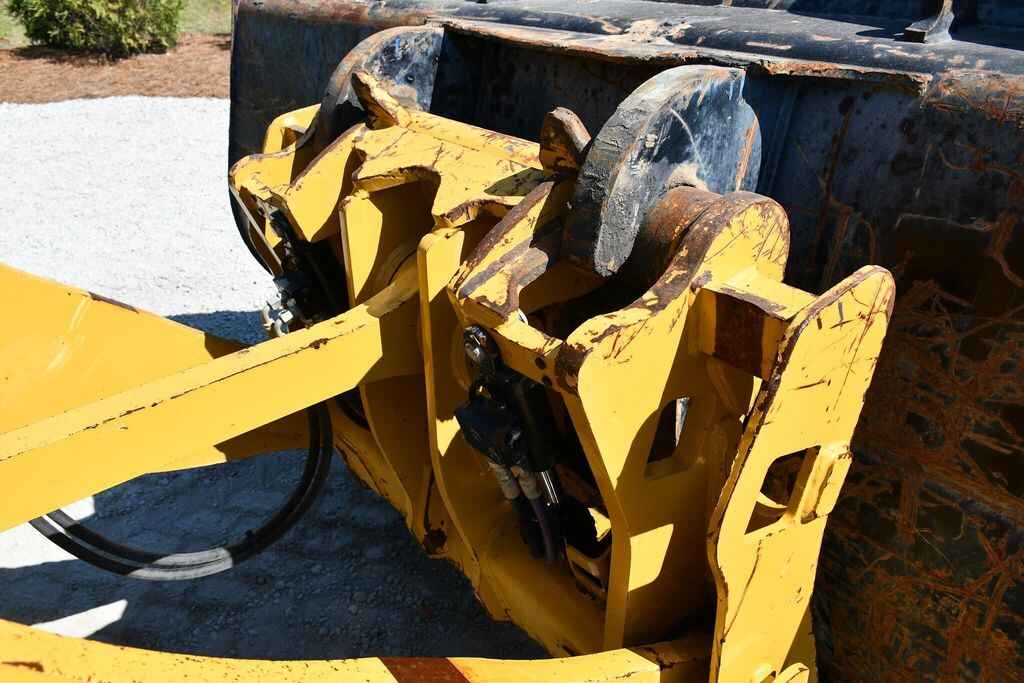

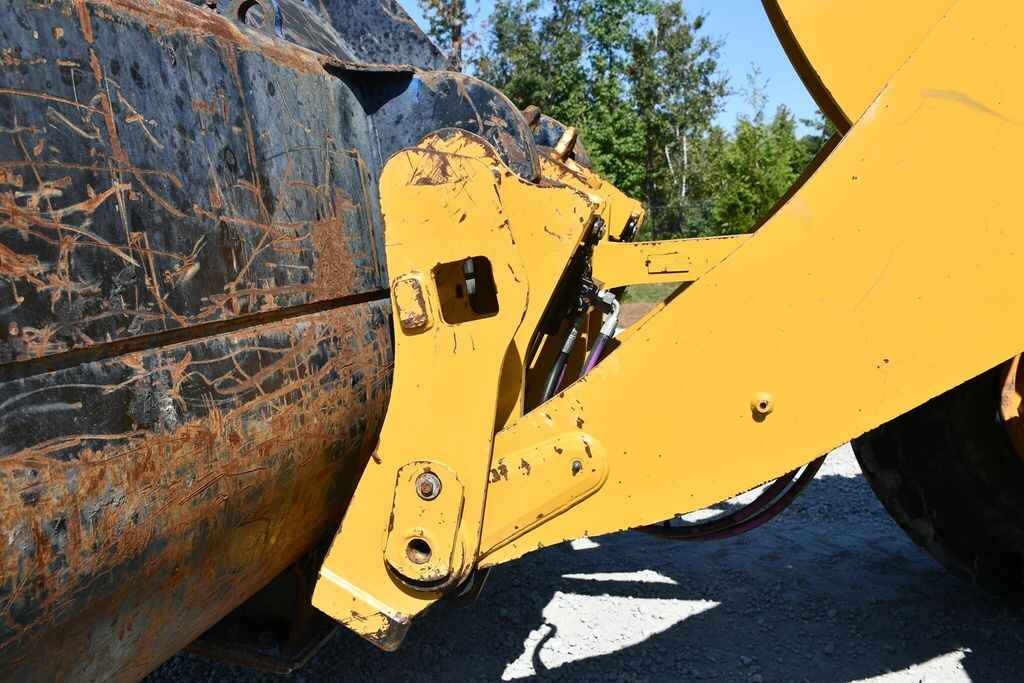

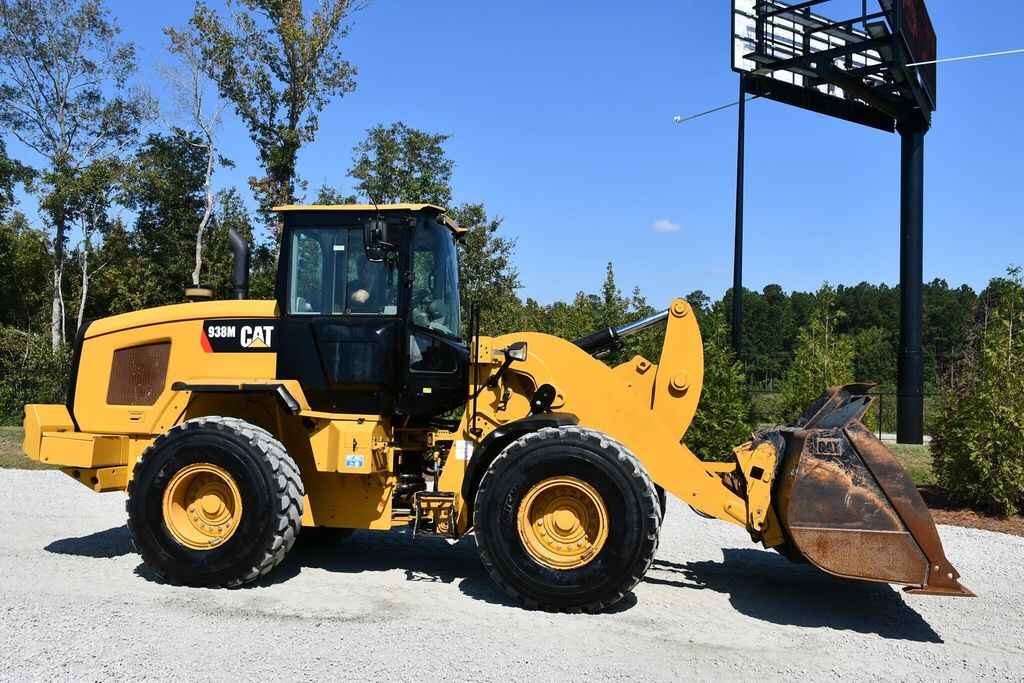

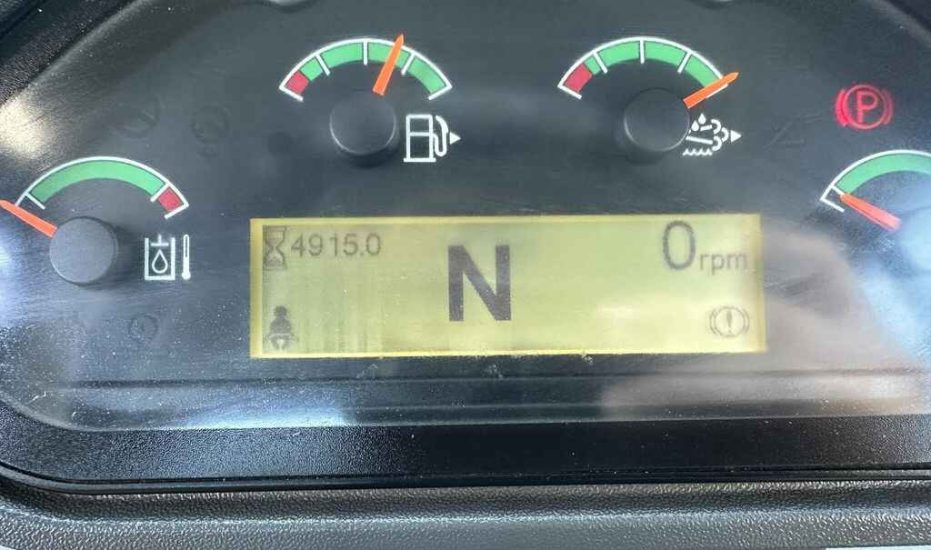

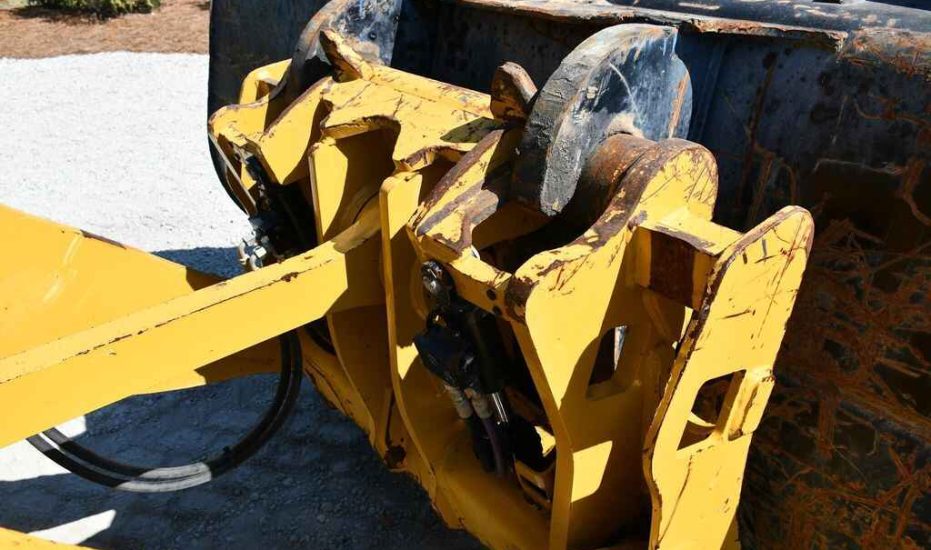

2018 CATERPILLAR, 938M Wheel Loaders, Cab,A/C, meter reads 4913 hours, CAT infusion Quick coupler, GP Bucket.

2018 Caterpillar 938M Specifications

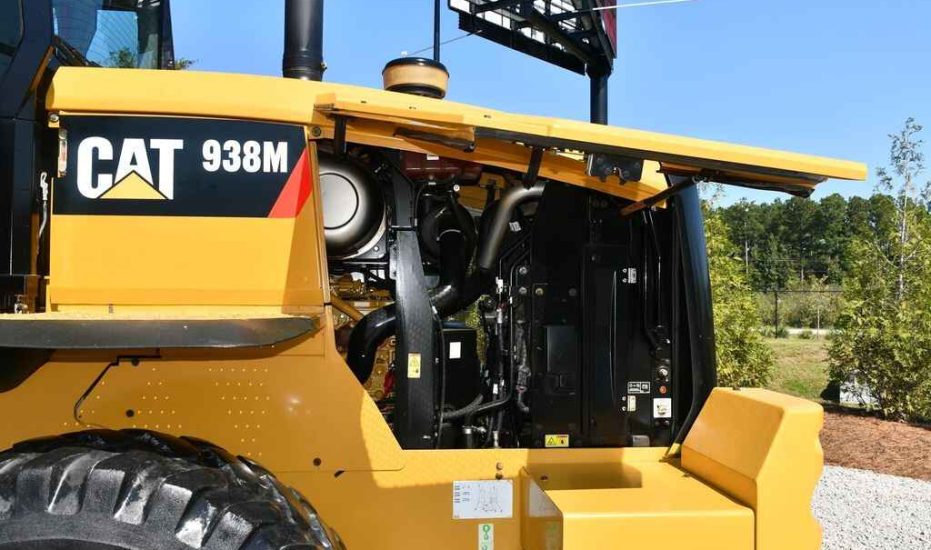

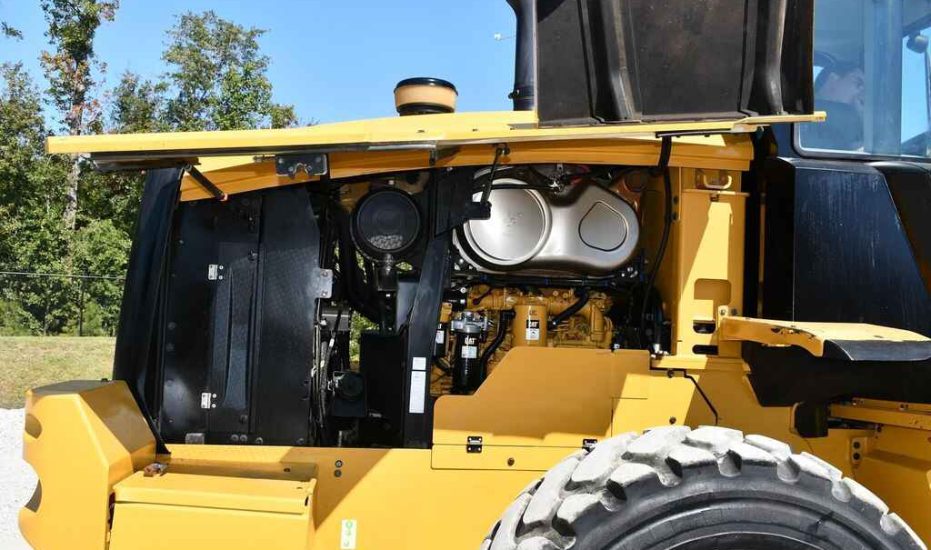

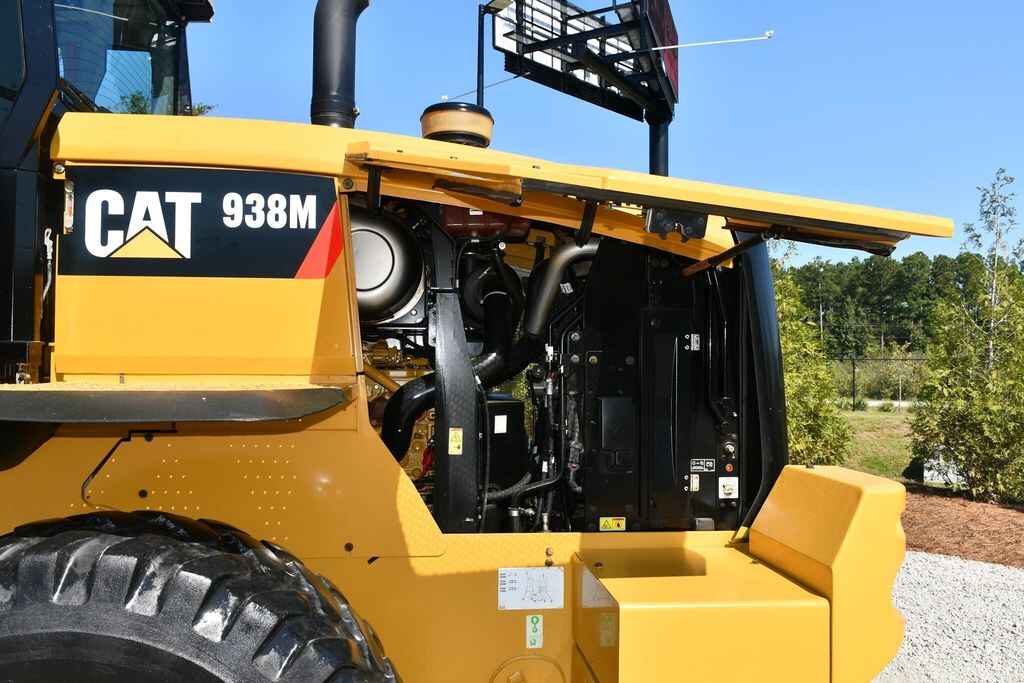

Engine

• Displacement: 427 cu in
• Bore: 4 in
• Stroke: 5 in
• Emissions: Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards
• Engine Model: Cat C7.1 ACERT
• Maximum Gross Power: 188 hp
• Rated Net Power: 182 hp
• Maximum Rated Gross Power - Iso 14396 (Din): 190 hp
• Rated Net Power - 1,800 Rpm - Iso 9249 (Din): 186 hp
• Maximum Gross Torque - Iso 14396 (Performance Power Mode): 648 lb ft
• Maximum Net Torque - Sae J1349 (Performance Power Mode): 621 lb ft

Operational

• Operating Weight: 36,216 lb

Power Train

• Front Axle: Fixed
• Rear Axle: Oscillating
• Front Axle - Traction Aid: Locking differential
• Rear Axle - Oscillation Angle By Tire Size (23.5 R25): 7 degrees
• Rear Axle - Traction Aid (Optional): Limited slip differential
• Brakes - Parking: Spring applied hydraulically released
• Brakes - Service: Outboard wet disc

Transmission

• Steering Cylinder, Double Acting - Bore Diameter: 3.1 in
• Steering Cylinder, Double Acting - Rod Diameter: 2 in
• Maximum Steering Torque - 0 Degrees: 42,506 lb ft
• Maximum Steering Torque - 40 Degrees (Full Turn): 31,398 lb ft
• Maximum Flow - Steering Pump: 34 gal/min

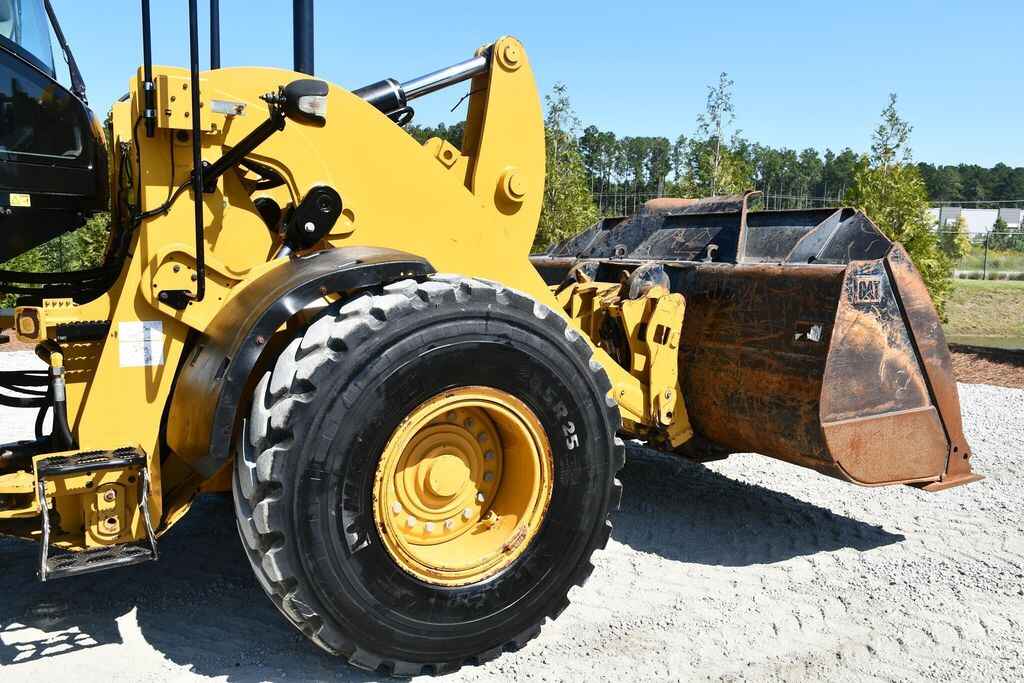

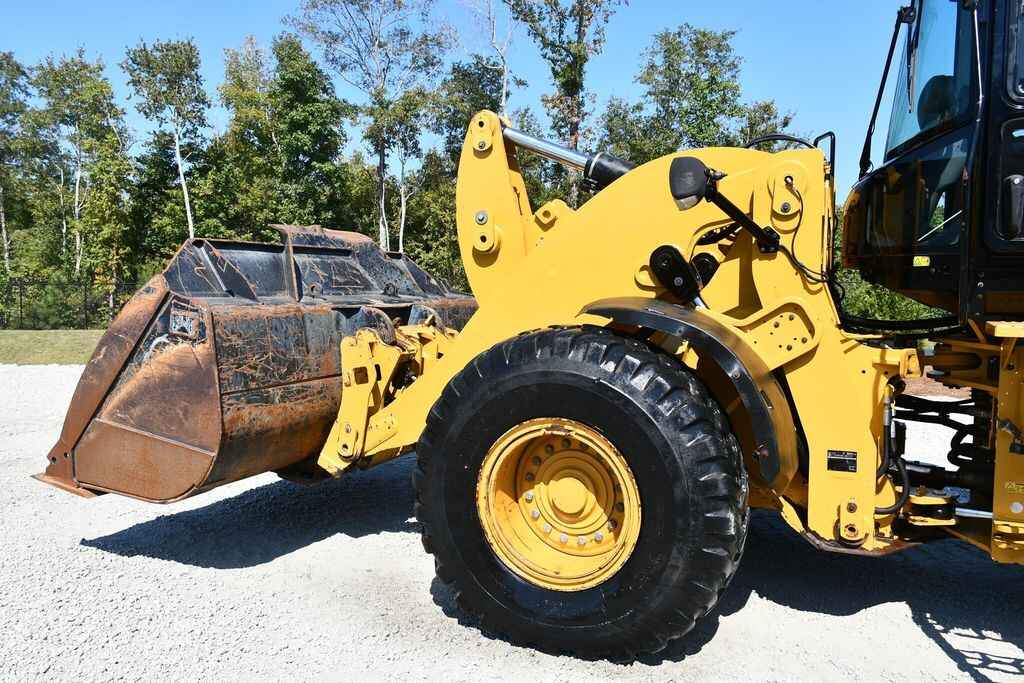

Buckets

• Bucket Capacities: 2.5 - 5.0 m³ (3.3 - 6.5 yd³)

Operating Specifications

• Full Turn Tip Load: 22,107 lb

Service Refill Capacities

• Cooling System: 8.5 gal
• Fuel Tank: 51.5 gal
• Hydraulic Tank: 23.8 gal
• Hydraulic System - Including Tank: 44.9 gal
• Engine Crankcase: 5.3 gal
• Transmission - Gear Box: 2.9 gal
• Diesel Exhaust Fluid (DEF) Tank: 5 gal

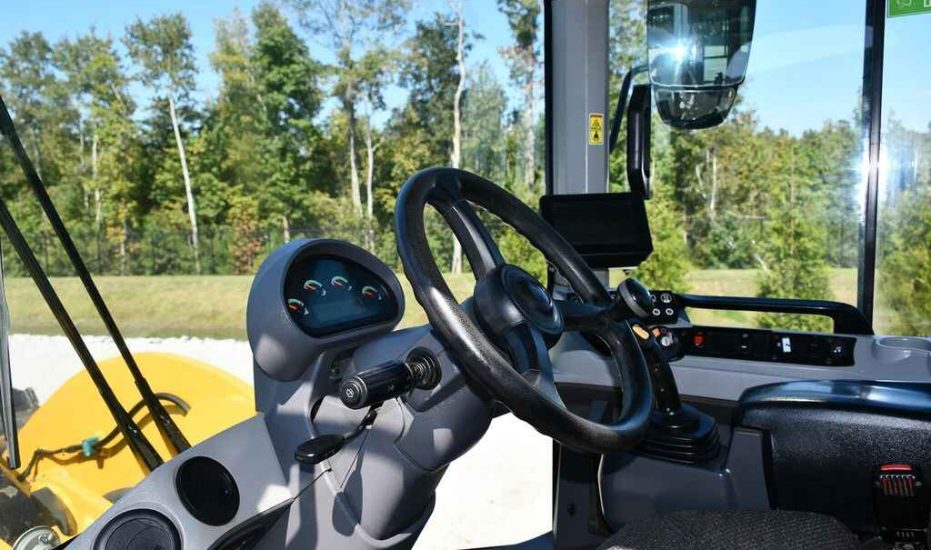

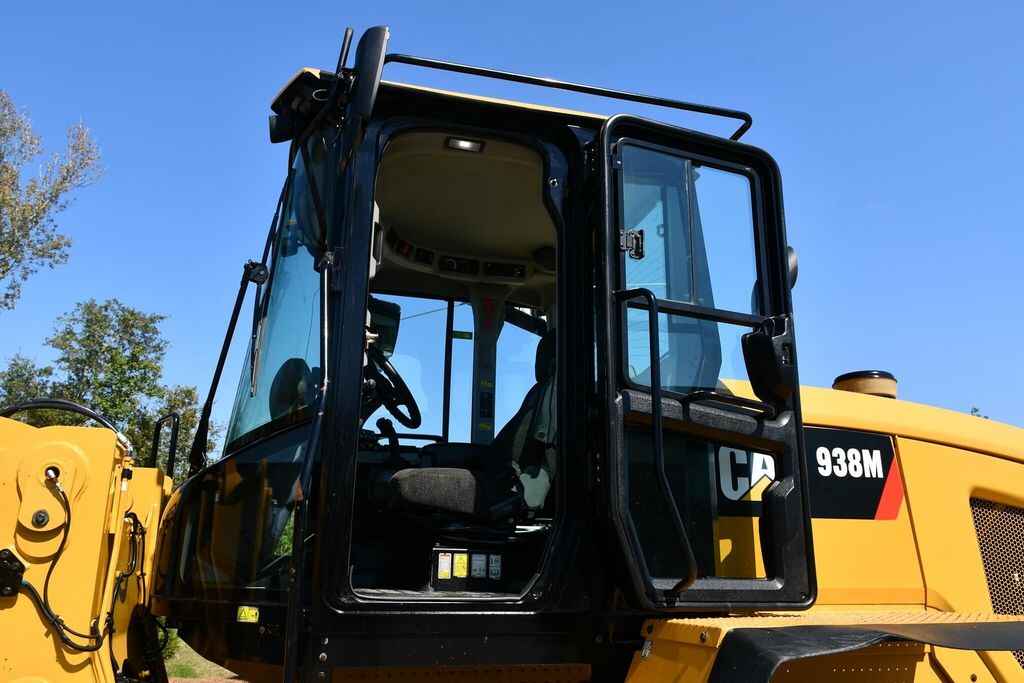

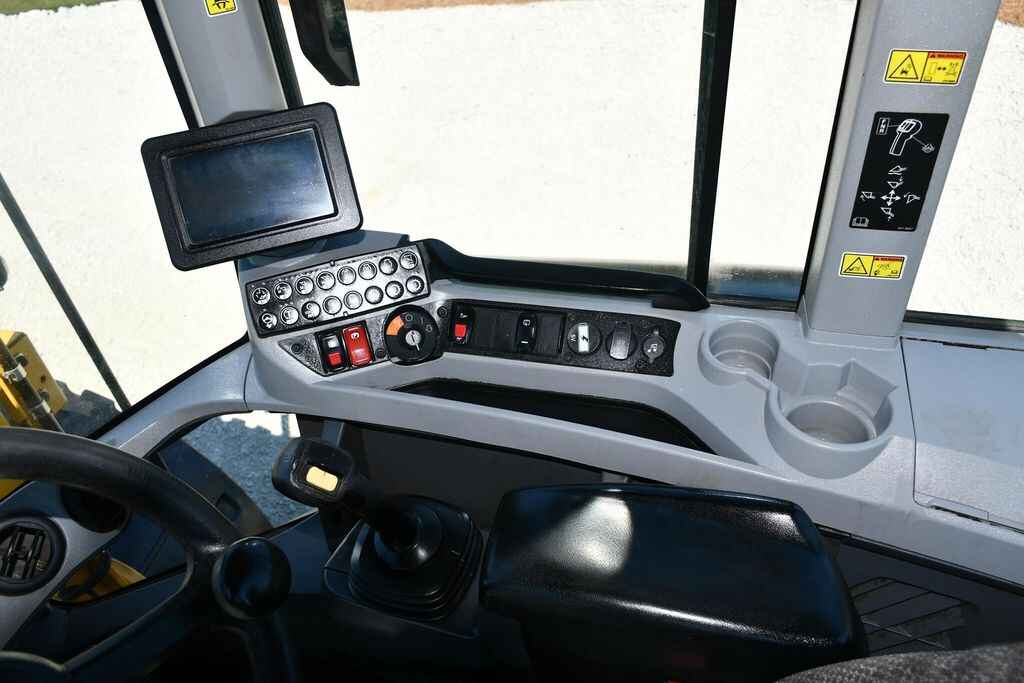

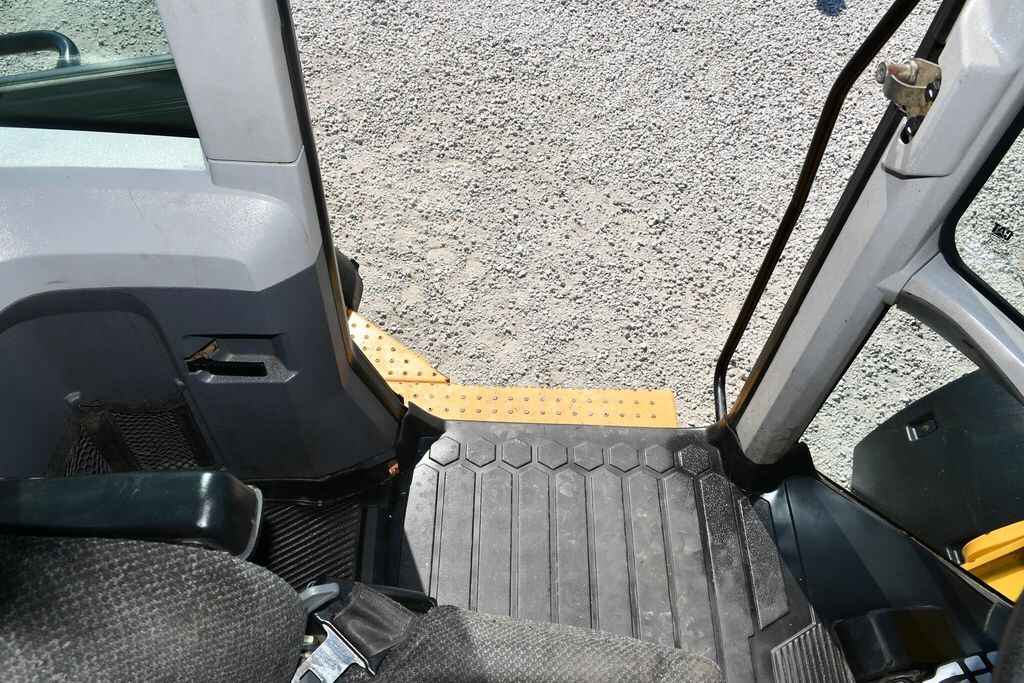

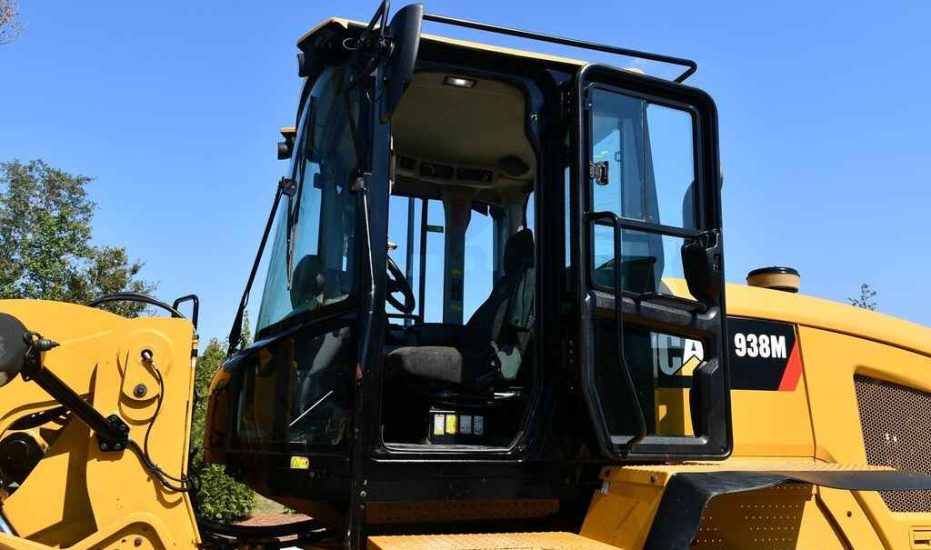

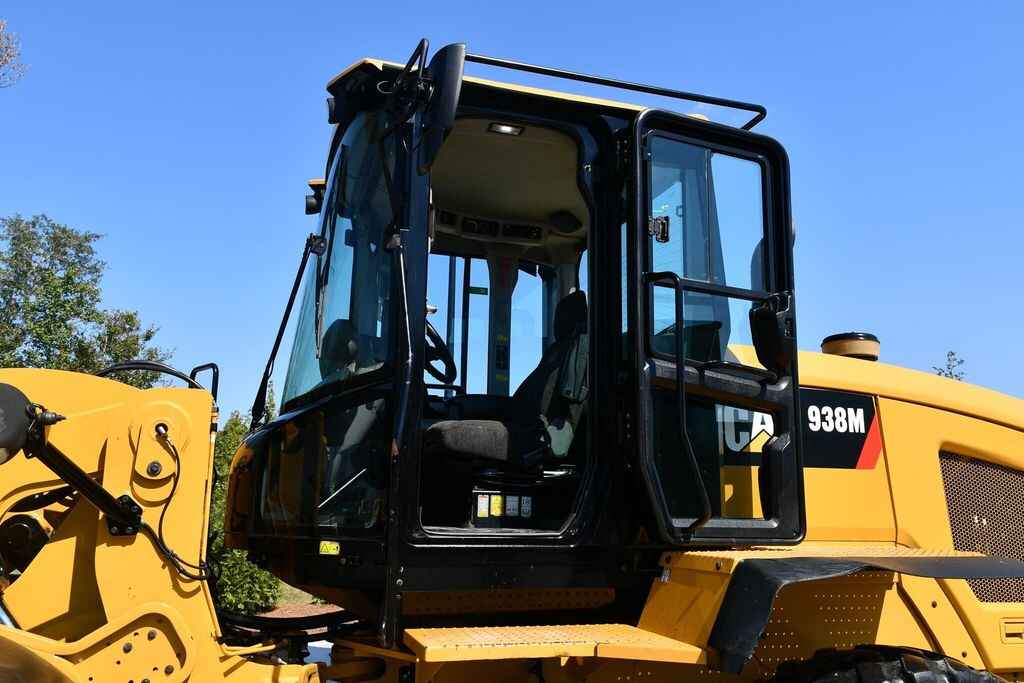

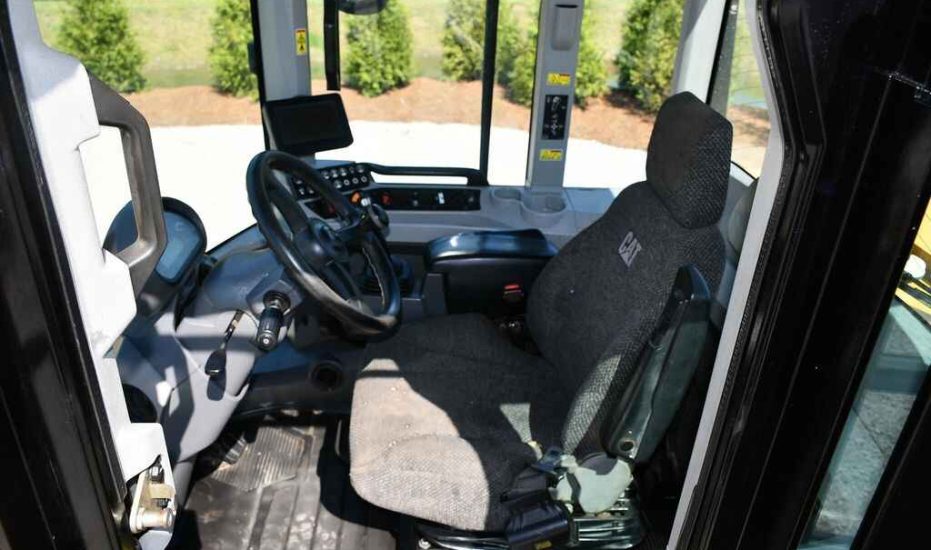

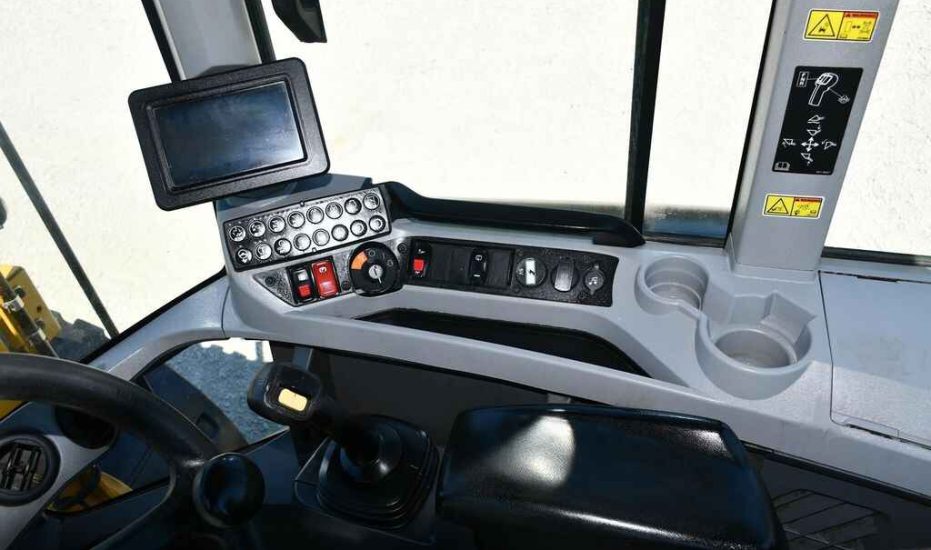

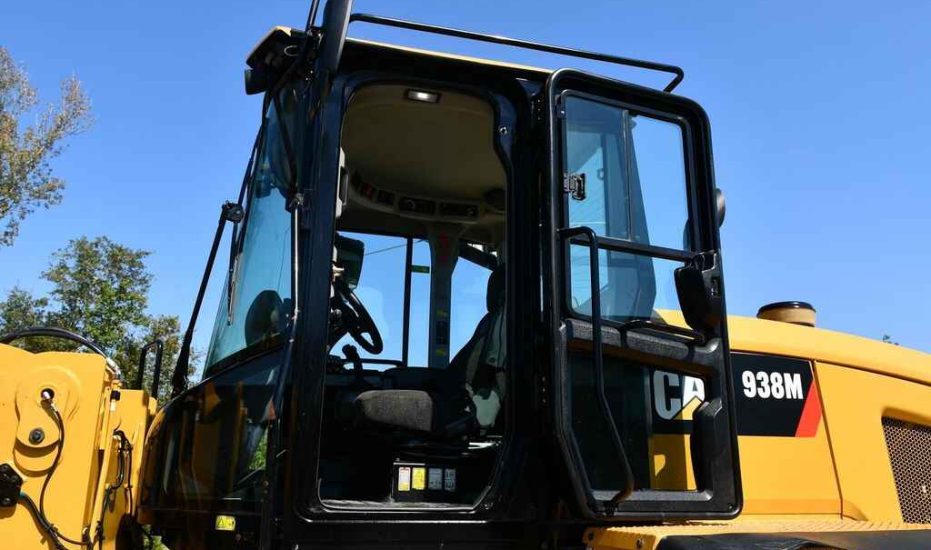

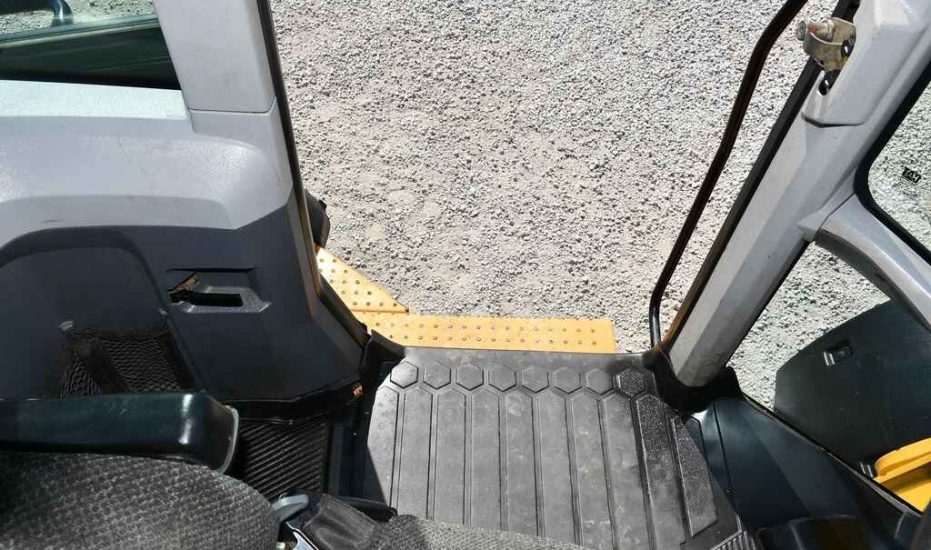

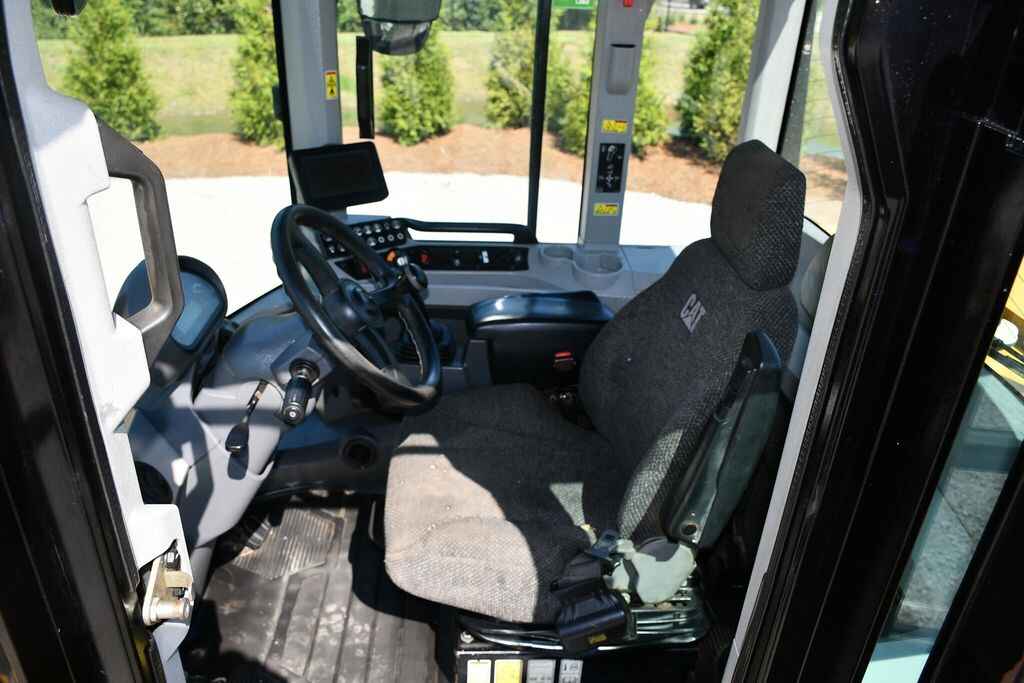

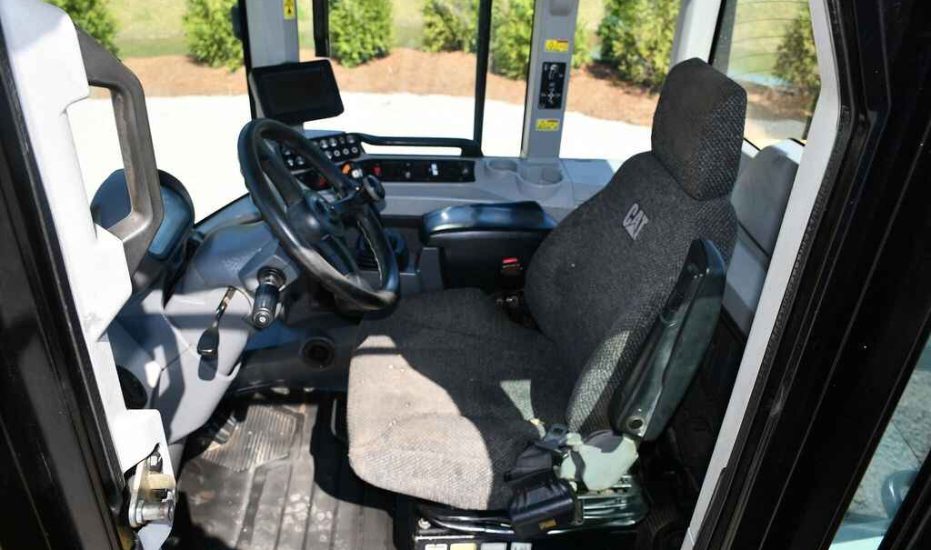

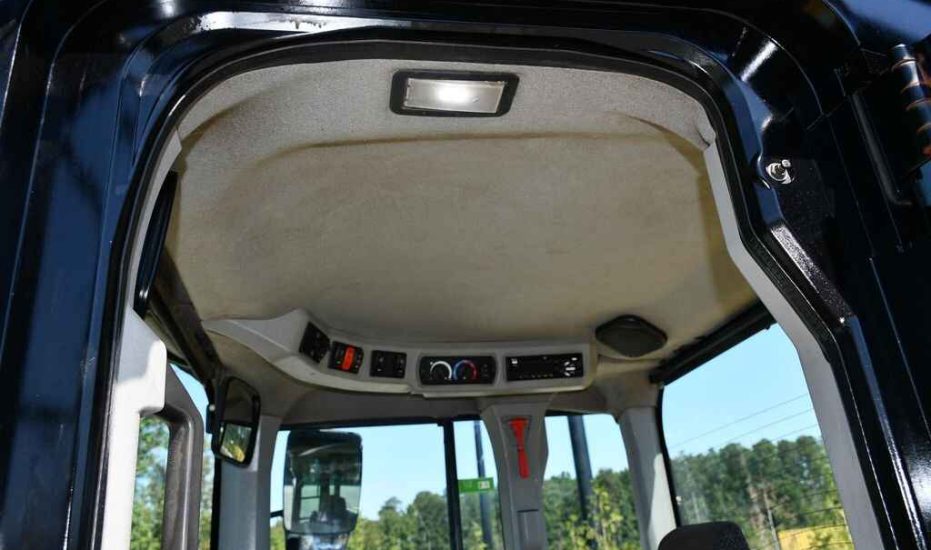

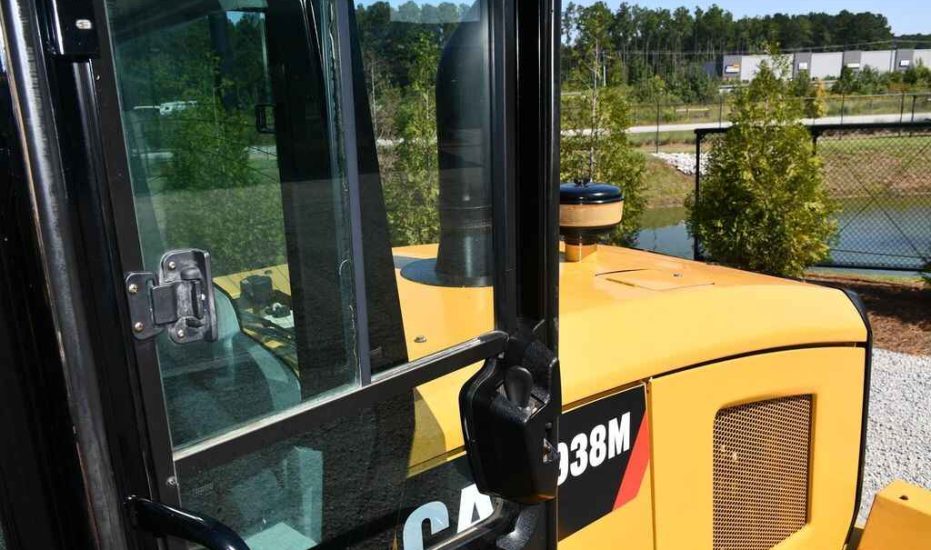

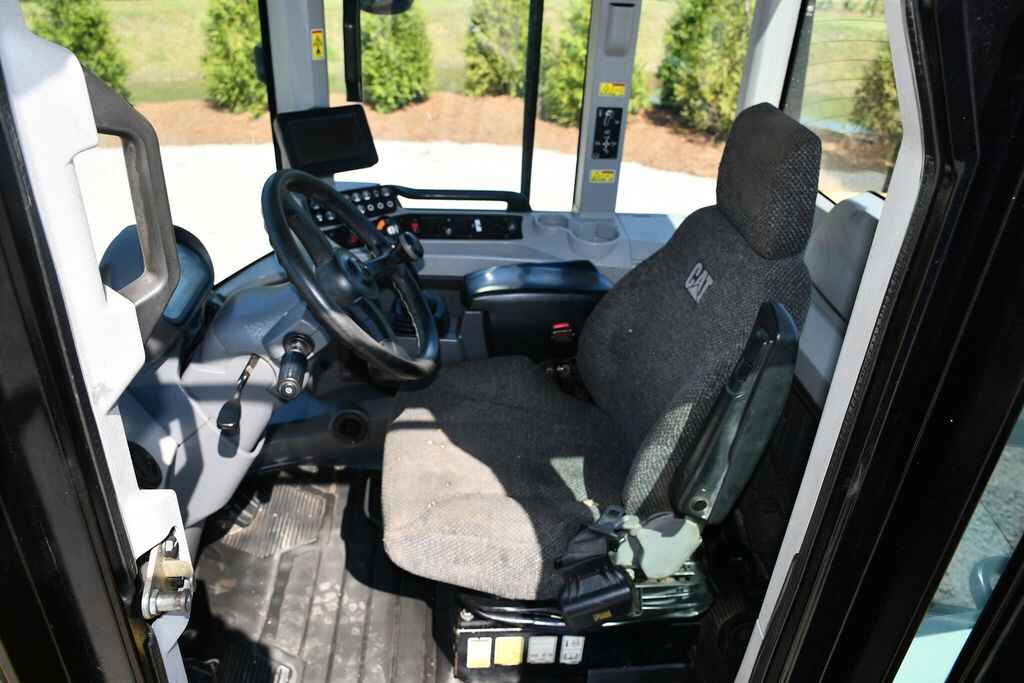

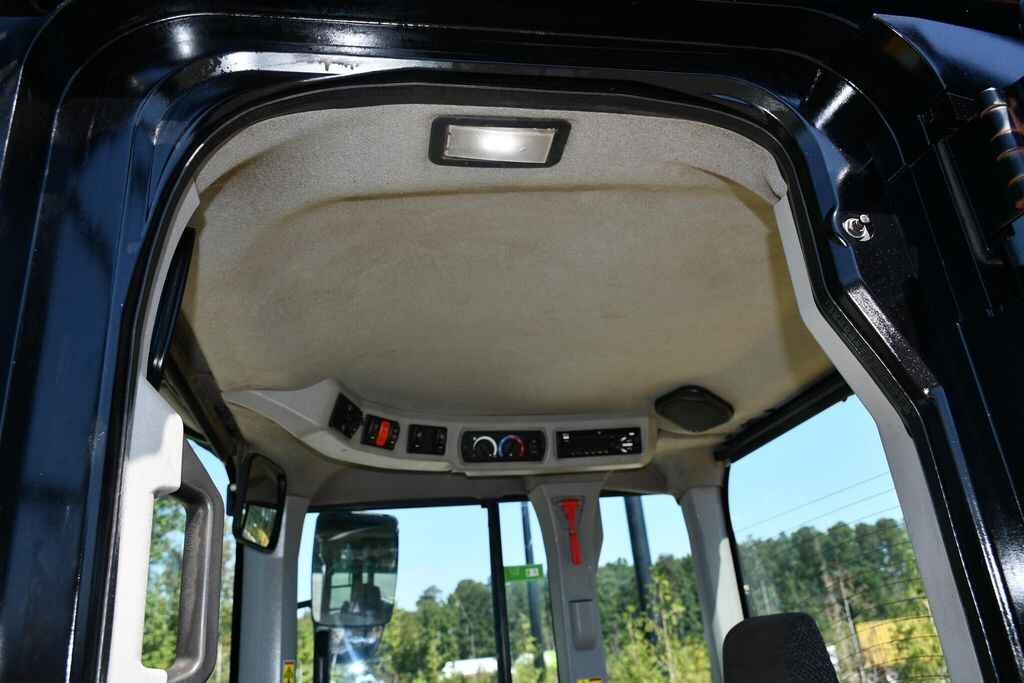

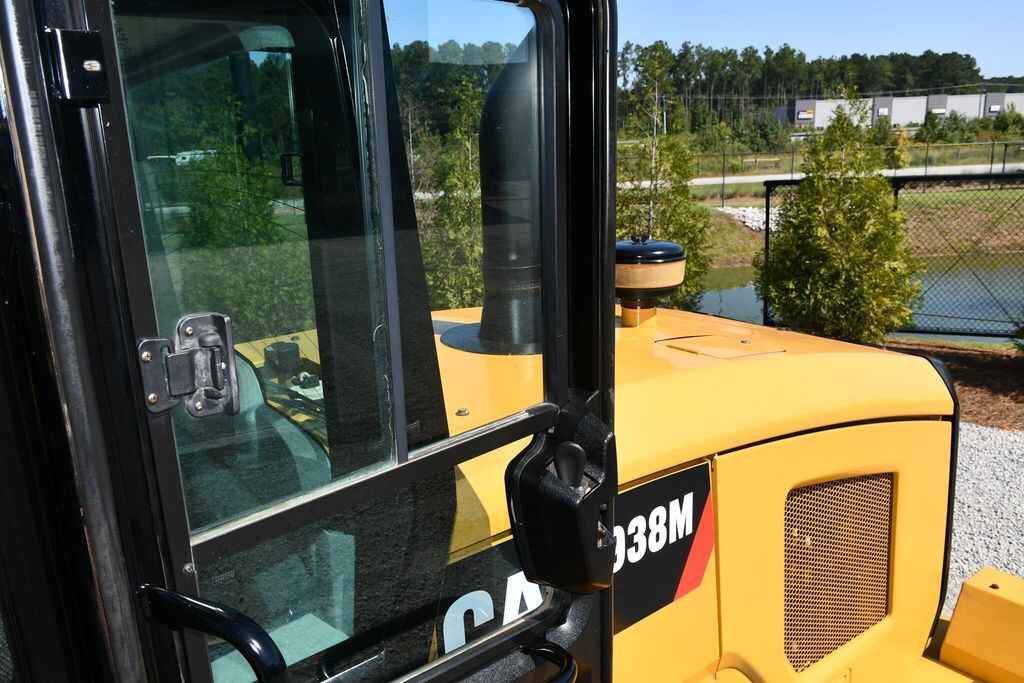

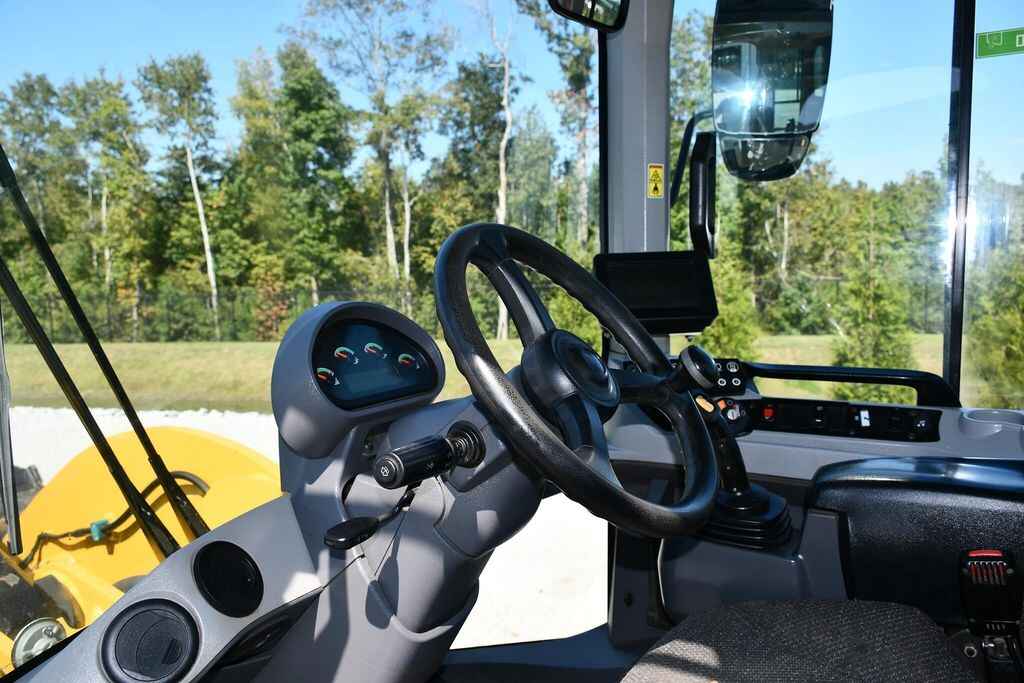

Cab

• ROPS: ISO 3471:2008
• FOPS: ISO 3449:2005 Level II
• Sound Levels: Standard cab: 68 dB(A)

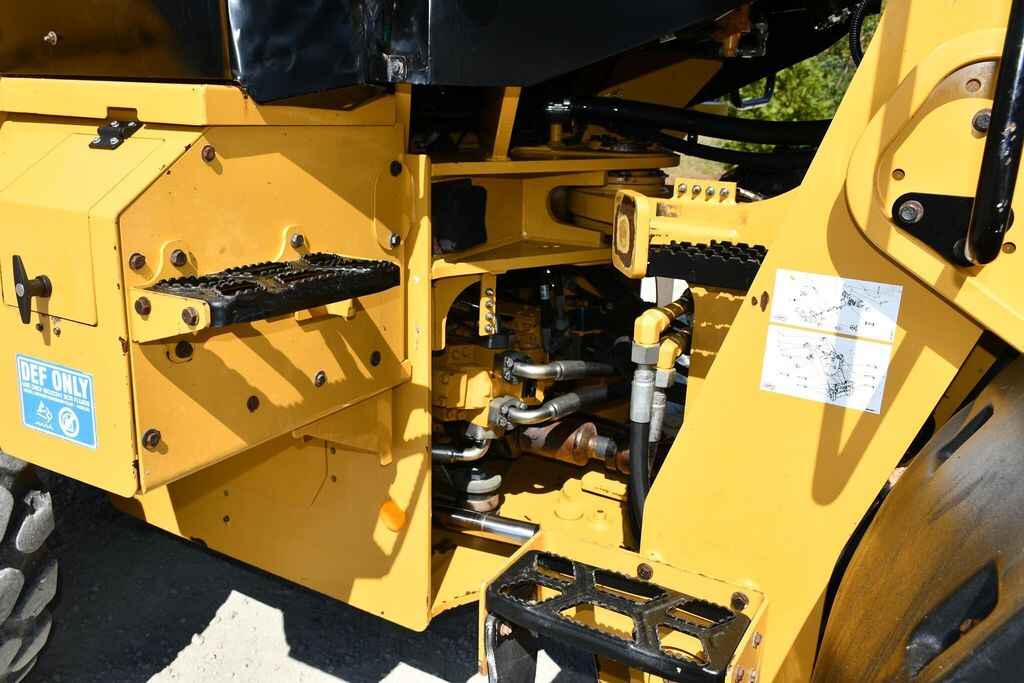

Loader Hydraulic System

• Lift Cylinder, Double Acting - Stroke: 31.1 in
• Tilt Cylinder, Double Acting - Stroke: 21.9 in
• Maximum Flow - Implement Pump: 50 gal/min
• Maximum Working Pressure - Implement Pump: 4,061 psi
• Lift Cylinder, Double Acting - Bore Diameter: 4.7 in
• Tilt Cylinder, Double Acting - Bore Diameter: 5.9 in

Air Conditioning System

• Air Conditioning: The air conditioning system contains R134a refrigerant (Global Warming Potential 1430). The system contains 1.9 kg of refrigerant with a CO2 equivalent of 2.717 metric tonnes.
