Specifications

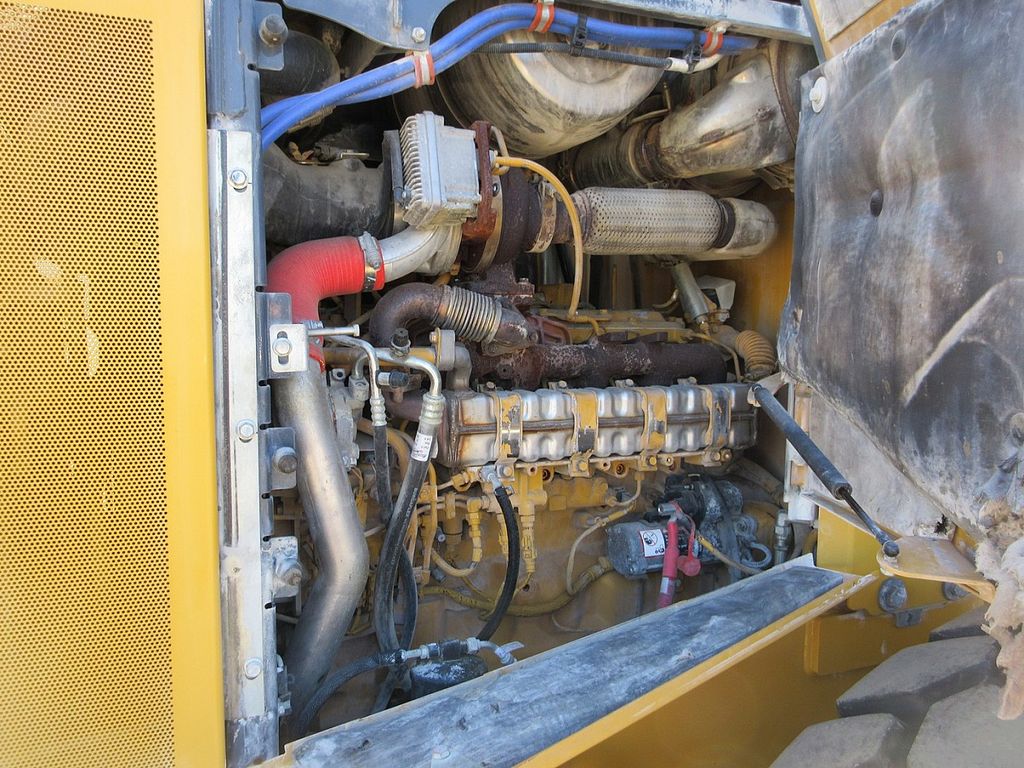

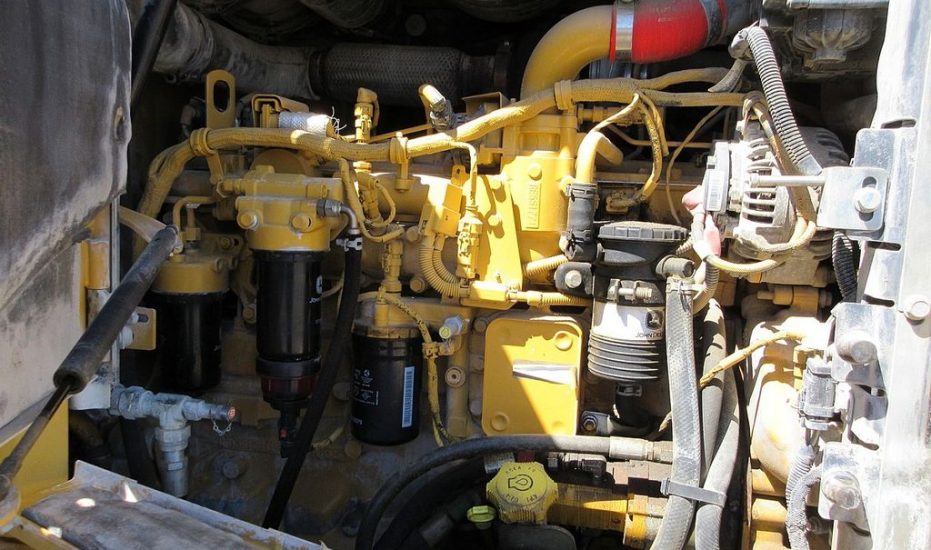

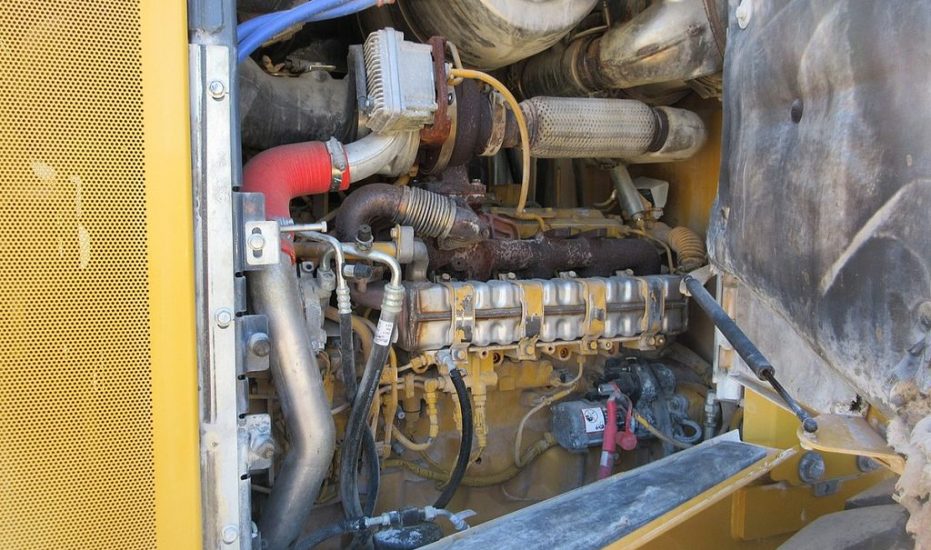

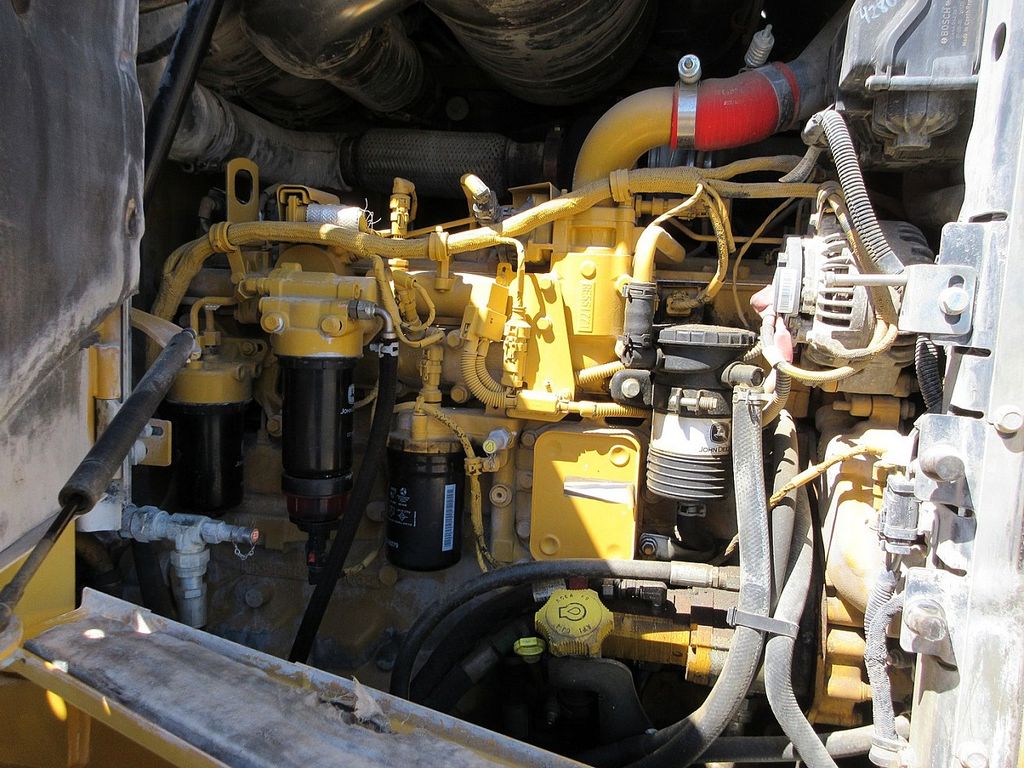

Engine

• Model: John Deere PowerTech PVS 6068
• Net Power: 163 hp (121.6 kW)
• Displacement: 415 in³ (6.8 L)
• Rated Speed: 1,800 rpm
• Emission Level: Tier 4

Weights

• Operating Weight: 29,139 lbs (13,217 kg)

Performance

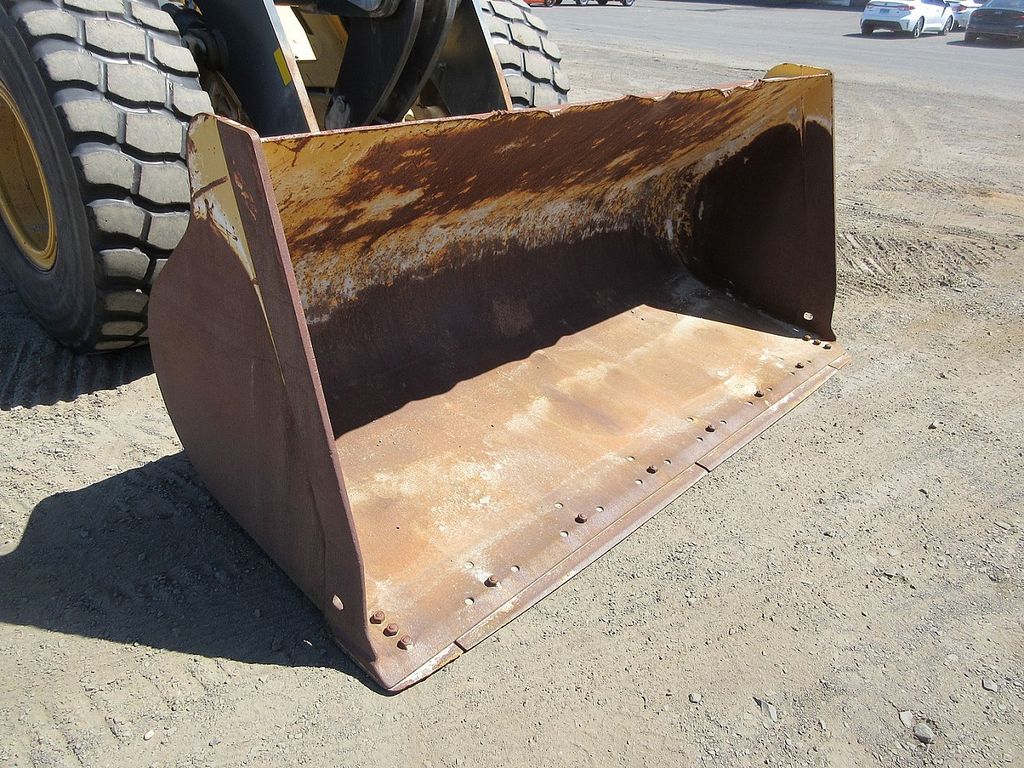

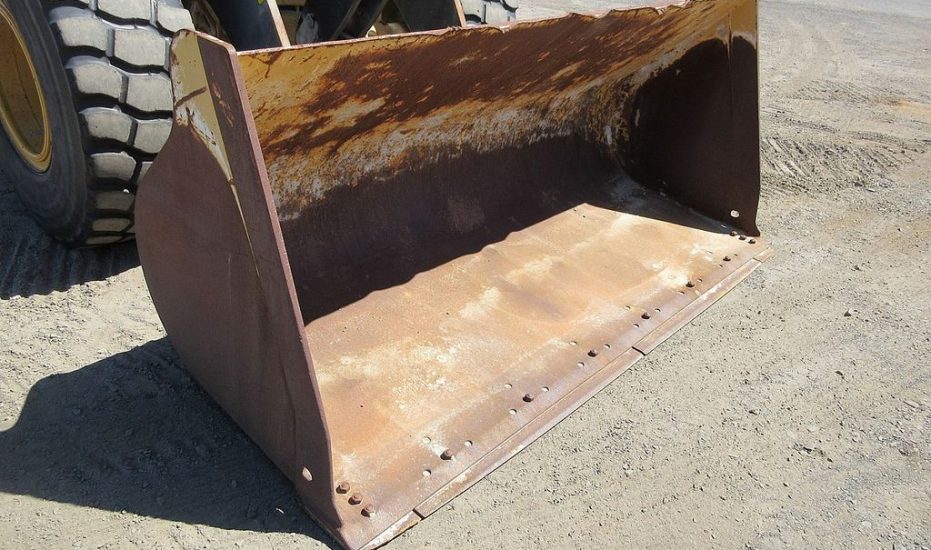

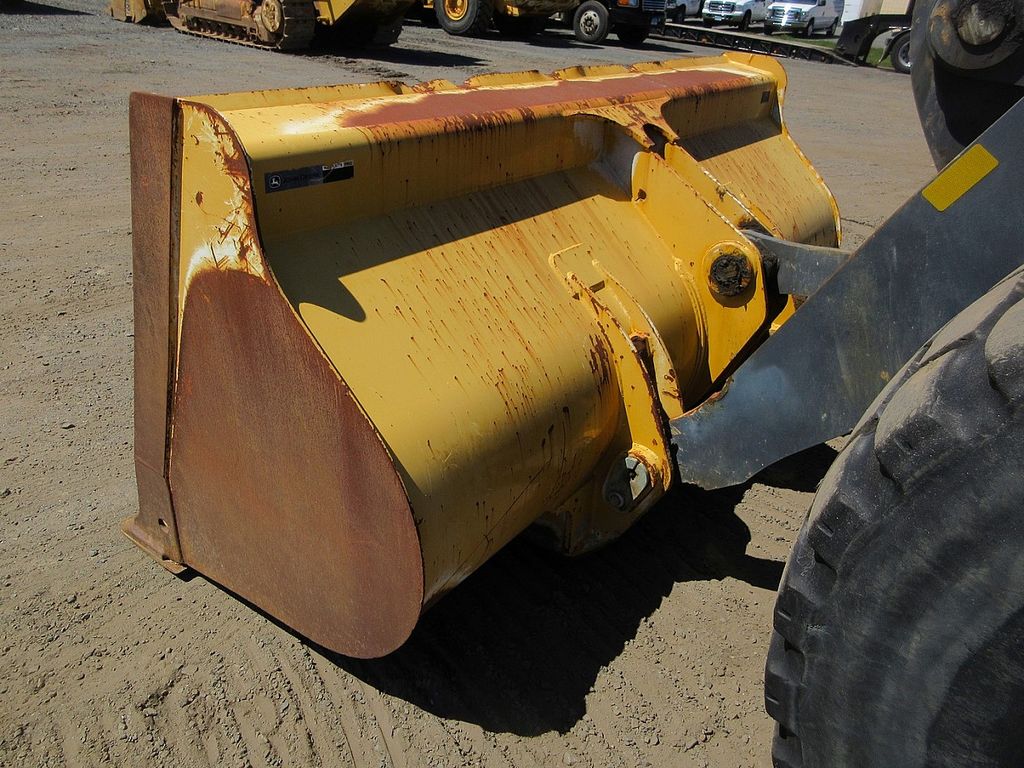

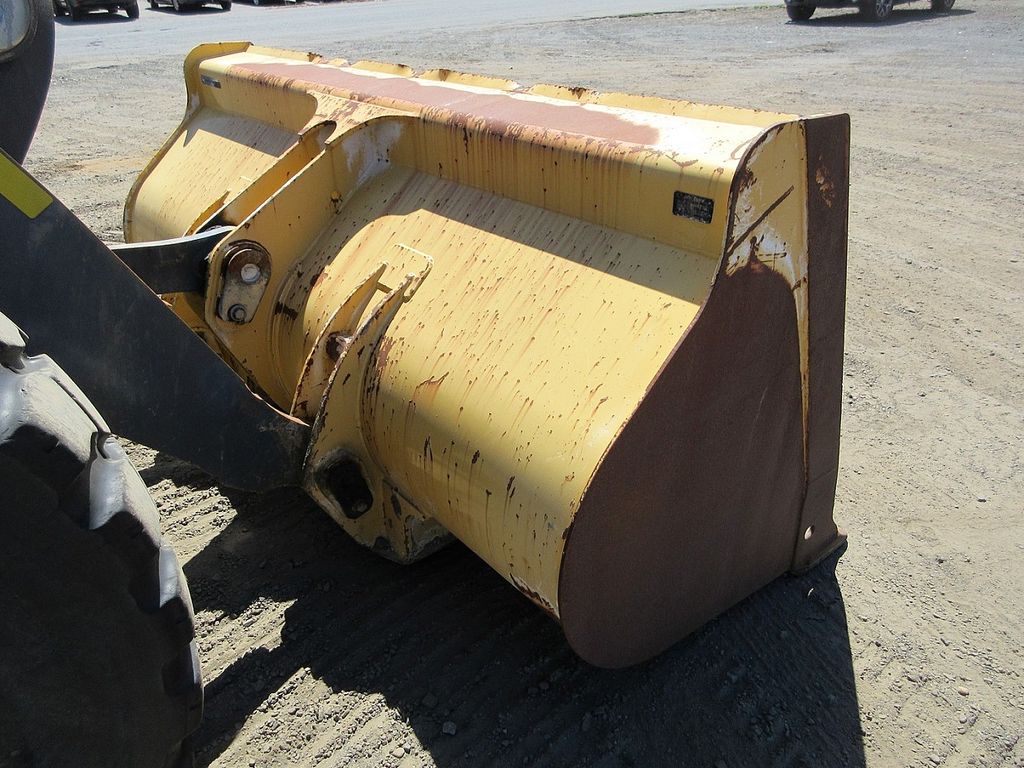

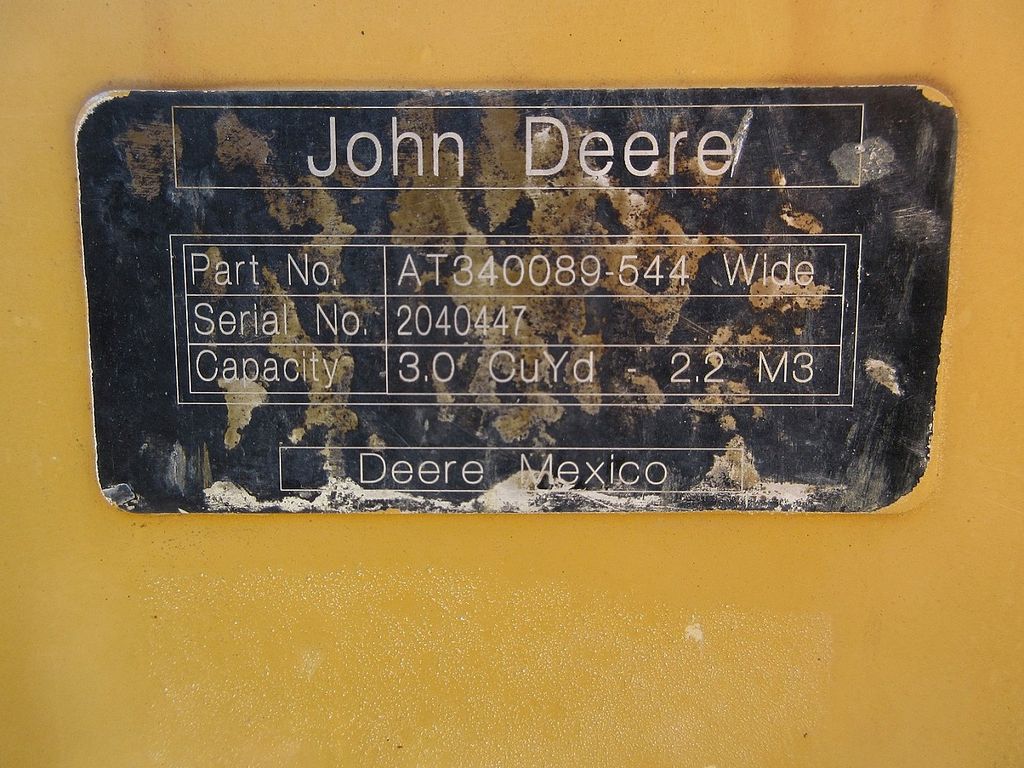

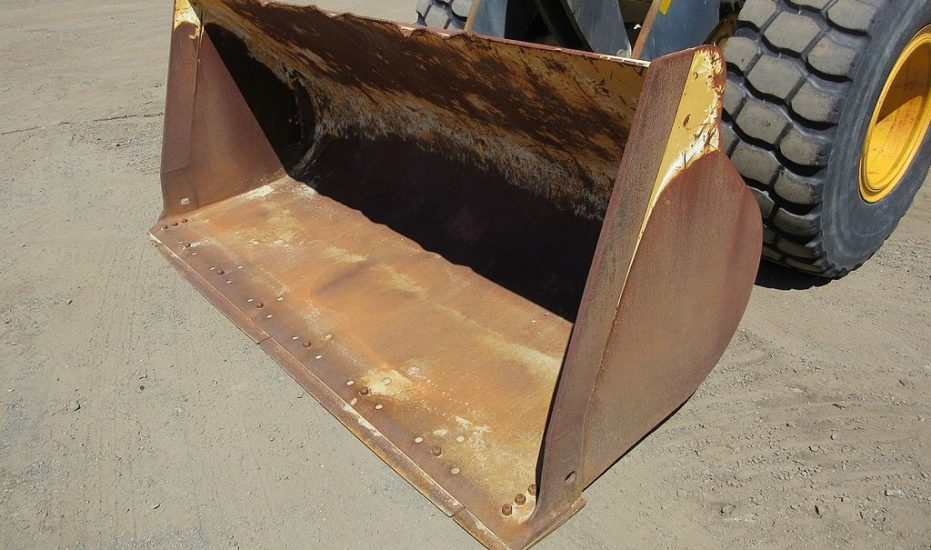

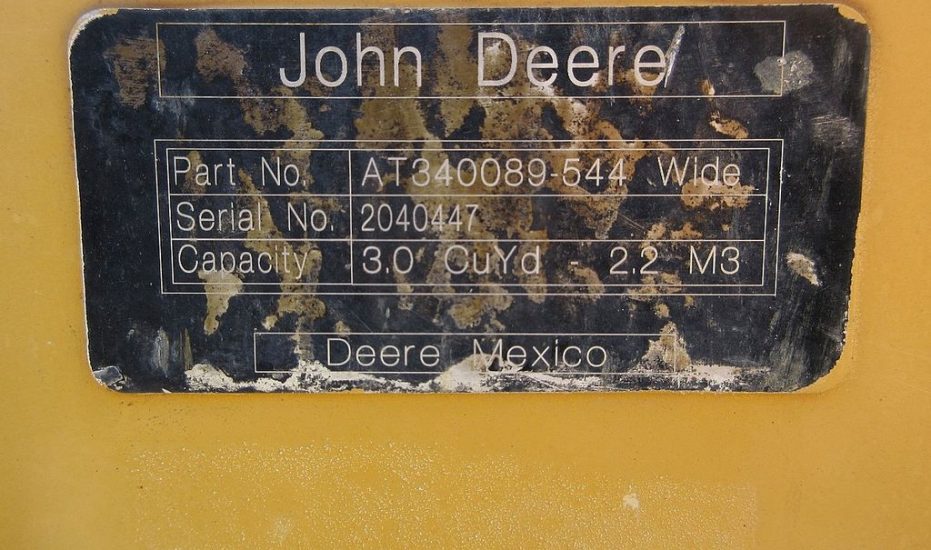

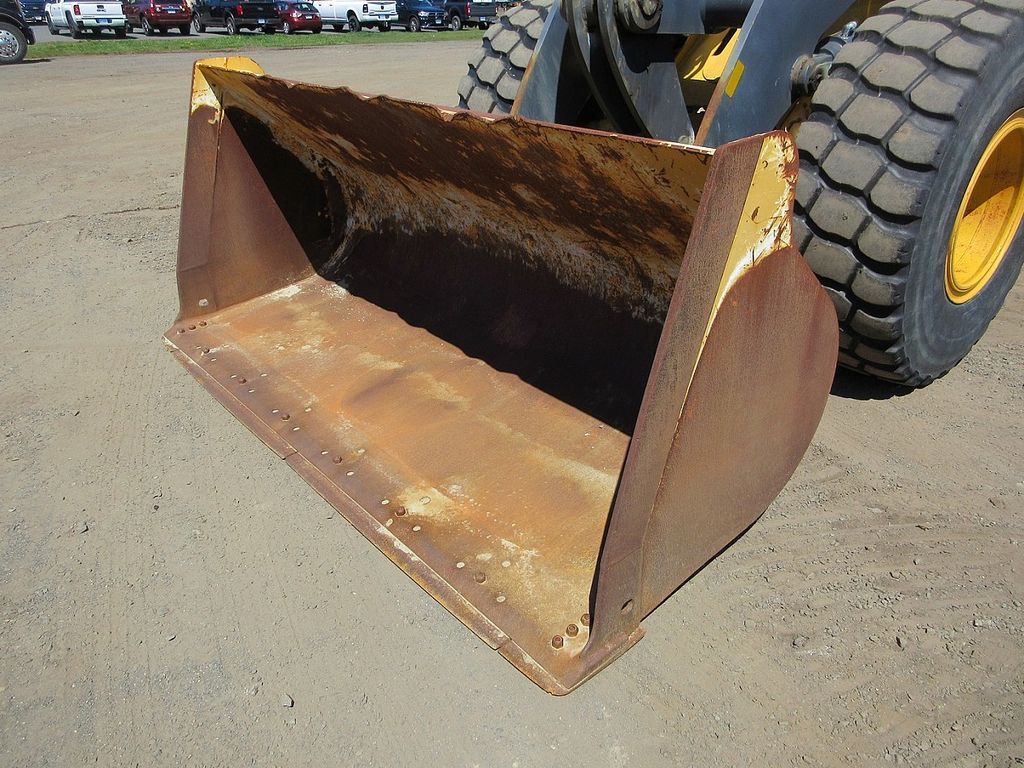

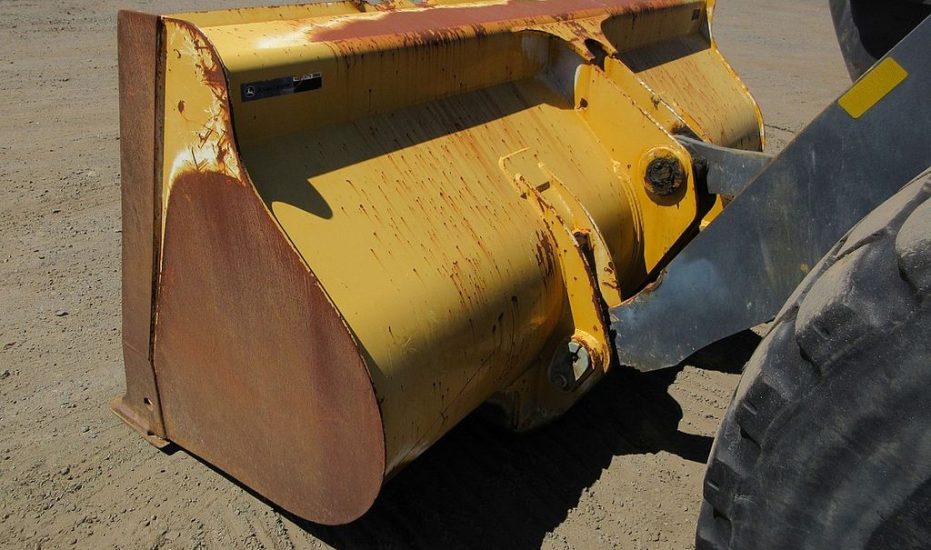

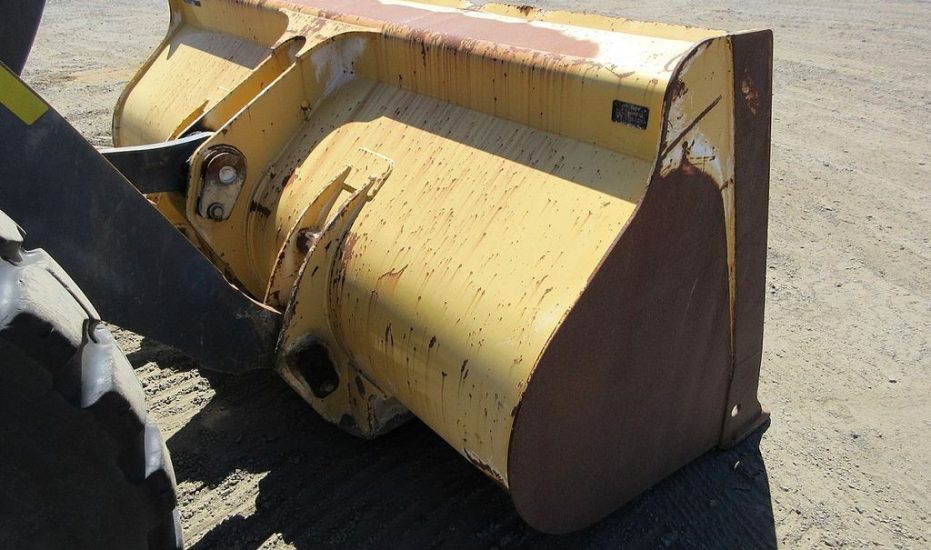

• Bucket Capacity: 3.0–4.5 yd³ (2.3–3.4 m³)
• Bucket Breakout Force: 22,300 lbs (10,115 kgf)
• Static Tipping Load (Full Turn): 21,246 lbs (9,637 kg)
• Hydraulic Pump Flow: 50 gal/min (189 L/min)
• System Pressure: 3,650 psi (25.2 MPa)

Dimensions

• Length with Bucket on Ground: 24 ft 5 in (7.44 m)
• Width over Tires: 8 ft 4 in (2.54 m)

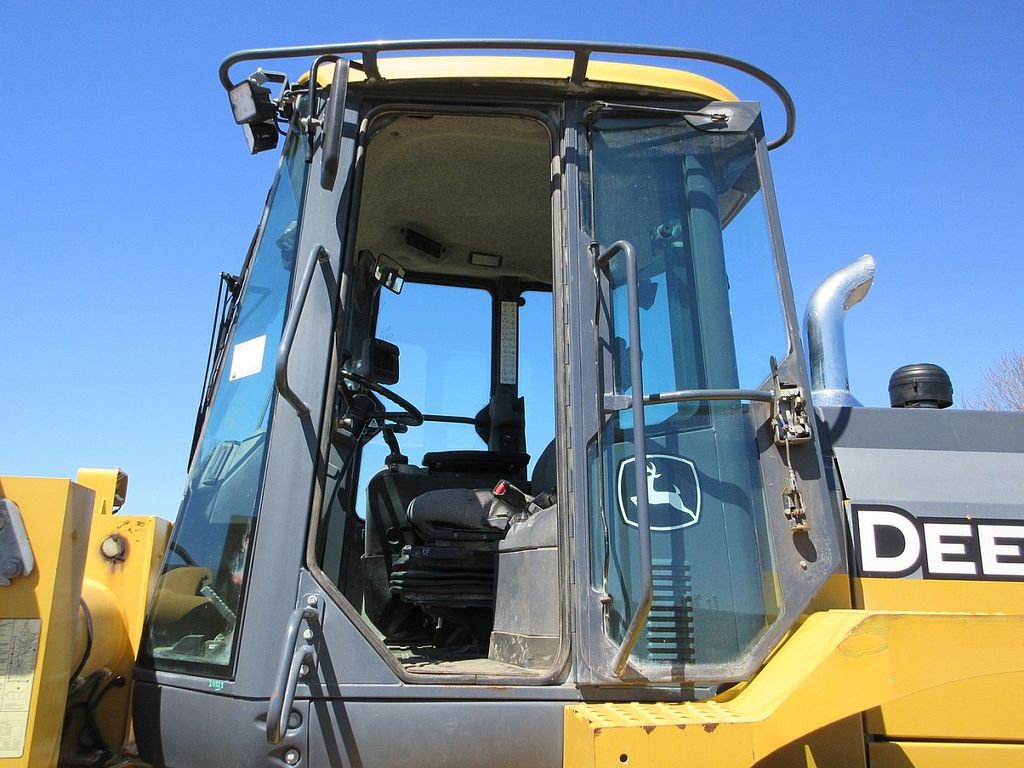

• Height to Top of Cab: 10 ft 7.5 in (3.24 m)
• Wheelbase: 9 ft 7.5 in (2.93 m)
• Ground Clearance: 1 ft 3.75 in (0.40 m)
• Hinge Pin Height at Max Lift: 12 ft 6.5 in (3.82 m)
• Dump Clearance at Max Lift: 9 ft 1 in (2.77 m)
• Reach at Max Lift and Dump: 4 ft 9.5 in (1.46 m)
• Turning Radius: 20 ft 1.5 in (6.13 m)

Transmission

• Type: Powershift
• Number of Forward Gears: 5
• Number of Reverse Gears: 3
• Max Speed - Forward: 22.2 mph (35.7 km/h)
• Max Speed - Reverse: 15 mph (24.1 km/h)

Hydraulics

• Relief Valve Setting: 3,650 psi (25.2 MPa)
• Pump Type: Variable displacement, axial piston
• Raise Time: 5.8 seconds
• Dump Time: 1.2 seconds
• Lower Time: 3.2 seconds

Capacities

• Fuel Tank: 78.8 gal (298 L)
• Hydraulic Tank: 31.4 gal (119 L)
• Transmission: 5.7 gal (21.6 L)
• Front Axle/Diff: 4.8 gal (18.2 L)
• Rear Axle/Diff: 4.8 gal (18.2 L)

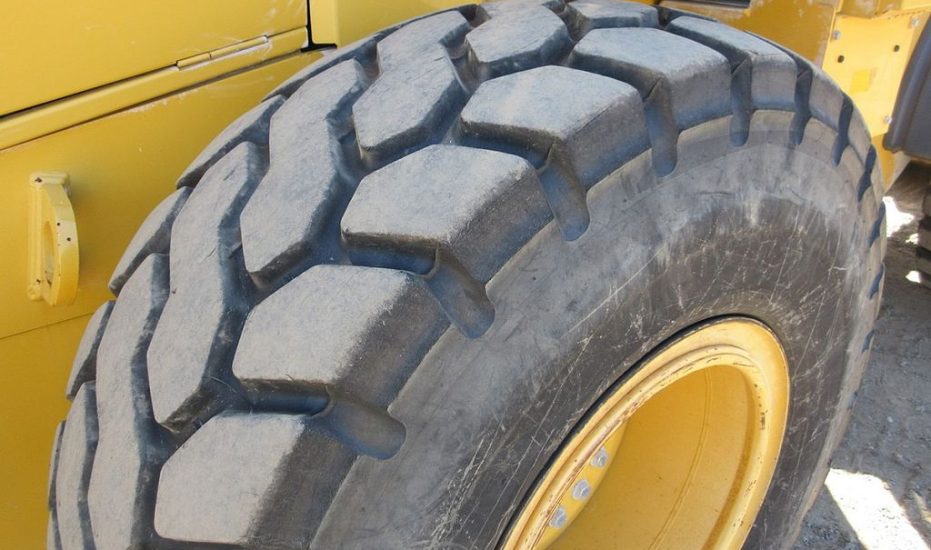

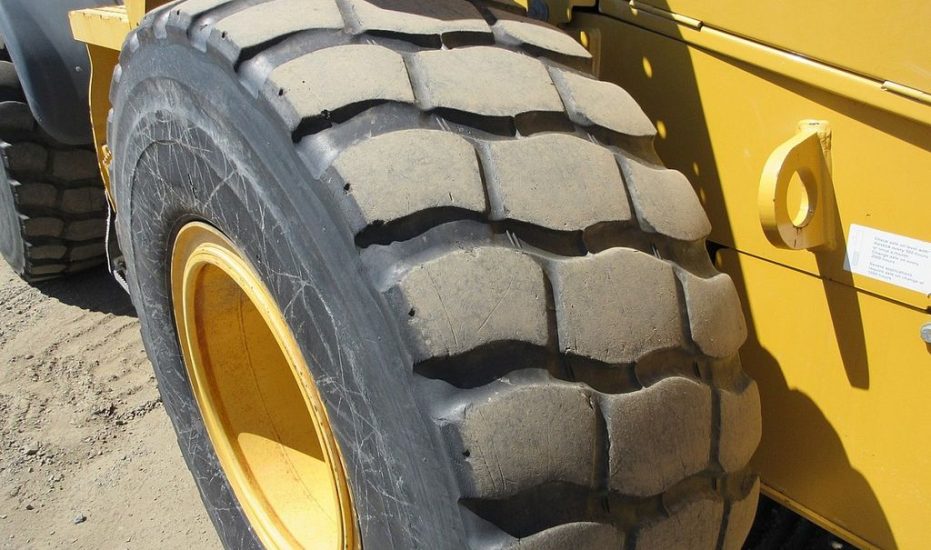

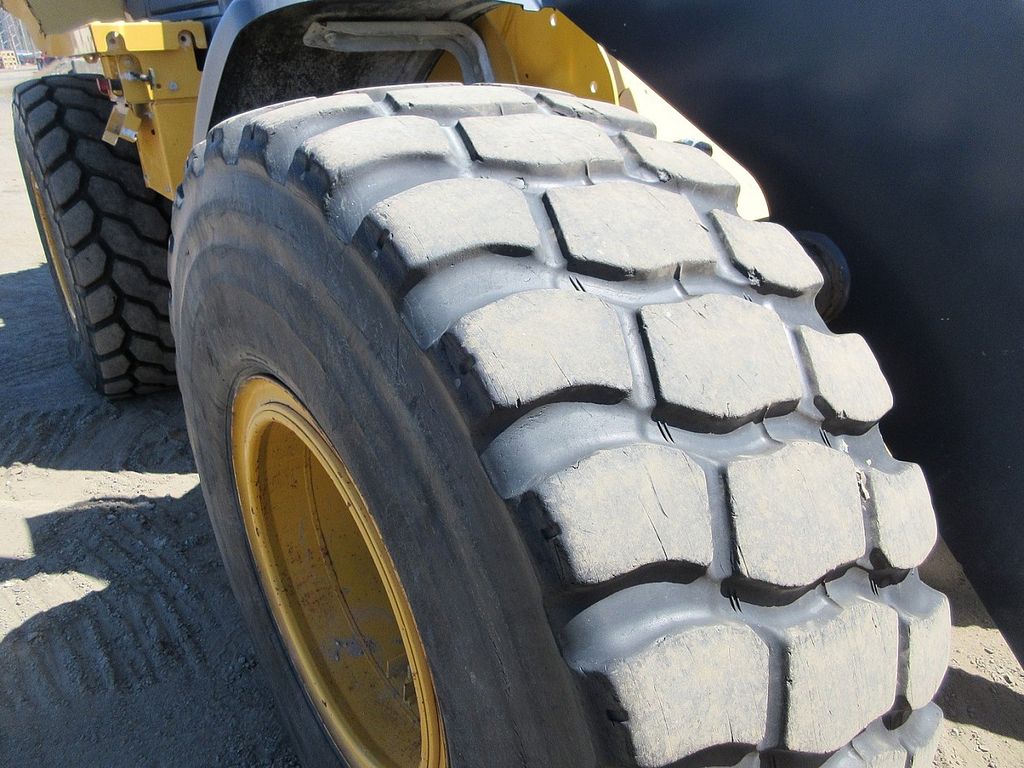

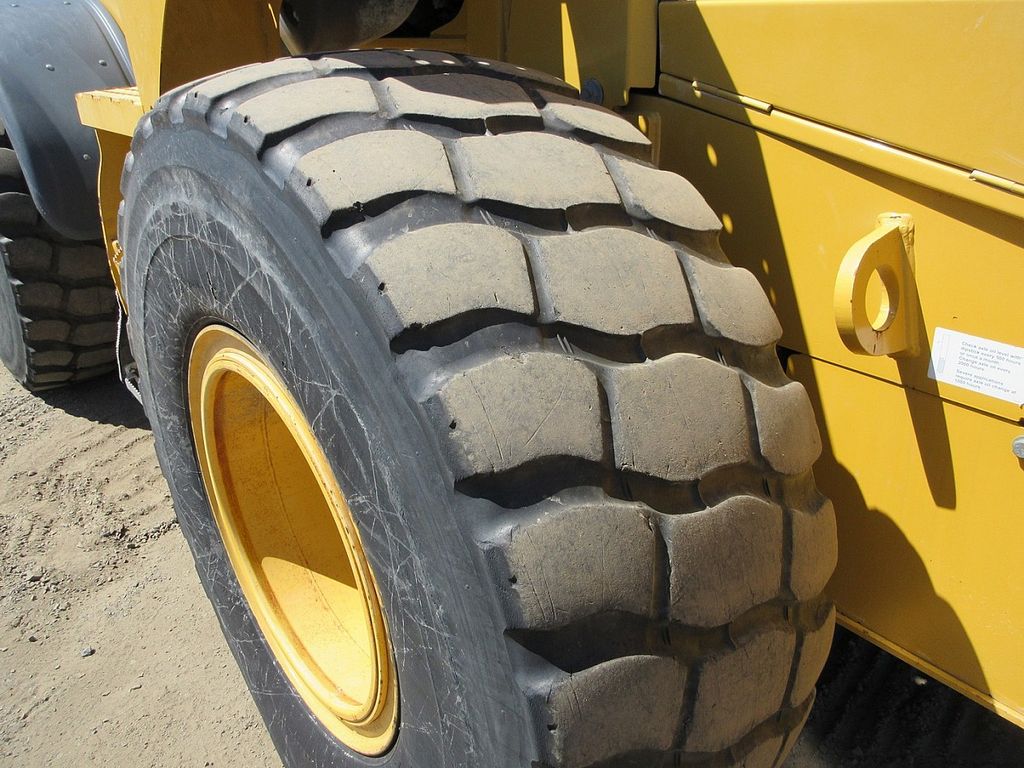

Tires

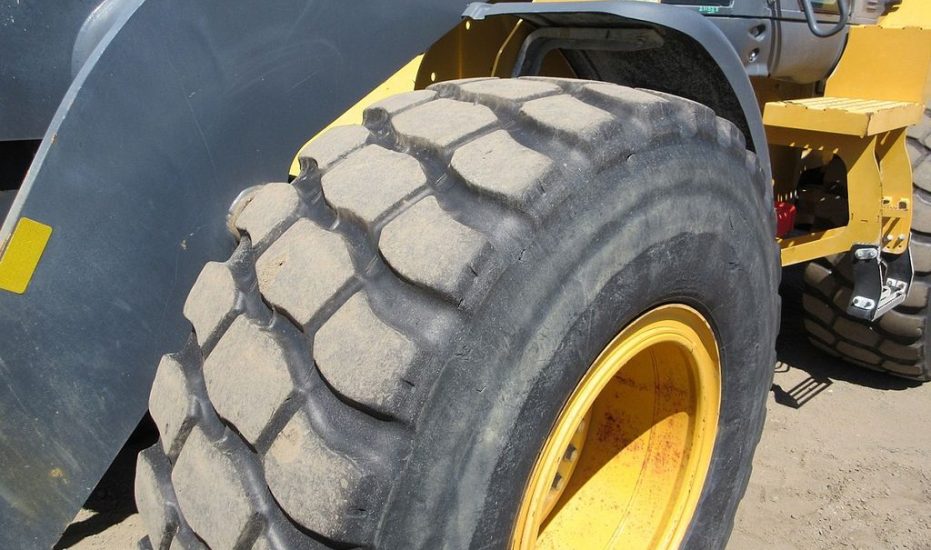

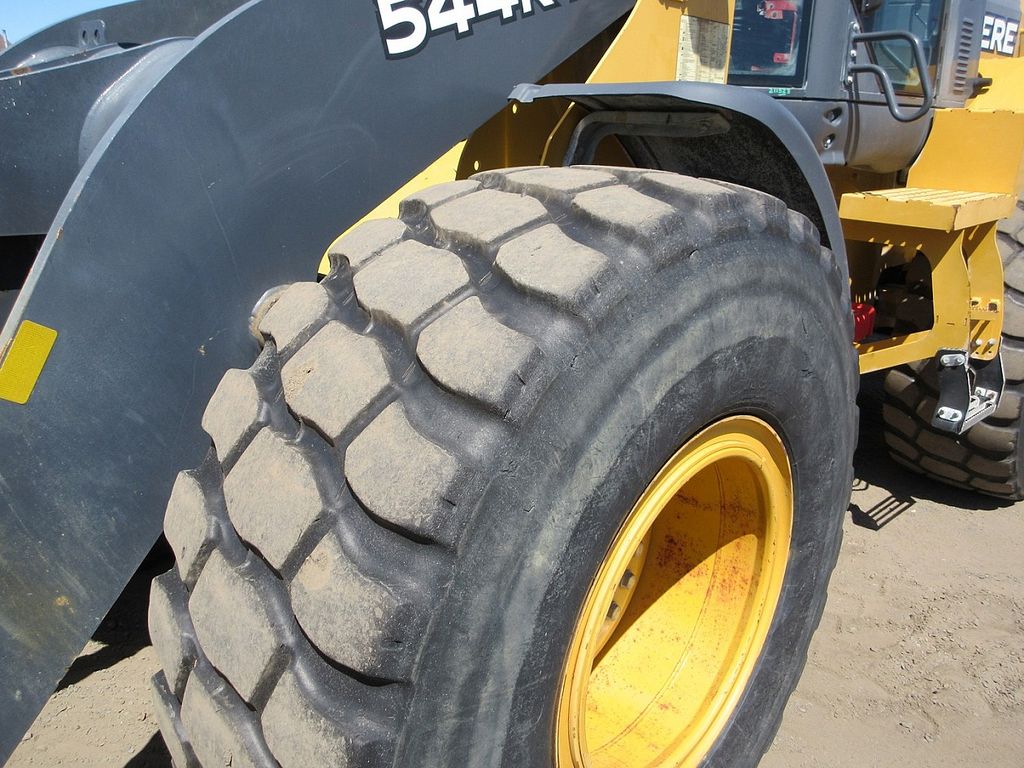

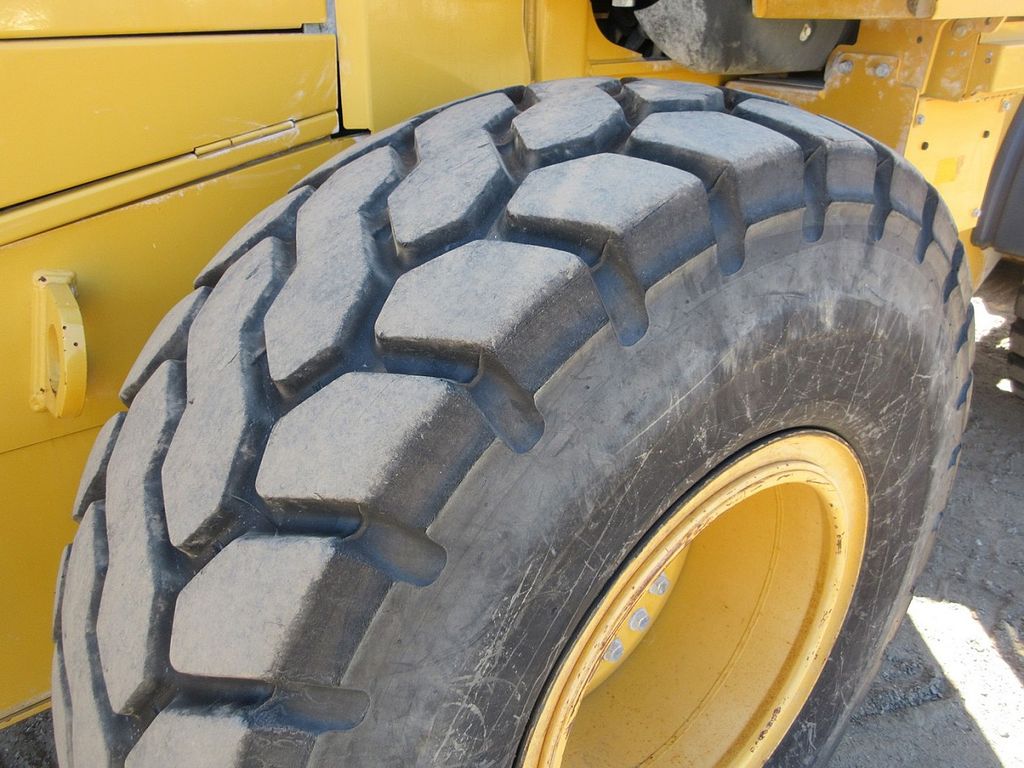

• Standard Size: 20.5 R25
