Specifications

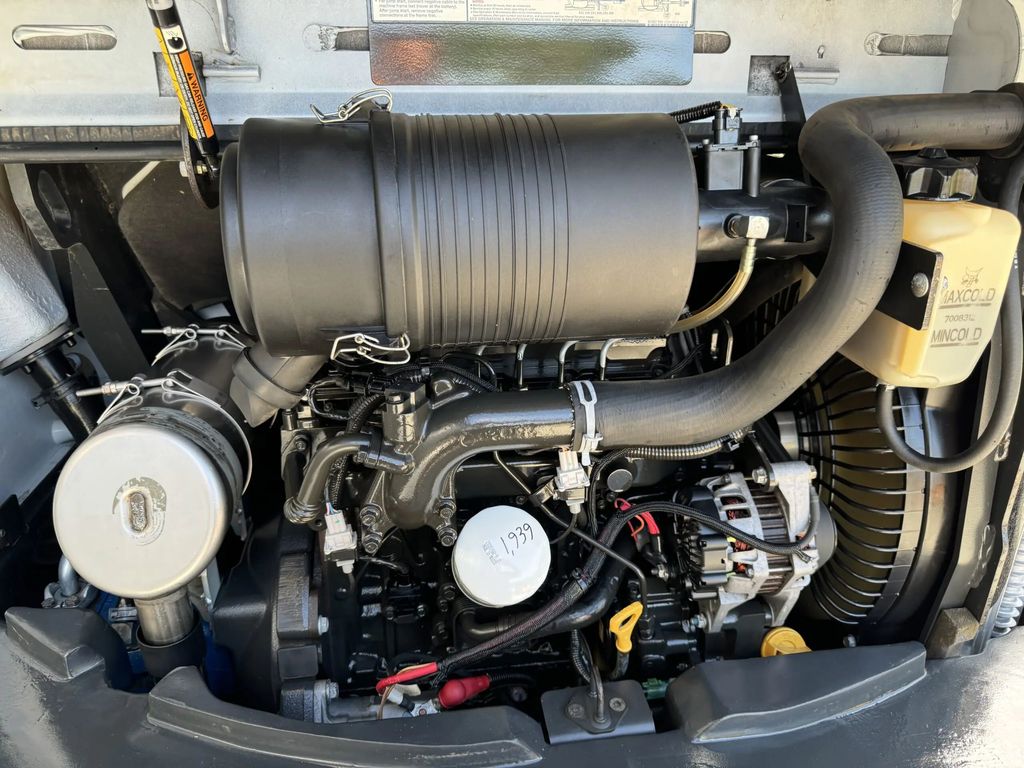

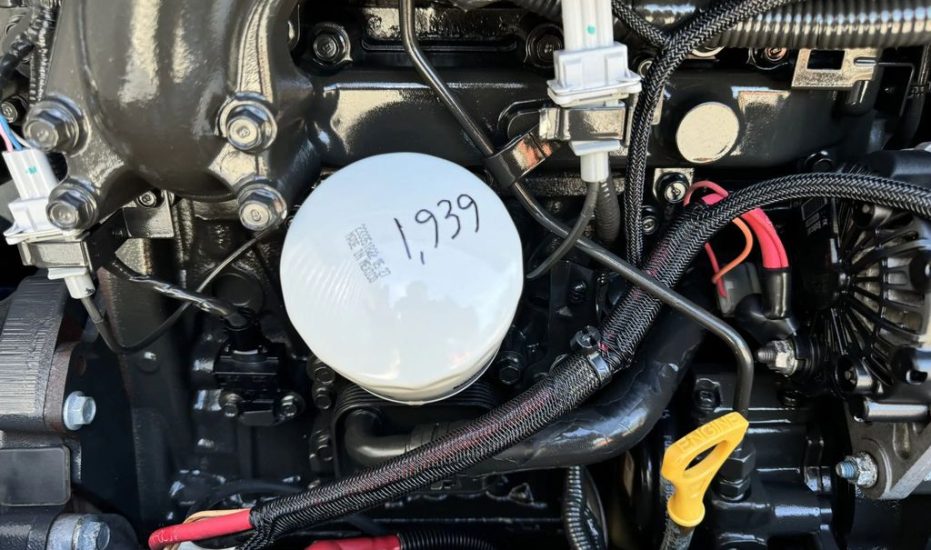

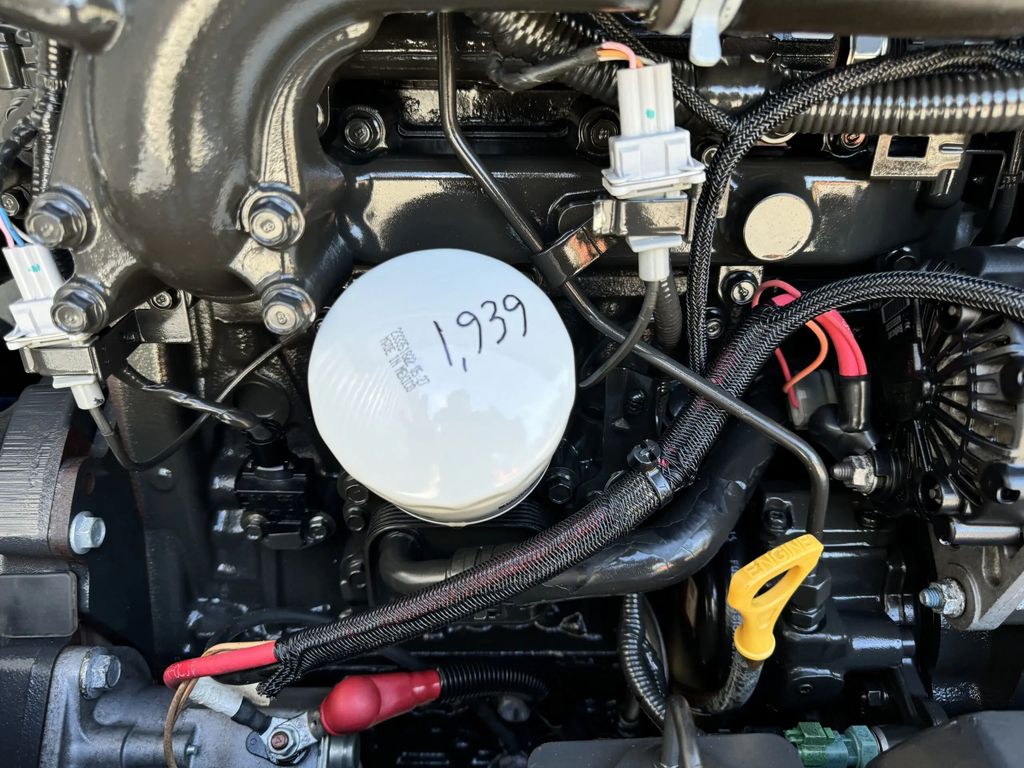

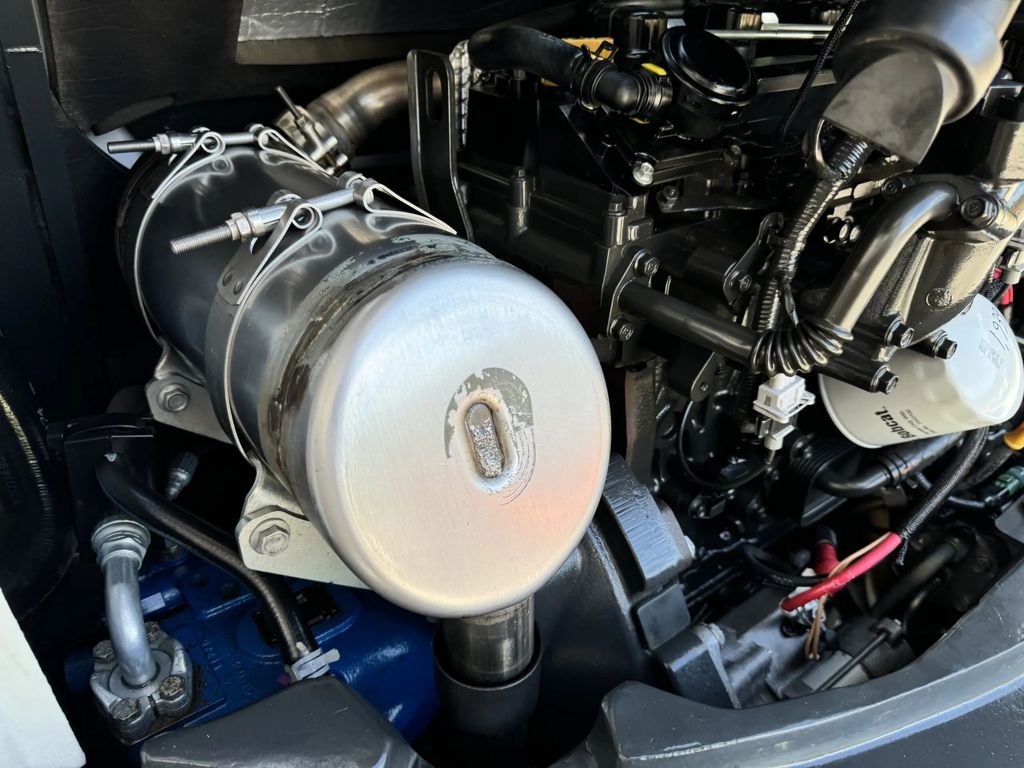

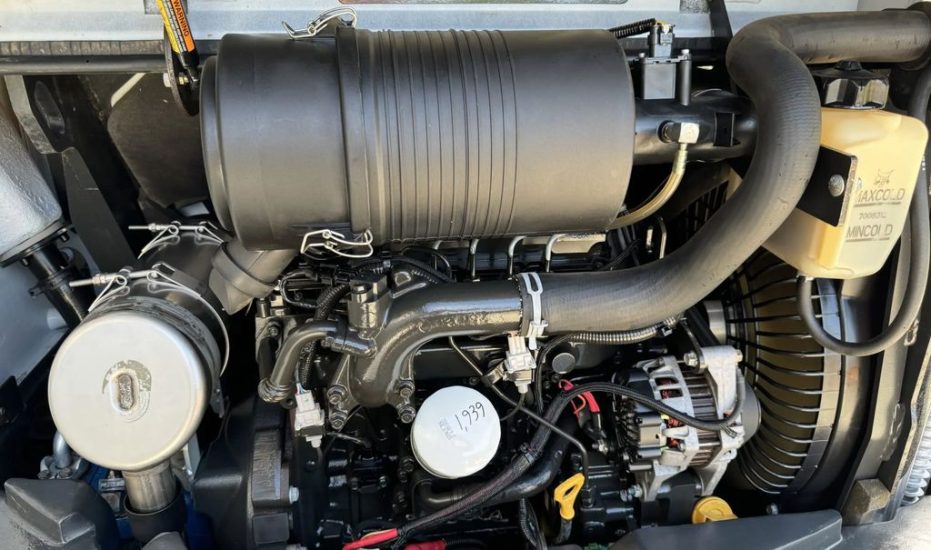

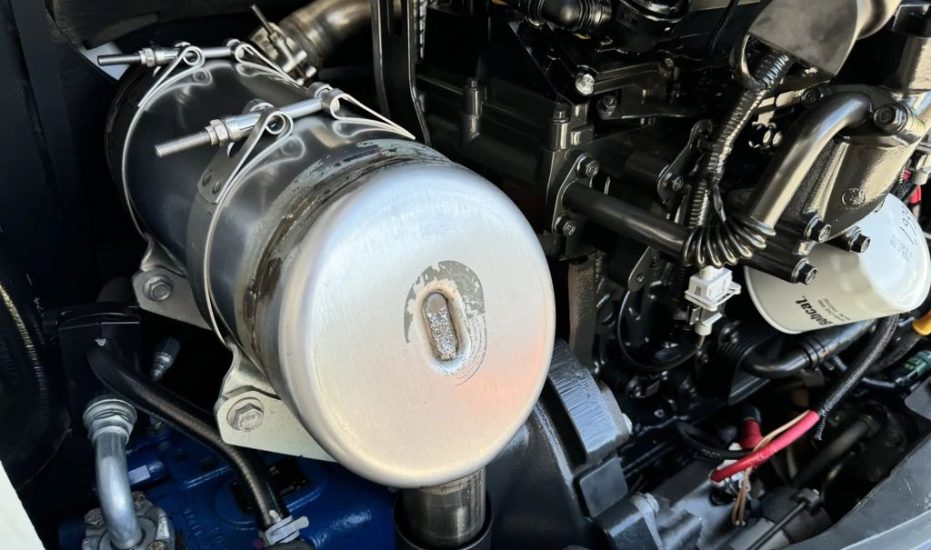

Engine

• Model: Bobcat D24 (Tier 4)
• Net Power: 49.8 hp (37.2 kW)
• Displacement: 146.5 in³ (2.4 L)
• Fuel Capacity: 21.1 gal (80 L)

Weights

• Operating Weight: 12,004 lbs (5,445 kg)

Performance

• Dig Depth: 12.9 ft (3.93 m)
• Max Dump Height: 13.6 ft (4.15 m)
• Max Reach at Ground Level: 20.3 ft (6.18 m)
• Maximum Travel Speed: 3.1 mph (5.0 km/h)
• Swing Speed: 9.5 RPM
• Bucket Breakout Force: 9,511 lbf (42.3 kN)
• Arm Digging Force: 6,987 lbf (31.1 kN)

Hydraulics

• Main System - Maximum Flow: 20 gal/min (76 L/min)
• Hydraulic System Pressure (Standard): 3,045 psi (21.0 MPa)

Dimensions

• Overall Length: 208.7 in (5.30 m)
• Overall Width: 77.2 in (1.96 m)
• Height to Top of Cab: 100.2 in (2.55 m)
• Tail Swing Radius: Minimal tail swing with less than an inch of overhang
• Ground Clearance: 12.8 in (0.33 m)

Track System

• Track Width: 15.7 in (400 mm)
• Track Length: 9.1 ft (2.77 m)
