PRICE FIRM NO TAX OR FEES

6M/1500Hr FULL Warranty!

VERY LIGHTLY USED! TIGHT!

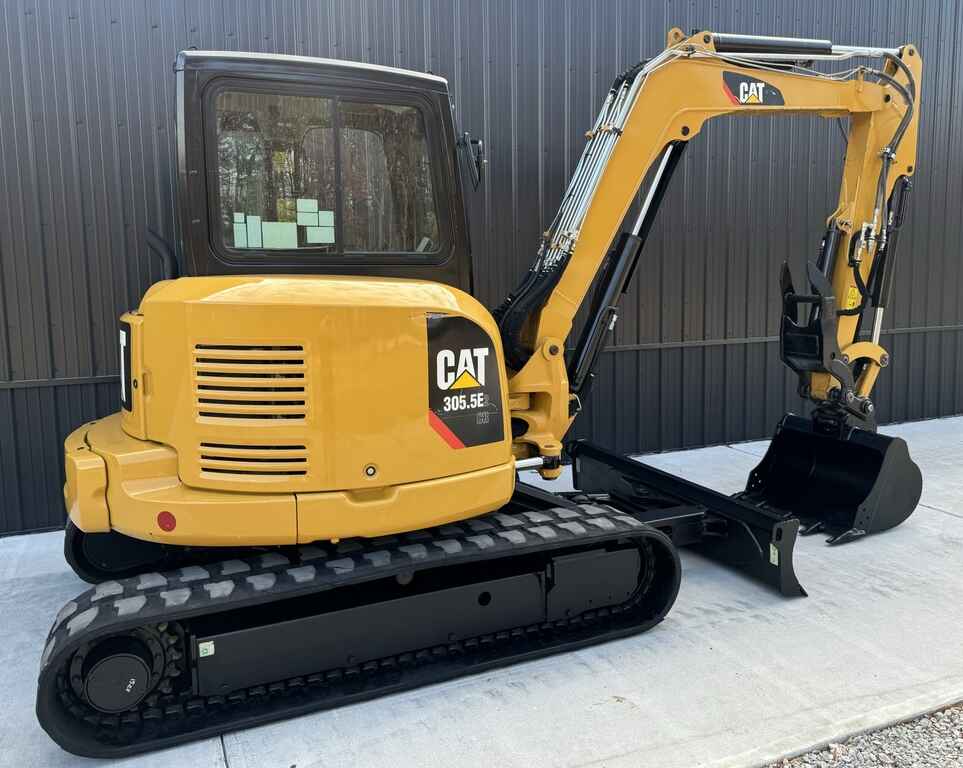

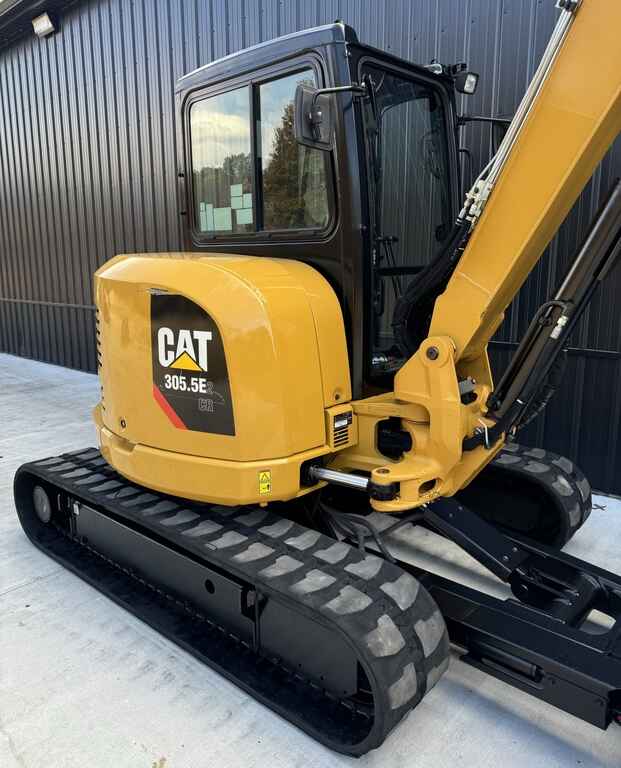

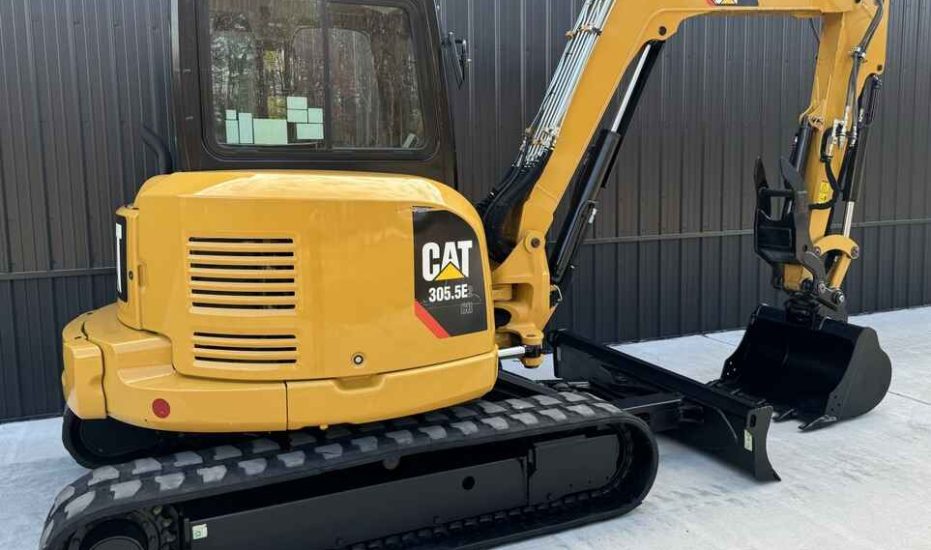

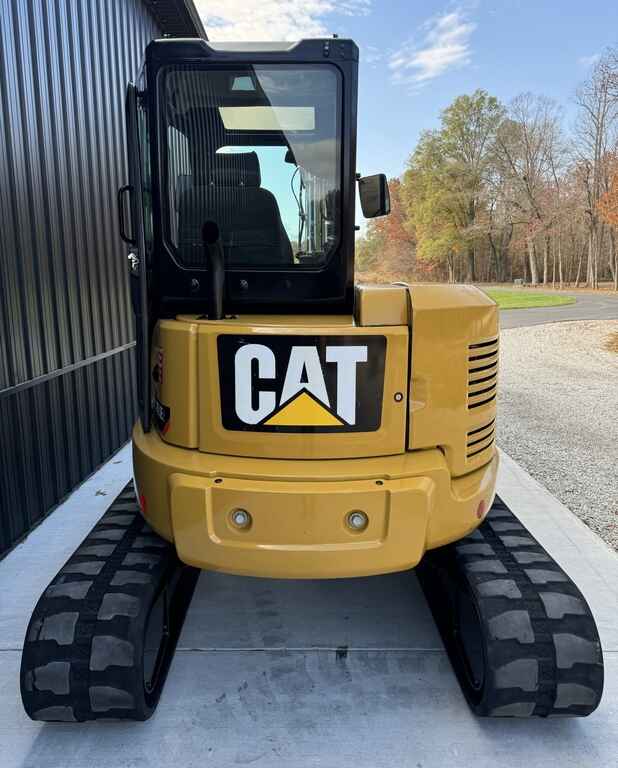

Machine was just fully cleaned, greased, serviced and looked over. Photos just taken. Shipping Available!

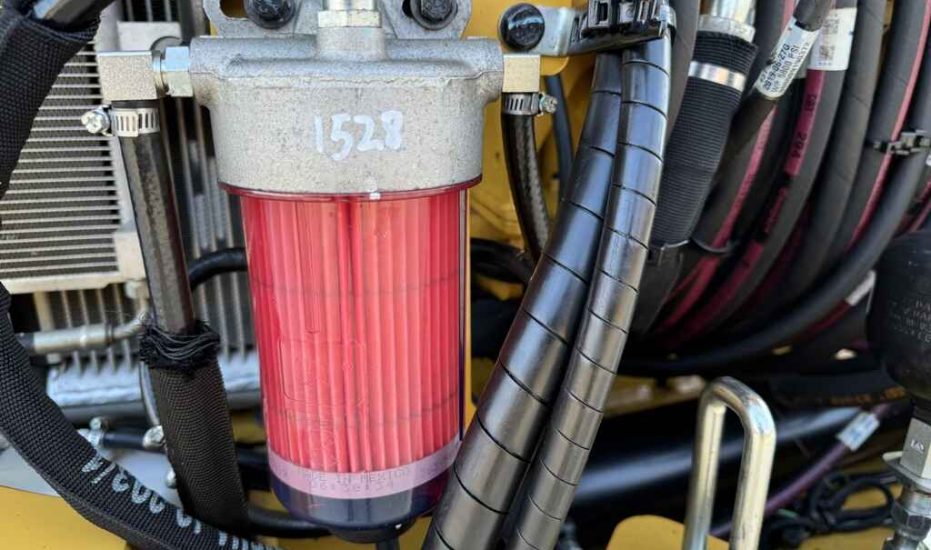

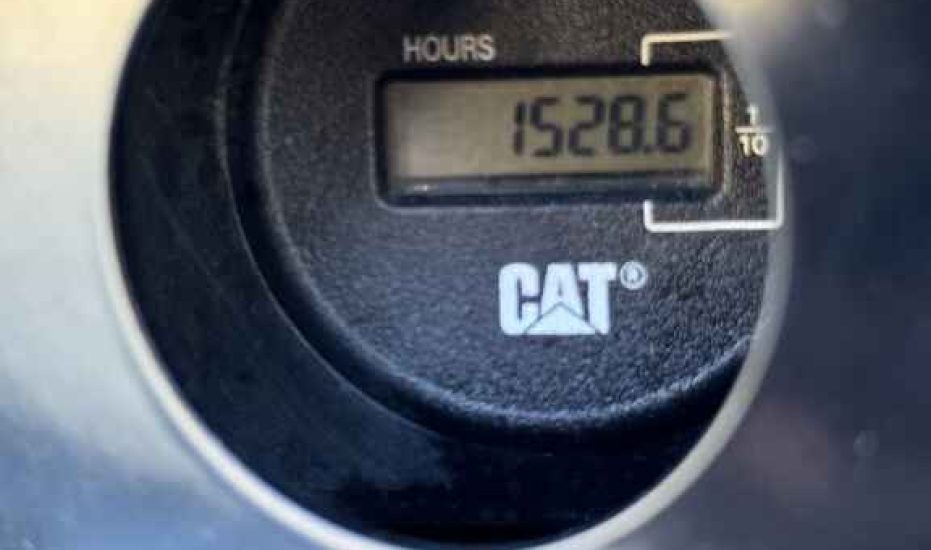

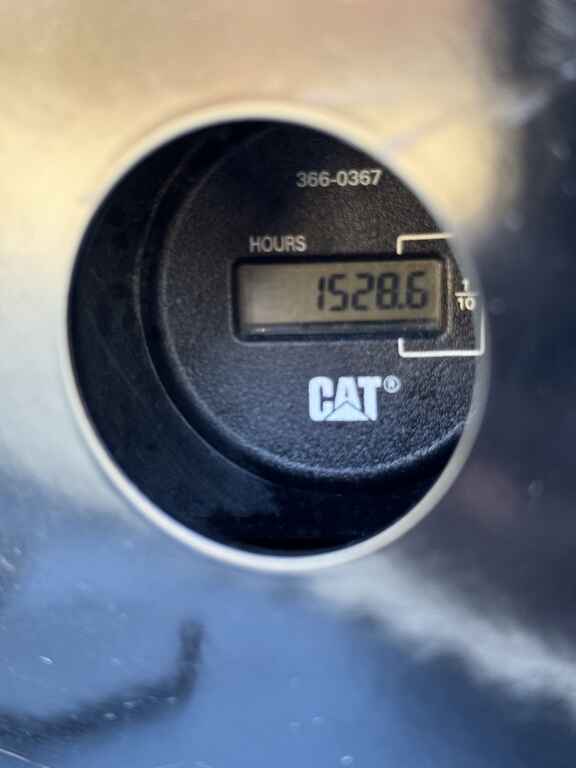

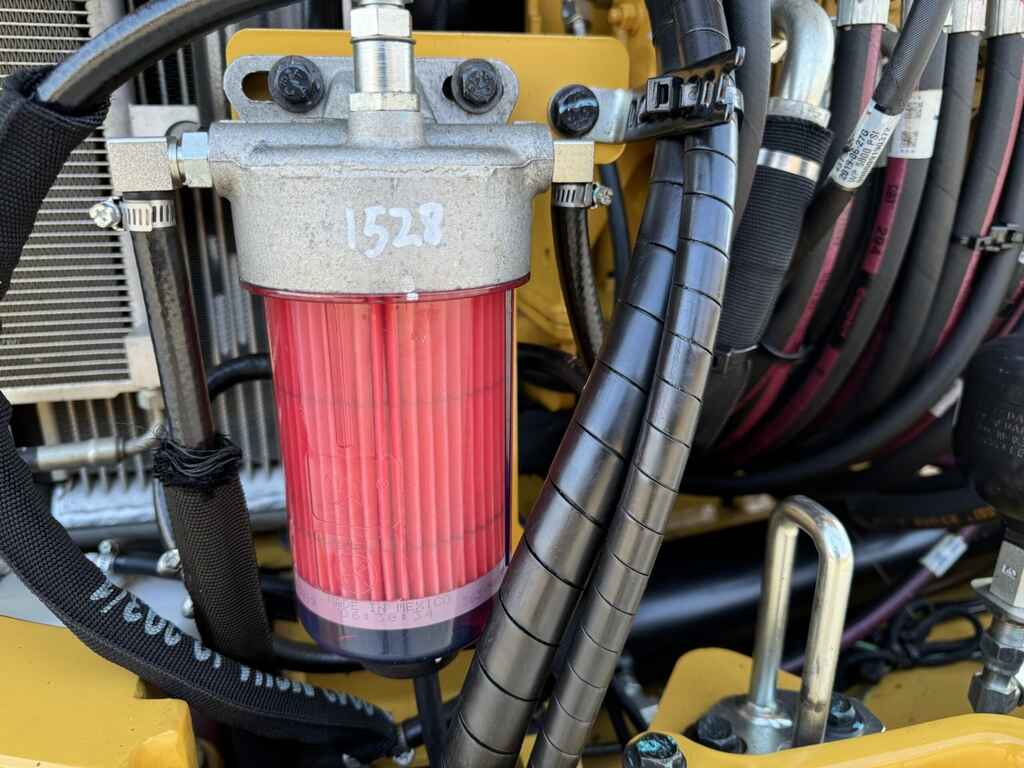

– 1,528 LIGHTLY USED hours!
– Serviced & Greased Religiously!

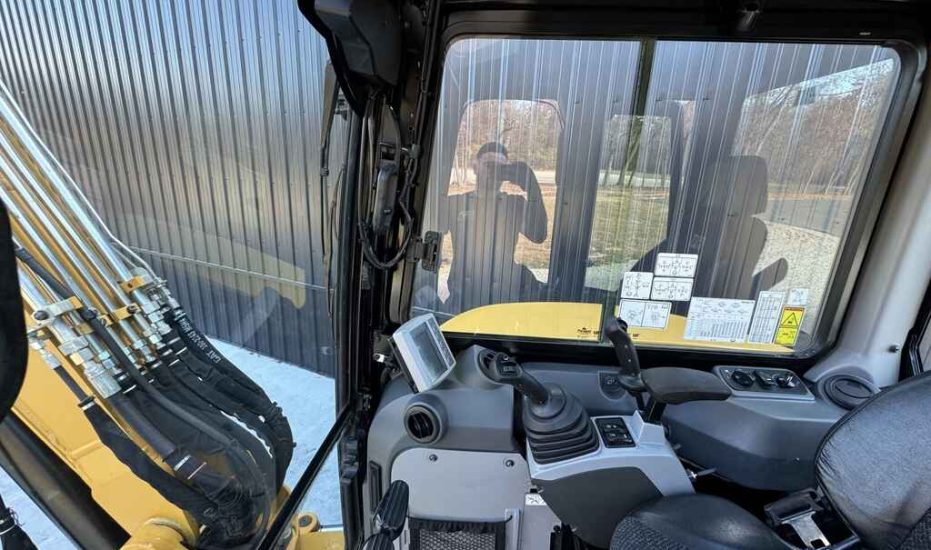

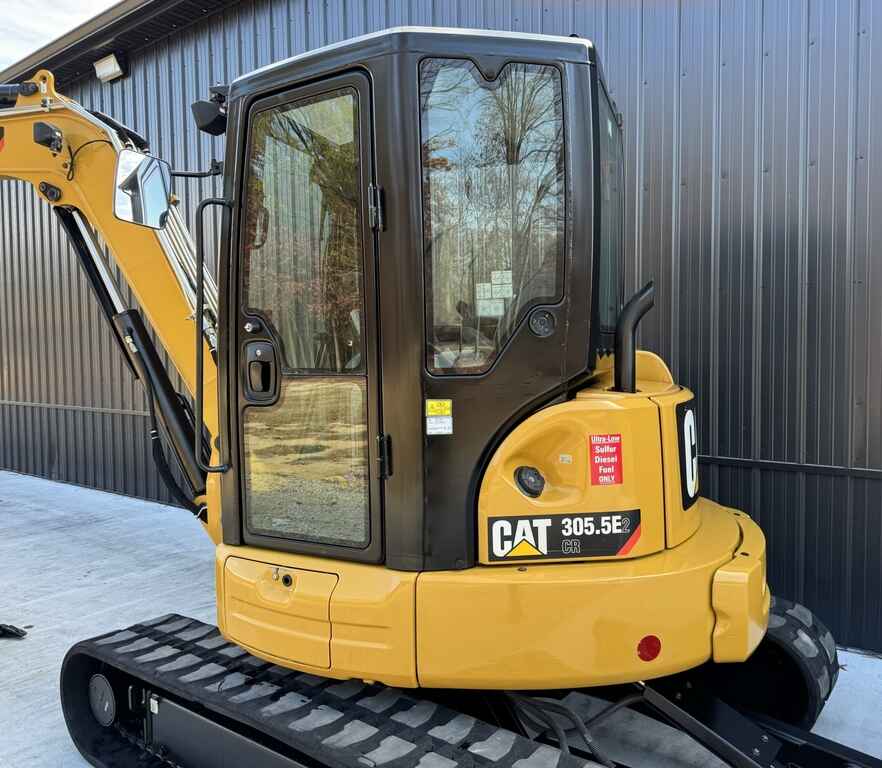

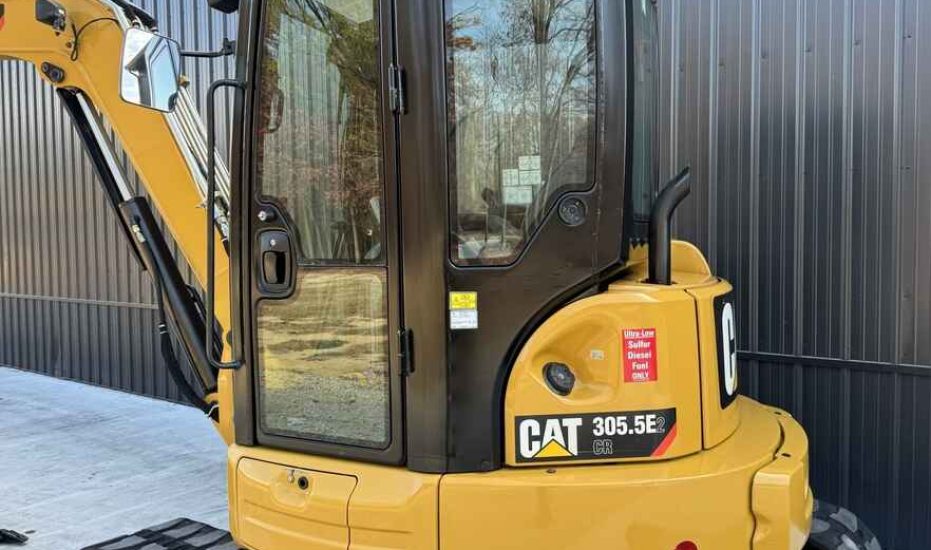

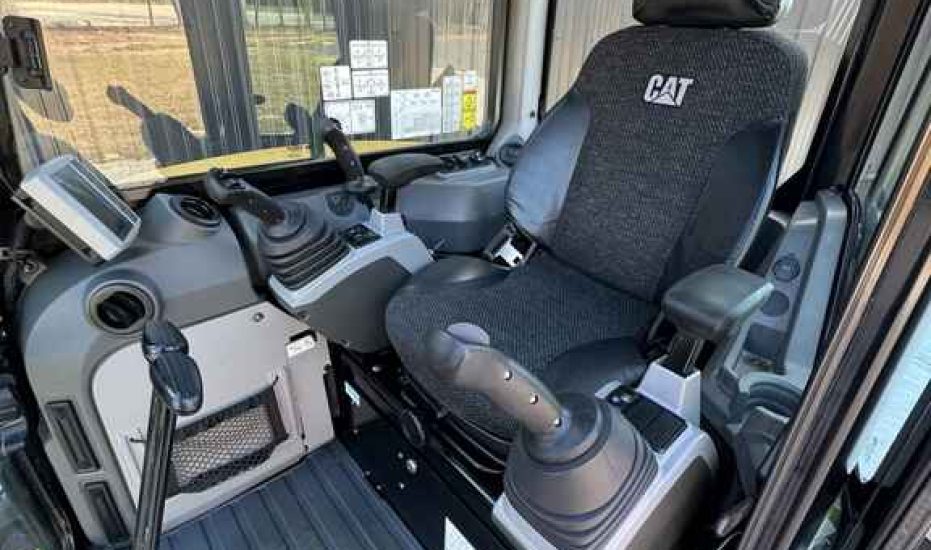

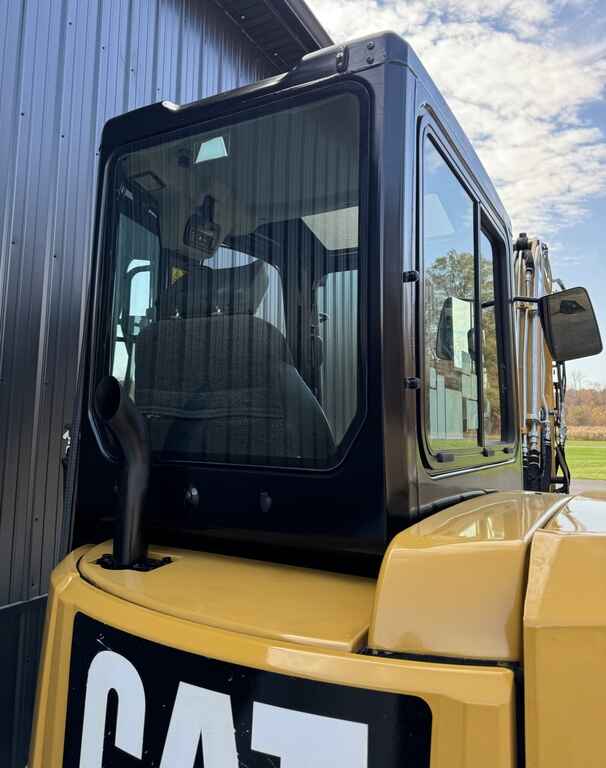

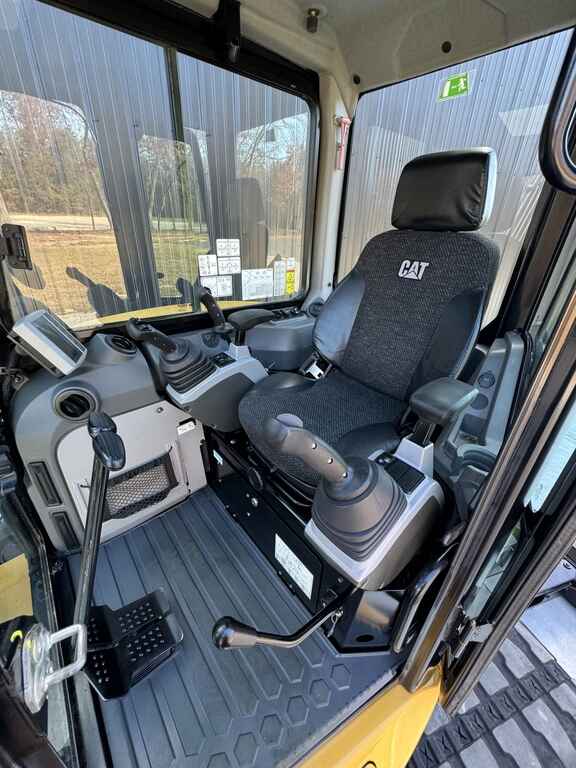

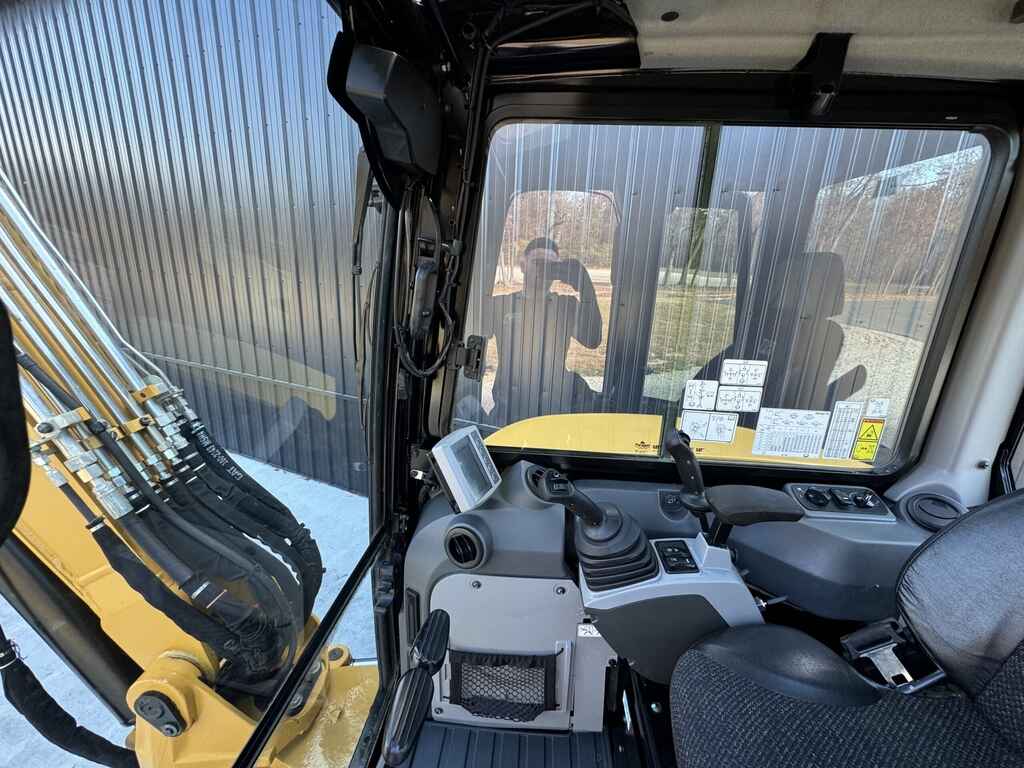

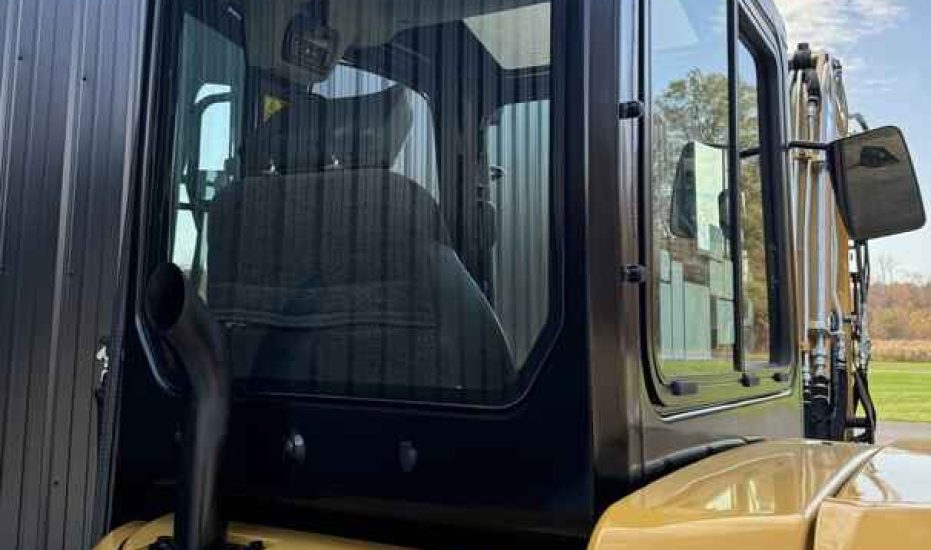

– Enclosed HEAT/AC/RADIO

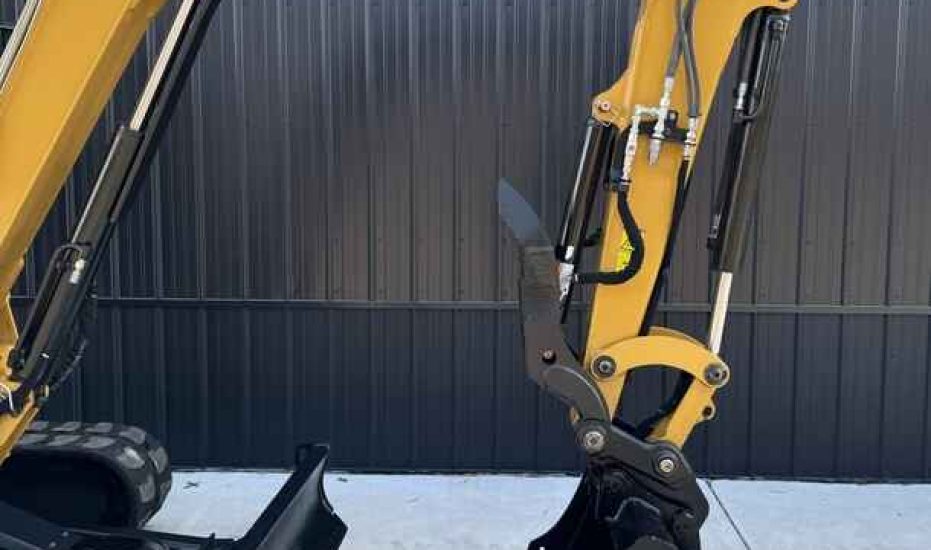

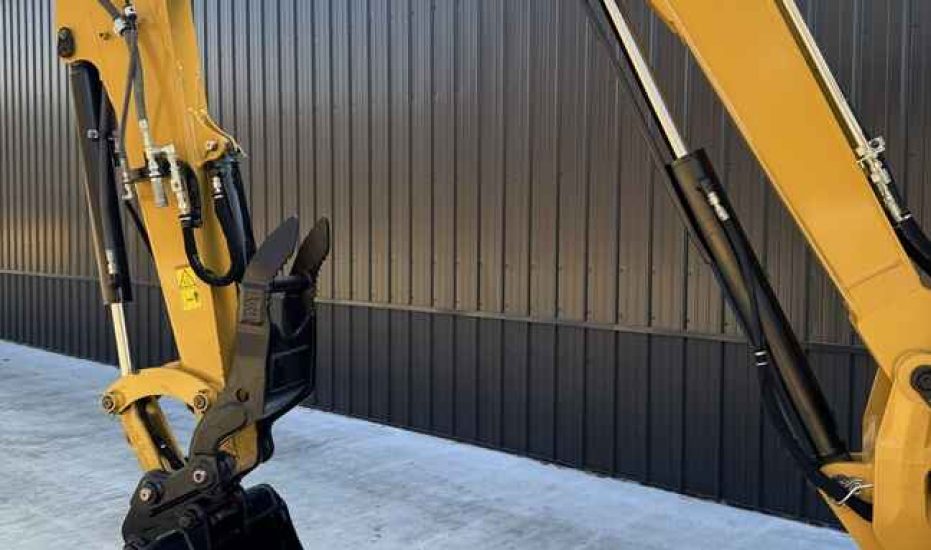

– Hydraulic Thumb
– Hydraulic Quick Coupler

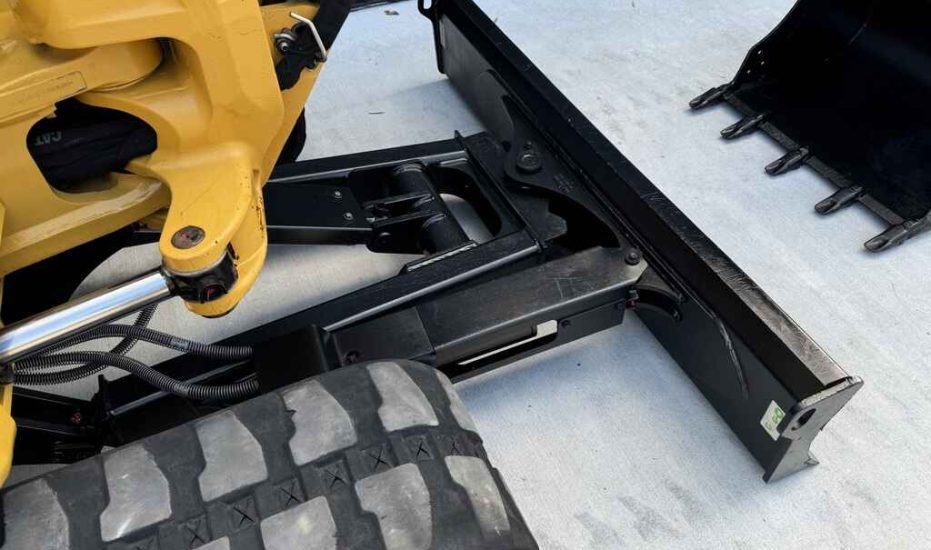

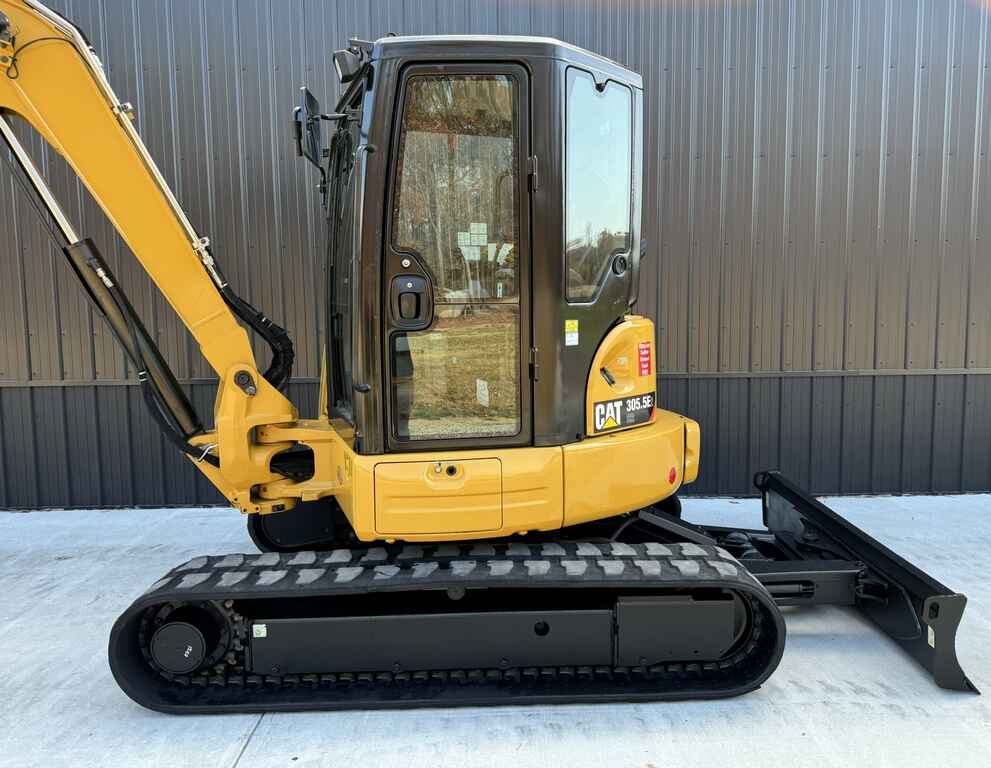

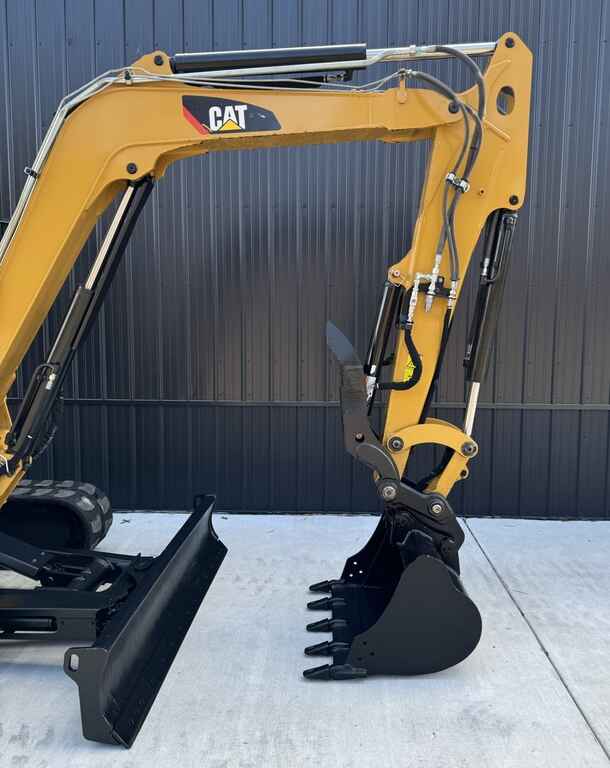

– Hydraulic Angle blade
– Counter Weight
– 2 speed

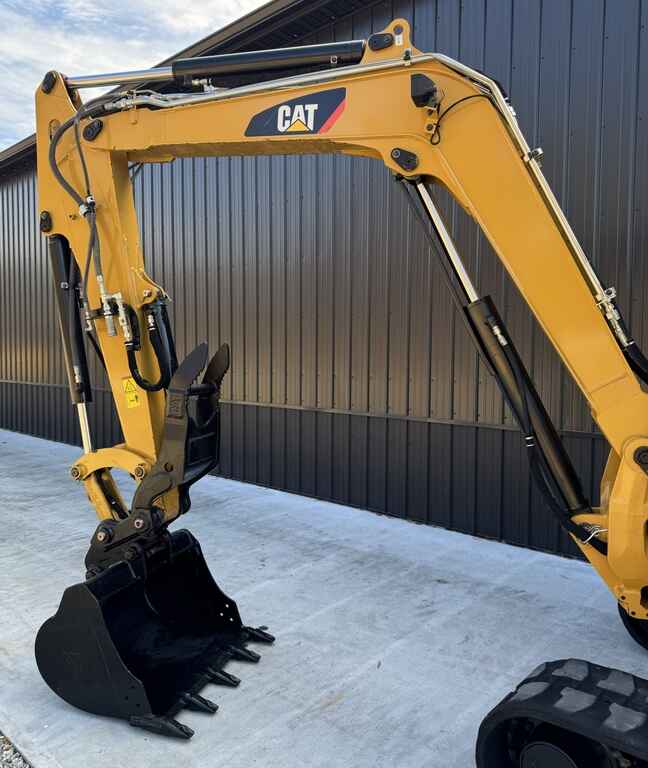

– 12″, 24” & 36″ tooth buckets
– 12k Lbs

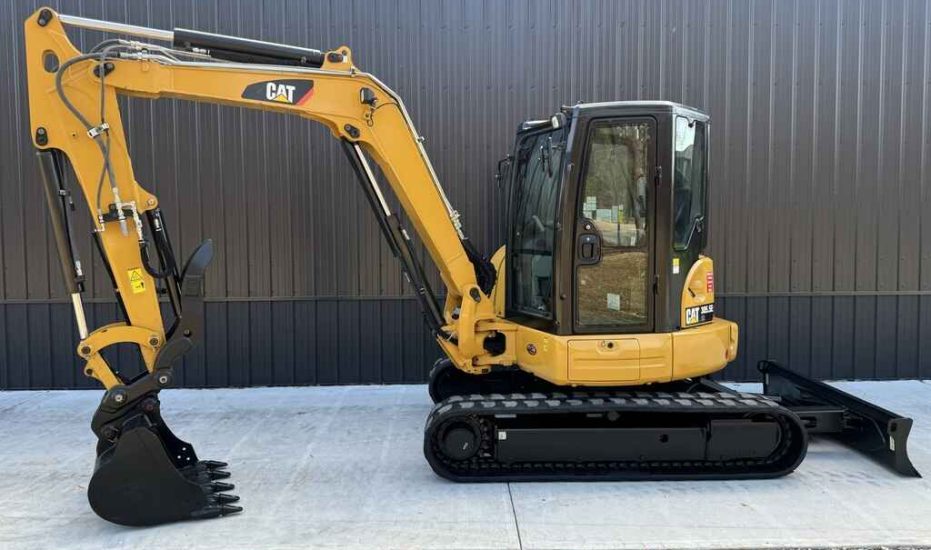

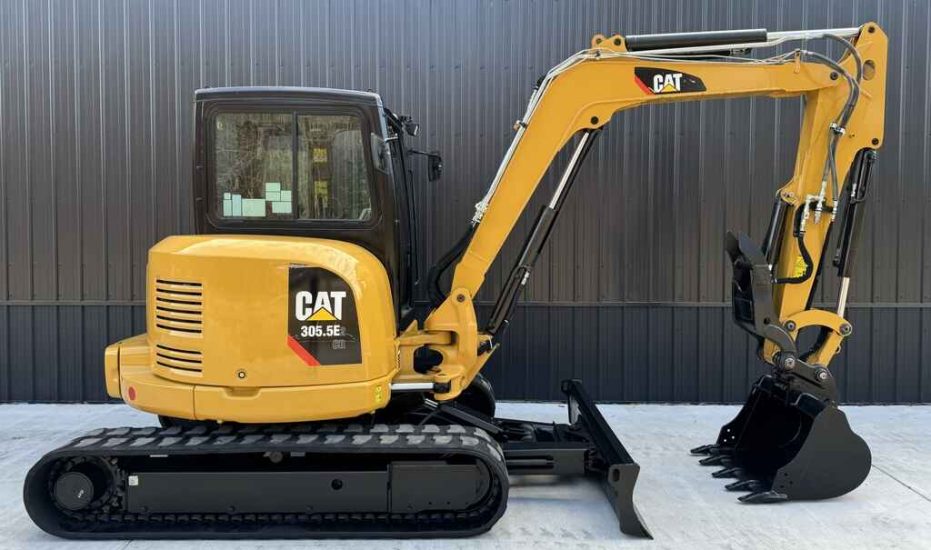

Machine is TIGHT & READY TO WORK

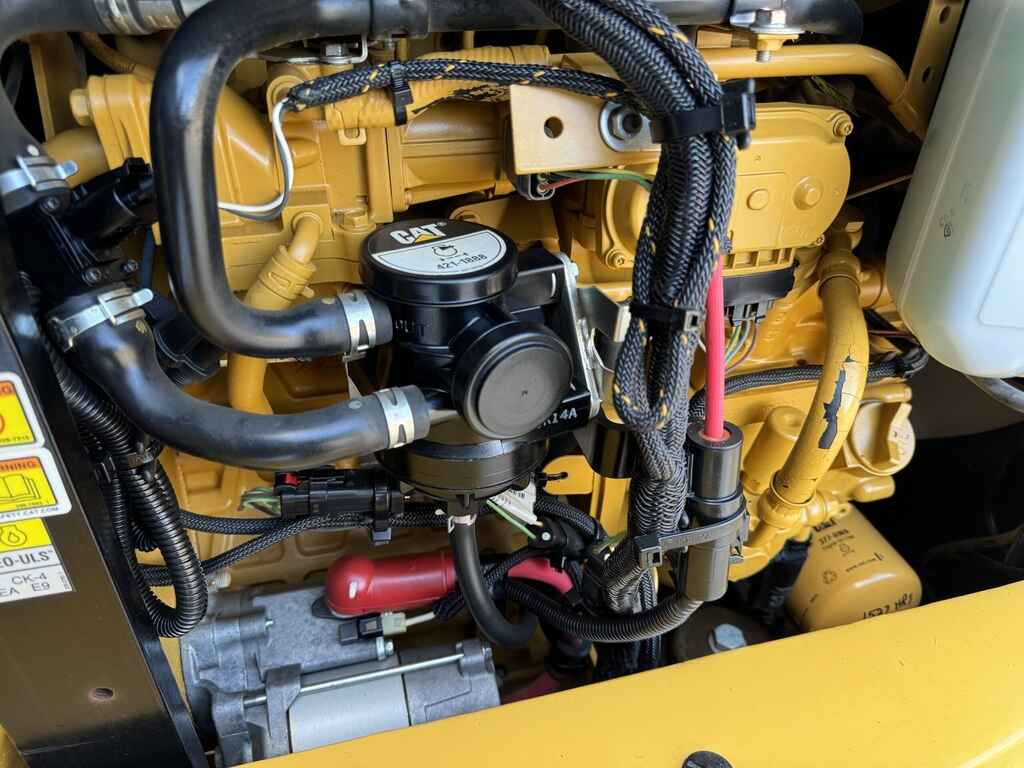

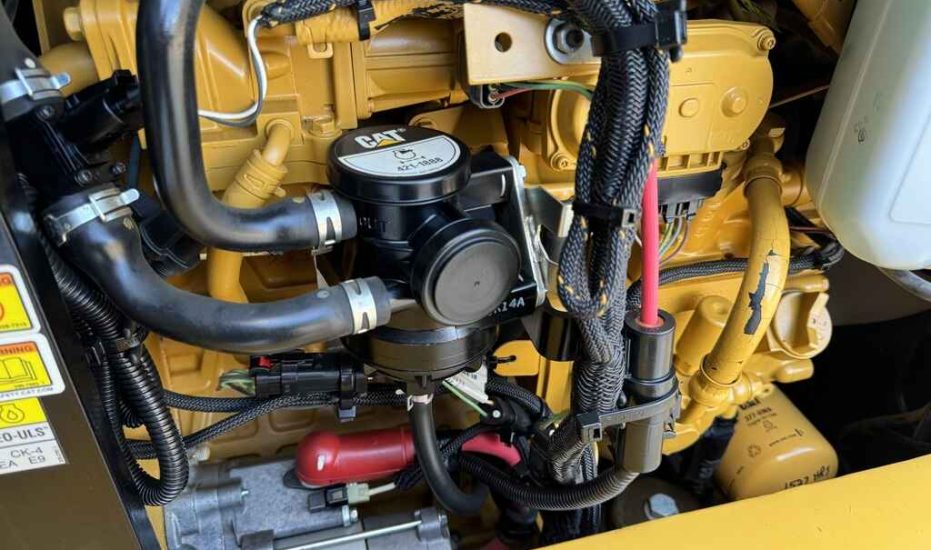

Engine

• Model: Cat C2.4
• Net Power: 40.2 hp (30 kW)
• Gross Power: 41.8 hp (31.2 kW)
• Displacement: 146 in³ (2.4 L)
• Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards

Weights

• Operating Weight (Cab, Standard Stick): 11,334 lbs (5,140 kg)
• Operating Weight (Cab, Long Stick): 11,443 lbs (5,185 kg)

Performance

• Maximum Dig Depth (Standard Stick): 129 in (3,280 mm)
• Maximum Dig Depth (Long Stick): 144 in (3,660 mm)
• Maximum Reach at Ground Level (Standard Stick): 210 in (5,330 mm)
• Maximum Reach at Ground Level (Long Stick): 229 in (5,820 mm)
• Bucket Digging Force: 10,050 lbf (44.7 kN)
• Stick Digging Force (Standard Stick): 5,550 lbf (24.7 kN)
• Stick Digging Force (Long Stick): 4,788 lbf (21.3 kN)

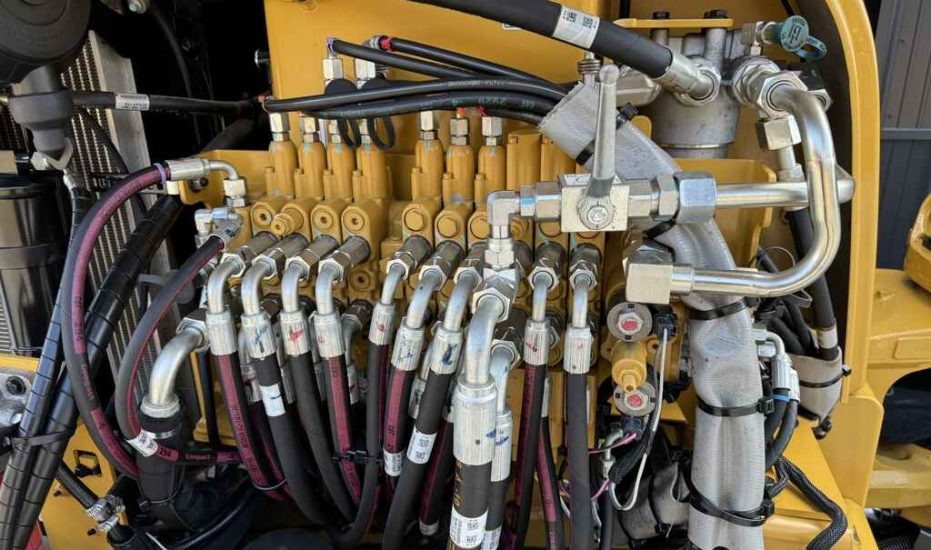

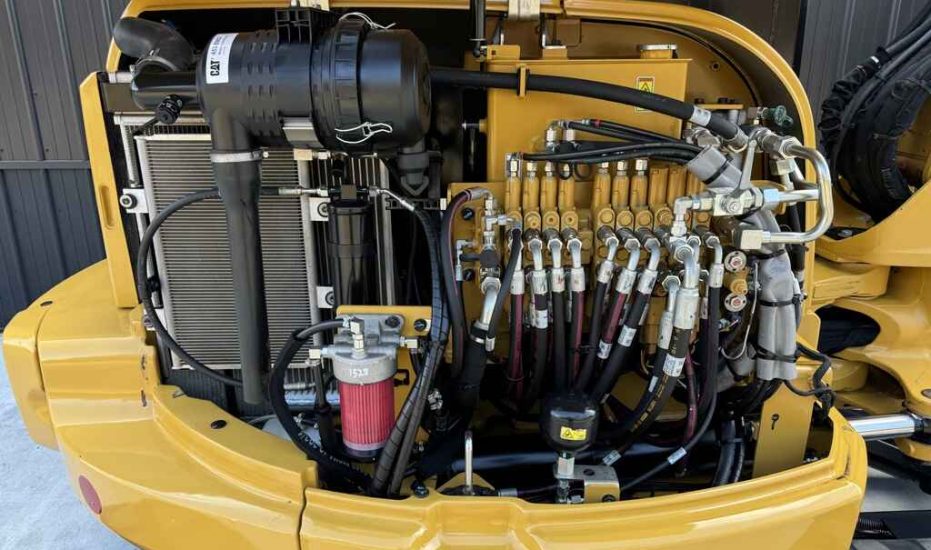

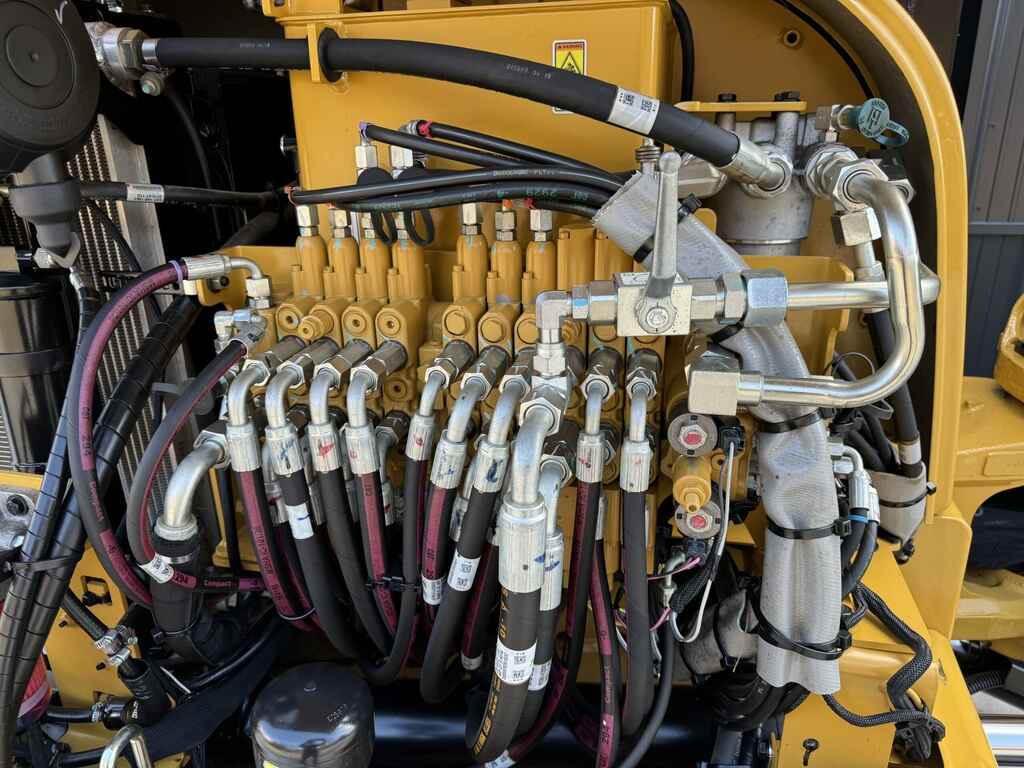

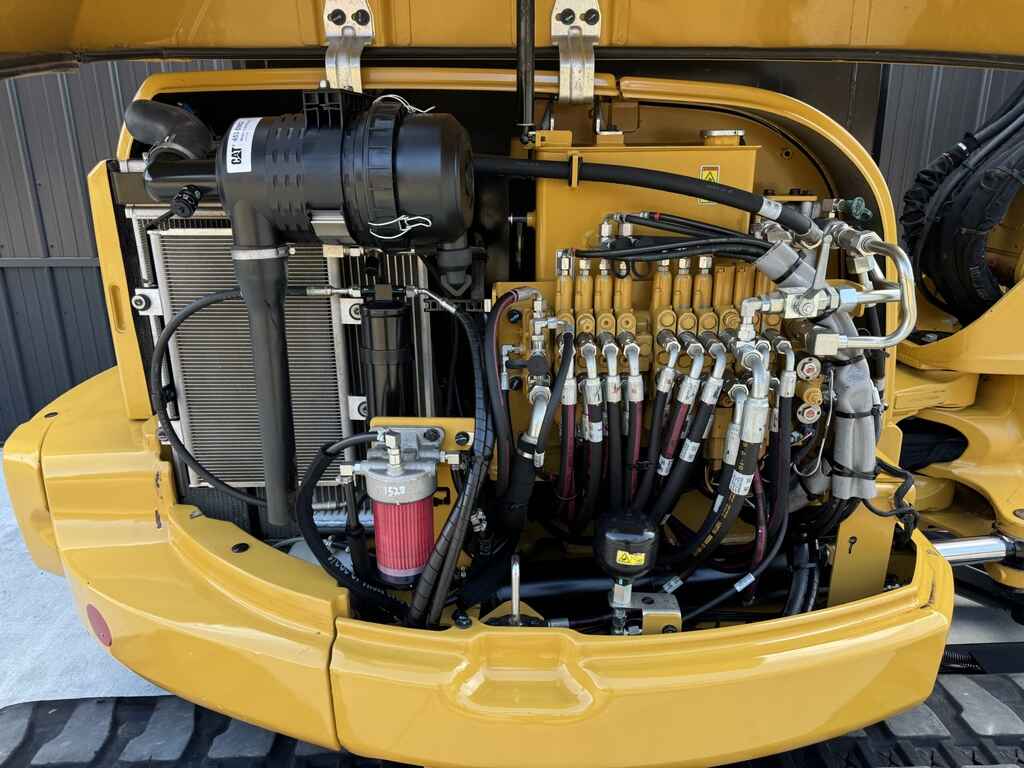

Hydraulics

• Hydraulic System Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
• Pump Flow at 2,400 rpm: 39.6 gal/min (150 L/min)
• Operating Pressure – Equipment: 3,553 psi (24.5 MPa)
• Operating Pressure – Swing: 3,132 psi (21.6 MPa)
• Operating Pressure – Travel: 3,553 psi (24.5 MPa)

Dimensions (Standard Stick)

• Overall Length: 204 in (5,180 mm)
• Overall Width: 78 in (1,980 mm)
• Overall Height: 100 in (2,540 mm)
• Tail Swing Radius: 43 in (1,090 mm)
• Ground Clearance: 12 in (305 mm)

Travel System

• Travel Speed – High: 2.7 mph (4.4 km/h)
• Travel Speed – Low: 1.7 mph (2.8 km/h)
• Maximum Traction Force – High Speed: 5,418 lbf (24.1 kN)
• Maximum Traction Force – Low Speed: 10,161 lbf (45.2 kN)
• Gradeability – Maximum: 30°

Service Refill Capacities

• Fuel Tank: 16.6 gal (63 L)
• Hydraulic Tank: 18 gal (68.3 L)
• Hydraulic System: 20.6 gal (78 L)
• Engine Oil: 2.5 gal (9.5 L)
• Cooling System: 2.8 gal (10.5 L)
