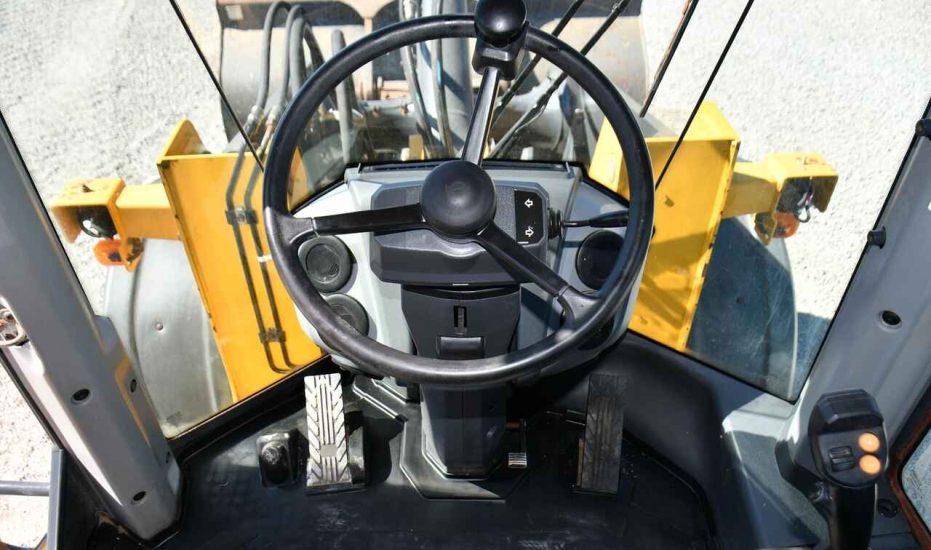

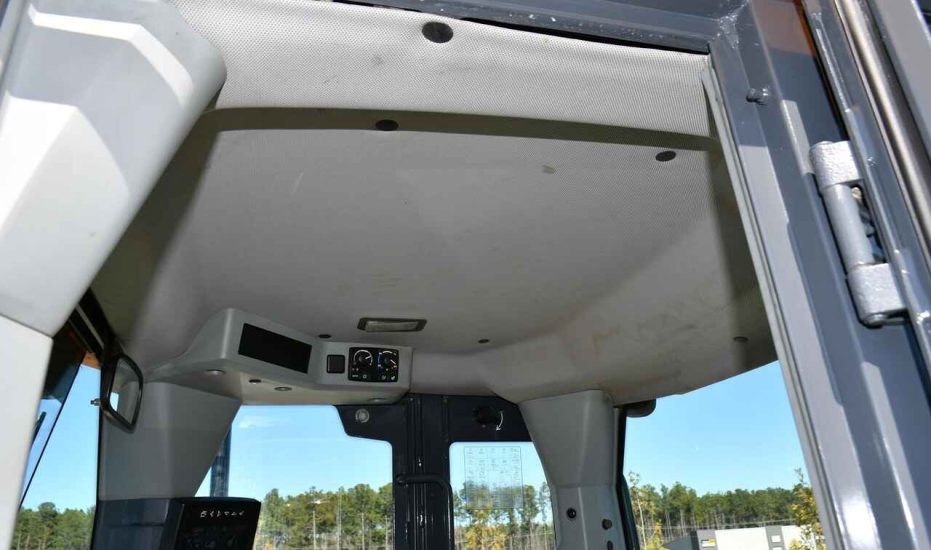

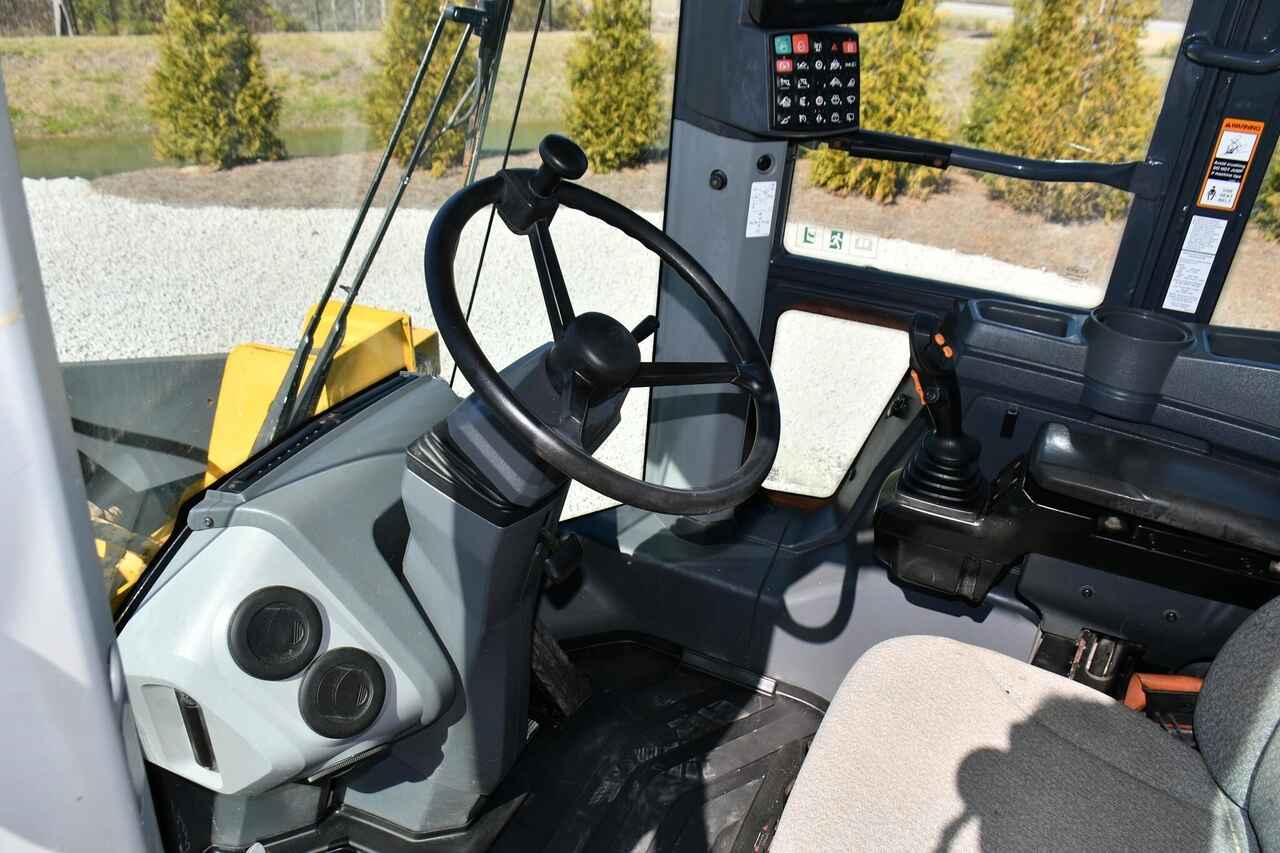

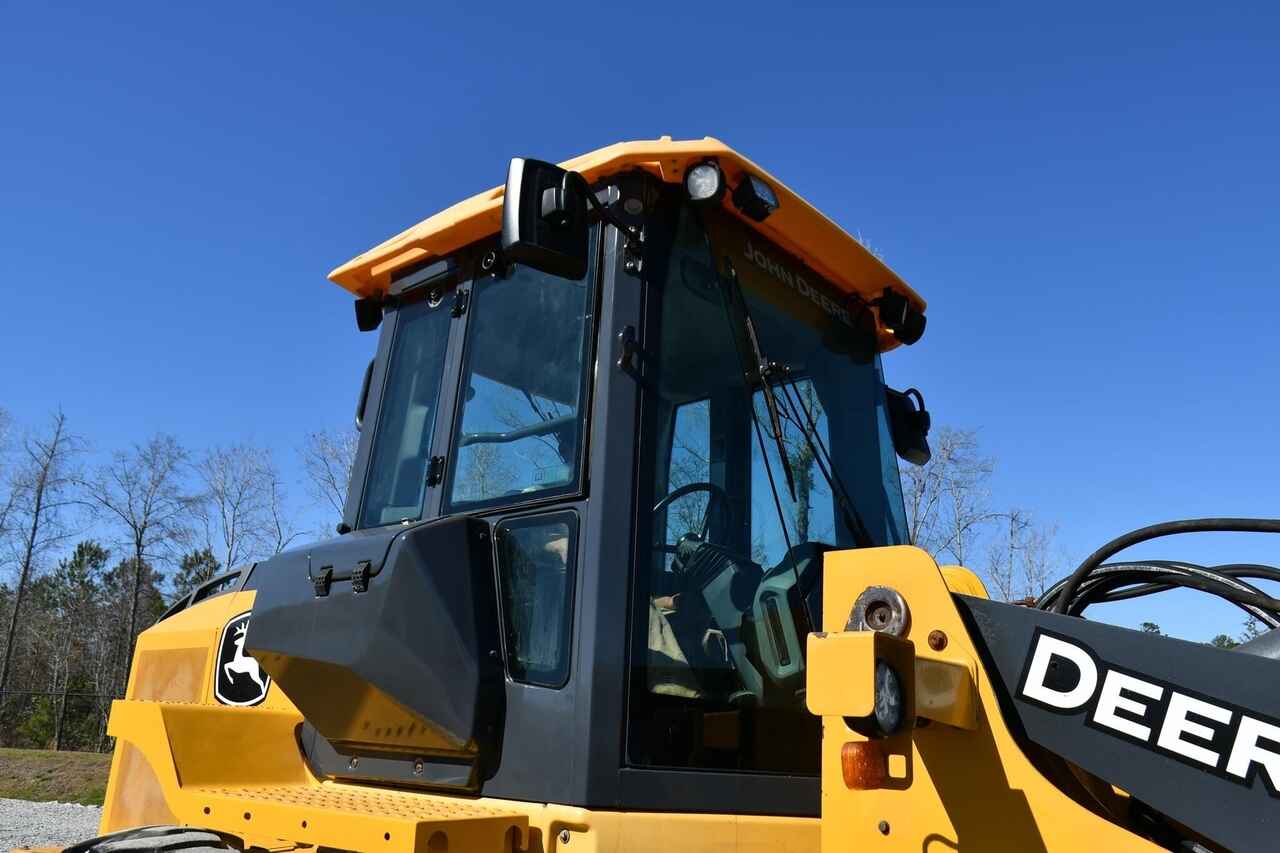

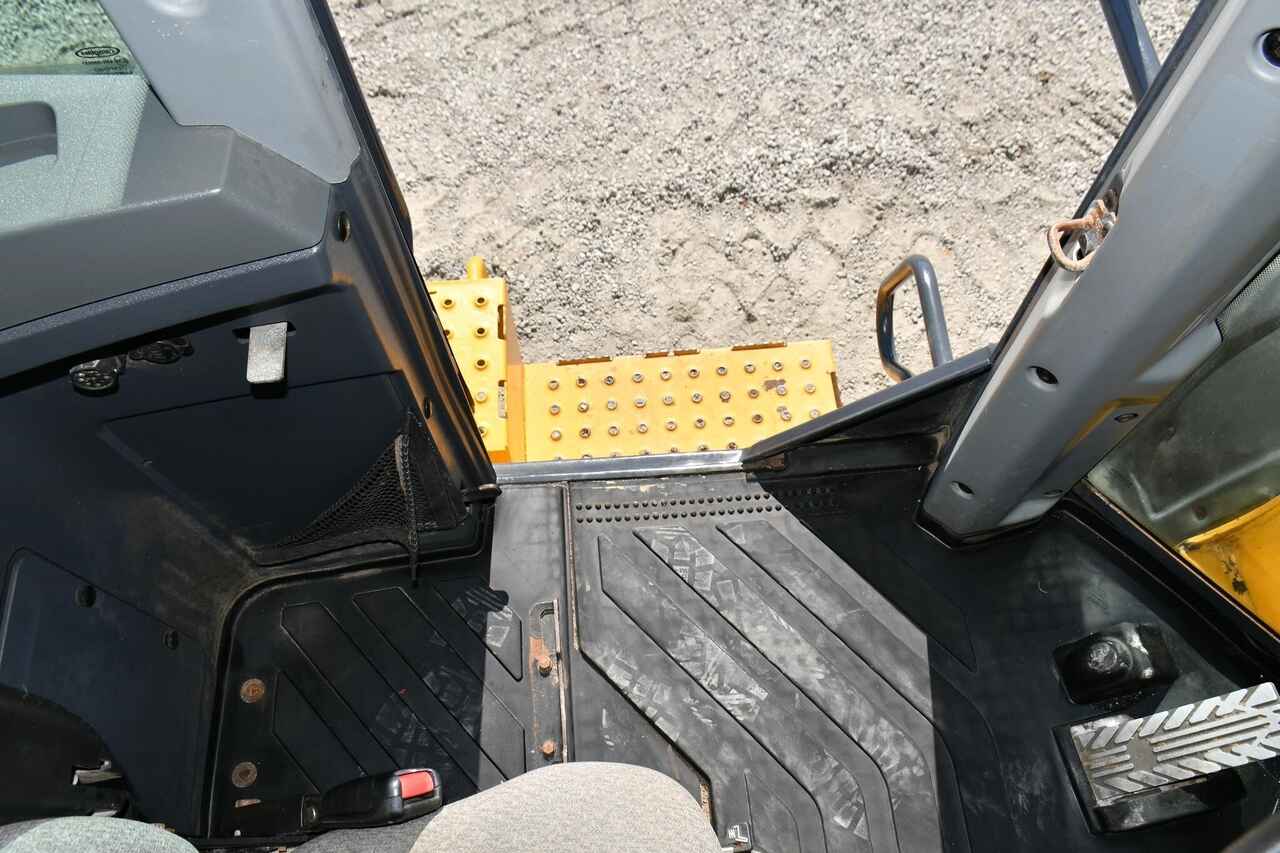

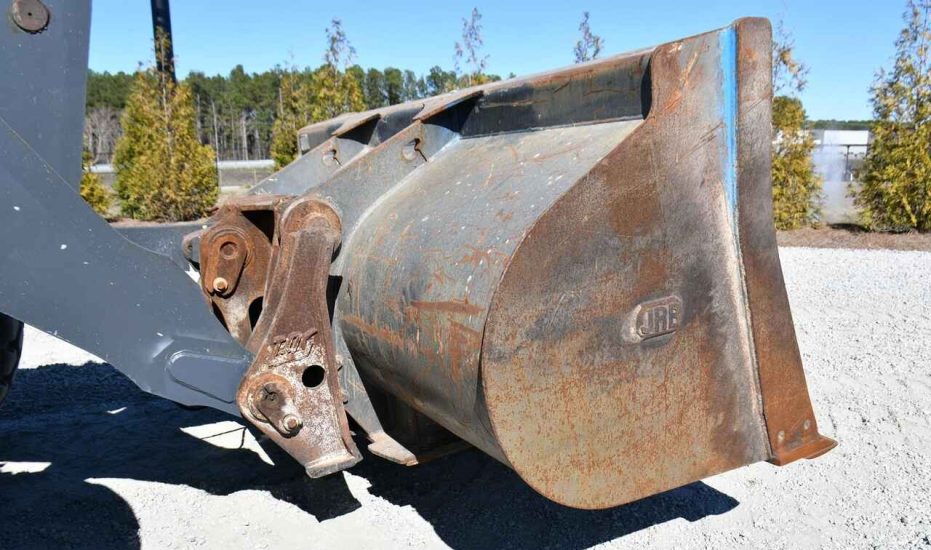

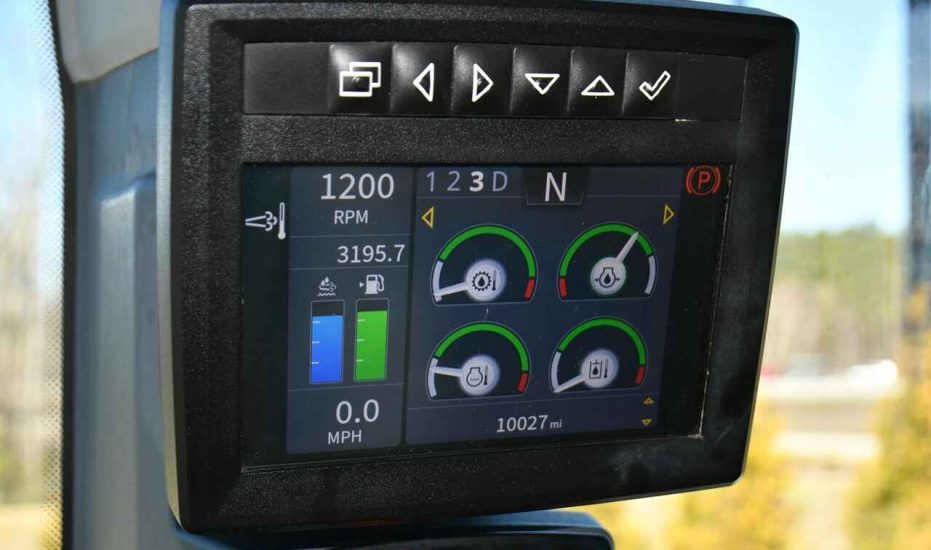

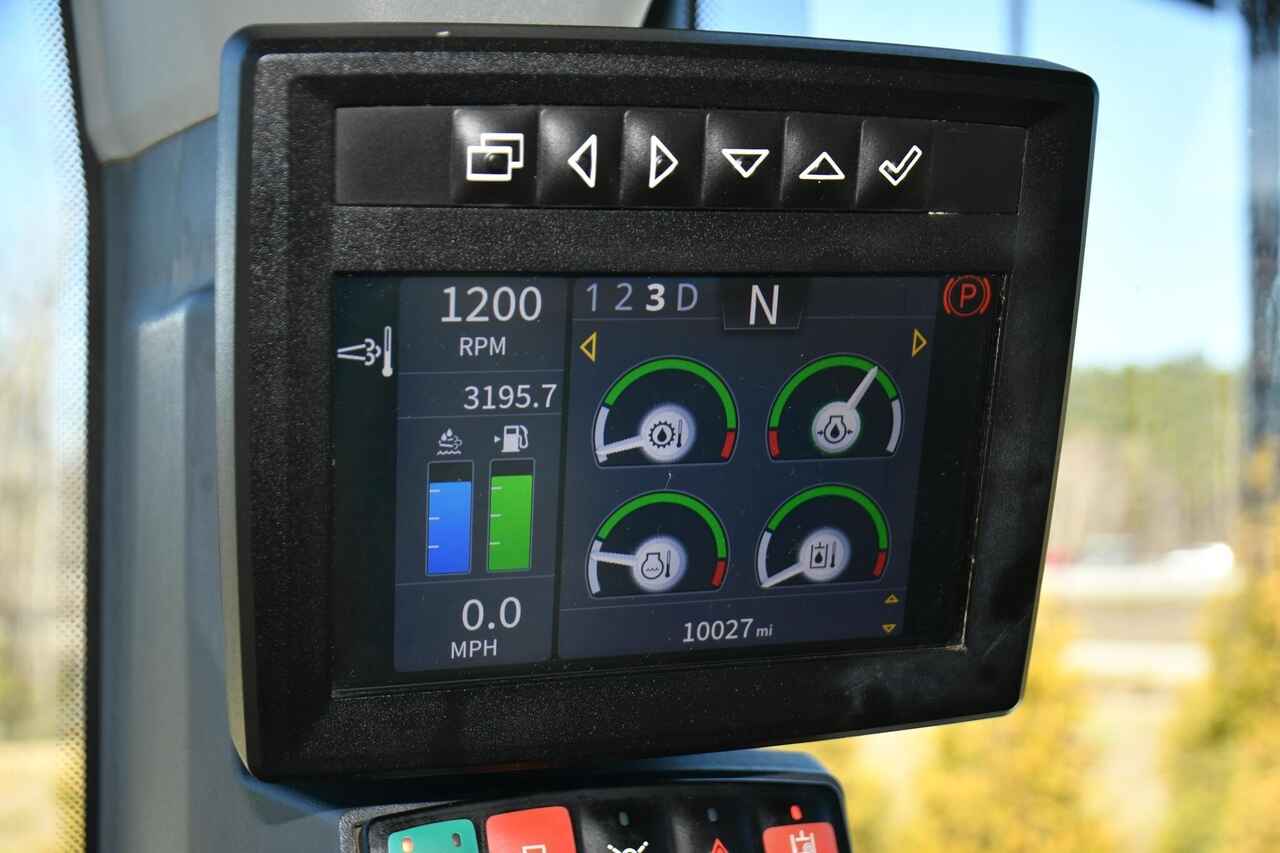

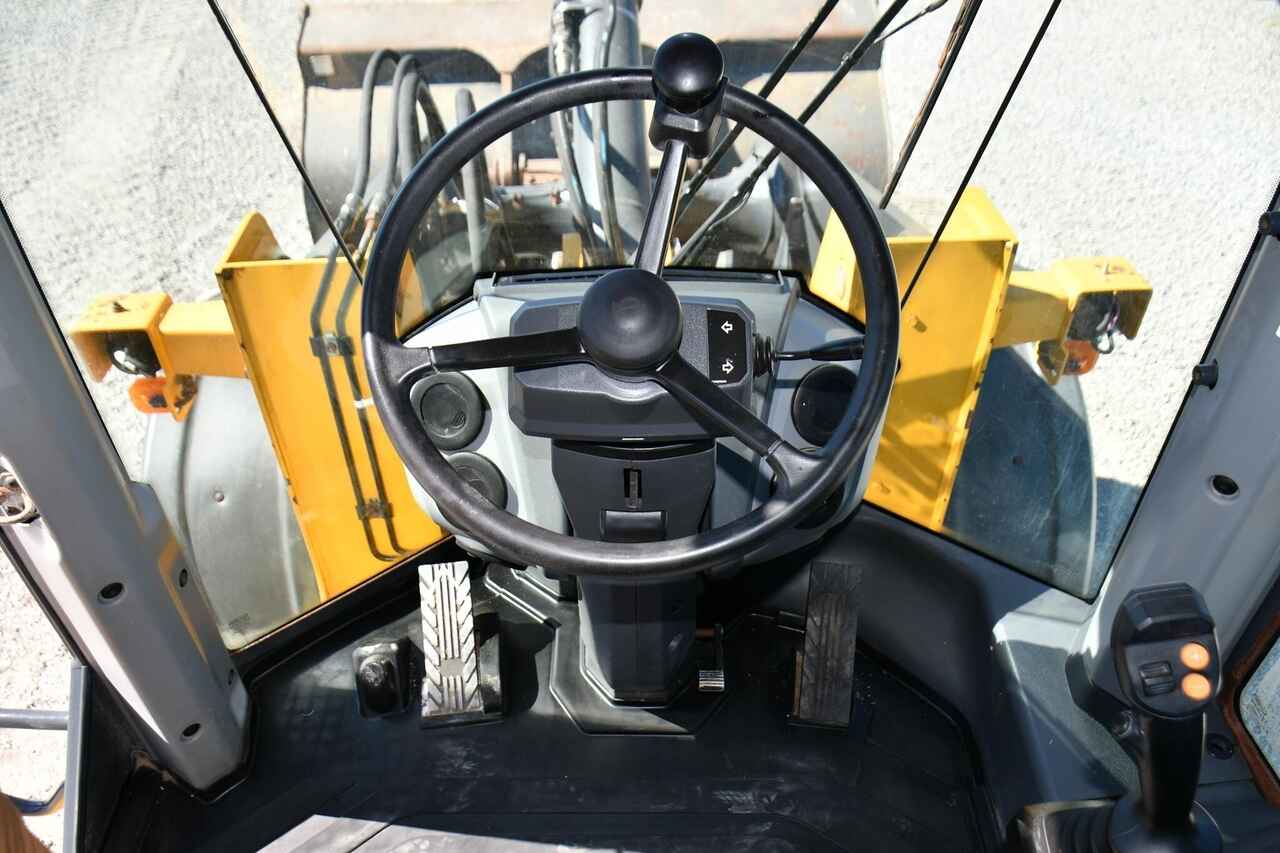

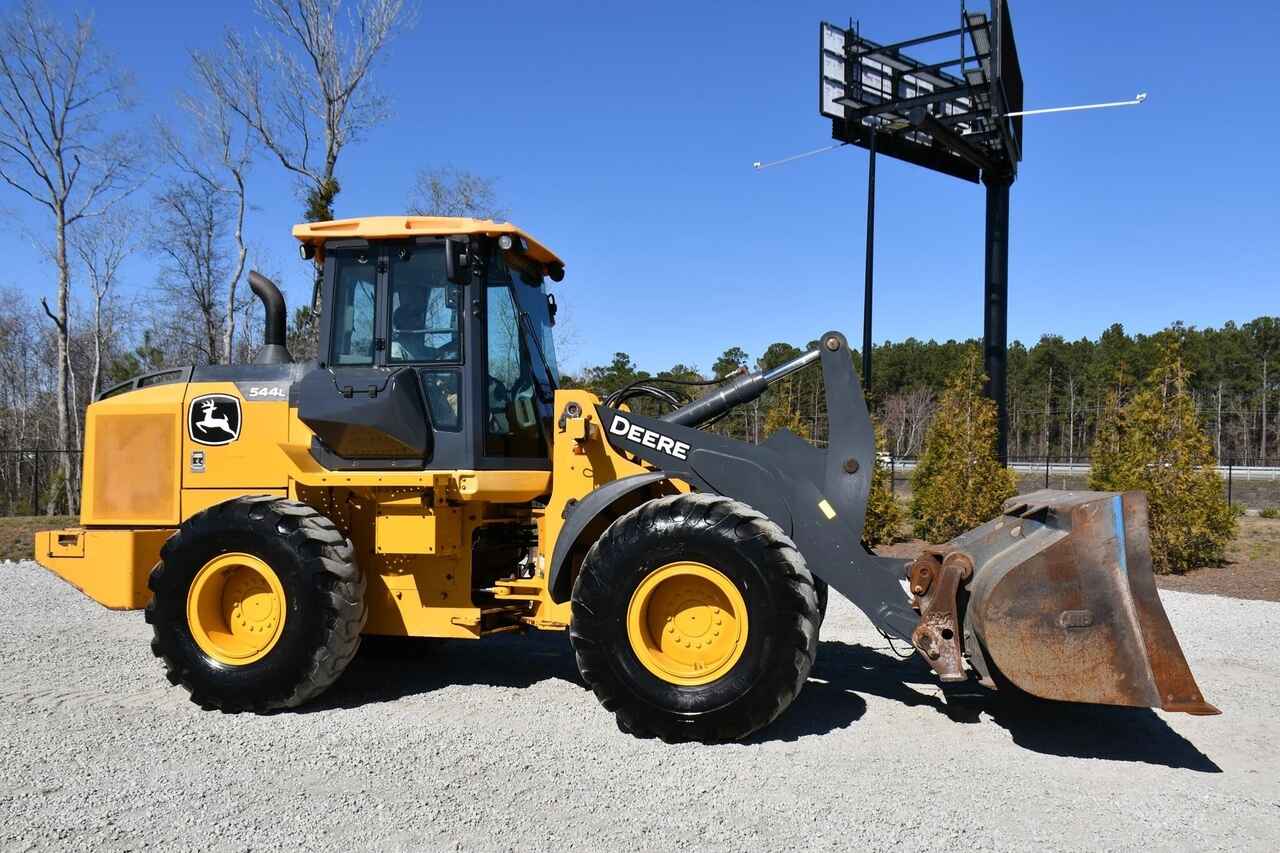

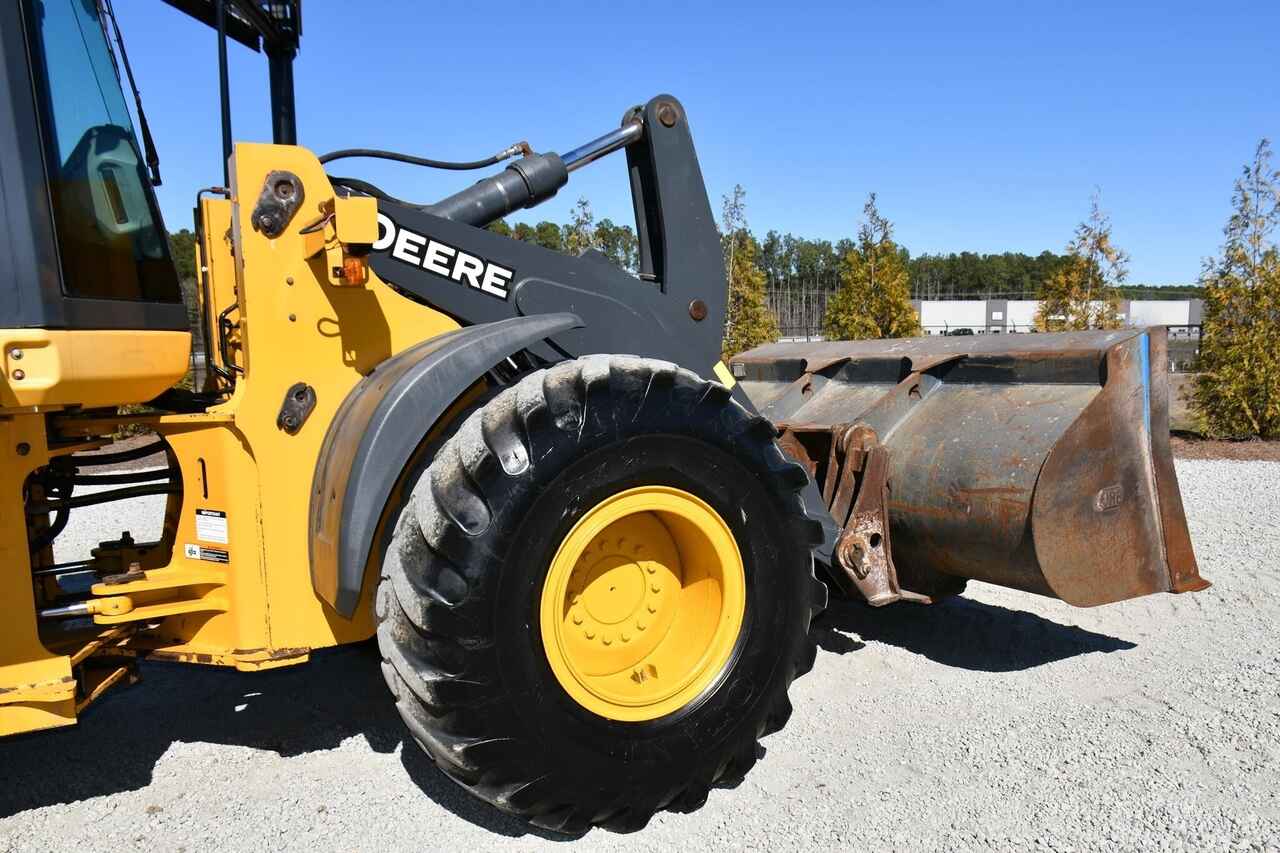

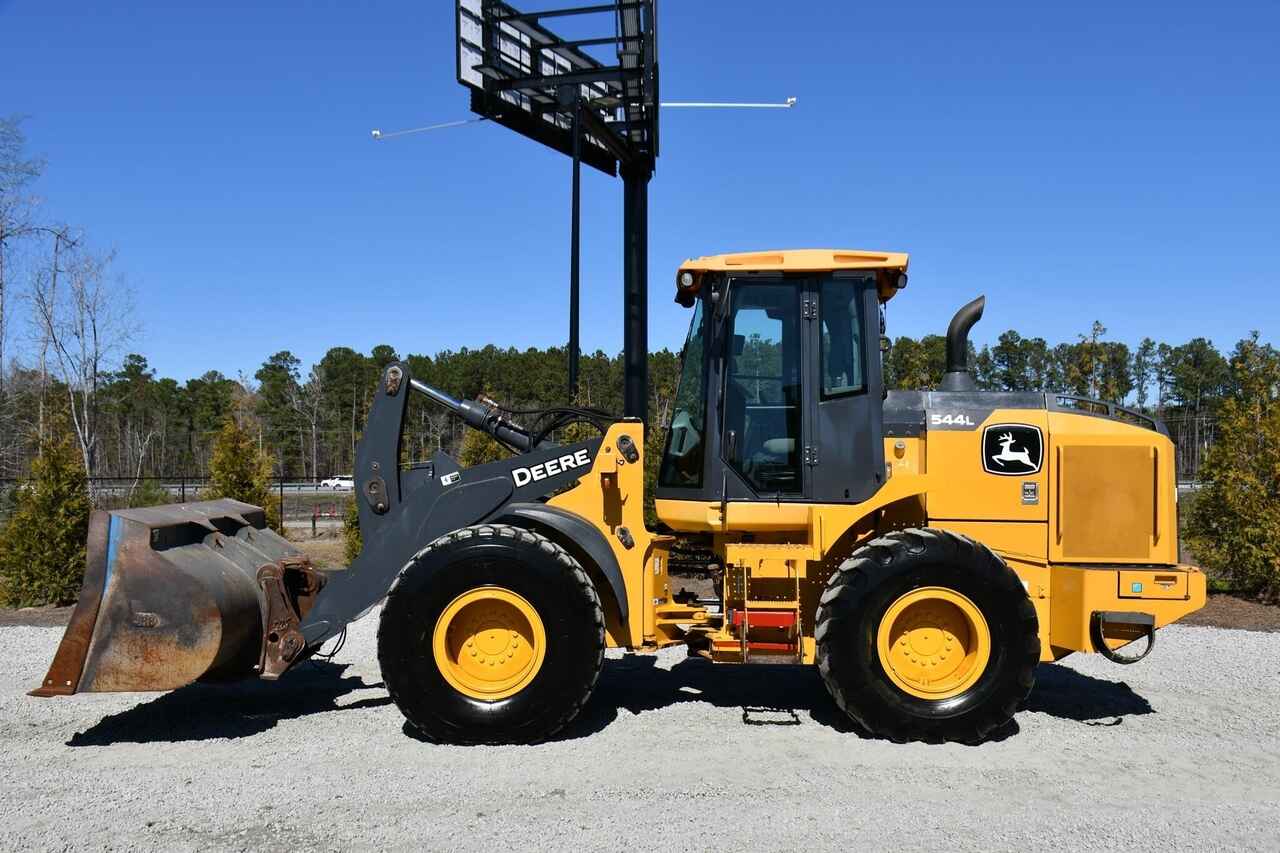

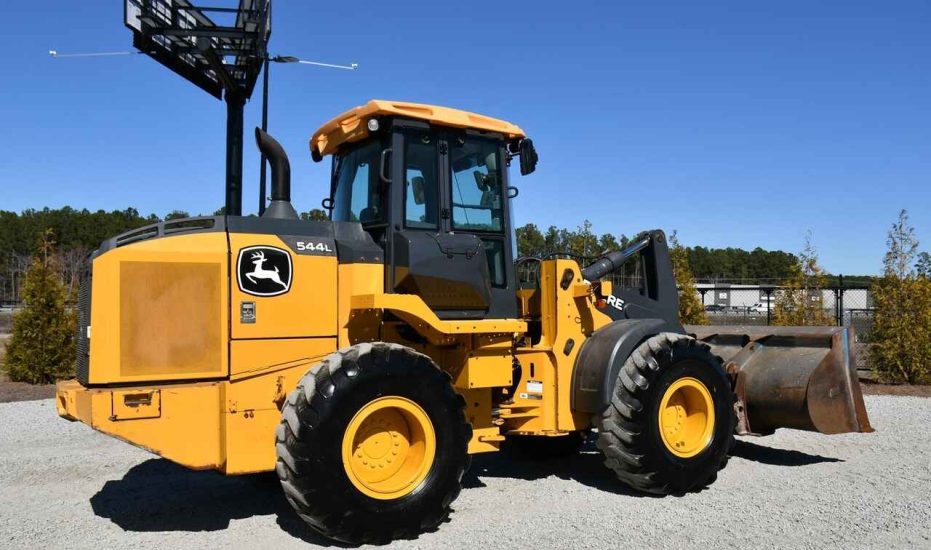

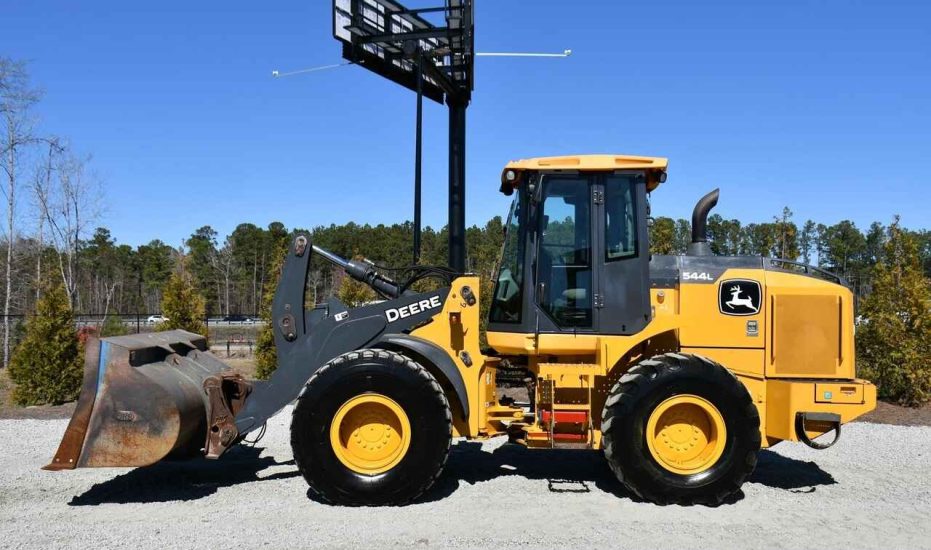

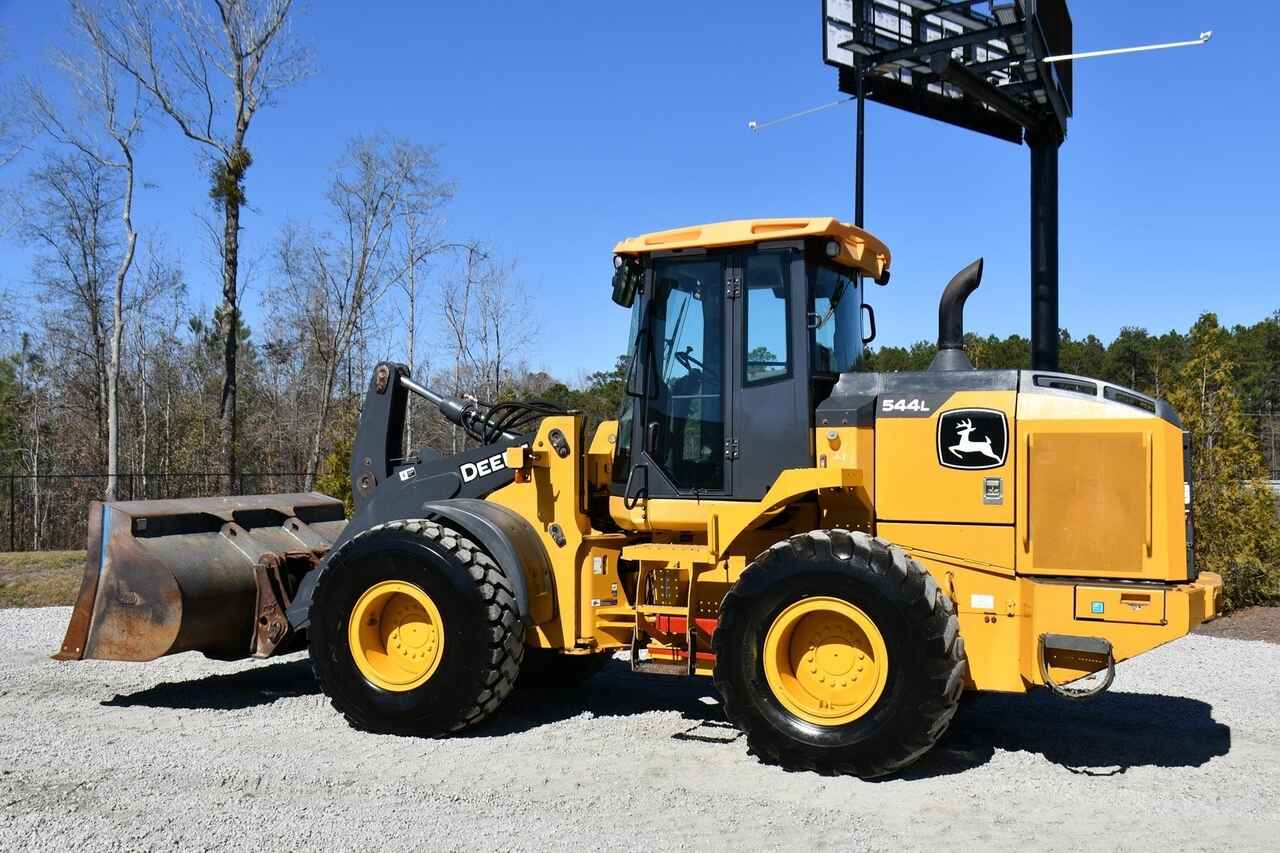

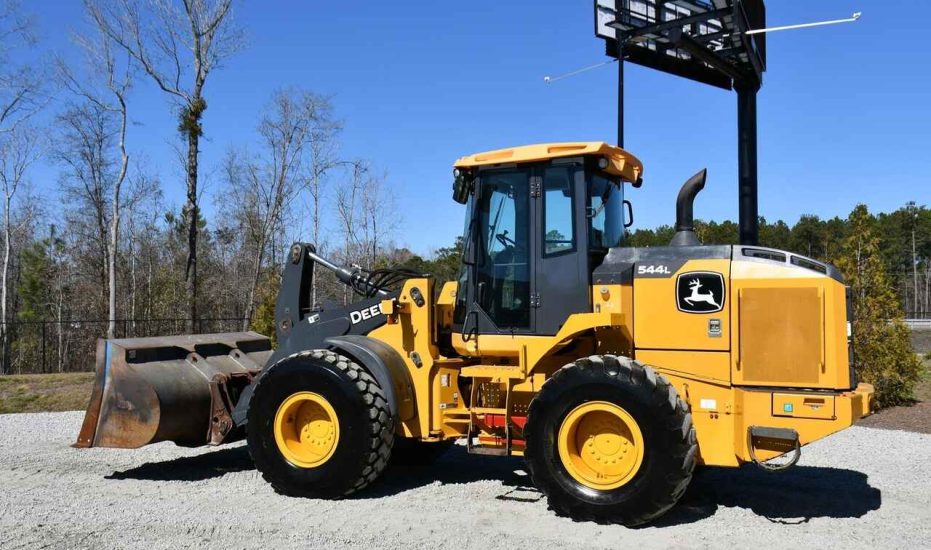

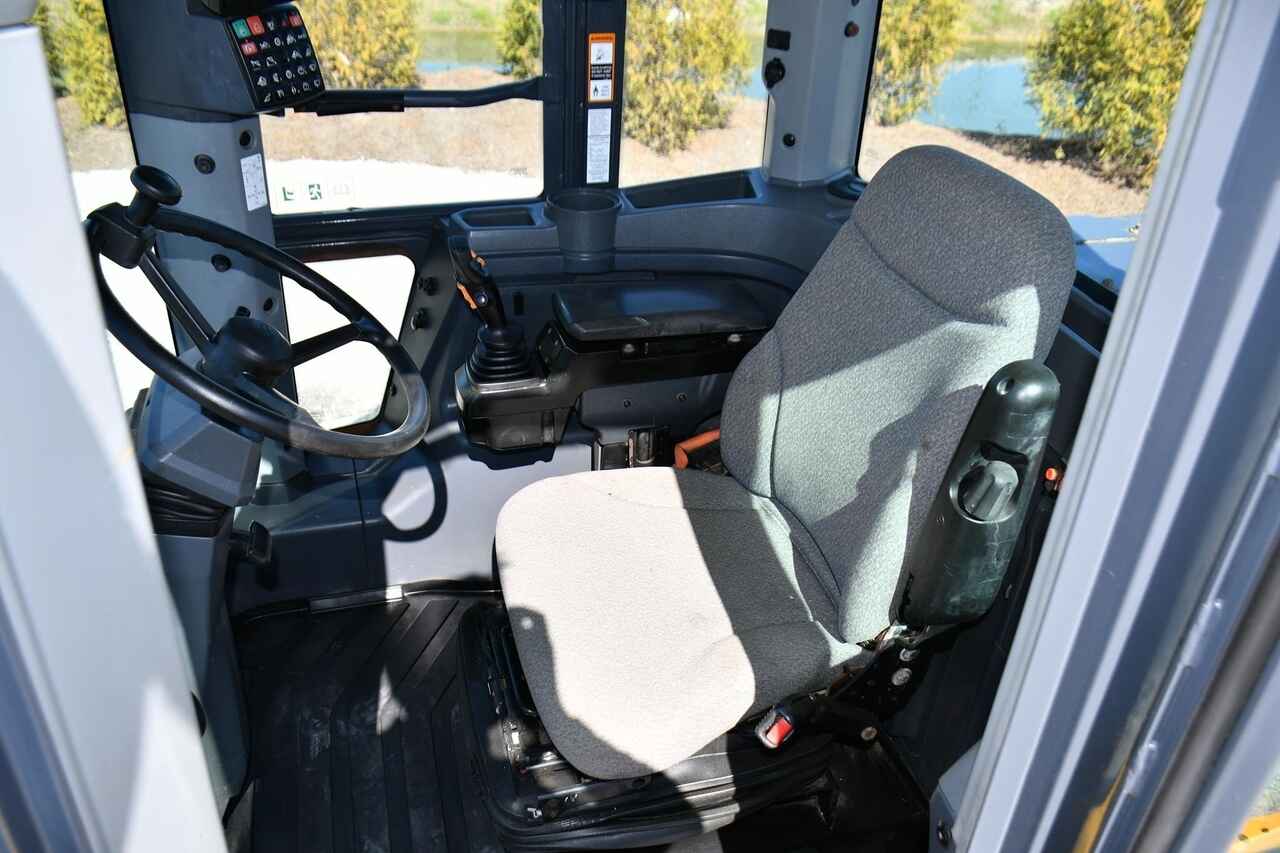

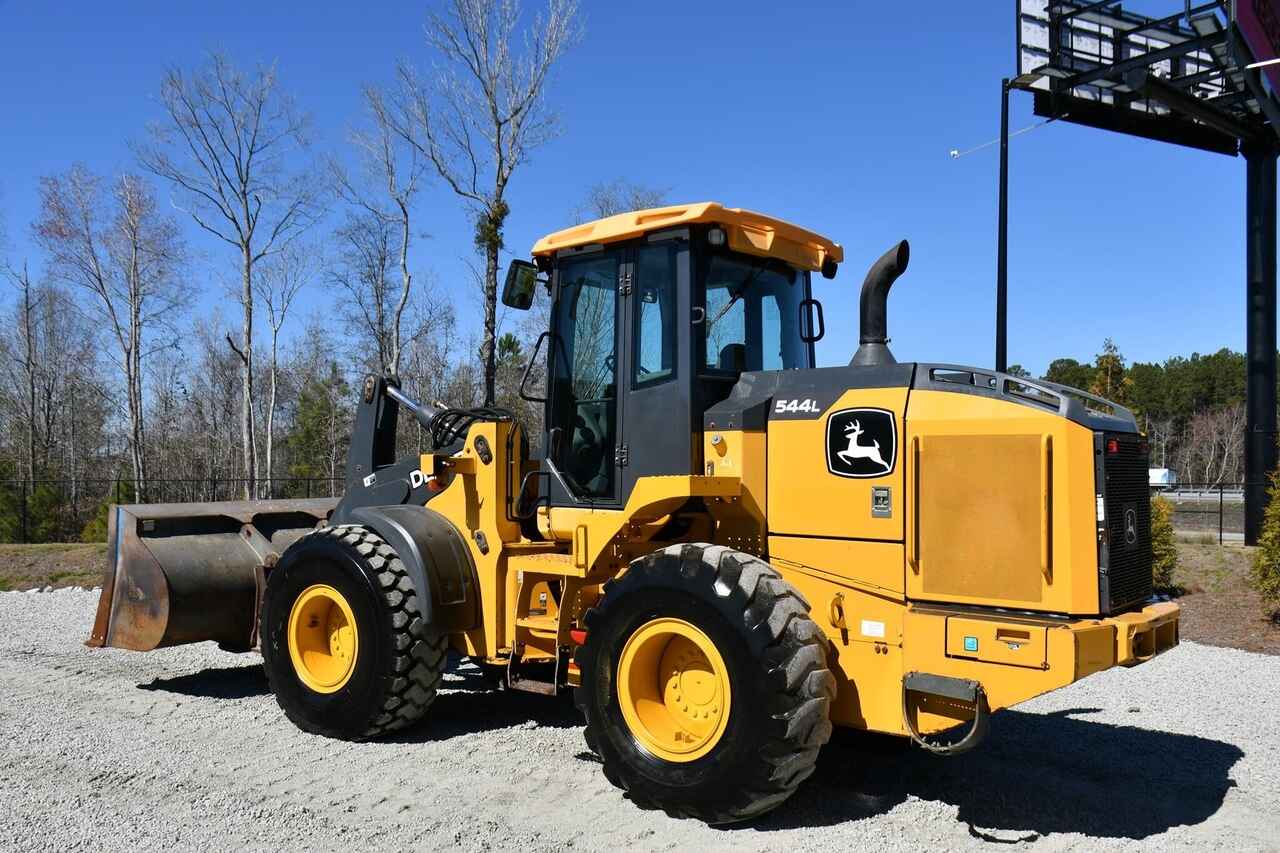

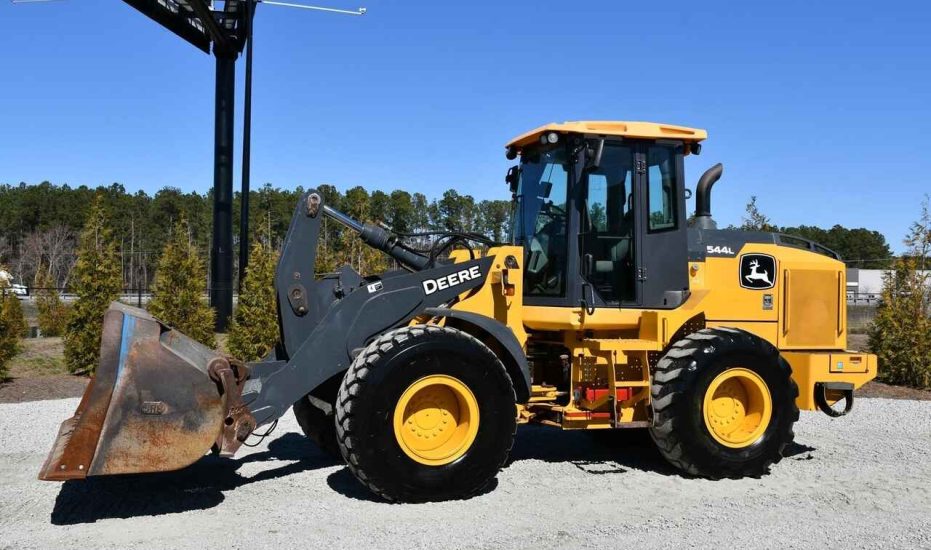

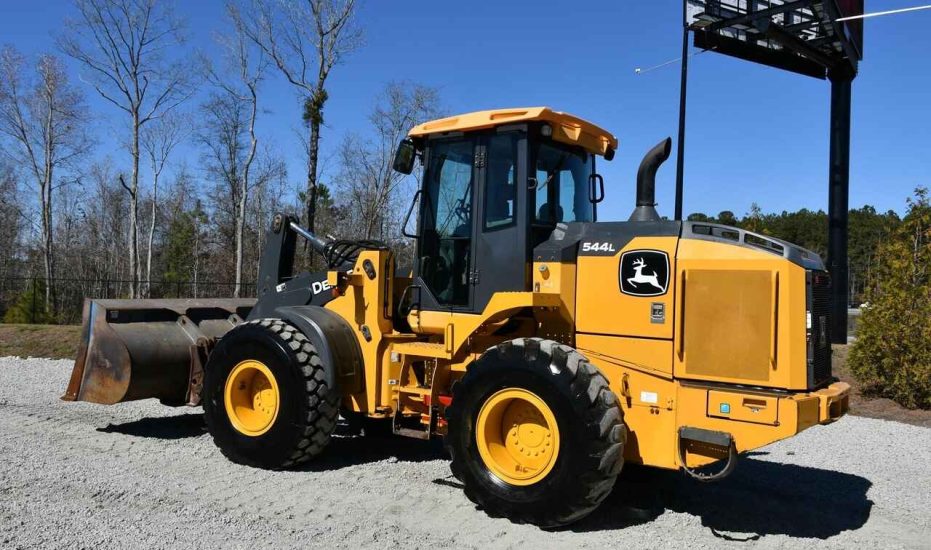

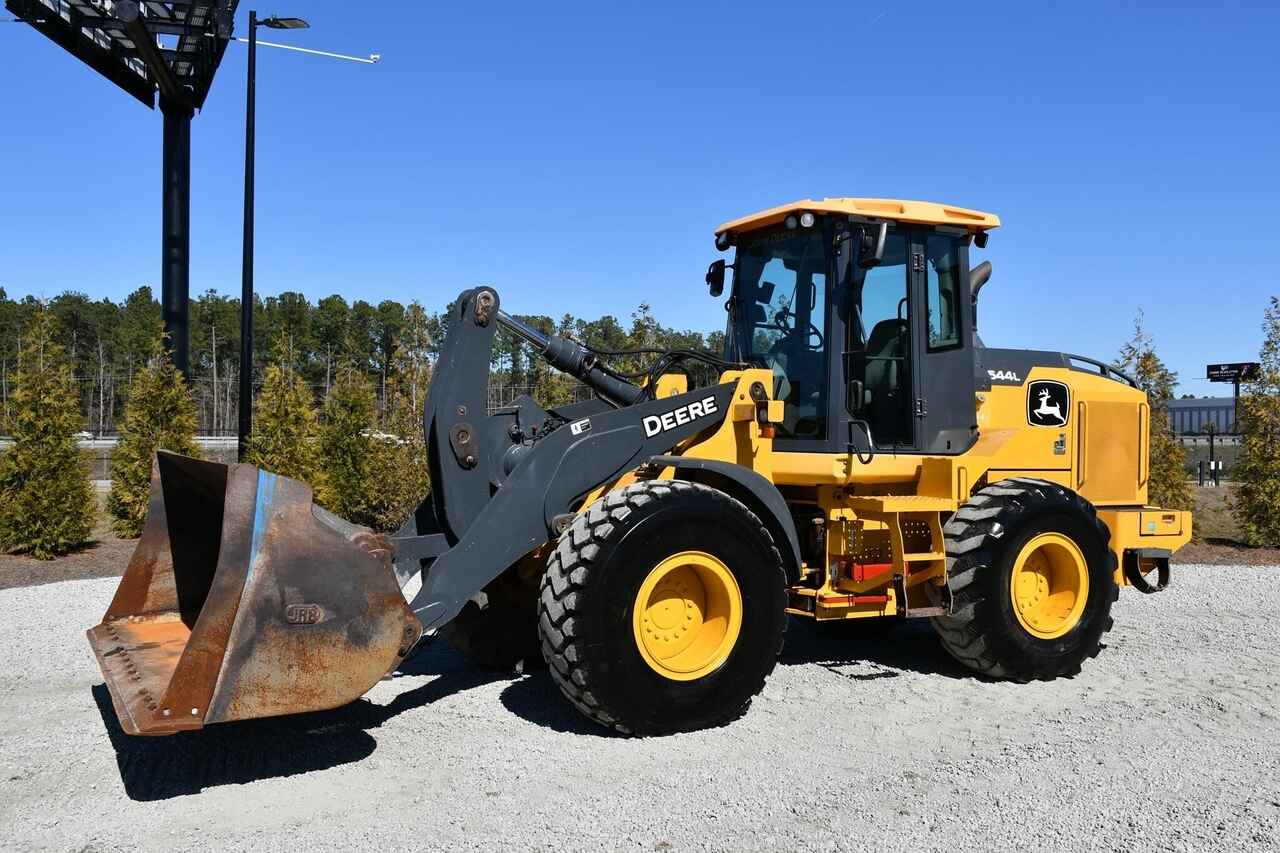

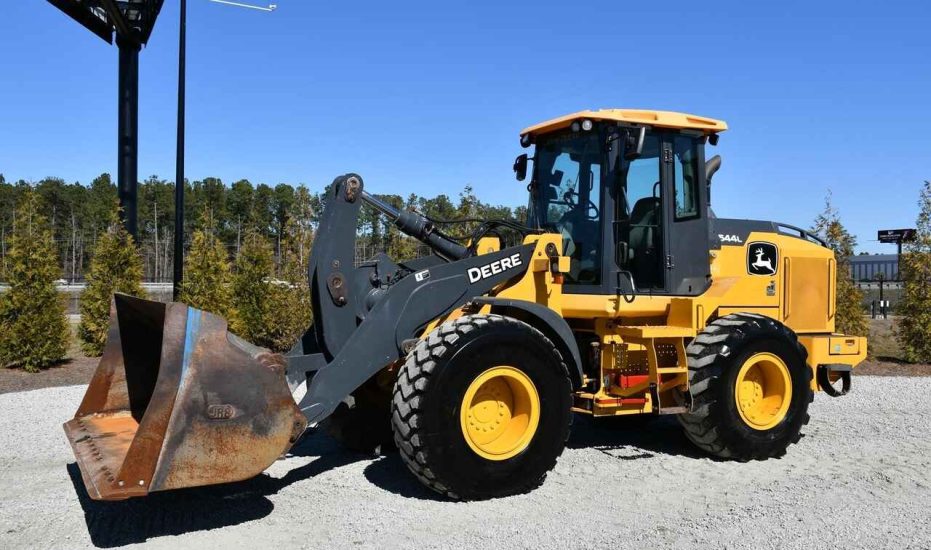

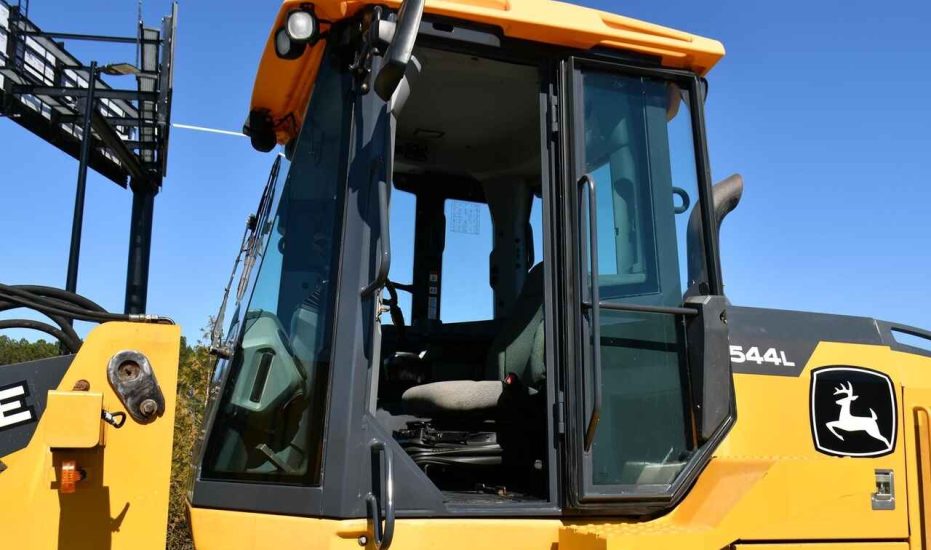

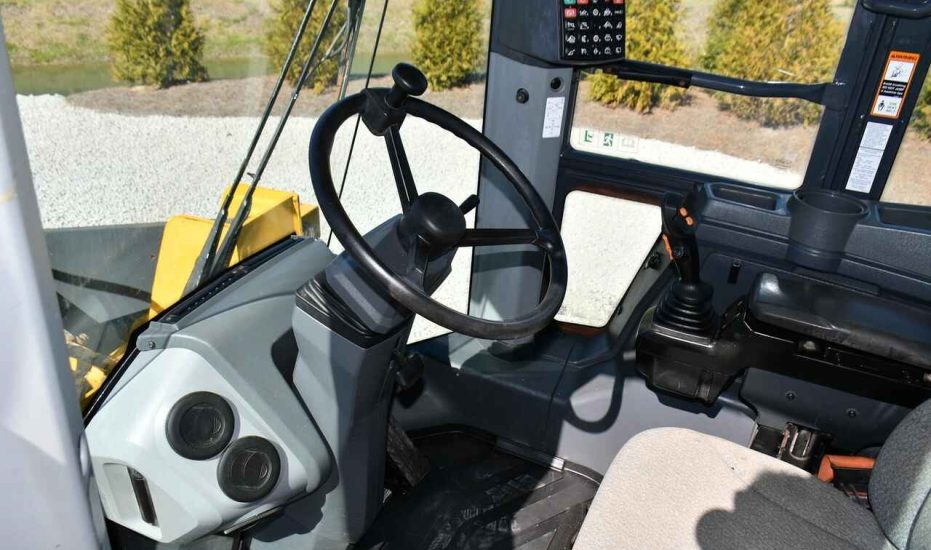

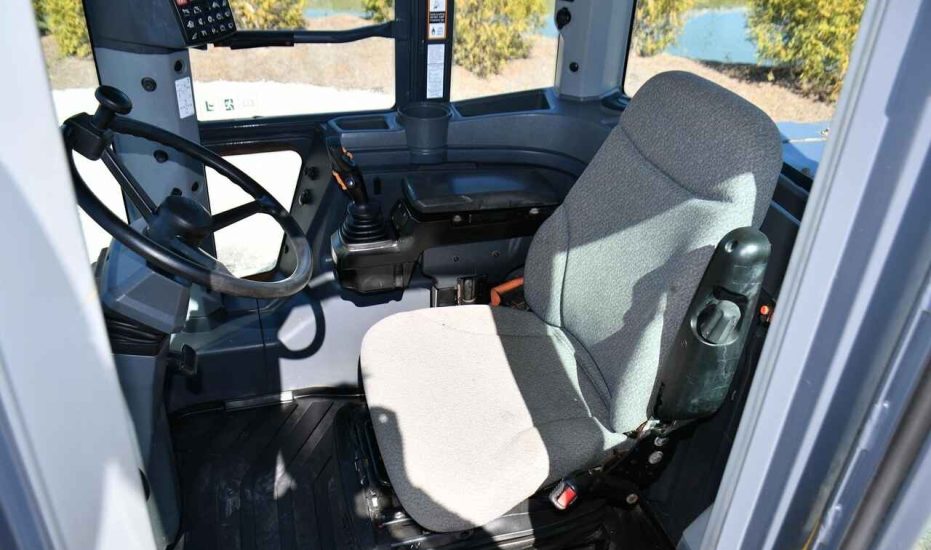

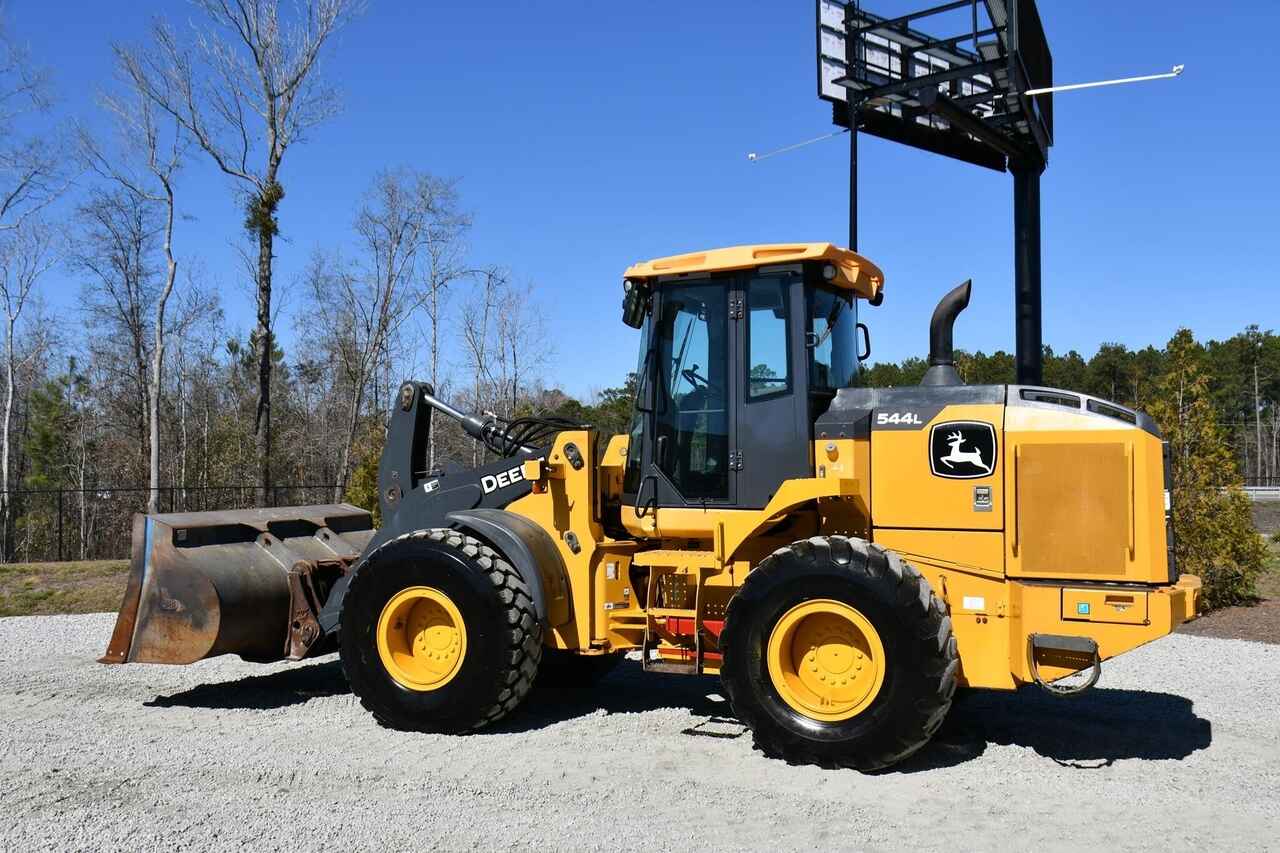

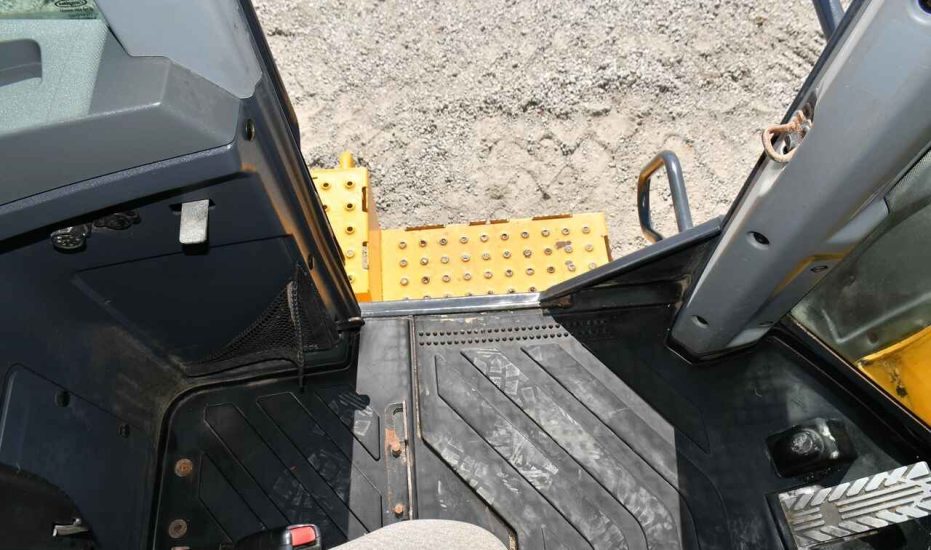

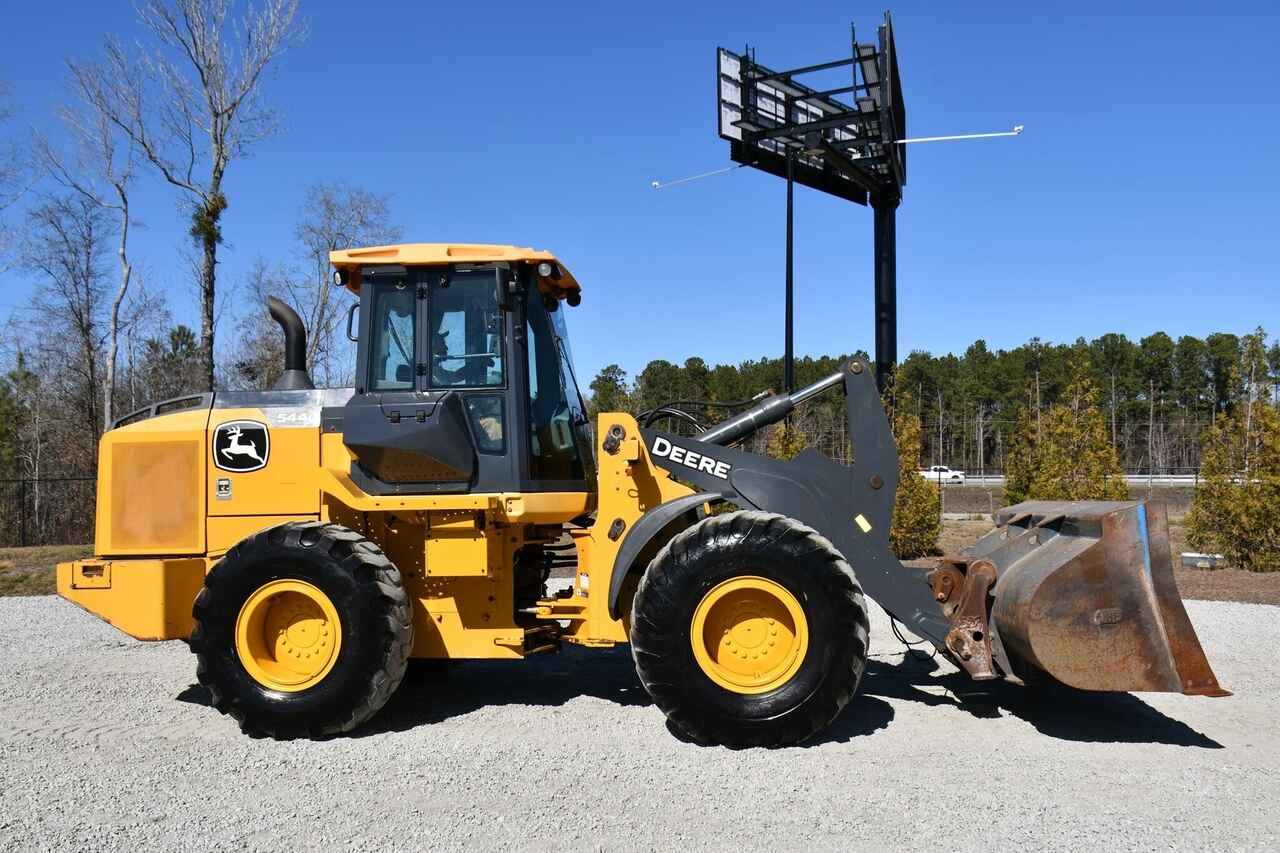

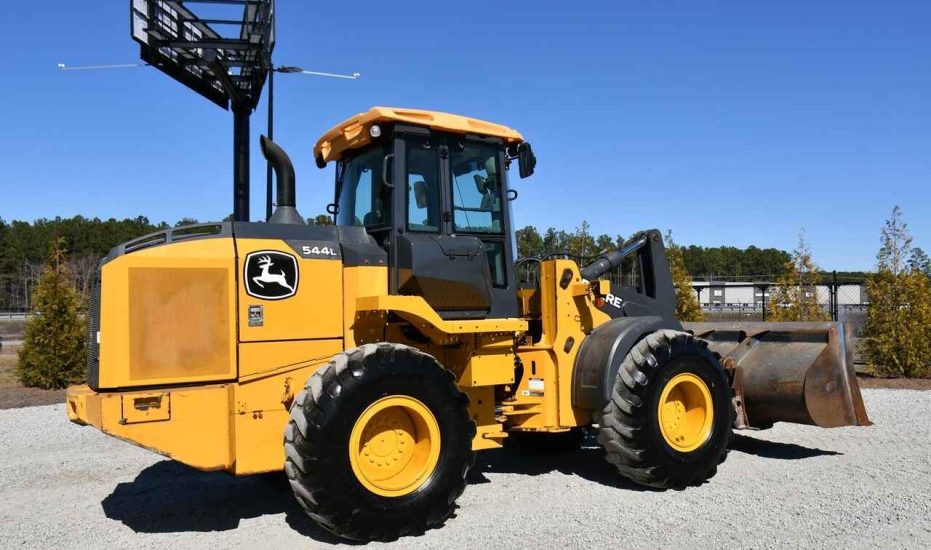

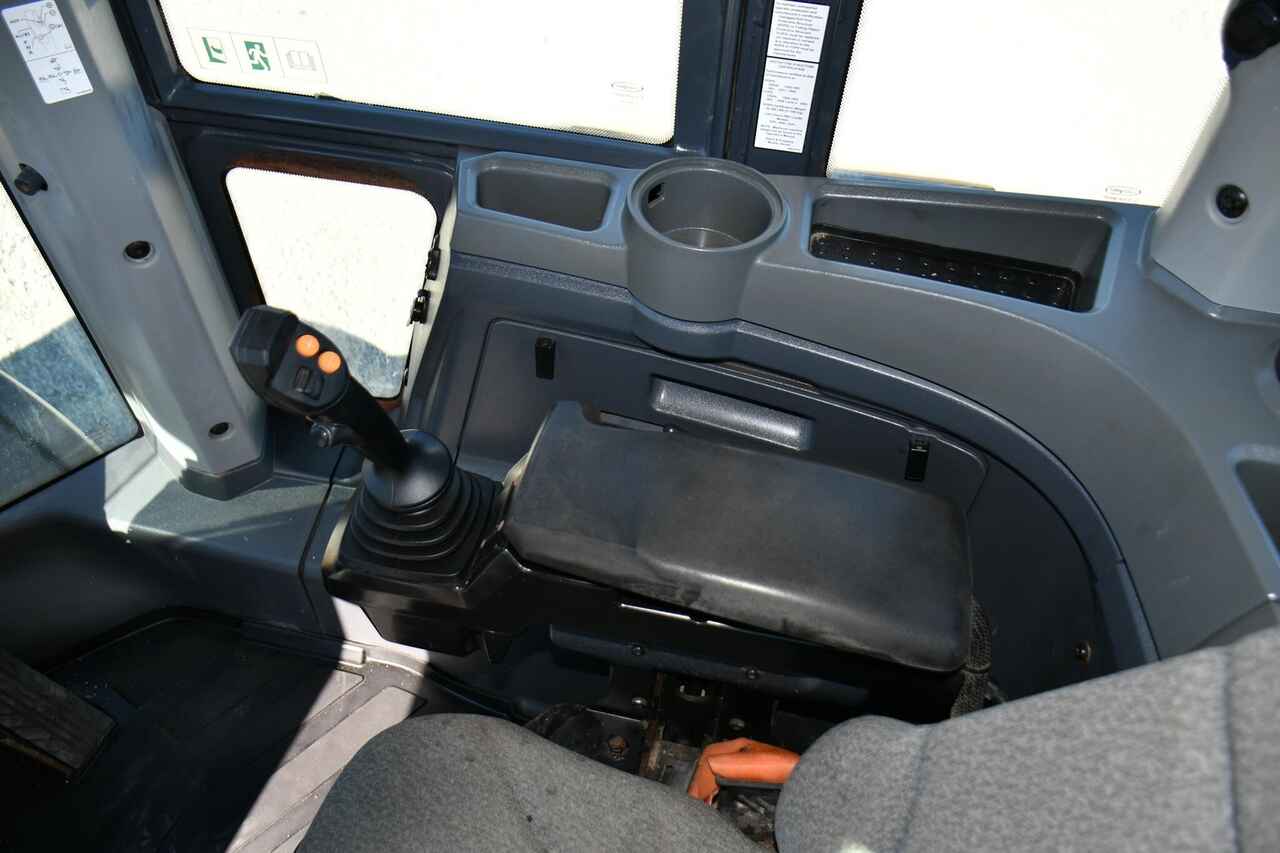

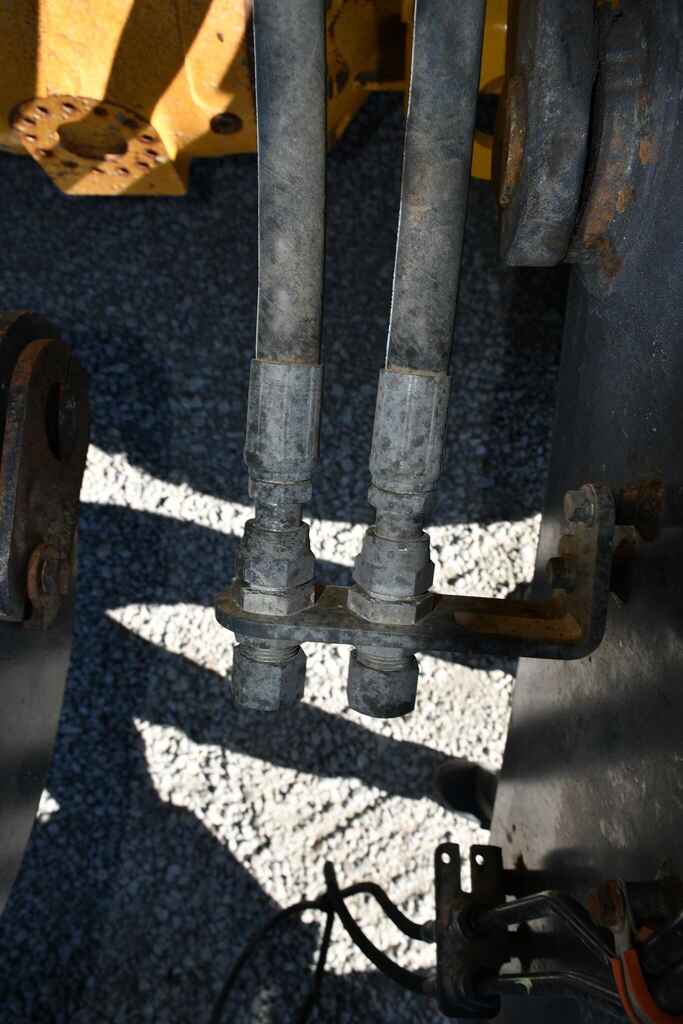

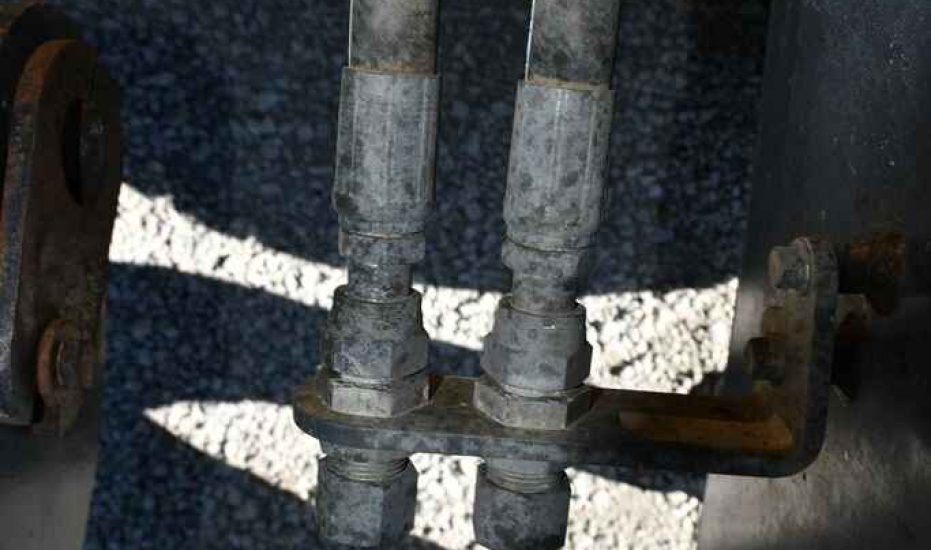

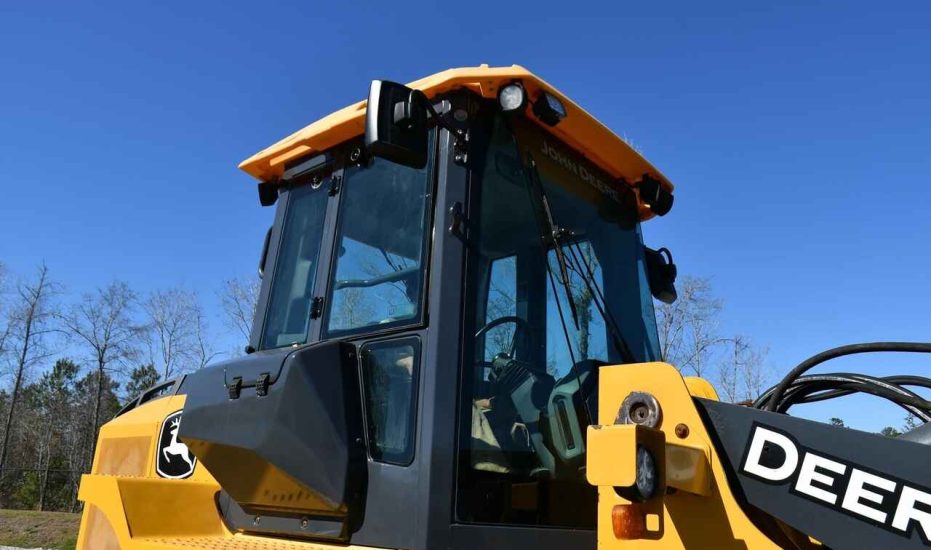

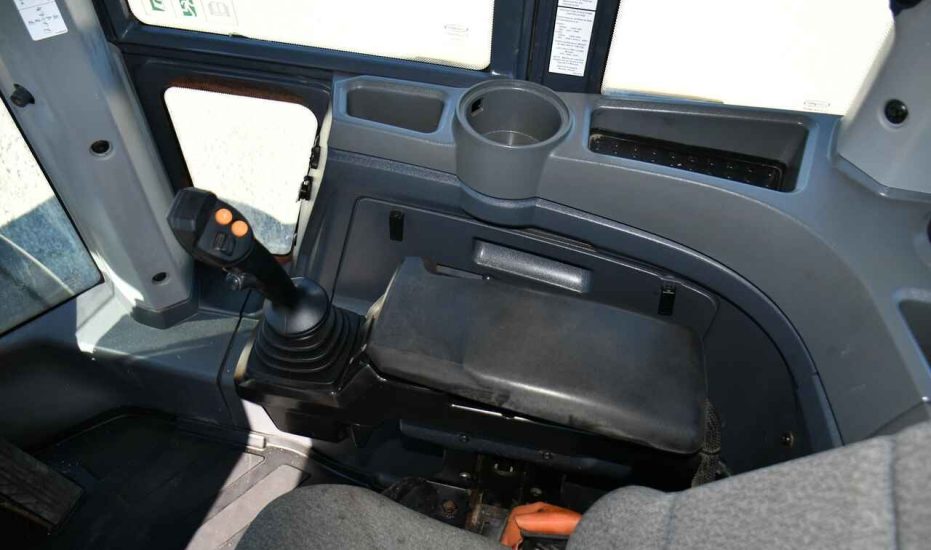

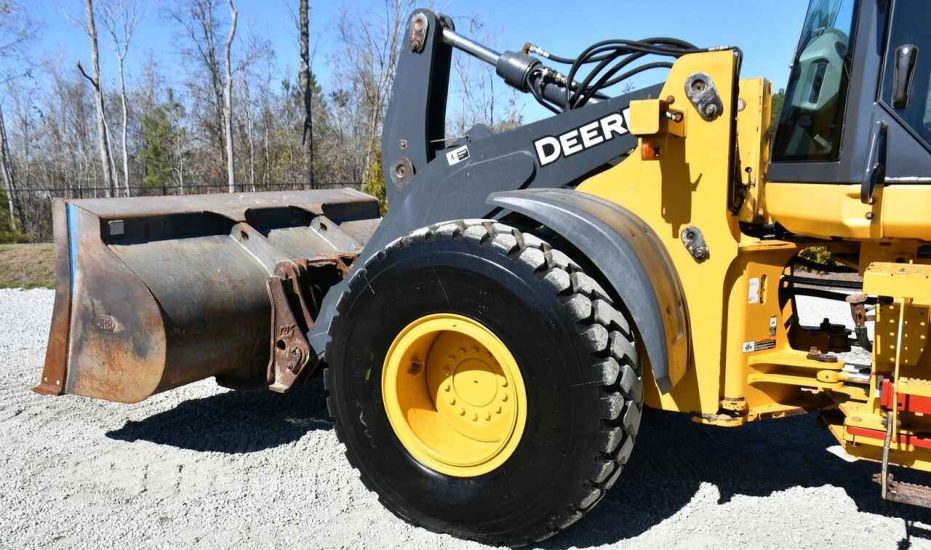

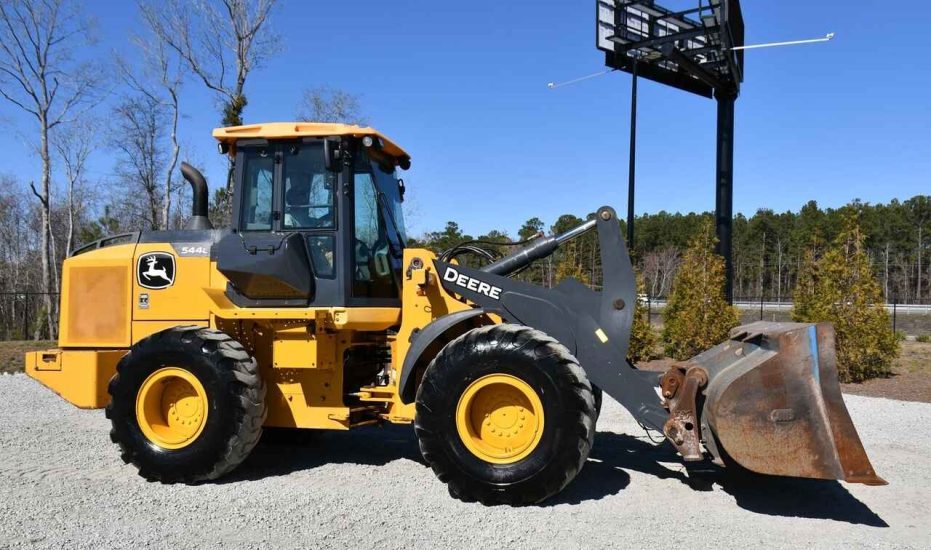

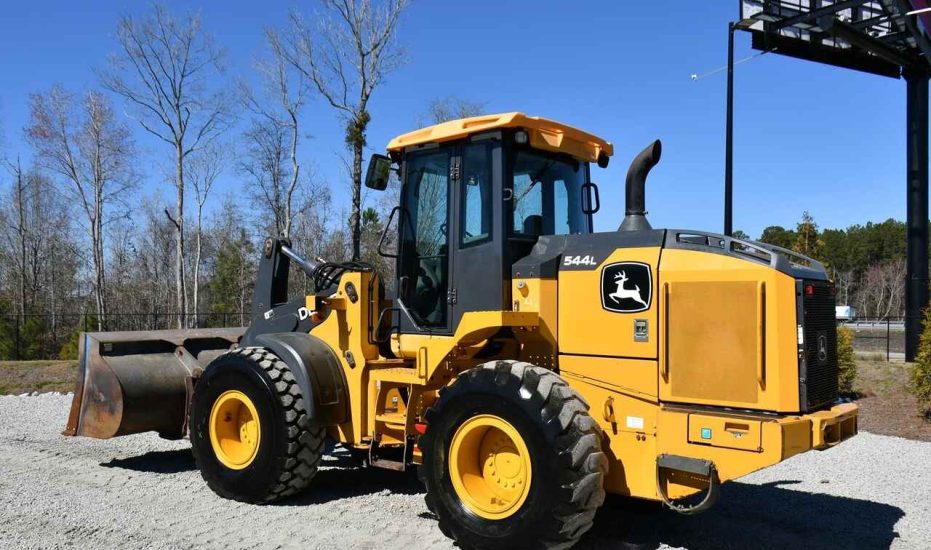

Cab, A/C, meter reads 3195 hours, 3rd valve, 3.0 yd bucket, backup camera

MACHINE SPECIFICATIONS

Dimensions

• Dump Clearance at Max Raise: 8.83 ft (2.69 m)

• Bucket Capacity – Heaped: 1.5 yd³ (1.14 m³)

• Bucket Width: 7.33 ft (2.23 m)

• Breakout Force: 25,000 lb (11,340 kg)

• Ground Clearance: 1.8 ft (0.55 m)

• Length with Bucket on Ground: 19.43 ft (5.92 m)

• Width Over Tires: 7.33 ft (2.23 m)

• Height to Top of Cab: 9.75 ft (2.97 m)

• Wheelbase: 7.83 ft (2.39 m)

• Hinge Pin – Max Height: 10.92 ft (3.33 m)

• Reach at Max Lift and Dump: 3 ft (0.91 m)

• Transport Height: 11.34 ft (3.46 m)

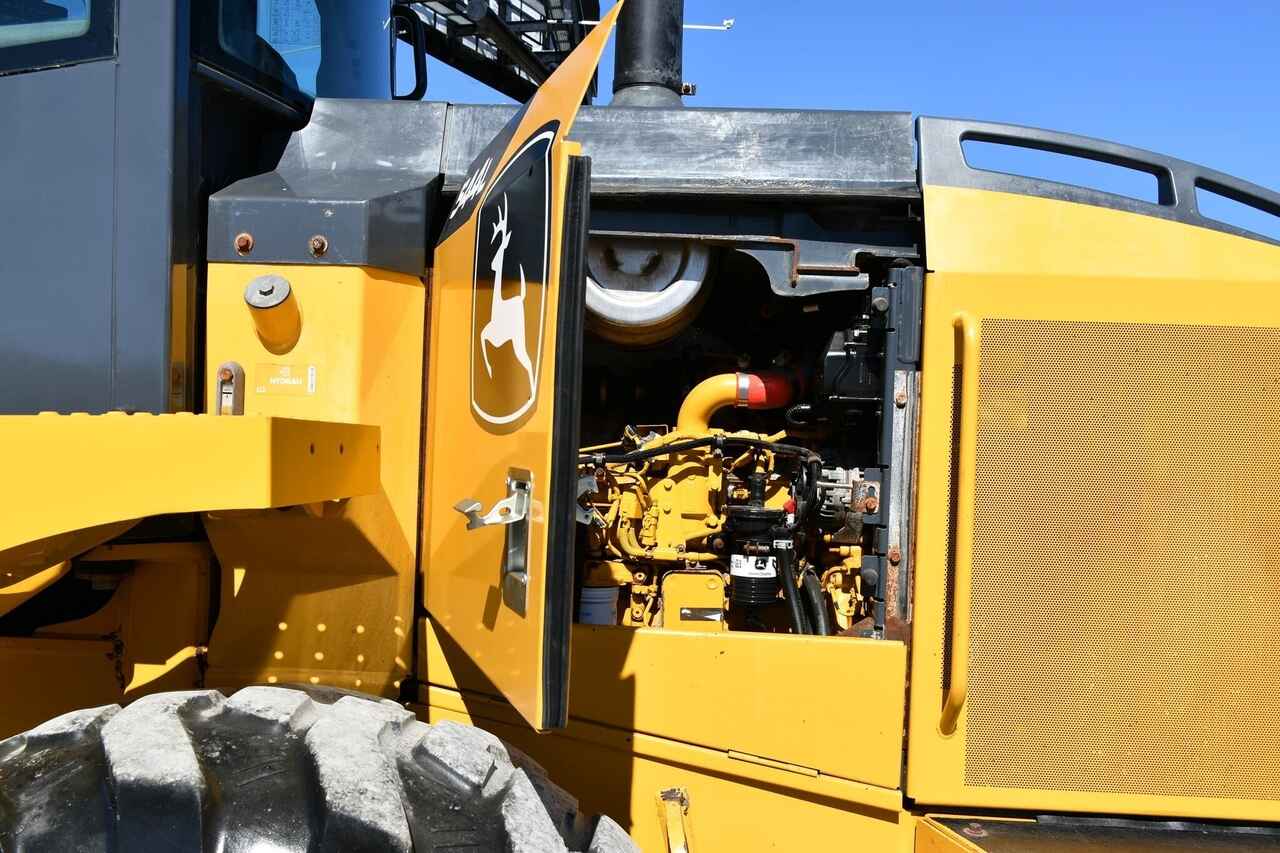

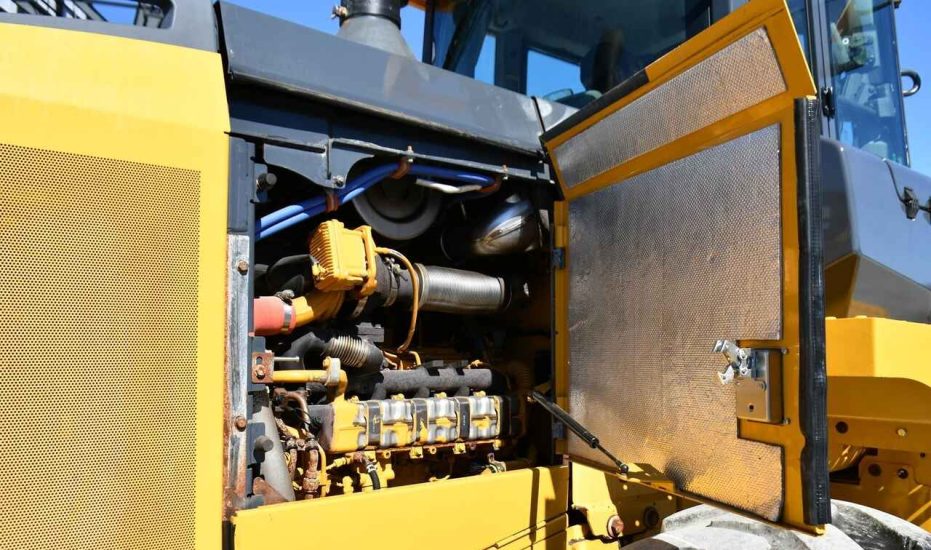

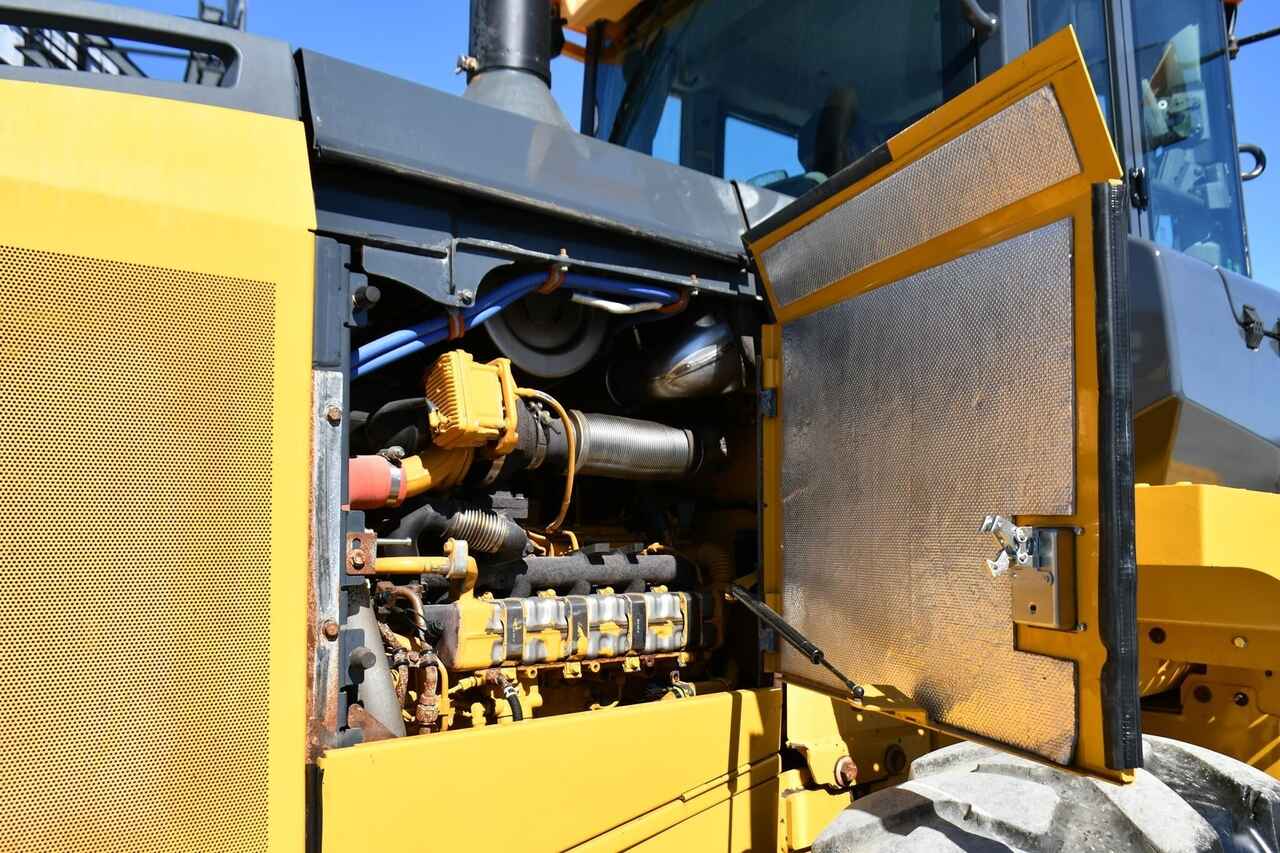

Engine

• Engine Make: 2240

• Engine Model: Cat C4.4 ACERT

• Net Power: 94 hp (70 kW)

• Gross Power: 125 hp (93 kW)

• Max Torque: 225 lb-ft (305 Nm)

• Displacement: 303 cu in (4.96 L)

• Aspiration: Natural

Operational

• Operating Weight: 18,500 lb (8,400 kg)

• Fuel Capacity: 40 gal (151 L)

• Hydraulic System Fluid Capacity: 12 gal (45.4 L)

• Engine Oil Capacity: 10 gal (37.8 L)

• Cooling System Fluid Capacity: 7.5 gal (28.4 L)

• Transmission Fluid Capacity: 9.8 gal (37.1 L)

• Front Axle/Differential Fluid Capacity: 4.8 gal (18.2 L)

• Rear Axle/Differential Fluid Capacity: 4.3 gal (16.3 L)

• Static Tipping Weight: 12,500 lb (5,670 kg)

• Turning Radius: 13.9 ft (4.24 m)

• Operating Voltage: 12V

• Alternator Amperage: 55 amps

• Rear Axle Oscillation: 22 degrees

• Tire Size: 13-24

Transmission

• Transmission Type: Powershift

• Electric Power Shift: Yes

• Number of Forward Gears: 4

• Number of Reverse Gears: 2

• Max Forward Speed: 10.7 mph (17.2 km/h)

• Max Reverse Speed: 2.8 mph (4.5 km/h)

Weights

• Operating Weight: 27,000 lb (12,247 kg)

Tires

• Front Tire Size (Optional): 28L-26

• Rear Tire Size (Optional): 28L-26

Hydraulic System

• Pump Flow Capacity: 45.5 gal/min (172 L/min)

• Raise Time: 5.5 sec

• Dump Time: 1.5 sec

• Lower Time: 1.2 sec

• Pump Type: Vane

• Maximum Flow Rate: 49.7 gal/min (188 L/min)

• Hydraulic Fluid Reservoir: 32 gal (121 L)

Operating Specifications

• Wood Bunk Length: 131.9 in (3.35 m)

• Load Capacity: 24,000 lb (10,886 kg)

• Loader Reach: 22.8 ft (6.94 m)

Service Refill Capacities

• Fuel Tank Capacity: 47 gal (178 L)

• Hydraulic Fluid Reservoir Capacity: 32 gal (121 L)
