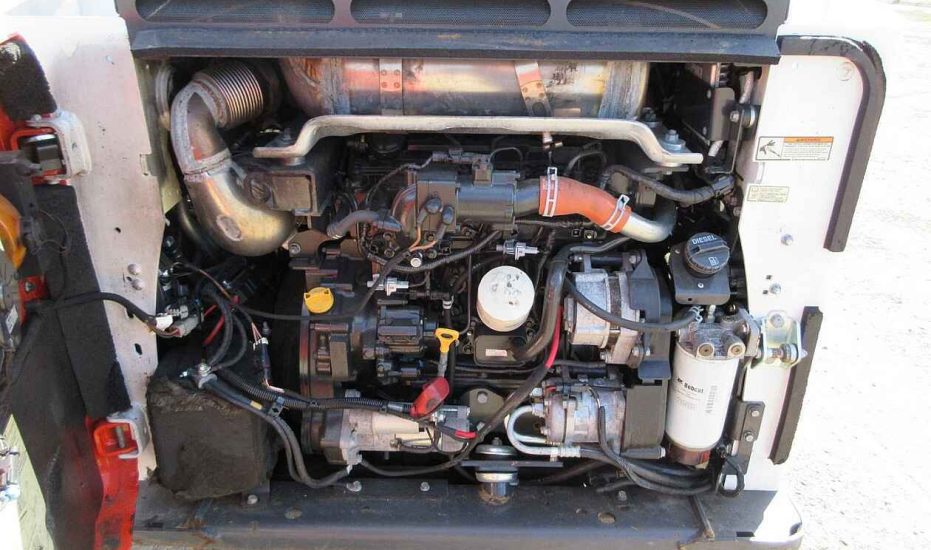

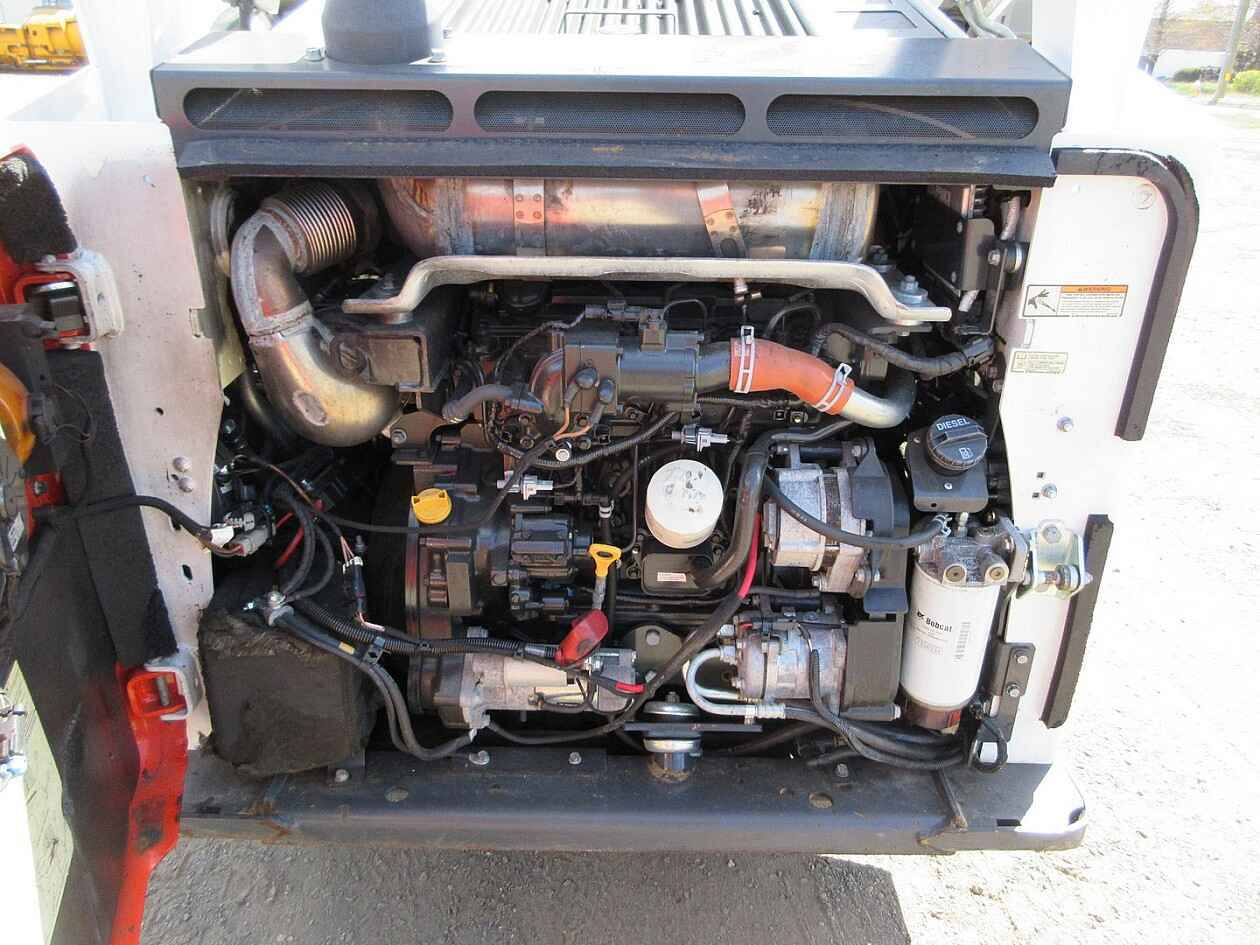

Engine

• Model: Bobcat D34
• Gross Power: 92 hp (68.6 kW)
• Displacement: 208 in³ (3.4 L)
• Fuel Capacity: 23.9 gal (90.5 L)

Weights

• Operating Weight: 9,314 lbs (4,225 kg)

Performance

• Rated Operating Capacity: 3,350 lbs (1,520 kg)
• Tipping Load: 6,700 lbs (3,040 kg)
• Travel Speed: 7.1 mph (11.4 km/h)
• Travel Speed (2-speed option): 12.3 mph (19.8 km/h)

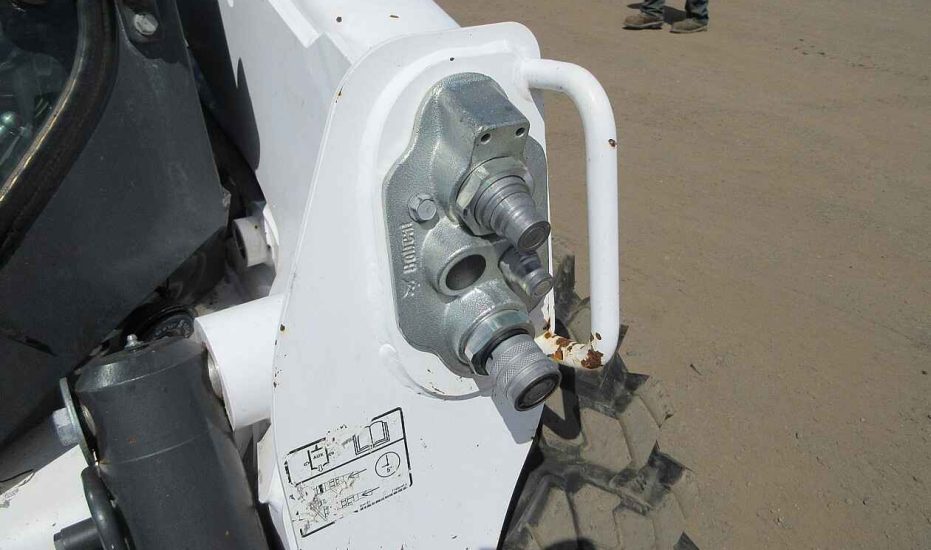

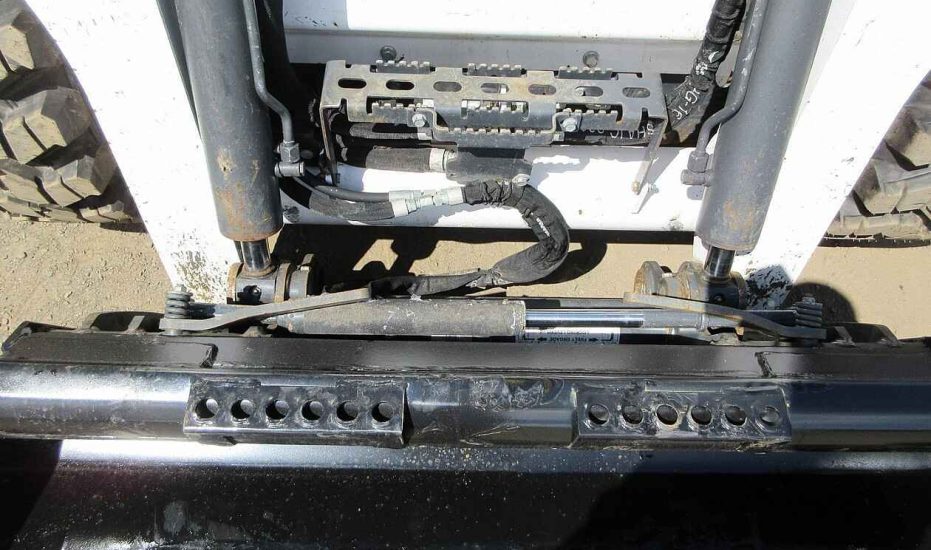

Hydraulics

• Standard Flow: 23.0 gal/min (87.1 L/min)
• High Flow (optional): 36.6 gal/min (138.5 L/min)
• System Relief Pressure: 3,500 psi (24.1 MPa)

Dimensions

• Height: 81.3 in (2,065 mm)
• Width (without bucket): 72.1 in (1,831 mm)
• Length (with standard bucket): 142.9 in (3,630 mm)
• Length (without attachment): 114.3 in (2,903 mm)
• Height to Bucket Hinge Pin: 132.0 in (3,353 mm)
• Dump Height: 104.8 in (2,662 mm)
• Dump Reach: 31.5 in (800 mm)
• Ground Clearance: 8.2 in (208 mm)

Features

• Lift Path: Vertical
• Engine Emissions: Tier 4

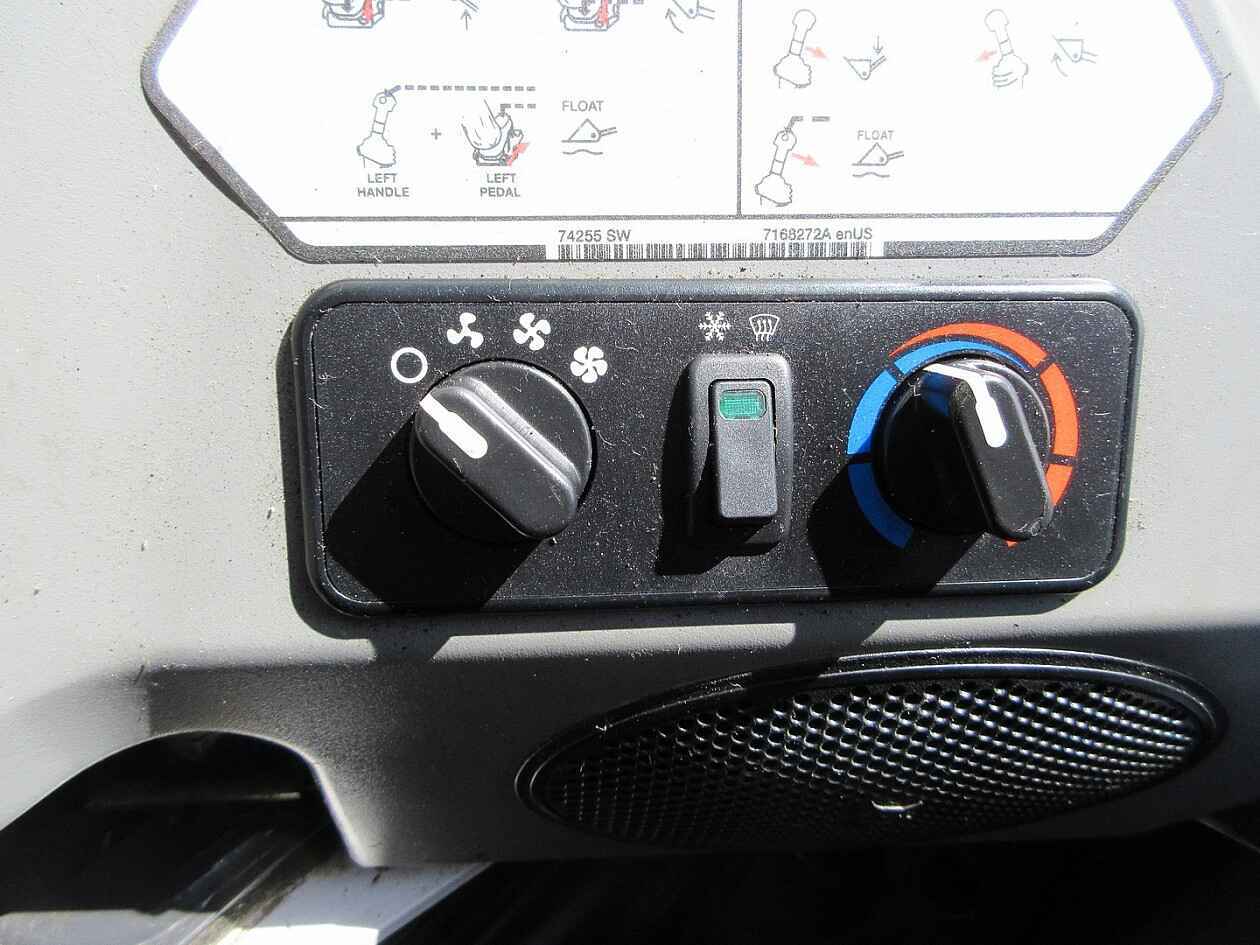

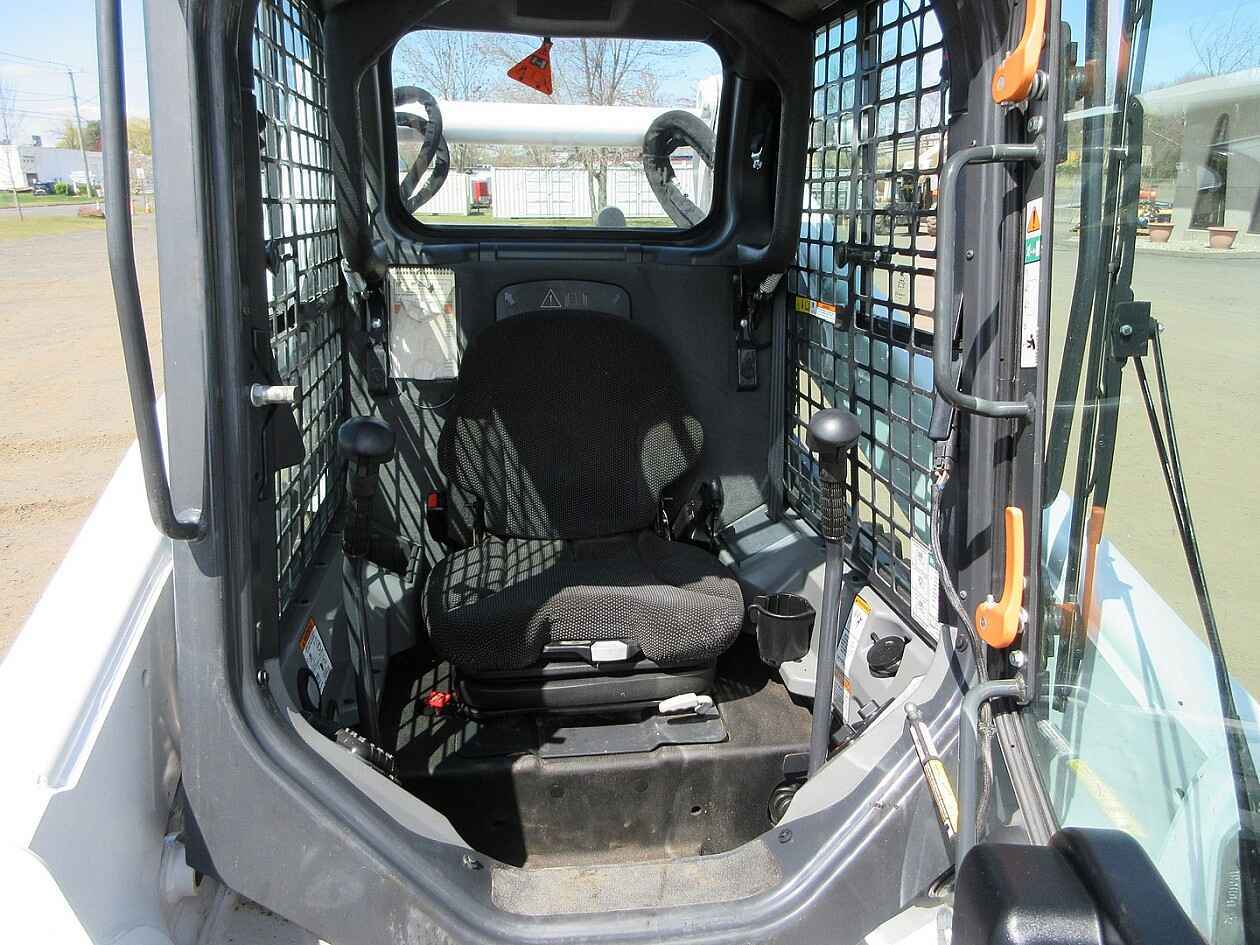

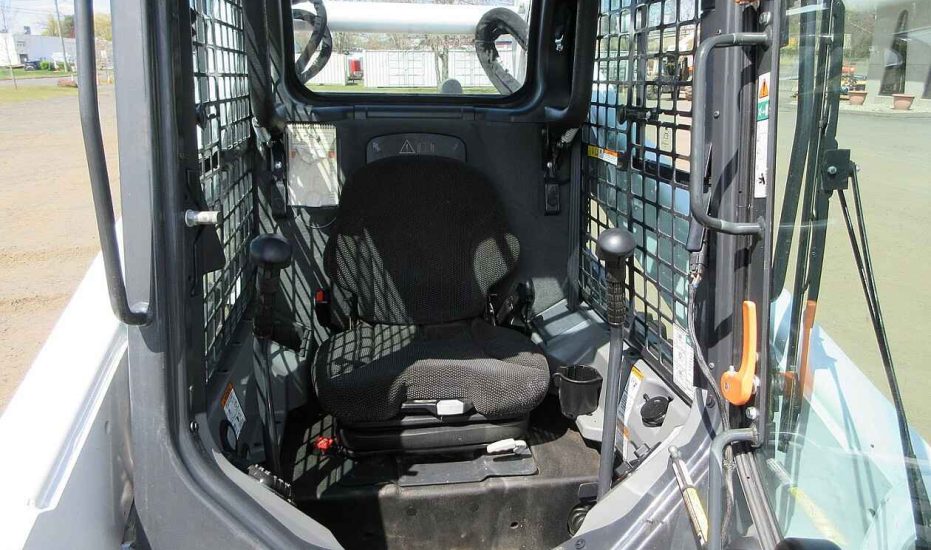

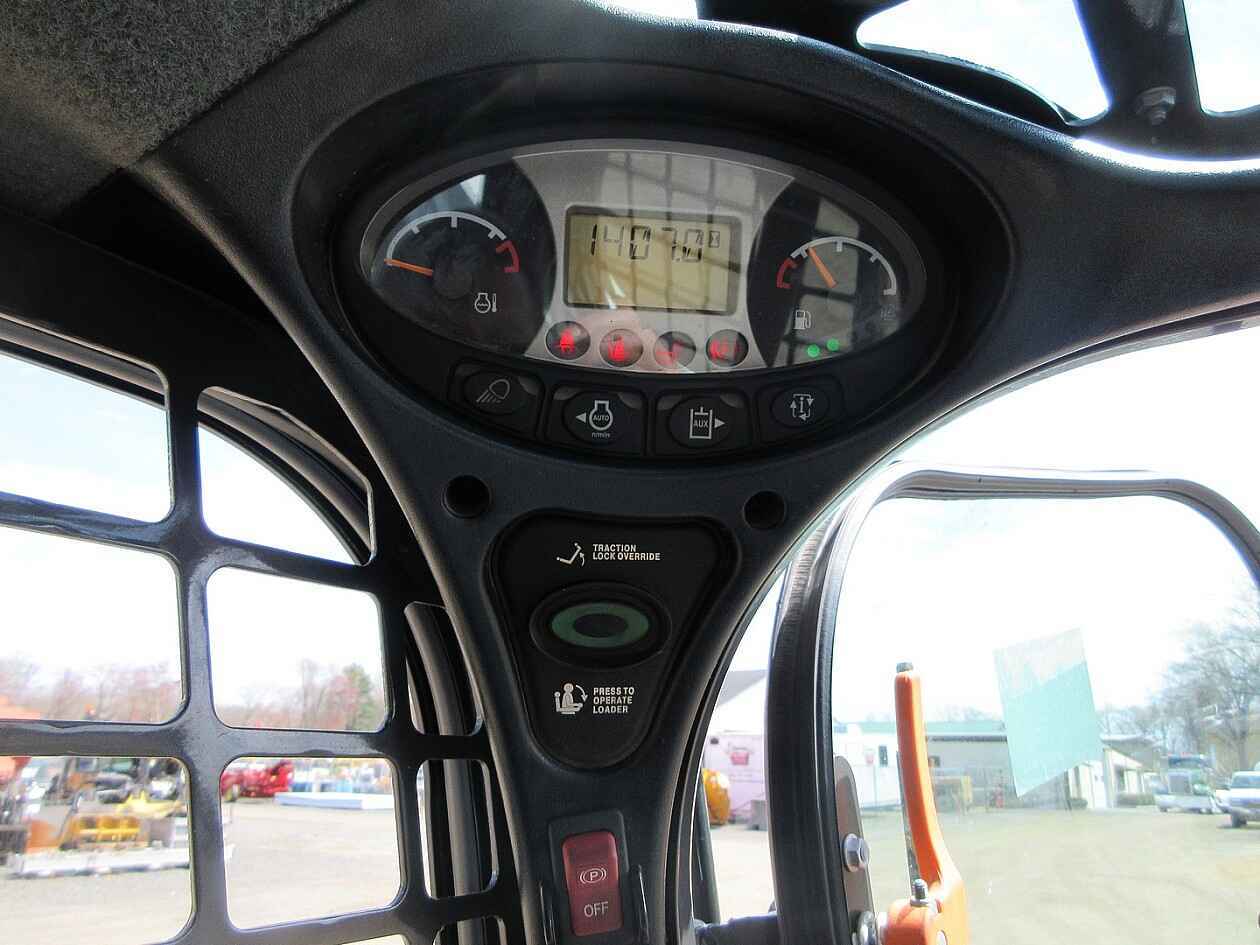

• Operator Cab: Enclosed with optional HVAC

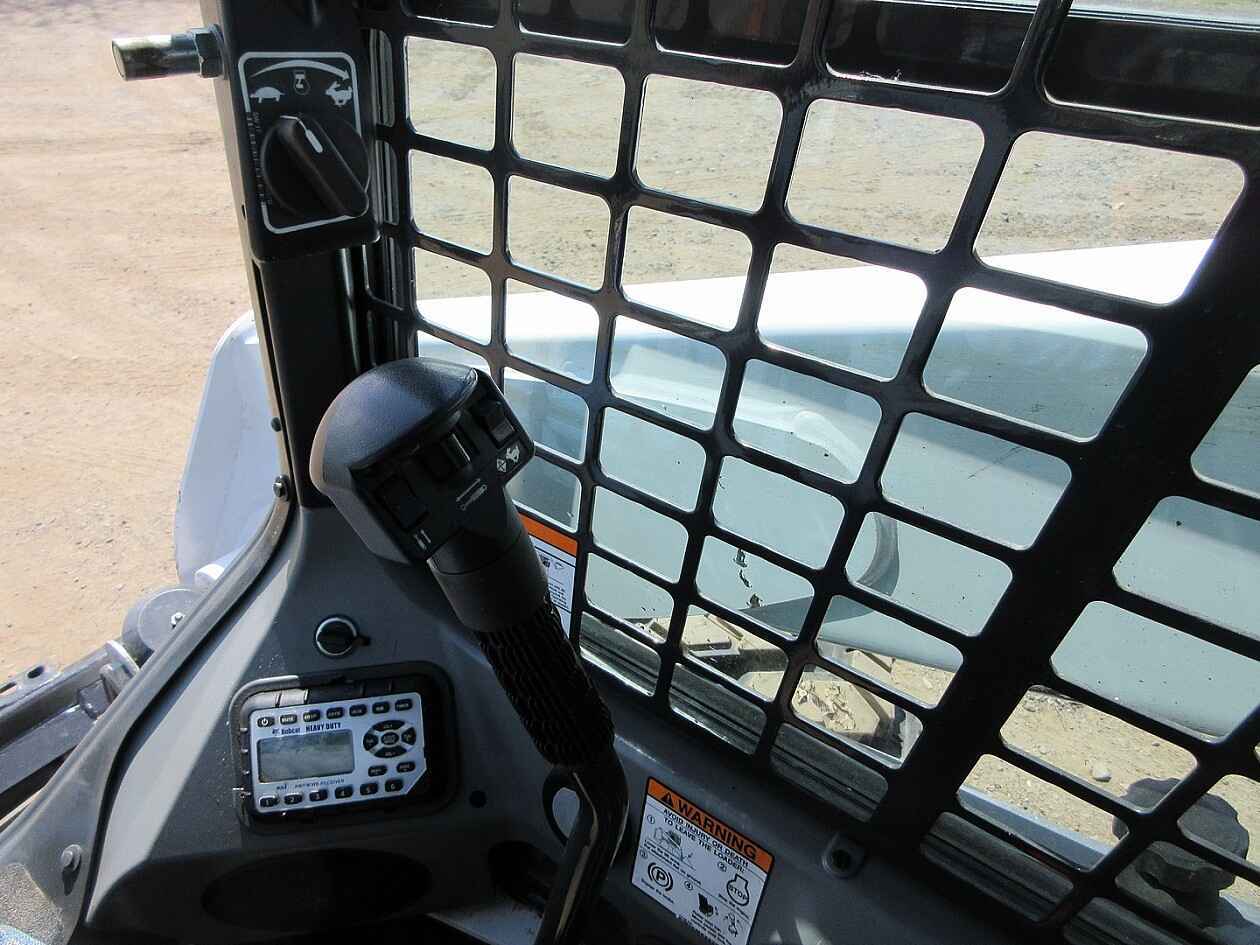

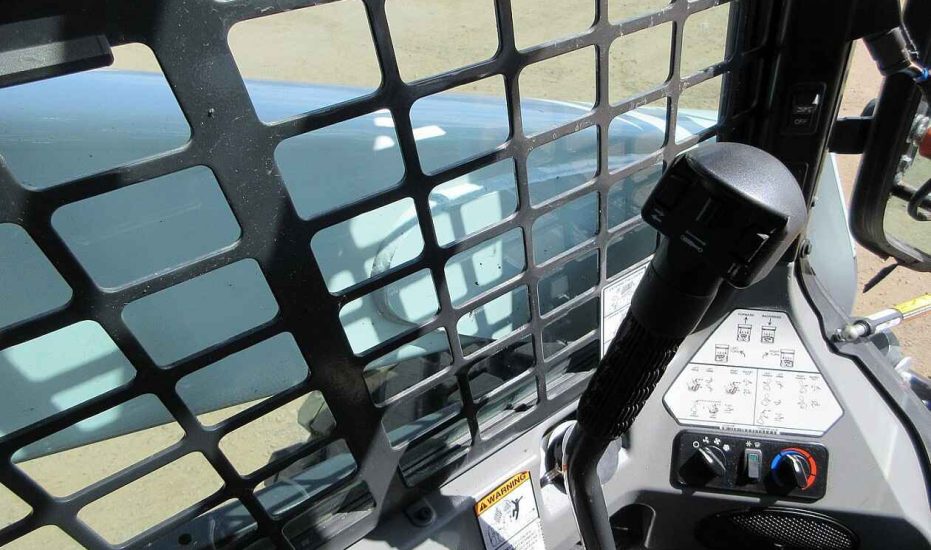

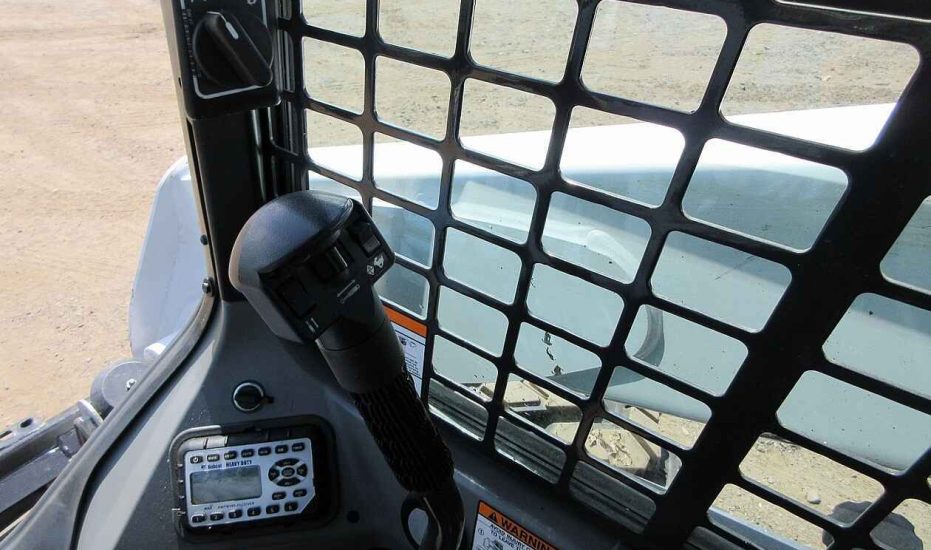

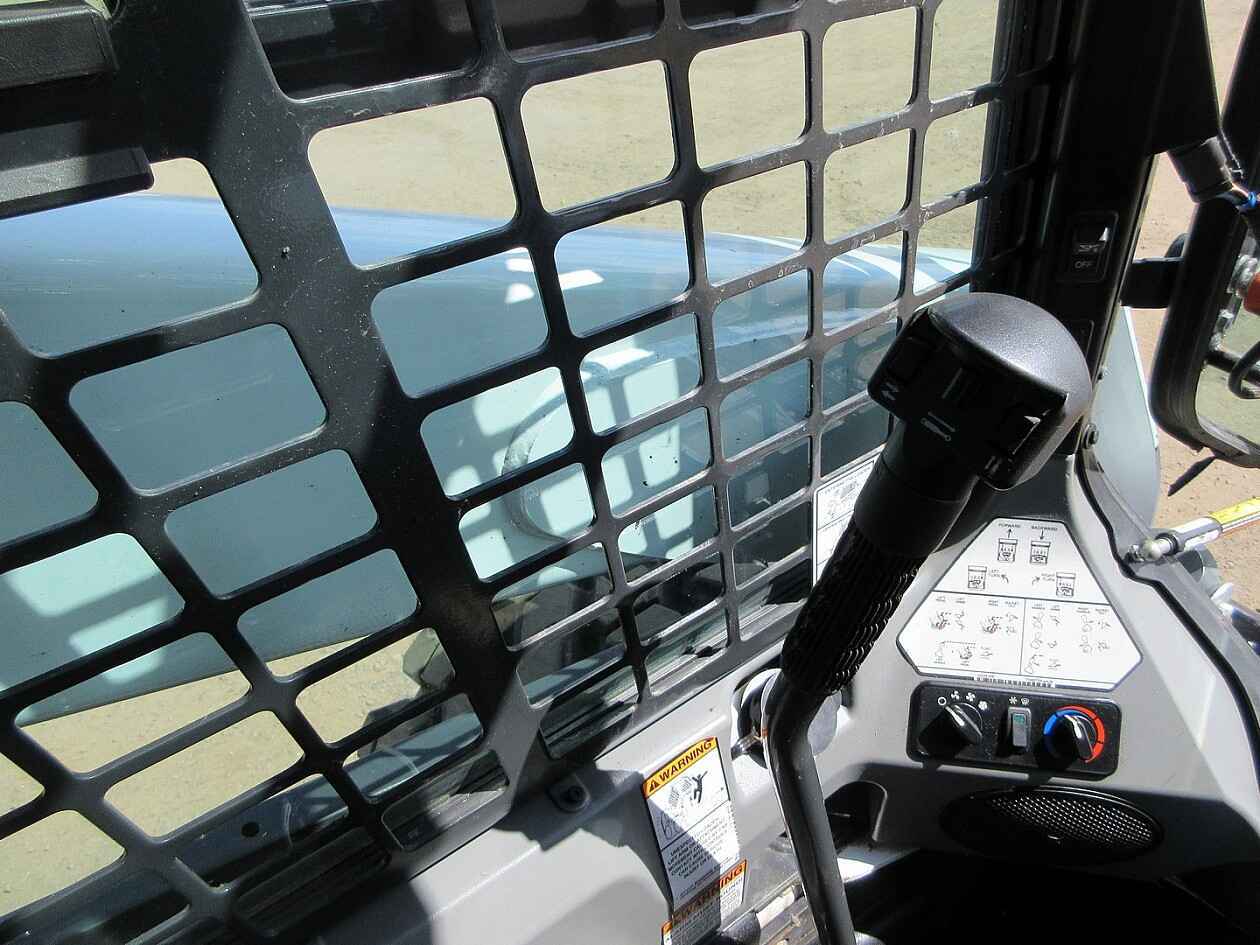

• Controls: Selectable Joystick Control (SJC)
