Specifications

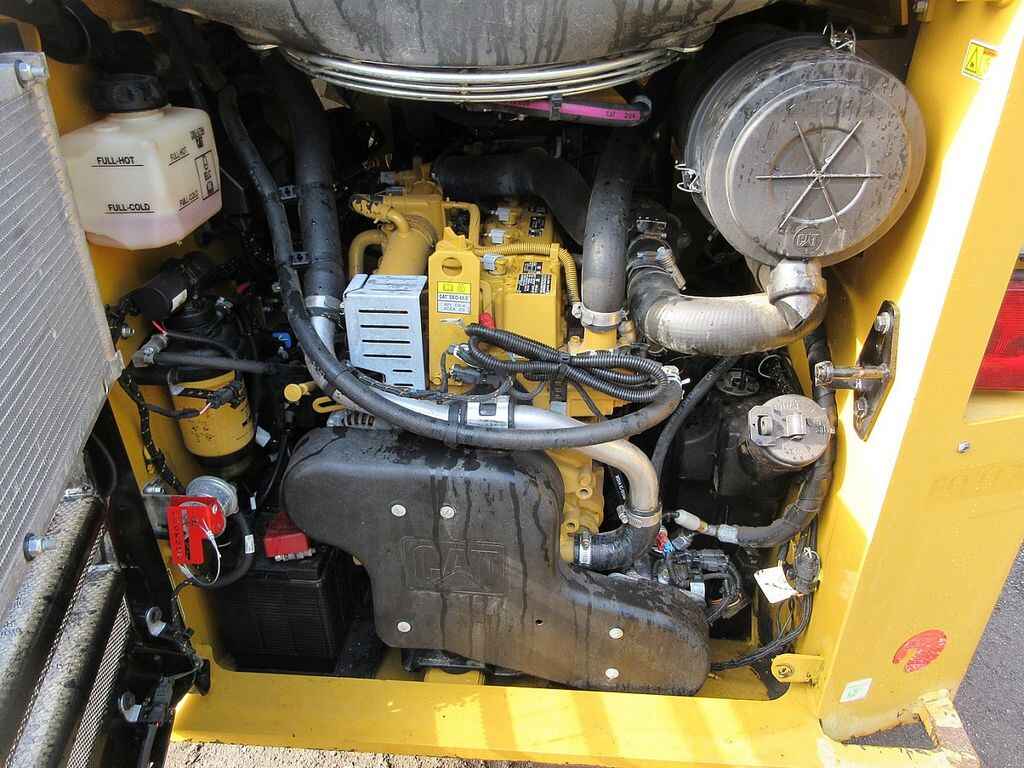

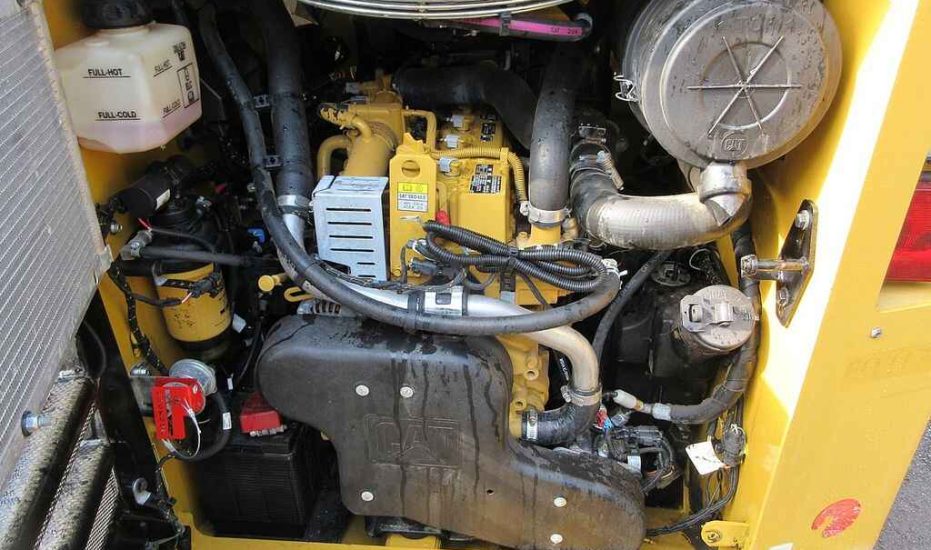

Engine

• Model: Cat C3.3B DIT (turbo)
• Gross Power: 74.3 hp (55.4 kW)
• Net Power: 72.9 hp (54.4 kW)
• Displacement: 203 in³ (3.3 L)
• Fuel Capacity: 27.7 gal (105 L)

Weights

• Operating Weight: 8,296 lbs (3,763 kg)

Performance

• Rated Operating Capacity: 2,700 lbs (1,225 kg)
• Tipping Load: 5,400 lbs (2,455 kg)
• Breakout Force - Tilt Cylinder: 7,355 lbs (3,336 kg)
• Travel Speed (1-speed): 7.7 mph (12.4 km/h)
• Travel Speed (2-speed option): 11 mph (17.7 km/h)

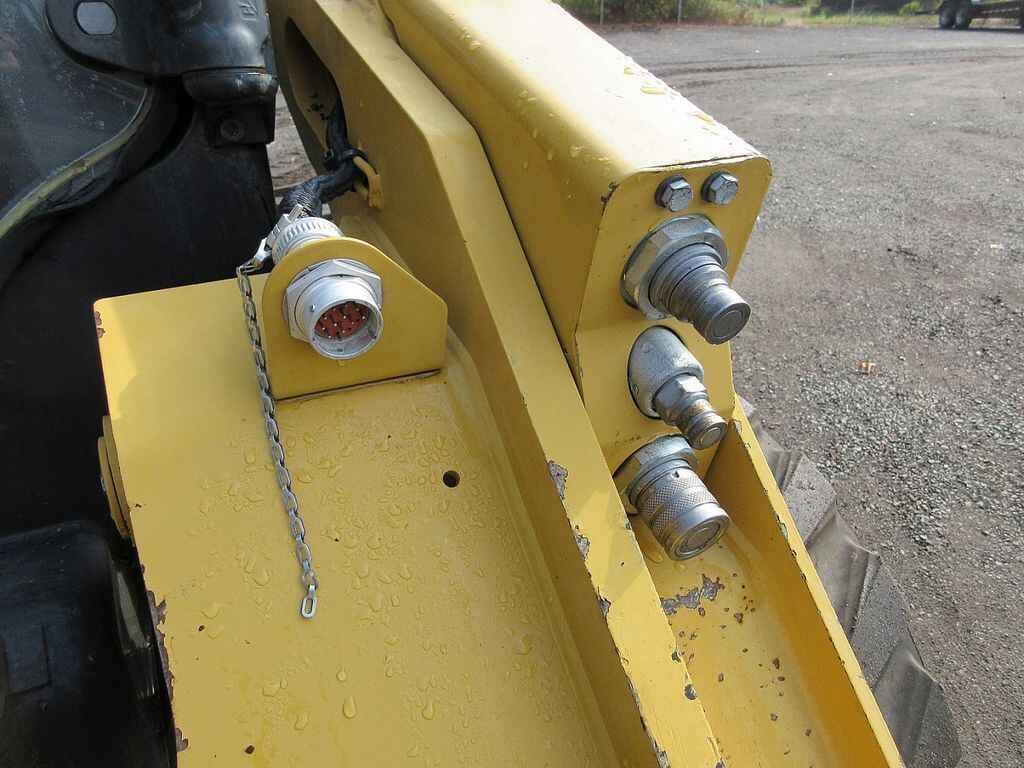

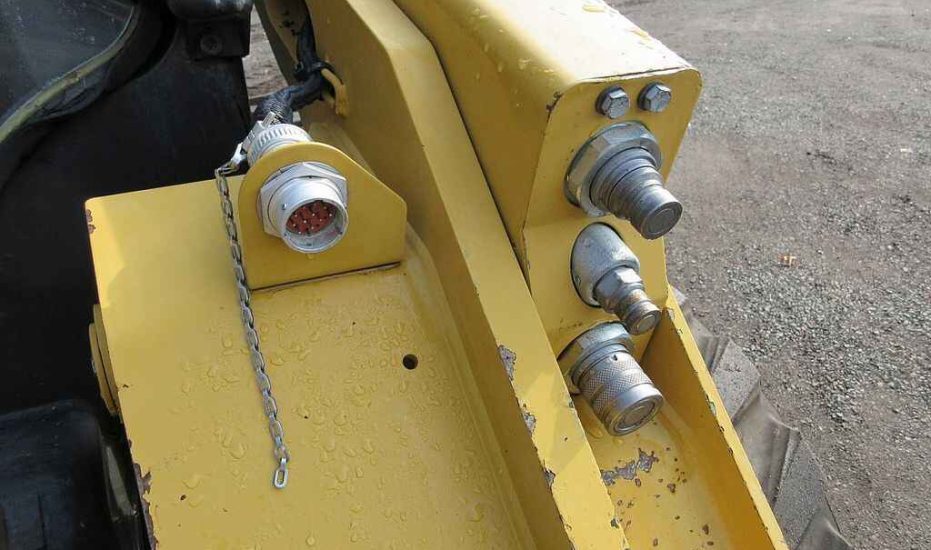

Hydraulics

• Standard Flow: 23 gal/min (86 L/min)
• High Flow XPS: 32 gal/min (121 L/min)
• System Relief Pressure: 3,335 psi (23 MPa)
• High Flow XPS Pressure: 4,060 psi (28 MPa)

Dimensions

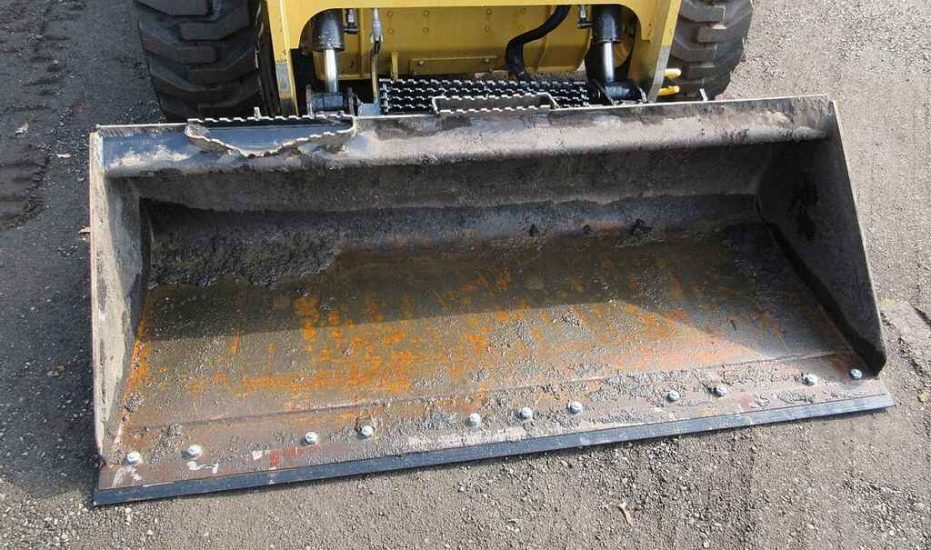

• Length with Bucket on Ground: 146.2 in (3,714 mm)
• Length without Bucket: 117.9 in (2,995 mm)
• Height to Top of Cab: 83.1 in (2,110 mm)

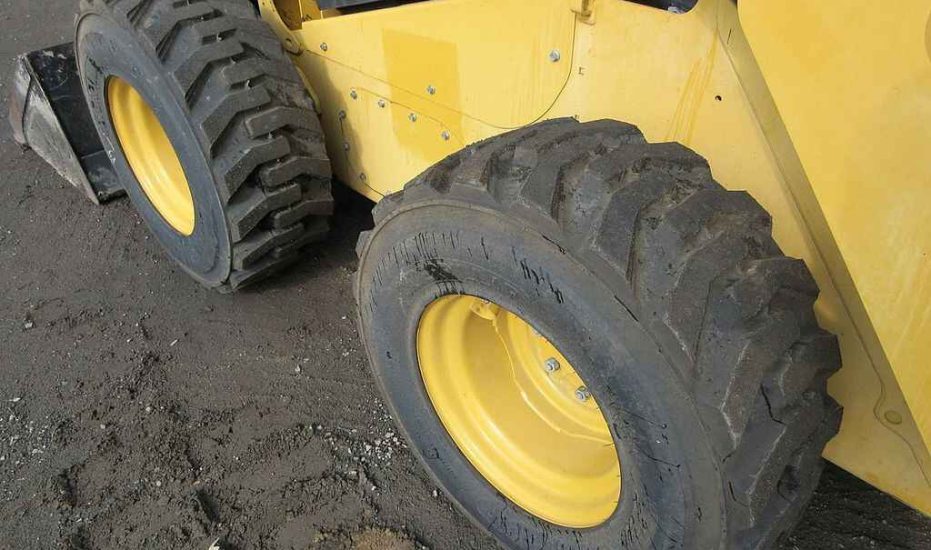

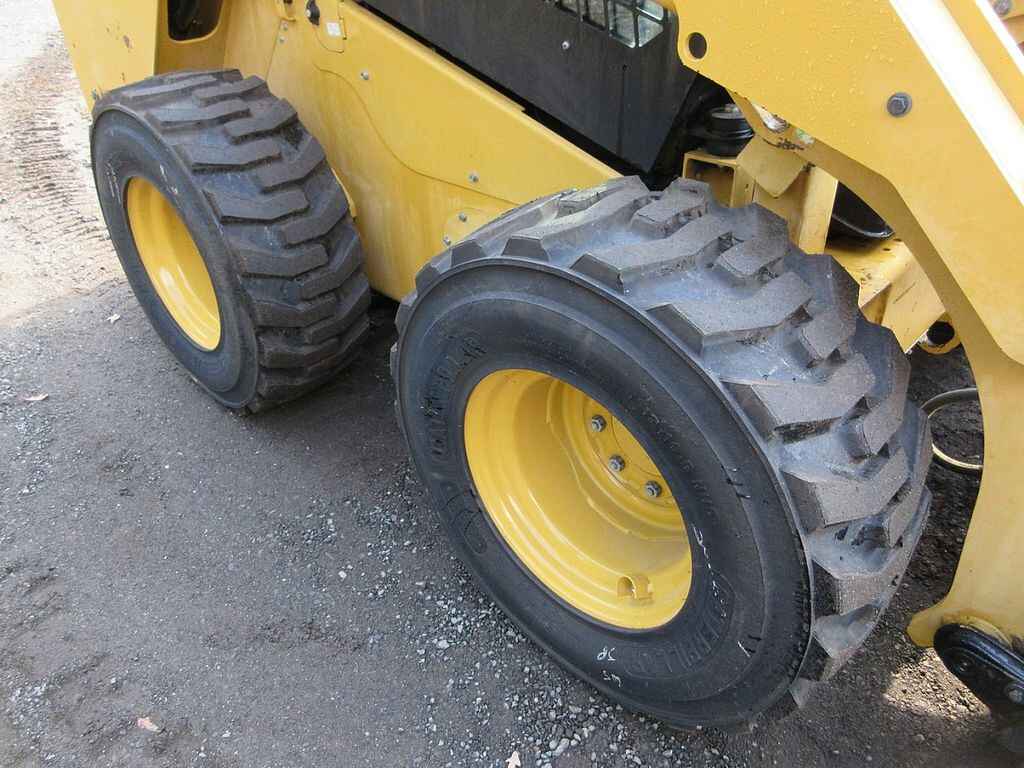

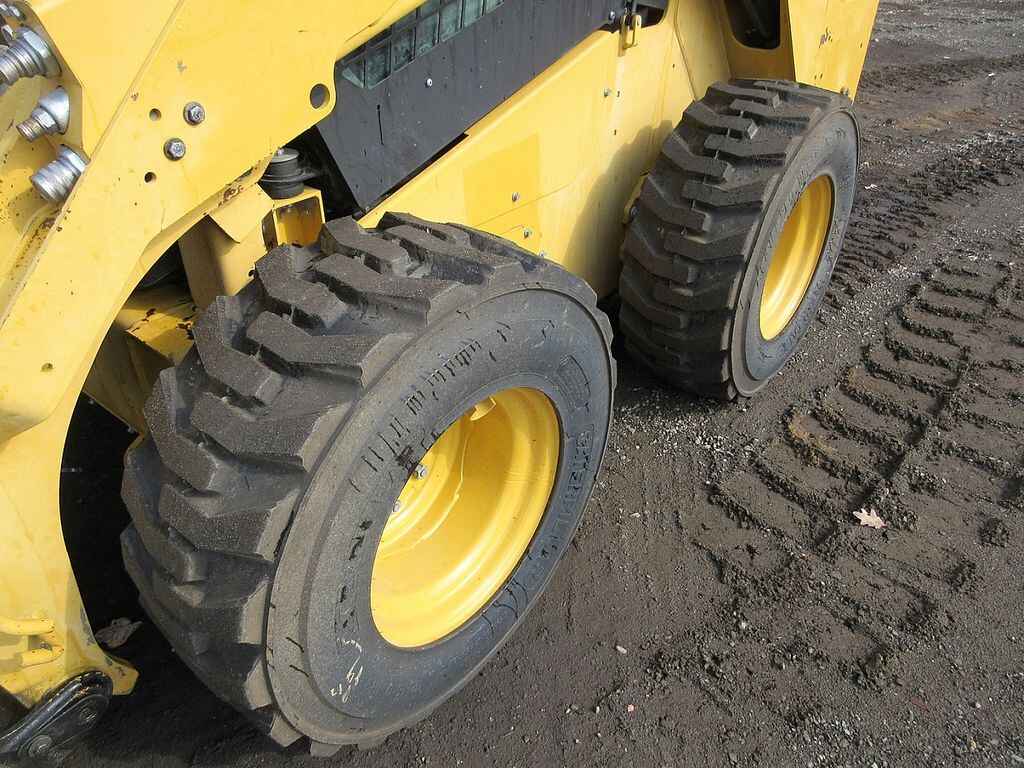

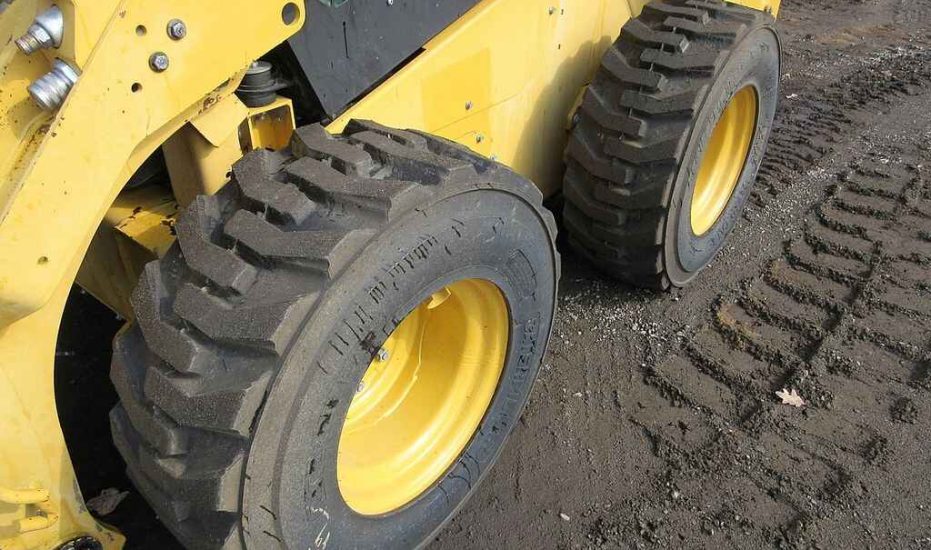

• Width over Tires: 66 in (1,676 mm)
• Wheelbase: 49.2 in (1,249 mm)
• Ground Clearance: 8.9 in (226 mm)
• Departure Angle: 26°
• Maximum Overall Height: 157.8 in (4,008 mm)
• Bucket Pin Height at Maximum Lift: 124.9 in (3,172 mm)
• Reach at Maximum Lift and Dump: 30.9 in (786 mm)
• Clearance at Maximum Lift and Dump: 93.7 in (2,380 mm)

Features

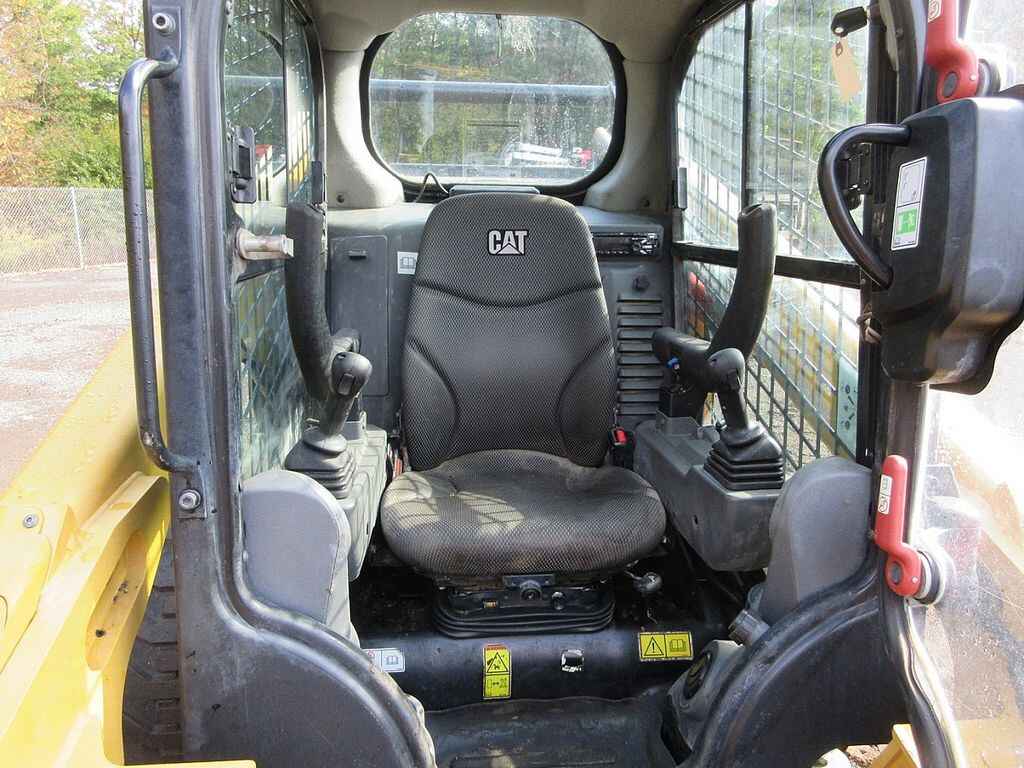

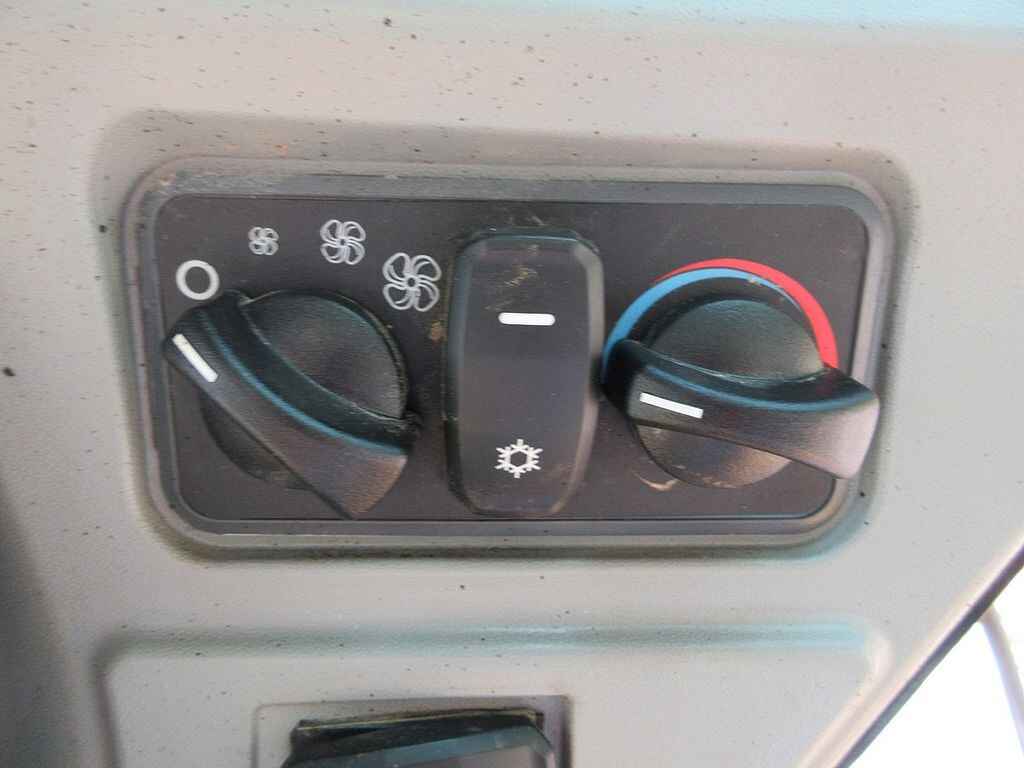

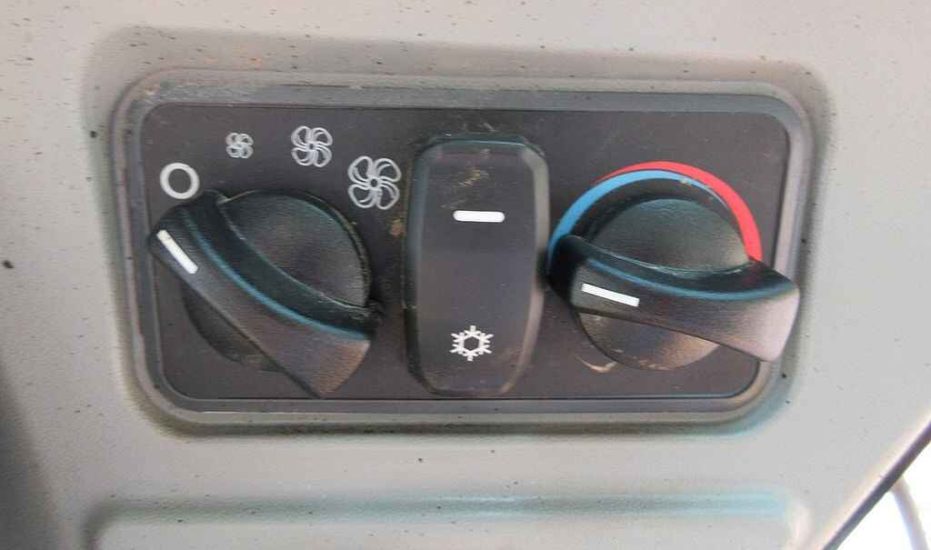

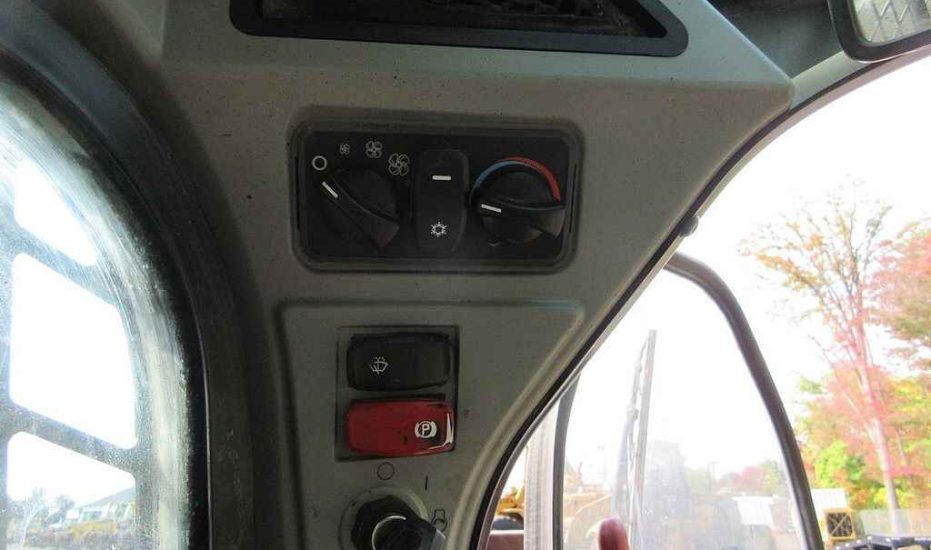

• Cab: Sealed and pressurized with optional air conditioning

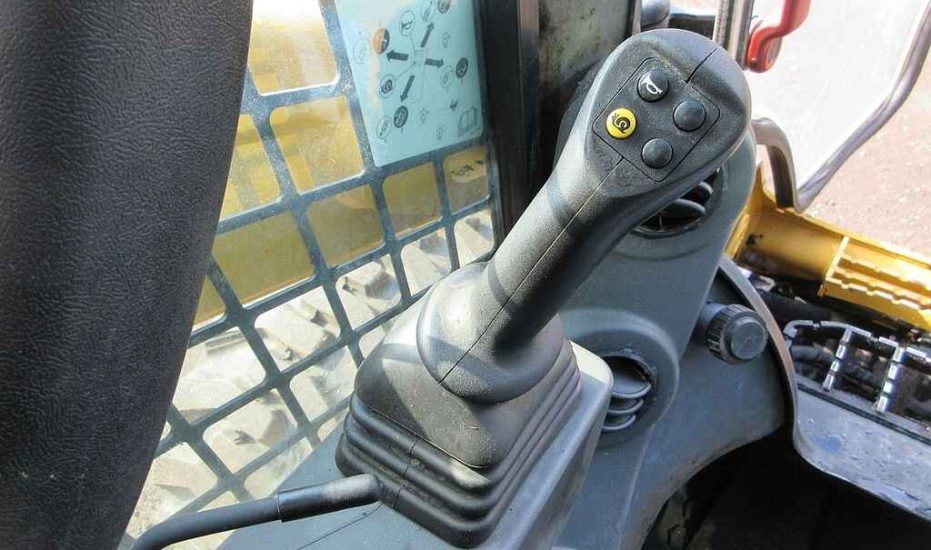

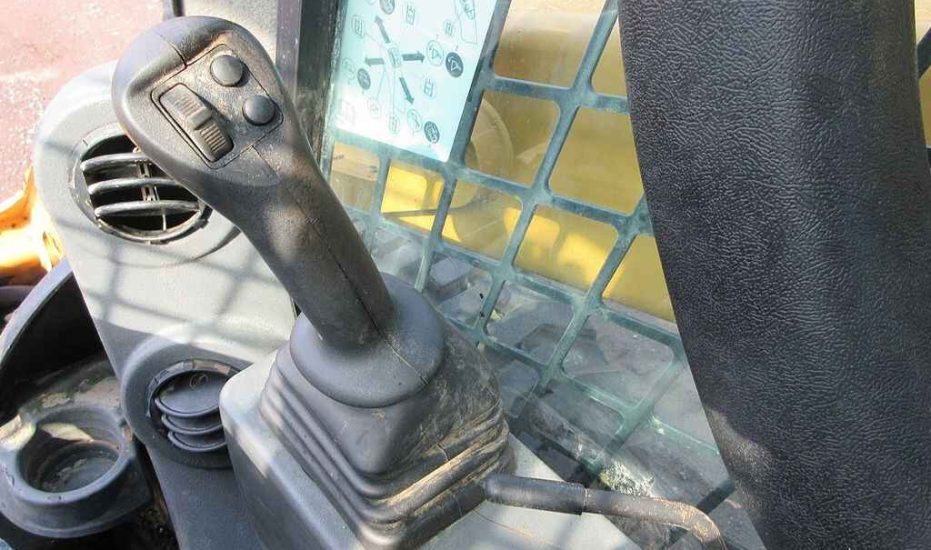

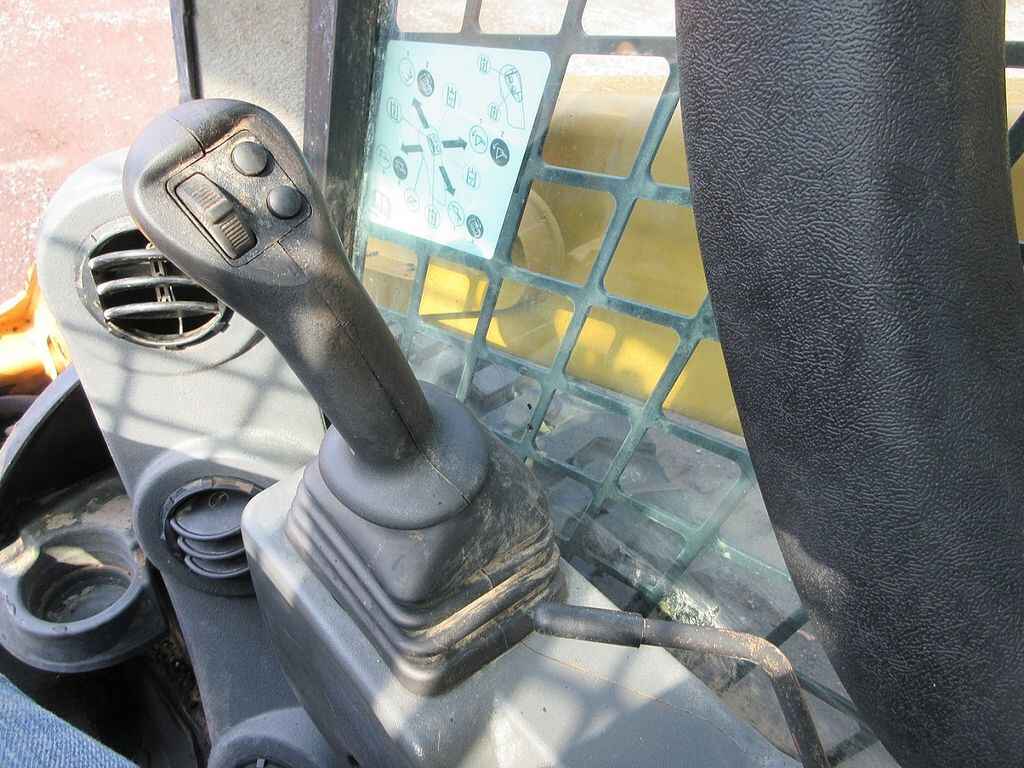

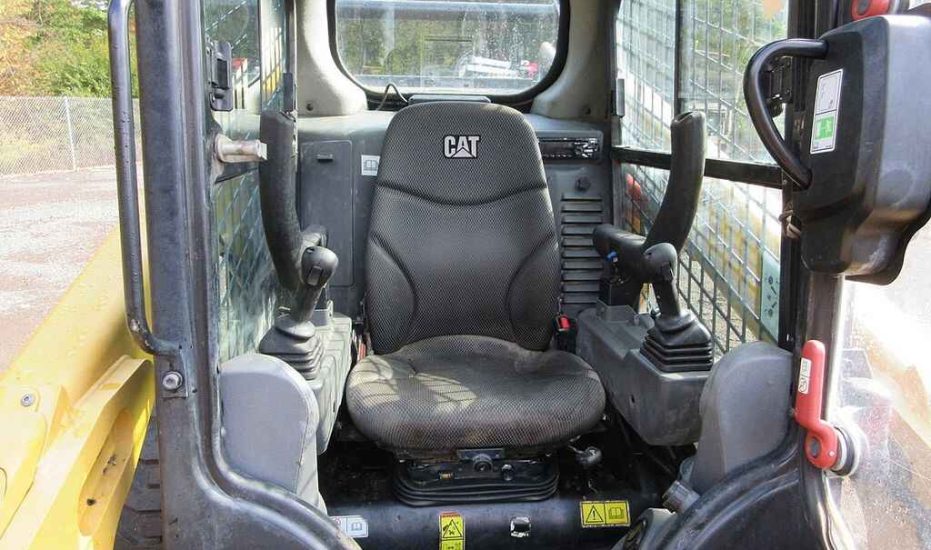

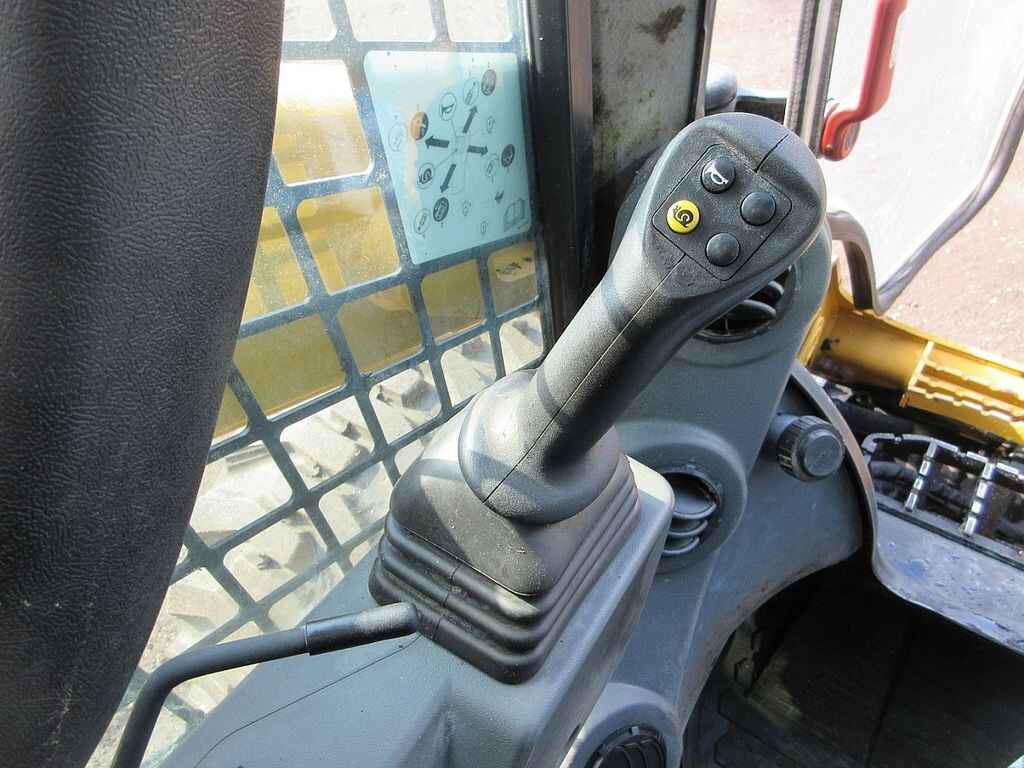

• Controls: Seat-mounted adjustable joystick controls
• Hydraulic System: Electronic Torque Management system
• Ride Control: Speed Sensitive Ride Control system

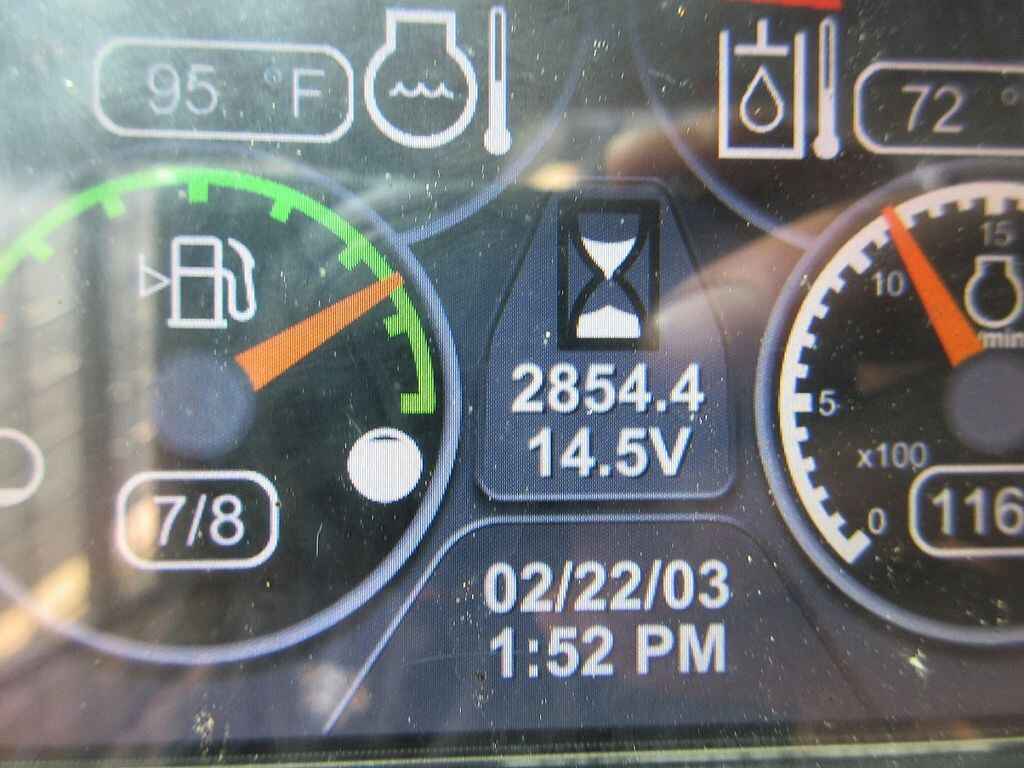

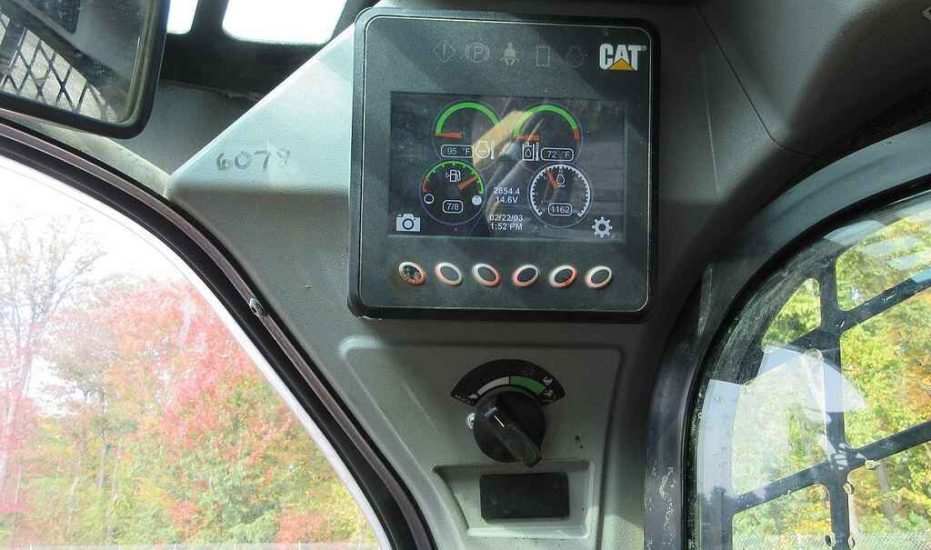

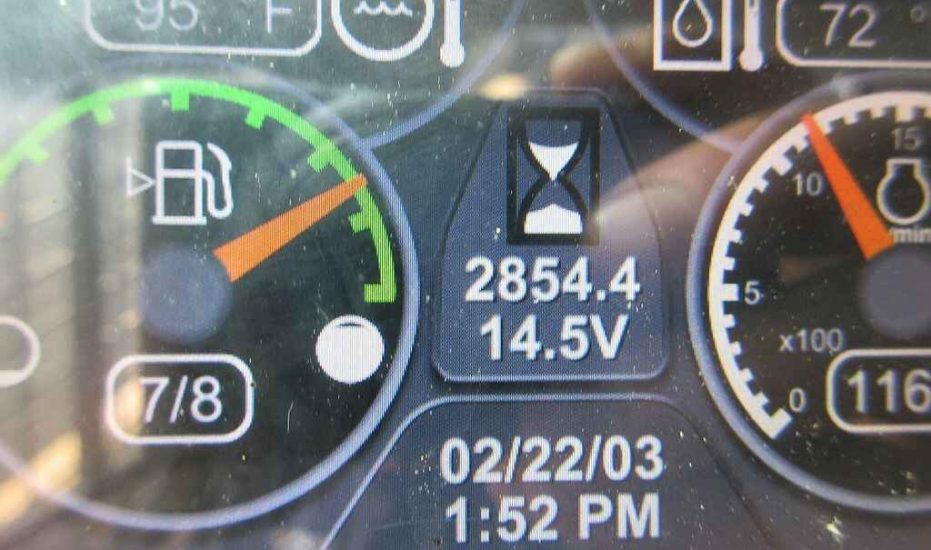

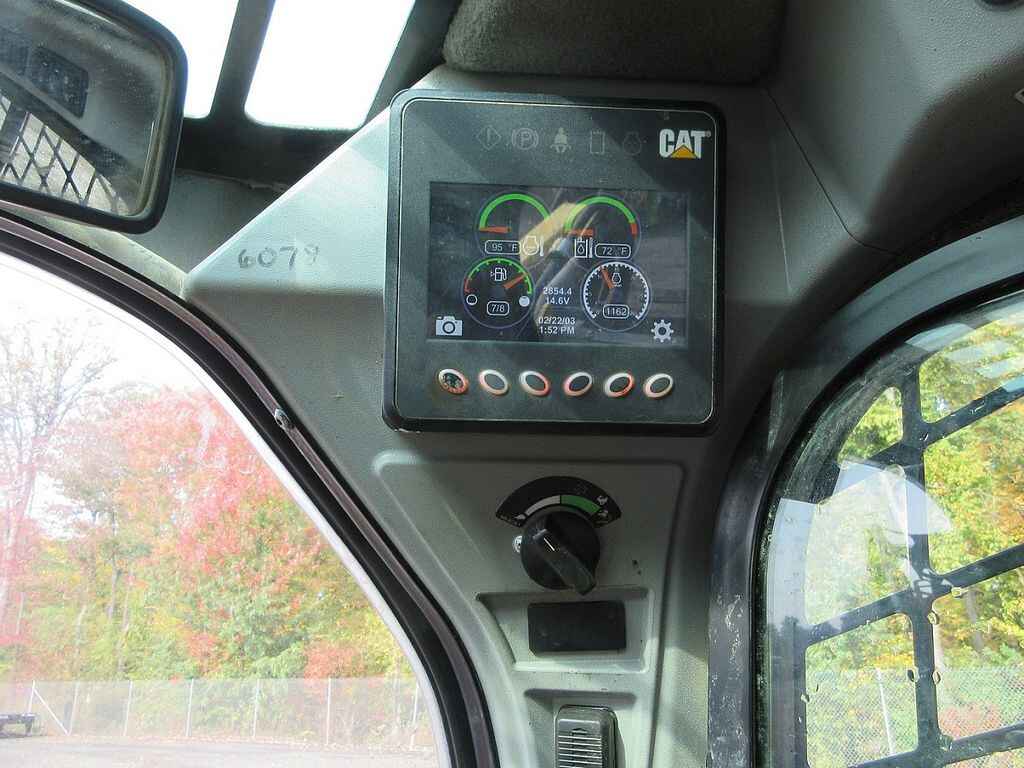

• Display: Advanced Display with rearview camera
