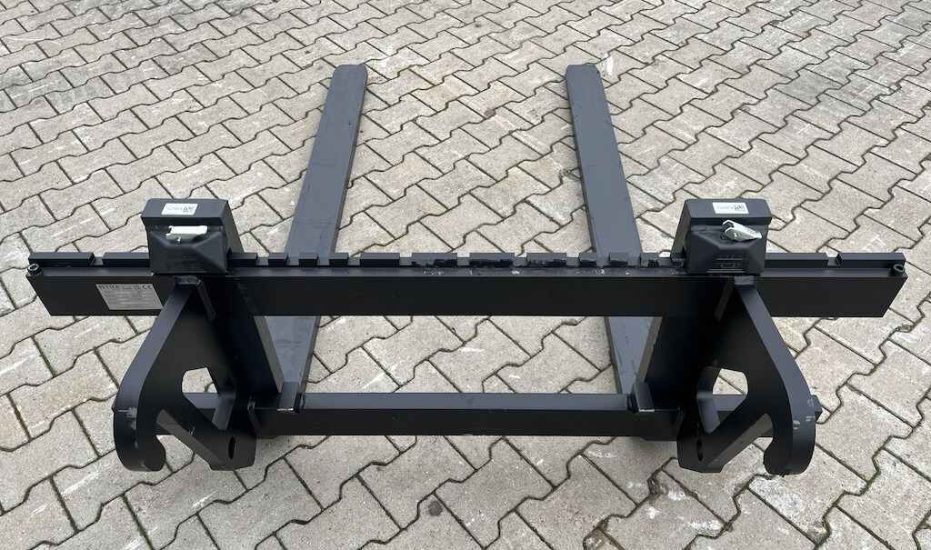

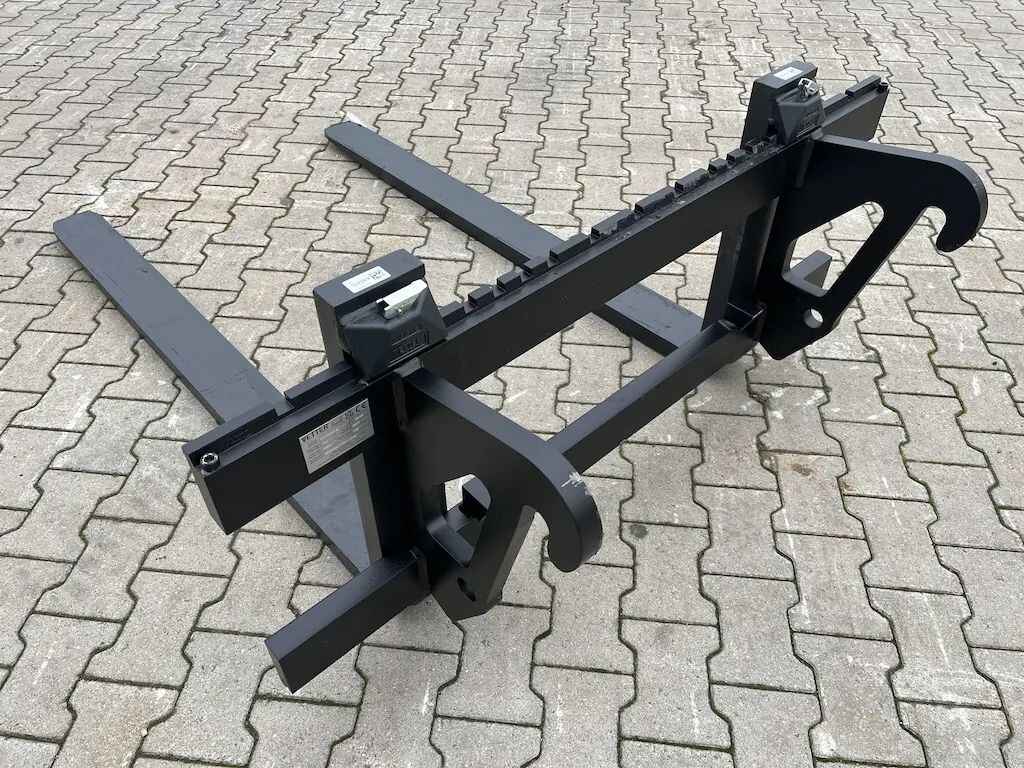

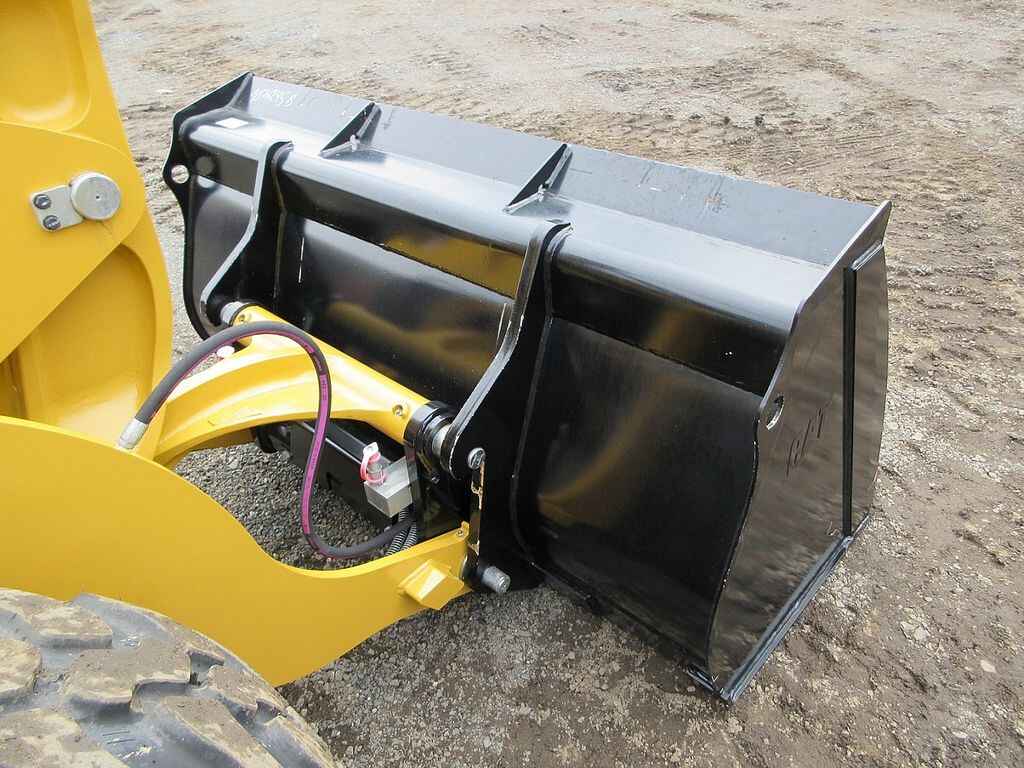

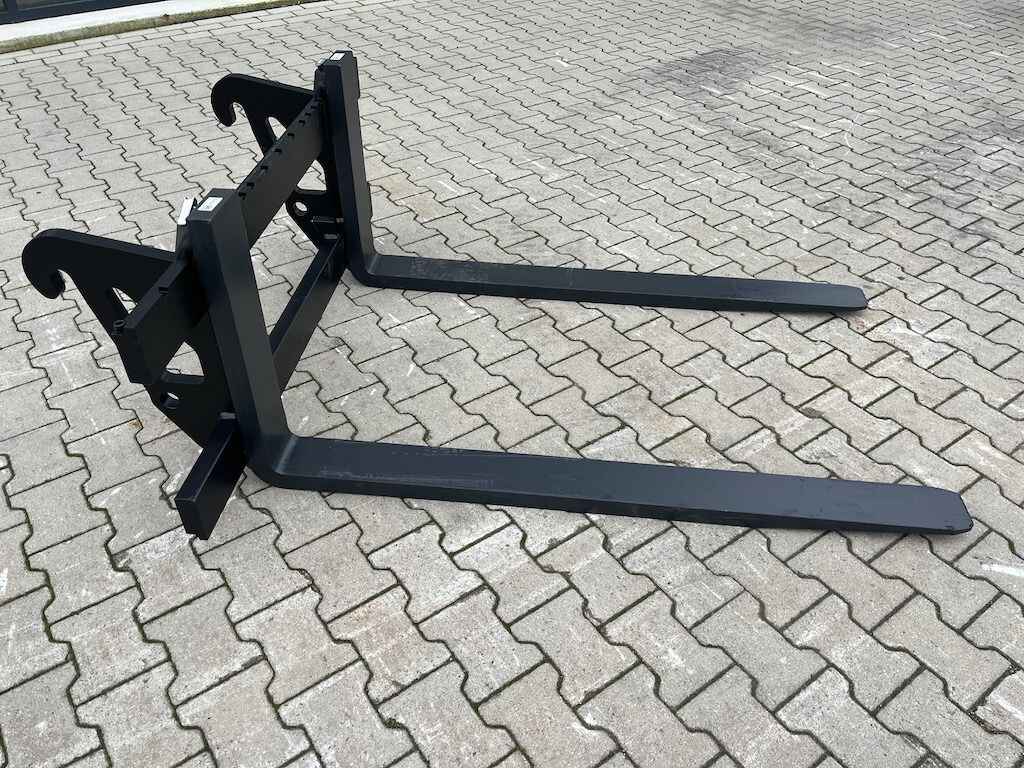

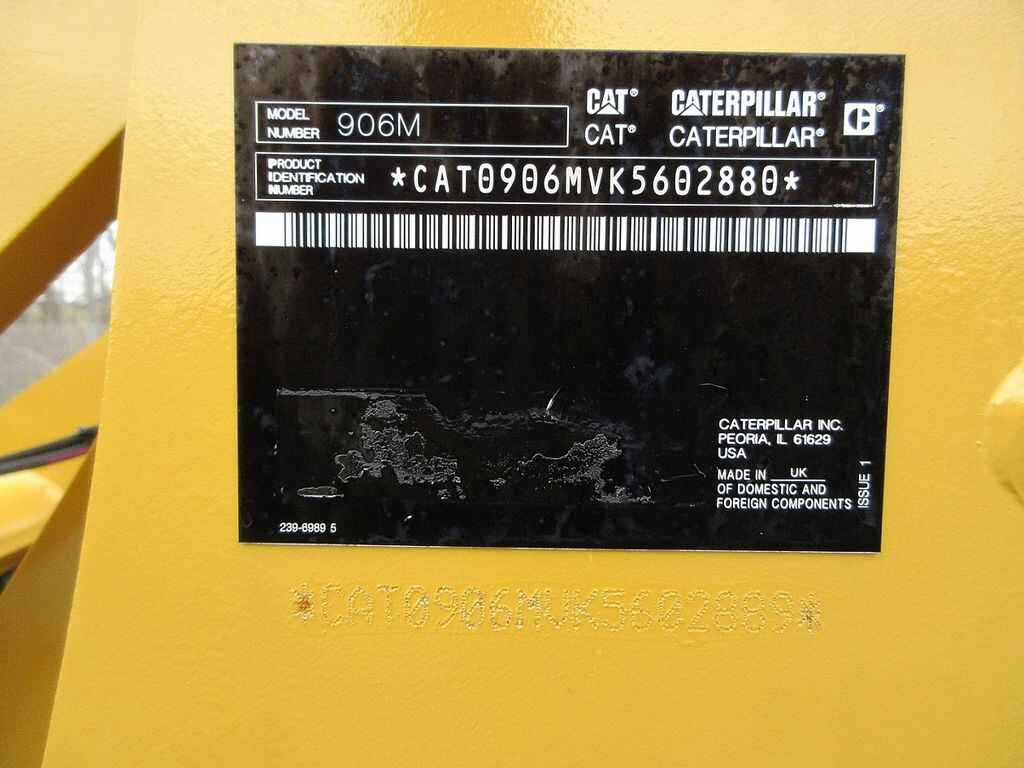

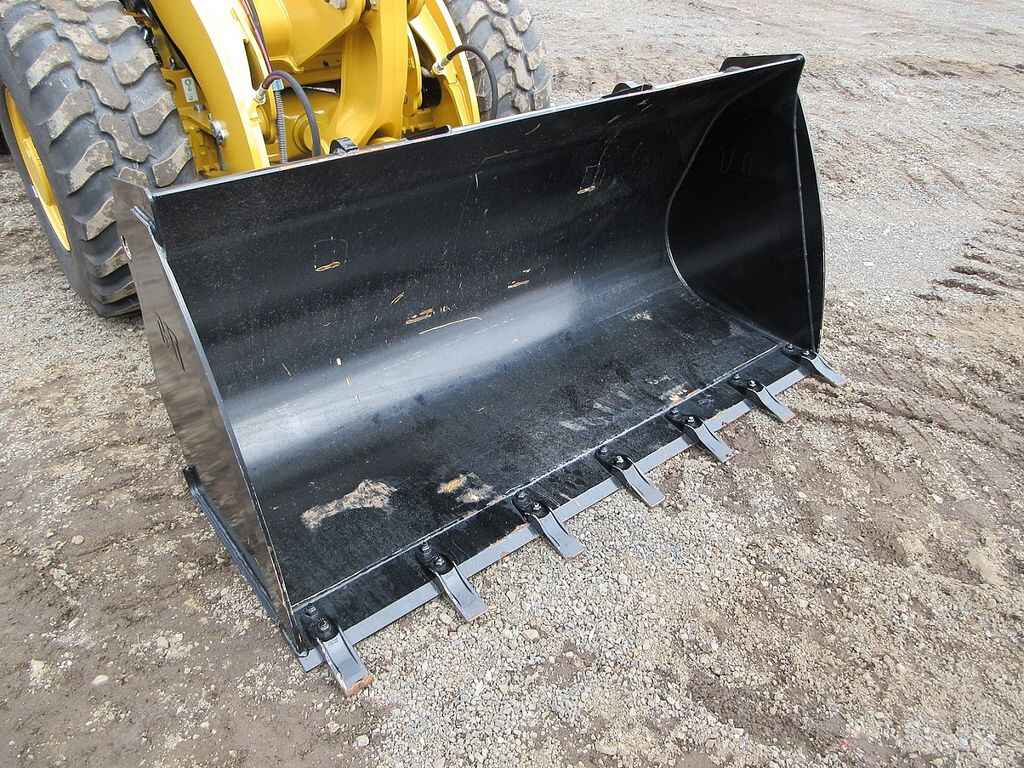

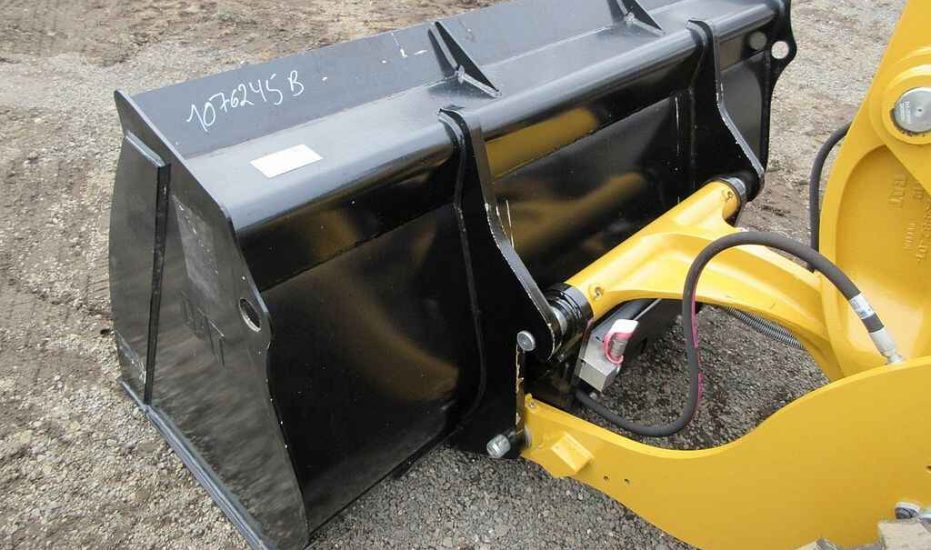

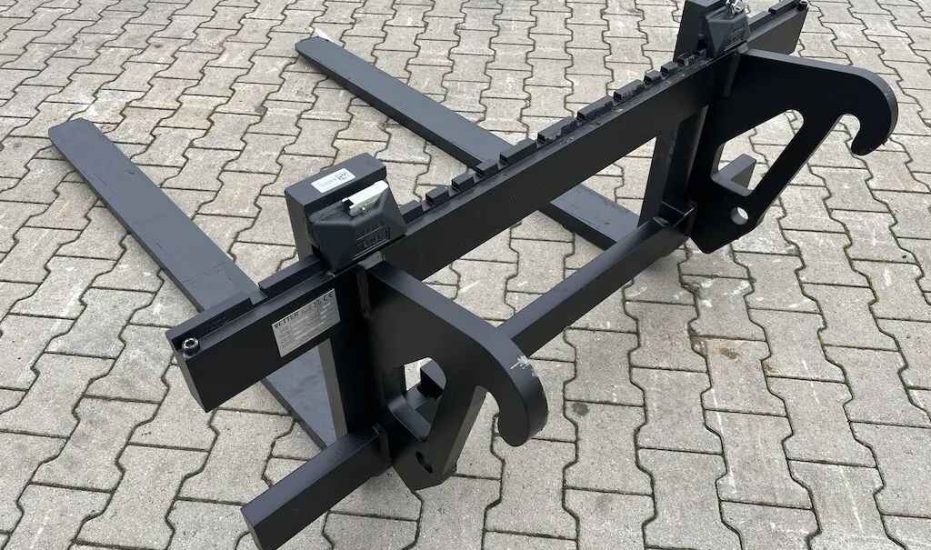

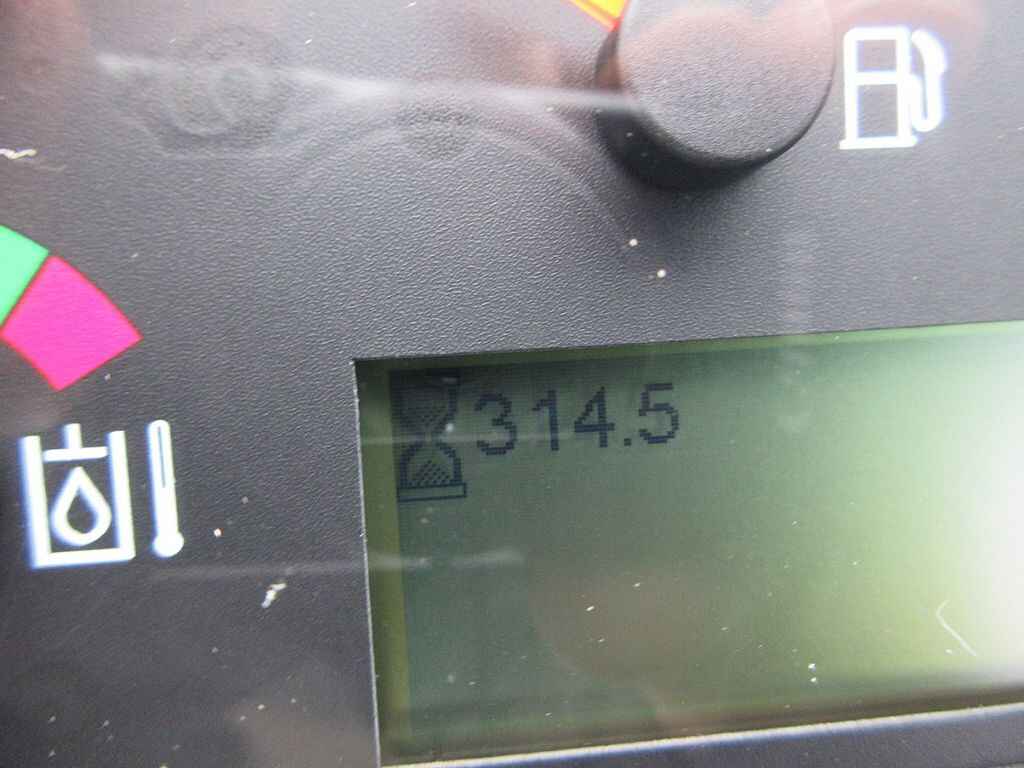

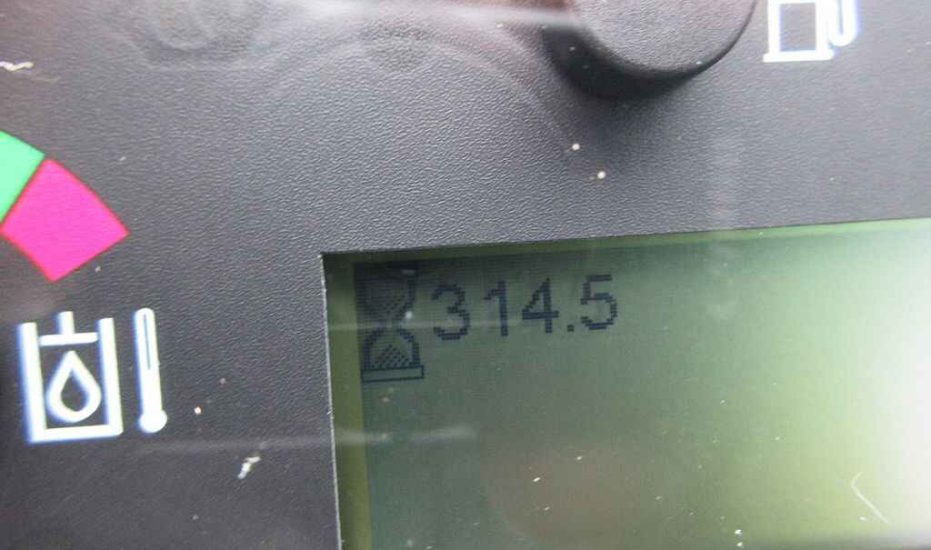

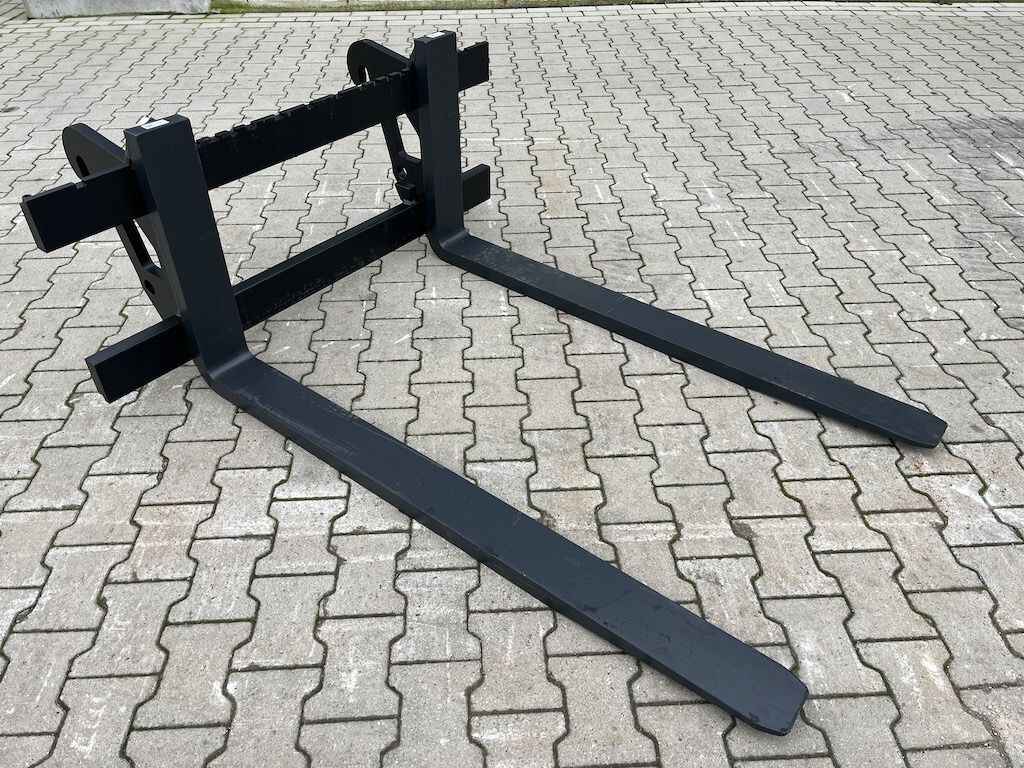

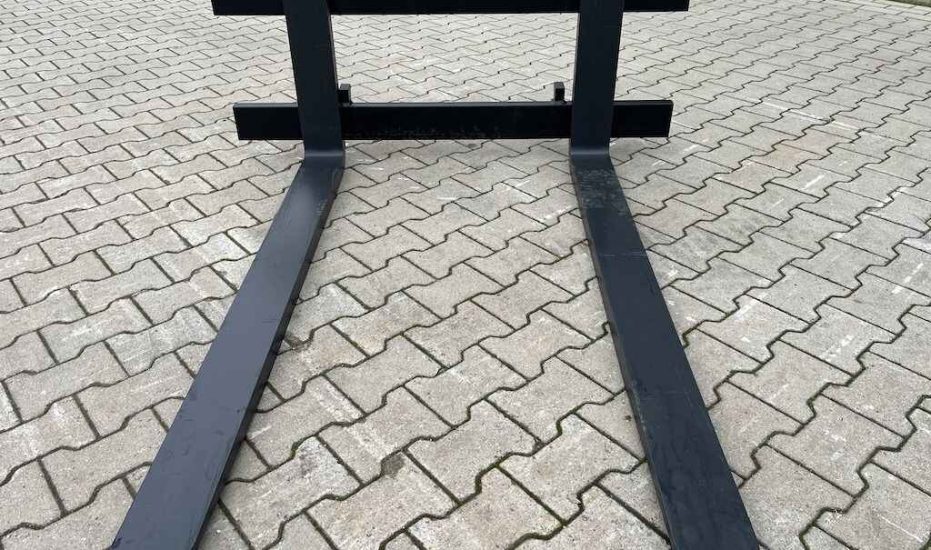

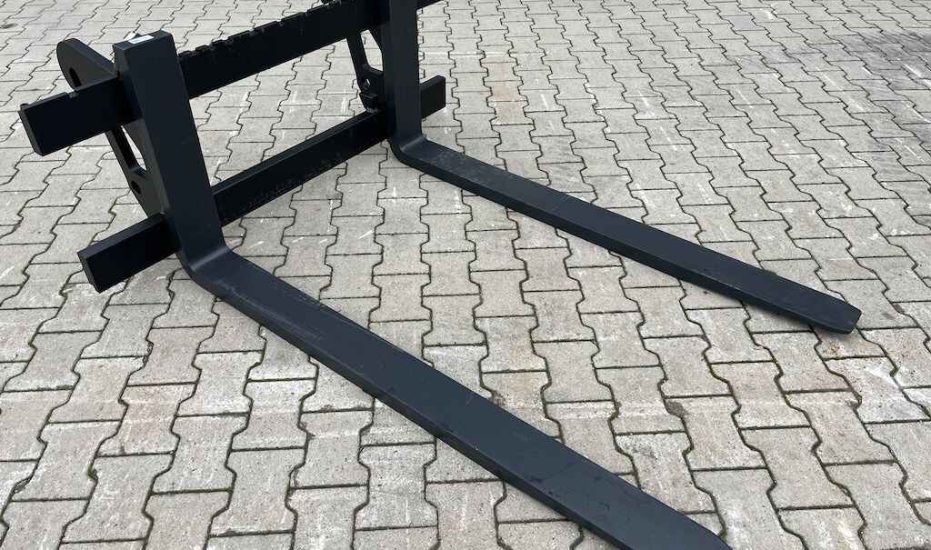

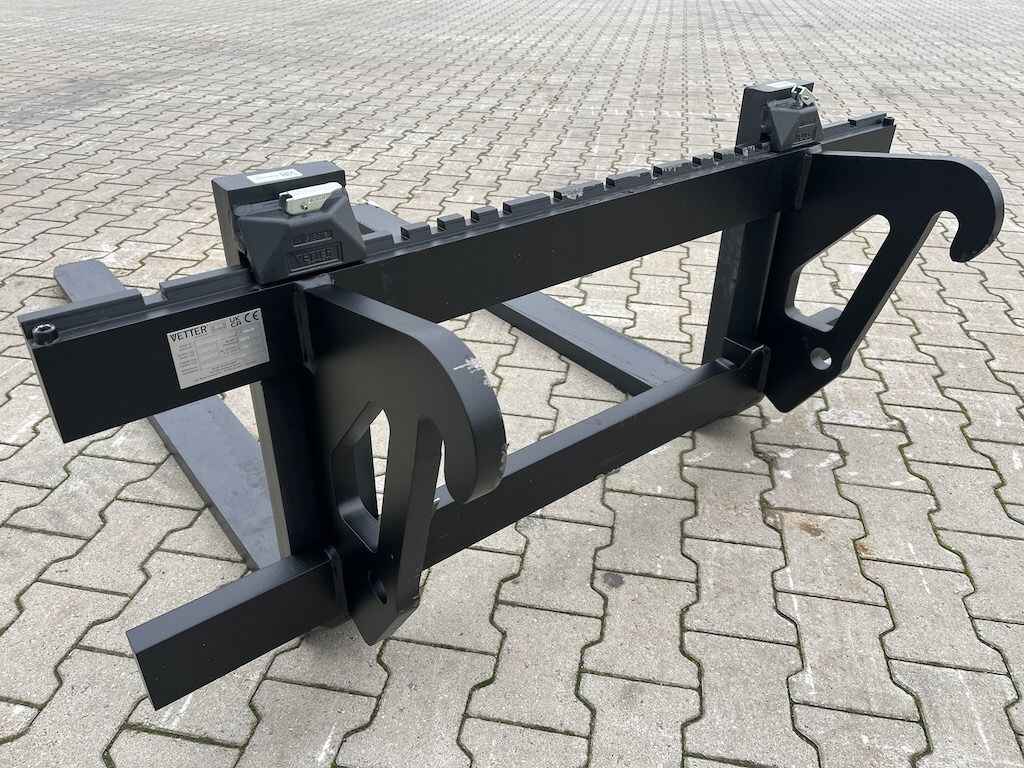

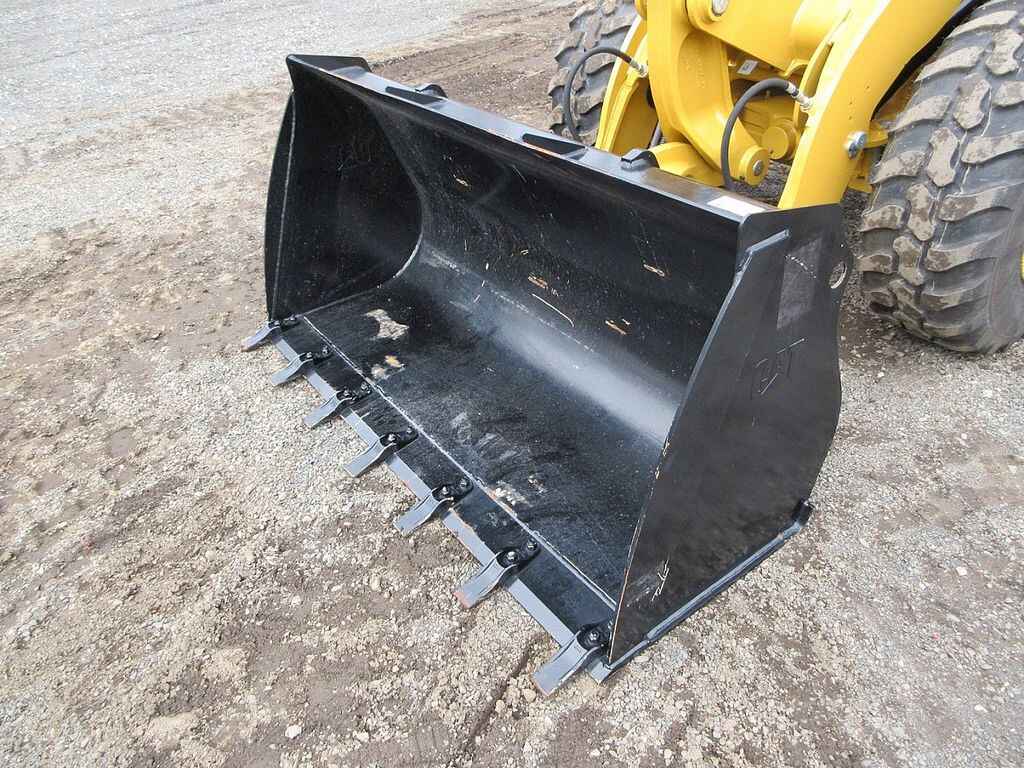

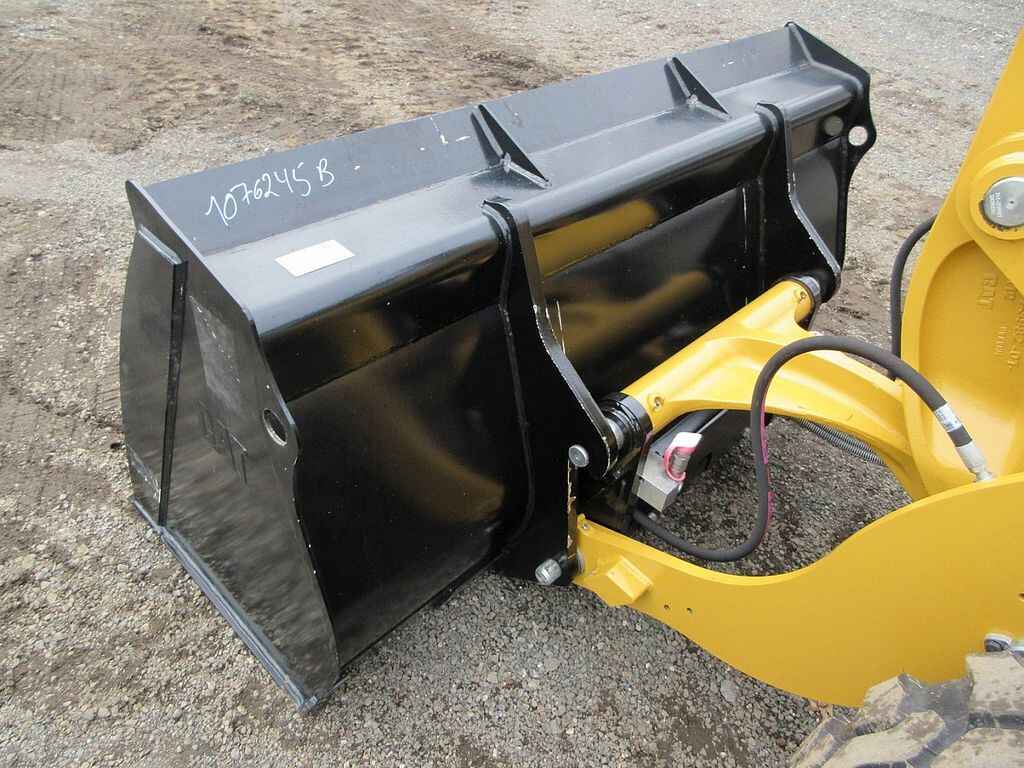

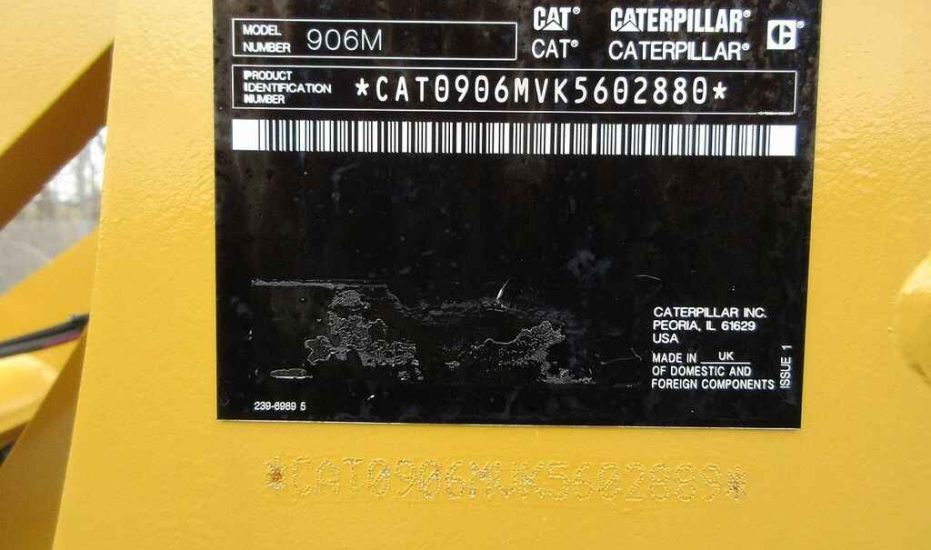

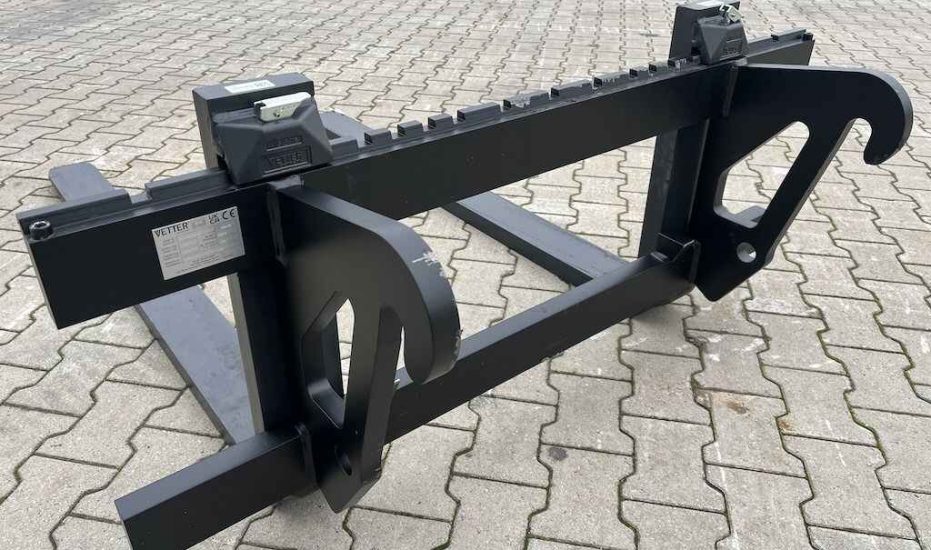

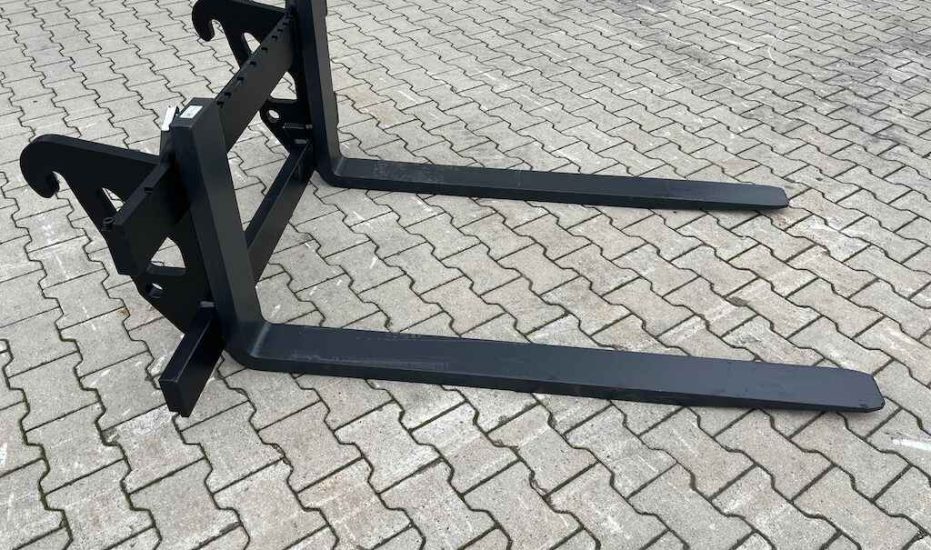

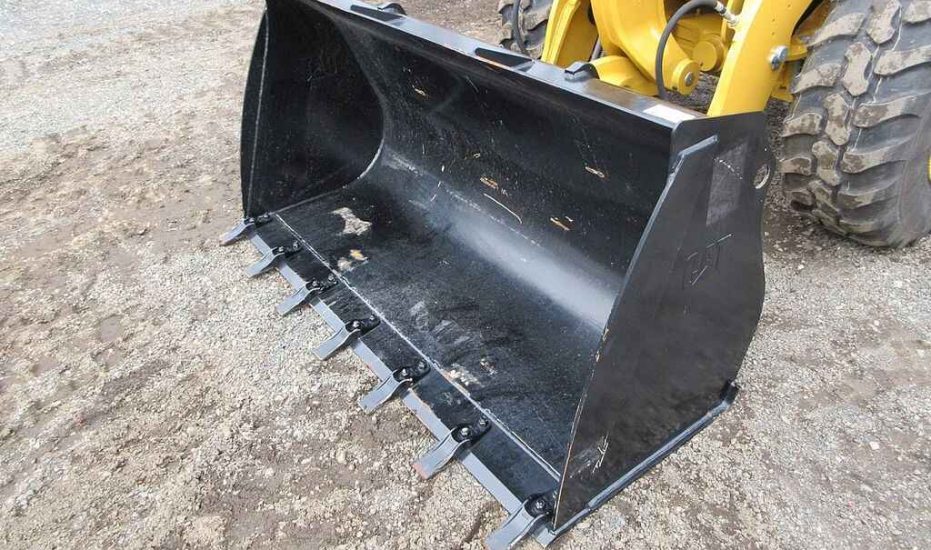

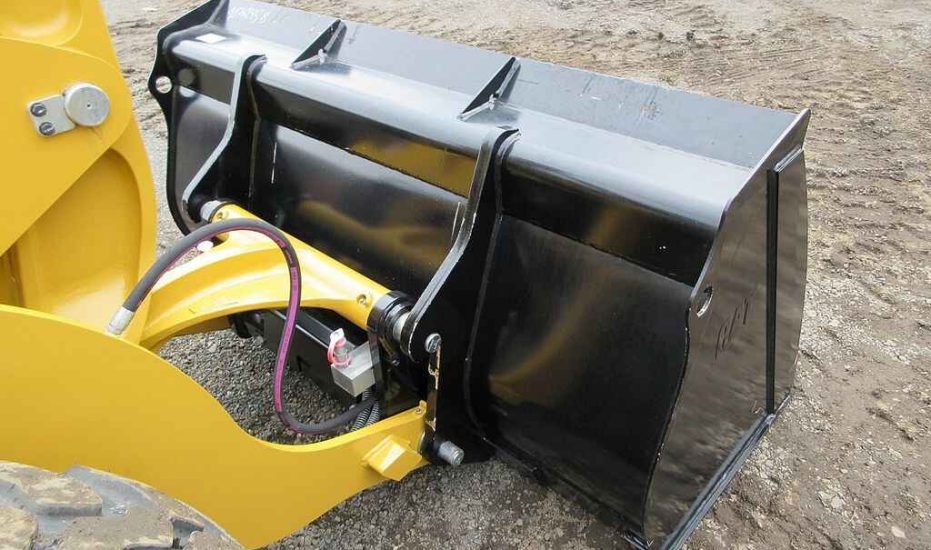

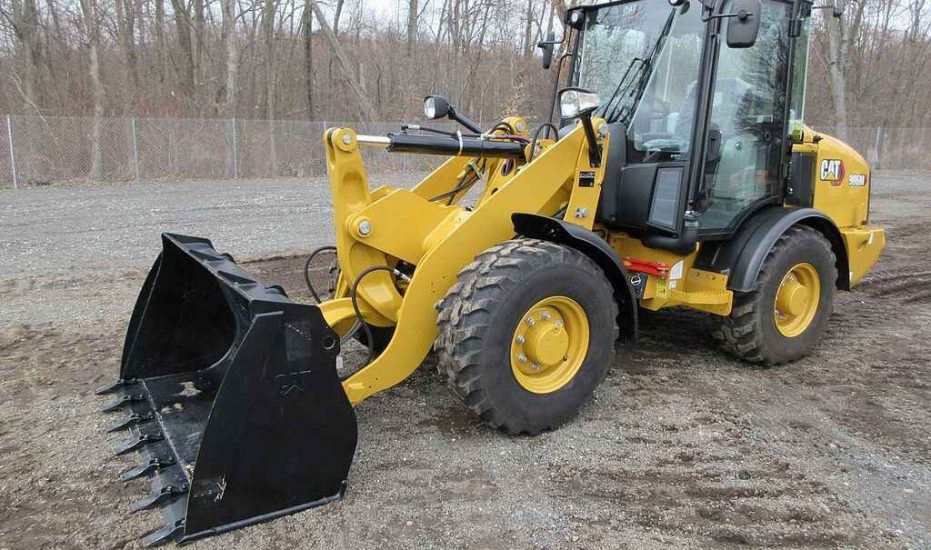

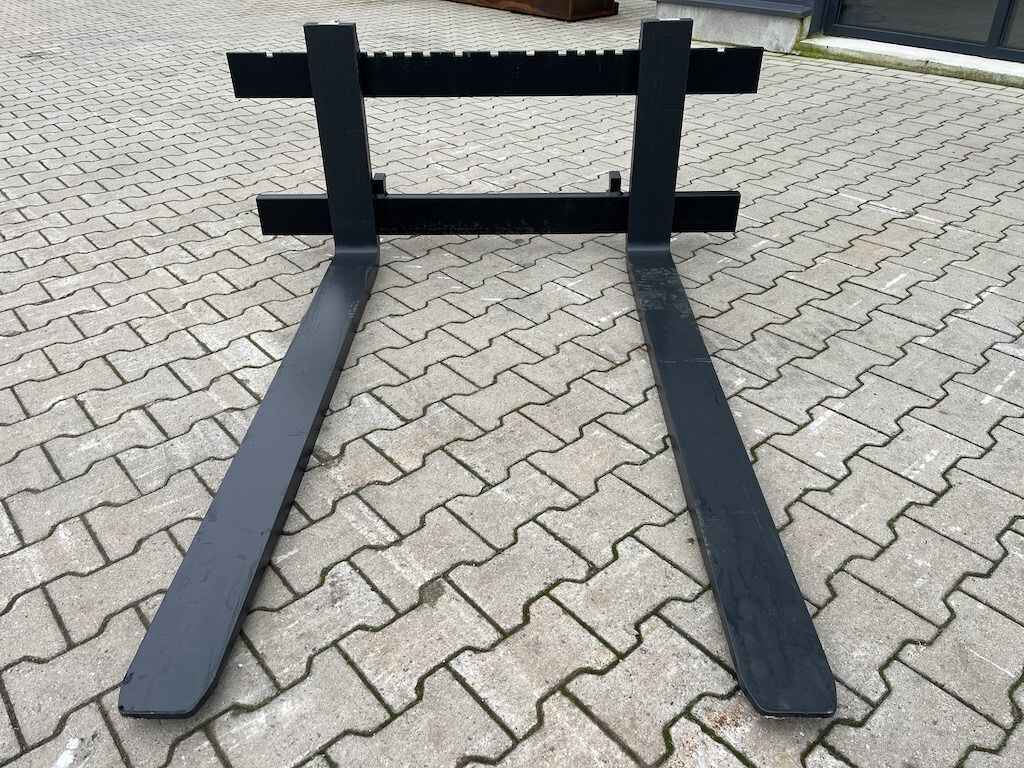

4 cyl Caterpillar turbo diesel, cab with heat, 2 speed travel, 405/70R18 radial rubber, aux hyd, hyd coupler, bucket with teeth and Forks Included, meter reads 314 hours, S/N CAT0906MVK5602880, LIKE NEW CONDITION

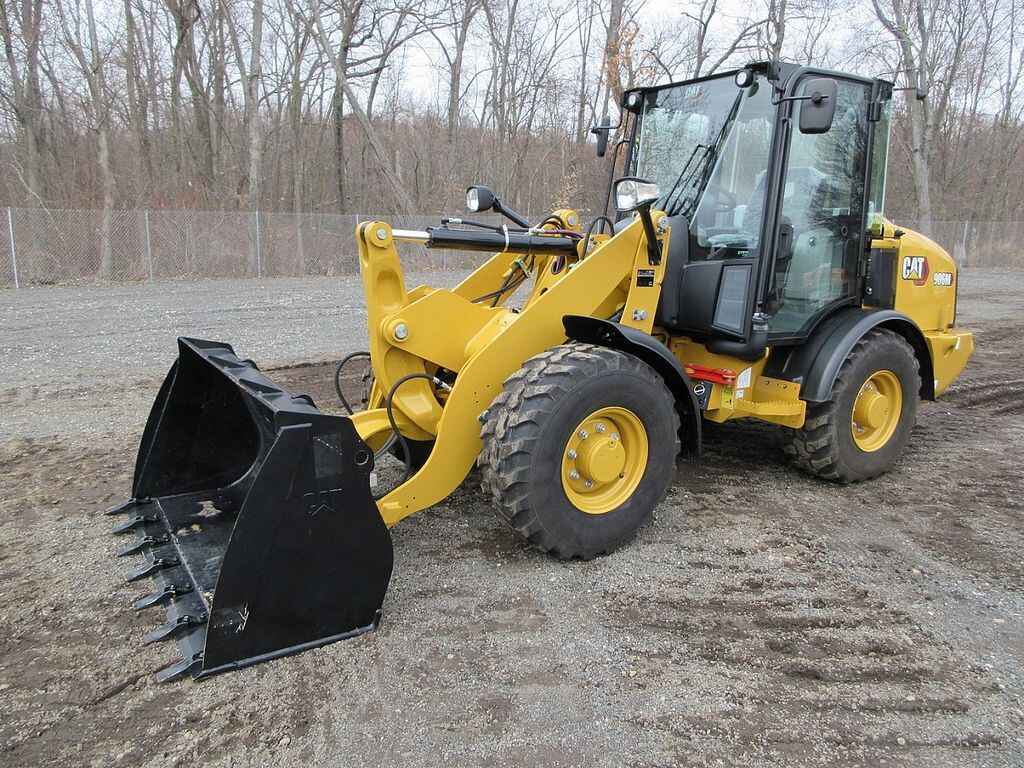

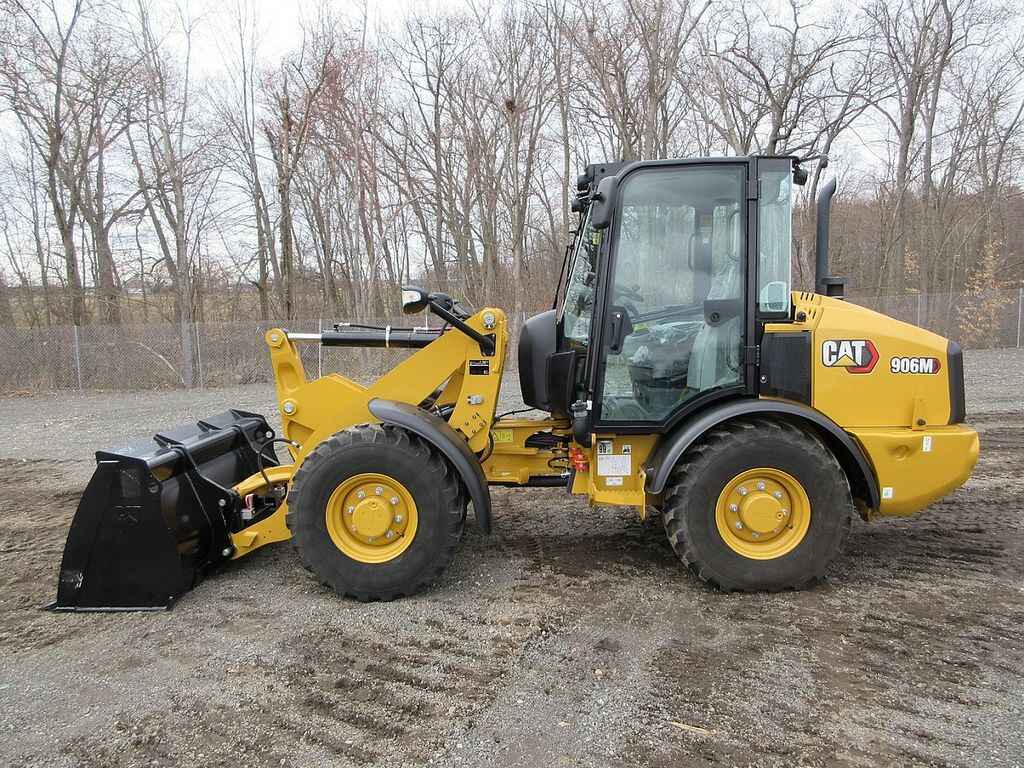

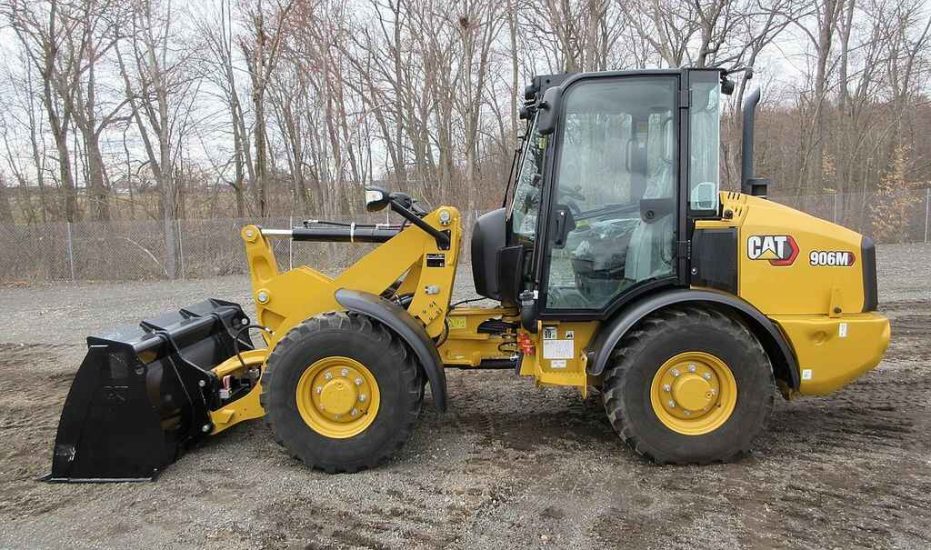

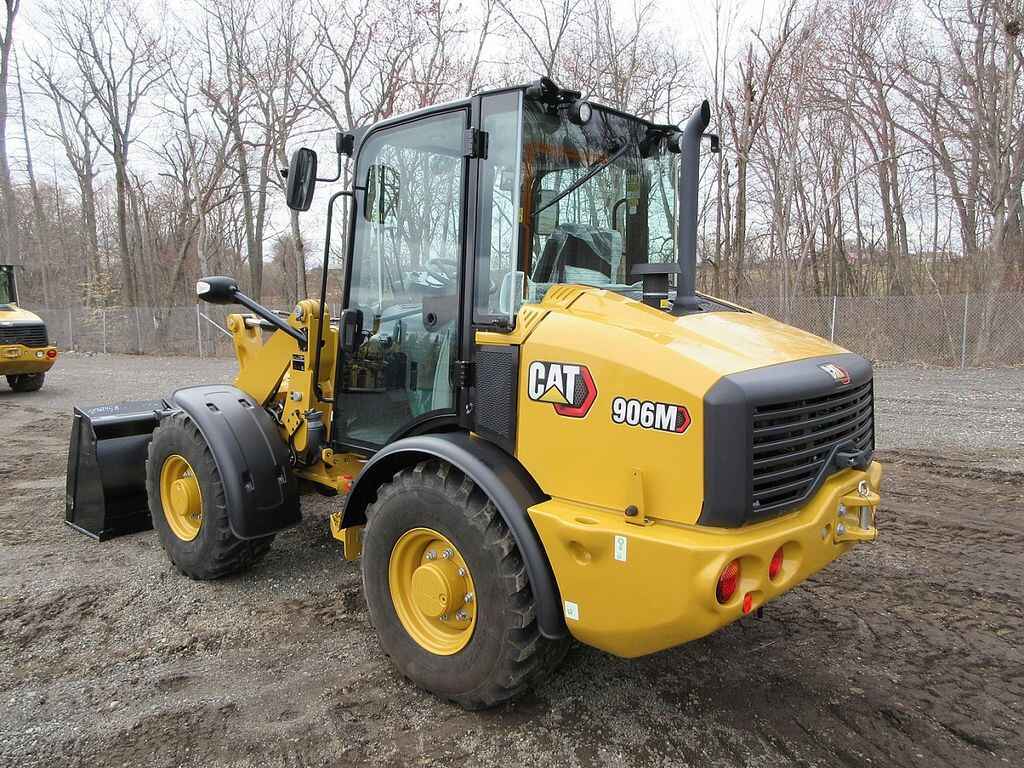

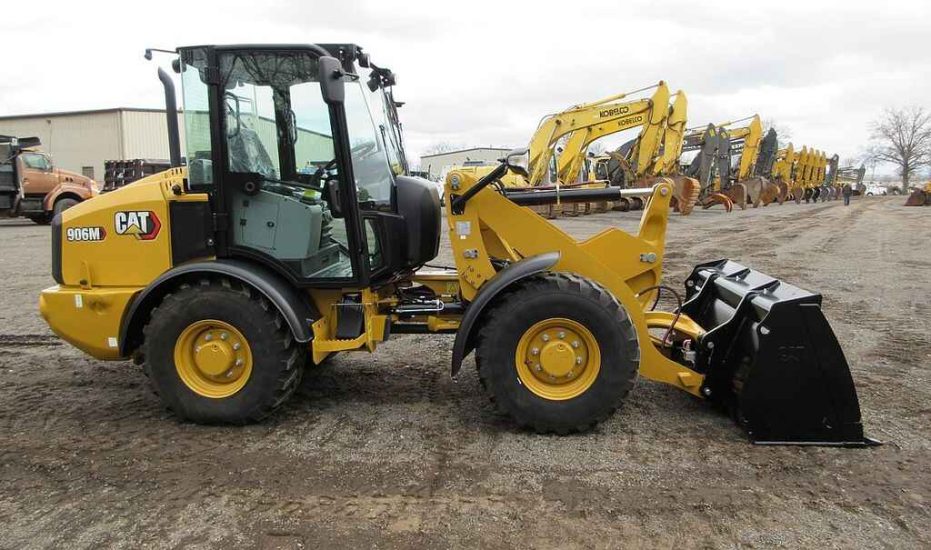

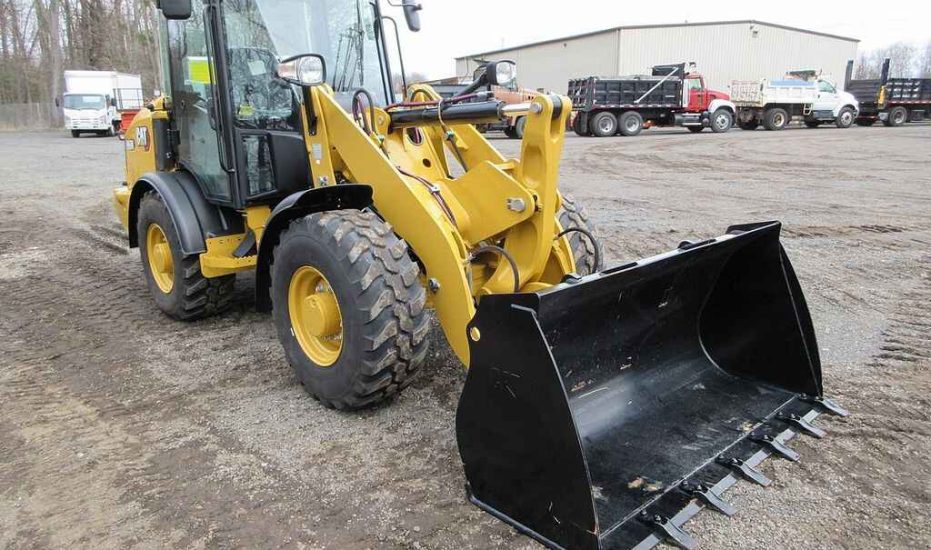

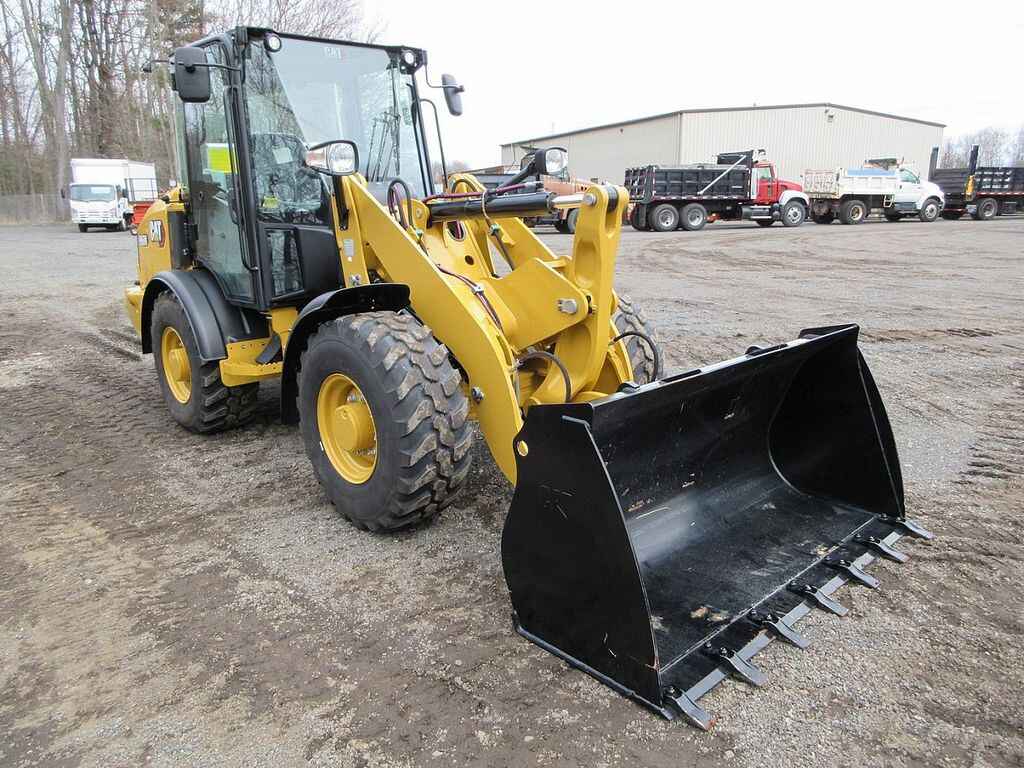

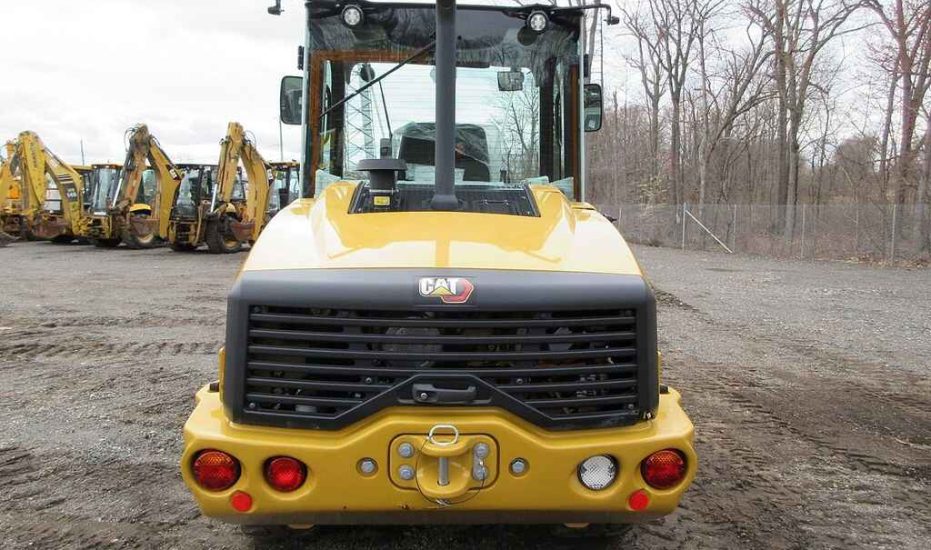

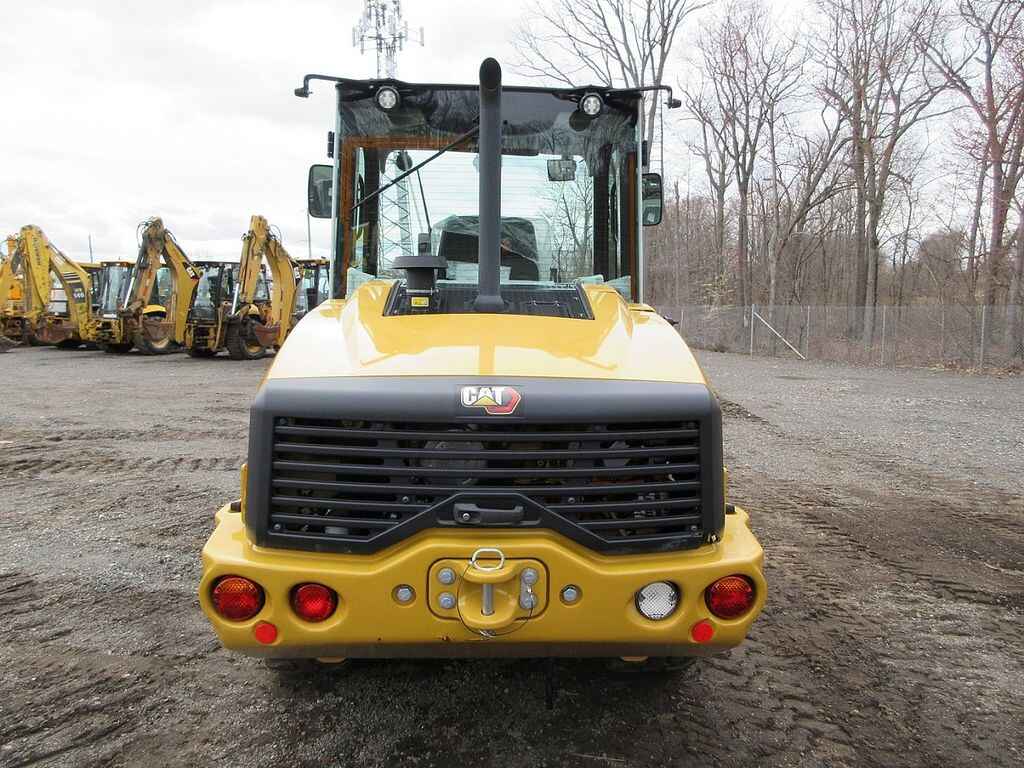

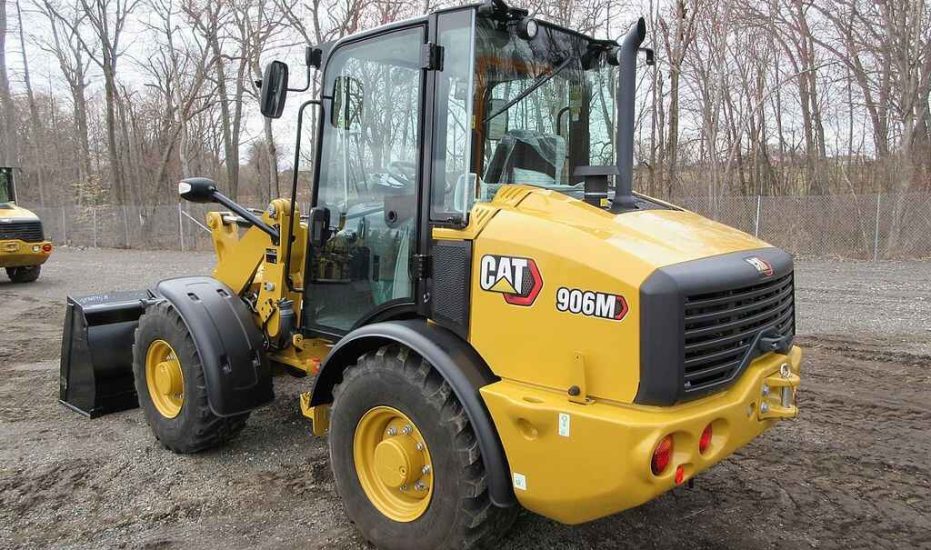

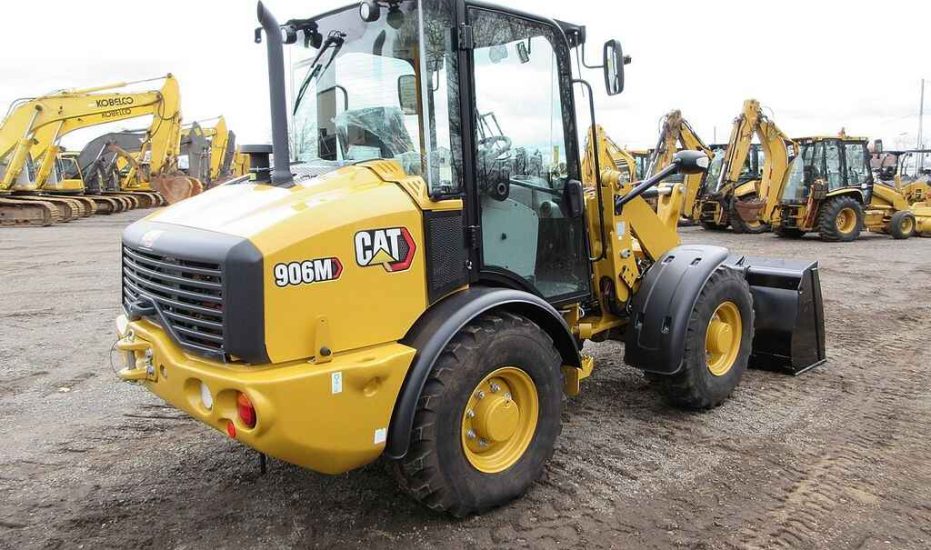

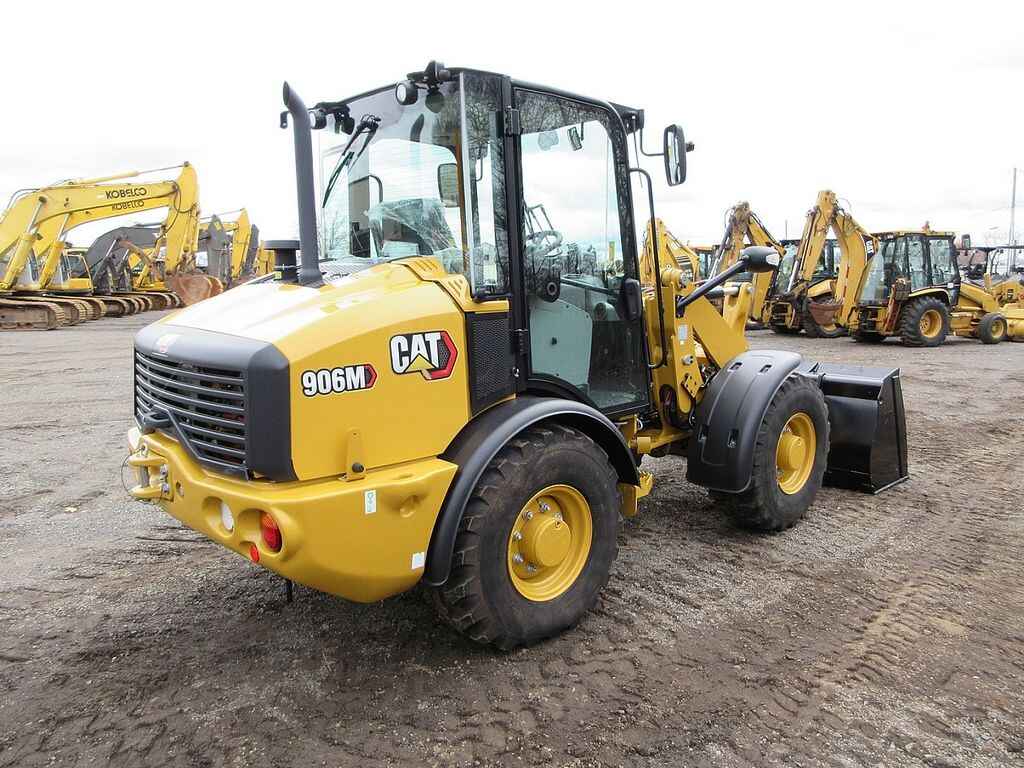

2022 Caterpillar 906M Wheel Loader

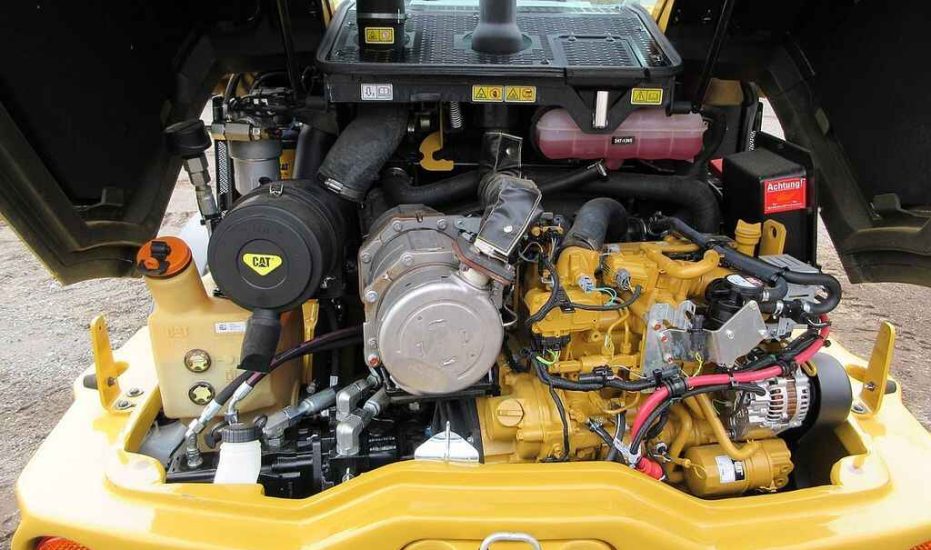

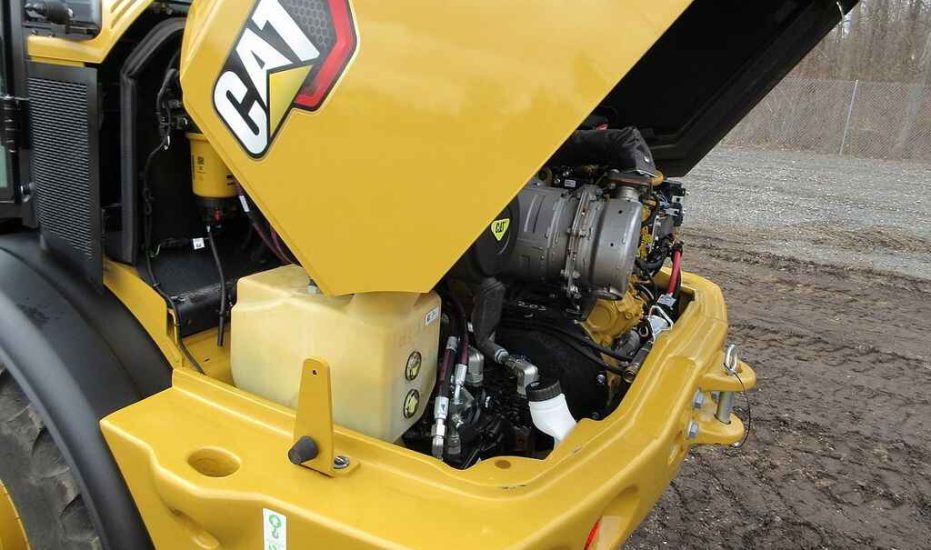

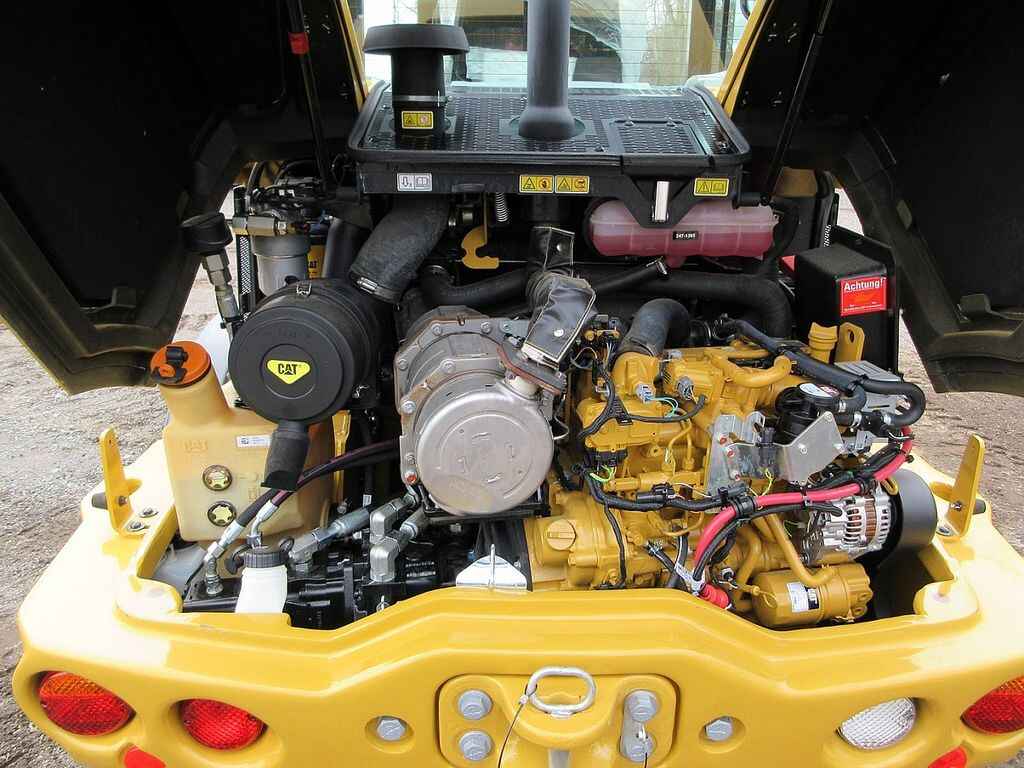

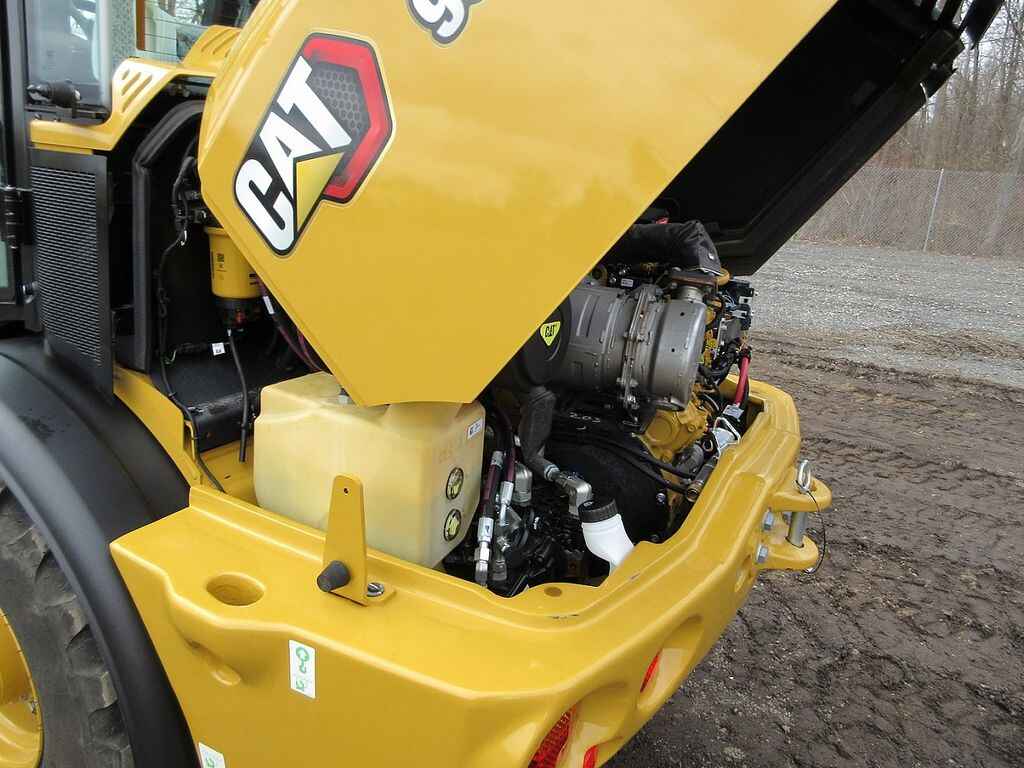

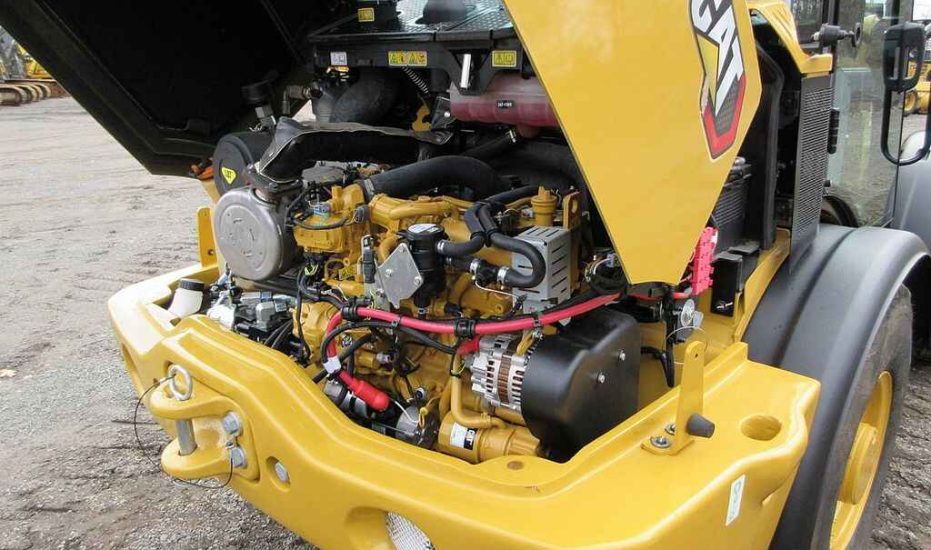

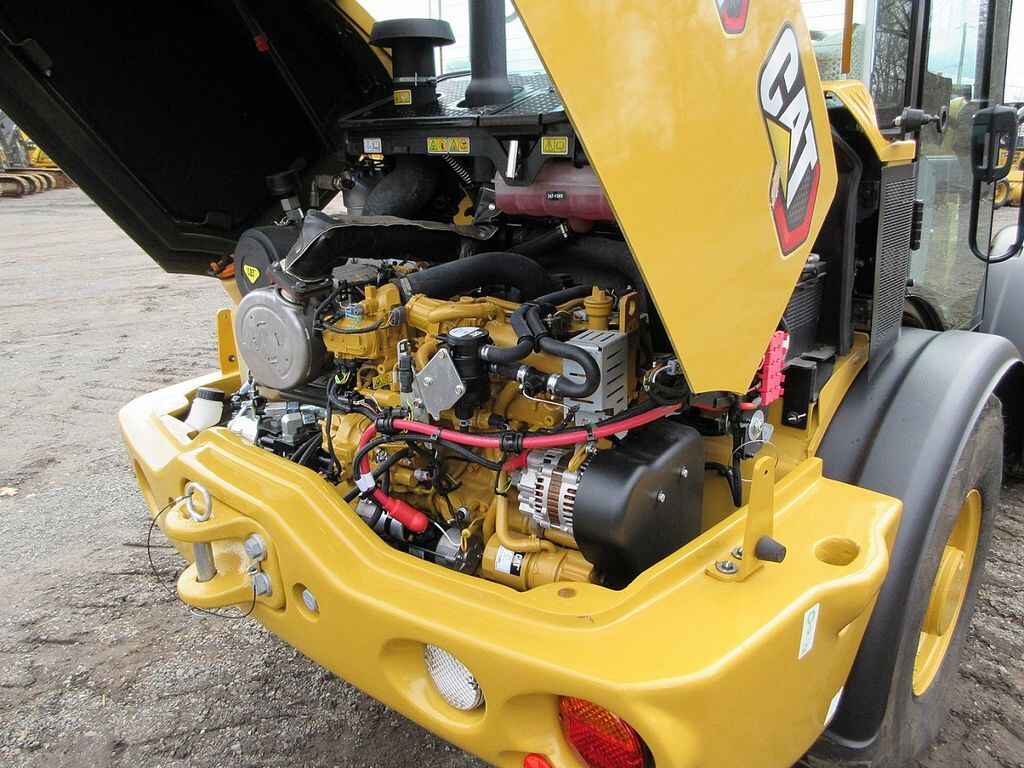

Engine

• Engine Model: Cat C3.3B DIT
• Rated Net Power: 74 hp (55 kW)
• Displacement: 201 cu in (3.3 L)
• Bore: 3.7 in (94 mm)
• Stroke: 4.7 in (120 mm)
• Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards
• Maximum Gross Power: 74 hp (55 kW)
• Maximum Net Power: 68 hp (50 kW)
• Rated Net Power @ 2,400 RPM: 73 hp (54 kW)
• Maximum Gross Torque: 192 lb-ft (260 Nm)
• Maximum Net Torque: 189 lb-ft (257 Nm)

Drive Train

• Forward Speed:
  • Range 1: 6 mph (10 km/h)
  • Range 2: 12 mph (19 km/h)
  • High Range: 22 mph (35 km/h)
• Reverse Speed:
  • Range 1: 6 mph (10 km/h)
  • Range 2: 12 mph (19 km/h)
  • High Range: 22 mph (35 km/h)

Operating Weight

• Operating Weight: 12,346 lbs (5,600 kg)

Hydraulic System

• Main Relief Pressure: 3,400 psi (23,400 kPa)
• Maximum Flow: 19 gal/min (72 L/min) (Standard Flow)
• Hydraulic Cycle Times:
  • Lift: 5.2 sec
  • Dump: 1.3 sec
  • Lower: 3.2 sec
  • Rackback: 2.1 sec

Dimensions

• Ground Clearance: 11.8 in (300 mm)
• Maximum Fork Height: 10.1 ft (3.1 m)
• Cab Height: 8.1 ft (2.5 m)
• Fork Height at Maximum Reach: 4.7 ft (1.4 m)
• Maximum Reach: 3.9 ft (1.2 m)
• Dig Depth: 3.7 in (95 mm)
• Overall Length (with bucket): 18.5 ft (5.6 m)
• Overall Length (with forks): 19.4 ft (5.9 m)
• Maximum Dump Height: 8.1 ft (2.5 m)
• Turning Radius - Inside Tire: 7.3 ft (2.2 m)
• Width: 6.2 ft (1.9 m)
• Wheel Base: 7.1 ft (2.2 m)
• Departure Angle: 33 degrees
• Articulation Angle: 39 degrees

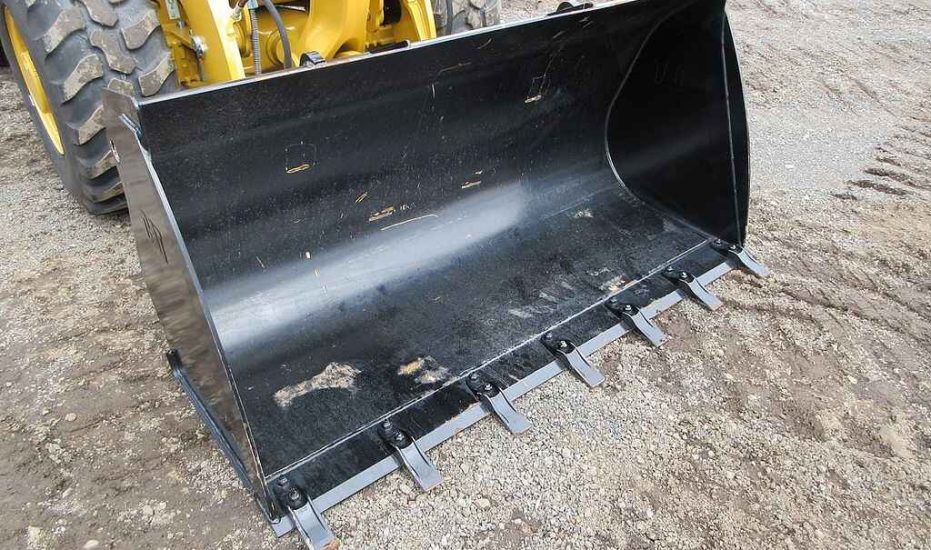

Bucket Capacities

• General Purpose: 1.2 yd³ (0.9 m³)
• Light Material: 1.6 yd³ (1.2 m³)

Tire Options

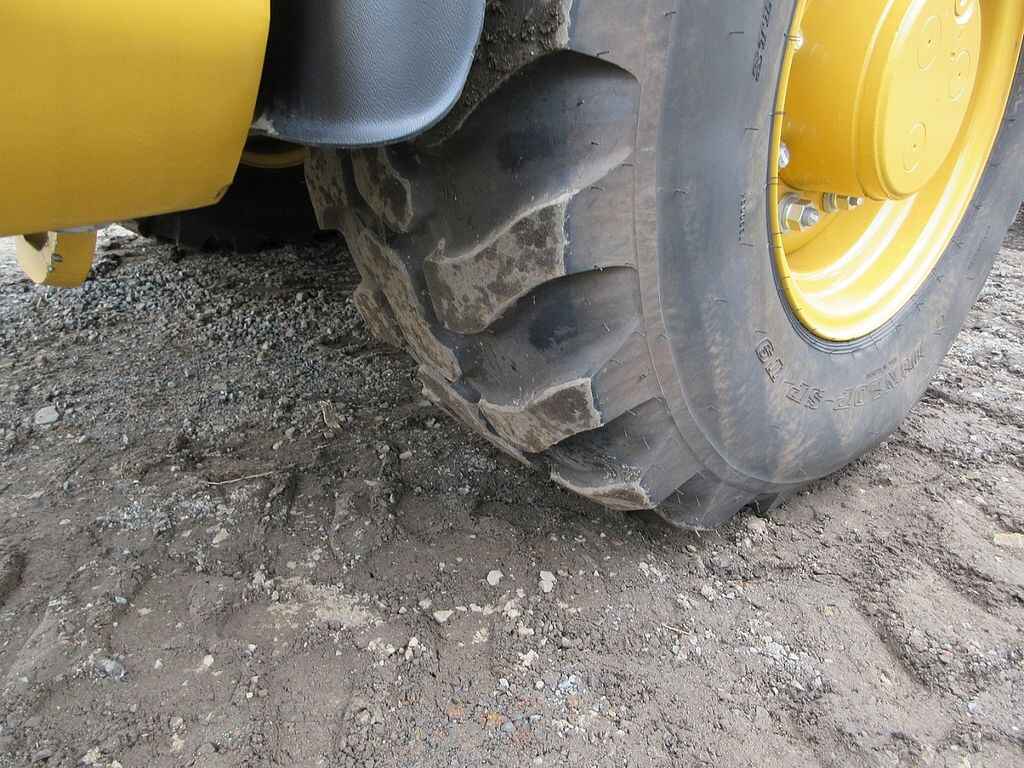

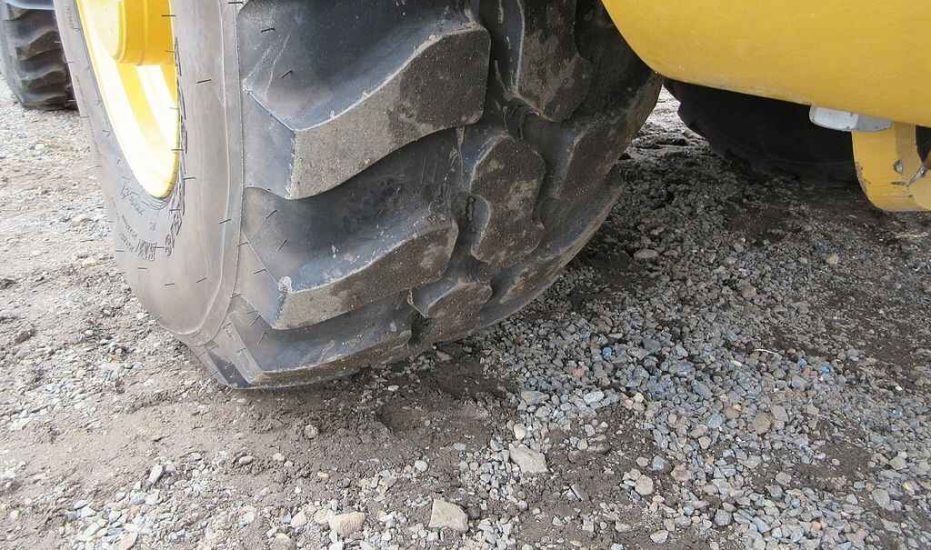

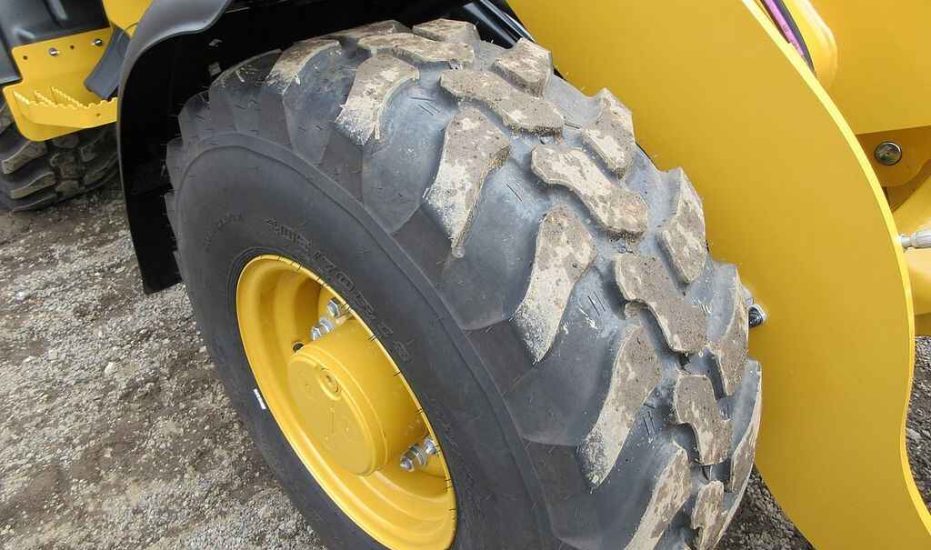

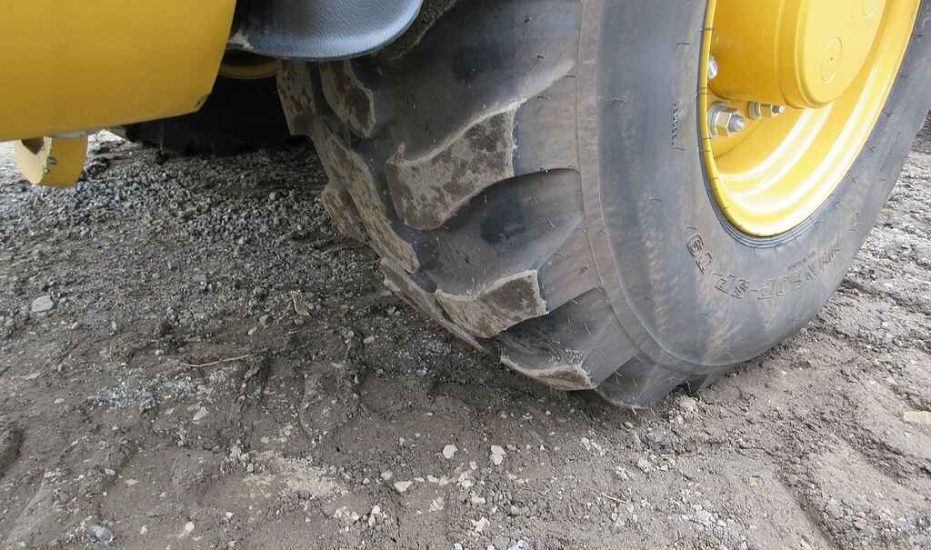

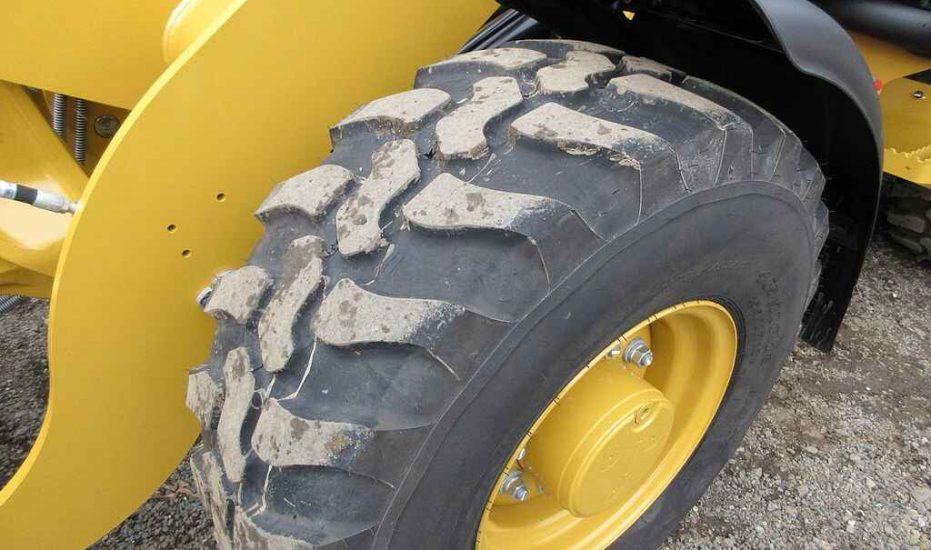

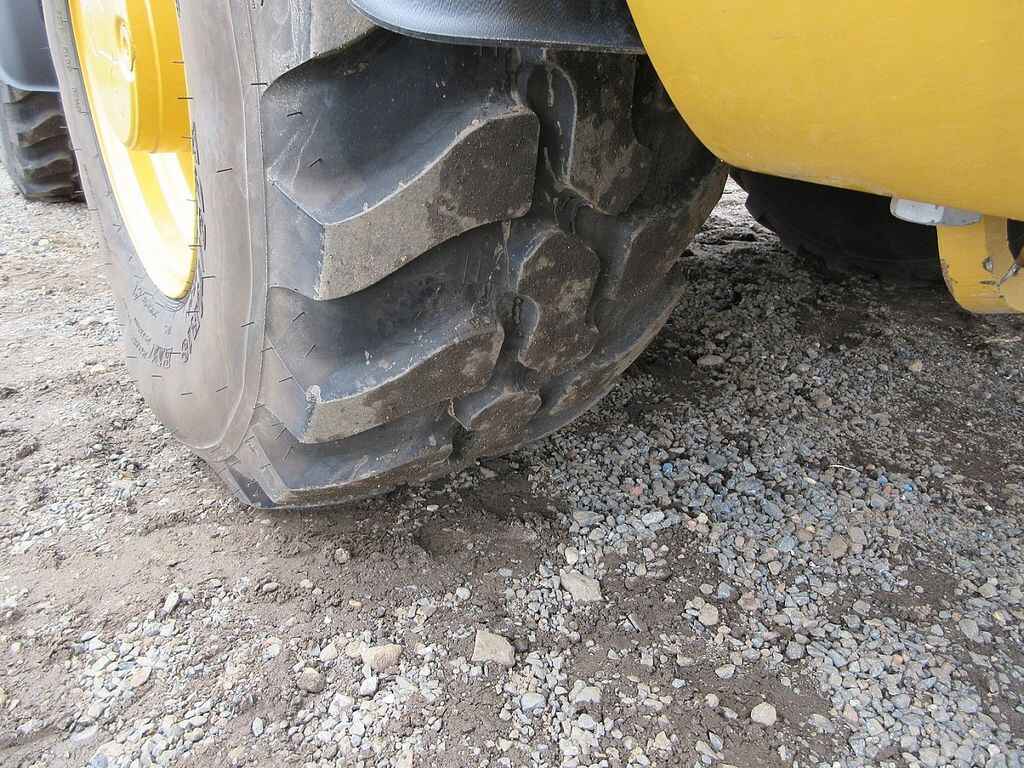

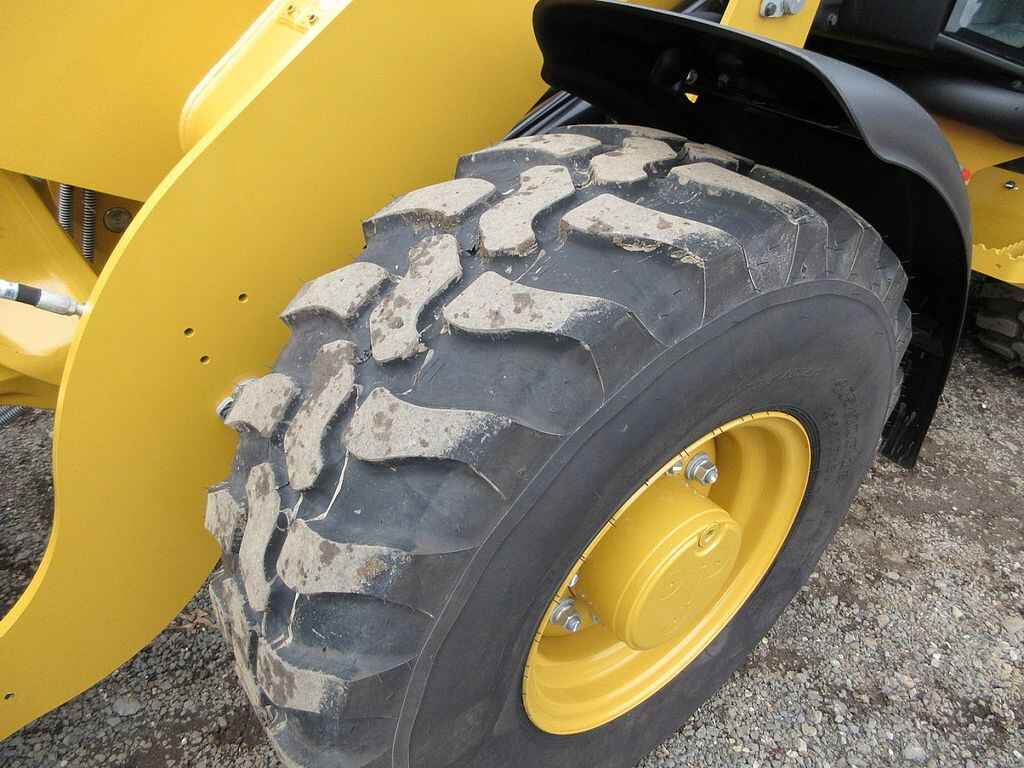

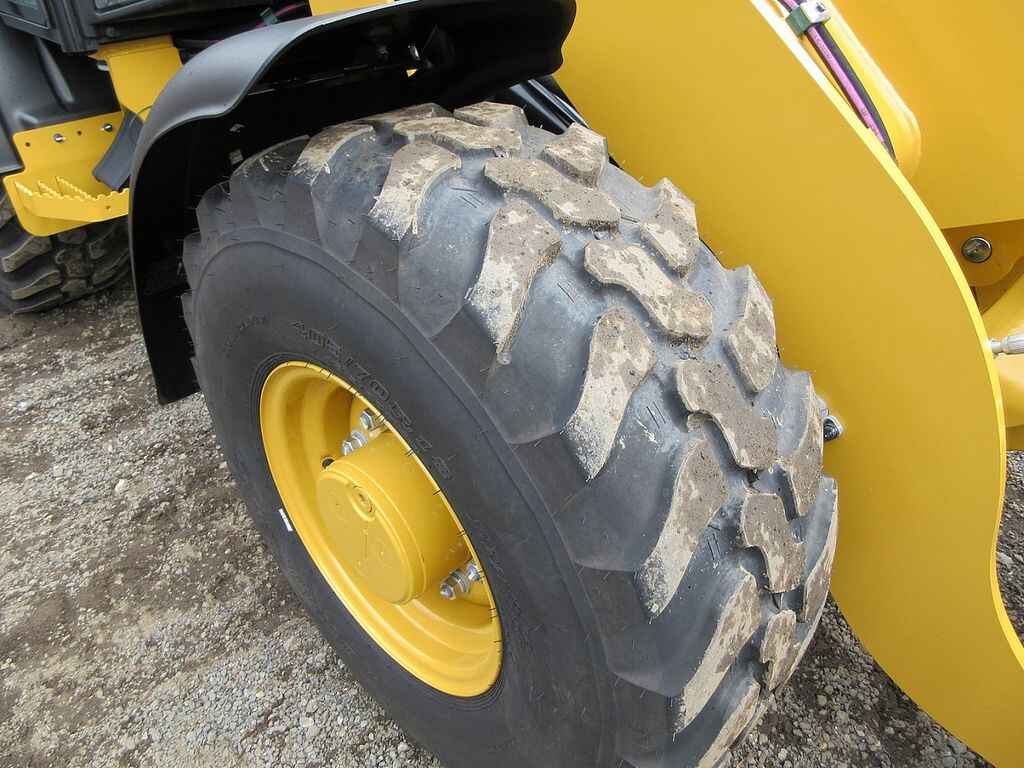

• Standard Tire: 405/70 R18 Dunlop SPT9
• Other available options: Michelin, Firestone, Nokian, etc.

Operating Specifications

• Rated Operating Load (with bucket, full turn): 7,507 lbs (3,400 kg)
• Tipping Load (full turn): 7,061 lbs (3,200 kg)
• Tipping Load (straight): 8,666 lbs (3,930 kg)
• Breakout Force (bucket): 11,689 lb-ft (15,850 Nm)

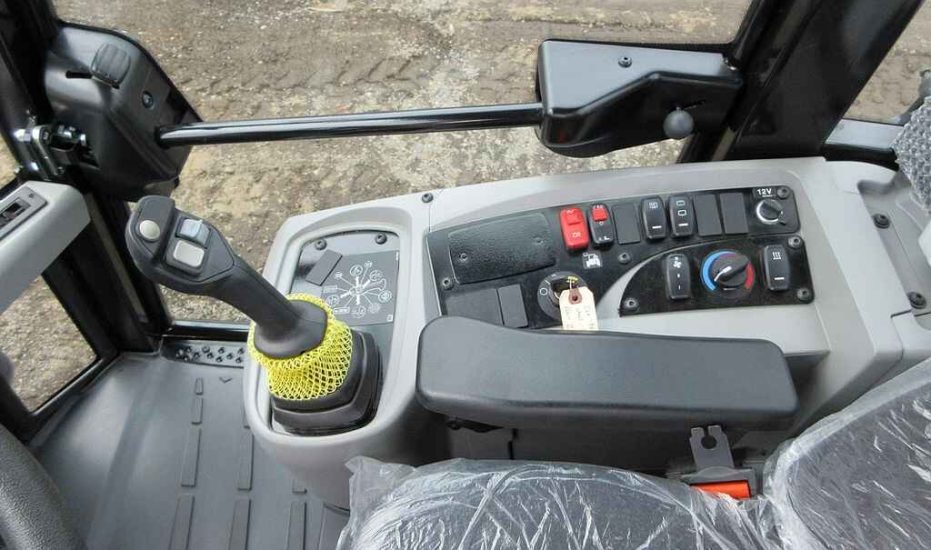

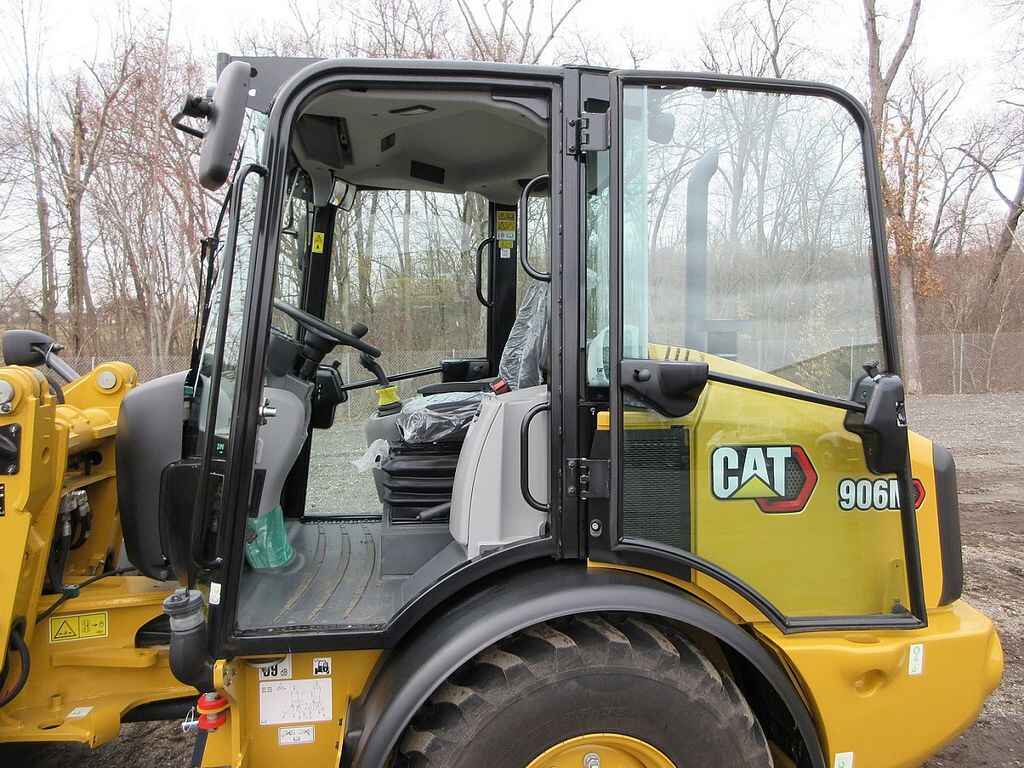

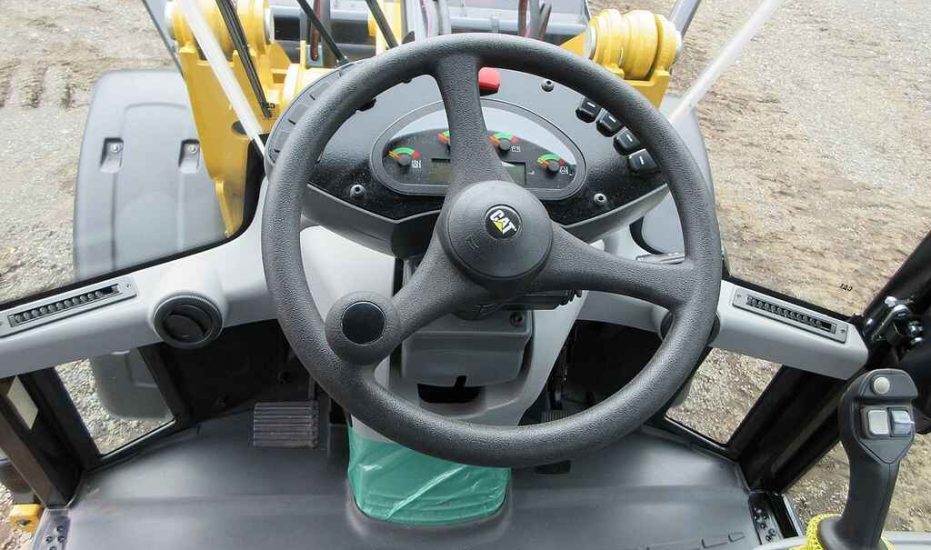

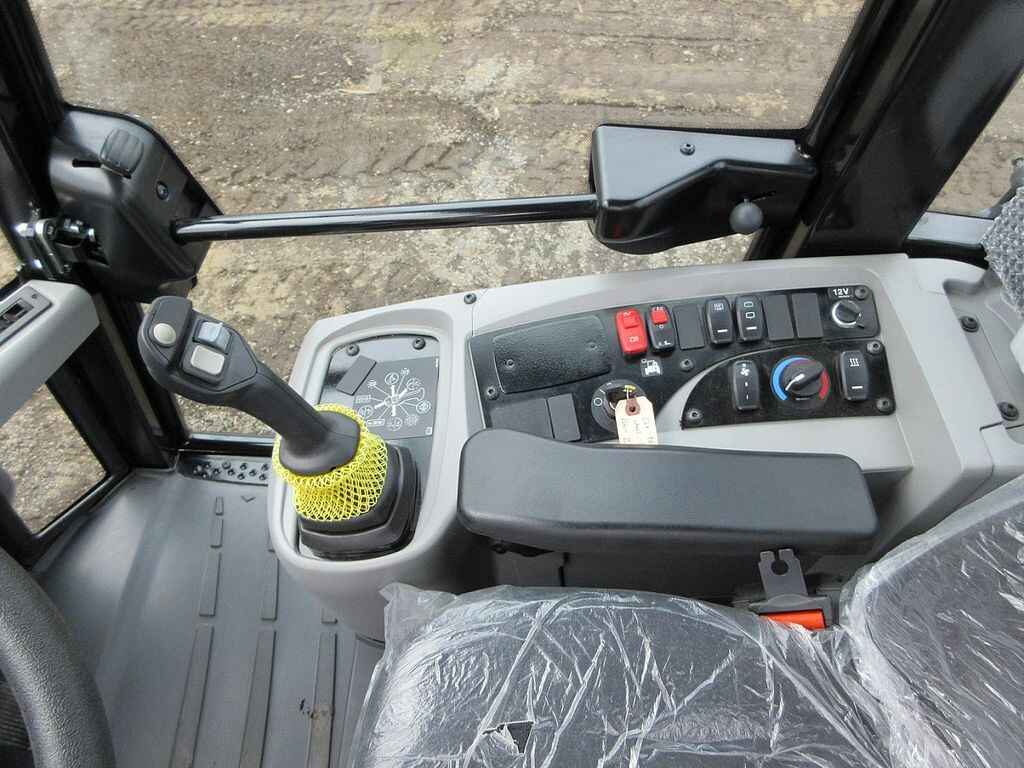

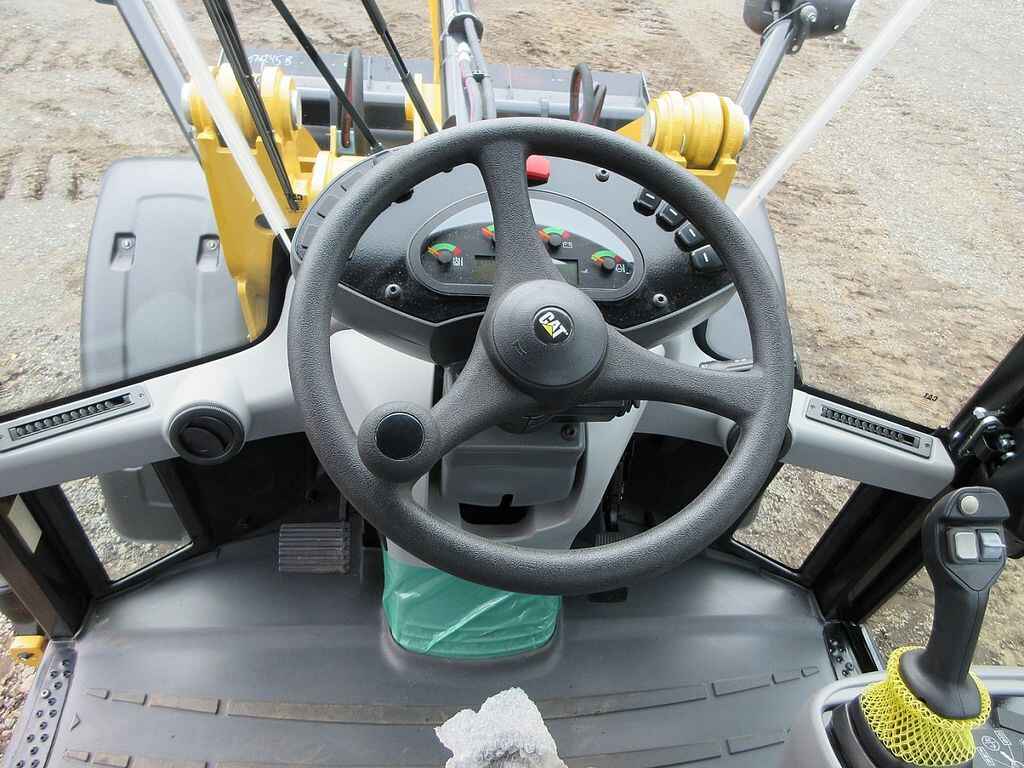

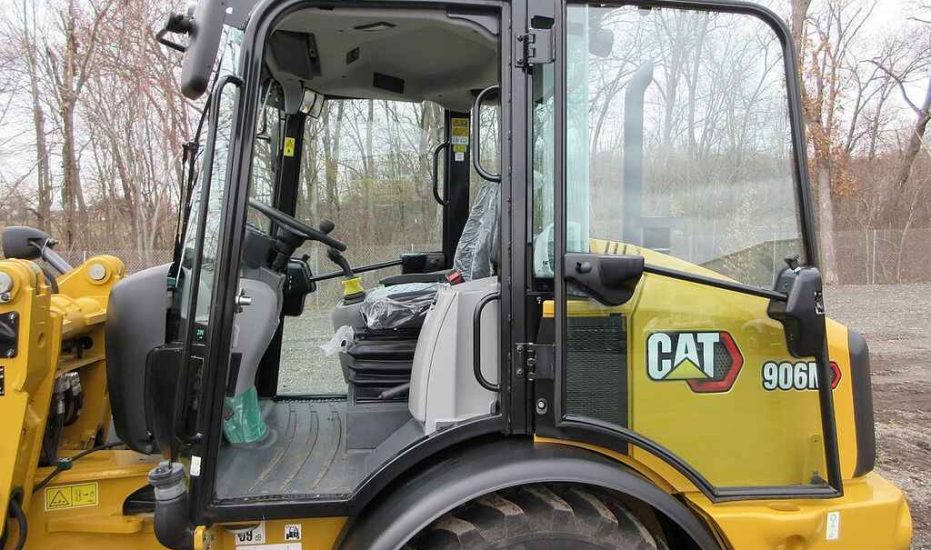

Cab Features

• Standard Features:
  • Lockable storage box
  • Cup holder

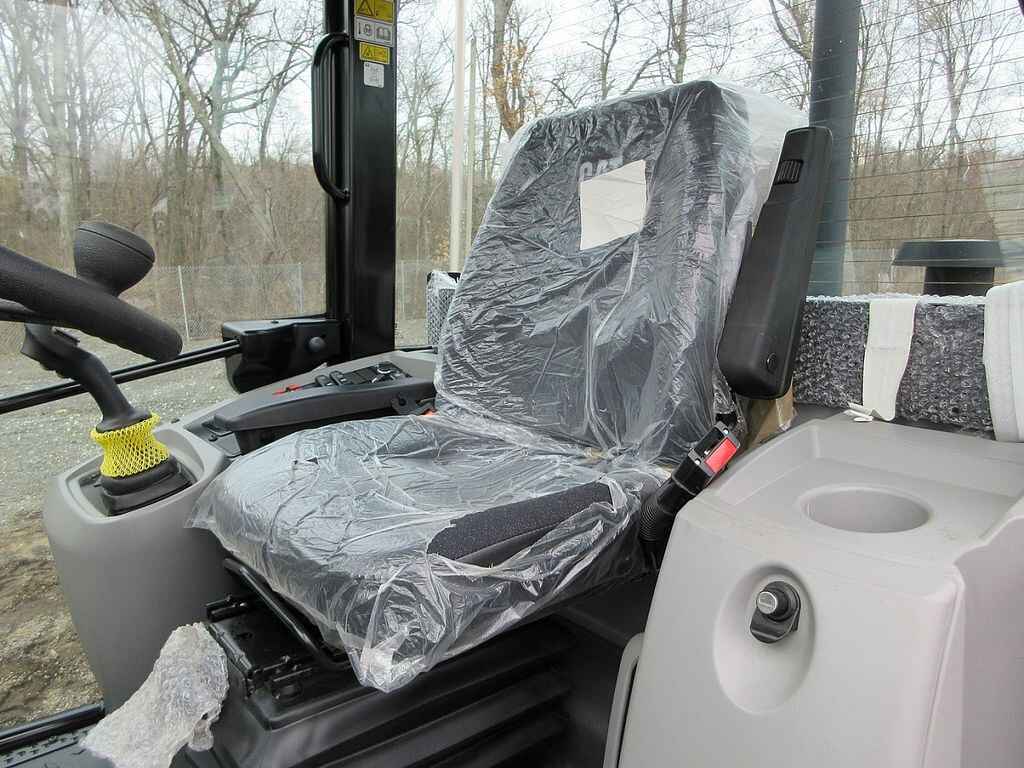

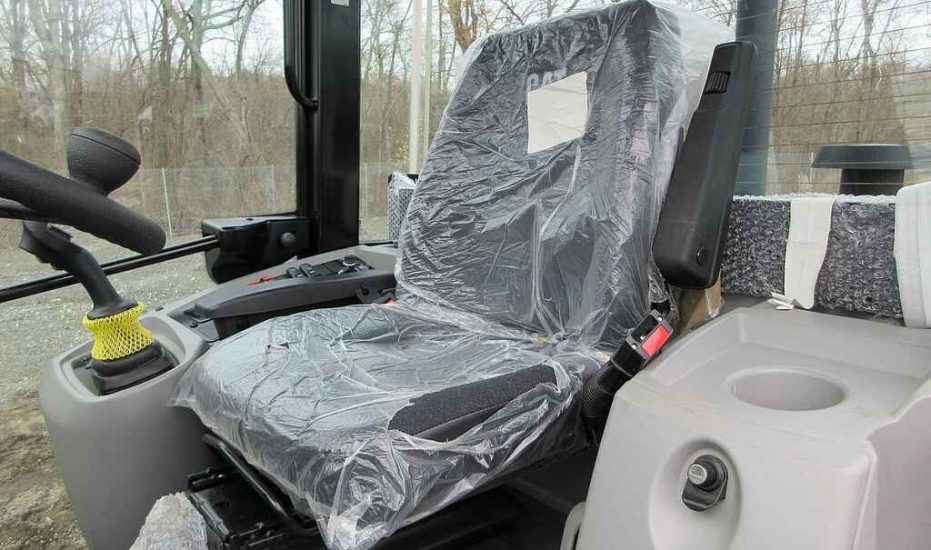

  • Vinyl suspension seat
  • Adjustable internal mirror
  • Coat hook
  • Fixed steering column
  • Sun visor
  • External knock back mirrors
• Optional Features:
  • Air conditioner
  • Cat radio/CD/MP3/WMA/Aux
  • Heated rear window
  • Machine security system
  • Radio-ready kit

Service Refill Capacities

• Cooling System: 4.4 gal (16.7 L)
• Fuel Tank: 13.7 gal (51.9 L)
• Hydraulic Tank: 12.2 gal (46.2 L)
• Hydraulic System (including tank): 18.5 gal (70.1 L)
• Engine Crankcase: 3 gal (11.4 L)
• Transmission: 2.2 gal (8.3 L)

Loader Hydraulic System

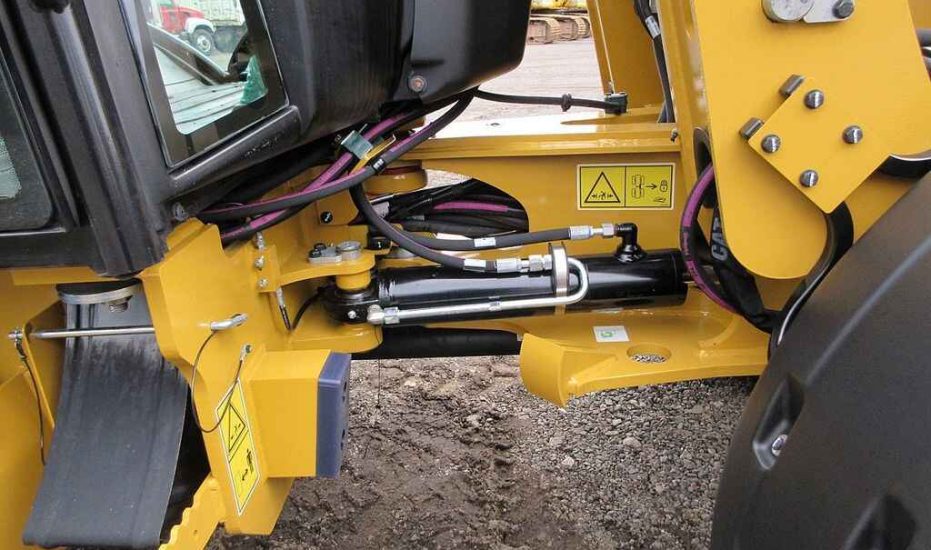

• Lift Cylinder Stroke: 27.4 in (695 mm)
• Tilt Cylinder Stroke: 16.4 in (417 mm)
• Maximum Flow: 19 gal/min (72 L/min)

Optional Features

• Buckets:
  • General Purpose Bucket
  • Light Material Bucket
  • Multi-purpose Bucket
• Auxiliary Hydraulics:
  • Standard flow: 19 gal/min (72 L/min)
  • High flow: 31 gal/min (117 L/min)
