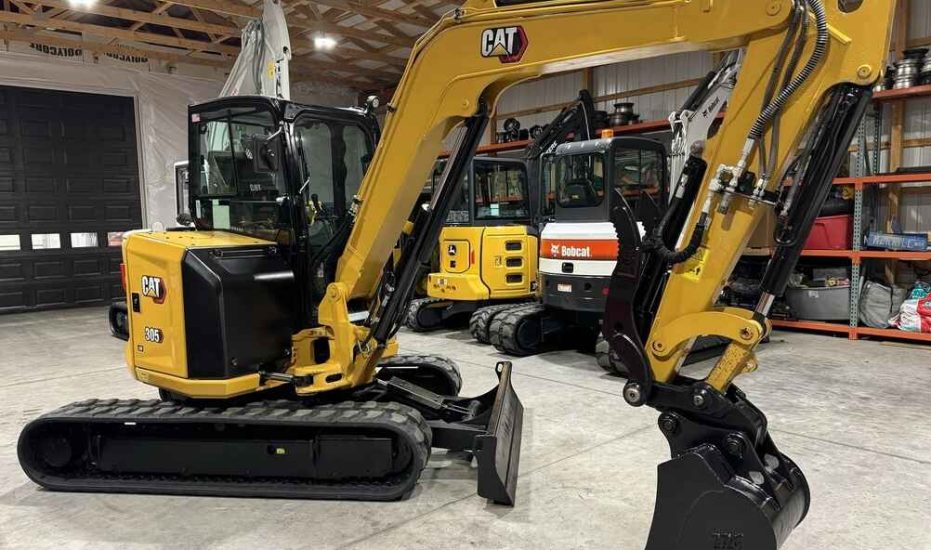

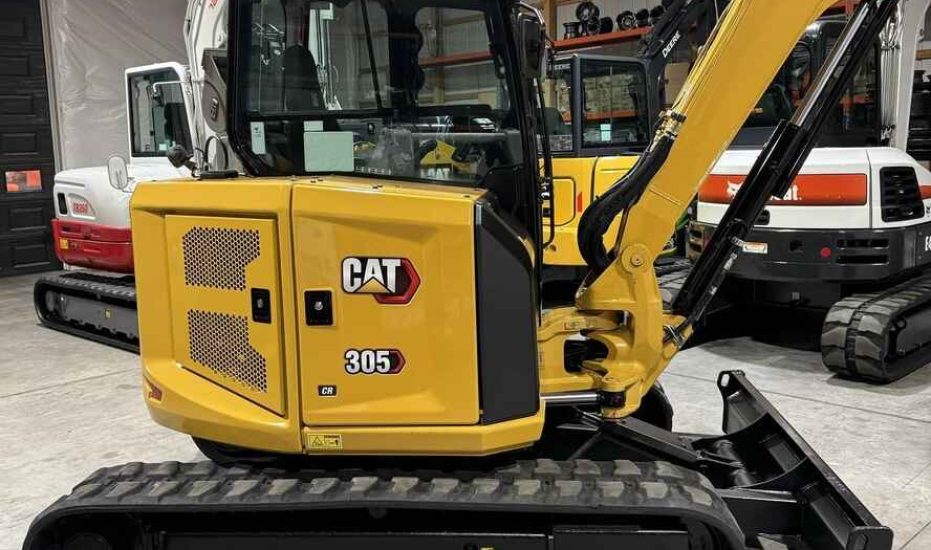

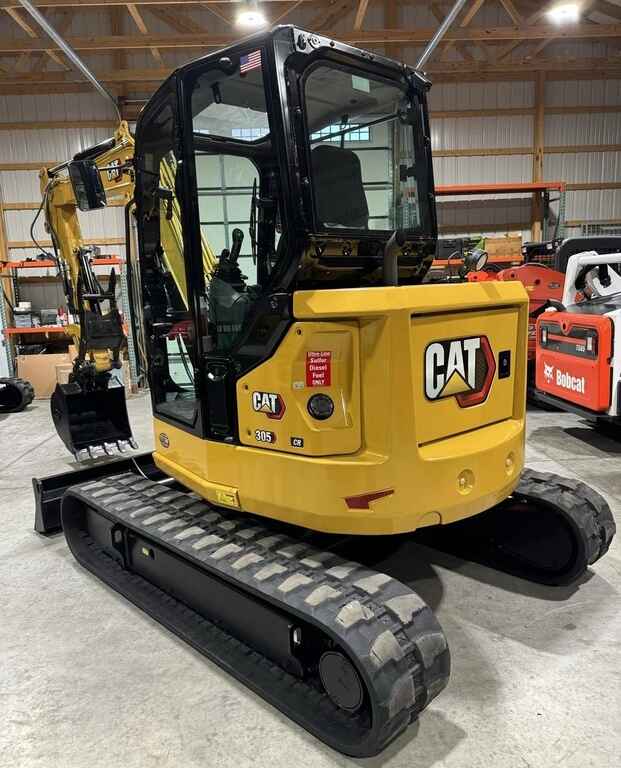

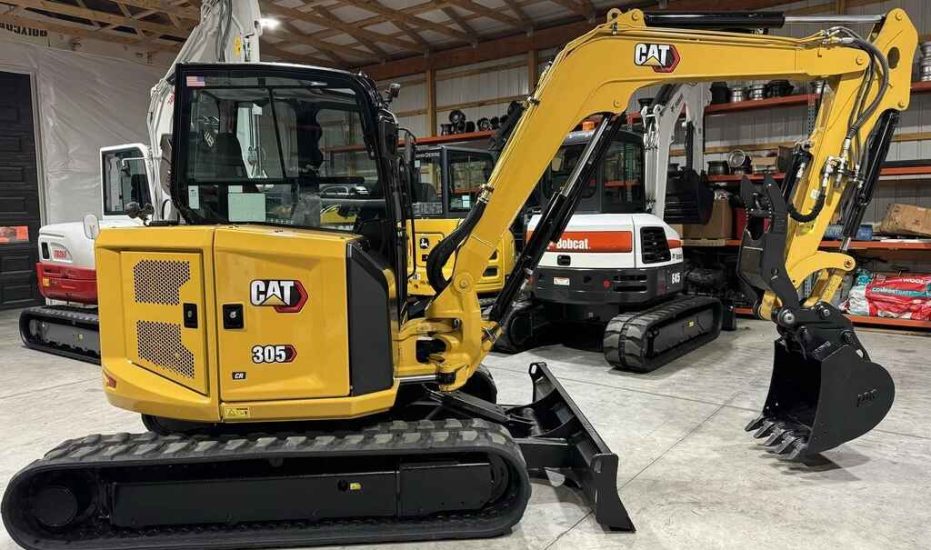

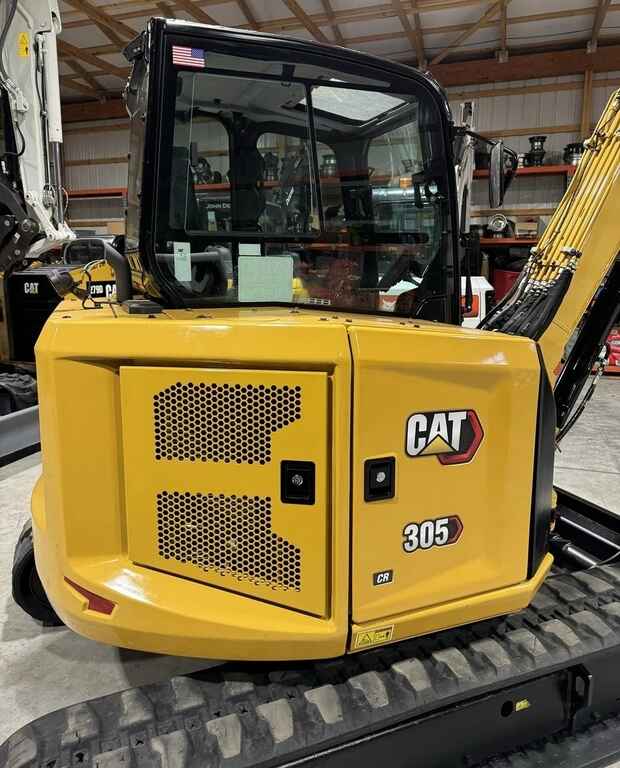

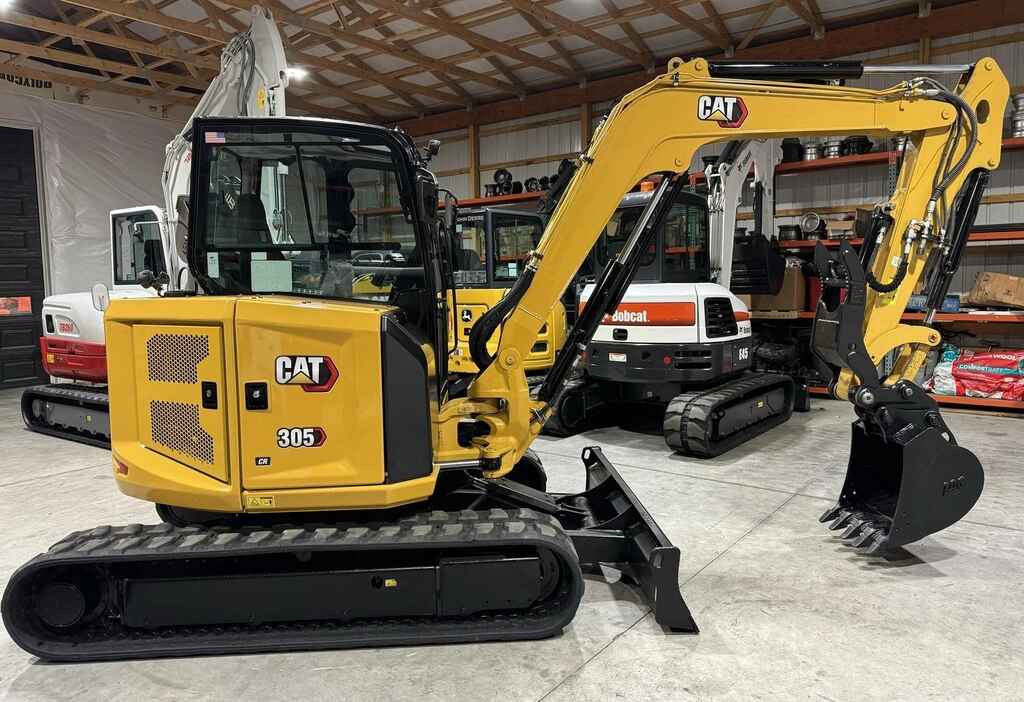

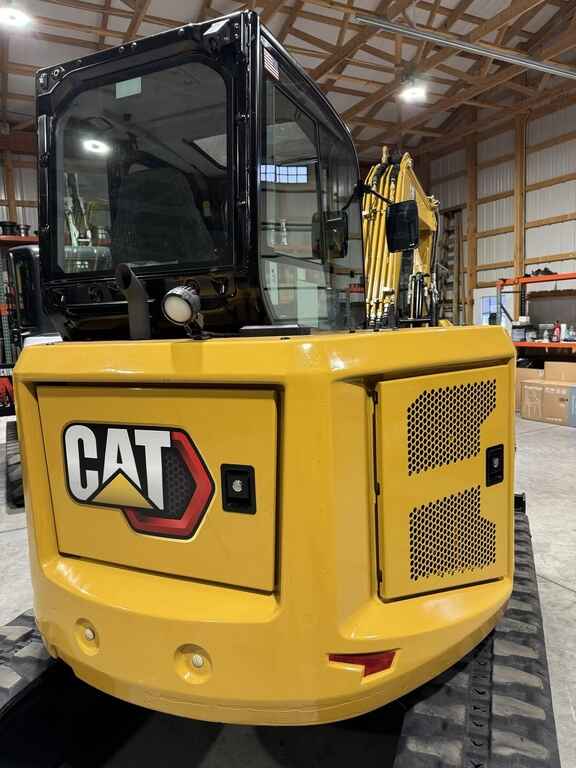

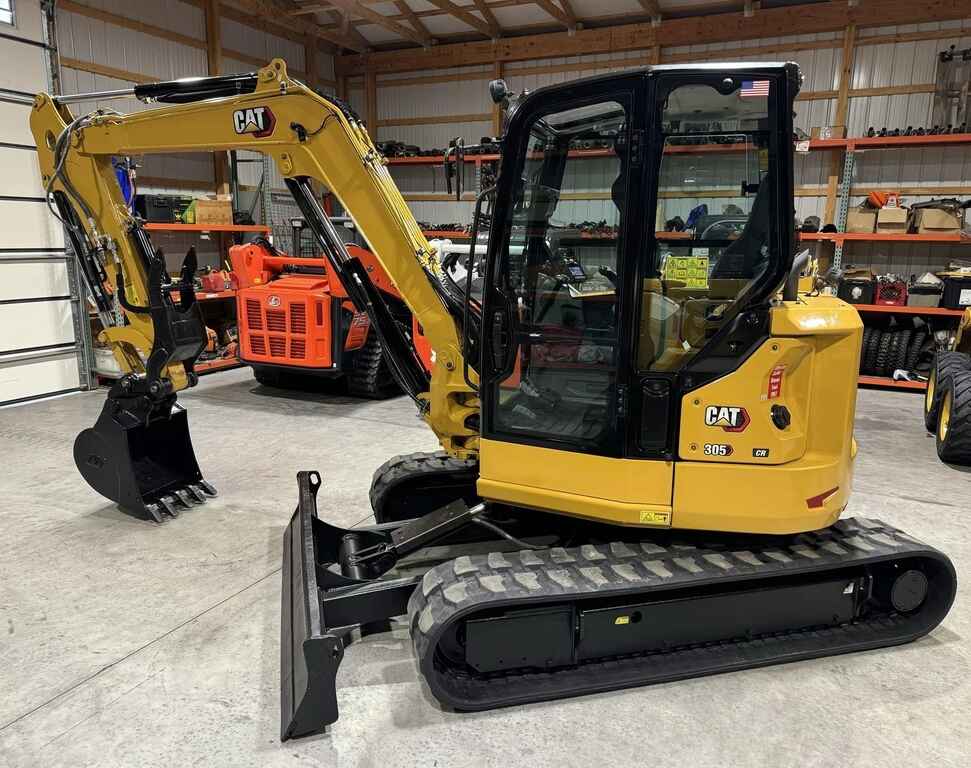

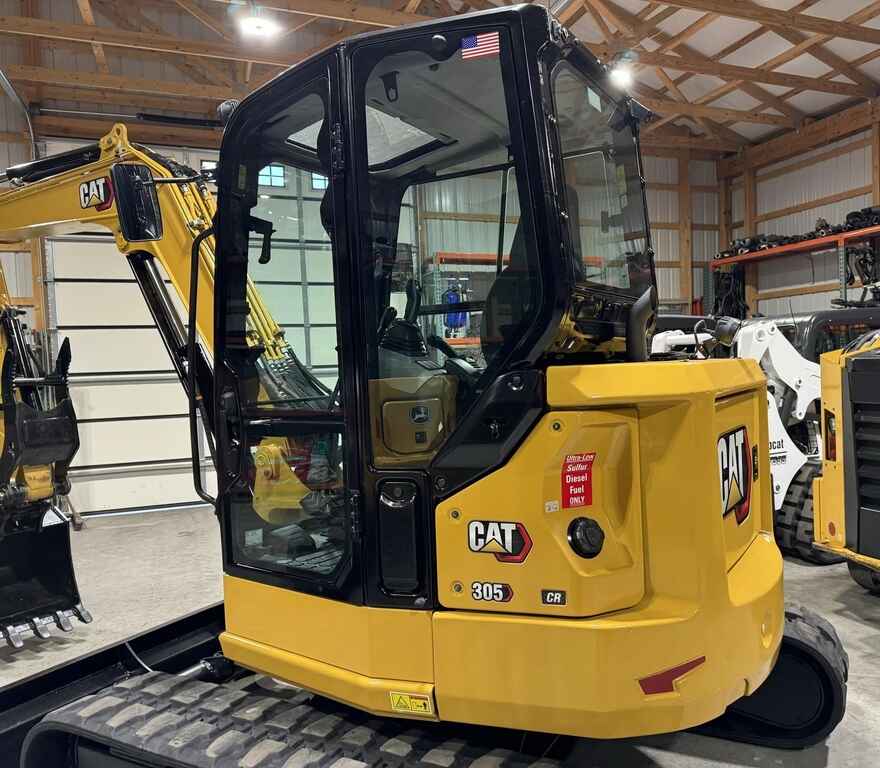

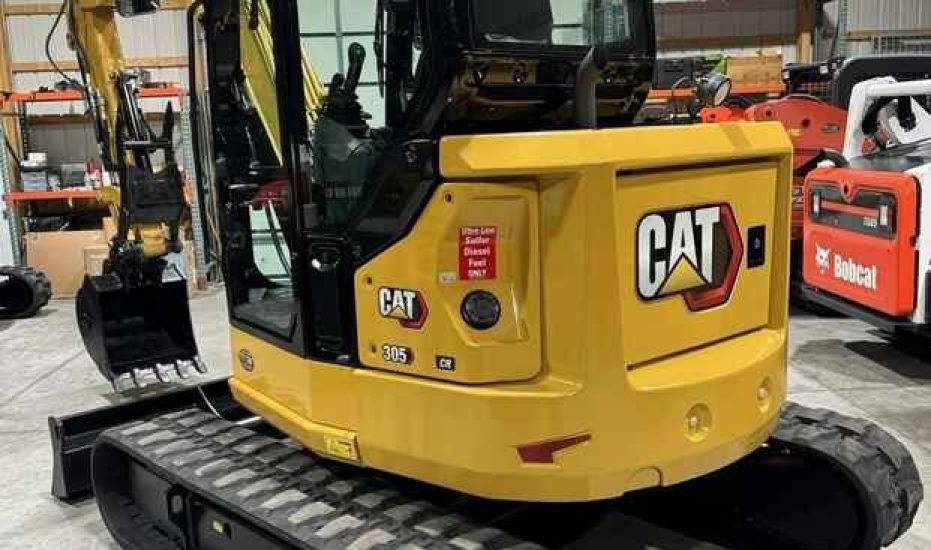

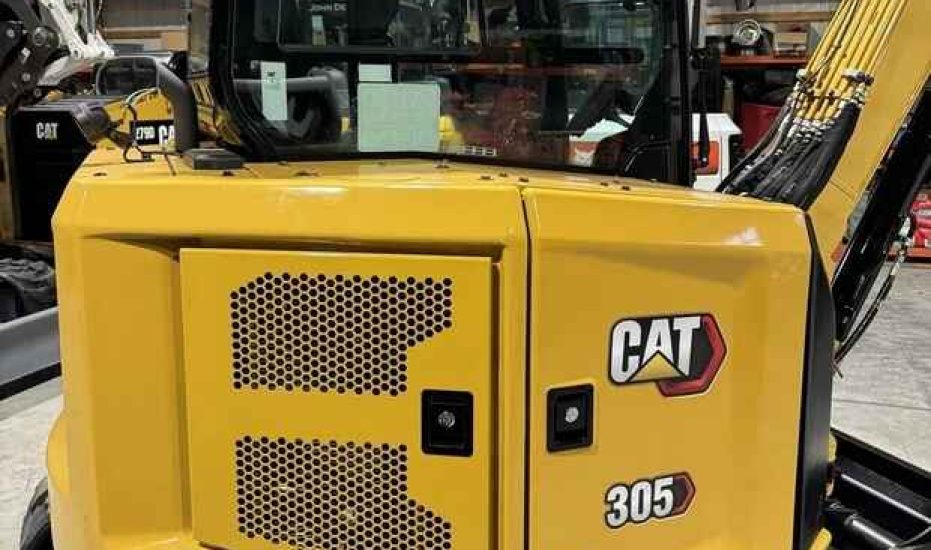

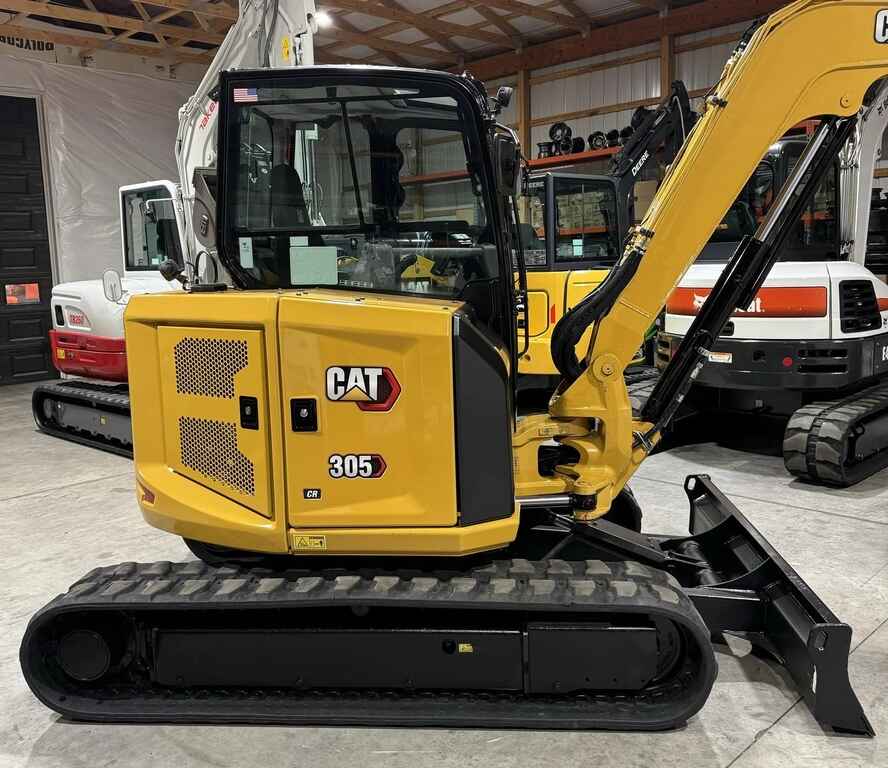

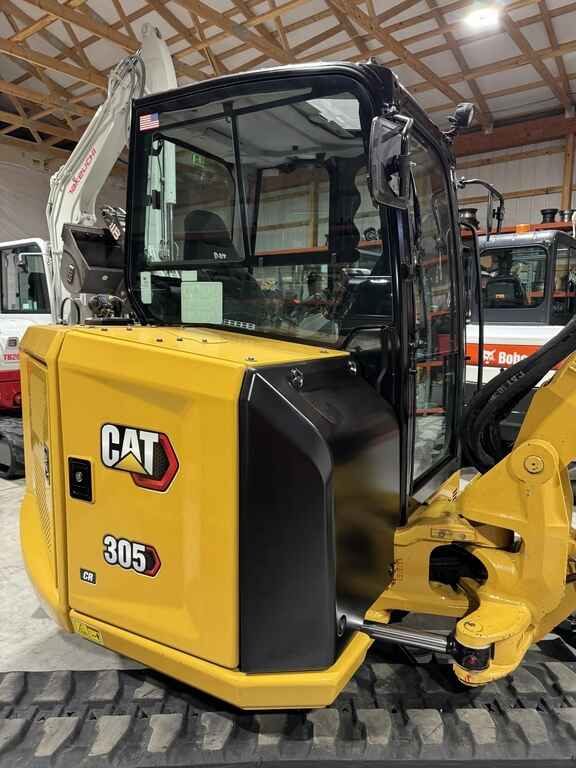

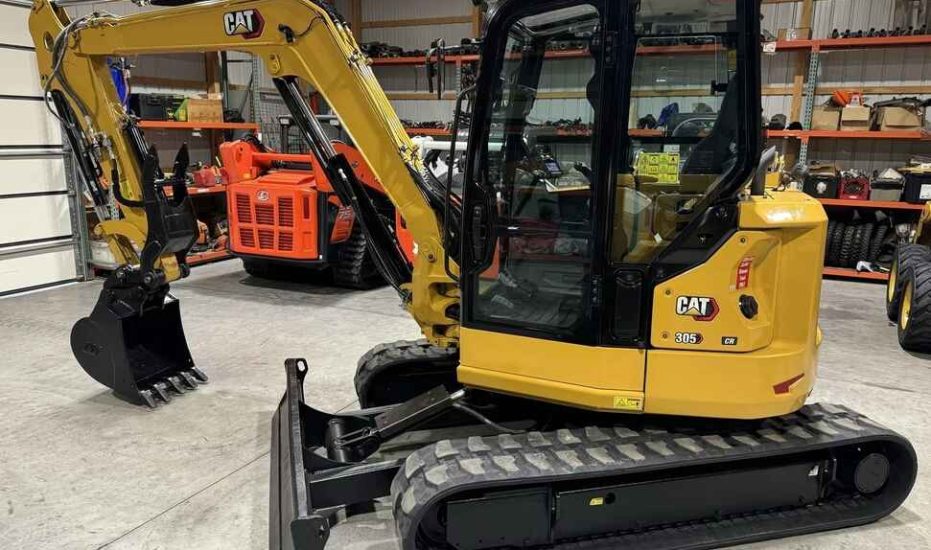

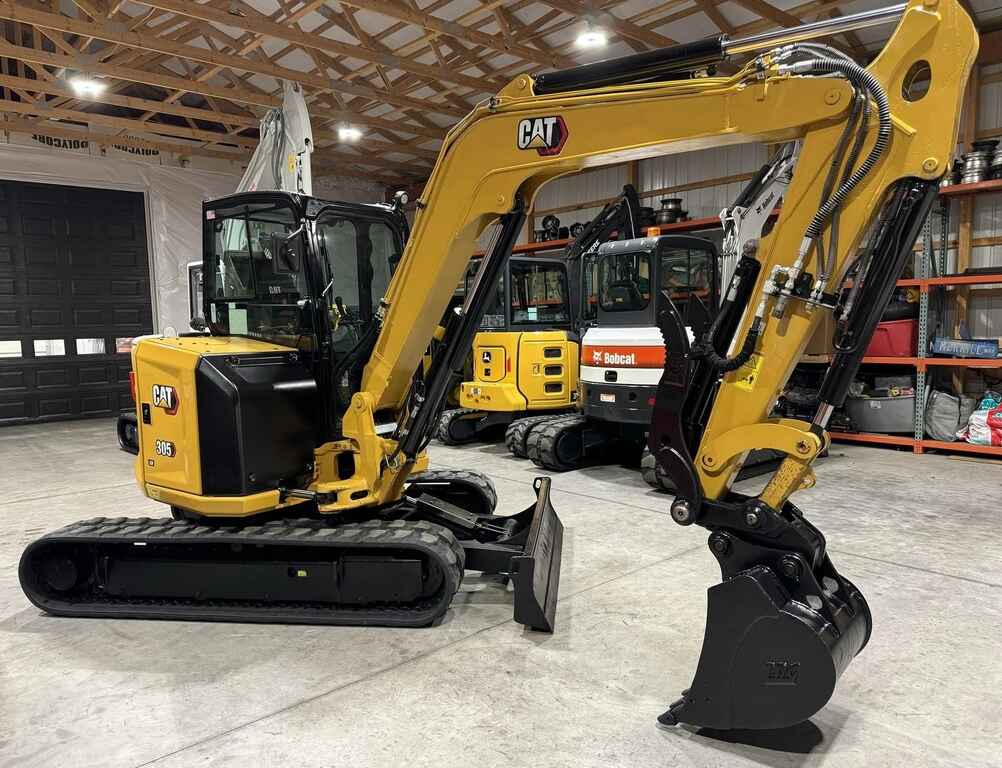

2023 CAT 305 CR NEXT GEN CLEAN!

PRICE FIRM NO TAX OR FEES (This machine is over 100k New!)

Comes with 6M/1500HR FULL WARRANTY! CAT EMISSIONS WARRANTY Into 2028! Machine was just fully cleaned, serviced, greased and looked over. Photos just taken! Delivery available!
– 2,065 Well Maintained Hours!

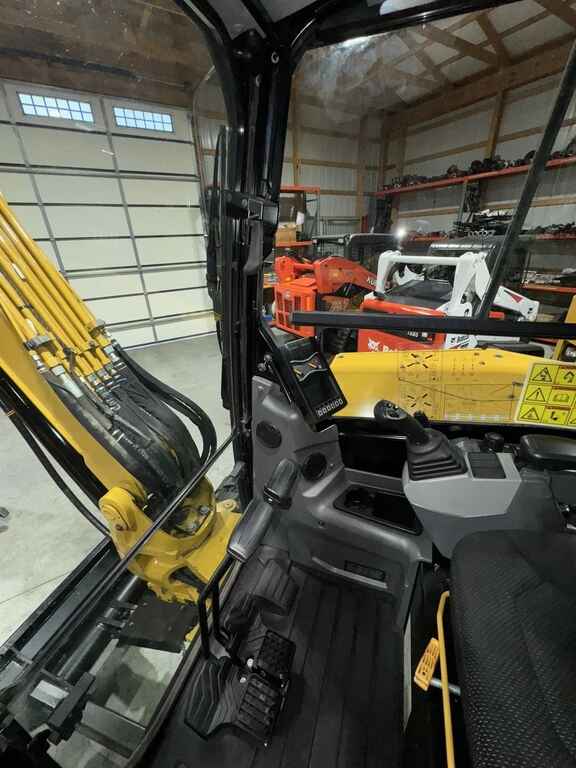

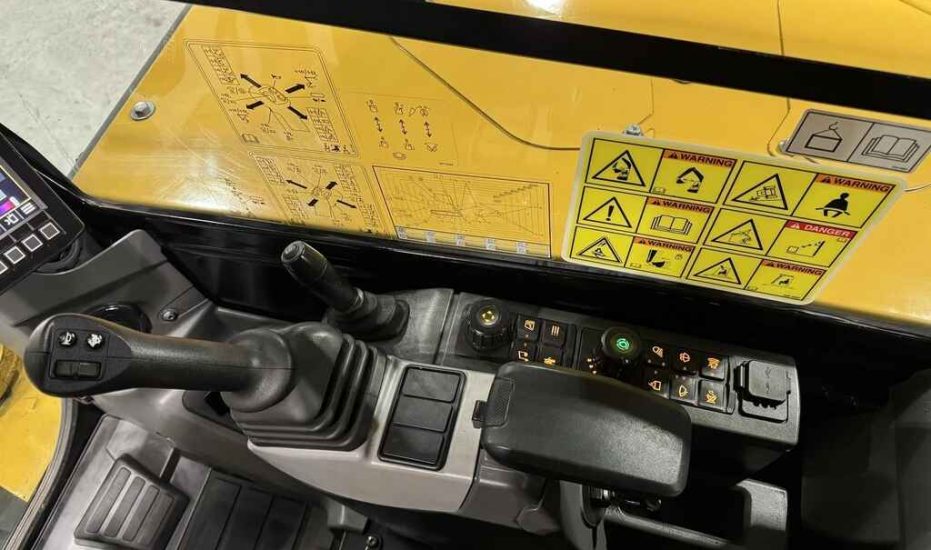

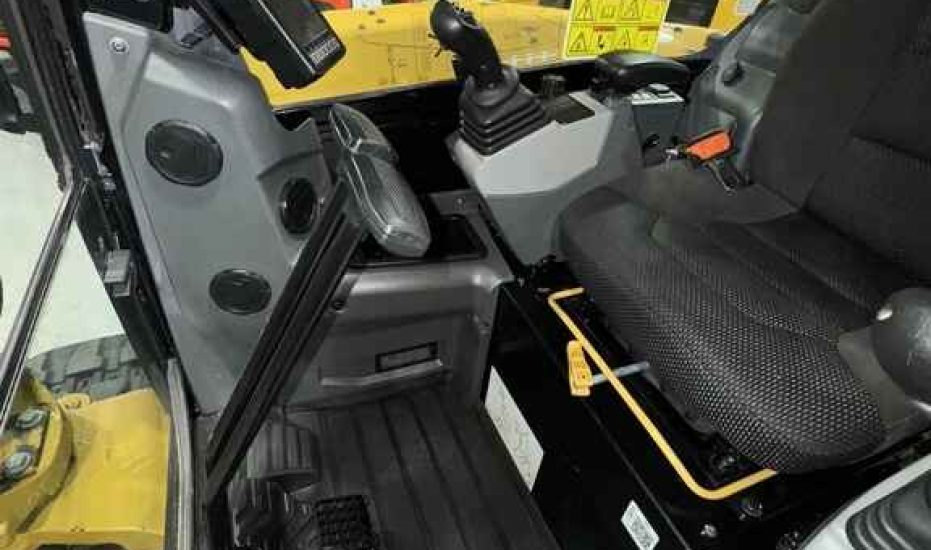

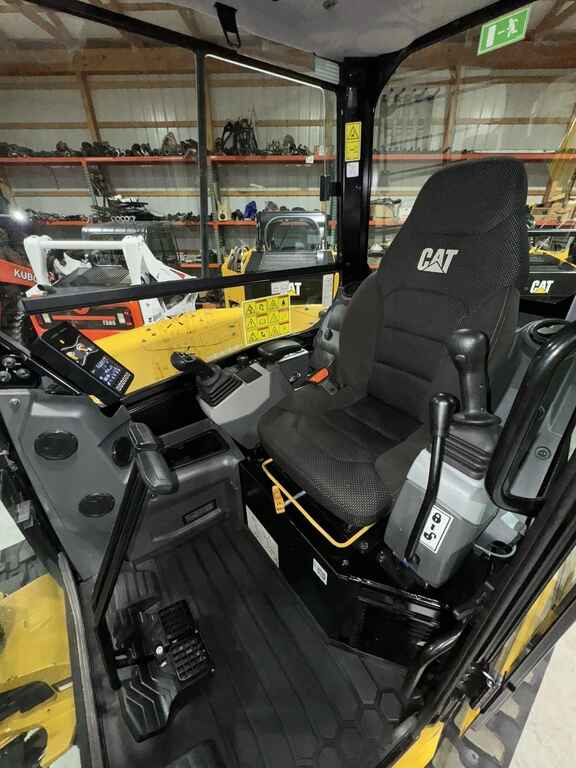

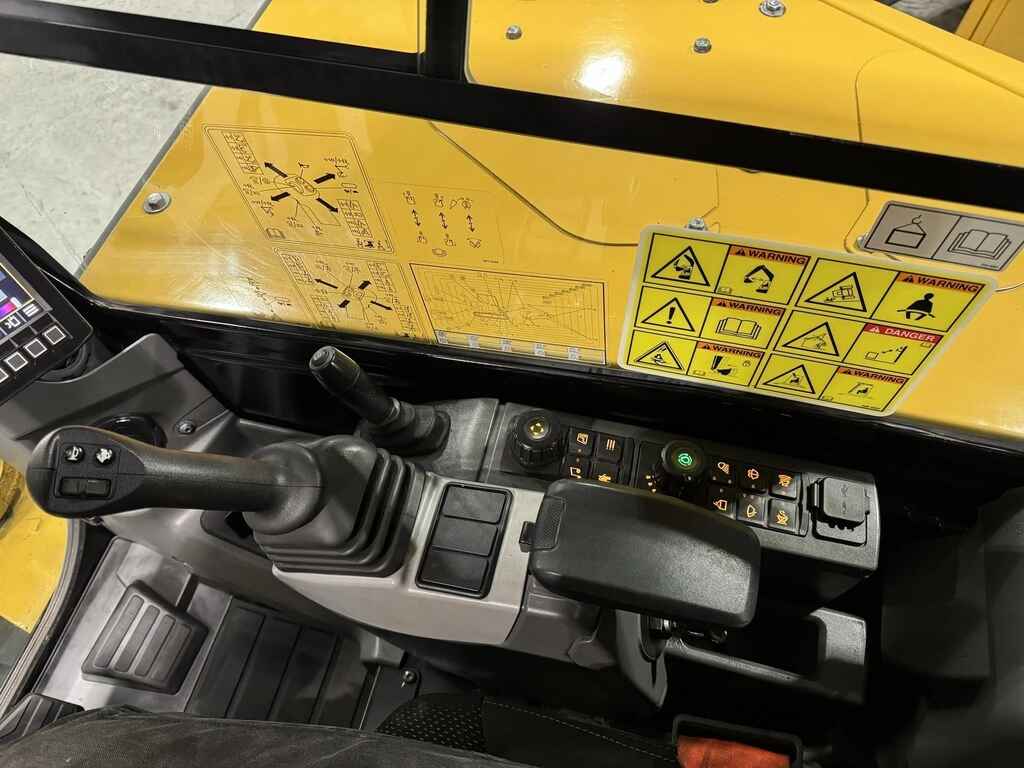

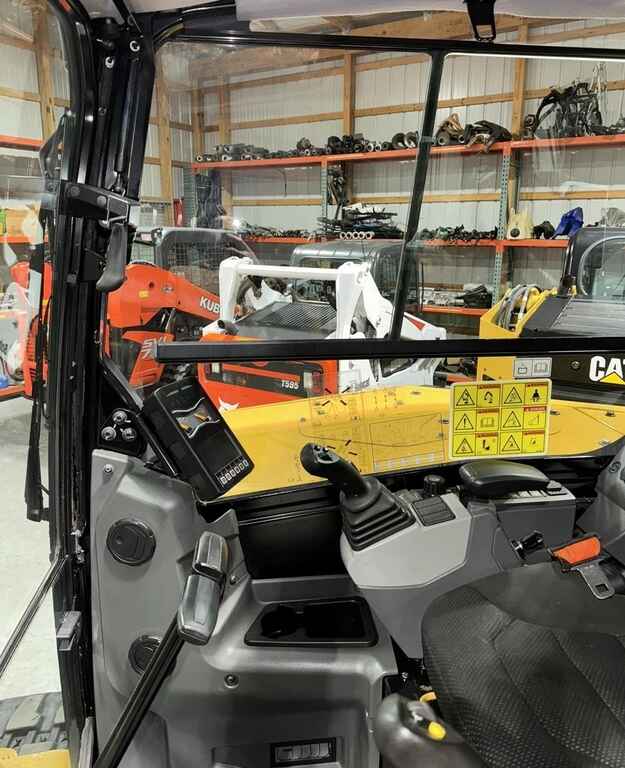

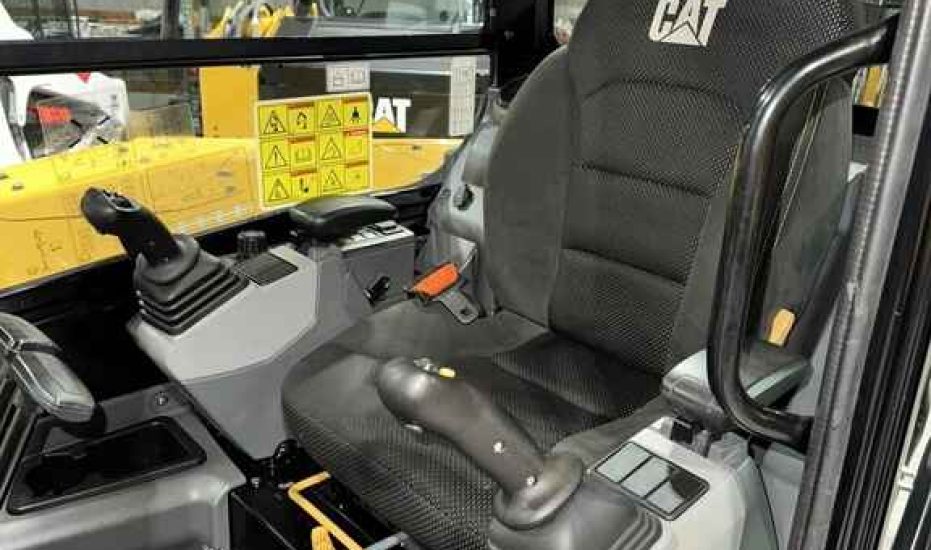

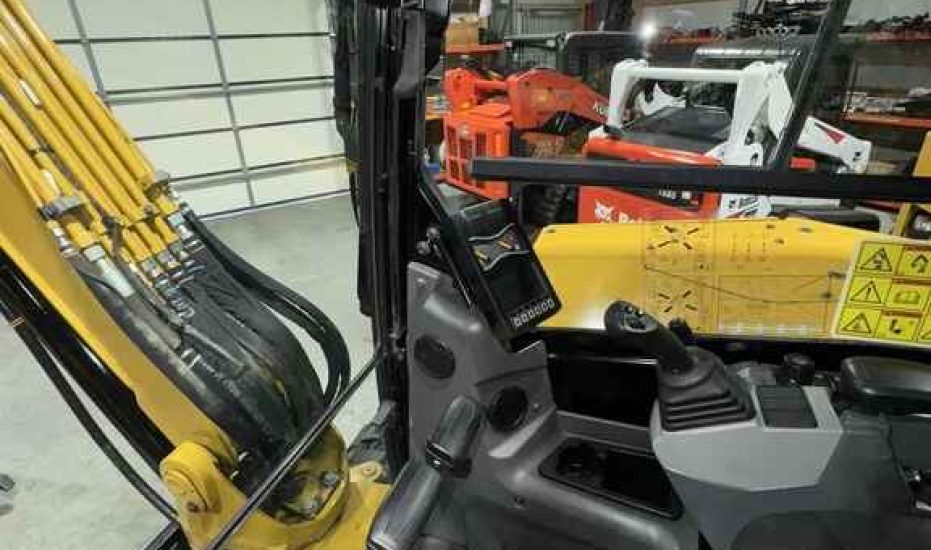

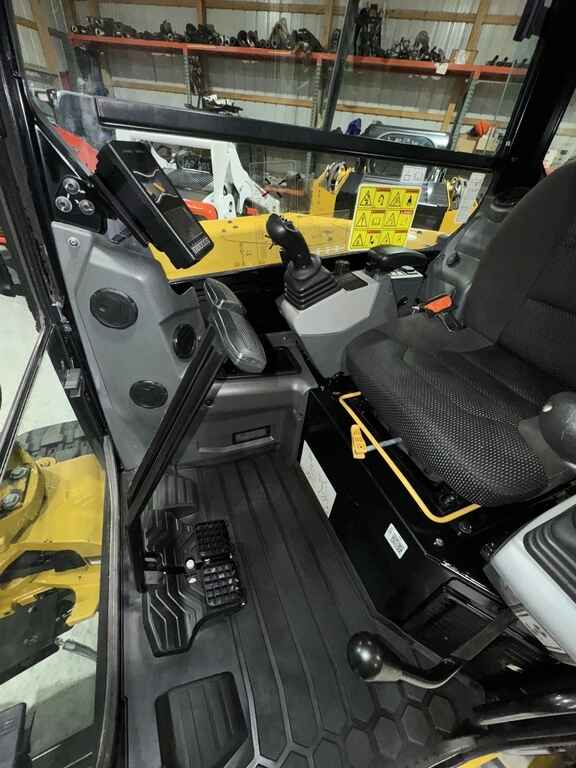

– Stick Steer

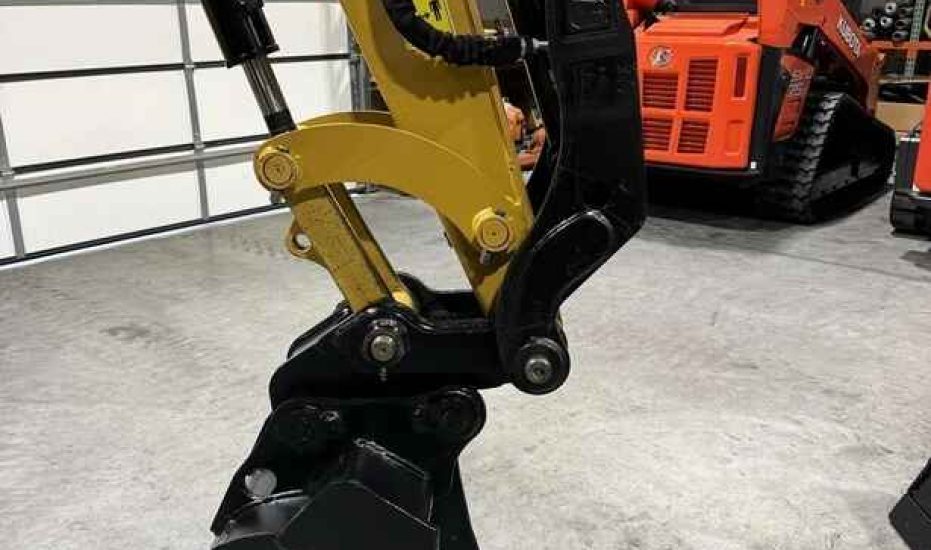

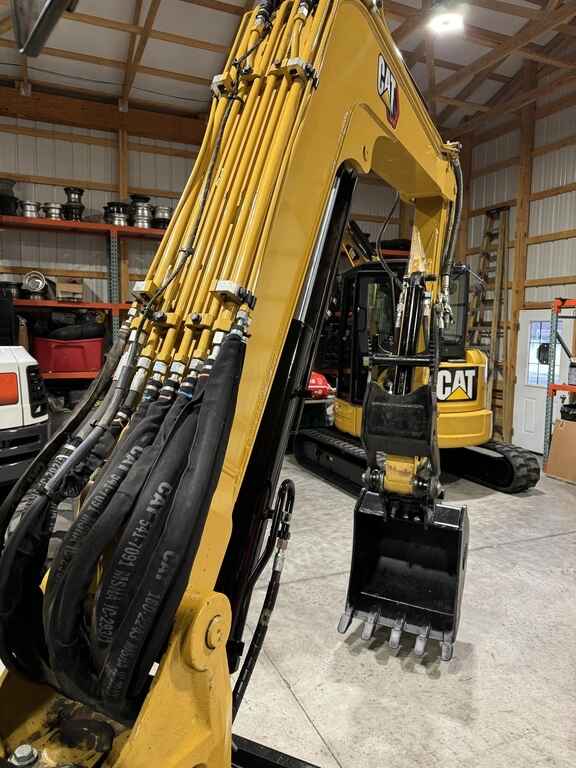

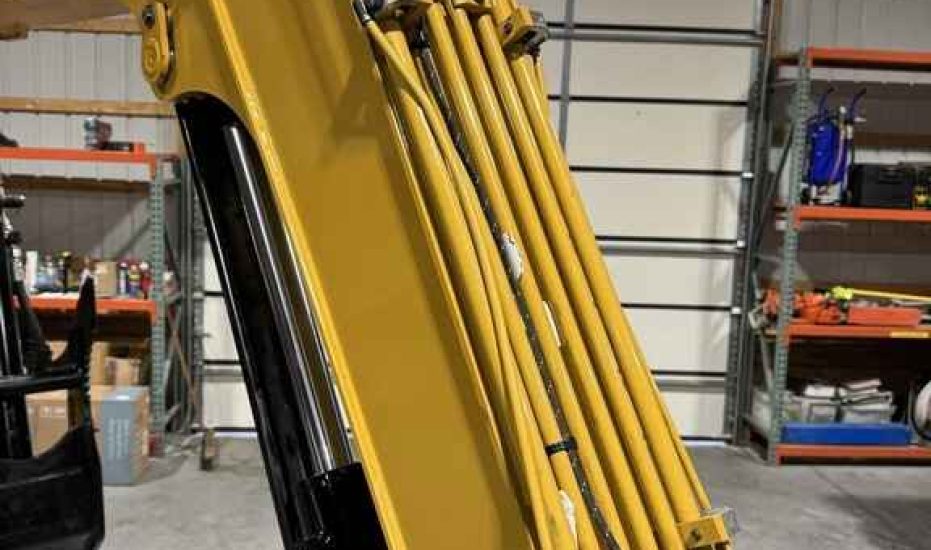

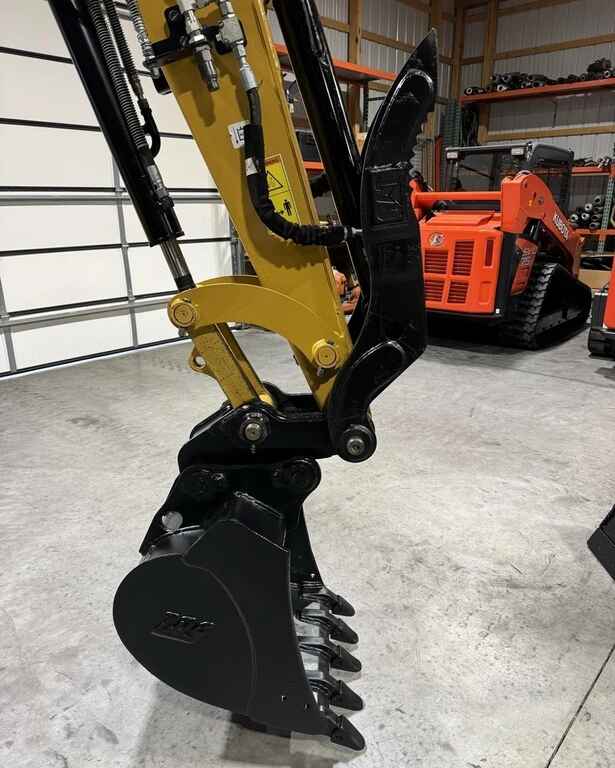

– Hydraulic Thumb

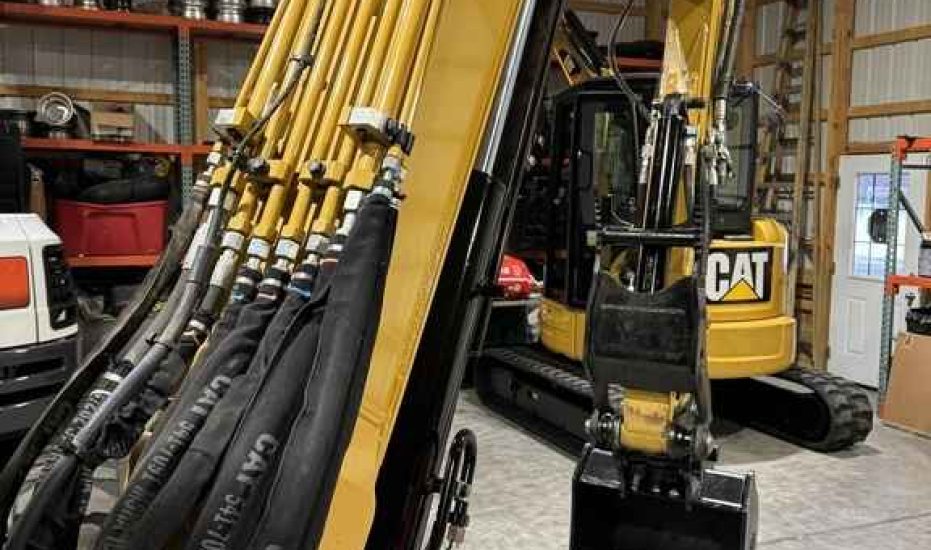

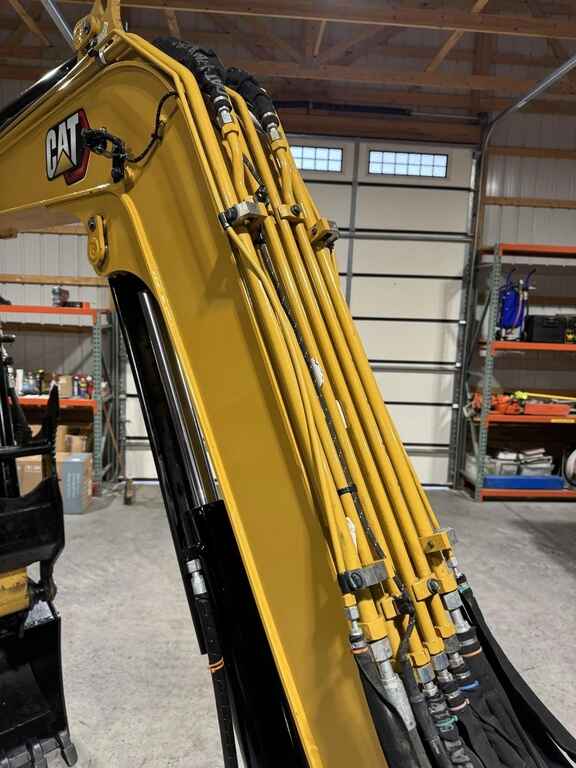

– Secondary AUX Hydraulics

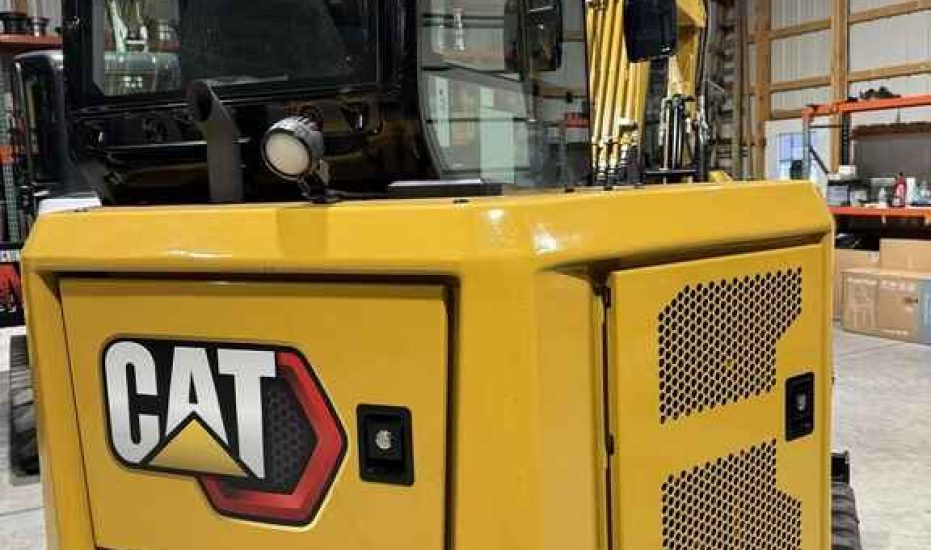

– Rear Camera

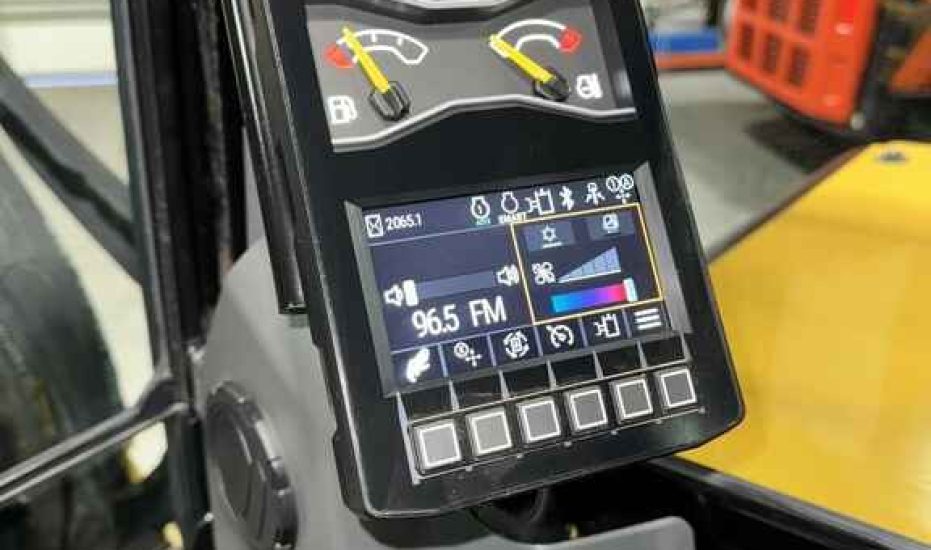

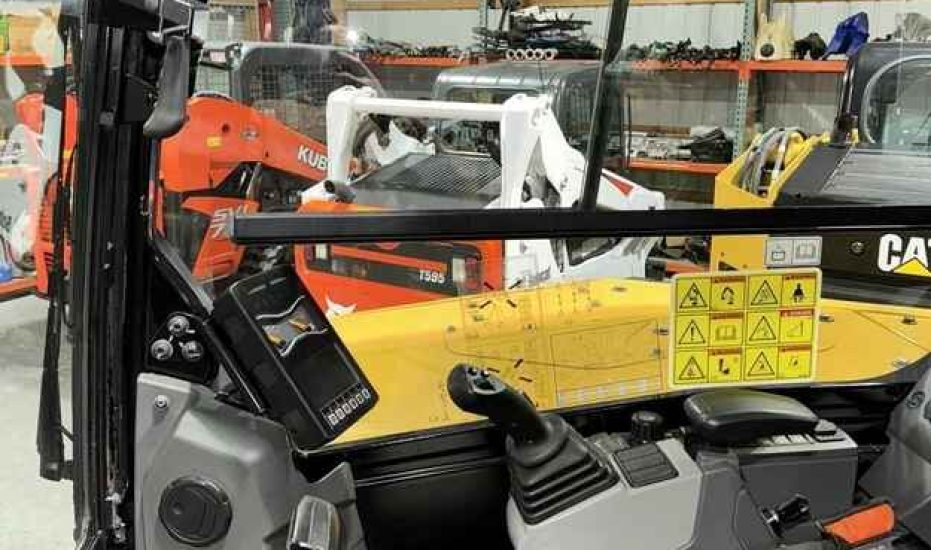

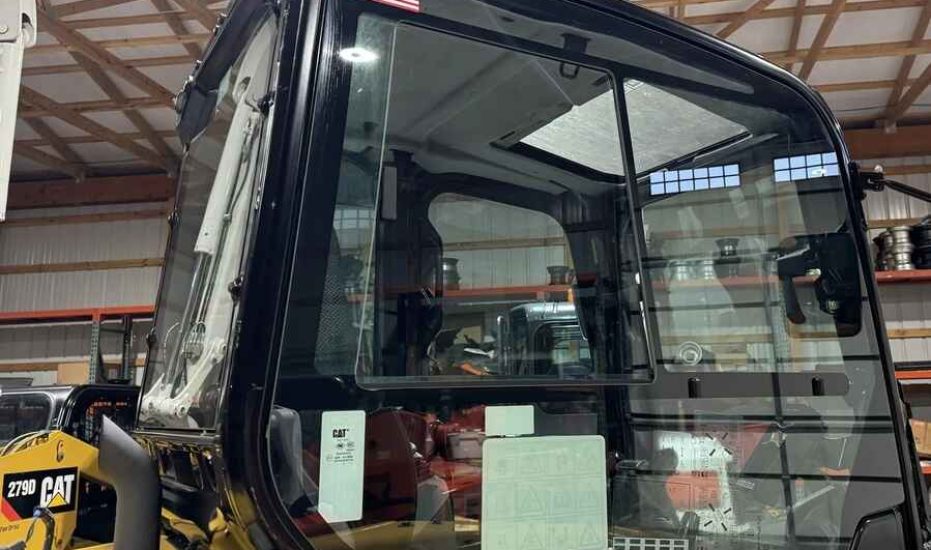

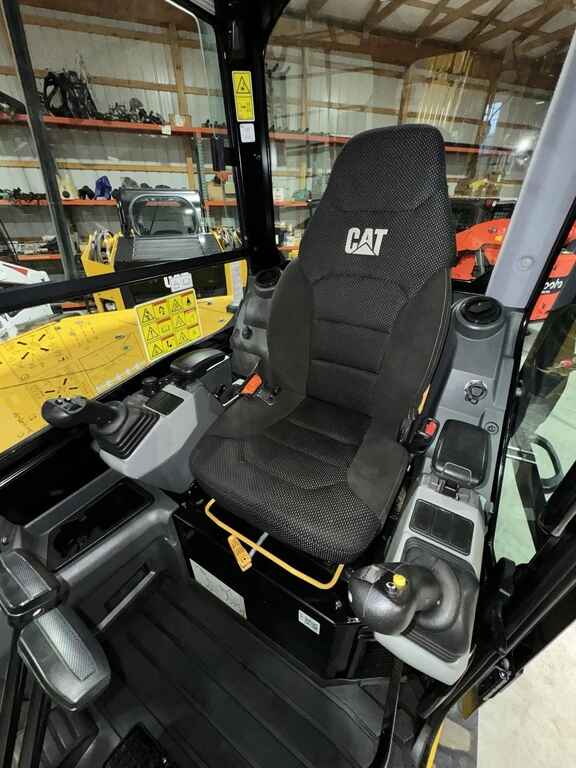

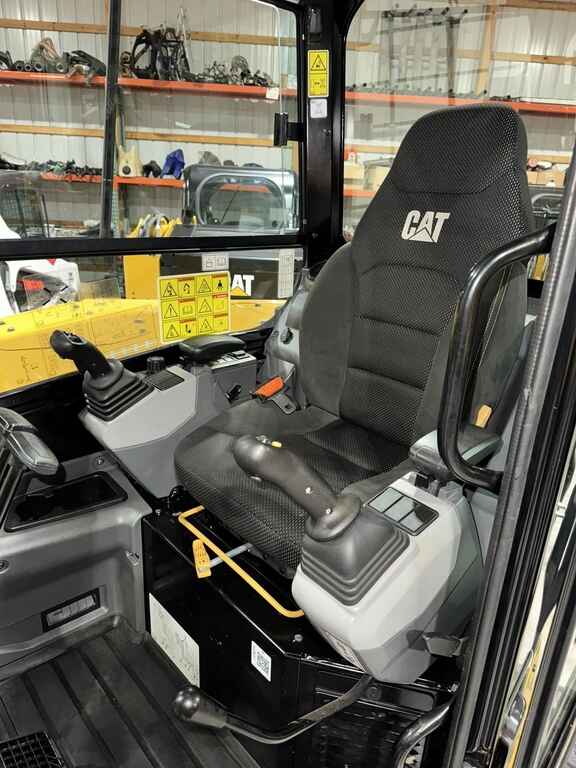

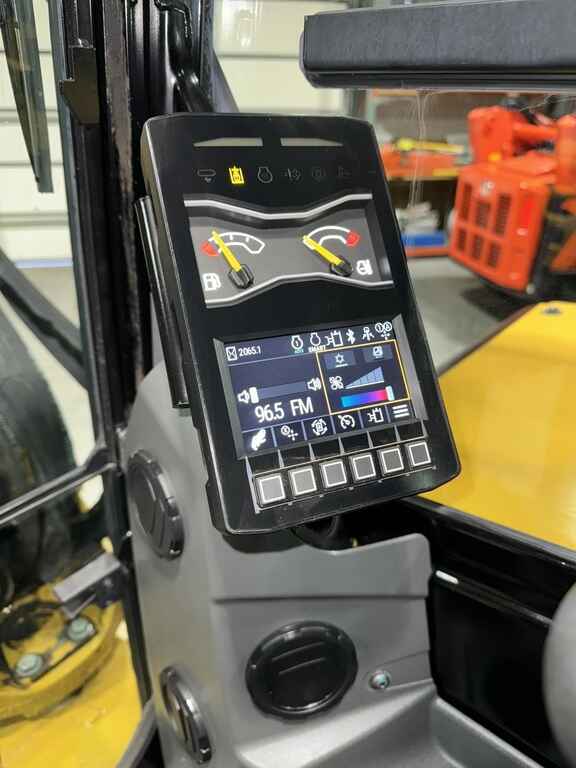

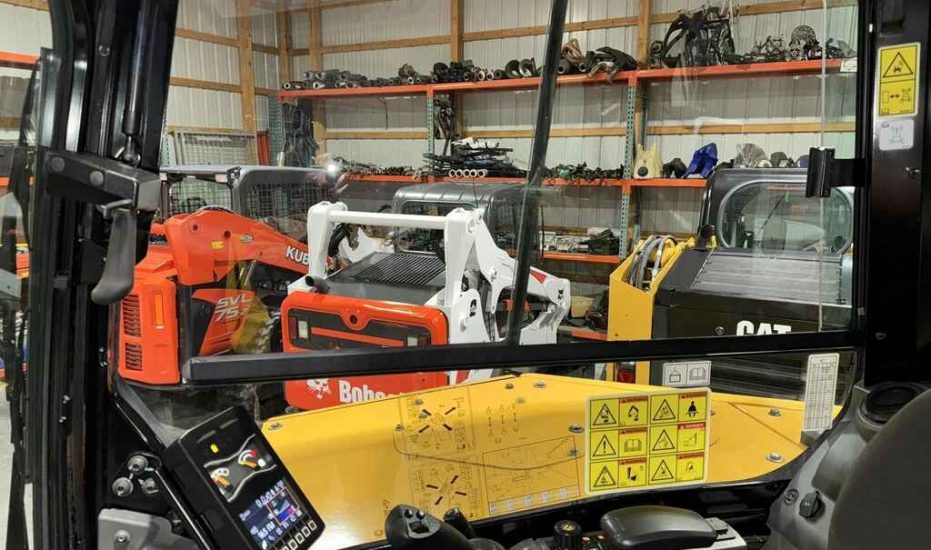

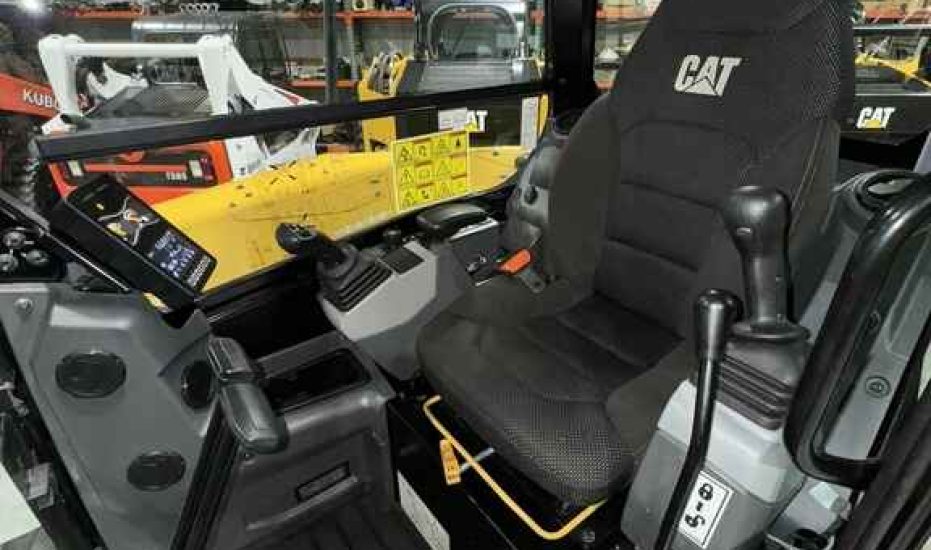

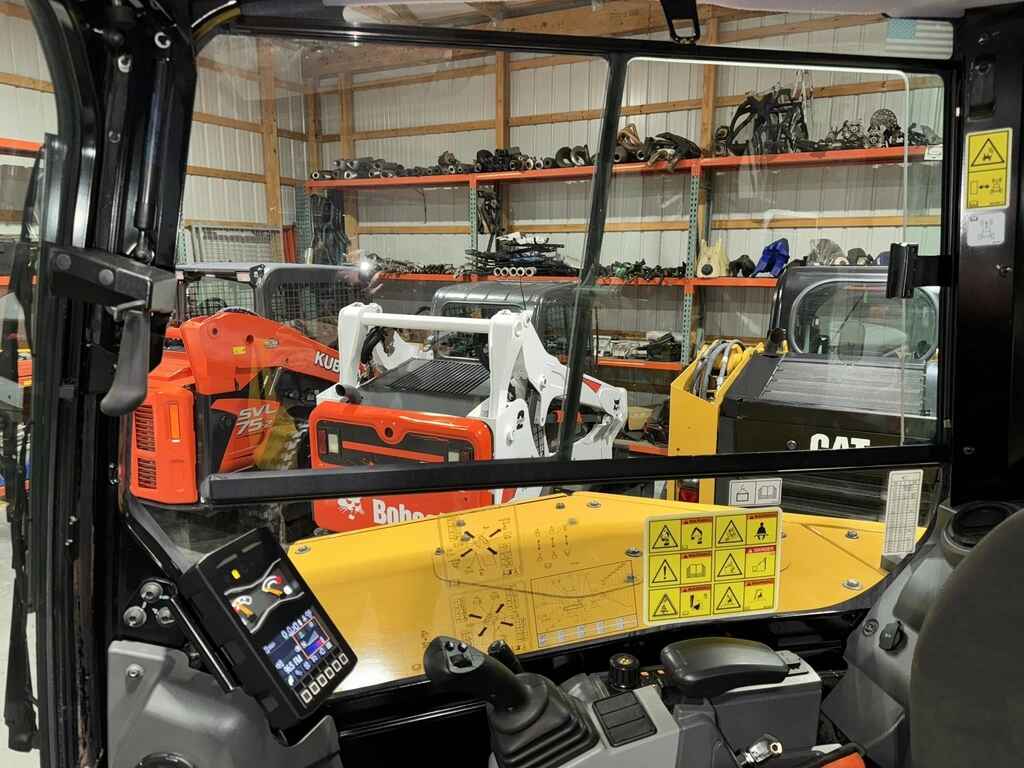

– Heat/AC/Radio
– 2 Speed
– 24” Tooth Bucket
– Just Fully Serviced
– 45 HP
– 12,700 Lbs
MACHINE IS READY TO WORK

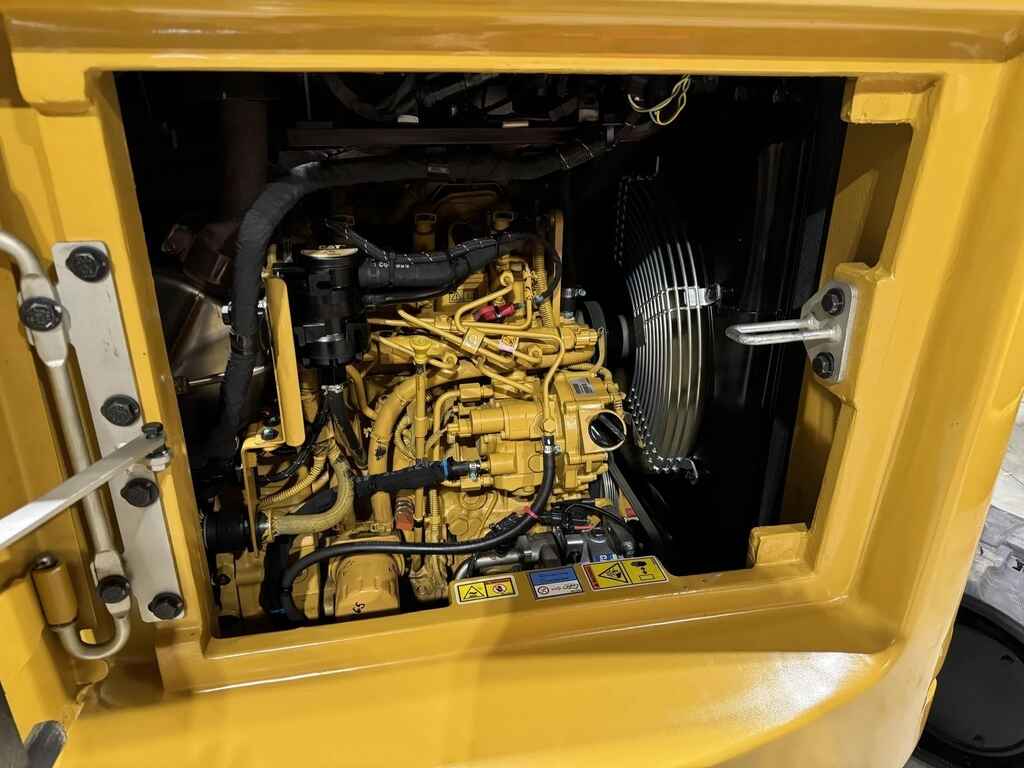

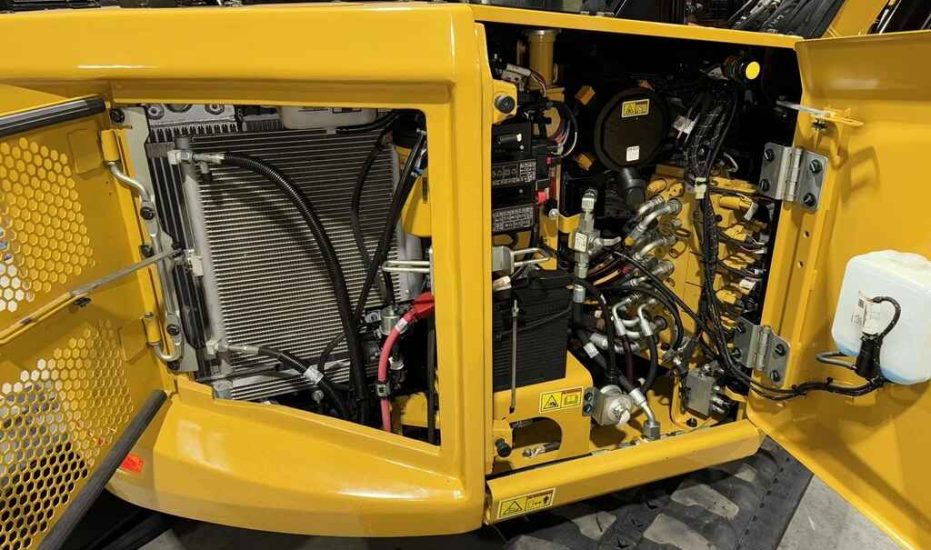

Engine Specifications:

• Engine Model: Cat® C1.7 Turbo
• Net Power: 45 hp (33.5 kW) at 2,400 rpm
• Gross Power: 48.4 hp (36.1 kW) at 2,400 rpm (SAE J1995:2014)
• Stroke: 3.9 in (100 mm)
• Bore: 3.3 in (84 mm)
• Displacement: 101 in³ (1.66 L)
• Emissions: Meets U.S. EPA Tier 4 Final and EU Stage V standards
• Advertised Power: Tested according to the specified standards during manufacture
• Net Power Availability: Power available at the flywheel at rated speed (2,400 rpm), with factory-configured components (fan, air intake, exhaust, alternator)

Weights:

• Operating Weight: 12,688 lb (5,750 kg)
• Minimum Operating Weight with Canopy: 11,016 lb (5,000 kg)
  • This includes rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket, and no extra counterweight.
• Minimum Operating Weight with Cab: 11,234 lb (5,100 kg)
• Maximum Operating Weight with Cab: 12,688 lb (5,750 kg)
• Maximum Operating Weight with Canopy: 12,469 lb (5,650 kg)

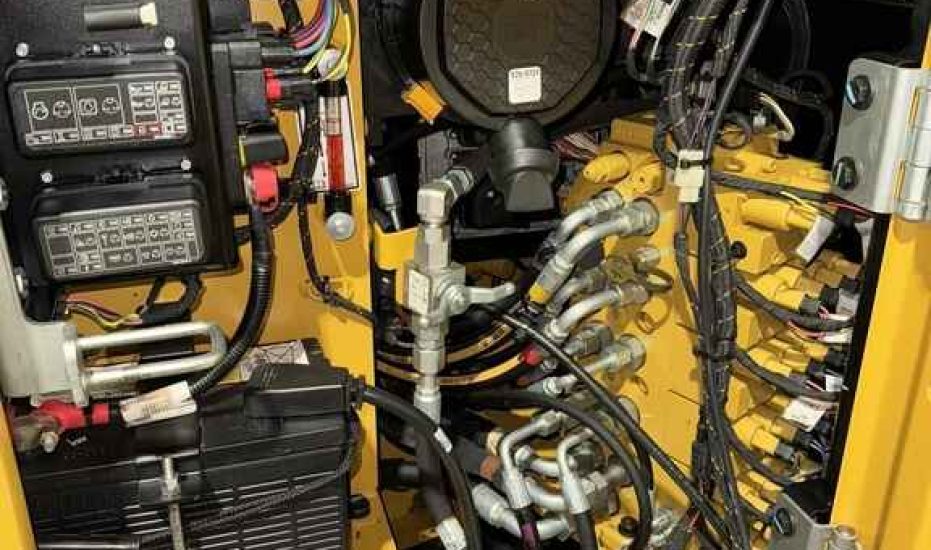

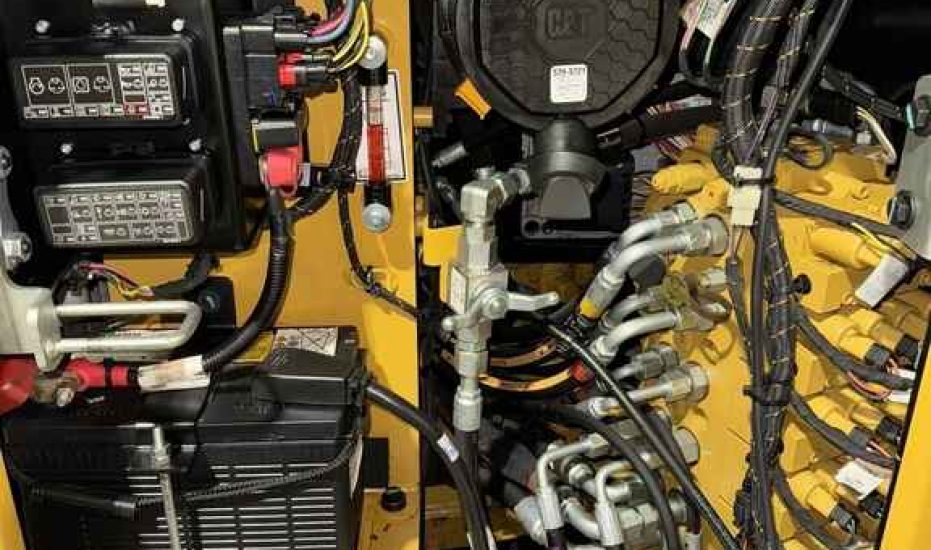

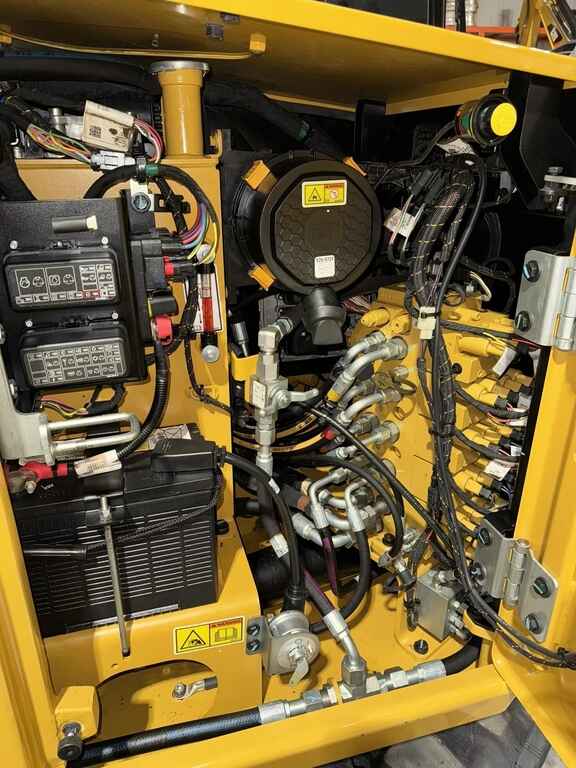

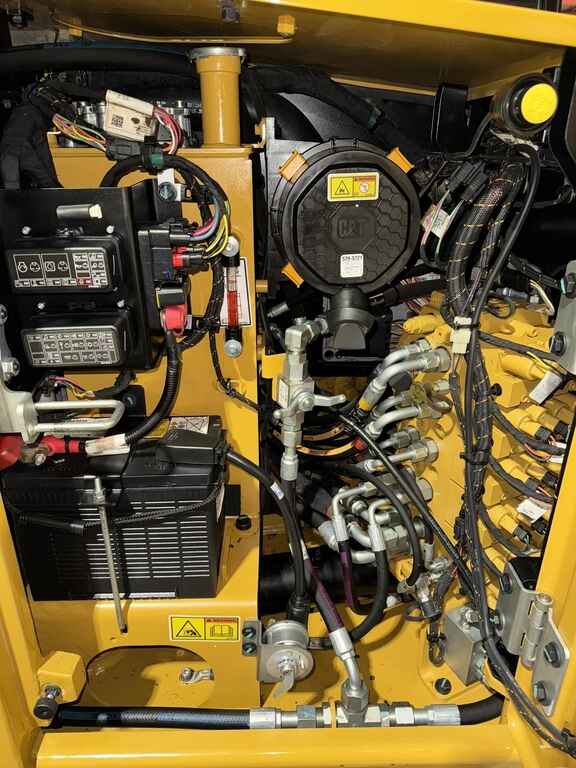

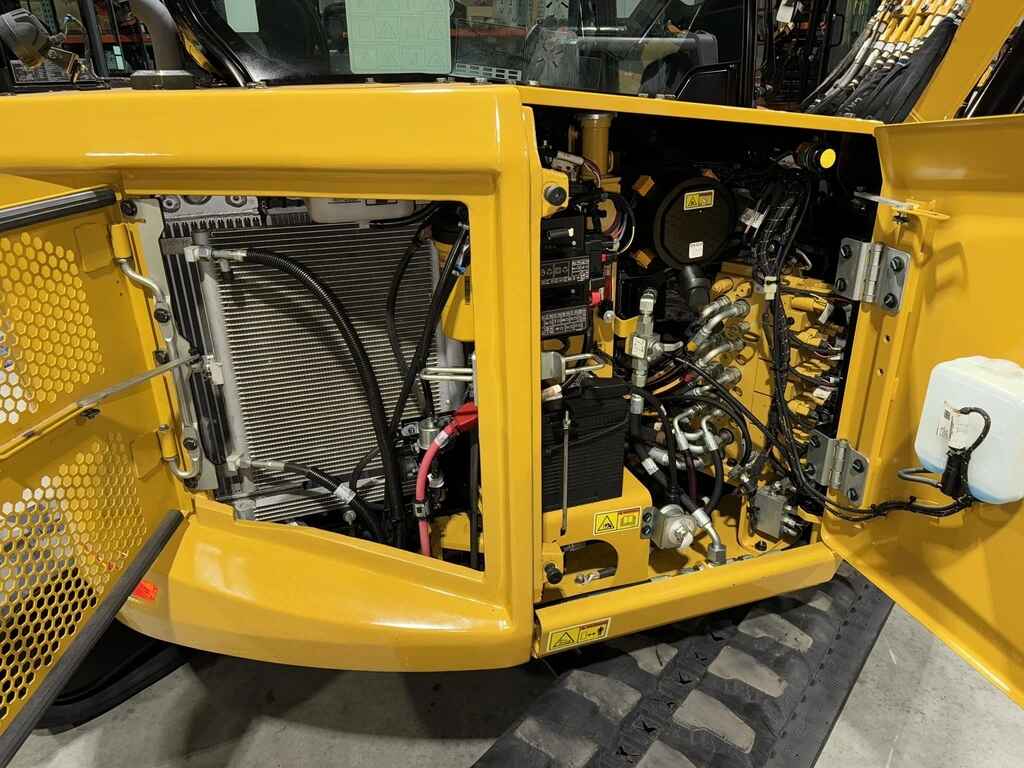

Hydraulic System:

• Main Pump Flow: 125 L/min (33 gal/min)
• Auxiliary Flow: 85 L/min (22.4 gal/min)

Dimensions:

• Overall Length: 17.7 ft (5,395 mm)
• Height – Over Cab: 8.6 ft (2,625 mm)
• Height – Over Canopy: 8.6 ft (2,625 mm)
• Width – Over Track: 6.6 ft (2,000 mm)
• Tail Swing Radius: 3.7 ft (1,125 mm)
• Track Gauge: 5.2 ft (1,585 mm)
• Ground Clearance: 2.1 ft (635 mm)

Maximum Reach and Depths:

• Maximum Digging Depth – Standard Stick: 11.7 ft (3,560 mm)
• Maximum Digging Depth – Long Stick: 12.11 ft (3,690 mm)
• Maximum Reach at Ground Level – Standard Stick: 18.11 ft (5,520 mm)
• Maximum Reach at Ground Level – Long Stick: 20.2 ft (6,150 mm)
• Maximum Dump Height – Standard Stick: 12.3 ft (3,740 mm)
• Maximum Dump Height – Long Stick: 13 ft (3,960 mm)

Swing System:

• Swing Speed: 9.6 rpm
• Swing Type: Hydraulic Motor Driven
• Boom Swing: Left 80°, Right 50° (without stop)
