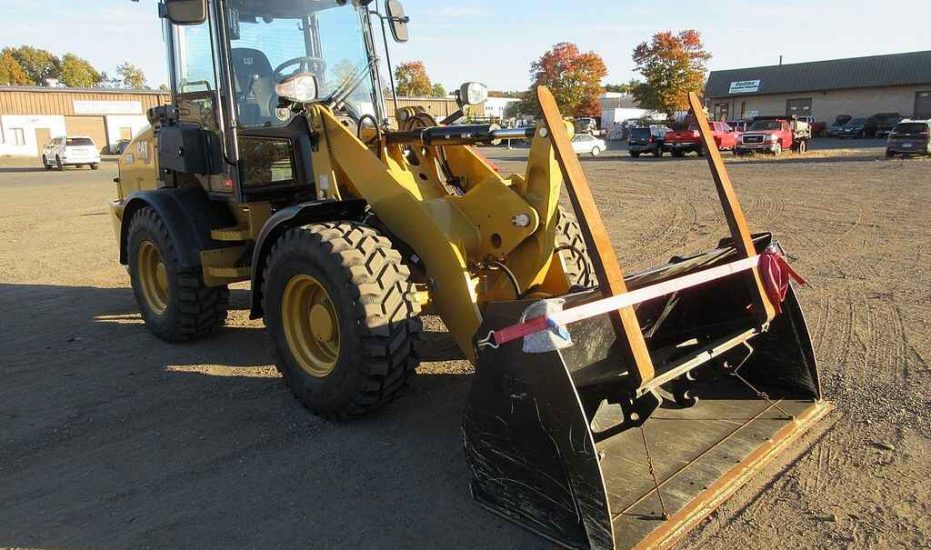

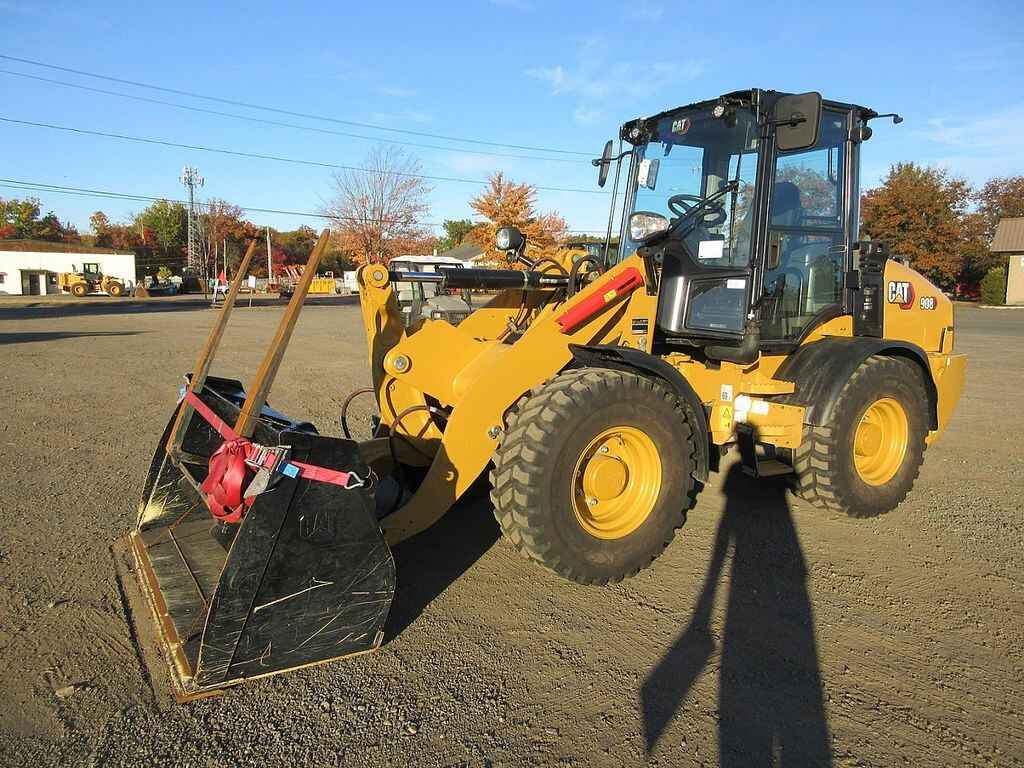

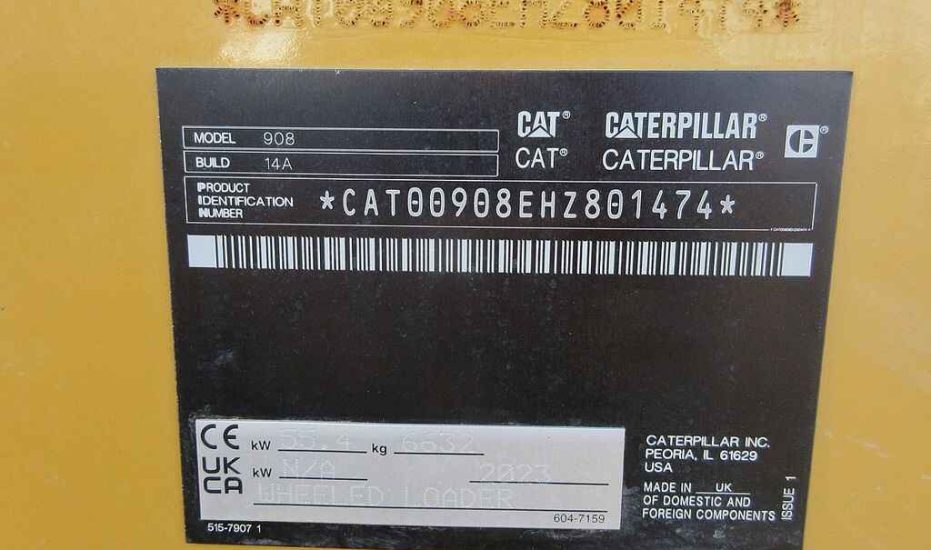

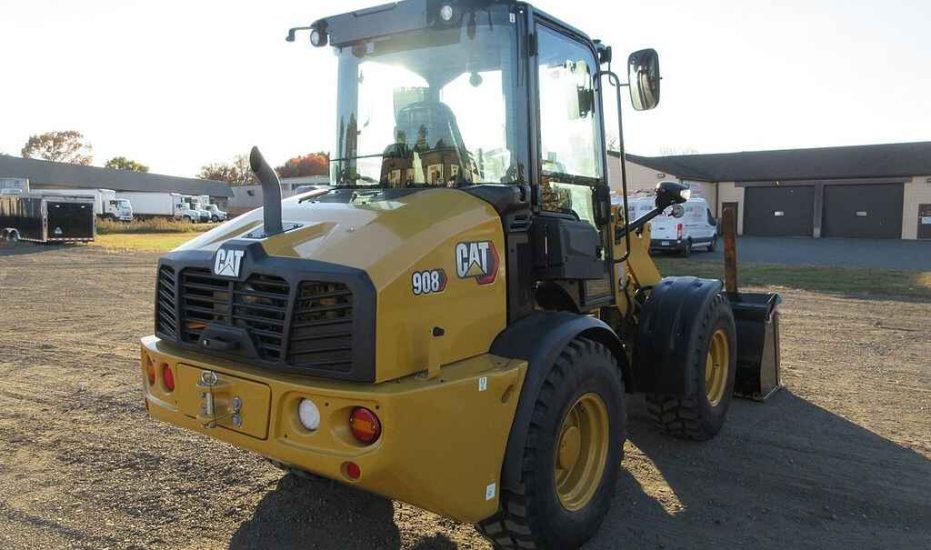

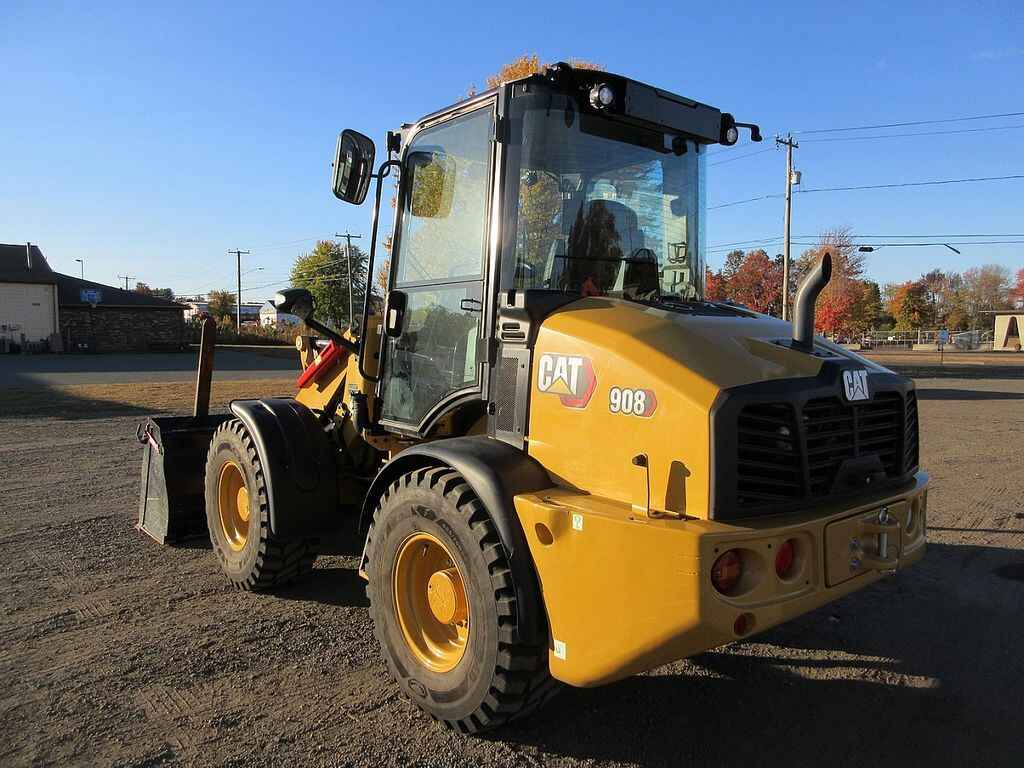

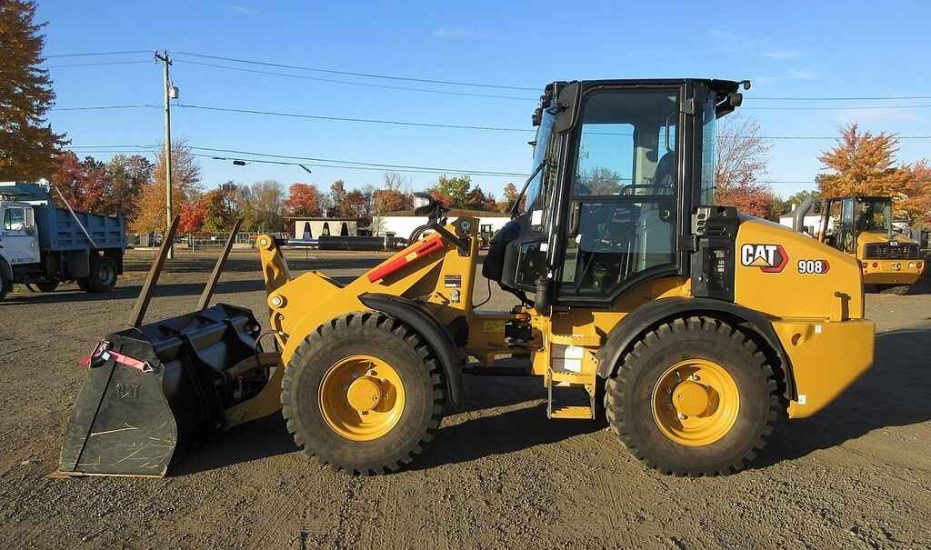

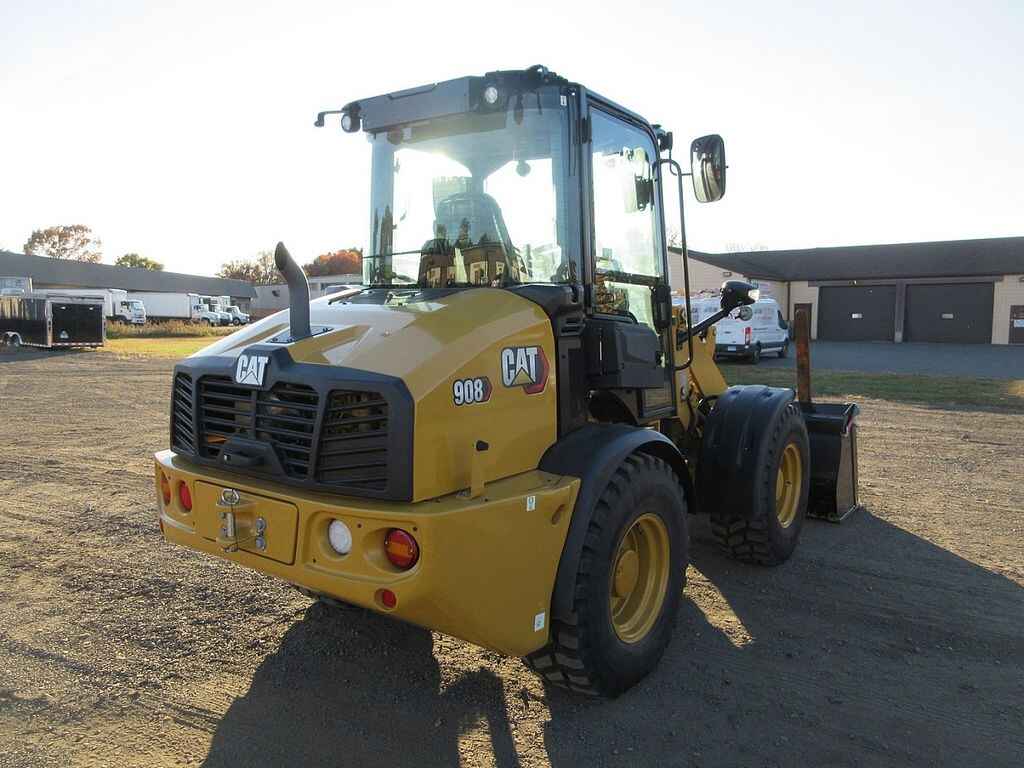

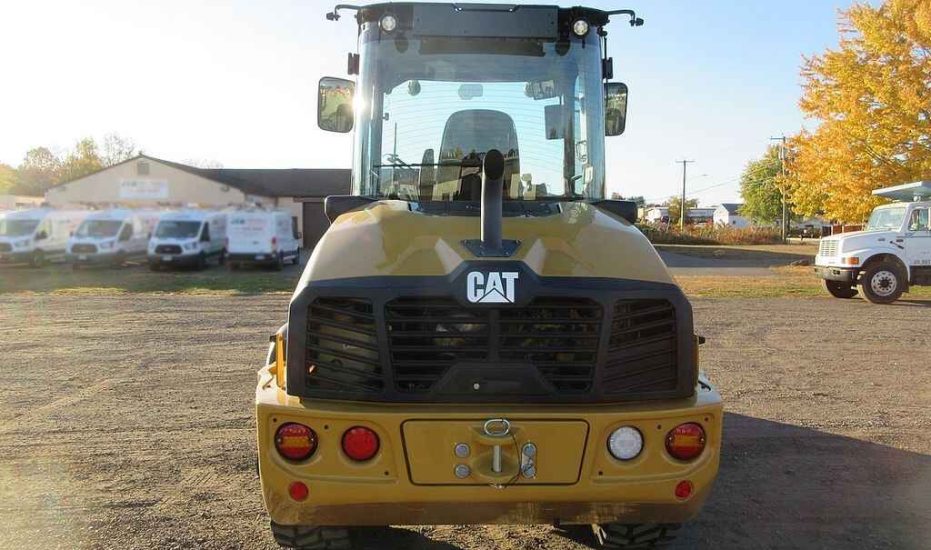

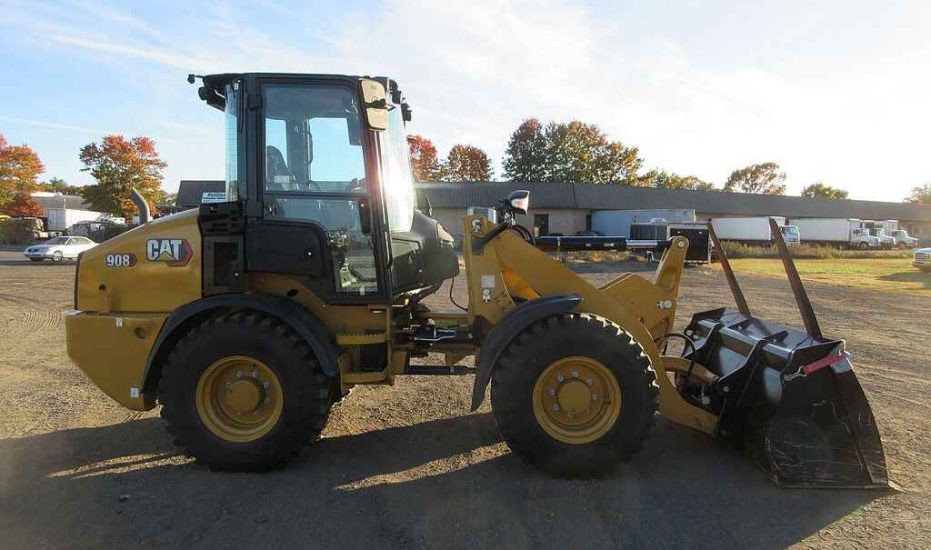

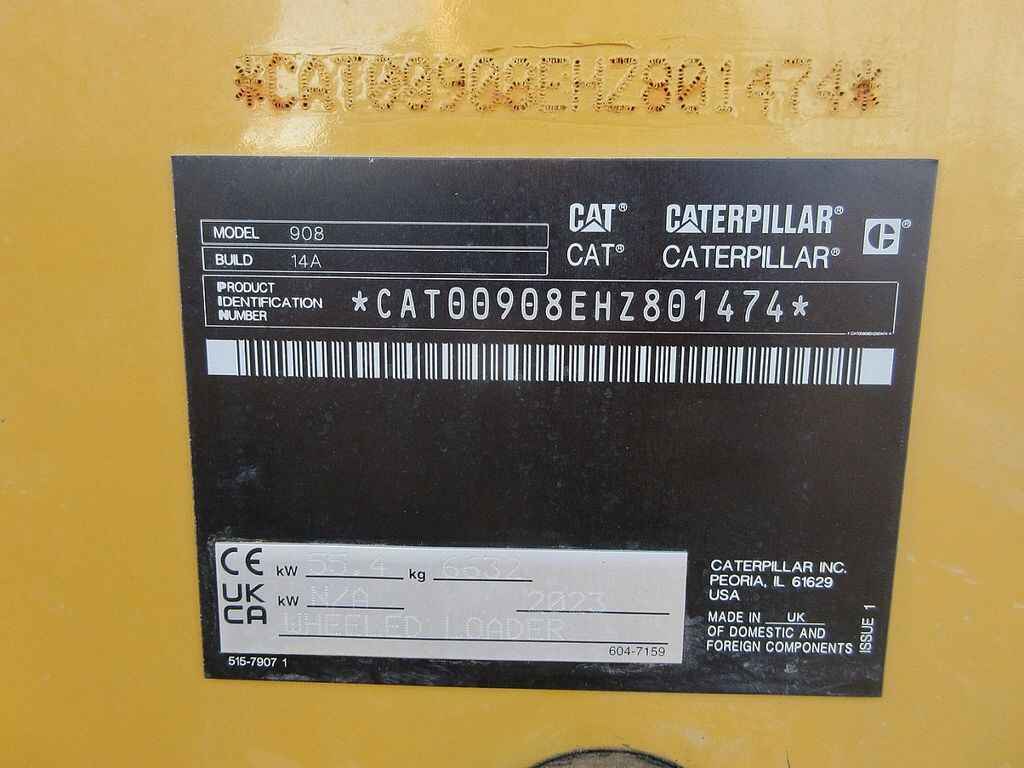

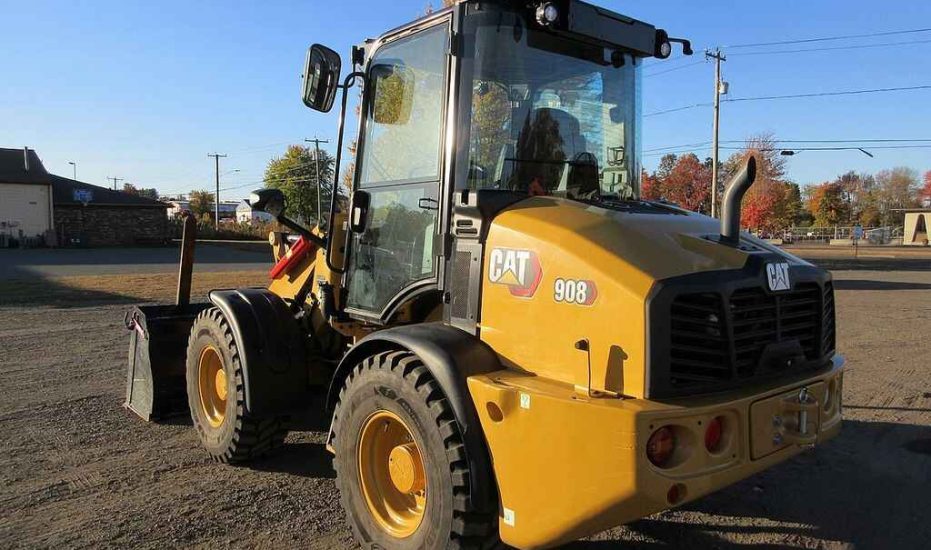

Specifications

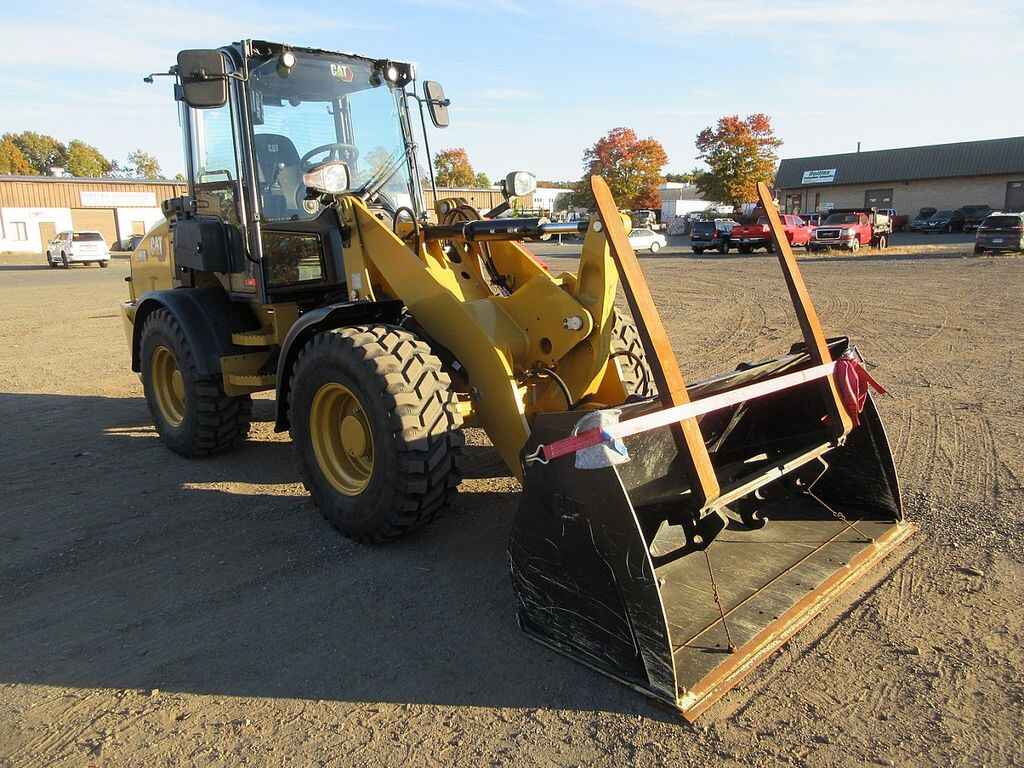

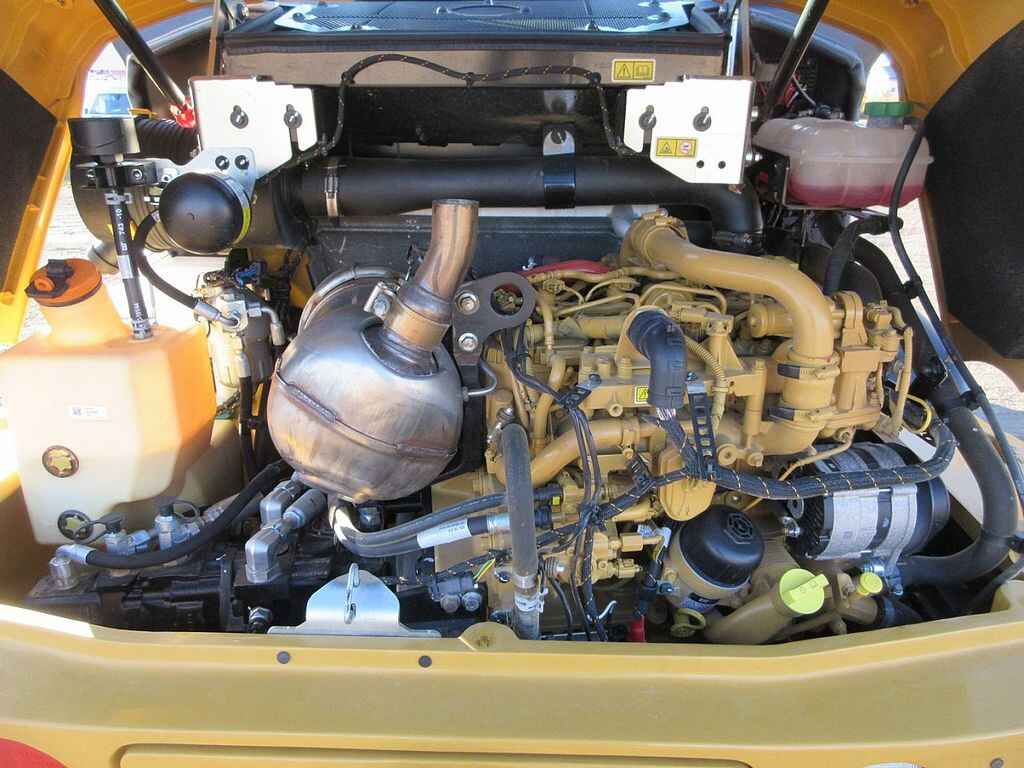

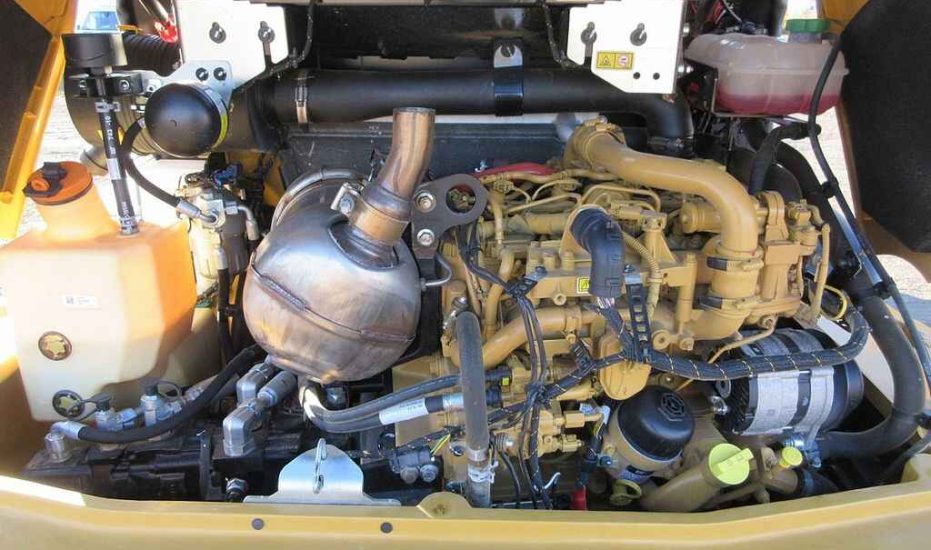

Engine

Engine Model: Cat C2.8

Maximum Gross Power: 74.7 hp

Rated Net Power: 72.7 hp

Maximum Engine Speed: 2550 rpm

Displacement: 171 in³

Bore: 3.54 in

Stroke: 4.33 in

Maximum Gross Torque: 222 lb/ft

Maximum Net Torque: 218 lb/ft

Engine Emission Options: Meets U.S. EPA Tier 4 Final, EU Stage V / U.S. EPA Tier 3, EU Stage IIIA equivalent

Weights

Operating Weight: 14,617 lb

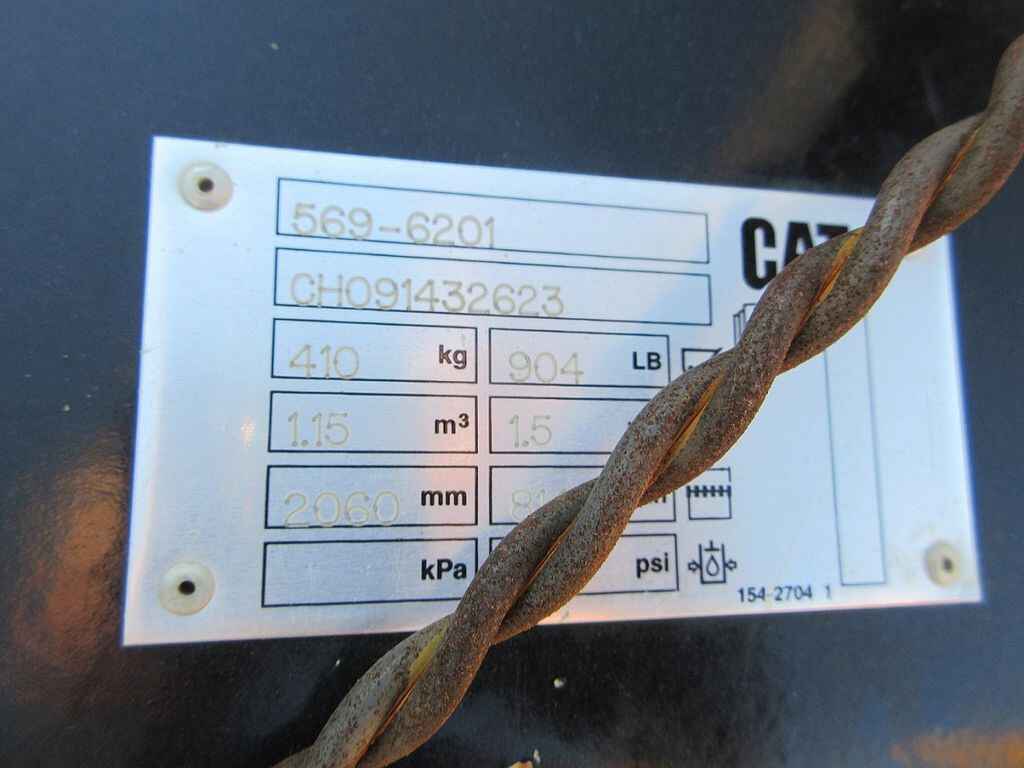

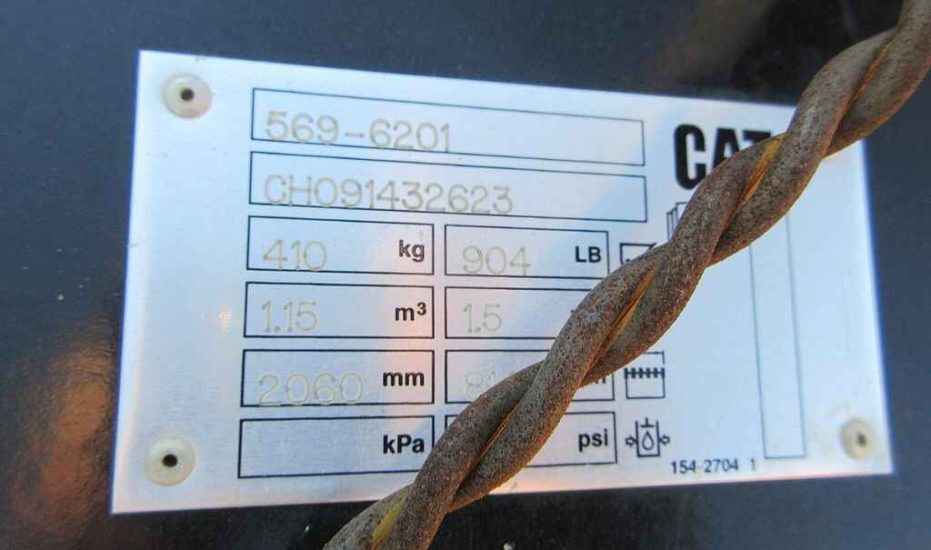

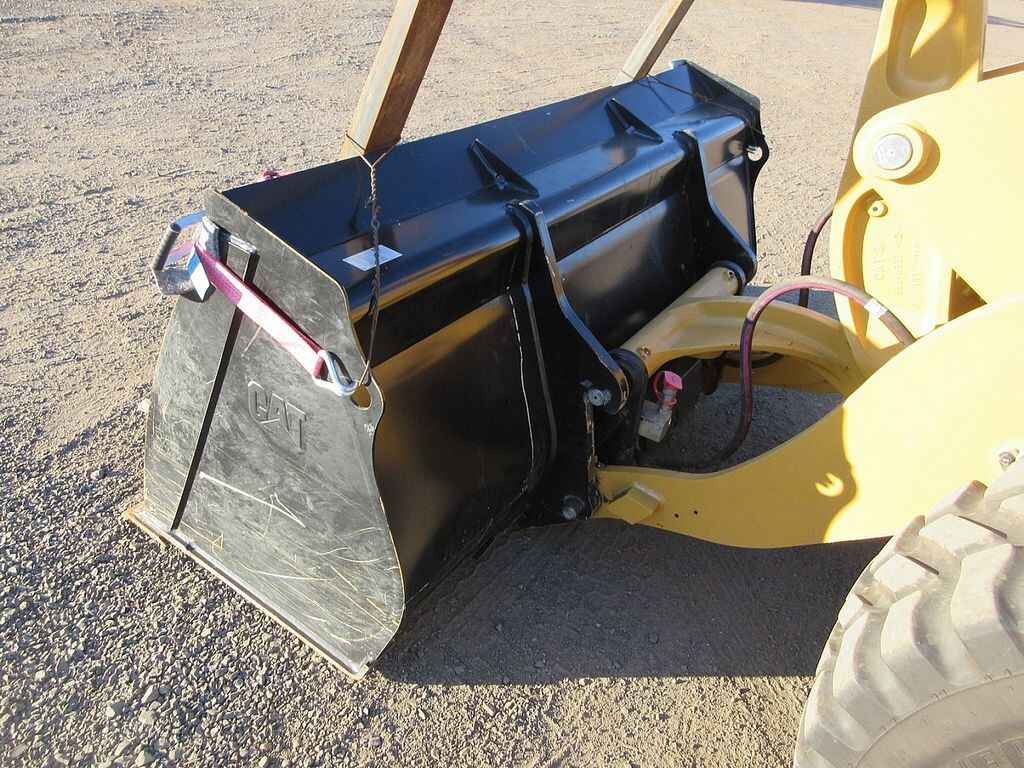

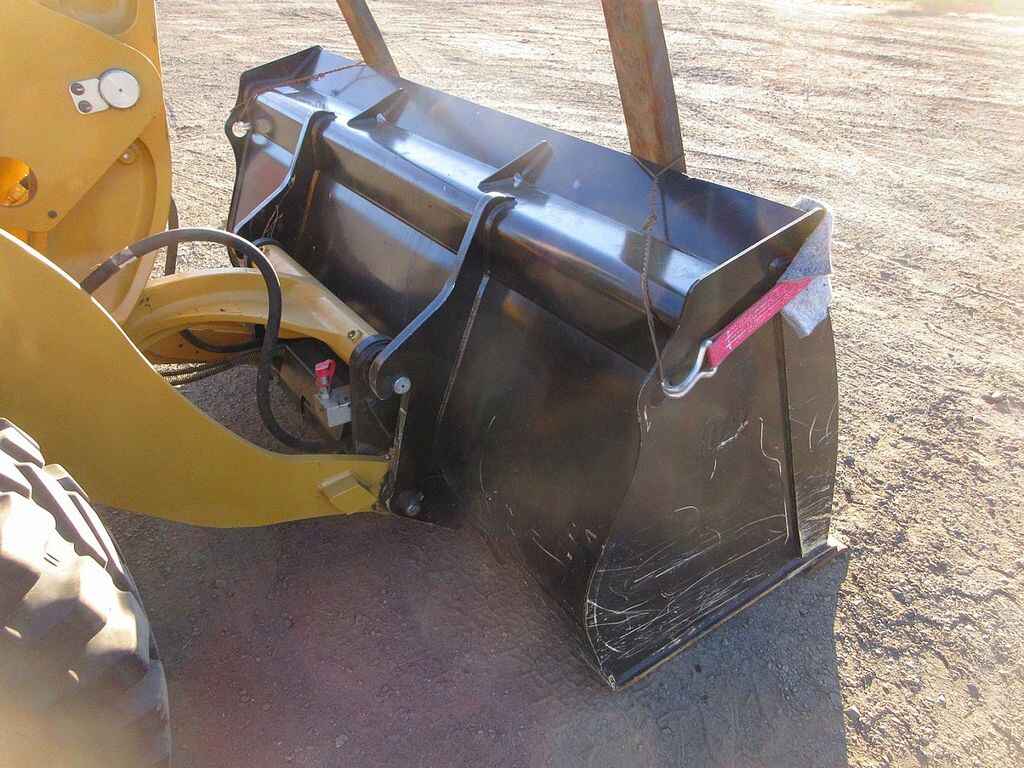

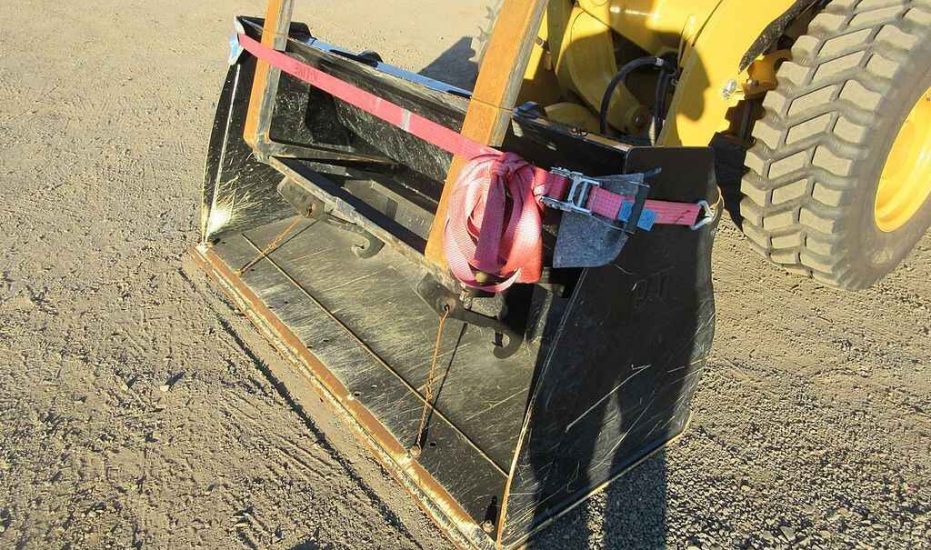

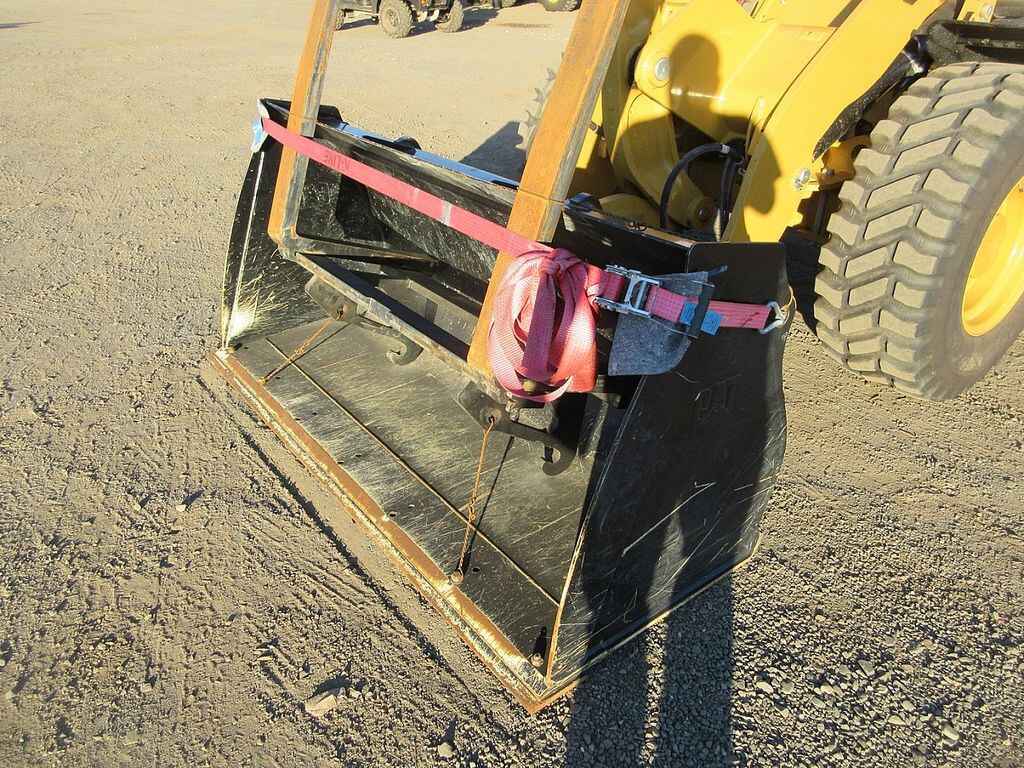

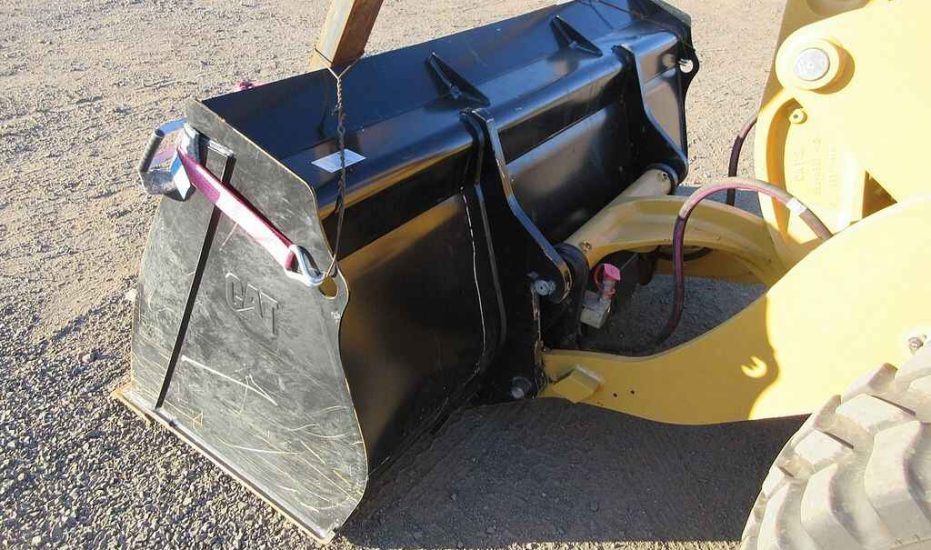

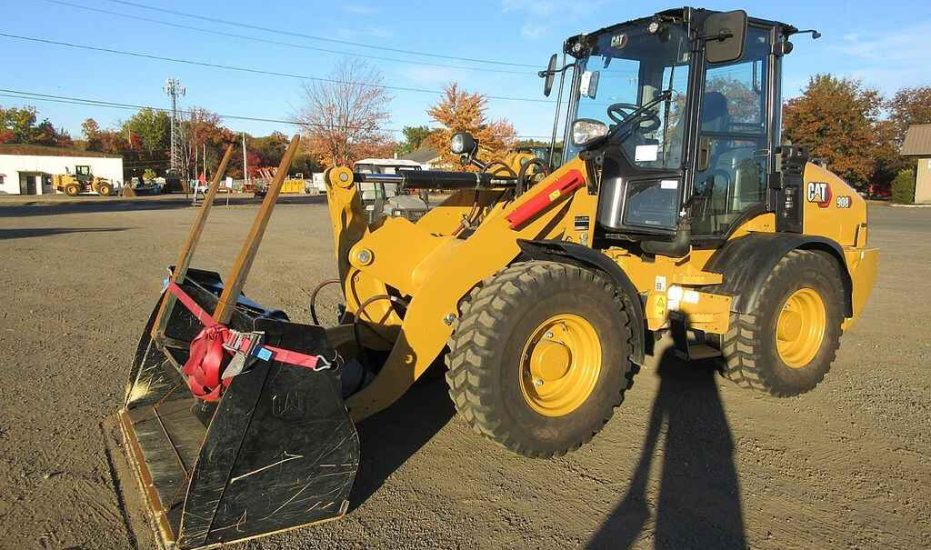

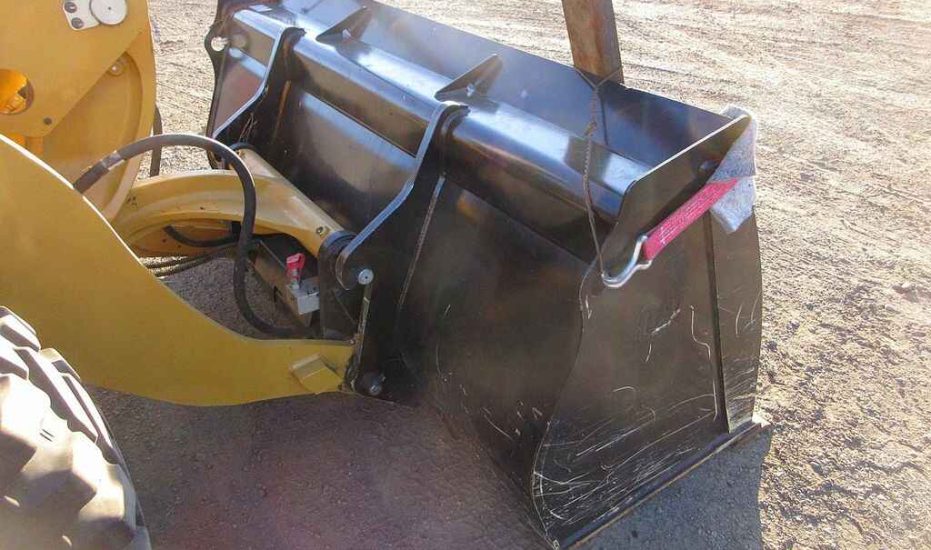

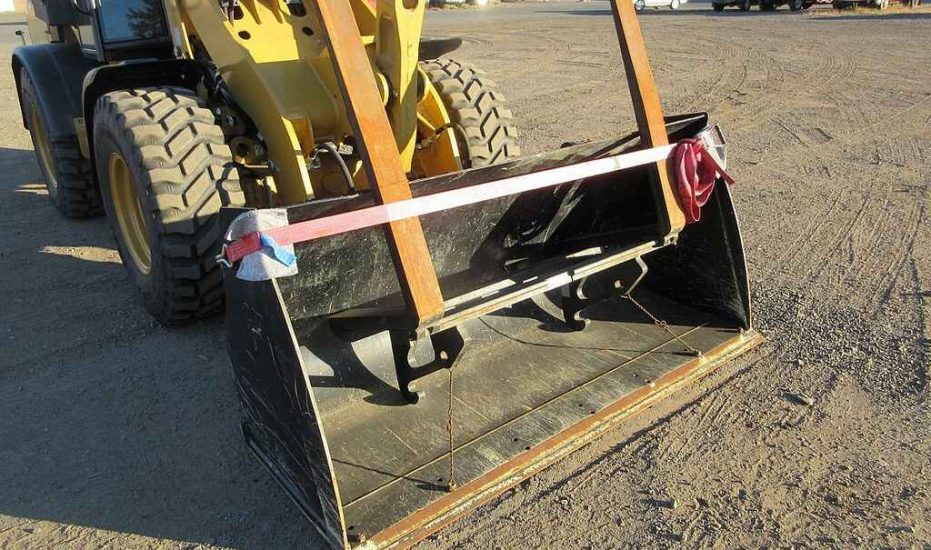

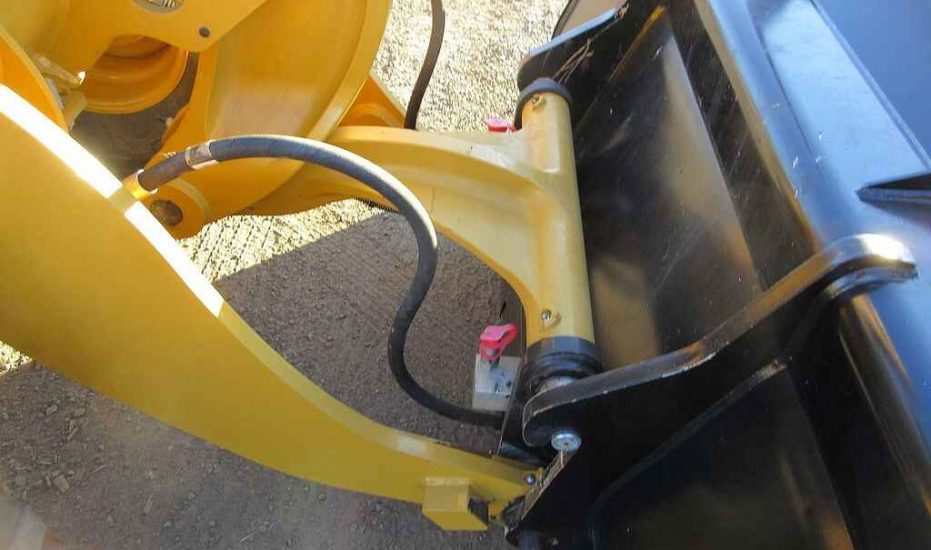

Buckets

General Purpose Bucket Capacity: 0.80-1.35 m³ (1.0-1.7 yd³)

Multi-Purpose Bucket Capacity: 0.75-1.1 m³ (1.0-1.4 yd³)

Light Material Bucket Capacity: 1.25-1.55 m³ (1.6-2 yd³)

Service Refill Capacities

Fuel Tank: 24 Gal

Cooling System: 3.2 Gal

Engine Crankcase: 2.3 Gal

Hydraulic System (Incl. Tank): 18.6 Gal

Hydraulic Tank: 11.8 Gal

Transmission: 0.6 Gal

Axles

Front: Fixed (Standard), Locking Differential (Optional)

Rear: Fixed (Standard), Locking Differential (Optional)

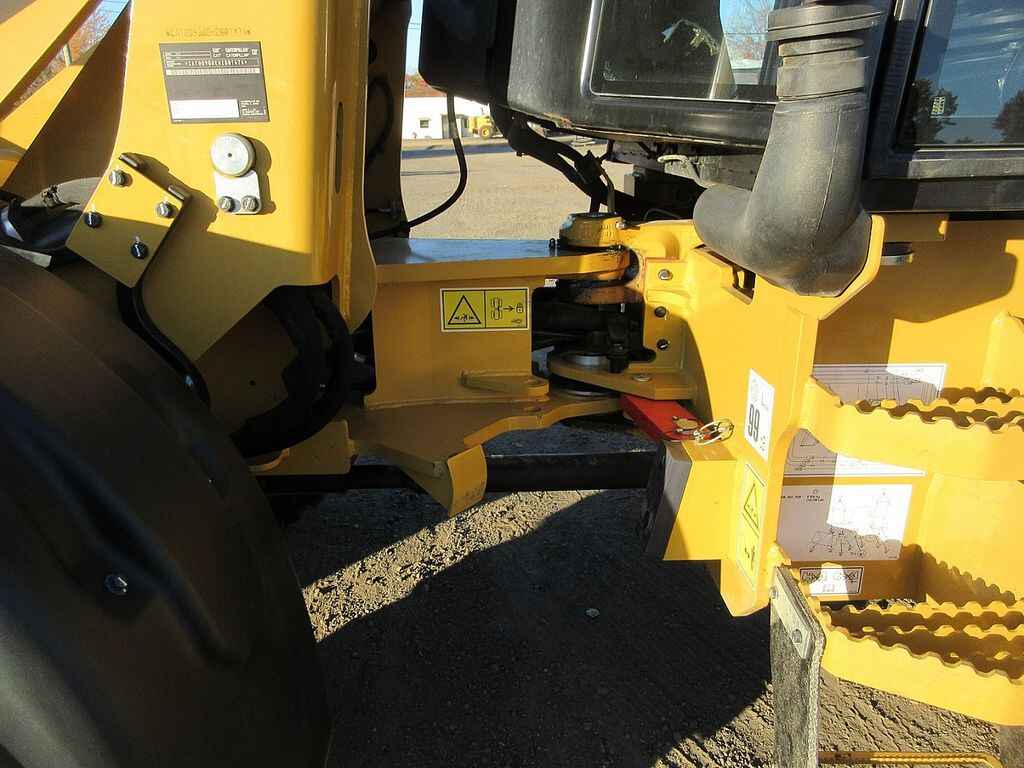

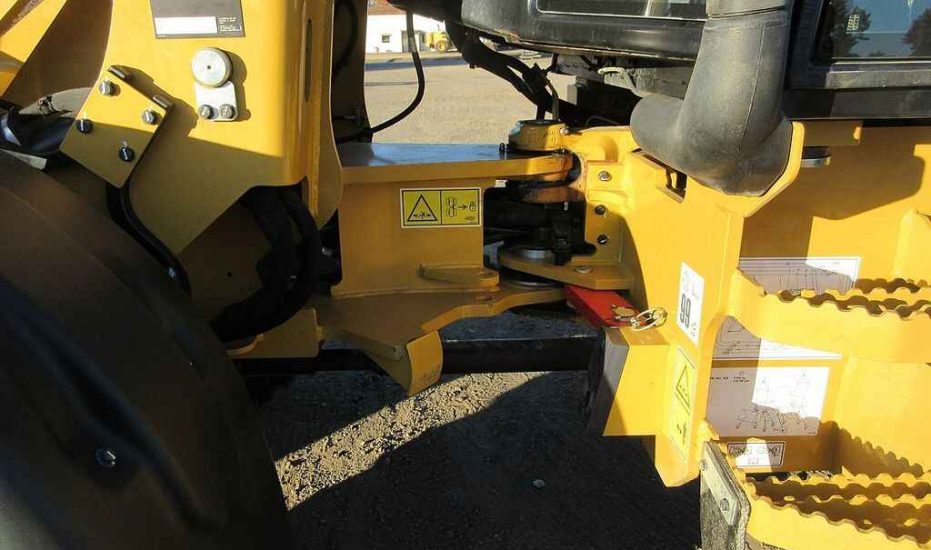

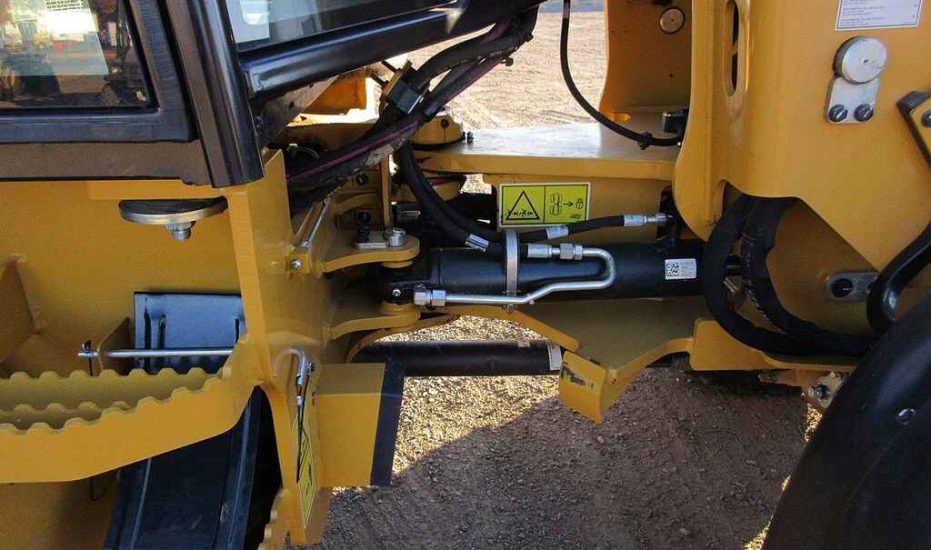

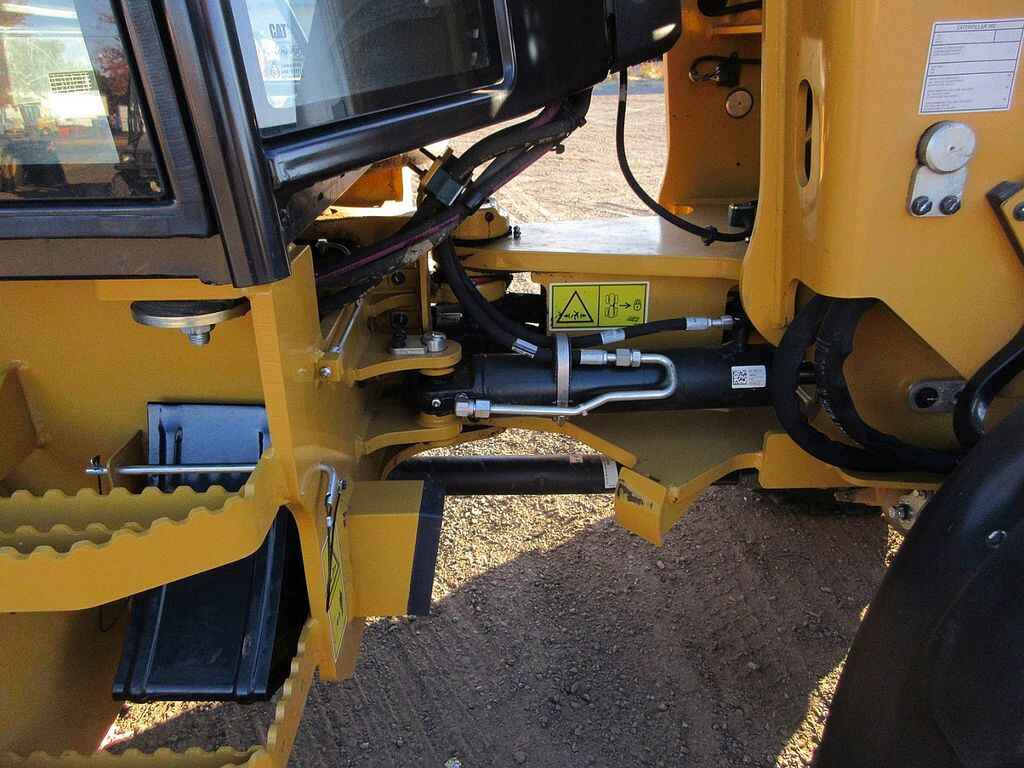

Oscillation: ±11 degrees via hitch between front and rear frames

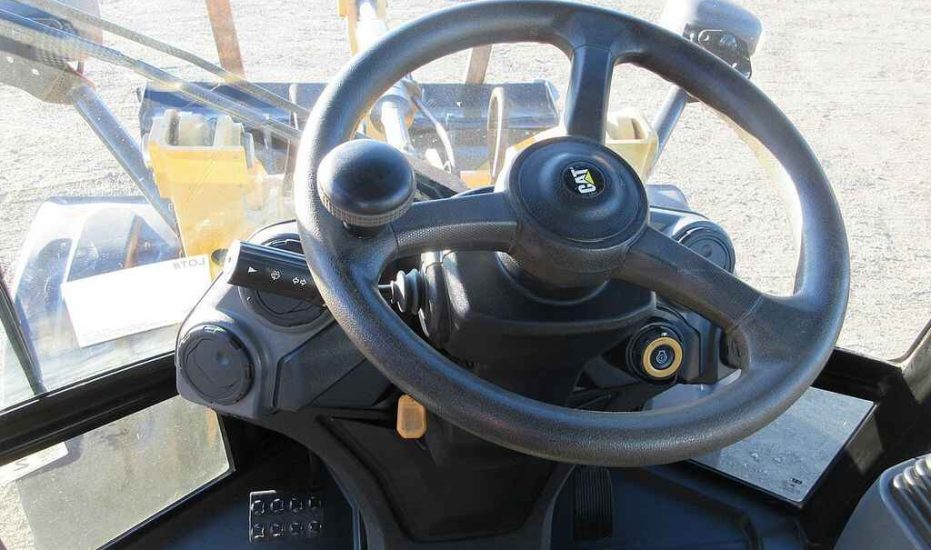

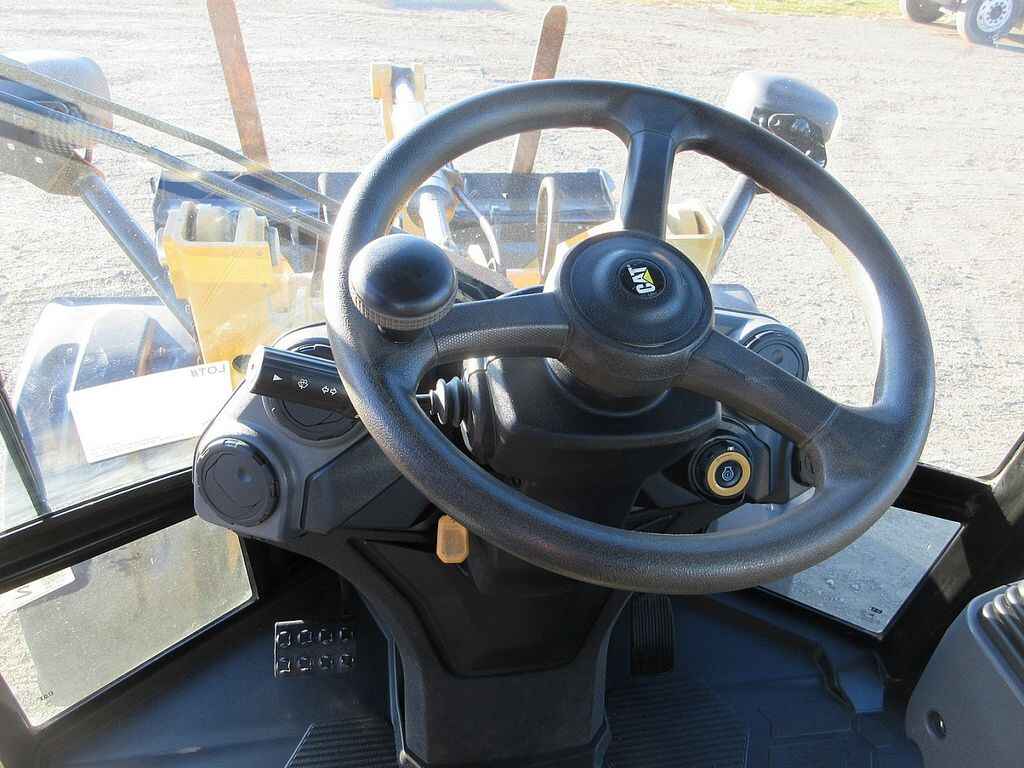

Steering

Articulation Angle: 39° (Each Direction)

Maximum Flow: 12.3 gal/min

Maximum Working Pressure: 3336 psi

Steering Cycle Time: 2.8 s (Full Left to Full Right)

Transmission

Speed Range 3 (Max Speed): 25 mph (Reverse: 19 mph)

Speed Range 2: 12 mph (Standard), 10.5 mph (High Speed)

Speed Range 1: 6 mph

Creep Speed: 6 mph

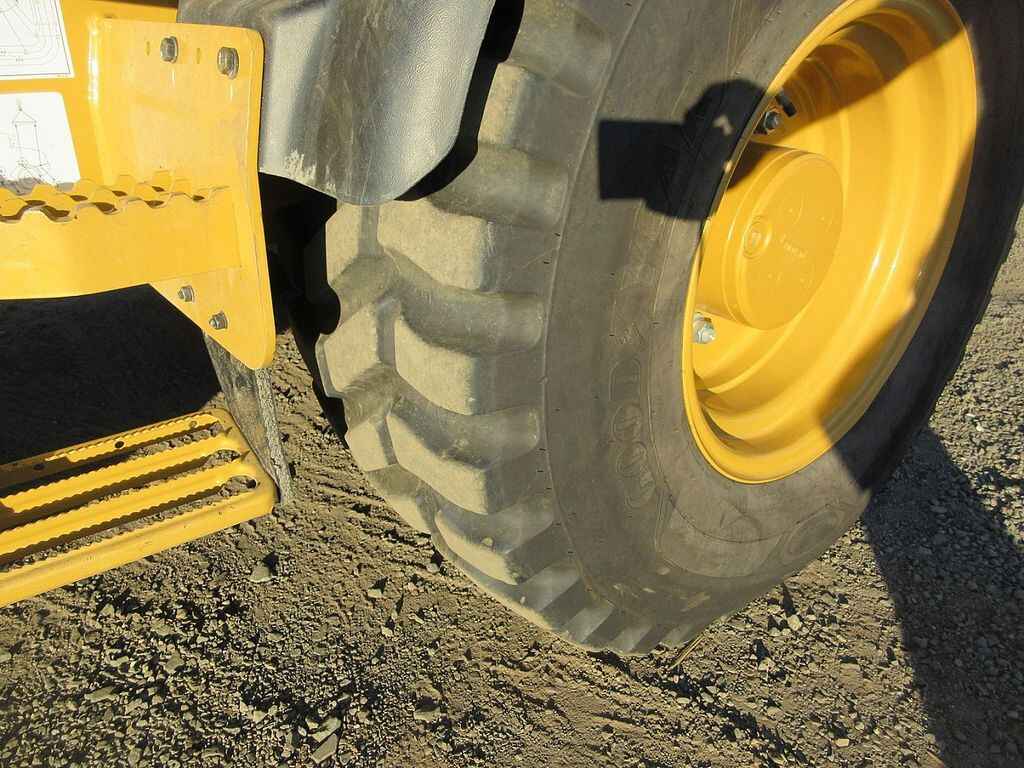

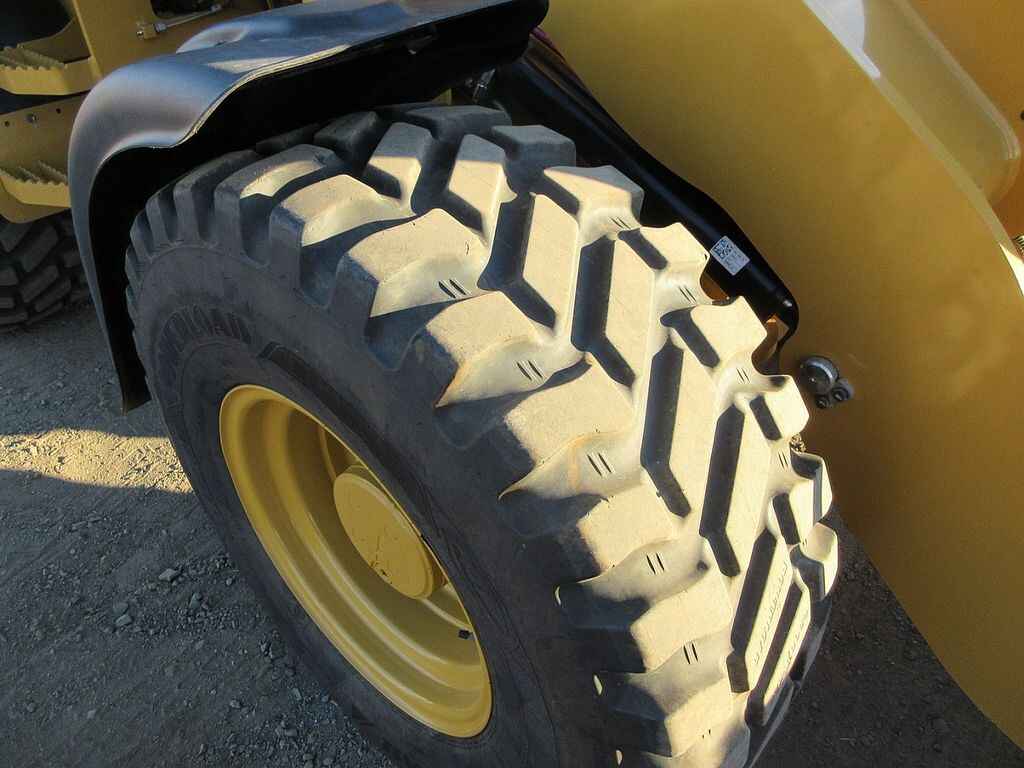

Tires

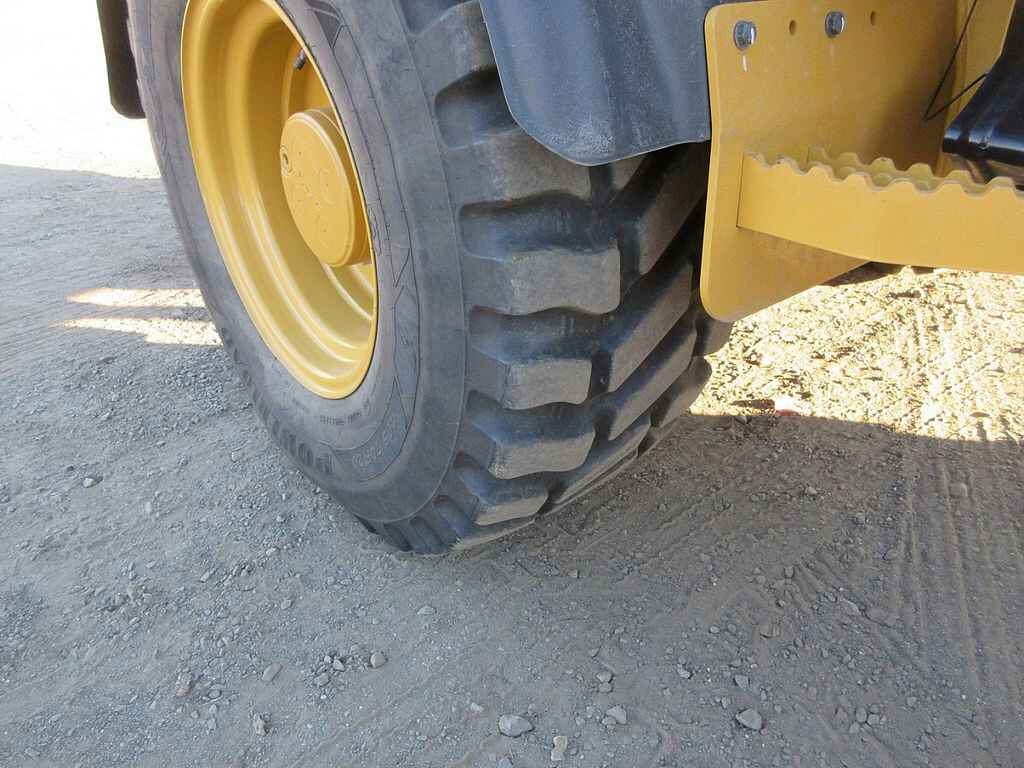

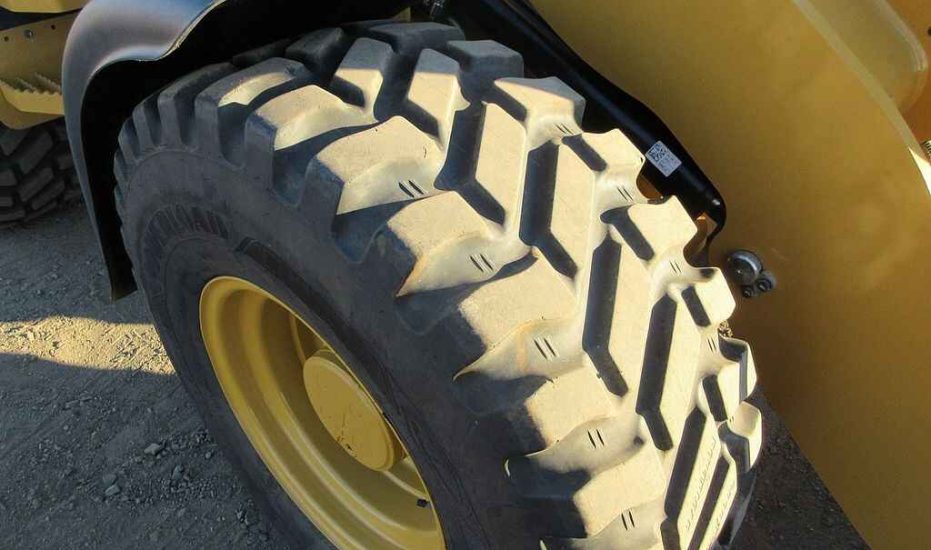

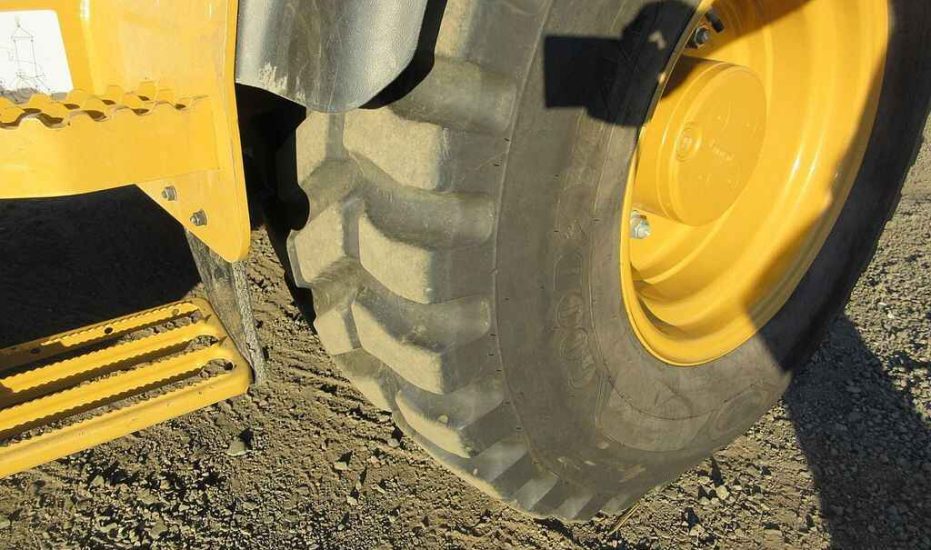

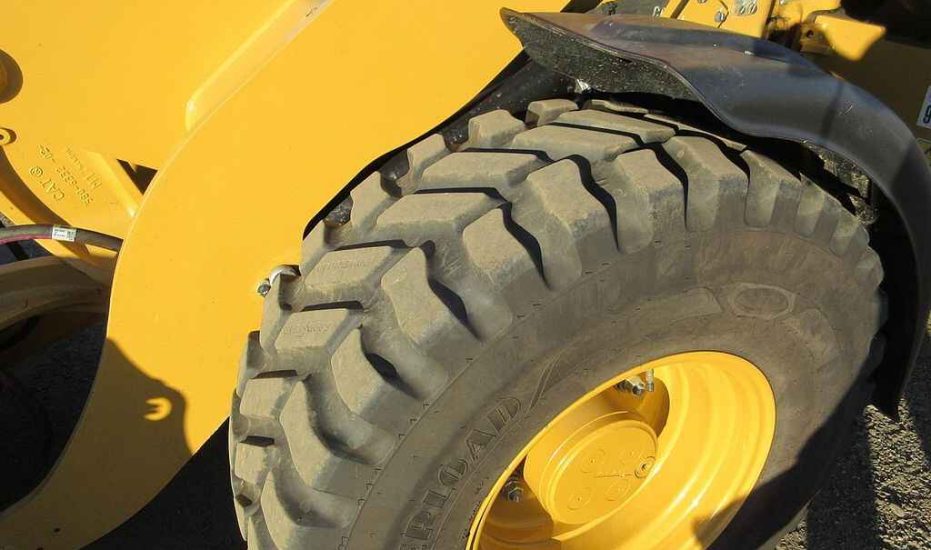

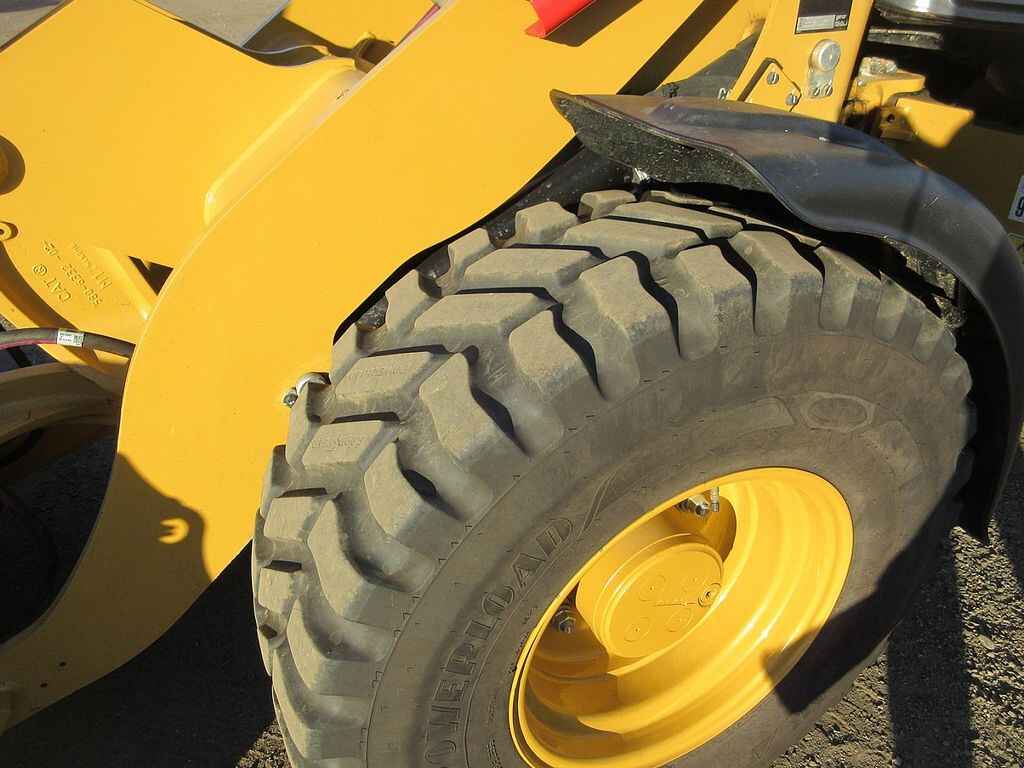

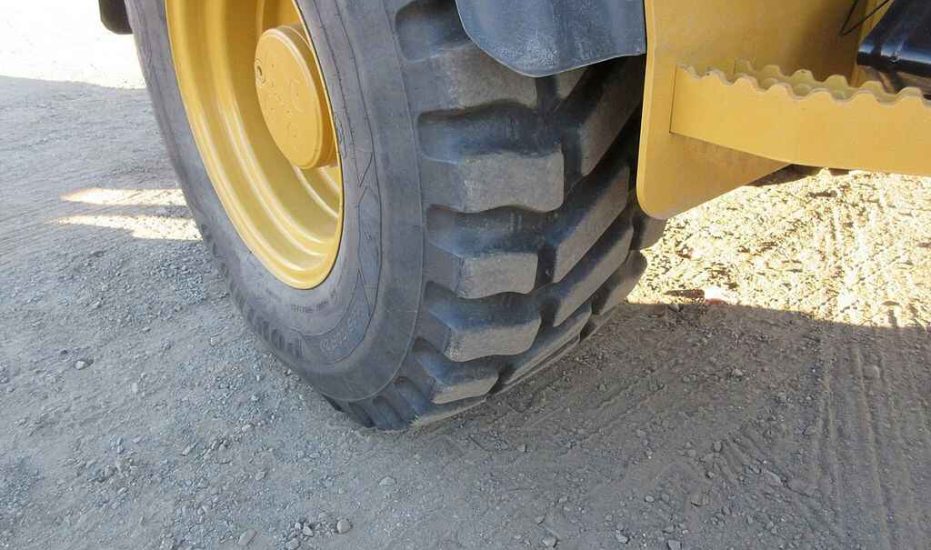

Standard Tire Size: 405/70 R20 SPT9

Optional Tire Sizes: 405/70 R20 Powerloads, 400/70 R20 XMCL/Bibload, 360/80 R20 TRI 2

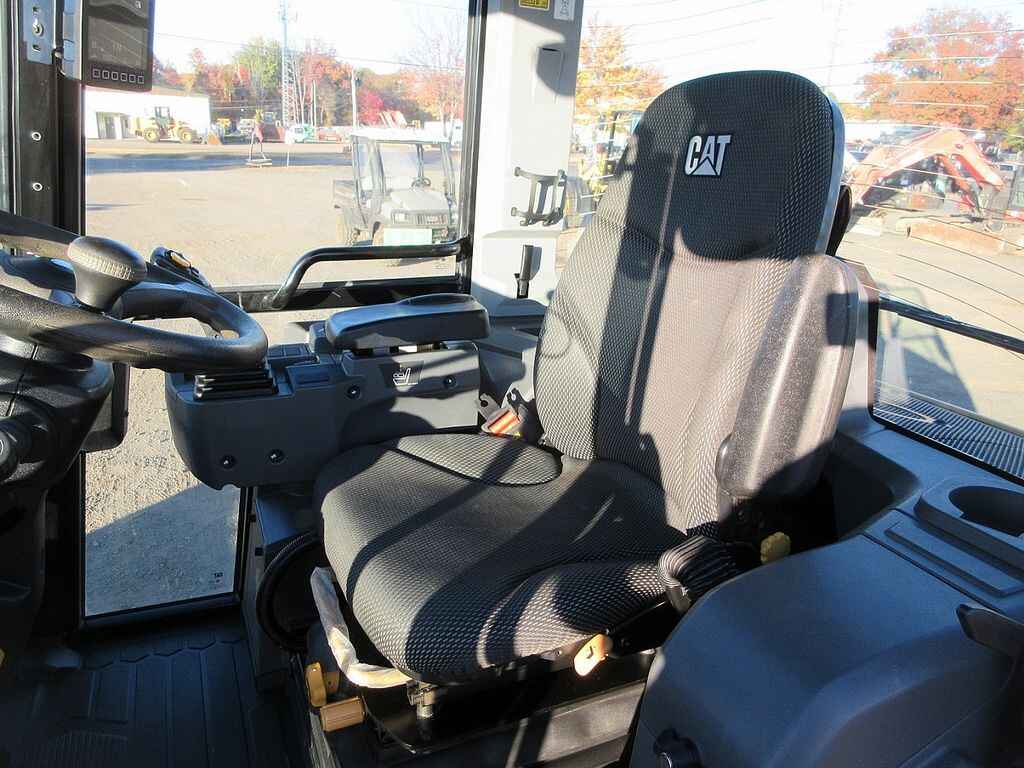

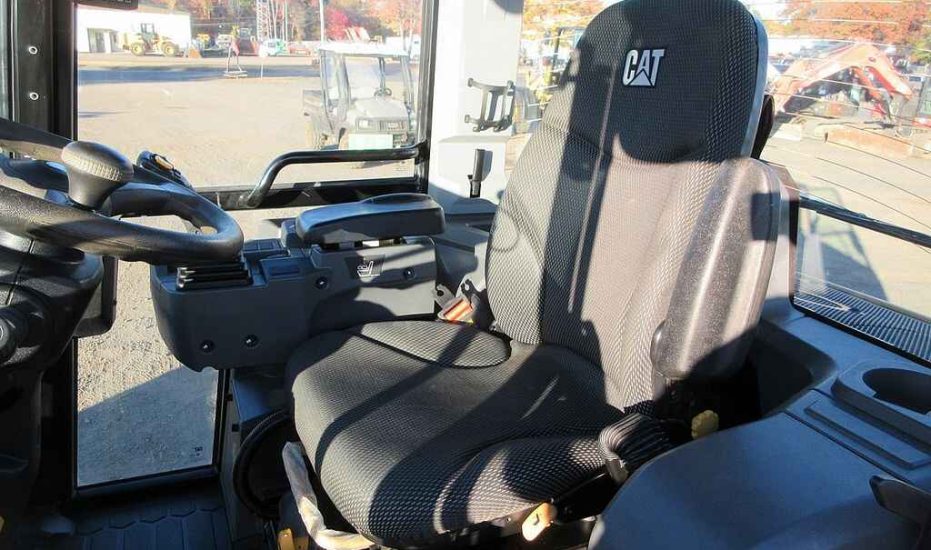

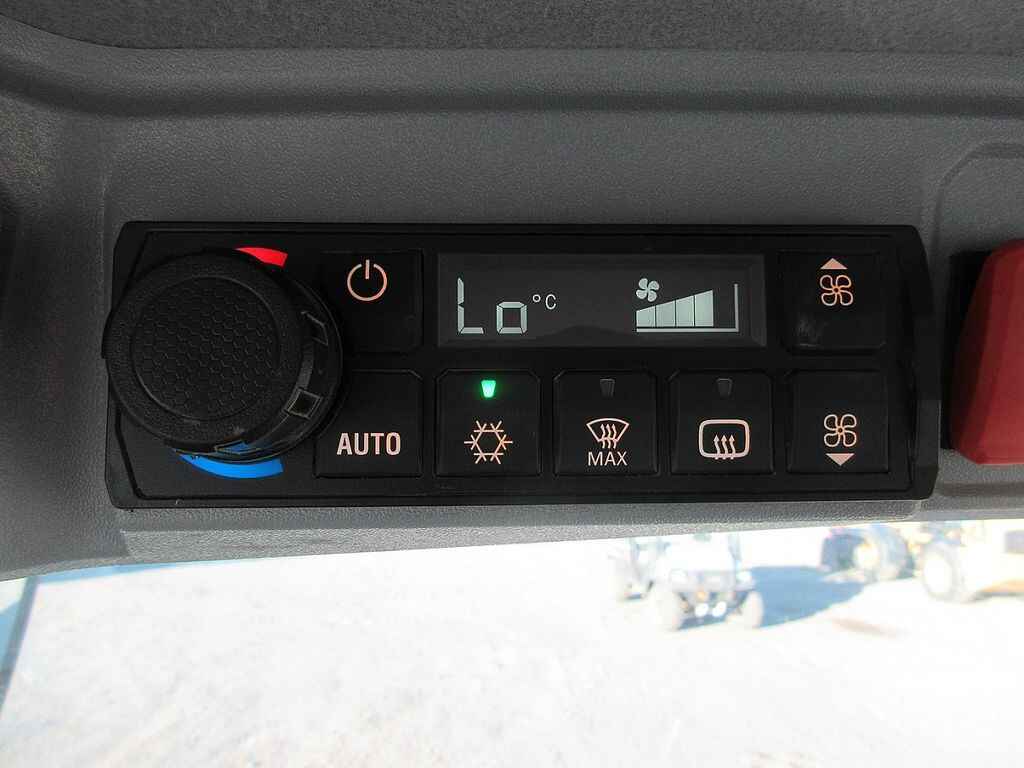

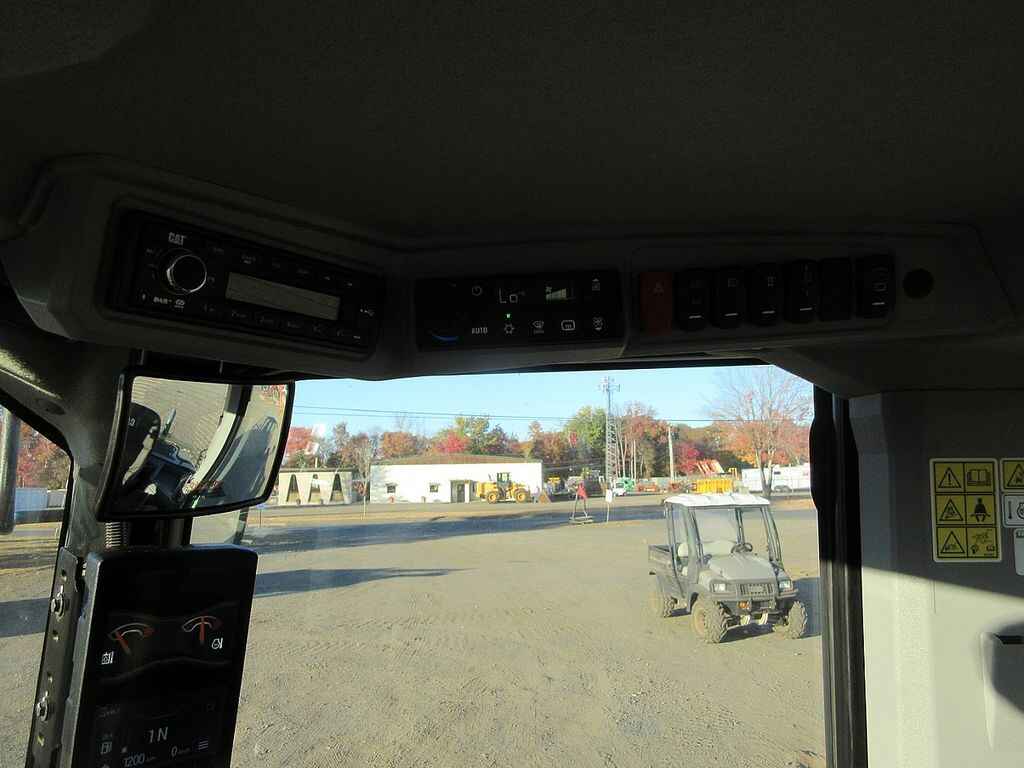

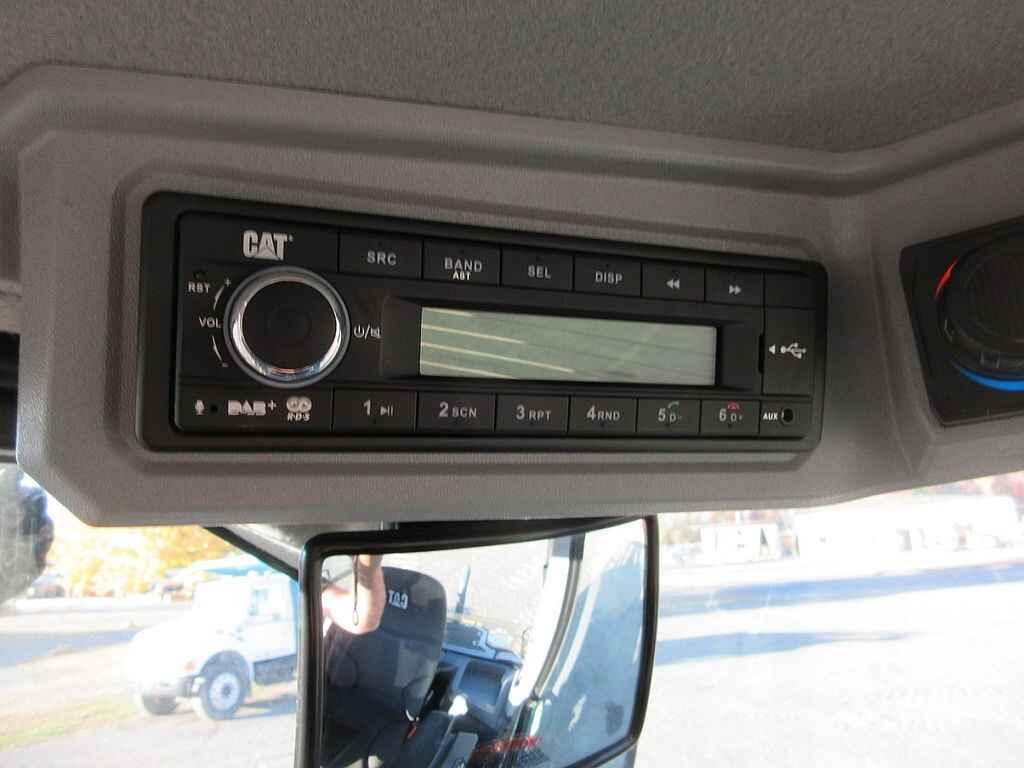

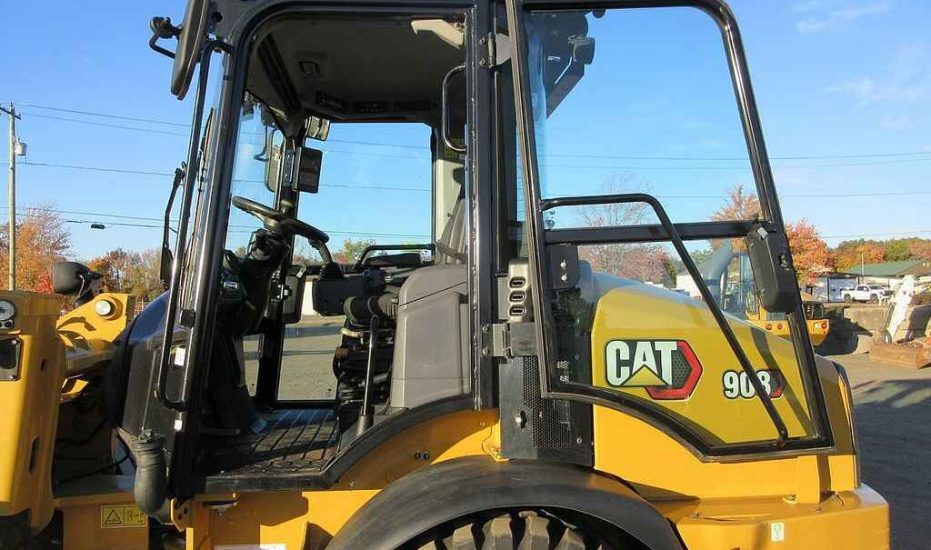

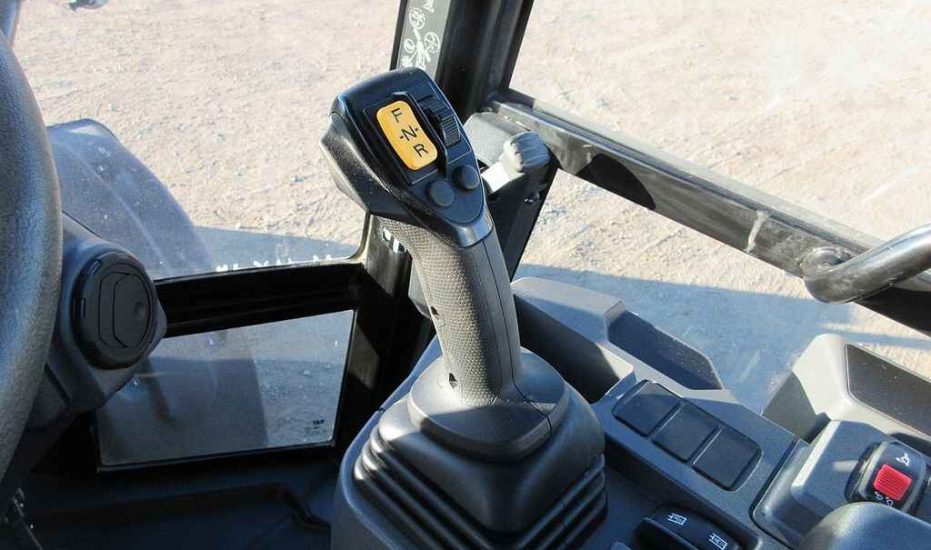

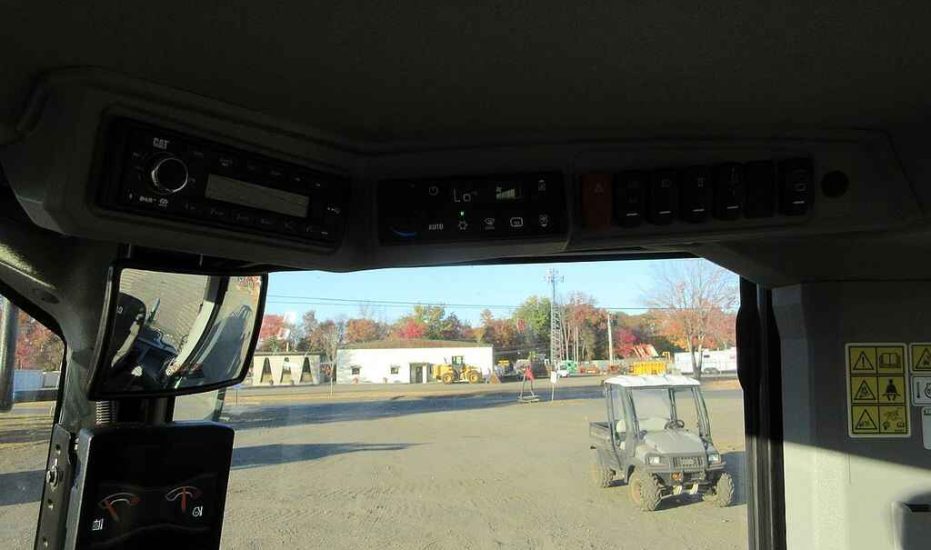

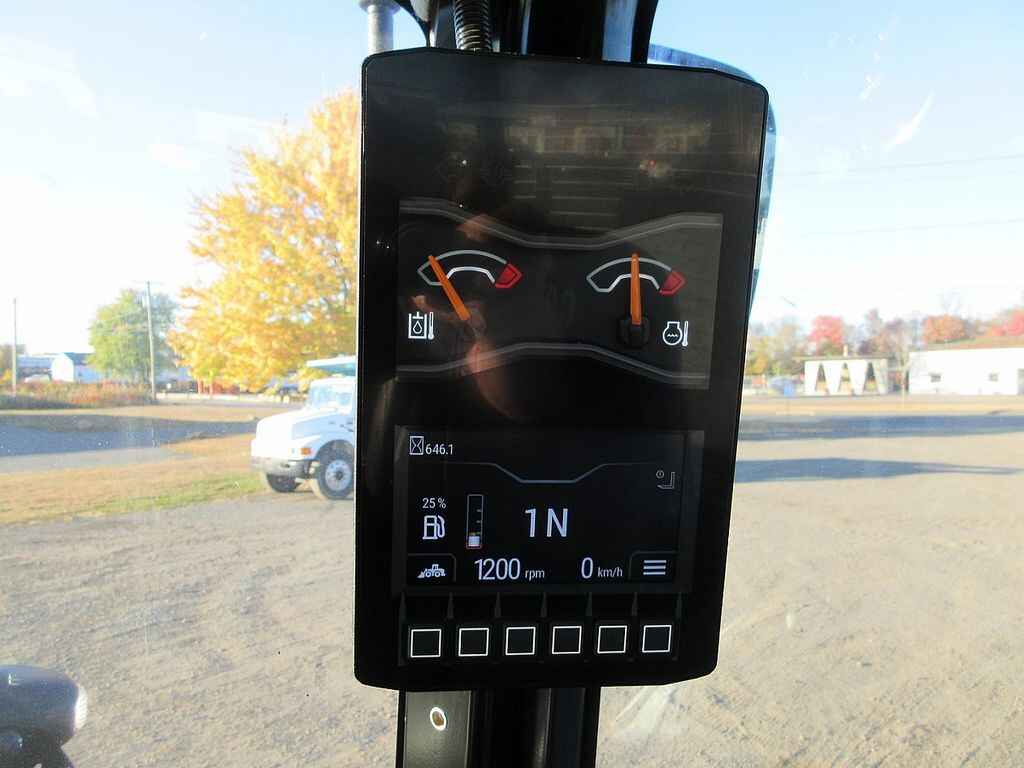

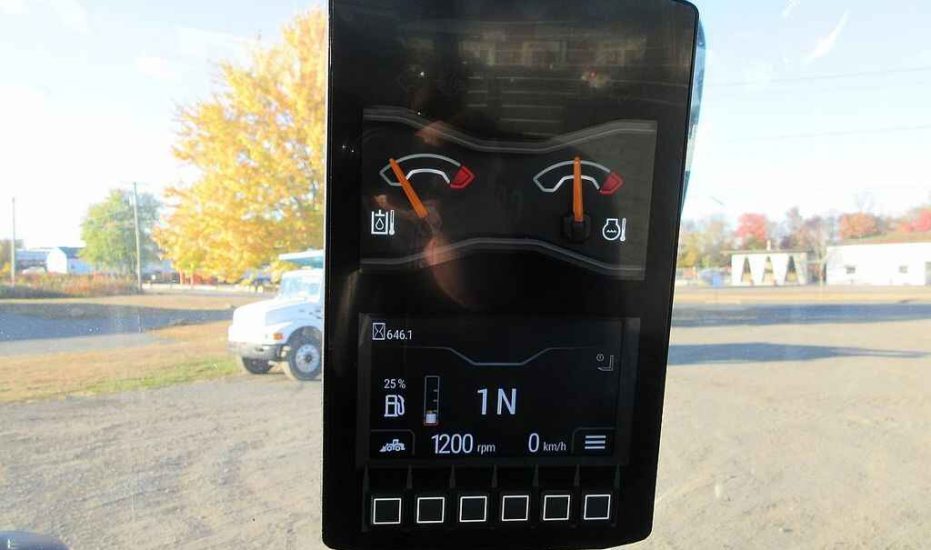

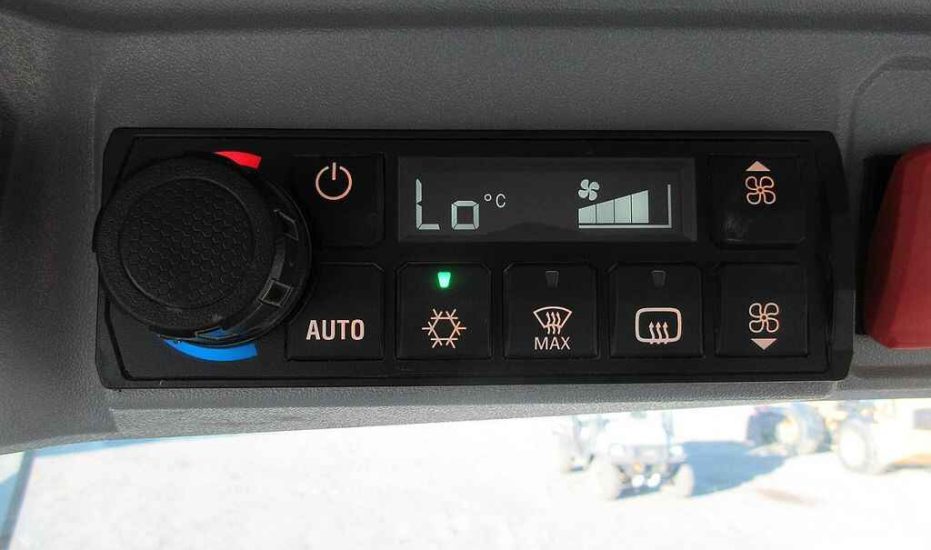

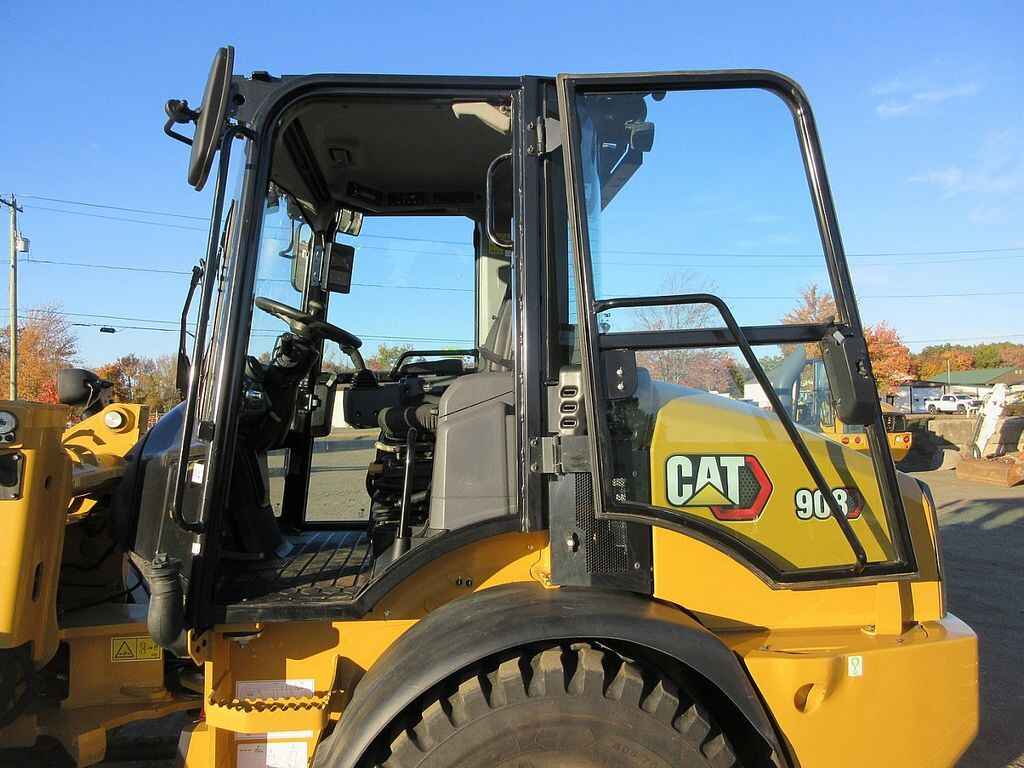

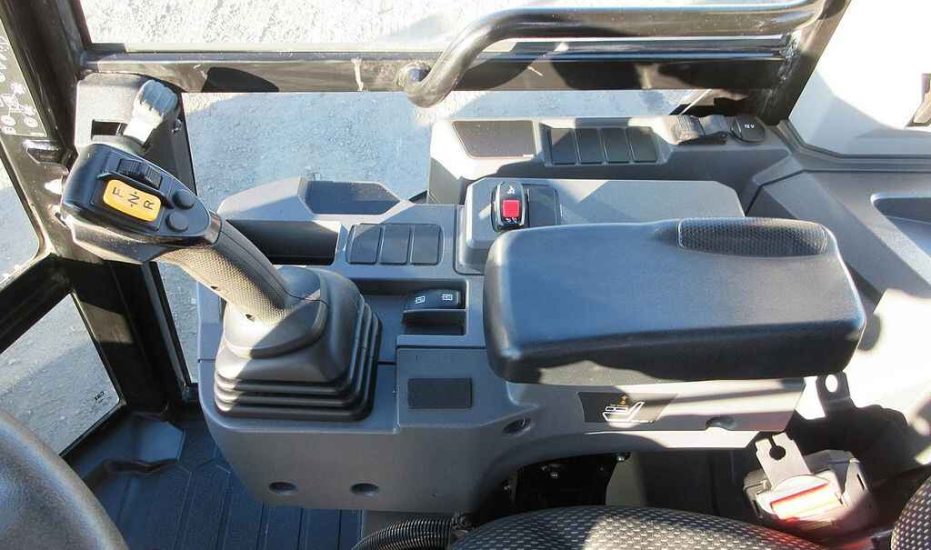

Cab

ROPS: ISO 3471:2008

FOPS: ISO 3449:2005 Level II

Canopy: Not available in EU

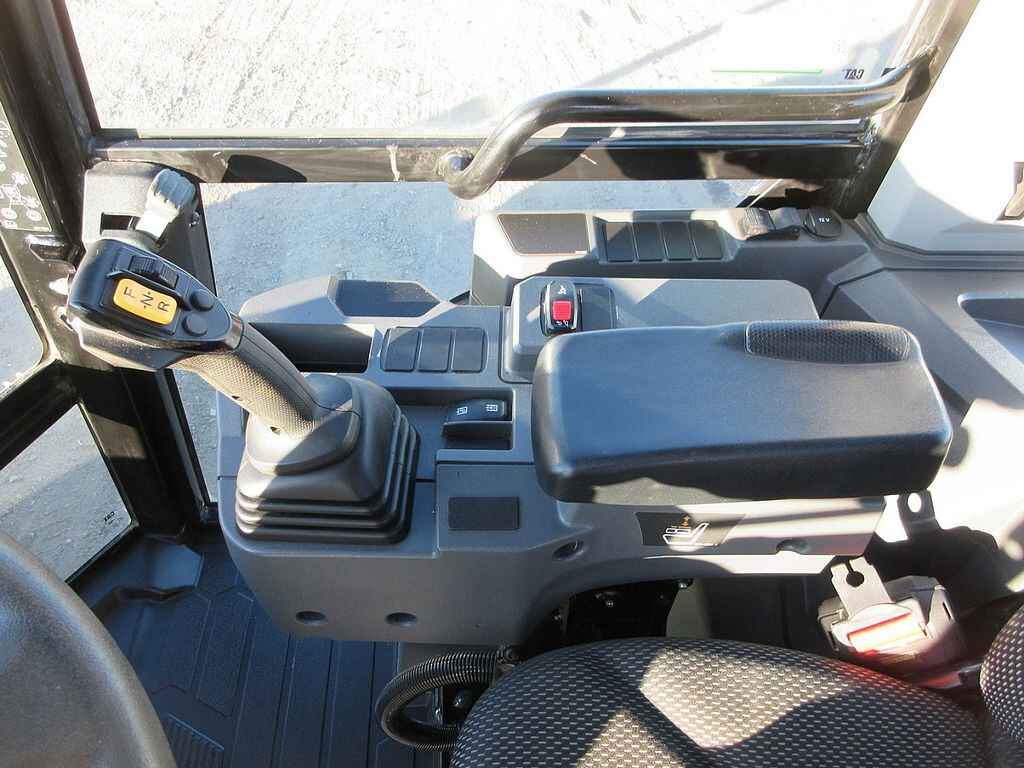

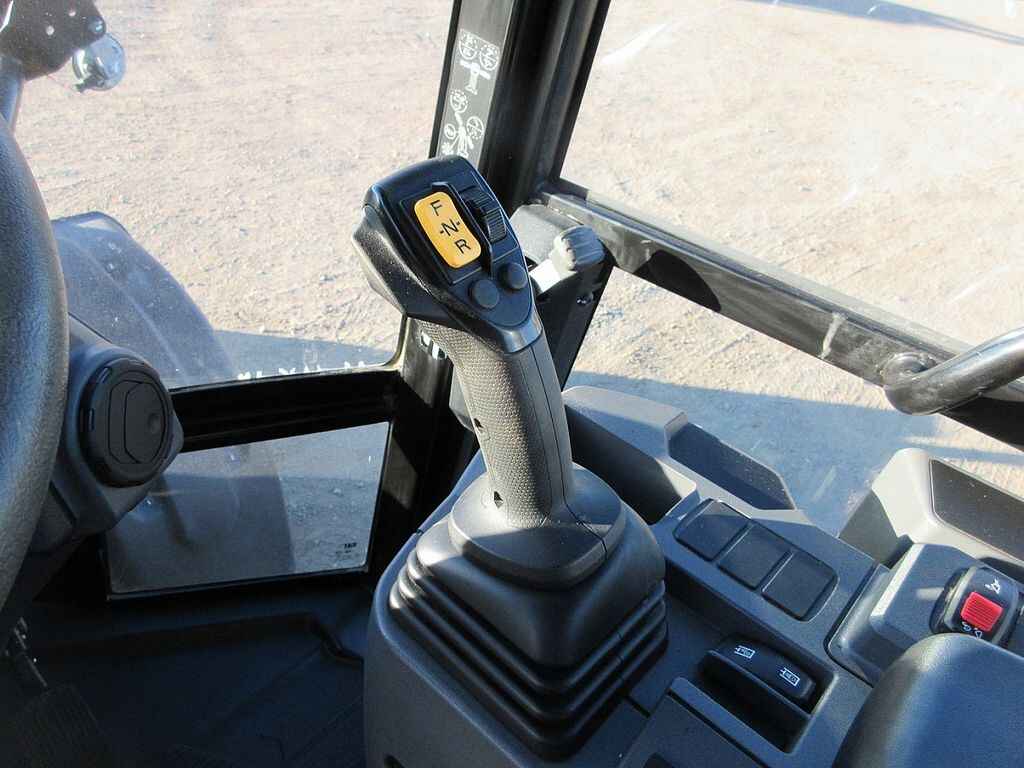

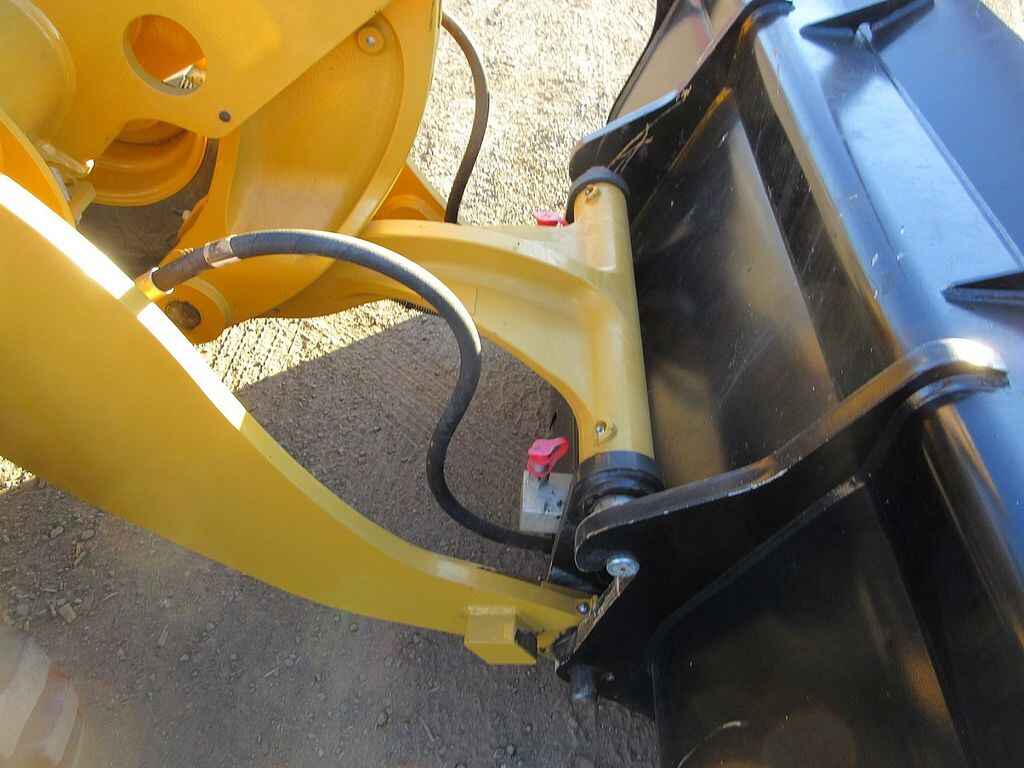

Loader Hydraulic System

Main Relief Pressure - 1st Auxiliary: 3408 psi

Main Relief Flow - Standard: 24 gal/min

Main Relief Flow - High Flow: 33 gal/min

Hydraulic Cycle Times:

• Rackback: 2.5 s
• Lift: 5.8 s
• Dump: 1.8 s
• Float Down: 3.6 s

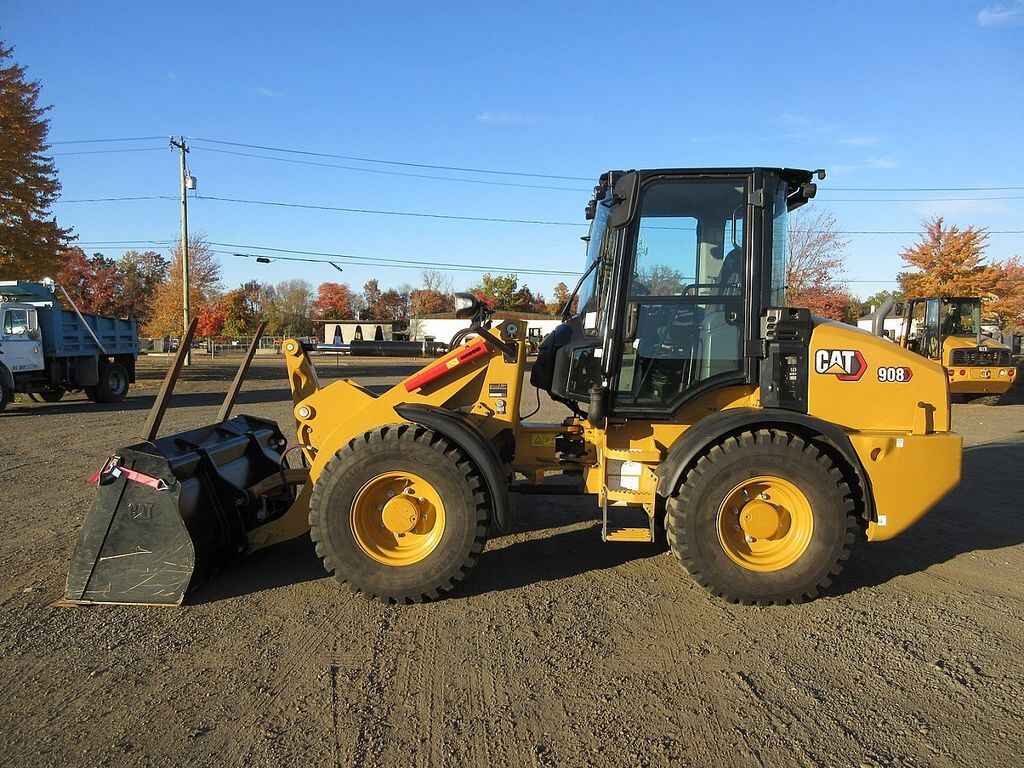

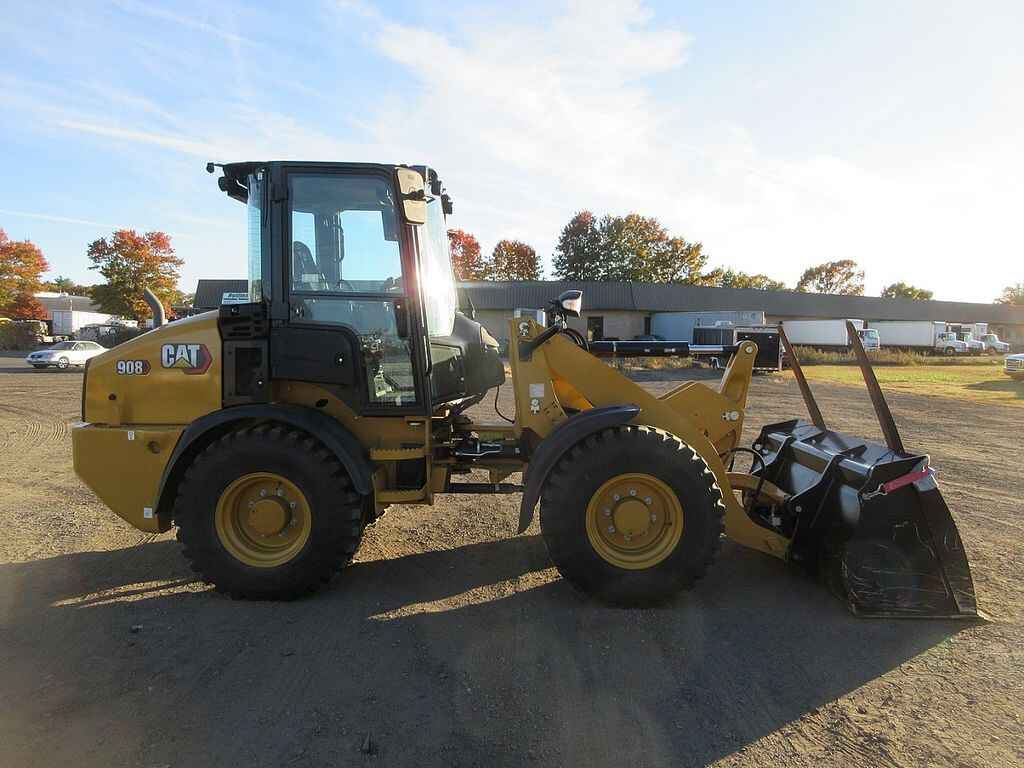

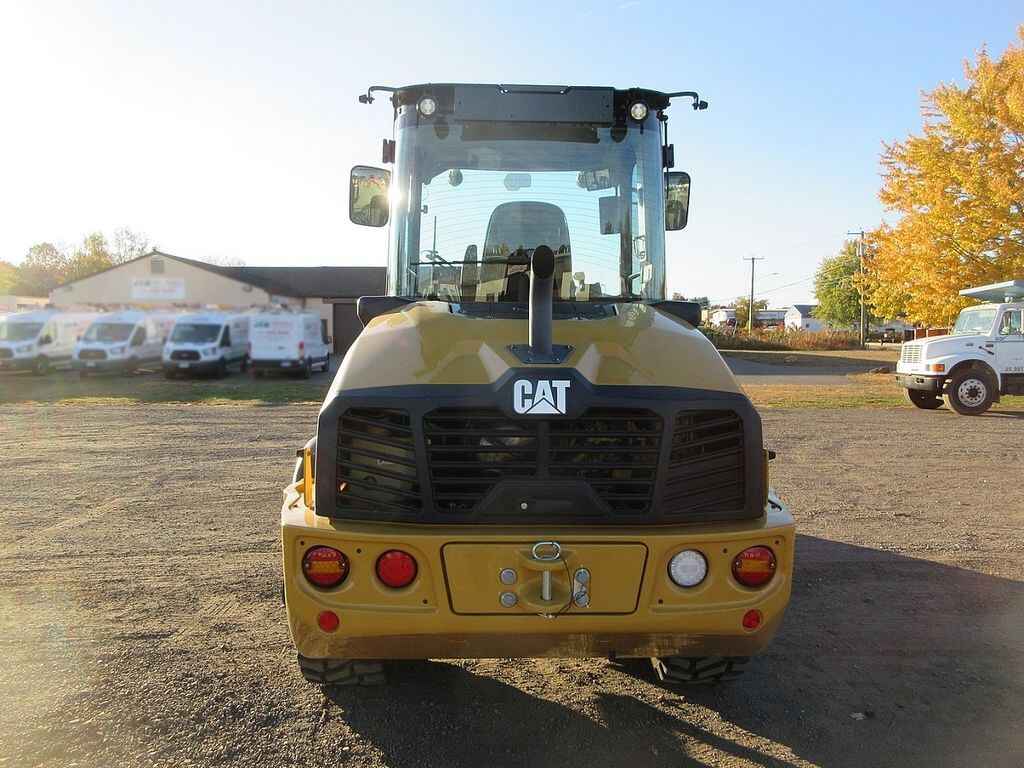

Dimensions

Height to Cab: 8.75 ft

Height to Beacon: 9.33 ft

Length Overall (With Bucket): 18.17 ft

Wheel Base: 7.08 ft

Bucket Clearance (at 45°): 8.58 ft

Ground Clearance: 1 ft

Turning Radius (Outside Tires): 13.17 ft

Tipping Load - Straight: 10,626 lb

Tipping Load - Full Turn: 8,895 lb

Operating Weight: 14,633 lb

Additional Dimensions (With SSL Coupler)

Height to Cab: 8.75 ft

Height to Beacon: 9.33 ft

Length Overall: 18.67 ft

Turning Radius (Over Bucket): 15.08 ft

Operating Weight: 14,752 lb

Tipping Load - Straight: 10,956 lb
